JENN-AIR® DETAILED PLANNING DIMENSIONS
A A
K
M
L
M
N
O
P
131º 131º
E
F
G
H
I
C*
D*
Wall
A*
B*
Floor
L
Q
K

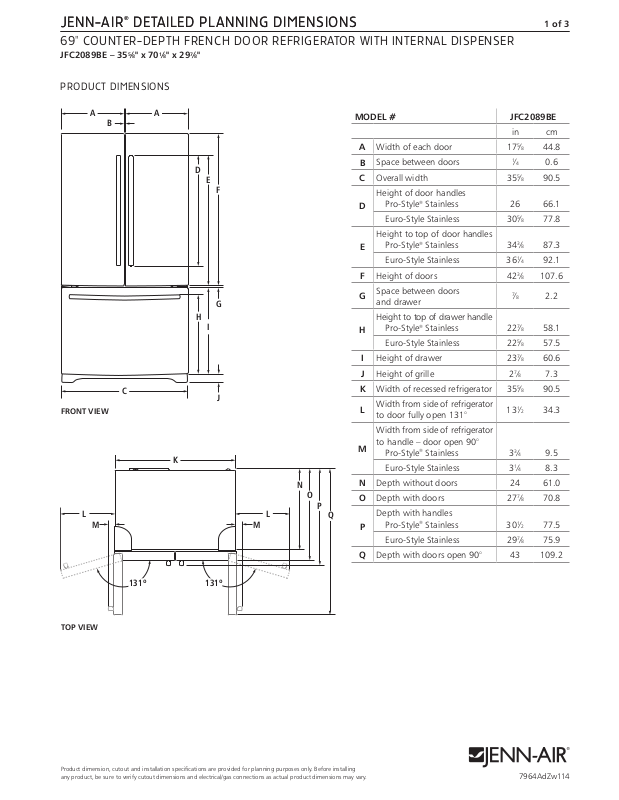

JENN-AIR® DETAILED PLANNING DIMENSIONS
69" COUNTER-DEPTH FRENCH DOOR REFRIGERATOR WITH INTERNAL DISPENSER
JFC2089BE – 355⁄8" x 701⁄8" x 297⁄8"
PRODUCT DIMENSIONS
1 of 3
FRONT VIEW
L
B
MODEL # JFC2089BE
in cm
Width of each door 175⁄8 44.8
A
Space between doors
D
E
F
B
Overall width 355⁄8 90.5
C
Height of door handles
Pro-Style® Stainless 26 66.1
D
1
⁄4 0.6
Euro-Style Stainless 305⁄8 77.8
Height to top of door handles
Pro-Style® Stainless 343⁄8 87.3
E
Euro-Style Stainless 361⁄4 92.1
Height of doors 423⁄8 107.6
G
H
I
C
J
F
Space between doors
G
and drawer
7
⁄8 2.2
Height to top of drawer handle
Pro-Style® Stainless 227⁄8 58.1
H
Euro-Style Stainless 225⁄8 57.5
Height of drawer 237⁄8 60.6
I
Height of grille 27⁄8 7.3
J
Width of recessed refrigerator 355⁄8 90.5
K
Width from side of refrigerator
L
to door fully open 131°
131⁄2 34.3
Width from side of refrigerator
to handle – door open 90°
M
Pro-Style® Stainless 33⁄4 9.5
Euro-Style Stainless 31⁄4 8.3
Depth without doors 24 61.0
N
O
L
M
M
P
Q
N
Depth with doors 277⁄8 70.8
O
P
Depth with handles
Pro-Style® Stainless 301⁄2 77.5
Euro-Style Stainless 297⁄8 75.9
Depth with doors open 90° 43 109.2
Q
131º 131º
TOP VIEW
Product dimension, cutout and installation specifications are provided for planning purposes only. Before installing
any product, be sure to verify cutout dimensions and electrical/gas connections as actual product dimensions may vary.
79 6 4A dZ w114
Page 2
JENN-AIR® DETAILED PLANNING DIMENSIONS
N
O
P
Q
JENN-AIR® DETAILED PLANNING DIMENSIONS
69" COUNTER-DEPTH FRENCH DOOR REFRIGERATOR WITH INTERNAL DISPENSER
JFC2089BE – 355⁄8" x 701⁄8" x 297⁄8"
DIMENSIONS AS INSTALLED
2 of 3
E
F
G
H
I
MODEL # JFC2089BE
in cm
Height to top of drawer (min.) 267⁄8 68.3
A*
Height to top of drawer handle (min.)
Pro-Style® Stainless 257⁄8 65.7
B*
Euro-Style Stainless 255⁄8 65.1
Height of recessed refrigerator (min.) 685⁄8 174.3
Wall
C*
Height to top of hinges (min.) 701⁄8 178.1
D*
Depth with drawer fully open
C*
D*
including drawer handle (min.)
E
Pro-Style® Stainless 455⁄8 115.9
Euro-Style Stainless 45 114.3
Depth with handles (min.)
A*
B*
Pro-Style® Stainless 301⁄2 77.5
F
Euro-Style Stainless 297⁄8 75.9
Depth with doors (min.) 277⁄8 70.8
G
Depth without doors (min.) 24 61.0
H
Depth to back of hinges (min.) 201⁄4 51.4
I
* Add 3⁄4" (1.9 cm) to the height dimension when leveling legs are fully
extended.
SIDE VIEW
Floor
Product dimension, cutout and installation specifications are provided for planning purposes only. Before installing
any product, be sure to verify cutout dimensions and electrical/gas connections as actual product dimensions may vary.
79 6 4 A d Zw 114
Page 3
B
C
D
E
F
G
J
H
I
M
M
131º 131º
E
F
G
H
I
C*
D*
Wall
A*
B*
Floor
JENN-AIR® DETAILED PLANNING DIMENSIONS
JENN-AIR® DETAILED PLANNING DIMENSIONS
3 of 3
69" COUNTER-DEPTH FRENCH DOOR REFRIGERATOR WITH INTERNAL DISPENSER
JFC2089BE – 355⁄8" x 701⁄8" x 297⁄8"
OPENING/CLEARANCE DIMENSIONS
MODEL # JFC2089BE
Width (min.) 365⁄8 93.0
A
A
Minimum width from side of refrigerator
to fixed wall – door open 90° (full access
to remove bins)
B
Minimum width from side of refrigerator
to fixed wall – door fully open 131°
Width of recommended electrical/
C
water installation area
Height (min.) 701⁄4 178.4
D
Height of recommended electrical
E
installation area (min.-max.)
Height of recommended water
F
installation area
Depth of recommended water
G
installation area
Water line location – distance from side 245⁄8 62.5
H
Water line location – distance
I
from bottom
e
Recommended electrical connection location
w
Recommended water connection location
B
FRONT VIEW
D
B
C
e
E
w
F
G
in cm
21⁄2 6.4
131⁄2 34.3
34 86.4
10- 2425.4-
61.0
10 25.4
1 2.5
93⁄8 23.8
ELECTRICAL REQUIREMENTS
115 volt, 60 Hz, AC only, 15- or 20-amp fused, grounded circuit is required.
A dedicated circuit is recommended. Use an outlet that cannot be turned
off by a switch.
Minimum length of power cord is 60" (152.0 cm). Do not use an
extension cord.
WATER PRESSURE REQUIREMENTS
A cold water supply with water pressure between 30 and 120 psi (207 and
827 kPa) is required to operate the water dispenser and ice maker. Call a
licensed, qualified plumber with any questions about the water pressure.
Reverse Osmosis Water Supply
IMPORTANT: The pressure of the water coming out of a reverse osmosis
system going to the water inlet valve of the refrigerator needs to be
between 30 and 120 psi (207 and 827 kPa).
If a reverse osmosis water filtration system is connected to the cold water
supply, the water pressure to the reverse osmosis system needs to be a
minimum of 40 to 60 psi (276 to 414 kPa).
I
H
BACK VIEW
Product dimension, cutout and installation specifications are provided for planning purposes only. Before installing
any product, be sure to verify cutout dimensions and electrical/gas connections as actual product dimensions may vary.
