Jenn-Air JED3430WB01, JED3430WF01, JED3430WS01, JED4430WB02, JED4430WR02 Installation Guide

...
JENN-AIR°
30" (76.2 CM) AND 36" (91.4 CM) ELECTRIC
DOWNDRAFT COOKTOP INSTALLATION INSTRUCTIONS
INSTRL)CTIONSD'INSTALLATION DE LA TABLEDE
CUISSON ELECTRIQUEAVEC ASPIRATION PARLEBASDE
30" (76,2 CM) ET36" (91,4 CM)
Table of Contents/Table des mati_res
COOKTOP SAFETY .................................................................... 2
INSTALLATION REQUIREMENTS ............................................ 2
Electrical Requirements ............................................................ 7
INSTALLATION INSTRUCTIONS .............................................. 7
Prepare Oooktop ...................................................................... 7
Install Foam Strip ...................................................................... 8
Rotate Blower - Optional .......................................................... 8
Install Oooktop .......................................................................... 8
Oomplete Installation.............................................................. 10
SECURITE DE LA TABLE DE CUlSSON .................................... 11
EXIGENCES D'INSTALLATION .................................................. 11
Outillage et pieces ..................................................................... 11
Exigences d'emplacement ........................................................ 12
Exigences concernant I'evacuation .......................................... 14
Methodes d'evacuation ............................................................. 15
Specifications electriques ......................................................... 16
INSTRUCTIONS D'INSTALLATION ............................................ 17
Preparation de la table de cuisson ............................................ 17
Installation de la bande de mousse .......................................... 17
Rotation du ventilateur - Facultative ......................................... 18
Installation de la table de cuisson ............................................. 18
Raccordement electrique .......................................................... 19
Achever I'installation .................................................................. 20
iMPORTANT:
Save for local electrical inspector's use.
iMPORTANT :
,&,conserver pour consultation par I'inspecteur local des installations 61ectriques.
W10436037A
COOKTOP SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.
INSTALLATIONREQUIREMENTS
Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed
here. Tools needed
• Tape measure
• Flat-blade screwdriver
• Phillips head screwdriver
• Drill
• Level
• 6" socket extension
Parts supplied
• Vent grille
• Pre-filter
• Marker or pencil
• Pliers
• 1_,, drill bit
• Jigsaw
• Ratchet with 3/8"socket
Parts needed
• A ULlisted or CSA approved strainrelieffor %"(2.2 cm) knockout.
• A UL listed or CSA approved conduit connector for V2"(1.3 cm) trade-size metal-clad conduit
• UL listed wire connectors Metal ducting Jenn-Air ®wall cap
Jenn-Air®6 '' (15.2 cm) Round Surface Wall Cap Damper Order Part Number A406
Jenn-Air ®31¼"x 10" (8.3 x 25.4 cm) Surface Wall Cap Damper Order Part Number A403
To order, see the "Assistance or Service" section of the Use and Care Guide.
• Vent clamps
Check local codes. Check existing electrical supply. See "Electrical Requirements" section.
It is recommended that all electrical connections be made by a licensed, qualified electrical installer.
2
IMPORTANT: Observe all governing codes and ordinances. 36" (91.4 cm) Cooktop - for standard and electric models When installing cooktop, use minimum dimensions given.
• To eliminate the risk of burns or fire by reaching over the heated surface units, cabinet storage space located above
the surface units should be avoided. If cabinet storage is to be provided, the risk can be reduced by installing a range hood that projects horizontally a minimum of 5" (12.7 cm) beyond the bottom of the cabinets.
• Use the countertop opening dimensions that are given with these Installation Instructions. Given dimensions are
minimum clearances and provide 0" (0 cm) clearance.
• Grounded electrical supply is required. See "Electrical B Requirements" section.
• If cabinet has drawers, drawers will need to be removed and A drawer fronts installed on front of cabinet.
IMPORTANT: An under-counter built-in oven cannot be installed under this product.
A. Model/serial rating plate location B. 20_/' (52.3 cm) C. 22" (55.9 cm)

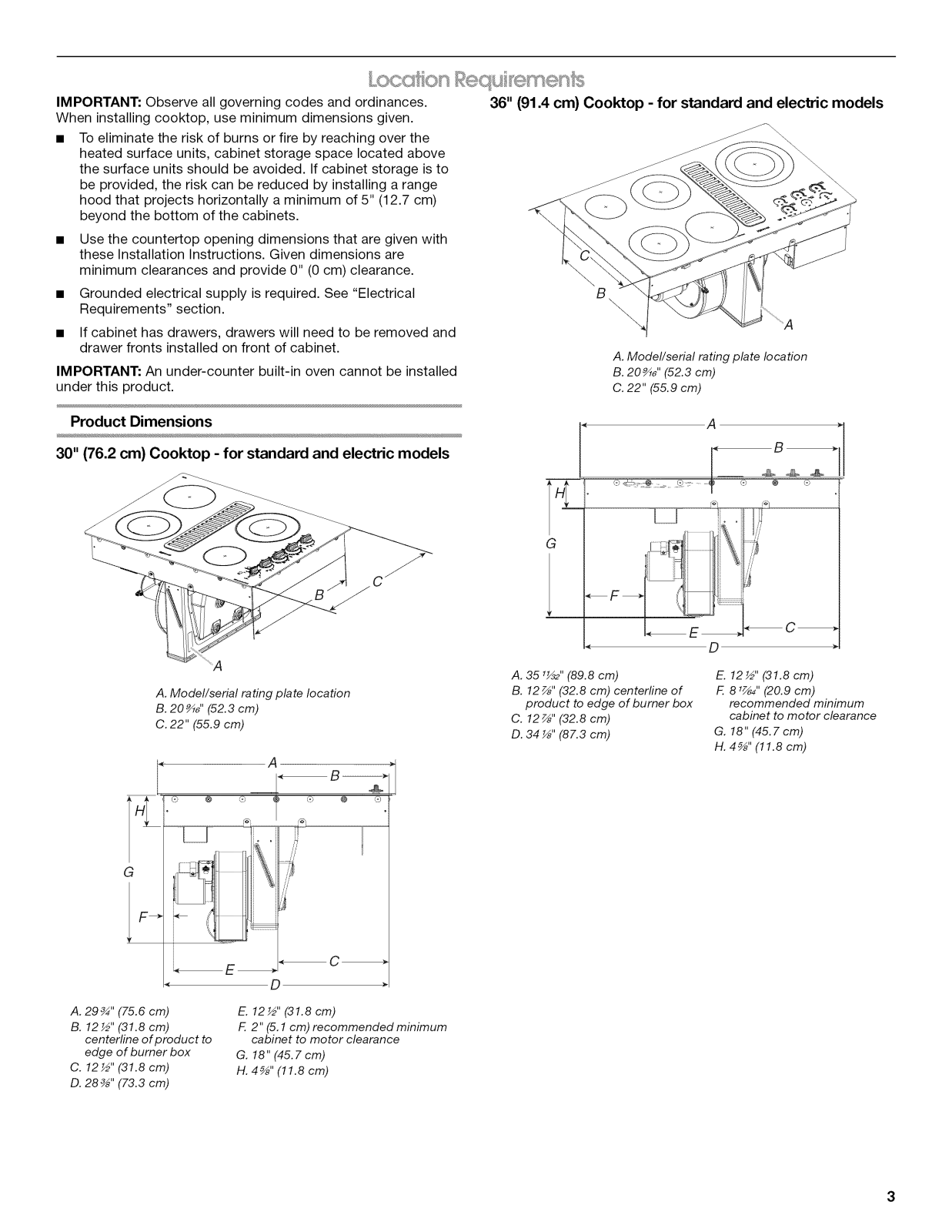

Product Dimensions
30" (76.2 cm) Cooktop - for standard and electric models
A. Model/serial rating plate location B. 20_" (52.3 cm) C. 22" (55.9 cm)
A
@' @ @ t #_ @ @
/
° =
G
G
A. 35 r½/, (89.8 cm) B. 12_" (32.8 cm) centerline of
product to edge of burner box C. 12_" (32.8 cm) D. 34 _" (87.3 cm)
A
B_
D
E. 12½" (31.8 cm) F. 81_4" (20.9 cm)
recommended minimum cabinet to motor clearance
G. 18" (45.7 cm) H. 4_" (11.8 cm)
, F_
_ D _
A. 29¾" (75.6 cm) B. 12½" (31.8 em)
centerline of product to
edge of burner box C. 12½" (31.8 cm) D. 28 _" (73.3 cm)
E_
E. 12½" (31.8 cm) F. 2" (5.1 cm) recommended minimum
cabinet to motor clearance
G. 18" (45.7 cm) H. 4_" (11.8 cm)
C
Cabinet Dimensions
G
A. 30" (76.2 cm) on 30" (76.2 cm) models
36" (91.4 cm) on 36" (91.4 cm) models B. Combustible area above countertop (shown by dashed box above) C. 30" (76.2 cm) minimum clearance between top of cooktop platform
and bottom of uncovered wood or metal cabinet (24" [61 cm]
minimum clearance if bottom of wood or metal cabinet is covered
by not less than ¼" [0.6 cm] flame retardant millboard covered with
not less than No. 28 MSG sheet steel, 0.015" [0.04 cm] stainless
steel, or 0.024" [0.06 cm] aluminum or 0.020" [0.05 cm] copper) D. 13" (33 cm) recommended upper cabinet depth
E.2"(5.1 cm) F 21 '_" (73.4 cm)
G. 18" (45. 7cm) minimum clearance from upper cabinet to countertop
within minimum horizontal clearances to cooktop
H. Junction box or outlet; 12" (30.5 cm) minimum from bottom of
countertop
I.Junction box or outlet; 10" (25.4 cm) from right-hand side of
cabinet
J. 28 _" (73.4 cm) on 30" (76.2 cm) models
34V2" (87.6 cm) on 36" (91.4 cm) models K. 2V2" (6.4 cm) minimum distance to nearest left and right side
combustible surface above cooktop
L. 1V2"(3.8 cm) minimum clearance between back wall and
countertop
NOTES: After making the countertop cutout, some installations may require notching down the base cabinet side walls to clear the cooktop base. To avoid this modification, use a base cabinet
with sidewalls wider than the cutout.
• A minimum side clearance of 6" (15.2 cm) is recommended between side of cooktop and side wall for maximum ventilation performance.
• A minimum clearance of 2" (5.1 cm) is recommended between the motor/blower and cabinet for proper cooling. A 6" (15.2 cm) clearance is recommended for servicing access.
Cutout Dimensions
H
A. 28_" (73.4 cm) maximum on 30" (76.2 cm) models
34V2" (87.6 cm) maximum on 36" (91.4 cm) models
B. 21 _" (53.7 cm) maximum on both 30" (76.2 cm) and 36" (91.4 cm)
models
C. 8_" (21.9 cm) on 30" (76.2 cm) models
15_" (39.2 cm) on 36" (91.4 cm) models
D. 6_" (16.0 cm) on both 30" (76.2 cm) and 36" (91.4 cm) models
E.2" (5.1 cm) minimum space to front edge of cooktop
F Floor exhaust option G. 6 _" (15.6 cm) for 6" (15.2 cm) vent system H. 8_" (21.9 cm) on 30" (76.2 cm) models
15_" (39.2 cm) on 36" (91.4 cm) models
I. 16" (40.6 cm) on both 30" (76.2 cm) and 36" (91.4 cm) models
J. Waft exhaust option

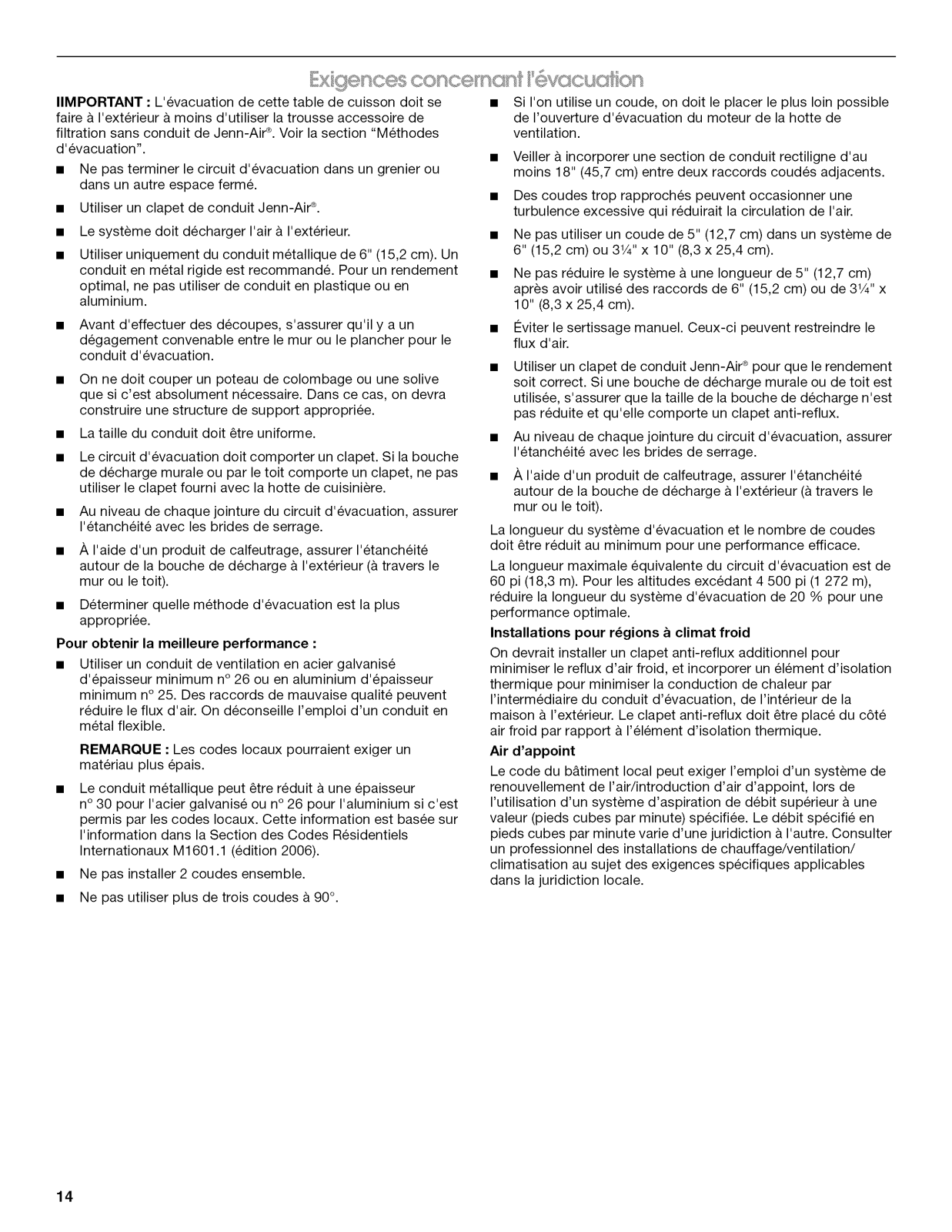

IMPORTANT: This cooktop must be exhausted outdoors unless
using the Jenn-Air®Duct Free Filter Accessory Kit. See "Venting
Methods" section.
• Do not terminate the vent system in an attic or other enclosed area.
• Use a Jenn-Air ®vent cap.
• Vent system must terminate to the outside.
• Use only a 6" (15.2 cm) round metal vent. Rigid metal vent is recommended. For best performance, do not use plastic or
metal foil vent.
• Before making cutouts, make sure there is proper clearance within the wall or floor for the exhaust vent.
• Do not cut a joist or stud unless absolutely necessary. If a joist or stud must be cut, then a supporting frame must be
constructed.
• The size of the vent should be uniform.
• The vent system must have a damper. If roof or wall cap has a damper, do not use damper supplied with the range hood.
• Use vent clamps to seal all joints in the vent system.
• Use caulking to seal exterior wall or roof opening around the cap.
• Determine which venting method is best for your application.

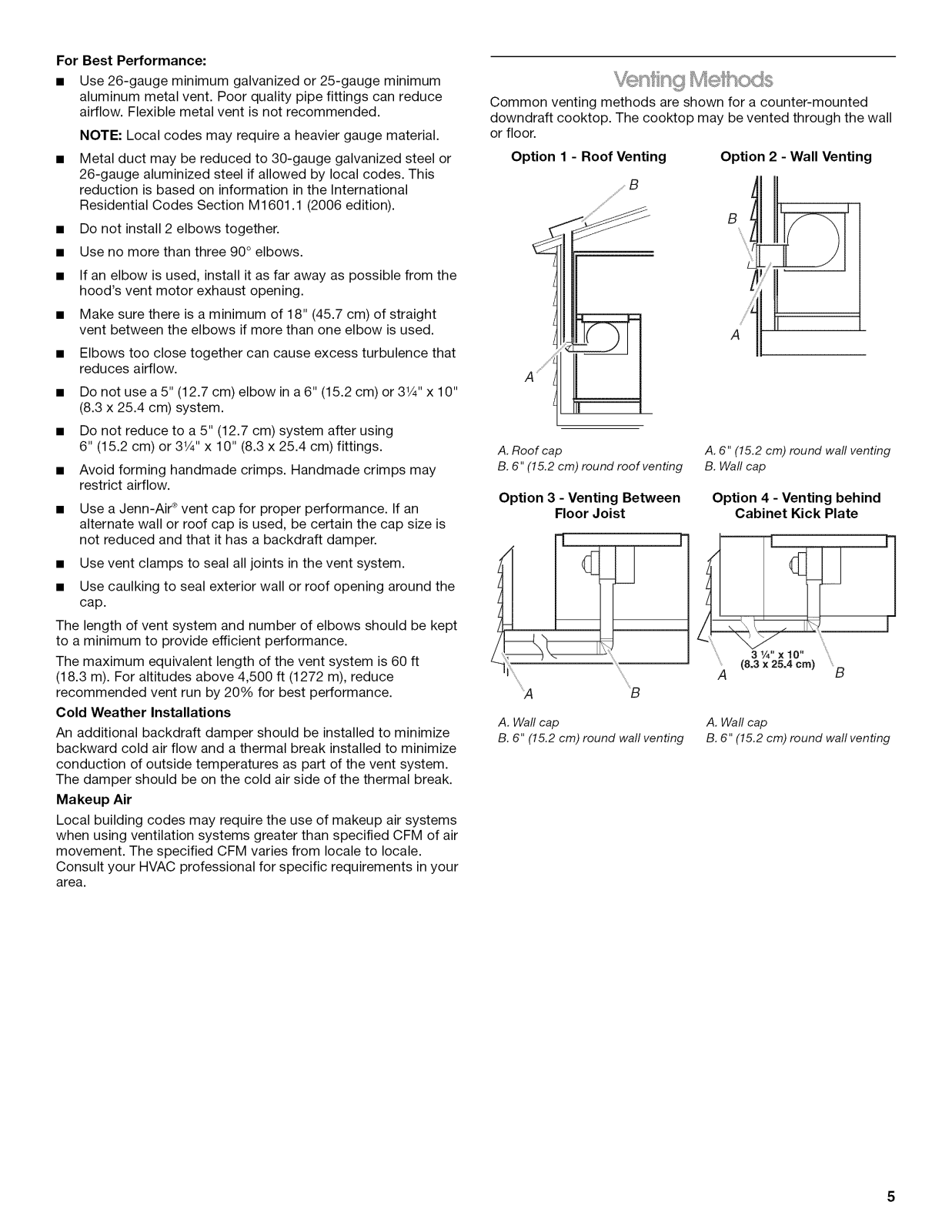

For Best Performance:
• Use 26-gauge minimum galvanized or 25-gauge minimum aluminum metal vent. Poor quality pipe fittings can reduce
airflow. Flexible metal vent is not recommended. NOTE: Local codes may require a heavier gauge material.
• Metal duct may be reduced to 30-gauge galvanized steel or 26-gauge aluminized steel if allowed by local codes. This
reduction is based on information in the International Residential Codes Section M1601.1 (2006 edition).
• Do not install 2 elbows together.
• Use no more than three 90° elbows.
• If an elbow is used, install it as far away as possible from the hood's vent motor exhaust opening.
• Make sure there is a minimum of 18" (45.7 cm) of straight vent between the elbows if more than one elbow is used.
• Elbows too close together can cause excess turbulence that reduces airflow.
• Do not use a 5" (12.7 cm) elbow in a6" (15.2 cm) or 31/4"x 10 '' (8.3 x 25.4 cm) system.
• Do not reduce to a 5" (12.7 cm) system after using 6" (15.2 cm) or 31/4'' x 10" (8.3 x 25.4 cm) fittings.
• Avoid forming handmade crimps. Handmade crimps may restrict airflow.
• Use a Jenn-Air ®vent cap for proper performance. If an alternate wall or roof cap is used, be certain the cap size is not reduced and that it has a backdraft damper.
• Use vent clamps to seal all joints in the vent system.
• Use caulking to seal exterior wall or roof opening around the cap.
The length of vent system and number of elbows should be kept to a minimum to provide efficient performance.
The maximum equivalent length of the vent system is 60 ft (18.3 m). For altitudes above 4,500 ft (1272 m), reduce recommended vent run by 20% for best performance.
Cold Weather Installations An additional backdraft damper should be installed to minimize
backward cold air flow and a thermal break installed to minimize conduction of outside temperatures as part of the vent system.
The damper should be on the cold air side of the thermal break. Makeup Air Local building codes may require the use of makeup air systems
when using ventilation systems greater than specified CFM of air movement. The specified CFM varies from locale to locale. Consult your HVAC professional for specific requirements inyour
area.
Common venting methods are shown for a counter-mounted downdraft cooktop. The cooktop may be vented through the wall
or floor.
Option 1 - Roof Venting Option 2 - Wall Venting
A. Roof cap B. 6" (15.2 cm) round roof venting
Option 3 - Venting Between
Floor Joist
A. Wall cap B. 6" (15.2 cm) round wall venting
A. 6" (15.2 cm) round wall venting B. Wall cap
Option 4 - Venting behind
Cabinet Kick Plate
A. Wall cap B. 6" (15.2 cm) round wall venting

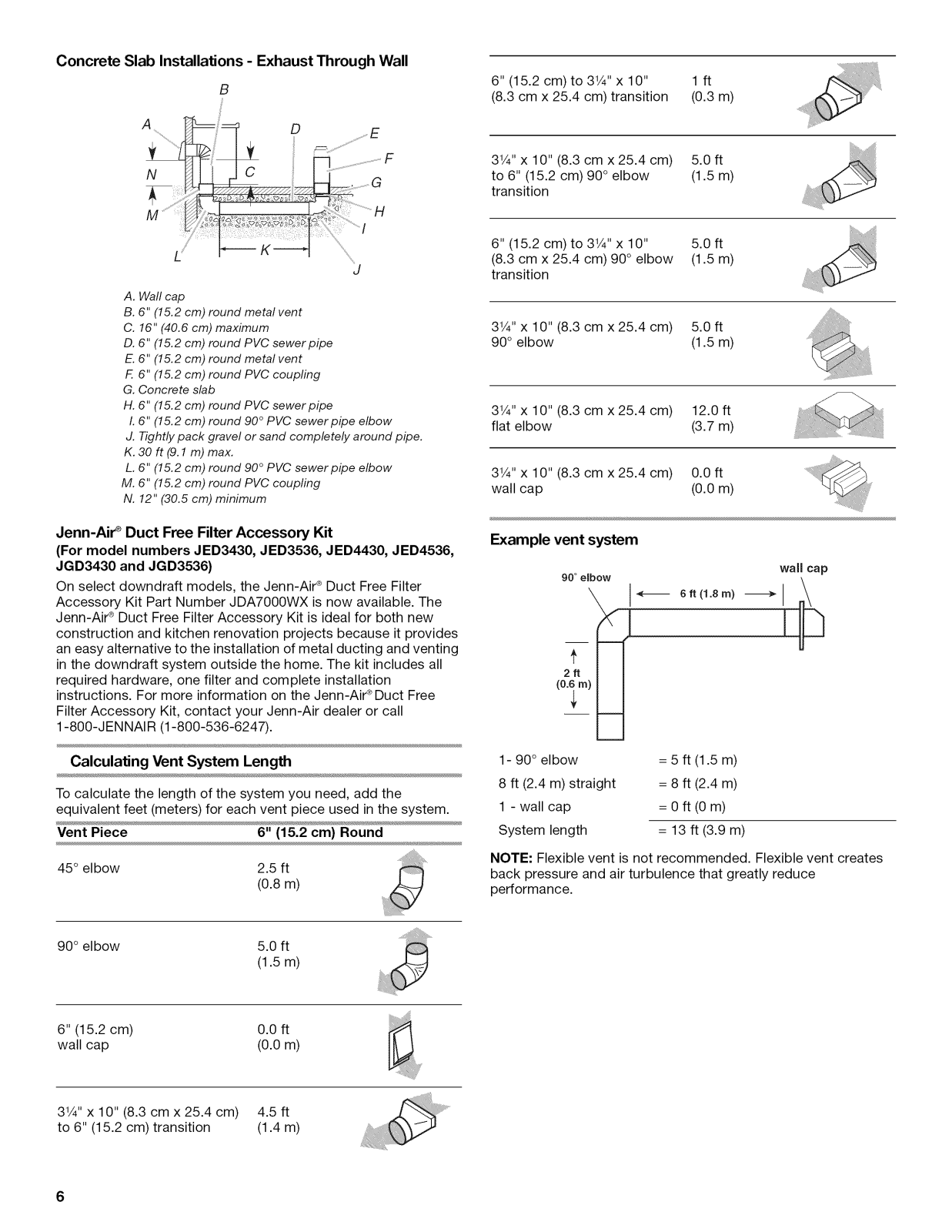

Concrete Slab Installations - Exhaust Through Wall
B
ANL ¸_!ii__
M _ _
S
E
A. Wall cap B. 6" (15.2 cm) round metal vent C. 16" (40.6 cm) maximum D. 6" (15.2 cm) round PVC sewer pipe
E. 6" (15.2 cm) round metal vent F. 6" (15.2 cm) round PVC coupling
G. Concrete slab H. 6" (15.2 cm) round PVC sewer pipe
I. 6" (15.2 cm) round 90 ° PVC sewer pipe elbow
J. Tightly pack gravel or sand completely around pipe.
K. 3Oft (9.1 m) max.
L. 6" (15.2 cm) round 90 ° PVC sewer pipe elbow
M. 6" (15.2 cm) round PVC coupling
N. 12" (30.5 cm) minimum
6" (15.2 cm) to 31/4'' x 10" 1 ft (8.3 cm x 25.4 cm) transition (0.3 m)
31/4"x 10" (8.3 cm x 25.4 cm) 5.0 ft to 6" (15.2 cm) 90 ° elbow (1.5 m)
transition
6" (15.2 cm) to 31/4"x 10" 5.0ft (8.3cmx25.4cm) 90° elbow (1.5m)
transition
31/4'' x 10" (8.3 cm x 25.4 cm 5.0 ft 90° elbow (1.5 m)
31/4"x 10" (8.3 cm x 25.4 cm 12.0 ft flat elbow (3.7 m)
31/4"x 10" (8.3 cm x 25.4 cm 0.0 ft wall cap (0.0 m)
Jenn-Air ° Duct Free Filter Accessory Kit (For model numbers JED3430, JED3536, JED4430, JED4536,
JGD3430 and JGD3536)
On select downdraft models, the Jenn-Air ®Duct Free Filter Accessory Kit Part Number JDA7000WX is now available. The Jenn-Air ®Duct Free Filter Accessory Kit is ideal for both new construction and kitchen renovation projects because it provides an easy alternative to the installation of metal ducting and venting in the downdraft system outside the home. The kit includes all required hardware, one filter and complete installation
1-800-JENNAIR (1-800-536-6247).
Calculating Vent System Length
To calculate the length of the system you need, add the equivalent feet (meters) for each vent piece used in the system.
Vent Piece 6" (15.2 cm) Round
45° elbow 2.5 ft
(0.8m)
90° elbow 5.0 ft
(1.5m)
Example vent system
90 ° elbow
6 ff (I.8 m)
]- 90 ° elbow 8 ft (2.4 m) straight
1 - wall cap System length
= 5 ft (1.5 m) = 8 ft (2.4 m) = 0 ft (0 m)
= 13 ft (3.9 m)
NOTE: Flexible vent is not recommended. Flexible vent creates back pressure and air turbulence that greatly reduce
performance.
wall cap
6" (15.2 cm) 0.0 ft wall cap (0.0 m)
31/4'' x 10" (8.3 cm x 25.4 cm) 4.5 ft to 6" (15.2 cm) transition (1.4 m)
6
Loading...
+ 14 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
