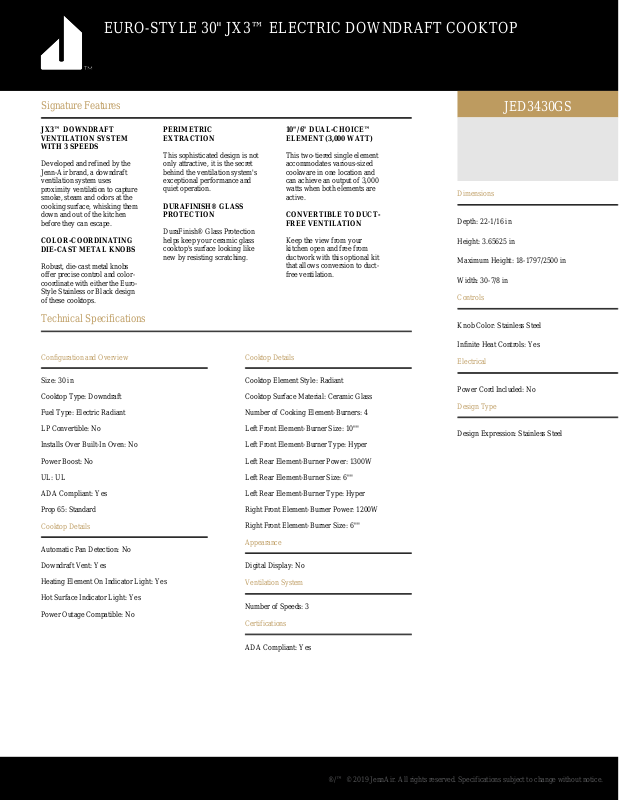

Jenn-Air JED3430GS Specifications

EURO-STYLE 30" JX3™ ELECTRIC DOWNDRAFT COOKTOP

JED3430GS

Dimensions

Depth: 22-1/16 in

Height: 3.65625 in

Maximum Height: 18-1797/2500 in

Width: 30-7/8 in

Controls

Knob Color: Stainless Steel

Infinite Heat Controls: Yes

Electrical

Power Cord Included: No

Design Type

Design Expression: Stainless Steel

Signature Features

Technical Specifications

Cooktop Details

Cooktop Element Style: Radiant Cooktop Surface Material: Ceramic Glass Number of Cooking Element-Burners: 4 Left Front Element-Burner Size: 10"" Left Front Element-Burner Type: Hyper Left Rear Element-Burner Power: 1300W Left Rear Element-Burner Size: 6"" Left Rear Element-Burner Type: Hyper Right Front Element-Burner Power: 1200W Right Front Element-Burner Size: 6""

Appearance

Digital Display: No

Ventilation System

Number of Speeds: 3

Certifications

ADA Compliant: Yes

Configuration and Overview

Size: 30 in Cooktop Type: Downdraft Fuel Type: Electric Radiant LP Convertible: No Installs Over Built-In Oven: No Power Boost: No UL: UL ADA Compliant: Yes Prop 65: Standard

Cooktop Details

Automatic Pan Detection: No Downdraft Vent: Yes Heating Element On Indicator Light: Yes Hot Surface Indicator Light: Yes Power Outage Compatible: No

10"/6" DUAL-CHOICE™ ELEMENT (3,000 WATT)

This two-tiered single element accommodates various-sized cookware in one location and can achieve an output of 3,000 watts when both elements are active.

CONVERTIBLE TO DUCTFREE VENTILATION

Keep the view from your kitchen open and free from ductwork with this optional kit that allows conversion to ductfree ventilation.

PERIMETRIC EXTRACTION

This sophisticated design is not only attractive, it is the secret behind the ventilation system's exceptional performance and quiet operation.

DURAFINISH® GLASS PROTECTION

DuraFinish® Glass Protection helps keep your ceramic glass cooktop's surface looking like new by resisting scratching.

JX3™ DOWNDRAFT VENTILATION SYSTEM WITH 3 SPEEDS

Developed and refined by the Jenn-Air brand, a downdraft ventilation system uses proximity ventilation to capture smoke, steam and odors at the cooking surface, whisking them down and out of the kitchen before they can escape.

COLOR-COORDINATING DIE-CAST METAL KNOBS

Robust, die-cast metal knobs offer precise control and colorcoordinate with either the EuroStyle Stainless or Black design of these cooktops.
