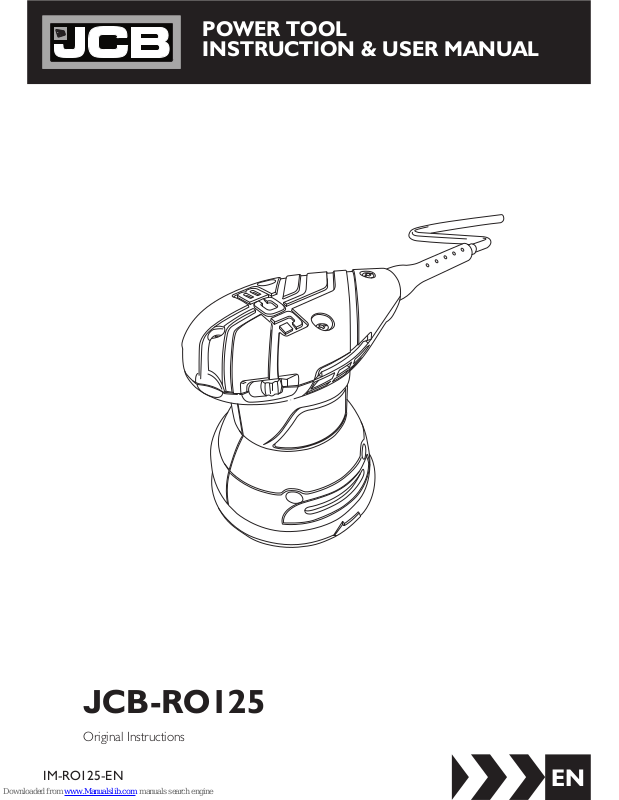

Page 1
POWER TOOL
INSTRUCTION & USER MANUAL
EN
IM-RO125-EN
JCB-RO125
Original Instructions
Page 2
2
JCB-RO125
Instruction & User Manual
GENERAL WARNINGS & DISPOSAL
To reduce the risk of injury, the user must read the instruction manual.
The device must not be exposed to rain or immersed in water.
Do not allow any part of the device to come into contact with flames, or to
catch fire.
This product has been marked with a symbol relating to removing electric and
electronic waste. The product should not be discarded with household waste
but must be returned to a collection system which conforms to the European
Directive 2012/19/EU. It will then be recycled or dismantled in order to
reduce the impact on the environment. Electric and electronic equipment can
be hazardous for the environment and for human health since they contain
hazardous substances.
This symbol is used throughout this manual to warn the user about potential
risks. Please read & understand these sections before using the device.
Personal Protective Equipment (P.P.E.), such as ear defenders, eye protection,
safety gloves and a dust mask, must be worn during the operation of the
device.
The month and year of manufacture can be found within the product serial number e.g.
MMYYPPPAXXXXX. Where production month (MM) and production year (YY) are included.
Page 3
3
JCB-RO125
Instruction & User Manual
Contents
GENERAL POWER TOOL SAFETY WARNINGS 4
1. Work area safety 4
2. Electrical safety 4
3. Personal safety 4
4. Power tool use and care 5
5. Service 5
TOOL SPECIFIC SAFETY WARNINGS 6
Additional Safety Rules For SanderTools 6
COMPONENT LIST 8
TECHNICAL DATA 9
NOISE INFORMATION 9
VIBRATION INFORMATION 10
OPERATING INSTRUCTIONS 11
Intended Use 11
Power Switch 11
Changing a Sanding Sheet 11
Adjusting Speed 11
Dust Suction 11
Vacuum Adaptor 11
Sanding Surfaces 12
Rough Sanding 12
Fine Sanding 12
Orbital Sanding 12
Selecting the Right Grade of Sandpaper 12
Maintenance 13
Transport and Storage 13
WARRANTY STATEMENT 14
Conditions 14
Terms 14
EC DECLARATION OF CONFORMITY 16
Page 4
4
JCB-RO125
Instruction & User Manual
Read all safety warnings, instructions and
specifications provided with this power
tool. Failure to follow all instructions listed below
may result in electric shock, fire and/or serious
injury. Save all warnings and instructions for
future reference.
WARNING!
The term “power tool” in the warnings refers to
your mains operated (corded) power tool or battery
operated (cordless) power tool.
1. Work area safety
m Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
m Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power
tools create sparks which may ignite the dust or
fumes.
m Keep children and bystanders away while
operating a power tool. Distractions can
cause you to lose control.
2. Electrical safety
m Power tool plugs must match the outlet.
Never modify the plug in any way. Do
not use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of electric
shock.
m Avoid body contact with earthed or
grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There
is an increased risk of electric shock if your body
is earthed or grounded.
m Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
m Do not abuse the cord. Never use the
cord for carrying, pulling or unplugging
the power tool. Keep the cord away from
heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of
electric shock.
m When operating a power tool outdoors,
use an extension cord suitable for
outdoor use. Use of a cord suitable for
outdoor use reduces the risk of electric shock.
m If operating a power tool in a damp
location is unavoidable, use a residual
current device (RCD) protected supply.
Use of an RCD reduces the risk of electric shock.
3. Personal safety
m Stay alert, watch what you are doing
and use common sense when operating
a power tool. Do not use a power tool
while you are tired or under the influence
of drugs, alcohol or medication. A moment
of inattention while operating power tools may
result in serious personal injury.
m Use personal protective equipment.
Always wear eye protection. Protective
equipment such as a dust mask, non-skid safety
shoes, hard hat or hearing protection used for
appropriate conditions will reduce personal
injuries.
m Prevent unintentional starting. Ensure
the switch is in the off position before
connecting to power source and/or
battery pack, picking up or carrying the
tool. Carrying power tools with your finger on
the switch or energising power tools that have
the switch on invites accidents.
GENERAL POWER TOOL SAFETY WARNINGS
Page 5
5
JCB-RO125
Instruction & User Manual
m Remove any adjusting key or wrench
before turning the power tool on. A
wrench or a key left attached to a rotating part of
the power tool may result in personal injury.
m Do not overreach. Keep proper footing
and balance at all times. This enables
better control of the power tool in unexpected
situations.
m Dress properly. Do not wear loose
clothing or jewellery. Keep your hair and
clothing away from moving parts. Loose
clothes, jewellery or long hair can be caught in
moving parts.
m If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are connected and properly
used. Use of dust collection can reduce dust-
related hazards.
m Do not let familiarity gained from
frequent use of tools allow you to become
complacent and ignore tool safety
principles. A careless action can cause severe
injury within a fraction of a second.
4. Power tool use and care
m Do not force the power tool. Use the
correct power tool for your application.
The correct power tool will do the job better
and safer at the rate for which it was designed.
m Do not use the power tool if the switch
does not turn it on and off. Any power
tool that cannot be controlled with the switch is
dangerous and must be repaired.
m Disconnect the plug from the power
source and/or remove the battery pack,
if detachable, from the power tool before
making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
m Store idle power tools out of the reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands of
untrained users.
m Maintain power tools and accessories.
Check for misalignment or binding of
moving parts, breakage of parts and any
other condition that may affect the power
tool’s operation. If damaged, have the
power tool repaired before use. Many
accidents are caused by poorly maintained power
tools.
m Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are easier
to control.
m Use the power tool, accessories and
tool bits etc. in accordance with these
instructions, taking into account the
working conditions and the work to
be performed. Use of the power tool for
operations different from those intended could
result in a hazardous situation.
m Keep handles and grasping surfaces
dry, clean and free from oil and grease.
Slippery handles and grasping surfaces do not
allow for safe handling and control of the tool in
unexpected situations.
5. Service
m Have your power tool serviced by a
qualified repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained.
Page 6
6
JCB-RO125
Instruction & User Manual
m Wear ear protectors. Exposure to noise
can cause hearing loss.
m Wear eye protection. Wear goggles
to prevent eyes from exposure to flying
particles.
m Wear dust mask. Take protective
measures against inhalation of dust. Some
materials can contain toxic materials. Also
work with dust/ chip extraction when
connectable.
Additional Safety Rules For
Sander Tools
m Proper safety gloves are also recommended.
m Use the tool for dry sanding only.
m Use clamps or a vice to secure your work
whenever possible.
m Use perforated hook-and-loop sandpaper
with the prescribed dimensions.
m A sanding sheet that has been used for metal
should not be used on other materials.
m Do not run the machine with any part of the
casing missing or damaged.
m Never switch on the sander under load and
place it down only after the head has come
to a complete stop.
m Vibrations can injure the nerves in hands &
arms. Keep exposure to vibrations as short
as possible. When carrying out work, always
ensure that you have a stable standing
position.
SANDER TOOL SAFETY WARNINGS
Page 7
7
JCB-RO125
Instruction & User Manual
Page 8
8
JCB-RO125
Instruction & User Manual
COMPONENT LIST
1
2
3
4
5
1.
ABRASIVE SHEET (SANDPAPER)
2.
SANDING DISC
3.
ON/ OFF SWITCH (HIDDEN FROM VIEW)
4.
SPEED ADJUSTMENT WHEEL
5.
DUST EXTRACTOR
Page 9
9
JCB-RO125
Instruction & User Manual
TECHNICAL DATA
NOISE INFORMATION
Input Voltage
230-240V~, 50Hz
Power
320W
No Load Speed
7000-14000 rpm
Eccentricity
2.5mm
Sanding Disc Diameter
125mm
Product Weight
1.7kg
A-Weighted Sound Pressure (LpA)
79.00 dB(A)
A-Weighted Sound Power (LwA)
90.00 dB(A)
KpA & K
wA
3.0 dB(A)
Wear ear protection when sound pressure is over 80 dB(A)
Page 10
10
JCB-RO125
Instruction & User Manual
The vibration emission value of the power
tool is tested under EN 62841-1 and EN
62841-2-4, and can vary during operation
depending on the following usage conditions:
WARNING!
m How the tool is used and the materials
being cut or drilled.
m The tool being in good condition and well
maintained.
m Using the correct accessory for the tool and
ensuring it is sharp and in good condition.
m The tightness of the grip on the handles and
if any anti-vibration accessories are used.
m The tool being used as intended by its
design and these instructions.
m The declared vibration total value may also
be used in a preliminary assessment of
exposure.
THIS TOOL MAY CAUSE HAND-ARM
VIBRATION SYNDROME IF USAGE IS
NOT ADEQUATELY MANAGED.
To be accurate, an estimation of exposure
level in the actual conditions of use should
also take account of all parts of the operating
cycle. These include times when the tool is
switched off and when it is running idle but
not actually doing work. This may significantly
reduce the total exposure level over the
working period, helping to minimize your
vibration exposure risk.
WARNING!
m ALWAYS use sharp chisels, drills and blades.
m Maintain this tool in accordance with these
instructions and keep well lubricated (where
appropriate).
m If the tool is to be used regularly then invest
in anti-vibration accessories.
m Avoid using tools in temperatures of 10
°
C
or less.
m Plan your work schedule to spread any high
vibration tool use across a number of days.
VIBRATION INFORMATION
Vibration total values (triax vector sum) determined according to EN 60745
Vibration Emission Value (ah)
3.385 ms
-2
Uncertainty (K)
1.5 ms
-2
Page 11
11
JCB-RO125
Instruction & User Manual
OPERATING INSTRUCTIONS
Intended Use
This orbital sander is intended for dry sanding
of wood, plastic, metal and filler material as
well as painted surfaces.
The tool must not be modified or used for
any other purposes than the ones described in
these instructions.
Before using the tool on metal surfaces,
always remove the dust bag from the outlet.
Sparks may ignite the dust or the bag.
WARNING!
Power Switch
m On: Shift the ON/OFF switch slider to “I”
position.
m Off: Shift the ON/OFF switch slider to “O”
position.
Changing A Sanding Sheet
The sanding sheet and sanding pad are
provided with a hook and loop attachment
system to allow quick and easy changing of
sanding and polishing sheets.
Ensure the hook and loop surfaces of the
tool plate, and chosen sheet are as clean as
possible, and free from any large debris prior
to mounting the sheet.
NOTE
To attach a new sheet:
m Align the edge of the disc with the edge of
the pad, and ensure the sheet is centered in
the plate.
m Apply pressure to the disc, ensuring it is
securely fixed across the entire sanding pad.
To remove a disc:
m Lift one corner of the sanding disc and pull
off from the sanding pad.
Adjusting Speed
m Disc speed can be varied by rotating the
speed adjustment wheel.
m The wheel allows fine control between
minimum (7000rpm) and maximum
(14000rpm) speeds.
The correct speed for your application will
depend on grade, material and pressure
applied. Always test new settings on a scrap
piece of material if possible.
NOTE
The tool may become hot at low speeds. To
aid in cooling the motor, periodically set the
speed to a higher value and run the tool with
no load.
NOTE
Dust Suction
m Efficiency and durability of sandpaper are
much improved by dust suction through the
apertures in the disc and sandpaper.
m Dust collector bag must be emptied
regularly.
Vacuum Adaptor
m The adaptor ensures coupling to a vacuum
cleaner in case of increased dust generation.
m Dismount the collector bag and fasten the
tool to a vacuum cleaner.
Page 12
12
JCB-RO125
Instruction & User Manual
Sanding Surfaces
m Place the machine flat on the workpiece,
ensuring the entire plate makes even
contact.
m Turn on the sander.
m Apply uniform sanding pressure.
m Adjust the tool speed & pressure to suit the
work as required.
Less sanding pressure increases the sanding
capacity and protects the machine and the
sanding paper.
NOTE
The removal capacity and the sanding pat-
tern are determined mainly by the selection
of the Sand paper (grade), the speed of the
sanding pad and the application pressure.
NOTE
Rough Sanding
m Attach a sand paper with coarse grain.
m Apply only light sanding pressure to achieve
increased material removal.
For faster material removal, do not increase
pressure on the tool, instead use a coarser
sanding sheet.
NOTE
Fine Sanding
m Attach a sand paper with fine grain.
m With moderate pressure, move the
machine in a circular pattern or alternately
in lengthwise and crosswise directions over
the workpiece.
Do not tilt the machine during operation.
This will apply uneven pressure, and may
cause damage to the work piece (e.g. when
sanding veneer).
NOTE
To avoid marring the finished surface, switch
off the machine, and only lift it from the
workpiece when it has come to a stop.
NOTE
Orbital Sanding
m Guide your sander parallel to the working
surface and move it in circles or in a cross
pattern.
m The speed of the orbital motion of the
sanding pad is reduced as applied pressure
increases.
Selecting The Right Grade Of
Sandpaper
m Use coarse grits to sand down rough
finishes, medium grit to smooth the work
and fine grit to finish off.
m The higher the grade number, the finer the
grit.
m For rough work start with a low grade or
grit. (e.g. 60 grit) and change to a higher,
finer grade (e.g. 120 grit) for finishing.
m If you use a fine grade for rough surfaces it
will clog and need changing more frequently.
The correct grade for your application will
depend on tool speed, material and pressure
applied. Always test on a scrap piece of
material if possible.
NOTE
Page 13
13
JCB-RO125
Instruction & User Manual
Maintenance
Switch off the tool and disconnect the power
(remove battery/unplug) before cleaning and
maintenance. This helps avoid the risk of
electric shocks and accidental starting.
WARNING!
m Wipe the tool with a dry or damp cloth.
Do not use a wet cloth. Do not use
detergent that contains solvent or
corrosive, abrasive additives. This risks
damaging the surfaces of the tool.
m Clear the tool vents and the accessory
mount of dust and dirt after each use.
Do not clean ventilation holes by
inserting sharp objects in them, such
as screwdrivers and other similar
objects.
m Stubborn contamination in areas hard to
access can be removed with compressed air
(max 3. bar).
m Regularly check all fasteners, screws and
bolts to make sure that they are tight.
Tighten any loose screws immediately or
serious injury could occur.
m If the power cord becomes damaged and
replacement is necessary, this must be
carried out by an authorised warranty agent.
Never open the tool. The tool has no
internal parts that the user can service or
repair. Never try to repair the tool yourself.
Take to an authorised service centre.
WARNING!
Transport and Storage
m If the tool will remain unused for any length
of time, it should be stored in the original
packaging.
m Store the tool in a dry, frost-free, well
ventilated place with a temperature of no
more than 40°C.
m Keep all tools out of the reach of children.
m Always switch off the tool and disconnect it
from the power supply (remove the battery/
unplug the power cord) before transport.
m Always carry the tool using the purpose-
designed handle.
m Ensure that the tool is not at risk of tipping
over or exposed to excessive vibration and
shocks during transport, especially if the tool
will be transported by car or other vehicle.
Page 14
14
JCB-RO125
Instruction & User Manual
WARRANTY STATEMENT
JCB Power Tools are guaranteed against manufacturing defects
for up to 5 years (extra charges may apply) from date of purchase
by simply registering your product online within 30 days. Proof of
purchase required. This does not affect your statutory rights.
To register your JCB Power Tool, please visit: jcb-tools.com
Online registration is required to receive a warranty certificate to activate your standard 3 year
warranty. You will be given the option to extend to a 5 Year Warranty (extra charges may apply).
Registration is only available online via www.jcb-tools.com. You will need your original sales
receipt, the model number and the serial number (if applicable) of your product. Kits comprising
of two or more tools are excluded from single registration and must registered individually for full
warranty cover.
Upon successful registration, a warranty certificate will be available to download, print or save as
a PDF document. The relevant warranty certificate together with the original sales receipt will be
required in the event of any claim within the warranty period..
Should you choose not to register your product within 30 days of purchase, your statutory
consumer rights will not be affected. You will need the original sales receipt as proof of purchase in
the event of a warranty claim.
Warranty cover commences from the date of purchase on the retail sales receipt and is valid only
for JCB Tools products purchased within the UK bearing the CE mark and a visible serial number.
In the unlikely event your JCB Power Tool is subject to a manufacturing fault within the warranty
period, JCB Tools may repair the product by replacing defective parts free of charge at our
discretion. In the event parts are irreplaceable JCB Tools may replace your product free of
charge. The original product will remain the property of JCB Tools in this situation.
The above repair or replacement of products will be undertaken providing that:
m The product has been subject to fair wear and tear only.
m The product has not been subject to accidental or cosmetic damage.
Page 15
15
JCB-RO125
Instruction & User Manual
m The product has not been misused and has been used only in accordance with the instruction
manual provided.
m The product has not been subject to overload or insufficient servicing and maintenance.
m The product has not been subject to any abnormal environmental conditions or inappropriate
operating conditions.
m Repairs have not been attempted by an unauthorised person and no modifications have been
made to the product.
m Repairs have not been undertaken using non-genuine spare parts.
JCB Power Tools used for Hire Fleets or as part of B2B and Service Contracts are not covered by
these terms and conditions.
JCB Tools standard 3 Year and extended 5 Year Warranties excludes the following
(where relevant):
m Components normally subject to wear such as carbon brushes.
m Batteries, Chucks and Chargers.
m Accessories and consumable items.
m Cases and tool storage products.
If your product develops a fault within 30 days of purchase, return it to the retailer where it was
purchased together with your sales receipt. If a product develops a fault after 30 days a warranty
claim must be submitted.
If you have a warranty claim please take your product, original sales receipt and if applicable,
a copy of your extended warranty certificate to your place of purchase or nearest JCB Tools
retailer.
If you wish to send your product to us directly, please call us on 03308380257 to arrange
warranty claim or repair. Delivery and repair charges may apply at our discretion should the
warranty claim be invalid for any of the reasons illustrated above. In the event charges are not
accepted the product will be retained by JCB Tools and remain the property of JCB Tools.
The information on both your sales receipt and your extended warranty certificate must match.
JCB TOOLS WILL NOT BE LIABLE FOR ANY INJURIES OR CONSEQUENTIAL DAMAGES
RESULTING FROM USE OF THIS PRODUCT.
Page 16
16
JCB-RO125
Instruction & User Manual
We,
JCB Tools
Declare that the product:
Description
Orbital Sander
Type
JCB-RO125
Function
Dry Sanding
Complies with the following Directives;
EC Machinery Directive
2006/42/EC
EC Electromagnetic Compatibility Directive
2014/30/EU
RoHS Directive
2011/65/EU
Standards conform to
EN 55014-1:2017
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 62841-1:2015+AC:2015
EN 62841-2-4:2014
The person authorized to compile the technical file:
Date: 20/09/2018
Signature:
Name/ title: Mya Yee Lwin / Quality Assurance Manager
Address: JCB Tools, 55 Romsey Industrial Estate, Romsey, SO51 0HR, UK.
Company REG: 11062222
EC DECLARATION OF CONFORMITY
Page 17
17
JCB-RO125
Instruction & User Manual
Loading...
