ENGLISH OPERATION MANUAL

CAUTION:

To reduce the risk of electric shock, do not

Thank you for buying this JB Systems®product. To take full advantage of all possibilities, please read these operatinginstructions very carefully.

FEATURES

This unit is radio-interference suppressed. This appliance meets the requirements of the current European and national guidelines. Conformity has been established and the relevant statements and documents have been deposited by themanufacturer.

 Activestudio monitor set equipped with 2x35Wrms amplifier  Stylish black design: fits in any modern interior  Solidwoodenenclosure with black satin finish  Perfectfor recording studio, home DJ booth,PC-speaker, I-Pod®, …  Shielded magnet design (can be used nextto a TV/PCMonitor)  Crystal clear sound with powerful bass response!  Flat frequency response from65 to 20.000Hz  Uses ¾” dome tweeter + 5” Kevlar woofer  Can be connectedto any line-level audiooutput

BEFORE USE

 Beforeyou start using this unit, please check if there’s no transportation damage.Should there be any, do

not use the device and consult your dealerfirst.

Important:



for the user to strictly follow the safety instructions and warnings in this user manual. Any damage caused by mishandling is not subject to warranty. The dealer will not accept responsibility forany resulting defects orproblems caused by disregarding this usermanual.

 Keep this booklet in a safe place for future consultation. If you sell the fixture, be sure to add this user

manual.

 To protect the environment, pleasetry to recycle the packing material as much as possible.

Check the contents:

Check that the cartoncontains the following items:

 User manual  AM-50 active  AM-50 passive  2m speaker cable  Mainscable

This device left our factory in perfect condition and well packaged. It is absolutely necessary

SAFETY INSTRUCTIONS:

CAUTION

The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the use or the presence of un-insulated “dangerousvoltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electricshock.

The exclamationpoint within the equilateral triangle is intended to alert the user to the presenceof important operation and maintenance (servicing) instructions in the literature accompanying this appliance.

This symbol means: indoor use only This symbol means:Read instructions

remove the top cover. No user-serviceable parts inside. Referservicing to qualifiedservice personnel only.

ENGLISH OPERATION MANUAL

 To prevent fireorshock hazard, do not exposethis appliance to rain or moisture.  To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when

bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full performance or may even cause damages.

 This unit is for indoor use only.  Don’t place metal objects or spill liquid inside the unit. No objects filled with liquids, such as vases,shall be

placed on this appliance. Electric shock or malfunction may result. If a foreign object enters the unit, immediately disconnect the mainspower.

 No naked flame sources, such as lighted candles, should be placedon the appliance.  Don’t cover any ventilation openings as this mayresult in overheating.  Preventuse in dusty environmentsand clean the unit regularly.  Keep the unit away from children.  Inexperienced persons should not operatethis device.  Maximumsave ambient temperatureis 40°C. Don’t use this unit at higher ambient temperatures.  Alwaysunplug theunit when it is not used for a longer timeorbeforeyou startservicing.  The electrical installation should be carried out by qualified personal only, according to the regulations for

electricaland mechanicalsafety in your country.

 Check that the availablevoltageis not higher than the one stated on the rear panel of the unit.  The socket inlet shall remain operablefor disconnection from the mains.  The power cord should always be in perfect condition. Switch the unit immediately off when thepower cord

is squashed or damaged. It must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

 Never let the power-cord come into contact with other cables!  When the powerswitch is in OFFposition, this unitis not completely disconnected fromthe mains!  This appliancemust be earthed to in order comply withsafety regulations.  In order to prevent electric shock, do not open the cover. Apart from the mains fuse there are no user

serviceablepartsinside.

Never



repair a fuse or bypass the fuse holder.

type and electrical specifications!

 In the event of serious operating problems, stop using the appliance and contact your dealer immediately.  Pleaseuse the original packingwhen the device is to be transported.  Due to safety reasons it is prohibited to makeunauthorizedmodifications to the unit.

INSTALLATION GUIDELINES:

 Installthe unit in a well-ventilated location where it willnot be exposed to high temperatures or humidity.  Placing and using the unit for long periods near heat-generatingsources such as amplifiers, spotlights, etc.

will affect its performanceandmay even damage the unit.

 To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatureswhen

bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full performance.

CLEANINGTHE APPLIANCE:

Clean by wiping with a polished cloth slightly dipped with water. Avoid getting water inside the unit. Do not use volatileliquids such as benzene or thinnerwhich will damage the unit.

Always

replace a damaged fuse with a fuse of the same

CONNECTIONS

Use good quality audiocables toprevent bad audio quality. For more information on connections,please refer to the next chapter. Be sure to turn off the unit before you makechanges to the different connections. In this manual we talk about “line inputs”. This is a global name for inputs with a level between 750mV and 2V.This includes tuners, videos, CD-players, etc.

JB SYSTEMS

1/20 AM-50 ~ Active monitor set

JB SYSTEMS

2/20 AM-50 ~ Active monitor set

ENGLISH OPERATION MANUAL

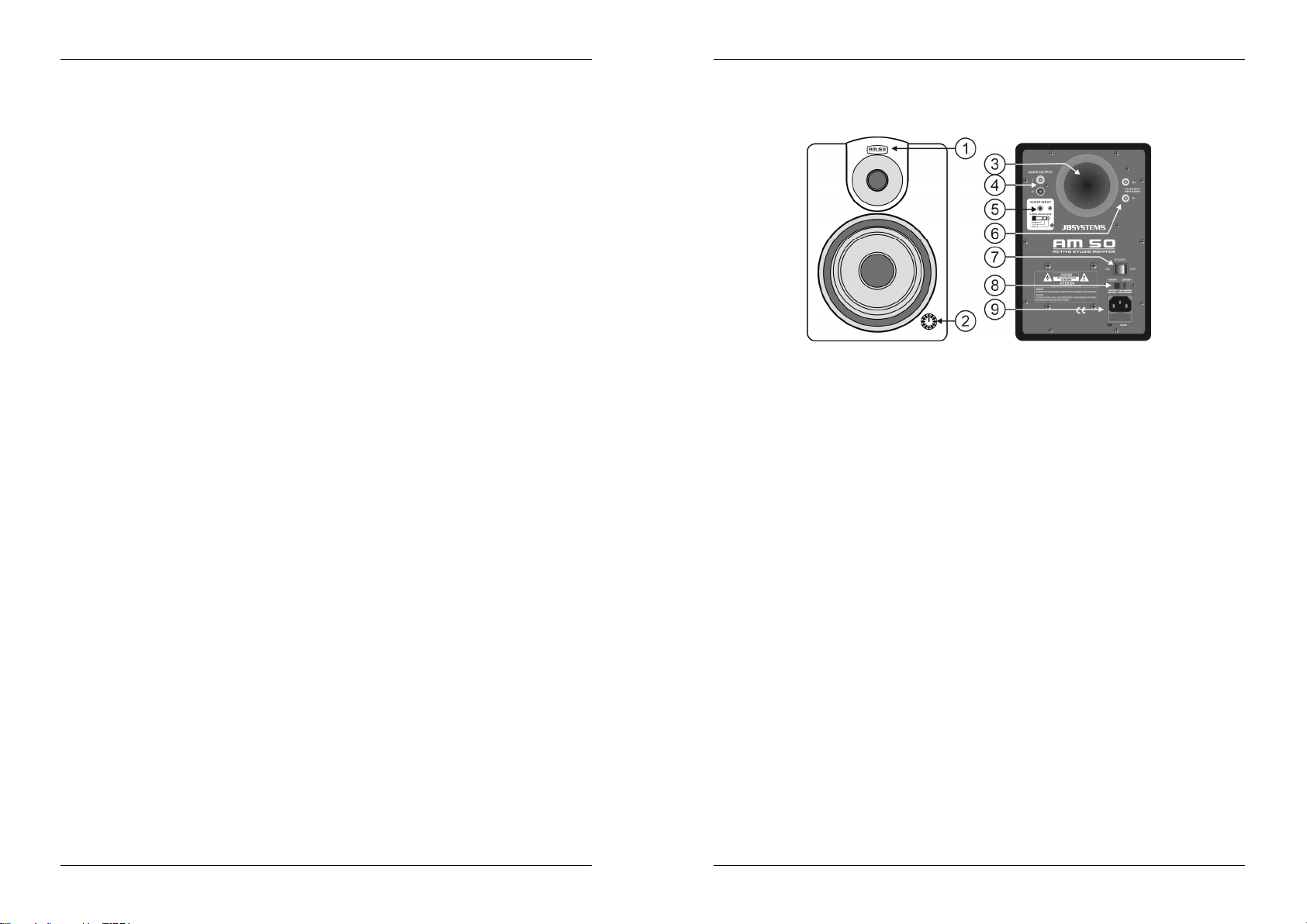

FUNCTIONS

The AM-50 active monitor set is composed of an active (stereo amplifier inside) and a passive cabinet. Belowonly thedifferent partsof the activecabinet are described.

1. POWERindicator: This logo is lit whenthe unit is switchedon.

2. INPUT GAIN: Used to set the output volume of the speakers

3. BASS REFLEXOPENING: used toincrease the bass response, never put objects in this opening!

4. AUDIO OUTPUT:line leveloutput (RCA connector), used to connect extraaudioequipment.

5. AUDIO INPUT: line level input (3,5mm² stereo JACK connector). Optional RCA to 3,5mm² stereo JACK

cables are available from JB Systems®(ordercode = MJC-1M5)

6. SPEAKER OUTPUT: use the included speaker cable to connect the passive cabinet to the amplifier inside the activecabinet. Make sure that the wiring on both cabinets is identical, otherwise the music will lack low frequencies:

 COPPER colored wire of the speakercable on both sides connected tothe RED connection terminal.  SILVERcolored wire of the speakercable on both sides connected to the BLACK connection terminal.

7. POWERswitch: Used to switch the amplifiers on/off

8. VOLTAGEselector: used to select the desired mains voltage. ForEurope you shoulduse220V~240V.

9. MAINS input: IEC mains socketwith integrated fuse holder, connect the supplied mains cablehere.

SPECIFICATIONS

Power Supply: AC230 V,50Hz Fuse: 20mm glass fuse 250V 800mAslow Frequencyresponse: 65-20.000Hz(+/-5dB) Line input: 750mV @ 10kΩ Impedancepassive cabinet: 4Ω Crossoverfreq. 2500Hz @ 12dB/oct Woofer: D= 5” (13cm) Kevlar cone Tweeter: D= ¾” (2cm) soft dome type Dimensions: 180(W) x 258(H) x 209(D) mm Weight: 6,3kg

You can download the latest version of this user manual on our website: www.beglec.com

Every information is subject to change withoutprior notice

FRANCAIS MODE D’EMPLOI

Nous vous remercions d’avoir acheté ce produit JB Systems®. Veuillez lire ce mode d’emploi très attentivement afin de pouvoir exploitertoutesles possibilités de cet appareil.

EN VOUS INSCRIVANT POUR LA LETTRE D’INFORMATION VOUS SEREZ TOUJOURS

TENU AU COURANT DES DERNIERESNOUVELLES CONCERNANT NOS PRODUITS:

NOUVEAUTES,ACTIONS SPECIALES,JOURNEES PORTES OUVERTES, ETC.

 SURFEZ SUR: WWW.BEGLEC.COM 

CARACTERISTIQUES

Cet appareil ne produit pas d’interférences radio. Il répond aux exigences nationales et européennes. La conformité a été établieet les déclarations et documentscorrespondants ont été déposés parle fabricant.

 Ensemble de moniteurs de studioactifs, équipés d'un amplide 2 x 35Wrms.  Elégante finition noire: s'intègre parfaitementdans n'importequel intérieur moderne.  Solides enceintes en bois recouvertes d'une finitionnoire satinée.  Ensemble parfaitement adapté pour les studios d'enregistrement, les applications DJ à la maison, la

sonorisationdes ordinateurs,des I-Pod®, …

 Construit avec une isolation magnétique (ce qui permetde l'utiliserà proximité d'un moniteurTV ou PC).  Son cristallin doté de puissantes basses !  Réponse en fréquence linéairede65 à 20.000 Hz.  Haut-parleurs dotés de tweeters à dôme de ¾” et de wooferen Kevlar de 5".  Ces haut-parleurs peuvent être connectés à n'importequelle sortie audio deniveauligne.

AVANT L’UTILISATION

Quelquesinstructionsimportantes:

 Avant d’utiliser cet appareil, assurez-vous de l’absence de dommages liés au transport. En cas de

dommages,n’utilisezpas l’appareil etcontactez le vendeur.

 Important: Cet appareil a quitté notre usine en parfaite condition et bien emballé. Il est primordial que

l’utilisateur suive les instructions de sécurité et avertissements inclus dans ce manuel. La garantie ne s’applique pas en cas de dommage lié à une utilisation incorrecte. Le vendeur ne prend pas la responsabilité des défauts ou de tout problème résultant du fait de n’avoir pas tenu compte des mises en garde de ce manuel.

 Conservez ce manuel dans un endroit sûr pour toute consultation future. Si vous vendez l’appareil,

assurez-vous d’y joindre ce manuel également.

 Afinde protégerl’environnement, mercide recycler les emballages autant que possible.

Vérifiez le contenu:

Vérifiezsi l'emballage contientbien les articles suivants :

 Moded'emploi  AM-50 actif  AM-50passif  Câble (2 m)pour haut-parleur  Câbled’alimentation

JB SYSTEMS

3/20 AM-50 ~ Active monitor set

JB SYSTEMS

4/20 AM-50 ~ Active monitor set
