ENGLISH USER MANUAL

OPERATION MANUAL

Thank you for buying this JB Systems®product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit.

FEATURES

This unit is radio-interference suppressed. This product meets the requirements of the current European and national guidelines. Conformity has been established and the relevant statements and documents have been deposited by the manufacturer.

 This device was designed to produce decorative effect lighting and is used in light show systems.  An eye-catching two color laser using high quality 15kHz scanners instead of ordinary stepper motors:

 Very smooth and soft movements

 80 Pre-programmed patterns like: numbers, drawings, words, …  Fabulous preprogrammed laser shows for all kinds of applications: lounge bar, discotheque, mobile DJ, …  Class 3B laser based on 40mW Green CW laser (λ = 532nm) and 100mW Red CW laser (λ = 650nm).  Several working modes:

 DMX-control: 1channel for easy operation or 17 channels for full control

 Standalone: sound activated (internal mic) or automatic

 IR-remote: infrared remote control.

 Master/slave: wonderful synchronized shows  Built-in microphone  3-digit LED display for easy menu navigation  Key actuated on/off switch and emergency switch (interlock) input for additional safety  Complies to EN/IEC 60825-1 Ed2, 2007-03 for Laser Safety

BEFORE USE

 Before you start using this unit, please check if there’s no transportation damage. Should there be any, do

not use the device and consult your dealer first.

 Important: This device left our factory in perfect condition and well packaged. It is absolutely necessary

for the user to strictly follow the safety instructions and warnings in this user manual. Any damage caused by mishandling is not subject to warranty. The dealer will not accept responsibility for any resulting defects or problems caused by disregarding this user manual.

 Keep this booklet in a safe place for future consultation. If you sell the fixture, be sure to add this user

manual.

Check the contents:

Check that the cardboard box contains the following items:

 Smooth Scan-3 laser  IR remote control  2 keys (for key switch)  Mains cable  Operating instructions

SAFETY INSTRUCTIONS:

CAUTION

The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the use or the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operation and maintenance (servicing) instructions in the literature accompanying this appliance.

This symbol means: indoor use only. This symbol means: Read instructions.

This symbol determines: the minimum distance from lighted objects. The minimum distance between light-output and the illuminated surface must be more than 1 meter.

 To protect the environment, please try to recycle the packing material as much as possible.  A new light effect sometimes causes some unwanted smoke and/or smell. This is normal and disappears

after some minutes.

 To prevent fire or shock hazard, do not expose this appliance to rain or moisture.  To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when

bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full performance or may even cause damages.

 This unit is for indoor use only.  Don’t place metal objects or spill liquid inside the unit. Electric shock or malfunction may result. If a foreign

object enters the unit, immediately disconnect the mains power.

 Locate the fixture in a well ventilated spot, away from any flammable materials and/or liquids. The fixture

must be fixed at least 50cm from surrounding walls.

 Don’t cover any ventilation openings as this may result in overheating.  Prevent use in dusty environments and clean the unit regularly.  Keep the unit away from children.  Inexperienced persons should not operate this device.  The save ambient temperature is between 15° & 40°C. Don’t use this unit at higher ambient temperatures.  Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging

and servicing.

 Always unplug the unit when it is not used for a longer time or before replacing the bulb or start servicing.  The electrical installation should be carried out by qualified personal only, according to the regulations for

electrical and mechanical safety in your country.

 Check that the available voltage is not higher than the one stated on the rear panel of the unit.  The power cord should always be in perfect condition. Switch the unit immediately off when the power cord

is squashed or damaged. It must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

 Never let the power-cord come into contact with other cables!  This fixture must be earthed to in order comply with safety regulations.  Don’t connect the unit to any dimmer pack.  Always use an appropriate and certified safety cable when installing the unit.  In order to prevent electric shock, do not open the cover. Apart from the lamp and mains fuse there are no

user serviceable parts inside.

 Never repair a fuse or bypass the fuse holder. Always replace a damaged fuse with a fuse of the same

type and electrical specifications!

 In the event of serious operating problems, stop using the fixture and contact your dealer immediately.  The housing and the lenses must be replaced if they are visibly damaged.  Please use the original packing when the device is to be transported.  Due to safety reasons it is prohibited to make unauthorized modifications to the unit.

Important: Never look directly into the light source! Don’t use the effect in the presence of persons suffering from epilepsy.

CAUTION: To reduce the risk of electric shock, do not remove the top cover. No user-serviceable parts inside. Refer servicing to qualified service personnel only.

JB SYSTEMS

1/75 SMOOTH SCAN-3 LASER

JB SYSTEMS

2/75 SMOOTH SCAN-3 LASER

ENGLISH USER MANUAL

LASER SAFETY INSTRUCTIONS:

 According to the EN/IEC 60825-1 Ed2, 2007-03 regulations, this laser falls under the classification 3B.

Direct eye exposure can be dangerous.

ENGLISH USER MANUAL

Avoid direct eye exposure! Laser radiation can cause eye damage

DANGER: LASER RADIATION !

and/or skin damage. All protective measures for a safe operation of

this laser must be applied.

 This product is a so-called show laser, emitting radiation with a wavelength spectrum between 400 and

700 nm and producing lighting effects for shows.

 Laser Light is different from any other light source with which you may be familiar. The light from this

product can potentially cause eye injury if not set up and used properly. Laser light is thousands of times more concentrated than light from any other kind of light source. This concentration of light power can cause instant eye injuries, primarily by burning the retina (the light sensitive portion at the back of the eye). Even if you cannot feel “heat” from a laser beam, it can still potentially injure or blind you or your audience.

 Even very small amounts of laser light are potentially

hazardous even at long distances.

 Never look into the laser aperture or laser beams  Never direct the laser beam to people or animals and

never leave this device running unattended.

 This laser may only be used for shows. The

operation of a class 3B show laser is only allowed if the operation is controlled by a skilled and welltrained operator.

 Depending on the classification, operating a laser

product can produce laser radiation that may cause permanent eye damage and/or skin damage. The legal instructions for using a laser product vary from country to country. The user must always inform himself on the legal instructions valid in his country and apply them to his situation.

 The parent document and cornerstone of laser safety standards ANSI Z136.1 (2007) provides guidance for

the safe use of lasers and laser systems by defining control measures for each of the four laser classes. This valuable document can be obtained from www.laserinstitute.org

Please note that JB SYSTEMS cannot be made liable for damages caused by incorrect installations and unskilled operation!

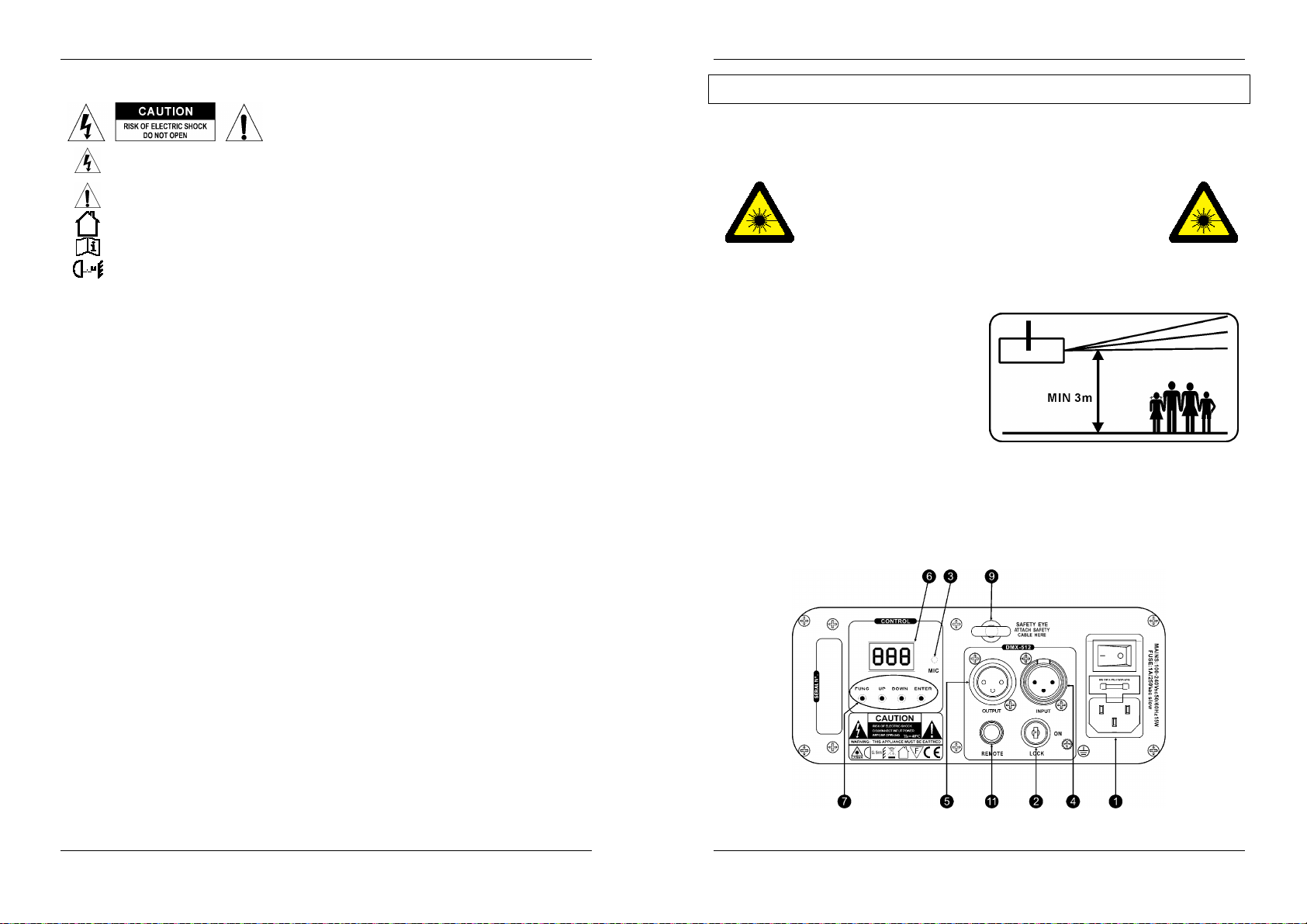

DESCRIPTION:

1. MAINS INPUT: IEC socket with integrated fuse holder and switch, connect the supplied mains cable

here.

2. ON/OFF KEY ACTIVATED SWITCH: used to switch the unit on/off. Use the keys to make sure only a

skilled operator is able to switch the laser on.

3. INTERNAL MICROPHONE: The built-in microphone is used to synchronize the laser show to the beat of

the music.

4. DMX INPUT: 3pin male XLR-connector used to connect universal DMX-cables. This input receives

instructions from a DMX-controller.

5. DMX OUTPUT: 3pin female XLR-connector used to connect the LASER with the next unit in the DMX

chain.

6. DISPLAY: shows the selected DMX address when the unit is in DMX-mode. Apart from DMX-mode you

can also select 4 other working modes, see further to learn more about these modes.

7. CONTROL PANEL: Used to select the different functions of the laser, see further to learn how to

operate the unit.

8. IR RECEIVER: used to control the unit by the wireless

remote control.

9. SAFETY EYEBOLT: used to attach a safety cable

when the unit is rigged (see paragraph “overhead rigging”

10. COOLING FAN: used to cool the components inside

the enclosure. Make sure to never cover this fan outlet!

11. INTERLOCK input: used to connect the optional

emergency stop switch (see picture). When you push this switch the laser beam will disappear immediately.

IMPORTANT! For your own safety we strongly recommend to connect this optional switch! THERE WILL BE NO LASER OUTPUT WHEN THE INTERLOCK INPUT IS NOT USED! Temporary solution: install the spare connector on the laser. (see picture)

JB SYSTEMS

12. POWER LED: indicates that the unit is switched on.

13. SOUND LED: flashes to the sound of the music detected by the internal

microphone.

14. HANGING BRACKET: with 2 knobs on both sides to fasten the unit and a

mounting hole to fix a mounting hook.

15. LASER OUTPUT: the laser beam exits the enclosure, make sure to NEVER look

inside the unit through this opening while the laser effect is switched on!

3/75 SMOOTH SCAN-3 LASER

JB SYSTEMS

4/75 SMOOTH SCAN-3 LASER

ENGLISH USER MANUAL

16. WARNING LABEL: “Caution – Class 3B laser. Laser Radiation when open. Avoid exposure to beam.”

17. WARNING LABEL: “Laser Aperture”

18. LASER WARNING SIGN: warns against a potentially dangerous laser when not used by skilled

operators.

19. WARNING LABEL: “Laser Radiation. Avoid exposure to beam. Class 3B laser product”

OVERHEAD RIGGING

 Important: The installation must be carried out by qualified service personal only. Improper

installation can result in serious injuries and/or damage to property. Overhead rigging requires extensive experience! Working load limits should be respected, certified installation materials should be used, the installed device should be inspected regularly for safety.

 Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging

and servicing.

 Locate the fixture in a well ventilated spot, far away from any flammable materials and/or liquids. The

fixture must be fixed at least 50cm from surrounding walls.

 The device should be installed out of reach of people and outside areas where persons may walk by or be

seated.

 Before rigging make sure that the installation area can hold a minimum point load of 10times the device’s

weight.

 Always use a certified safety cable that can hold 12 times the weight of the device when installing the unit.

This secondary safety attachment should be installed in a way that no part of the installation can drop more than 20cm if the main attachment fails.

 The device should be well fixed; a free-swinging mounting is dangerous and may not be considered!  Don’t cover any ventilation openings as this may result in overheating.  The operator has to make sure that the safety-relating and machine-technical installations are approved by

an expert before using them for the first time. The installations should be inspected every year by a skilled person to be sure that safety is still optimal.

CAUTION EYE DAMAGE: Always position the laser in a way that prevents the audience from looking directly into the laser beams. The installation should assure that the beam will not strike the audience.

HOW TO SET UP AND CONTROL THE UNIT

 Use DOWN and UP button to select a value between “S 0” (very low sensitivity) and “S 9” (high

sensitivity).

 Once the mode is selected, press the ENTER button save it.

You can operate the unit in 5 ways:

1) MUSIC CONTROLLED MODE:

The laser runs a preprogrammed sequence to the rhythm of the music. Select this mode when only 1 laser is used (standalone) or when the laser is placed as the first (master) unit in a chain with several units.

 Press the FUNC-button until the display shows one of the following: Aut, Aup, 17C, 1C, Sla or REM.  Now use the UP or DOWN buttons to select:

o Sop (Sound activated random show, containing pattern and grating effects) o Sou (Sound activated shows in RGY colors) o So1 (Sound activated show in red color) o So2 (Sound activated show in green color) o So3 (Sound activated show in yellow color)

 Press the ENTER-button to confirm your choice. You can connect several LASERs together: just put the first unit of the chain in one of the sound activated effect modes and all other units in “Slave mode” (display shows “SLA”) to make them all work in perfect sync!

Note: When no music is detected, the laser output will be shut off (blackout).

2) FULL AUTOMATIC MODE:

The laser automatically runs a preprogrammed sequence. Select this mode when only 1 laser is used (standalone) or when the laser is placed as the first (master) unit in a chain with several LASERs.  Press the FUNC-button until the display shows one of the following: Sop Aut, Aup, 17C, 1C, Sla or

REM.

 Now use the UP or DOWN buttons to select:

o Aut (Automatic shows in RGY colors) o Au1 (Automatic shows in red color) o Au2 (Automatic shows in green color) o Au3 (Automatic shows in yellow color) o Aup (automatic random show, containing pattern and grating effects)

 Press the ENTER-button to confirm your choice. The laser automatically runs a preprogrammed sequence. You can connect several SMOOTH SCAN 3 LASERs together: just put the first unit of the chain in one of the automatic effect modes and all other units in “Slave mode” (display shows “SLA”) to make them all work in perfect sync!

3) SLAVE MODE:

The laser follows the instructions given by the first Smooth Scan 3 laser (master) in the chain.

 Connect the DMX input of the laser to the DMX output of the previous laser in the chain.  Press the FUNC-button until the display shows “SLA”  Press the ENTER-button to confirm your choice.

You can connect several lasers together. Please put the first unit of the chain in “Music or automatic mode” and all other units in “Slave mode” (display shows “SLA” to make them all work in perfect sync!

MUSIC INPUT SENSITIVITY: The unit works to rhythm of the beat when used in standalone or master/slave mode

To set the input sensitivity, follow these steps:

 Press the FUNC-button until the display shows “S 0” …”S 9”  Press the ENTER-button to confirm your choice.

JB SYSTEMS

5/75 SMOOTH SCAN-3 LASER

JB SYSTEMS

6/75 SMOOTH SCAN-3 LASER

ENGLISH USER MANUAL

DMX

ENGLISH USER MANUAL

4) IR remote MODE:

The laser can be controlled by the IR remote control:

 Press the FUNC-button until the display shows: “REM”.  Press the ENTER-button to confirm your choice.

Note: In any standalone mode (excepted REM and SLA), press ON/OFF for 2 second to activate remote

function.

AUTO SHOW MUSIC SHOW LASER ON/OFF COLOR EFFECT PAUSE CHANGING PATTERN SOUND SENSIVITY

FIXED PATTERN (FROM 1 TO 48)

PATTERN REPEATING

Remote control details:

Button function Description

ON/OFF

AUTO

MUSIC

Sound sensivity

COLOR

CHANGING

PATTERN

CHANGING

FIXED

PATTERN

REPEAT

5) DMX512 MODE:

The laser can be controlled by any standard DMX-controller in 2 different DMX-modes:

 1 CHANNEL MODE: for extremely easy setup and use! (display shows “1Ch”)  17 CHANNEL MODE: for full control of all possibilities. (display shows “17c”)

 Connect the DMX input of the laser to the DMX output of the previous unit in the chain or directly to the

DMX-output of your controller.

 Press the FUNC-button until the display shows: “1C” or “17C”.

In any other standalone mode except SLAVE: press 2s to

In sound activated mode, press music+B+1to9 to change

In REM mode: turn on/off the laser.

turn on the REM mode

Auto running show

Sound activated show, the blue is flashing when the

sound is detected.

the sensitivity settings

To change the color from red to green or red & green

To show and change patterns

You can select one pattern from 1 to 48

Last pattern and current pattern cycle repeating

 Press the UP/DOW N buttons to select the DMX-mode. (1Ch or 17ch)  Press the ENTER-button to confirm your choice.  Press the FUNC-button: the 3 digit number on the display starts blinking.  Select the DMX-address  Press the ENTER-button to confirm your choice.

Note: the display blinks when the unit is in DMX-mode and no DMX-signal is detected.

Some more information on DMX512:

The DMX-protocol is a widely used high speed signal to control intelligent light equipment. You need to “daisy chain” your DMX controller and all the connected light effects with a good quality XLR M/F balanced cable. To prevent strange behavior of the light effects, due to interferences, you must use a 90Ω to 120Ω terminator at the end of the chain. Never use Y-splitter cables, this simply won’t work! Each effect in the chain needs to have its proper starting address so it knows which commands from the controller it has to decode.

1 CHANNEL DMX-CONFIGURATION OF THE LASER:

position

value function remarks

Sound activated show with RGY

8 240-255 SOU

colors Sound activated show with GREEN

7 210-239 So2

color 6 180-209 So1 Sound activated show with RED color 5 150-179 Aut Automatic show with RGY colors 4 120-149 Au2 Automatic show with GREEN color 3 090-119 Au1 Automatic show with RED color 2 060-089 SOP Sound activated pattern effect show 1 030-059 AUP Auto running pattern effect show 0 000-029 STANDBY Laser output off

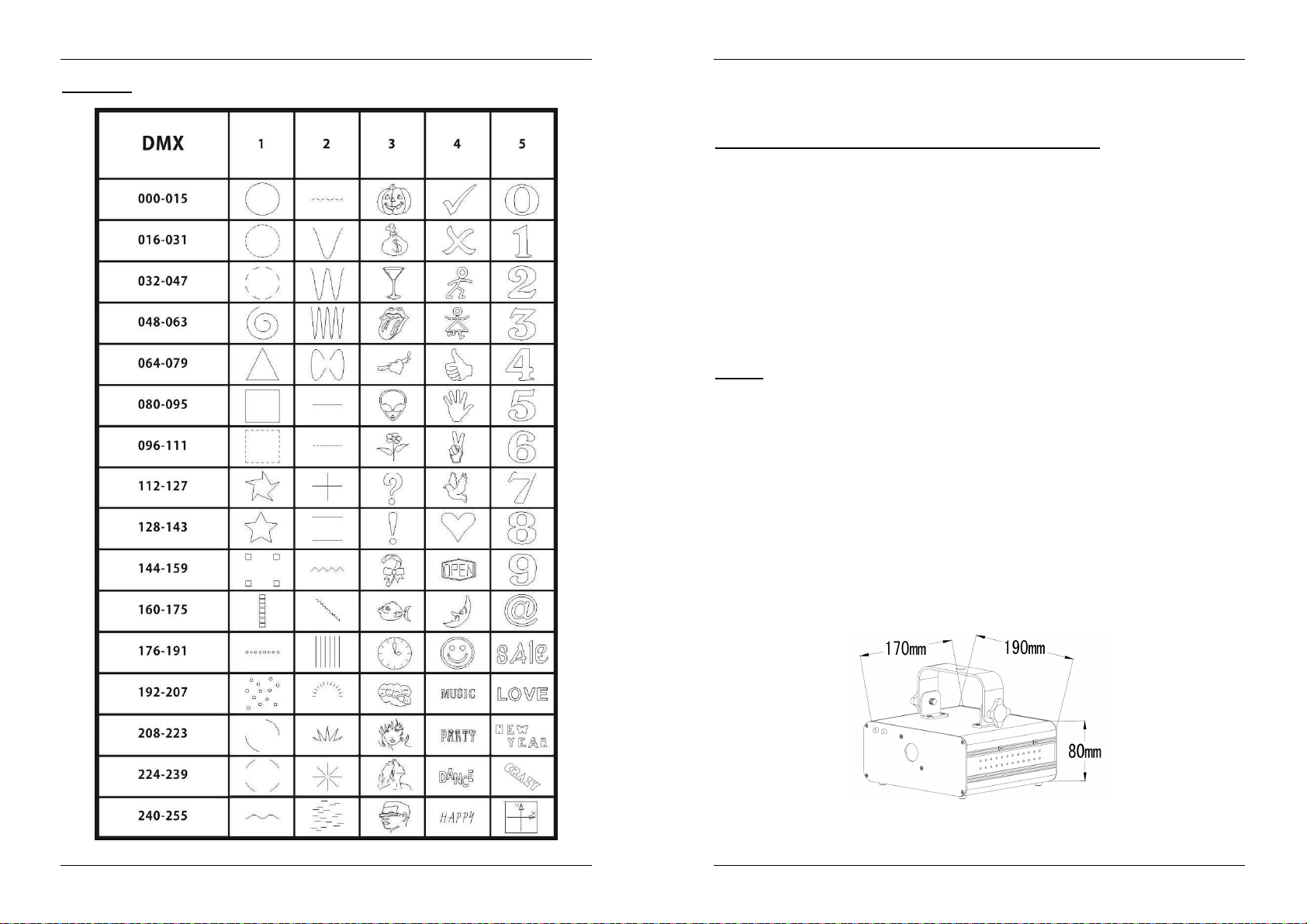

17 CHANNEL DMX-CONFIGURATION OF THE LASER:

IMPORTANT REMARK: DMX Channel1 is used to set the different working modes of the laser.

 To use the laser in full 17 channel mode, channel 1 must be set to value 221 or higher.  Depending on the DMX-values of channel1, different mode can be applied:

Channel

CH1

Mode

DMX value function

000-020 Laser OFF 021-040 AUT 041-060 AU1 061-080 AU2 081-100 AU3 101-120 SOU 121-140 SO1

141–160 SO2

161-180 SO3

JB SYSTEMS

7/75 SMOOTH SCAN-3 LASER

JB SYSTEMS

8/75 SMOOTH SCAN-3 LASER

ENGLISH USER MANUAL

CH2

Group

CH3 Pattern

CH4

Color

CH5

Clipping

CH6

Zooming

CH7 zoom speed

CH8

X axis rolling

CH9 roll speed

CH10

Y axis rolling

CH11 roll speed

CH12

Z axis rolling

CH13 roll speed

CH14

X axis move

CH15 moving speed

CH16

Y axis move

CH17 moving speed

181-200 AUP 201-220 SOP 221-255 DMX MODE 000-051 1 Group Patterns. 052-103 2 Group Patterns 104-155 3 Group Patterns 156-207 4 Group Patterns 208-255 5 Group Patterns 000-255 Every 16 for 1 group, total 80 patterns. 000-015 Original (red, green, yellow) 016-031 Red 032-047 Green 048-063 Yellow 064-111 Color Rolling 112-159 Color Jumping 160-207 Color Moving

208-255 Strobing

000 Full pattern without clipping 001-127 0%~99% fixed pattern clipped 128-255 Clipping Speed 000-127 100%

128-169 Zooming IN 170-209 Zooming OUT 210-255 Alternately Zooming
