Page 1
GTO5355
5 CHANNEL POWER AMPLIFIER
SERVICE MANUAL
Released 2007
Discontinued XXXX
JBL Consumer Products
250 Crossways Park Dr.
Woodbury, New York 11797 Rev
1 1/2008
Page 2
G T O 5 3 5 5
- CONTENTS -
SPECIFICATIONS ………………………………………..1
PACKING……………………………………………..…....2
CONTROL/INSTALLATION DRAWINGS………………3
CONTROL/INSTALLATION INSTRUCTIONS………....4
BASIC TROUBLESHOOTING…………………..............5
EXPLODED VIEW…….………………….….…………....6
EXPLODED VIEW PARTS LIST………….…….….…....7

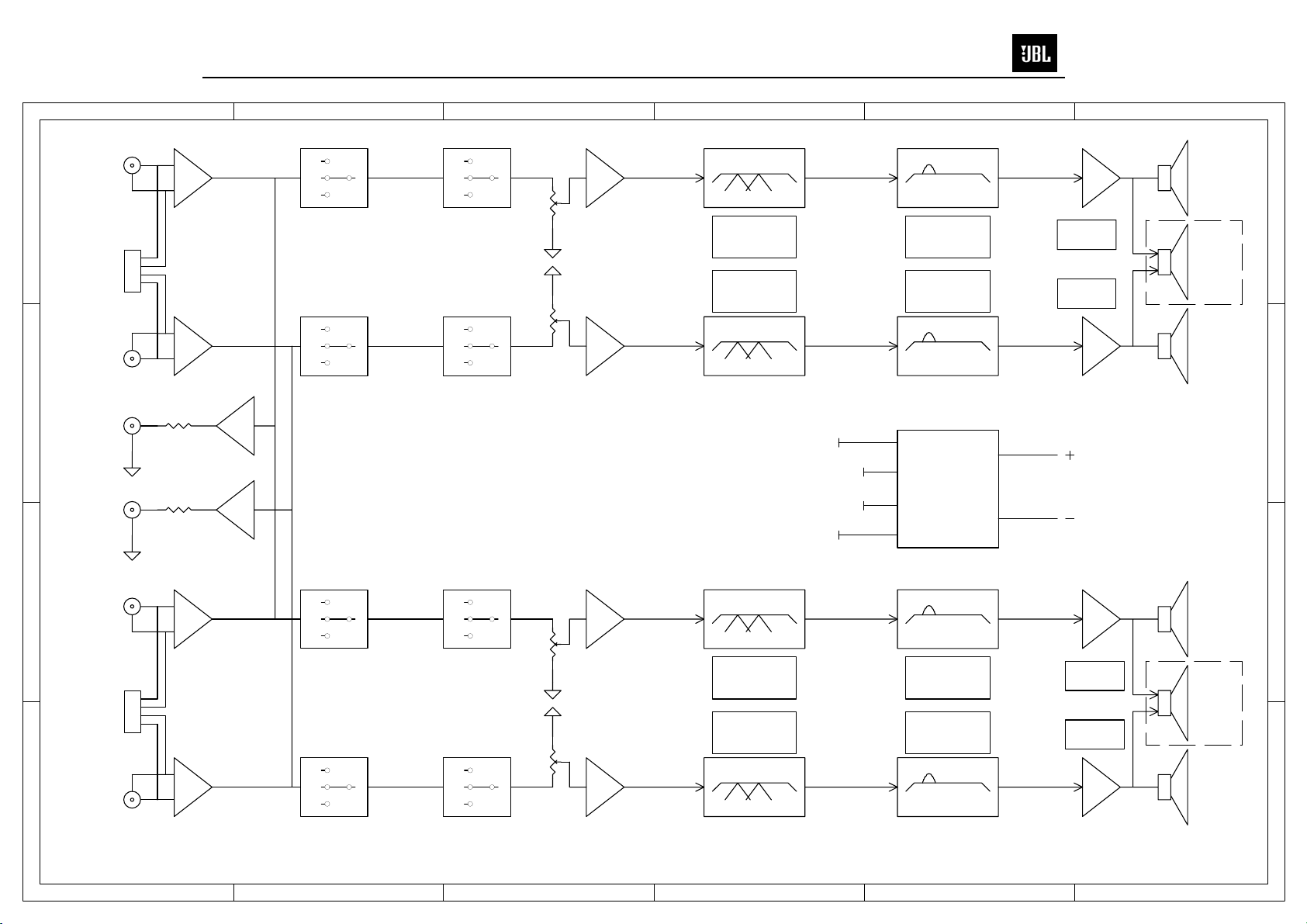

AMPLIFIER BLOCK DIAGRAM…………………….……8
ELECTRICAL PARTS LIST ..……….……….…….…….9

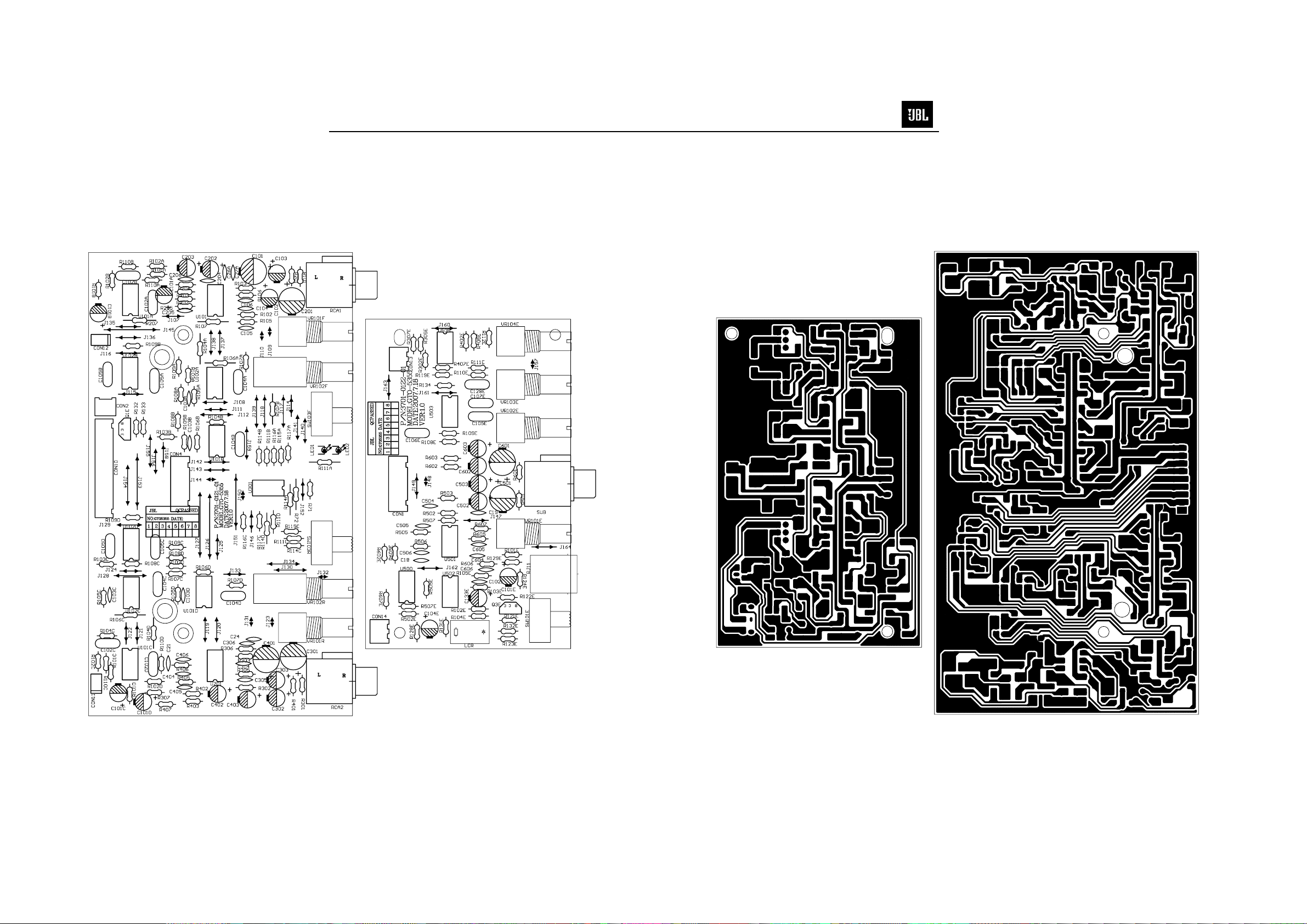

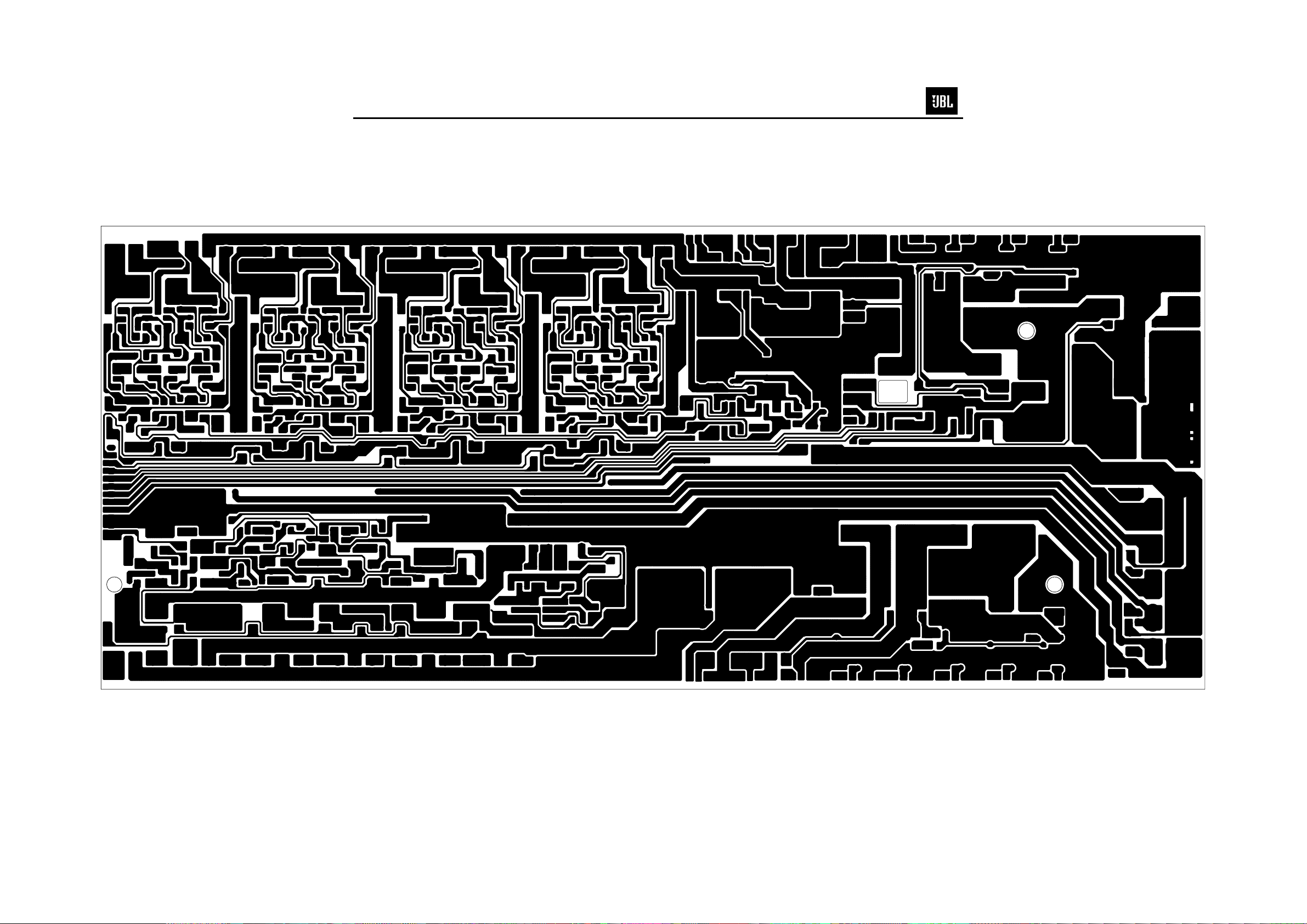

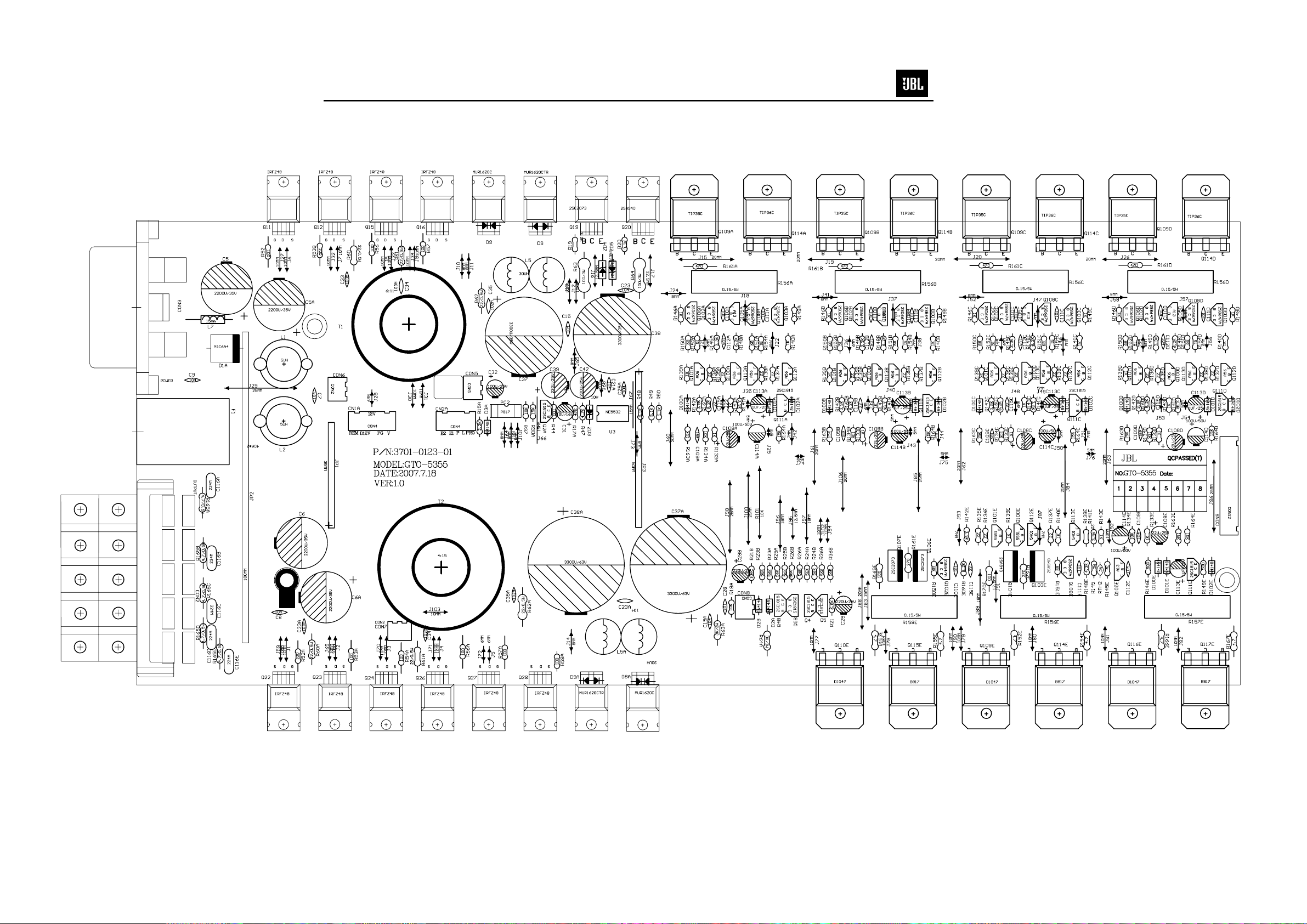

P.C.B. DRAWINGS….……………………….....….……15

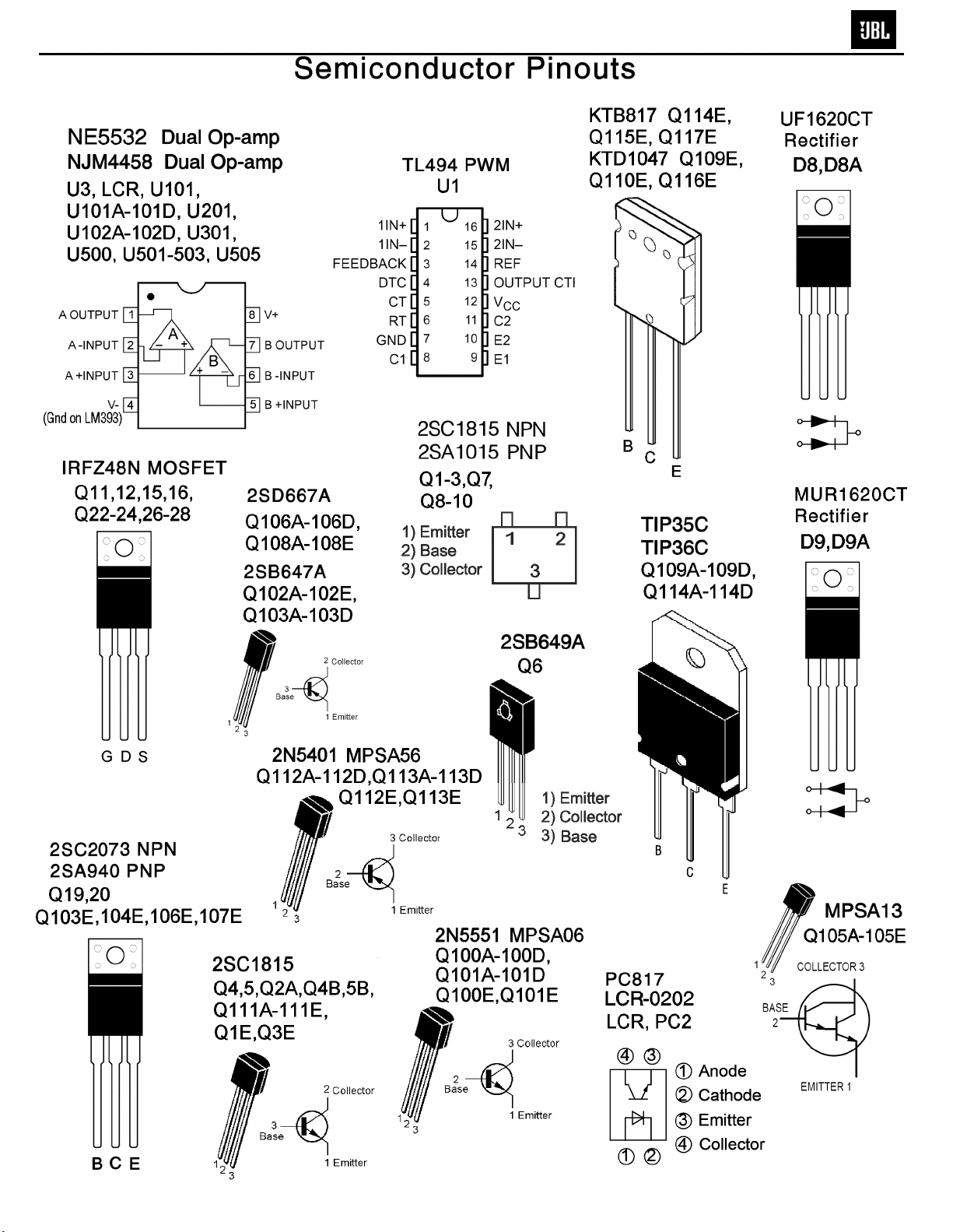

IC/TRANSISTOR PINOUTS..………………..….….…..18

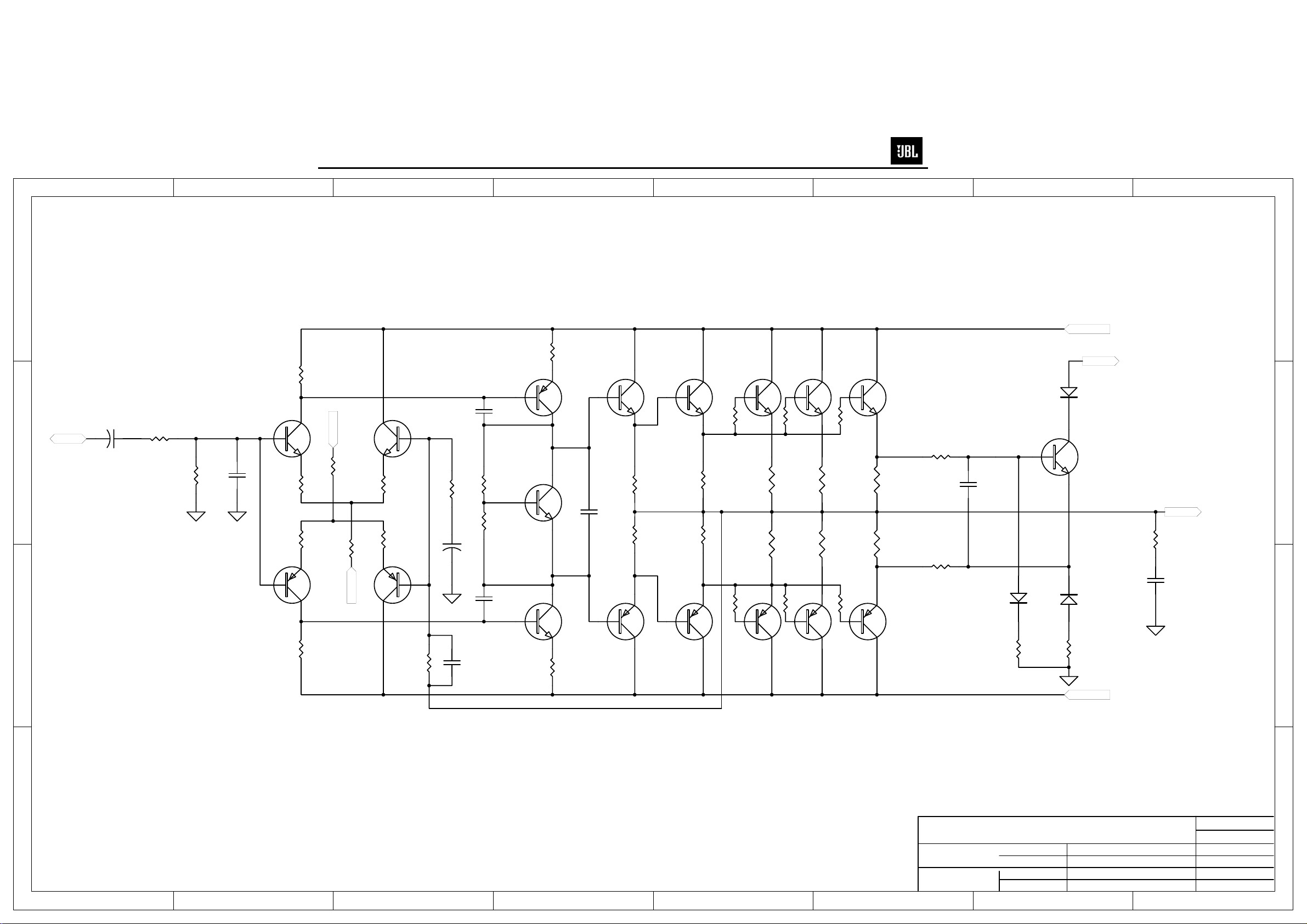

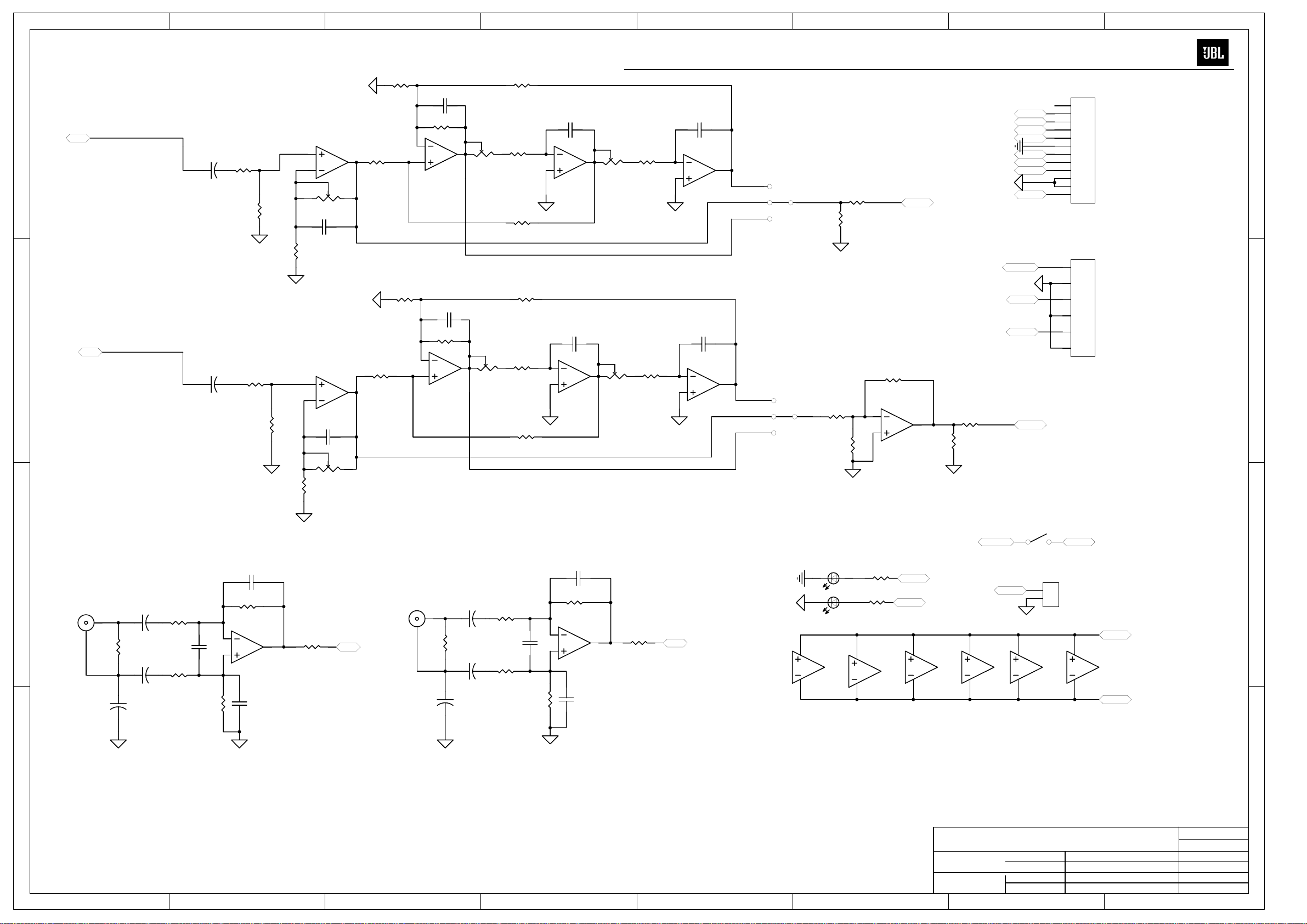

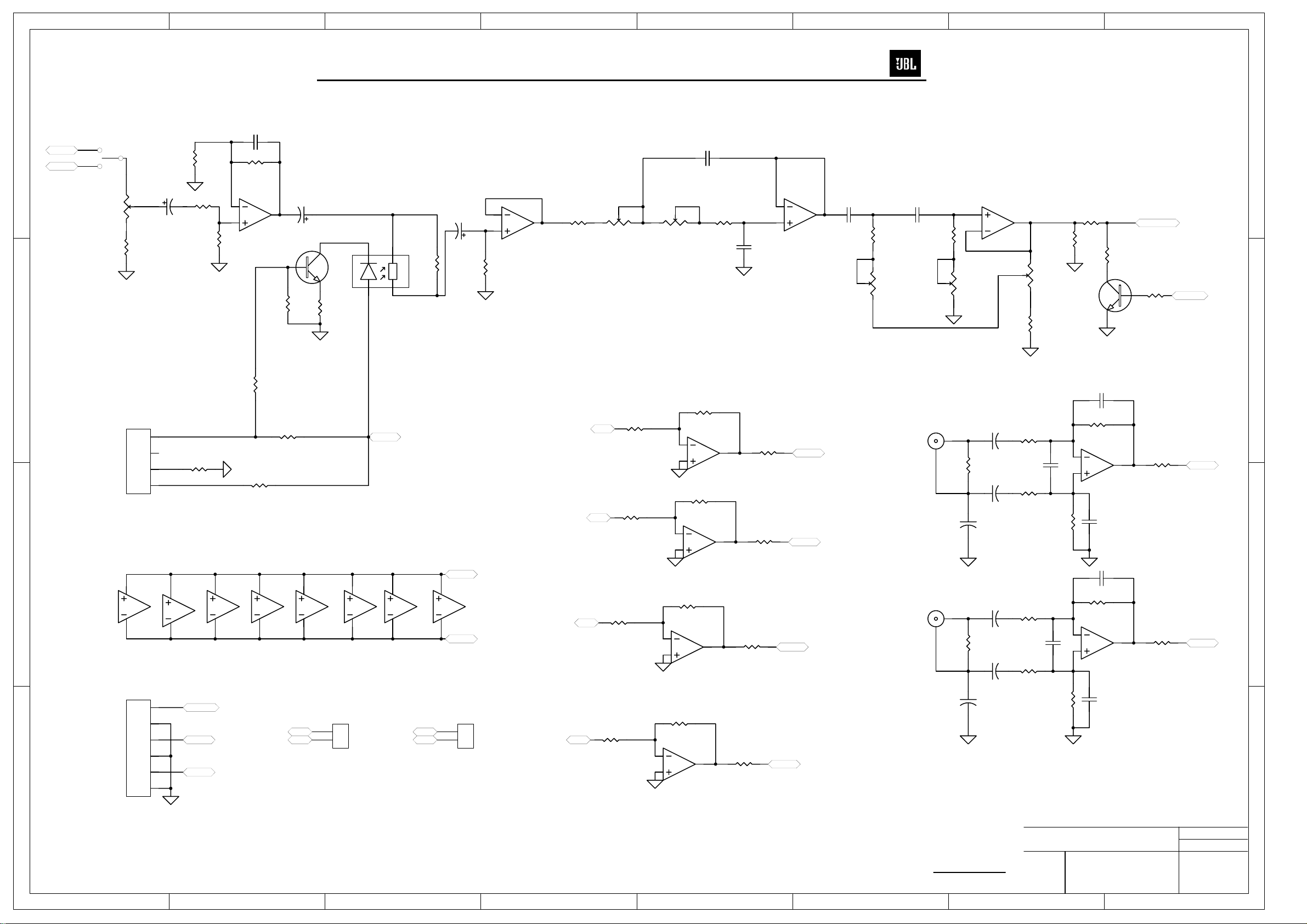

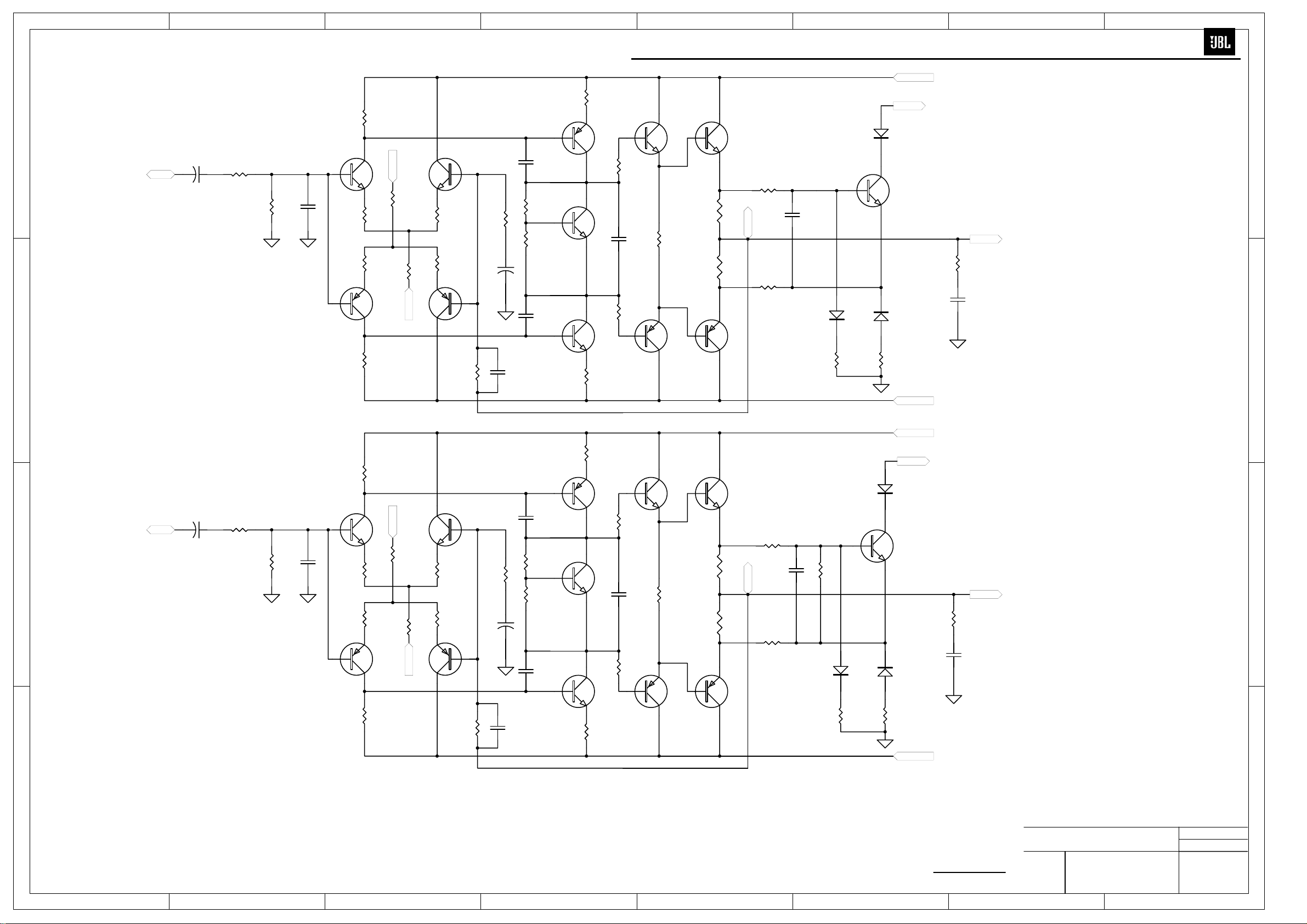

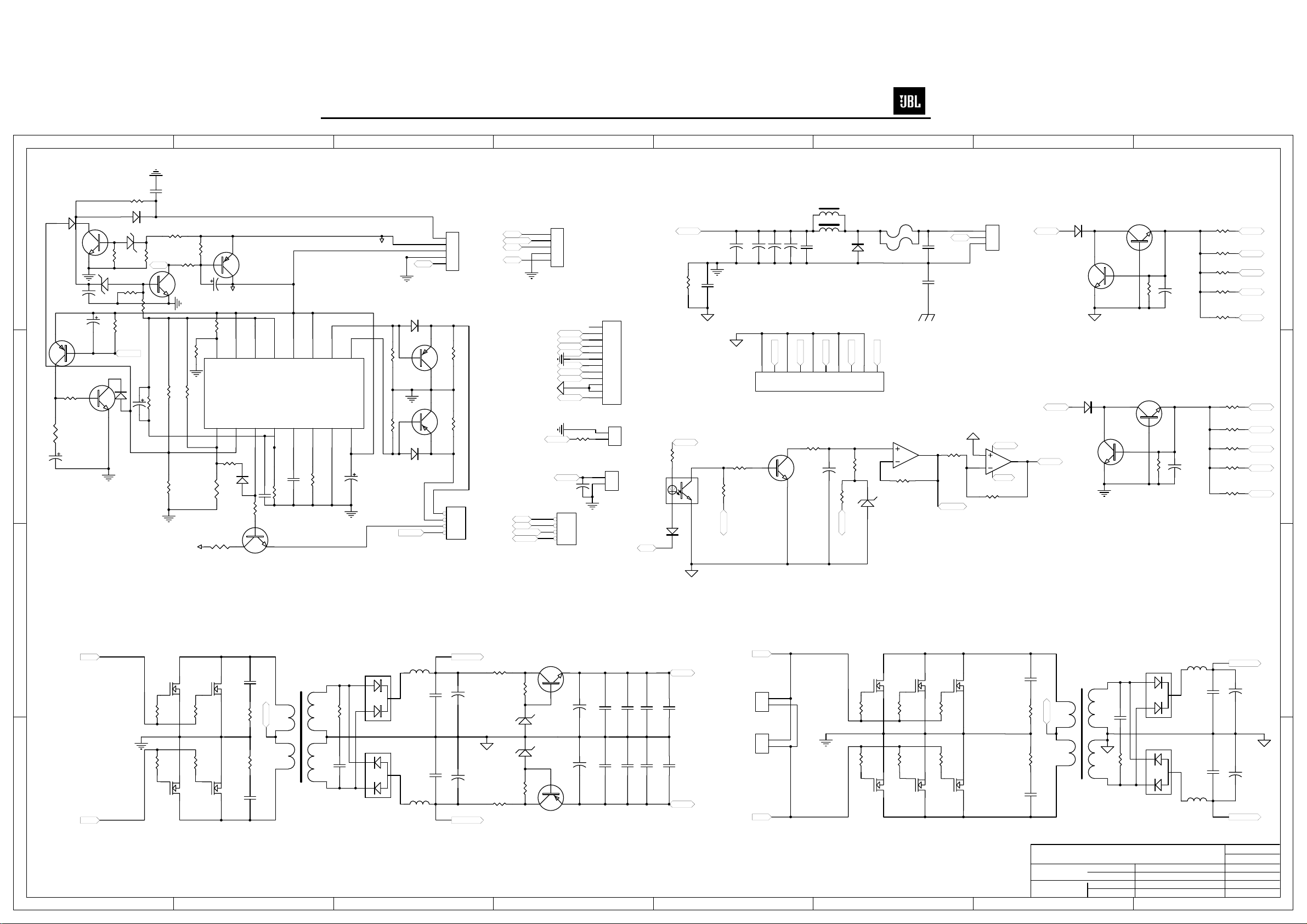

SCHEMATICS……………………………………….…...19
GTO 5355 Specifications
Output Power: 55W RMS x 4 channels + 225W RMS x 1 channel @ 4 ohms; ≤ 1% THD+N
(14.4V supply) 75W RMS x 4 channels + 360W RMS x 1 channel @ 2 ohms; ≤ 1% THD+N
140W RMS x 2 channel (bridged) @ 4 ohms; ≤ 1% THD + N
Signal-to-noise ratio: 85dBA (reference 1W into 4 ohms)
104dBA (reference rated power into 4 ohms)
Dynamic power: 660W @ 2 ohms
Frequency response: 10Hz – 83kHz and 20Hz – 250Hz (subwoofer)
THD+N 1KHz LPF=22KHz ≤ 0.03% (rated power @ 4 ohms)
Channel Separation ≥ 45db (full rated power)
Input Impedance >20K ohms
Maximum input signal: 6.0V
Maximum sensitivity: 100mV
Hi-Pass, Low Pass X-over Limits 32Hz – 320Hz + 20Hz – 200Hz ±20%
Bass Boost @ 50Hz 0-12dB
DC Offset <30mV
Output regulation: .03dB @ 4 ohms
Idle Current @ 4 ohms 1.9A
Max Current Draw <80A @ 2 ohms both channels driven
Remote Operating Voltages ON 5V OFF 4V
Turn-on delay time 2-3 sec
Circuit Protection Temperature (85±5C), Short circuit
Operating voltage range (8-16V)
Dimensions: 18 9/16 x 10 3/8 x 2 1/8” (470 x 263 x 53mm)
Fuses: (2) x 40A
JBL continually strives to update and improve existing products, as well as create new ones. The specifications
and details in this and related JBL publications are therefore subject to change without notice.
Page 3
G T O 5 3 5 5
Item Part Number Description Qty
1 CH5523221134 Outer Carton 1
2 BZL311105120 Packing Foam 2
3 GTO5355 Amplifier 1
4 Plastic bag 1
5 Plastic bag 1
6 Visit www.jbl.com Owner’s manual 1
7 Accessory kit consisting of:
LS1AA0404501 Mounting Screws 4
1601-303G-00 30A Fuse 1
REMOTE GTO AMP
Remote Level control 1
2100-0009-04 Phone cable 4PIN Black L=6M, 6P4C 1
Page 4
±
ÈÀý
1.000
01 2
B
A 45 6 7 9
E D FG3H I
AB
18-9/16"
470mm
10-3/8"
263mm
2-1/8"
53mm
E
1-5/8"
40mm
1"
25mm
L
C 8
2x
2x
4x
1x
1x
1x
ABCDEF
J
K
A
B
C
D
G T O 5 3 5 5
Page 5
Factory Bolt Ring Connector
Ground Wire
Note: Remove any paint
below ring connector.
Star Washer
G T O 5 3 5 5
GTO5355 CAR AUDIO POWER AMPLIFIER OWNER’S MANUAL
Installation Warnings and Tips
• Disconnect the negative (–) lead from your vehicle’s
battery.
• At the installation sites, locate and make a note of
all fuel lines, hydraulic brake lines, vacuum lines
and electrical wiring. Use extreme caution when
cutting or drilling in and around these areas.
• Choose a safe mounting location away from moisture.
• Make sure there is sufficient air circulation at the
mounting location for the amplifier to cool itself.
• Mount the amplifier, using the supplied hardware.
Specifications
• 55W RMS x 4 channels, plus 225W RMS x 1 channel,
@ 4 ohms and ≤ 1% THD + N*
• 75W RMS x 4 channels, plus 360W RMS x 1 channel,
@ 2 ohms and ≤ 1% THD + N*
• THD + N: 0.03% (rated power @ 4 ohms)
• Signal-to-noise ratio: 85dBA
(reference 1W into 4 ohms)*
• Signal-to-noise ratio: 104dBA
(reference rated power into 4 ohms)
• Frequency response: 10Hz – 83kHz and
20Hz – 250Hz
• Max power: 660 watts
* CEA-2006A-compliant
0
Speaker Output Connectors
• Connect the speakers to these terminals,
observing proper polarity.
• Five-channel operation: Connect the front left
speaker to the Front L+ and L– terminals and
the front right speaker to the Front R+ and
R– terminals. Repeat for the rear speakers,
using the Rear L+ and L– terminals, and
the Rear R+ and R– terminals. Connect the
subwoofer to the Sub+ and Sub– terminals.
• Four-channel operation: Connect the stereo
speakers to the Front terminals, as above.
Connect the single speaker into which the
amplifier’s rear channels will be bridged to the
Rear R+ and Rear L– terminals. Connect the
subwoofer to the Sub+ and Sub– terminals
• Three-channel (bridged) operation: Connect
one speaker to the Front R+ and Front L–
terminals. Connect the other speaker to the
Rear R+ and Rear L– terminals. Connect the
subwoofer to the Sub+ and Sub– terminals.
• Minimum speaker impedance for stereo
operation is 2 ohms. Minimum speaker
impedance for bridged operation is 4 ohms.
Minimum subwoofer impedance is 2 ohms.
1
Fuses
• Replace only with same type and rating.
2
Power Input Connectors
• +12V: Connect to the positive terminal of the
vehicle’s battery. 4 AWG wire is recommended.
Install an appropriate fuse holder and fuse (80A
minimum) within 18 inches of the battery. Make
sure the wire is not damaged or pinched during
installation. Install protective grommets when
routing wires through the firewall or other sheet
metal.
• GND: Connect to the vehicle’s chassis. Refer to
the picture below.
• REM: Connect to the “Remote Out” lead from
the source unit or to a source of switched
12V+ (ACC).
3
Front Input Connectors (RCA)
• Connect to the front RCA outputs from the
source unit or signal processor.
4
Front Input-Level Control
• Used to match the front input level of the
amplifier to the output level of the source unit.
• See Jfor the adjustment procedure.
5
Front Crossover-Frequency Control
• 12dB/octave crossover, variable from
32Hz to 320Hz.
• See Kfor the adjustment procedure.
6
Front Crossover-Filter Selector
• LPF: Select for subwoofer(s).
• FLAT: Select for full-range speakers when
no subwoofer will be used in the system.
• HPF: Select for midrange speakers or
full-range speakers when a subwoofer is
used in the system.
7
Power On LED
• Illuminated when the amplifier is on.
8
Subwoofer Input Connector (RCA)
• Connect to the subwoofer RCA outputs from
the source unit, or signal processor.
9
Rear Crossover-Filter Selector
• LPF: Select for subwoofer(s).
• FLAT: Select for full-range speakers when
no subwoofer will be used in the system.
• HPF: Select for midrange speakers or
full-range speakers when a subwoofer is
used in the system.
A
Rear Crossover-Frequency Control
• 12dB/octave crossover, variable from
32Hz to 320Hz.
• See the adjustment procedure in K.
B
Rear Input-Level Control
• Used to match the rear input of the amplifier to
the output of the source unit.
• See Jfor adjustment procedures.
C
Rear Input Connectors (RCA)
• Connect to rear RCA outputs from the source
unit, or signal processor.
D
EXT/INT Switch
• If the source unit has a subwoofer output and
you have connected it to the SUB input, set this
switch to the EXT position. Otherwise, set it in
the INT position.
E
Subwoofer Remote Level Control Connector
• Connect the Remote Level Control (RLC) here,
using the supplied RJ-11 cable.
F
Subwoofer Level Control
• Used to match the SUB input of the amplifier to
the output of the source unit.
• See Jfor adjustment procedures.
G
Protect LED
• Illuminated under any of the following fault
conditions: battery over/under voltage, short
circuit in speaker wires, amplifier is too hot,
amplifier’s output circuit has failed (DC voltage
present in the amplifier’s output).
H
Subwoofer Low-Pass Filter Frequency Control
• 12dB/octave low-pass filter, variable from 20Hz
to 200Hz.
• See the adjustment procedure in K.
I
DBO (Dynamic Bass Optimization) Variable
Subsonic High-Pass Filter With Variable Boost (Q)
• For woofers in tuned (vented) enclosures, set
the Frequency control to a value 10Hz below the
enclosure’s resonance (tuned) frequency.
• For woofers in sealed boxes, set the control to
any value you prefer between 30Hz and 50Hz.
• Set the Boost control according to your
preference, being careful not to apply
enough boost to damage your woofer(s).
A DBO High-Pass Filter Frequency control,
variable between 10Hz and 100Hz. See
above for appropriate settings.
B DBO Boost control provides up to
12dB of boost, slightly above the highpass filter’s frequency. See above for
appropriate settings.
J
Setting Input Level
A Turn all Input-Level controls counterclockwise
to 6V (minimum).
B With a dynamic music track playing, turn the
head unit’s volume control to the 3/4 position.
C Turn Front Input-Level control clockwise until
the music is so loud that it no longer sounds
clear (distortion is present in the output).
D Turn Front-Input-Level control counterclock-
wise gradually, just until the music sounds
clear, once again.
E Front-Level input is now adjusted correctly.
F Adjust the Rear and Sub Input-Level controls
so that the level of the rear speakers and the
level of the subwoofer are proportionate to the
level of the front speakers, according to your
preference.
K
Setting the Crossover
A Crossover setting for 5" or larger full-range
speakers when no subwoofer is included in
the system.
B Crossover setting for full-range speakers
when a subwoofer is included in the system.
C Crossover setting for subwoofers.
D Crossover setting for systems that include
separate mid-bass speakers driven by the rear
channels, with the BP switch set to “BP.”
Note: Acceptable frequency ranges are indicated
in gray.
L
Remote Level Control
The Remote Level Control, if installed, will allow
you to adjust the level of bass while seated in the
listening position.
This product is designed for mobile applications and is not
intended for connection to the mains.
A valid serial number is required for warranty coverage.
Features, specifications and appearance are subject to change
without notice.
Page 6
G T O 5 3 5 5
Amplifier Troubleshooting Guide
1. Status LED on Amplifier not Lit - Head Unit (Source) Turned ON
Verify:
A. Remote turn-on wire from source to amplifier has proper voltage
B. Power (B+) connections at amplifier, terminal blocks, and battery are secure
C. Ground (GND) connections at amplifier and vehicle chassis are secure
D. Battery B+ fuse (if used) is OK
E. Amplifier fuse is OK
F. B+ at battery and B+ at amplifier has proper voltage
2. Status LED’s Lit, No Output from Speakers in Normal Operating Condition
Verify:
A. RCA cables from amplifier to source are securely connected
B. Volume adjustment on amplifier is correctly adjusted
C. Source is ON and playing
3. Engine Noise From Speaker(s)
Turn source OFF, Disconnect RCA cables at amplifier. If noise stops, check equipment & cables leading
to ampli fier.
Verify:
A. RCA cables ar e o f good quality wit h no bre ak a ge to i nternal shiel ds
B. RCA cables from source to amplifier are not run alongside any power cables
4. Amplifier Output Distorted Music
Verify:
A. Source output music to amplifier is not distorted
B. Source output sensitivity is correctly adjusted
5. Amplifier Shuts Down, Green LED’s are Lit - Amplifier is in Thermal Protection Mode
Verify:
A. Amplifier is mounted with adequate air circulation around heatsinks or vents
B. Amplifier is not mounted under carpet or sealed enclosure
C. Speakers meet correct impedance for application (mono or stereo hookup)
6. Amplifier Does Not Turn ON, and Red LED is Lit Amplifier (and not Connected to a Shorted Speaker)
Verify:
A. Speaker crossover (if used) is no t defective
Page 7
G T O 5 3 5 5
LARGER VERSION OF
CHART NEXT PAGE
RCA CAP (Red)
RCA CAP (Wht)
Trans. Clamp
Trans. Clamp
Trans. Clamp
Standoff
Front Plate
Standoff
Page 8
G T O 5 3 5 5
Page 9
G T O 5 3 5 5
INPUT L
OP
D
4
3
2
1
IMS INPUT
OP
INPUT R
C
AUX OUT L
1
A
2 3
4
MODE:FRONT/REAR/SUB
MODE:FRONT/REAR/SUB
1
A
2 3
4
1
A
2 3
4
MODE:RIGHT/STEREO/LEFT
MODE:RIGHT/STEREO/LEFT
1
A
2 3
4
OP
2
A
1 3
10 100K 32 320
MODE HP/FLAT/LP
VARIABLE LPF/HPF
10 100K 50
32Hz-320Hz/12dB
MODE HP/FLAT/LP
VARIABLE LPF/HPF
32Hz-320Hz/12dB
2
A
OP
1 3
10 100K 32 320
10 100K 50
BASS BOOST
VARIABLE
0dB-6dB/50Hz
BASS BOOST
VARIABLE
0dB-6dB/50Hz
5 4 3 2 1
AMP
MAIN AMP
FRONT L
MAIN AMP
FRONT R
AMP
OP
+15V
AUX OUT R
+VCC
OP
-VCC
-15V
power supply Battery
6
4 ohm/2 ohm
speaker
D
BTL-4ohm
speaker
4 ohm/2 ohm
speaker
C
B
INPUT RL
OP
4
3
2
1
IMS INPUT
OP
A
INPUT RR
1 2 3 4 56
1
A
2 3
4
MODE:FRONT/REAR/SUB
MODE:FRONT/REAR/SUB
1
A
2 3
4
1
A
2 3
4
MODE:RIGHT/STEREO/LEFT
MODE:RIGHT/STEREO/LEFT
1
A
2 3
4
OP
2
A
1 3
10 100K 32 320
MODE HP/FLAT/LP
VARIABLE LPF/HPF
32Hz-320Hz/12dB
10 100K 50
BASS BOOST
0dB-6dB/50Hz
VARIABLE
AMP
MAIN AMP
REAR RL
4 ohm/2 ohm
speaker
BTL-4ohm
B
speaker
MODE HP/FLAT/LP
VARIABLE LPF/HPF
32Hz-320Hz/12dB
2
A
OP
1 3
10 100K 32 320
BASS BOOST
0dB-6dB/50Hz
10 100K 50
VARIABLE
MAIN AMP
REAR RR
AMP
4 ohm/2 ohm
speaker
A
Page 10
G T O 5 3 5 5
GTO5355 Electrical Parts List
Part Number Qty Reference Designator
MAIN PCB
Resistors
0702-24R7-02 Resistor 1/4W 4.7Ω ±5% 10MM 6 R152E R153E R154E R155E R166E R167E
0702-1220-02 Resistor 1/8W 22Ω ±5% 7.5MM 20
0702-1510-02 Resistor 1/8W 51Ω ±5% 7.5MM 8
0702-1680-02 Resistor 1/8W 68Ω ±5% 7.5MM 10
0702-1101-02 Resistor 1/8W 100Ω ±5% 7.5MM 11
0702-2101-02 Resistor 1/4W 100Ω ±5% 10MM 2 R169E R170E
0702-2271-02 Resistor 1/4W 270Ω ±5% 10MM 2 R161E R162E
0702-1471-02 Resistor 1/8W 470Ω ±5% 7.5MM 4 R161A R161B R161C R161D
0702-1511-02 Resistor 1/8W 510Ω ±5% 7.5MM 2 R146E R149E
0702-1102-02 Resistor 1/8W 1KΩ ±5% 7.5MM 28
0702-1222-02 Resistor 1/8W 2.2KΩ ±5% 7.5MM 1 R15A
0702-1302-02 Resistor 1/8W 3KΩ ±5% 距 7.5MM 1 R148E
0702-1332-02 Resistor 1/8W 3.3KΩ ±5% 7.5MM 8
0702-1392-02 Resistor 1/8W 3.9KΩ ±5% 距 7.5MM 10
0702-1622-02 Resistor 1/8W 6.2KΩ ±5% 7.5MM 4 R148A R148C R148B R148D
0702-1472-02 Resistor 1/8W 4.7KΩ ±5% 7.5MM 1 R47
0702-1512-02 Resistor 1/8W 5.1KΩ ±5% 7.5MM 3 R48 R49 R50
0702-1682-02 Resistor 1/8W 6.8KΩ ±5% 7.5MM 1 R21
0702-1822-02 Resistor 1/8W 8.2KΩ ±5% 7.5MM 5 R160A R160B R160C R160D R160E
0702-1103-02 Resistor 1/8W 10KΩ ±5% 7.5MM 9
0702-1153-02 Resistor 1/8W 15KΩ ±5% 7.5MM 11
0702-1473-02 Resistor 1/8W 47KΩ ±5% 7.5MM 1 R17A
0702-1563-02 Resistor 1/8W 56KΩ ±5% 7.5MM 10
07051515X102 Resistor 5W 0.15Ω *2 ±5% (立式 ) 三脚 26*5*18MM 7
0704-7101-02 Resistor 3W 100Ω ±5% 2 R63 R64
0702-3220-02 Resistor 1/2W 22Ω ±5% 12.5MM 6 R60 R60A R61 R61A R62 R62A
0702-34R7-02 Resistor 1/2W 4.7Ω ±5% 距 12.5MM 5 R165A R165B R165C R165D R165E
0712-6472-02 Resistor 2W 4.7KΩ ±5% 10MM 2 R64A R63A
Description
R135A R135B R135C R135D R135E R136A
R136B R136C R136D R136E R137A R137B
R137C R137D R137E R138A R138B R138C
R138D R138E
R152A R152B R152C R152D R154A R154B
R154C R154D
R150A R150B R150C R150D R150E R151A
R151B R151C R151D R151E
R44 R58A R52 R52A R53A R53B R54A R56
R57 R56A R57A
R133A R133B R133C R133D R133E R139A
R139B R139C R139D R139E R140A R140B
R140C R140D R140E R143A R143B R143C
R143D R143E R146A R146B R146C R146D
R149A R149B R149C R149D
R19 R20 R145 R145A R145C R145D R145E
R145B
R141A R141B R141C R141D R141E R142A
R142B R142C R14D R142E
R18A R37 R134A R134B R134C R134D
R134E R21B R101
R30A R163A R163B R163C R163D R163E
R164A R164B R164C R164D R164E
R23A R24A R25A R26A R36A R23B R24B
R25B R26B R36B
R156A R156B R156C R156D R156E R157E
R158E
Capacitors
06D211076001 Cap electro 100UF/50V ±20% 8*12 105℃ 5mm 5 C114A C114B C114C C114D C114E
06D211063000 Cap electro 10UF/16V ±20% 5*7 105℃ 5MM 1 C31
06D211074100 Cap electro 100uF/25V ±20% 6.3*11 105℃ black5MM 1 C32
06D211056001 Cap electro 1UF/50V ±20% 5*11 105℃ 5.0mm 5 C113A C113B C113C C113D C113E
06D212285101 Cap electro 2200UF/35V Φ 16*26MM ±20% 105℃ 7.5MM 4 C5 C5A C6 C6A
06D212264103 Cap electro 220uF/25V ±20% 8*12 105℃ black 5MM 4 C39 C42 C29 C29B
Page 11
G T O 5 3 5 5
Part Number Qty Reference Designator
MAIN PCB
06D212264102 Cap electro 22uF/25V ±20% 5*11 105℃ black 5MM 5 C108A C108B C108C C108D C108E
06D213389001 Cap electro 3300UF/63V ±20% 30*25 105℃ 2 C37A C38A
06D213385001 Cap electro 3300UF/35V ±20% 22*25 105℃ 2 C37 C38
06D231017000 porcelin Cap 100pF/100V ±20% 5MM 10
06D231027000 porcelin Cap 1000pF/100V ±20% 5MM 2 C35 C35A
06D231037000 porcelin Cap 0.01uF/100V ±20% 5MM 4 C33 C33A C34 C34A
06D231047000 porcelin Cap 0.1uF/100V ±20% 5MM 16
06D232207000 porcelin Cap 22pF/100V ±20% 5MM 5 C115A C115B C115C C115D C115E
06D236817000 porcelin Cap 680pF/100V ±20% 5MM 4 C109A C109B C109C C109D
06D321047200 Capacitor 104/100V ±5% green 5MM 5 C116A C116B C116C C116D C116E
Semiconductors
04WY-15BV104 diode schotty 15V 0.5W 20MA 52MM DO-35 0.5W 2 ZD4 ZD5
04WY-10BV104 diode schotty ASC SPA 20MA 10V 52MM DO-35 0.5W 1 ZD3
04PT-4148-04 diode 1N4148 GSS 200MA 75V DO-35 18
04ZL-6A10-00 diode 6A10 1000V 1 D1A
03P1-A940-02 Transistor 2SA940 PNP TO-220 3 Q20 Q103E Q104E
03P1-B647-01 Transistor 2SB647 1A 120V 0.9W PNP TO-92 9
03N1-1815-01 Transistor 2SC1815GR 150MA 60V 400MW NPN TO-92 10
03N1-2073-02 Transistor 2SC2073 NPN TO-220 3 Q19 Q106E Q107E
03N1-667A-01 Transistor 2SD667AC 1A 120V 0.9W NPN TO-92 9
03P1-5401-01 Transistor 2N5401 PNP TO-92 2 Q112E Q113E
03N1-5551-01 Transistor 2N5551 NPN TO-92 2 Q100E Q101E
03N1-SA06-01 Transistor MPSA06 NPN TO-92 8
03N1-SA13-01 Transistor MPSA13 0.5A 30V NPN TO-92 5 Q105A Q105B Q105C Q105D Q105E
03P1-B817-13 Transistor KTB817 PNP TO-3P 3 Q114E Q115E Q117E
03P1-SA56-01 Transistor MPSA56 PNP TO-92 8
03N1-1047-13 Transistor KTD1047 NPN TO-3P 3 Q109E Q110E Q116E
03N1-35CW-26 Transistor TIP35CW NPN T0-247 4 Q109A Q109B Q109C Q109D
03P1-36CW-26 Transistor TIP36CW PNP T0-247 4 Q114A Q114B Q114C Q114D
03T1-Z48N-02 MOS Transistor IRFZ48N TO-220 10
01TI-5532-01 Dual Op-amp NE5532 TI 1 U3
2601-P817-00 photocoupler PC817 4 1 PC2
2202-1620-05 Rectifier MUR1620CTA KAD 16A/200V TO-220 2 D9 D9A
2202-1602-05 Rectifier UF1602CT AKA 16/200V TO-220 2 D8 D8A
Description
C110A C110B C110C C110D C110E C111A
C111B C111C C111D C111E
C7 C8 C9 C15 C15A C23 C23A C28 C109E
C112A C112B C112C C112D C112E C21A
C25A
D2A D3A D100A D100B D100C D100D D100E
D101A D101B D101C D101D D101E D102A
D102B D102C D102D D102E D2B
Q102A Q102B Q102C Q102D Q102E Q103A
Q103B Q103C Q103D
Q2A Q4 Q5 Q111A Q111B Q111C Q111D
Q111E Q4B Q5B
Q106A Q106B Q106C Q106D Q108A Q108B
Q108C Q108D Q108E
Q100A Q100B Q100C Q100D Q101A Q101B
Q101C Q101D
Q112A Q112B Q112C Q112D Q113A Q113B
Q113C Q113D
Q12 Q15 Q16 Q22 Q23 Q24 Q26 Q27 Q28
Q11
Miscellaneous
1004-3000-10 inductor 30UH φ 12 内径 φ 5 11.5mm 2 L5 L5A
1005-5R01-10 toroidal inducto
3000-5355-01 Transformer ф 40 4:15 L1=L2=0.8*12 4TS S1=S2=1.0*515TS 1 T2
1601-403E-00 fuse 40A 2 F1
1401-0008-00 fuse holder 2PIN BXS2-09 1 for F1
1501-1209-00 socket Pitch 2.54MM 12PIN 1 CON9
1501-0209-00 socket Pitch 2.54MM 2PIN 4 CON5 CON6 CON7 CON8
1505-1000-01 terminal BTS10-26 1 CON2
5uH Φ 10*24MM Φ 2.0 2 L1 L2
Page 12
G T O 5 3 5 5
Part Number Qty Reference Designator
MAIN PCB
1501-0300-02 terminal BTS3-24 1 CON3
1380-0211-00 temp switch 95℃ KSD-301 1
PL-L0002-000 terminal GND-3 1
3000-LGTO-01 Transformer φ 37 6:12 L1=L2=0.8*10*6TS L3=L4=0.8*5*12TS 1 T1
2100-0074-02 cable
2100-0073-02 cable
PL-A0056-000 14.0x7.0x64.0 Alum. Bar with Insulated paper 2
PL-A0054-000 14.0x7.0x64.0 Alum. Bar with Insulated paper 4
PL-A0053-000 14.0x7.0x88.0 Alum. Bar with Insulated paper 2
PREAMP/INPUT PCB
Resistors
0702-1361-02 Resistor 1/8W 360Ω ±5% 7.5MM 4 R110D R110C R110B R110A
0702-1102-02 Resistor 1/8W 1KΩ ±5% 7.5MM 14
0702-1202-02 Resistor 1/8W 2KΩ ±5% 7.5MM 1 R132
0702-1472-02 Resistor 1/8W 4.7KΩ ±5% 7.5MM 6 R107D R107C R107A R107B R71 R72
0702-1562-02 Resistor 1/8W 5.6KΩ ±5% 7.5MM 4 R109D R109C R109B R109A
0702-1682-02 Resistor 1/8W 6.8KΩ ±5% 7.5MM 4 R106D R106B R106C R106A
0702-1103-02 Resistor 1/8W 10KΩ ±5% 7.5MM 33
0702-1223-02 Resistor 1/8W 22KΩ ±5% 7.5MM 16
1204-5031-18 potentiometer
1204-2030-01 potentiometer B20K KQ L=15 ±10% ±3dB LEVEL 2 VR101R VR101F
2PIN P=2.54MM 1007#26AWG L=100MM
(A2501TOP-2)
2PIN P=2.54MM 1007#26AWG L=85MM
(A2501TOP-2)
A50K R0971G2B W=5 KQ L=15MM T=7.5MM
M=1MM FREQ
Description
1
1
R407 R307 R117C R117A R116C R116A
R115C R115A R114C R114B R207 R114D
R114A R107
R406 R405 R403 R402 R306 R305 R303 R302
R206 R205 R203 R202 R133 R108D R108C
R108B R108A R106 R105D R105C R105B
R105A R105 R104C R104B R103 R102D
R102C R102B R102A R102 R104D R104A
R101B R401 R301 R201 R111C R111B R101
R103A R103B R101C R101D R103C R103D
R101A R111D R111A
2 VR102R VR102F
Capacitors
06D212274001 Capacitor 220UF/25V ±20% 8*16 105℃ 5mm 4 C401 C301 C101 C201
06D212264102 Cap electro 22uF/25V ±20% 5*11 105℃ black 5MM 12
06D431046000 porcelin Cap 0.1uF/50V + 80%/-20% 5MM 4 C27A C26A C24 C21
06D232206000 porcelin Cap 22pF/50V ±20% 5MM 8 C406 C405 C306 C305 C206 C205 C106 C105
06D234707000 porcelin Cap 47pF/100V ±20% 5MM 4 C103D C103C C103B C103A
06D231006000 porcelin Cap 10pF/50V ±20% 5MM 8
06D328236200 Capacitor 823/50V ±5% 5MM 8
Semiconductors
03N1-1815-01 Transistor 2SC1815GR 150MA 60V 400MW NPN TO-92 1 Q1E
01JR-4558-01 Dual Op-amp NJM4558 11
2004-0014-00 LED Φ 3.0MM blue with blue light 1 LED2
2000-0017-00 LED red with red light Φ 3MM 2P 1 LED1
C403 C402 C303 C302 C203 C202 C103 C102
C101C C101A C101D C101B
C404 C304 C204 C104 C102D C102C C102A
C102B
C105D C105C C105B C105A C104D C104C
C104B C104A
U301 U201 U102D U102C U102B U102A
U101D U101C U101B U101A U101
Page 13
G T O 5 3 5 5
Part Number Qty Reference Designator
PREAMP/INPUT PCB
Miscellaneous
1404-0027-02 RCA AV2-8.4-38 2 RCA1 RCA2
2100-0009-12 wire 12PIN UL1007 AWG26 L=45mm 2.54 2.54 1 CON10
1501-0205-00 socket Pitch 2.5MM 2PIN 1 CON2A
1501-0609-03 pin socket
1333-0204-00 slide switch SSH-23D04-2P3T 9MM LPF/FLAT/HPF 2 SW103R SW103F
1380-0004-00 temp switch 65℃ KSD-301 1
2100-0073-02 cable
2100-0075-02 cable
PHONE/SUB INPUT PCB
Resistors
0702-1181-02 Resistor 1/8W 180Ω ±5% 7.5MM 1 R129E
0702-1391-02 Resistor 1/8W 390Ω ±5% 7.5MM 1 R101E
0702-1561-02 Resistor 1/8W 560Ω ±5% 7.5MM 1 R110E
0702-1102-02 Resistor 1/8W 1KΩ ±5% 7.5MM 9
0702-1112-02 Resistor 1/8W 1.1KΩ ±5% 7.5MM 1 R105E
0702-1182-02 Resistor 1/8W 1.8KΩ ±5% 7.5MM 1 R112E
0702-1472-02 Resistor 1/8W 4.7KΩ ±5% 7.5MM 1 R123E
0702-1562-02 Resistor 1/8W 5.6KΩ ±5% 7.5MM 2 R109E R108E
0702-1103-02 Resistor 1/8W 10KΩ ±5% 7.5MM 2 R104E R122E
0702-1153-02 Resistor 1/8W 15KΩ ±5% 7.5MM 1 R132E
0702-1223-02 Resistor 1/8W 22KΩ ±5% 7.5MM 3 R601 R501 R119E
0702-1393-02 Resistor 1/8W 39KΩ ±5% 7.5MM 8
0702-1433-02 Resistor 1/8W 43KΩ ±5% 7.5MM 1 R103E
0702-1473-02 Resistor 1/8W 47KΩ ±5% 7.5MM 9
0702-1563-02 Resistor 1/8W 56KΩ ±5% 7.5MM 1 R111E
0702-1104-02 Resistor 1/8W 100KΩ ±5% 7.5MM 1 R128E
0702-1205-02 Resistor 1/8W 2MΩ ±5% 7.5MM 1 R131E
1204-2041-03 potentiometer
1204-5031-34 potentiometer C50K KQ L=15 ±10% LP FREQ 1 VR102E
1204-2030-01 potentiometer B20K KQ L=15 ±10% 同步 ±1.5dB LEVEL 1 VR101E
1204-5011-01 potentiometer B500 KQ L=15 ±10% BASS BOOST 1 VR104E
6PIN highness 8MM thickness2.55MM
PITCH:2.54MM 3.2MM
2PIN P=2.54MM 1007#26AWG L=85MM
(A2501TOP-2)
2PIN P=2.54MM 1007#26AWG L=150MM
(A2501TOP-2)5MM
A2K/A200K KQ L=15 ±10% A2K,A200K HP FREQ
Description
1 CON4
2 CN12 CN11
1
R607 R507 R134 R124E R102E R307E R407E
R507E R607E
R305E R405E R505E R605E R302E R402E
R502E R602E
R606 R605 R603 R602 R506 R505 R503 R502
R121E
1 VR103E
Capacitors
06D231006000 porcelin Cap 10pF/50V ±20% 5MM 3 C604 C504 C102E
06D431046000 porcelin Cap 0.1uF/50V + 80%/-20% 5MM 2 C19 C18
06D232206000 porcelin Cap 22pF/50V ±20% 5MM 4 C606 C605 506 C505
06D341849400 MET Capacitor 184/63V ±5% 5MM 1 C128E
06D344749400 MET Capacitor 474/63V ±5% 5MM 1 C107E
06D328236200 Capacitor 823/50V ±5% 5MM 1 C106E
06D326837200 Capacitor 683/100V ±5% green 5MM 1 C105E
06D212264102 Cap electro 22uF/25V ±20% 5*11 105℃ black 5MM 7 C133E C101E C104E C603 C602 C503 C502
06D212274001 Capacitor 220UF/25V ±20% 8*16 105℃ 5mm 2 C601 C501
Page 14
G T O 5 3 5 5
Part Number Qty Reference Designator
PHONE/SUB INPUT PCB
Semiconductors
03N1-1815-01 Transistor 2SC1815GR 150MA 60V 400MW NPN TO-92 1 Q3E
01JR-4558-01 Dual Op-amp NJM4558 5 U503 U502 U501 U500 U505
2601-0202-00 photocoupler LCR-0202 1 LCR
Miscellaneous
1501-0209-00 socket Pitch 2.54MM 2PIN 2 CON14 CON13
1505-0609-00 pin socket 2.54spacing 6PIN 0.65*0.6516mm 1 CON1
1333-0203-00 slide switch SSH-22H04-G9 2P2T 9MM EXT/INT 1 SW101E
1404-0024-02 dual RCA AV2-8.4-38 2PIN 1 SUB
1413-0001-00 phone socket 6P4C RJ11 HPCB-3021-6P4C black 1 RJ11
PWM PCB
Resistors
0701-2221-03 SMD Resistor SMD 220Ω 1/8W ±1% 0805 1 R17
0701-2101-03 SMD Resistor SMD 100Ω 1/8W ±1% 0805 1 R10
0701-2102-03 SMD Resistor SMD 1KΩ 1/8W ±1% 0805 6 R31 R30 R29 R28 R26 R15
0701-2302-03 SMD Resistor SMD 3KΩ 1/8W ±1% 0805 1 R13
0701-2472-03 SMD Resistor SMD 4.7KΩ 1/8W ±1% 0805 1 R11
0701-2682-03 SMD Resistor SMD 6.8KΩ 1/8W ±1% 0805 2 R5 R51
0701-2562-03 SMD Resistor SMD 5.6KΩ 1/8W ±1% 0805 1 R14
0701-2103-03 SMD Resistor SMD 10K 1/8W ±1% 0805 2 R1 R23
0701-2113-03 SMD Resistor SMD 11KΩ 1/8W ±1% 0805 1 R27
0701-2123-03 SMD Resistor SMD 12KΩ 1/8W ±1% 0805 1 R24
0701-2153-03 SMD Resistor SMD 15KΩ 1/8W ±1% 0805 1 R53
0701-2183-03 SMD Resistor SMD 18KΩ 1/8W ±1% 0805 1 R7
0701-2223-03 SMD Resistor SMD 22KΩ 1/8W ±1% 0805 2 R18 R9
0701-2333-03 SMD Resistor SMD 33KΩ 1/8W ±1% 0805 1 R65
0701-2334-03 SMD Resistor SMD 330KΩ 1/8W ±1% 0805 1 R3
0701-2104-03 SMD Resistor SMD 100KΩ 1/8W ±1% 0805 3 R25 R12 R4
Description
Capacitors
06D211054104 Cap,Electro 1uF/25V ±20% 4*7 105℃ 1C3
06D211074101 Cap,Electro 100UF/25V 6.3*7mm 5mm ±20% 105℃ black 1 C27
06D212273001 Cap,Electro 220UF/16V ±20% 8*7 105℃ 5MM 1 C22
06D214764103 Cap,Electro 47UF/25V ±20% 6*7 105℃ Black belt pin 5mm 2 C1 C20
06S321026000 SMD Capacitor SMD 1000pF/50V 0805 NPO ±5% 1 C26
06S121046000 SMD Capacitor SMD 0.1uF/50V 0805 X7R ±10% 2 C4 C25
Semiconductors
04WY-39AV101 diode schottky SMD 3.9V DO-213AA 0.5W 1 ZD2
04WY-15BV-01 diode schottky SMD 15V 1/2W ±2% DO-213AA 1 ZD1
04PT-4148-01 diode SMD 1N4148 DO-213AA 6 D4 D1 D20 D3 D2 D13
03P1-1015-04 Transistor SMD 2SA1015 SOT-23 PNP 1 Q10
03P1-B649-07 Transistor 2SB649A 1.5A 180V 20W PNP TO-126 1 Q6
03N1-1815-04 Transistor SMD 2SC1815 SOT-23 NPN 4 Q3 Q2 Q7 Q1
01TI-L494-09 PWM IC SMD TL494C SO-16 1 U1
03P1-1015-01 Transistor 2SA1015 150MA 60V 400MW PNP TO-92 2 Q9 Q8
Page 15
G T O 5 3 5 5
Part Number Qty Reference Designator
PWM PCB
Miscellaneous
1501-0409-02 pin socket PITCH 2.54mm 4PIN 90° 1 CN1
1501-0509-04 pin socket PITCH 2.54mm 5PIN 90° 1 CN2
LED PCB
0701-3102-02 Resistor SMD 1KΩ 1/4W ±5% 1206 8 R1 R2 R3 R4 R5 R6 R7 R8
2100-0067-02 wire
2100-0068-02 wire
2005-0009-00 LED LED 2*3*4mm 8
06S121046000 SMD Capacitor SMD 0.1uF/50V 0805 X7R ±10% 1 C1
2PIN UL1007 AWG26 L=70mm 5mm high
temperature105℃ wire
2PIN UL1007 AWG26 L=210mm 2.54 5mm,high
temperature 105℃ wire
Description
2
1
LED1 LED2 LED3 LED4 LED5 LED6 LED7
LED8
Page 16
G T O 5 3 5 5
Page 17
G T O 5 3 5 5
Page 18
G T O 5 3 5 5
Page 19
G T O 5 3 5 5
Page 20
7 6 5 4 3 2 1
8
G T O 5 3 5 5
2
8
R107A
R106A
6.8K
R106B
6.8K
R108A
10K
4.7K
R108B
10K
4.7k
R107B
C104A
2
3
C104B
2
3
823
4 6
U102AA
4558
823
10 12
U102BA
4558
R103A
22K
C103A 47P
R105A
1
10K
R104A
10K
6
5
U101AB
4558
7
1 3
VR102FA
A50K
D
CH1
C101A
22U/25V
R101A
22K
R102A
U101AA
3
2
4558
5
4 6
B20K
VR101FB
10K
C102A
102
R110A
360
R103B
22K
C103B 47P
R105B
1
R104B
10K
10K
6
5
U101BB
7
7 9
VR102FC
A50K
C
CH2
C101B
22U/25V
R101B
22K
U101BA
4558
3
2
4558
R102B
10K
C102B
102
2
R110B
360
B20K
VR101FA
1 3
5
1
VR102FB
C50K
11
1
VR102FD
C50K
R109A
5.6K
R109B
5.6k
C105A
6
5
C105B
6
5
823
U102AB
4558
823
U102BB
4558
7
LPF
FLAT
HPF
7
LPF
FLAT
HPF
SW103FA
1
4
5
8
2 3
SW103FB
CON10
12
11
10
9
8
7
6
5
4
3
2
1
CON12
R114A
1K
R111A
CHA
CHD
CHC
CHB
CHA
PRO LED
+VOP
-VOP
CH SUB
22K
CON4
CH SUB
+VOP
-VOP
1
2
3
4
5
6
CON6-1
R117A
1K
U301A
R115A
6 7
1K
R116A
2
3
1K
4558
1
R114B
1K
R111B
CHB
22K
D
C
TH2
1 2
65 0C
B
CH1
RCA1B
3
R101
22K
C102
22U/16V
4
C103
22U/16V
R102
10K
C104
10P
R103
10K
C101
220U/25V NP
A
1 2 3 4 5 6 78
R106
10K
C105
R105 10K
2
3
U101A
4558
C106
22P
22P
CH2
RCA1A
R201
R107
1
1K
CH1
1
22K
22U/16V
2
C202
C203
22U/16V
R202
10K
C204
10P
R203
10K
C201
220U/25V NP
C205
R205 10K
6
5
R206
10K
C206
22P
22P
U101B
4558
R207
7
1K
CH2
8 4
U101C
4558
LED1
RED
LED2
BLUE
U101AC
4558
R72
PRO LED
4.7K
R71
+VOP
4.7K
8 4
8 4
U101BC
4558
U102AC
4558
PART NAME:
FRONT PRE
PRODUCT MODE:
GTO5355
+VOP
8 4
8 4
U102BC
4558
SCALE: 1:1
UNIT: MM
SIZE: A3
REV: 1.0
CON2A
1
2
CON2
+VOP TEM
8 4
U301C
4558
DRAWN BY:
CHECKED BY:
APPROVED BY:
sheet of 1/7
B
+VOP
-VOP
A
DW GNO:
PART NO:
DATA:
DATA:
DATA:
Page 21
7 6 5 4 3 2 1
8
G T O 5 3 5 5
2
8
R107C
R106C
6.8K
R107D
R106D
6.8K
R108C
10K
4.7K
R108D
10K
4.7K
C104C
2
3
C104D
2
3
823
U102CA
4558
823
10 12
U102DA
4558
5
1
4 6
VR102RB
C50K
11
1
VR102RD
C50K
R109C
5.6K
R109D
5.6k
C105C
6
5
C105D
6
5
823
U102CB
4558
823
U102DB
4558
7
1
LPF
SW103RA
FLAT
4
HPF
7
LPF
5
SW103RB
FLAT
8
HPF
2 3
6 7
R111C
R115C
1K
R116C
1K
22K
6
5
R114C
1K
R117C
1K
U301B
LM833
CHC
7
R111D
22K
R114D
1K
CHD
R103C
22K
C103C 47P
1
R105C
10K
R104C
10K
C103D
47P
22K
R101D
6
5
U101CB
lm833
7
1 3
VR102RA
A50K
D
3
2
360
U101CA
lm833
2
B20K
VR101RA
10P
CH3
C101C
22U/25V
R101C
22K
R102C
10K
1 3
C102C
R110C
R105D
1
R104D
10K
10K
6
5
U101DB
lm833
7
7 9
VR102RC
A50K
C
CH4
C101D
22U/25V
R101D
22K
R102D
10K
U101DA
lm833
3
2
5
4 6
VR101RB
B20K
C102D
10P
D
C
R110D
360
B
CH3
RCA2B
3
R301
22K
C302
22U/16V
4
C303
22U/16V
R302
10K
C304
R303
10K
10P
C301
220U/25V NP
A
1 2 3 4 5 6 78
C305
R305 10K
2
3
R306
10K
lm833
U201A
C306
22P
22P
B
C405
CH4
RCA2A
R307
1
1K
CH3
R401
1
22K
C402
22U/16V
2
C403
22U/16V
R402
10K
C404
10P
R403
10K
C401
220U/25V NP
R405 10K
6
5
R406
10K
lm833
U201B
C406
22P
22P
8 4
R407
7
1K
CH4
U201C
4558
8 4
U101CC
4558
8 4
U101DC
4558
8 4
U102CC
4558
PART NAME:
REAR PRE
PRODUCT MODE:
GTO5355
8 4
U102DC
4558
SCALE: 1:1
UNIT: MM
SIZE: A3
REV: 1.0
8 4
U301C
4558
DRAWN BY:
CHECKED BY:
APPROVED BY:
sheet of 2/7
+VOP
-VOP
A
DW GNO:
PART NO:
DATA:
DATA:
DATA:
Page 22
7 6 5 4 3 2 1
8
G T O 5 3 5 5
10P
D
SW101EA
1
SUB
SUB 1
3
SW2P2T
VR101EA
B20K
2
1 3
R101E
390
2
C101E
22U/25V
R105E
1.1K
1K
R102E
R104E
10K
C102E
C105E
R103E
43K
6
5
U502B
4558
7
R122E
10K
C133E
22U/25V
Q3E
2SC1815
R121E
47K
C104E
LCR
1
2 3
R131E
4
22U/25V
2M
2
3
R128E
100K
U502A
4558
R108E
1
5.6K
2
VR102EA
C50K
1 3
VR102EB
C50K
5
20-200Hz
683
4 6
R109E
5.6K
C106E
683
2
3
U503A
4558
1
C107E
474
2
R110E
560
1 3
VR103EA
A2K
C128E
184
R111E
56K
5
5
6
4 6
VR103EB
A200K
U503B
4558
2
7
VR104EA
B500
1 3
R112E
R134
1K
R119E
22K
R132
3K
CH SUB
Q1E
R133
10K
2SC1815
TEM
1.8K
C
R124E
1K
C505
22P
R505E 39K
47K
R505 47K
2
3
U501A
4558
C506
22P
R507
1
1K
SUB
RJ11
CON4P-1
2
C502
22U/16V
C503
22U/16V
C501
220U/25V NP
R502
47K
C504
10P
R503
47K
R506
R502E
CH1
CH2
39K
R602E
39K
2
3
6
5
R123E
4.7K
R132E
15K
+VOP
1
1
2
2
3
R129E
3
180
4
U500A
4558
R605E 39K
U500B
4558
R507E
1
1K
R607E
7
1K
SUB 1
SUB 1
SUBA
1
R501
22K
D
C
R606
47K
C605
R605 47K
6
5
C606
22P
DRAWN BY:
CHECKED BY:
APPROVED BY:
sheet of 3/7
22P
U501B
4558
B
R607
7
1K
SUB
A
DW GNO:
PART NO:
DATA:
DATA:
DATA:
CH3
CH4
8 4
U505C
4558
+VOP
-VOP
CON13
1
2
CON2
CH4
CH3
R302E
39K
R402E
39K
R305E 39K
2
3
R405E 39K
6
5
U505A
4558
U505B
4558
SUBB
R601
R307E
1
1K
SUB 1
3
22K
C602
22U/16V
4
C603
22U/16V
R602
47K
C604
10P
R603
47K
C601
220U/25V NP
R407E
7
1K
SUB 1

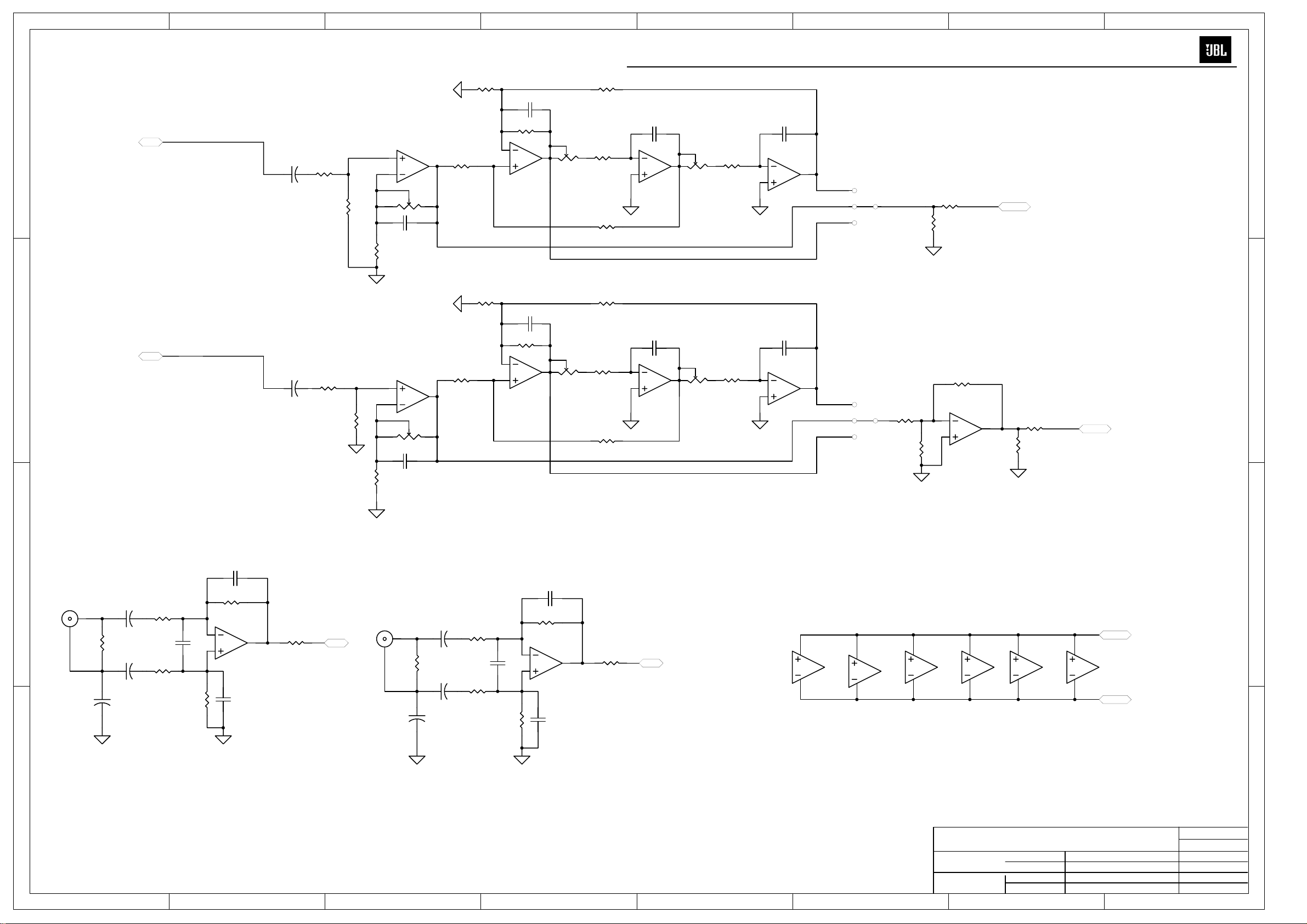

SUB PRE
GTO5355
SCALE: 1:1
UNIT: MM
SIZE: A3
REV: 1.0
B
A
1 2 3 4 5 6 78
8 4
U101C
4558
CON1
CON6-1
8 4
U101AC
4558
6
5
4
3
2
1
U101BC
4558
CH SUB
+VOP
-VOP
8 4
8 4
U102AC
4558
8 4
U102BC
4558
CH1
CH2
U301C
4558
CON14
1
2
CON2
8 4
8 4
U500C
4558
Page 23
7 6 5 4 3 2 1
8
G T O 5 3 5 5
R150A
68
R152A
51
Q105A
A13
R154A
R151A
68
51
Q106A
2SD667A
C112A
104
Q103A
2SB647A
C110A
101
R145A
3.3K
R148A
4.3K
C111A
101
Q102A
2SB647A
Q108A
2SD667A
R139A
Q100A
A06
R135A
22
R137A
1K
Q101A
A06
+VEE
R141A
3.9K
22
R142A
3.9K
R136A
22
R138A
22
R143A
1K
C114A
100U/50V
D
CHA
C108A
22U/25V
R133A
1K
R134A
10K
C109A
681
-VEE
Q112A
A56
C
R140A
1K
Q113A
A56
R160A
8.2K
C115A
22
R161A
470
Q109A
TIP35C
R156AA
0.15/5W
Q114A
TIP36C
SPA1 SPB1
R156AB
0.15/5W
R146A
1K
C113A
1UF/25V
R149A
1K
D100A
IN4148
R163A
15K
+VAMP1
PRO
R164A
-VAMP1
+VAMP1
PROT
D102A
IN4148
Q111A
2SC1815
D101A
IN4148
15K
-VAMP1
R165A
4.7/0.5W
C116A
104M
SPA
D
C
+VAMP1
+VAMP1
R150B
68
R152B
51
Q105B
A13
R154B
R151B
68
51
Q106B
2SD667A
C112B
104
Q103B
2SB647A
C110B
101
R145B
3.3K
R148B
4.3K
C111B
101
Q102B
2SB647A
Q108B
2SD667A
R139B
1K
Q100B
A06
R135B
22
R137B
22
+VEE
R141B
3.9K
R142B
3.9K
CHB
C108B
22U/25V
R133B
1K
R134B
10K
C109B
681
B
R136B
22
R138B
22
Q101B
A06
R143B
1K
C114B
100U/50V
-VEE
Q112B
A56
R140B
1K
Q113B
A56
R160B
8.2K
C115B
22
R161B
470
Q109B
TIP35C
R156BA
0.15/5W
Q114B
TIP36C
R156BB
0.15/5W
R146B
1K
C113B
1UF/25V
R149B
1K
D100B
IN4148
R163B
15K
R147B
3.3K
PRO
-VAMP1
D102B
IN4148
Q111B
2SC1815
D101B
IN4148
R164B
15K
-VAMP1
PROT
R165B
4.7/0.5W
C116B
104M
B
SPB
A
DW GNO:
PART NO:

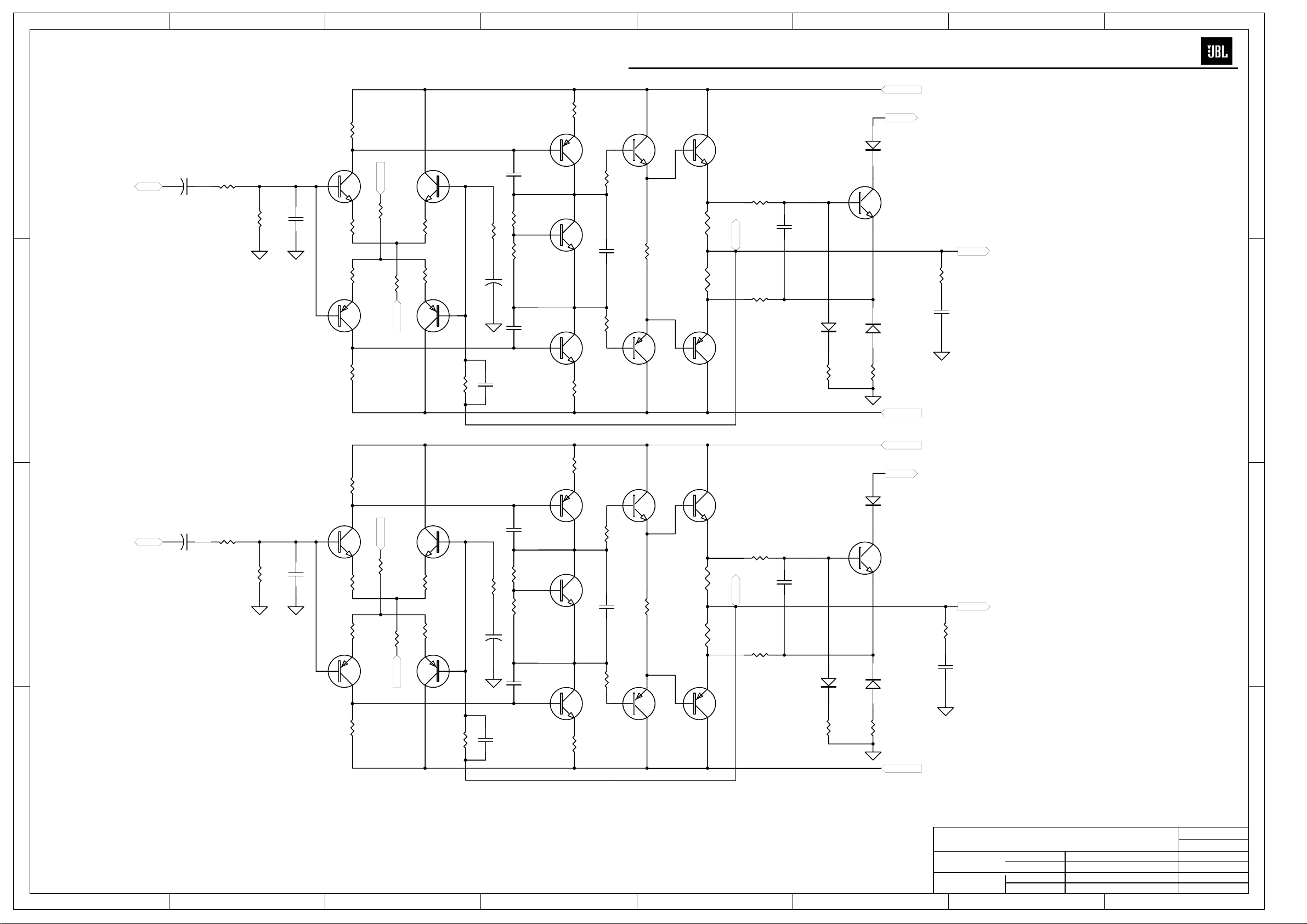

FRONT AMP
GTO5355
SCALE: 1:1
UNIT: MM
SIZE: A3
REV: 1.0
DRAWN BY:
CHECKED BY:
APPROVED BY:
sheet of 4/7
DATA:
DATA:
DATA:
A
1 2 3 4 5 6 78
Page 24
7 6 5 4 3 2 1
8
G T O 5 3 5 5
R150C
68
R152C
51
Q105C
A13
R154C
R151C
68
51
Q106C
2SD667A
C112C
104
Q103C
2SB647A
Q100C
A06
R135C
22
R137C
R139C
1K
22
R142C
3.9K
+VEE
R141C
3.9K
R136C
22
R138C
22
Q101C
A06
R143C
1K
C114C
100U/50V
D
CHC
C108C
22U/25V
R133C
1K
R134C
10K
C109C
681
-VEE
Q112C
C
A56
R140C
1K
Q113C
A56
R160C
8.2K
C115C
22
C110C
101
R145C
3.3K
R148C
4.3K
C111C
101
Q102C
2SB647A
Q108C
2SD667A
R161C
470
Q109C
TIP35C
Q114C
TIP36C
R156CA
0.15/5W
R156CB
0.15/5W
SPC1 SPD1
R146C
1K
C113C
1UF/25V
R149C
1K
D100C
IN4148
R163C
15K
+VAMP1
-VAMP1
+VAMP1
D102C
IN4148
Q111C
2SC1815
D101C
IN4148
R164C
15K
-VAMP1
PROT
R165C
4.7/0.5W
C116C
104M
D
SPC
C
+VAMP1
R150D
68
R152D
51
Q105D
A13
R154D
R151D
68
51
Q106D
2SD667A
C112D
104
Q103D
2SB647A
C110D
101
R145D
3.3K
R148D
4.3K
C111D
101
Q102D
2SB647A
Q108D
2SD667A
R139D
1K
Q100D
C108D
CHD
22U/25V
B
R133D
1K
R134D
10K
C109D
681
A06
R135D
22
R137D
22
+VEE
R141D
3.9K
R142D
3.9K
R136D
22
R138D
22
Q101D
A06
R143D
1K
C114D
100U/50V
-VEE
Q112D
A56
R140D
1K
Q113D
A56
R160D
8.2K
C115D
22
R161D
470
Q109D
TIP35C
R156DA
0.15/5W
R156DB
0.15/5W
Q114D
TIP36C
R146D
1K
C113D
1UF/25V
R149D
1K
D100D
IN4148
R163D
15K
-VAMP1
+VAMP1
D102D
IN4148
Q111D
2SC1815
D101D
IN4148
R164D
15K
-VAMP1
PROT
R165D
4.7/0.5W
C116D
104M
B
SPD
A
DW GNO:
PART NO:
PART NAME:
REAR AMP
PRODUCT MODE:
GTO5355
SCALE: 1:1
UNIT: MM
SIZE: A3
REV: 1.0
DRAWN BY:
CHECKED BY:
APPROVED BY:
sheet of 5/7
DATA:
DATA:
DATA:
A
1 2 3 4 5 6 78
Page 25
G T O 5 3 5 5
7 6 5 4 3 2 1
D
+VAMP2
R150E
68
Q105E
A13
Q106E
2SD669
C112E
104
R162E
270
Q107E
2SD669
R161E
270
R152E
R169E
100
R170E
100
R154E
C110E
R145E
R148E
3K
101
C111E
101
Q102E
2SB647A
R139E
1K
Q100E
C108E
CH SUB
22U/25V
C
R133E
1K
R134E
10K
C109E
104
5551
R135E
22
R137E
22
+VEE
R141E
3.9K
R142E
3.9K
R136E
22
R138E
22
Q101E
5551
100U/50V
R143E
1K
C114E
3.3K
-VEE
Q112E
5401
Q113E
5401
4.7
4.7
Q109E
2SD1047
R156EA
0.15/5W
Q110E
2SD1047
R153E
4.7
R158EA
0.15/5W
R156EB
0.15/5W
R155E
4.7
2SD1047
R166E
R157EA
R158EB
0.15/5W
R167E
Q116E
4.7
0.15/5W
4.7
R157EB
0.15/5W
R146E
500
C113E
1UF/25V
R149E
500
D100E
IN4148
+VAMP2
PROT
D102E
IN4148
Q111E
2SC1815
D101E
IN4148
SPE
R165E
4.7/0.5W
C116E
104M
8
D
C
B
A
R140E
1K
R160E
.2K
C115E
22
Q108E
2SD667A
R151E
68
Q103E
2SB649
Q104E
2SB649
Q114E
2SB817
Q115E
2SB817
Q117E
2SB817
PART NAME:
SUB AMP
PRODUCT MODE:
GTO5355
R163E
15K
-VAMP2
SCALE: 1:1
UNIT: MM
SIZE: A3
REV: 1.0
R164E
15K
-VAMP2
DRAWN BY:
CHECKED BY:
APPROVED BY:
sheet of 6/7
DW GNO:
PART NO:
DATA:
DATA:
DATA:
B
A
1 2 3 4 5 6 78
Page 26
G T O 5 3 5 5
C4
R7
18K
104
Q1
C1815
D4
4148
ZD2
3V9
4148
ZD1
5V6
D1
R1
10K
R53
15K
R14
7K5
PRO
100k
C22
220/16V
R25
R10
30K
9
8
C27
100/25V
+12V
R28
1K
R29
1K
D2
4148
D3
4148
PRO
10K
R11
4.7K
Q2
C1815
R13
+12
R24
12K
6K8
R26
R5
R4
100K
3K
C2
NC
Q6
B649
+12
1K
14
15
16
-
+
+1-2FED3DT4C5R6GND7OP1
R51
6K8
R15
1K
D13
4148
R12
100K
C1815
Q7
REF
TL494CN
CON13VCC
C25
104
R27
11K
12
U1 TL494
C26
102/M
11
E210E1
OP2
R9
22K
R8
NC
V
R23
R3
330K
R65
33K
CN1
CON4
REM
1
DC12V
2
12V
3
GND
4
5
V
Q9
A1015
R30
1K
Q8
A1015
R31
1K
CN2
CON4
E2
1
E1
2
PRO LED
3
4
PRO
REM
DC12V
12V
V
E2
E1
PRO LED
PRO
CN1A
CON4
1
2
3
4
5
CHD
CHC
CHB
CHA
PRO LED
+VOP
-VOP
CH SUB
PRO
12V
C32
100U/25V
1
2
3
4
CON4
CN2A
REM
DC12V
12V
GND
R101
10K
E2
E1
PRO LED
PRO
CON9
12
11
10
9
8
7
6
5
4
3
2
1
CON12
CON8
CON2
CON7
2
1
CON2
DC12V
PC2
P817
C5A
2200U/35V
R37
10K
R30A
15K
+VOP
2200U/35V
2SC1815
R18A
C28
10K
104
1
2
V
D3A
IN4148
1 2
DC12V
R15A
2.2K
3 4
C5
10
CON2
OUTPUT
Q2A
C6A
2200U/35V
C6
2200U/35V
SPE
8
9
D20
D
C
4148
C1
47UF/25V
1U/50V
R18
22K
R17
220R
C20
47/16V
C3
Q10
A1015
Q3
C1815
L1
1 2
5UH
L1
1 2
5UH
C7
104
SPD
6
7
5
R44
100
C31
10U/16V
SPC
D1A
MIC6A4
SPB
R47
4.7K
+VOP
2 1
R17A
47K
SPA
1 12 23 34 45
ZD3
3
2
10V
F1
40A*2
U3A
NE5532
5.1K
R48
J1
1
5
6
2
3
POWER
8 4
R50
5.1K
+VOP
-VOP
NE5532
REM
C9
3 4
104
C8
104
R49
1
5.1K
+VEE
+VEE
U3B
7
-VEE
PROT
-VEE
7 6 5 4 3 2 1
PROT
D2A
IN4148
D2B
IN4148
Q4
2SC1815
2SC1815
2SC1815
Q5
Q4B
Q5B
2SC1815
R21
6.8K
R21B
10K
C29
220U/16V
C29B
220U/16V
8
R23A
SPA1
56K
R24A
56K
R25A
56K
R26A
56K
R36A
56K
SPB1
SPC1
SPD1
SPE1
R23B
56K
R24B
56K
R25B
56K
R26B
56K
R36B
56K
SPA1
SPB1
SPC1
SPD1
SPE1
D
C
B
E2
CON5
CON2
CON6
CON2
E1
L5AA
1 2
30UH
L5AB
3 4
30UH
C15A
104
C23A
104
+VAMP2
-VAMP2
DW GNO:
PART NO:
DATA:
DATA:
DATA:
3300U/63V
3300U/63V
C35A
102M
MUR1620CTR
D8A
MUR1620C
D9A
DRAWN BY:
CHECKED BY:
APPROVED BY:
sheet of 7/7
Q22
IRFZ48
1
2
1
2
R52A
100
R56A
100
Q26
IRFZ48
Q23
IRFZ48
R53A
100
R57A
100
Q27
IRFZ48
Q24
IRFZ48
R54A
100
R58A
100
Q28
IRFZ48
R60A
22/0.5W
R61A
22/0.5W
C33A
103M
T2
1
DC12V
3 7
2
4
C34A
103M
PART NAME:
POWER
PRODUCT MODE:
GTO5355
4:15
5
6
R62A
22/0.5W
8
SCALE: 1:1
UNIT: MM
SIZE: A3
REV: 1.0
C15
104
C23
104
+VAMP1
3300U/35V
-VAMP1
C37
15V/0.5W
15V/0.5W
C38
3300U/35V
100/3W
ZD4
ZD5
R64
100/3W
R63
R19
2K
R20
2K
Q19
2SC2073
Q20
2SA940
C39
220U/25V
C42
220U/25V
C24
C18
104
104
C19
104
C25A
104
+VOP
C21A
104
C26A
104
-VOP
+VOP
C21
104
C27A
104
-VOP
E2
R60
22/0.5W
R61
22/0.5W
C33
103M
1
DC12V
3 7
2
4
C34
103M
6:12
T1
5
6
8
Q11
IRFZ48
R52
100
R56
100
Q15
A
E1
1 2 3 4 5 6 78
IRFZ48
Q12
IRFZ48
R53B
100
R57
100
Q16
IRFZ48
R62
22/0.5W
C35
102M
D8
MUR1620C
D9
MUR1620CTR
L5A
1 2
30UH
L5B
3 4
30UH
B
C37A
C38A
A
