GT5-A3011
OWNER’S MANUAL
BEDIENUNGS AN-
LEITUNG
MODE D'EMPLOI
MANUAL DE USO
HANDLEIDING
MANUALE DEL
PROPRIETARIO
ANVÄNDARHANDBOK
BRUGSVEJLEDNING
OMISTAJAN KÄSIKIRJA
PODRĘCZNIK
UŻYTKOWNIKA
РУКОВОДСТВО
ПОЛЬЗОВАТЕЛЯ
Page 2
4x
Śruba fabryczna
Złączka
pierścieniowa
Przewód
uziemiający
Pamiętaj: Usuń farbę
poniżej złączki
pierścieniowej.
Uszczelka
gwiazdowa
2x
1x
9-1/4"
235mm
12"
305mm
2-1/8"
54mm
ABCD
A
Page 3
ENGLISH
Śruba fabryczna
Złączka
pierścieniowa
Przewód
uziemiający
Pamiętaj: Usuń farbę
poniżej złączki
pierścieniowej.
Uszczelka
gwiazdowa
GT5-A3011 CAR AUDIO SUBWOOFER AMPLIFIER OWNER’S MANUAL
Installation Warnings and Tips
• Disconnect the negative (–) lead from your vehicle’s
battery.
• At the installation sites, locate and make a note of
all fuel lines, hydraulic brake lines, vacuum lines
and electrical wiring. Use extreme caution when
cutting or drilling in and around these areas.
• Choose a safe mounting location away from moisture.
• Make sure there is sufficient air circulation at the
mounting location for the amplifier to cool itself.
• Mount the amplifier, using the supplied hardware.
Specifications
• 200W RMS x 1 @ 4 ohms and ≤1% THD + N*
• 300W RMS x 1 @ 2 ohms, 14.4V supply and
≤1% THD + N*
• Maximum input signal: 6V*
• Maximum sensitivity: 200mV*
• THD + N: 0.05%*
• Signal-to-noise ratio: 95dBA
(reference 1W into 4 ohms)*
• Signal-to-noise ratio: 120dBA
(reference rated power into 4 ohms)
• Frequency response: 10Hz – 300Hz (–3dB)*
• Total peak power: 600 watts
* CEA-2006A-compliant
0
Speaker Output Connectors
• Connect the subwoofer to these terminals,
observing proper polarity. Either + or –
terminal may be used. Minimum total
impedance is 1 ohm.
1
Fuses
• Replace only with the same type and rating.
2
Power Input Connectors
• +12V: Connect to the positive terminal of the
vehicle’s battery. 8 AWG wire is recommended.
Install an appropriate fuse holder and fuse (40A
minimum) within 18 inches of the battery. Make
sure the wire is not damaged or pinched during
installation. Install protective grommets when
routing wires through the firewall or other sheet
metal.

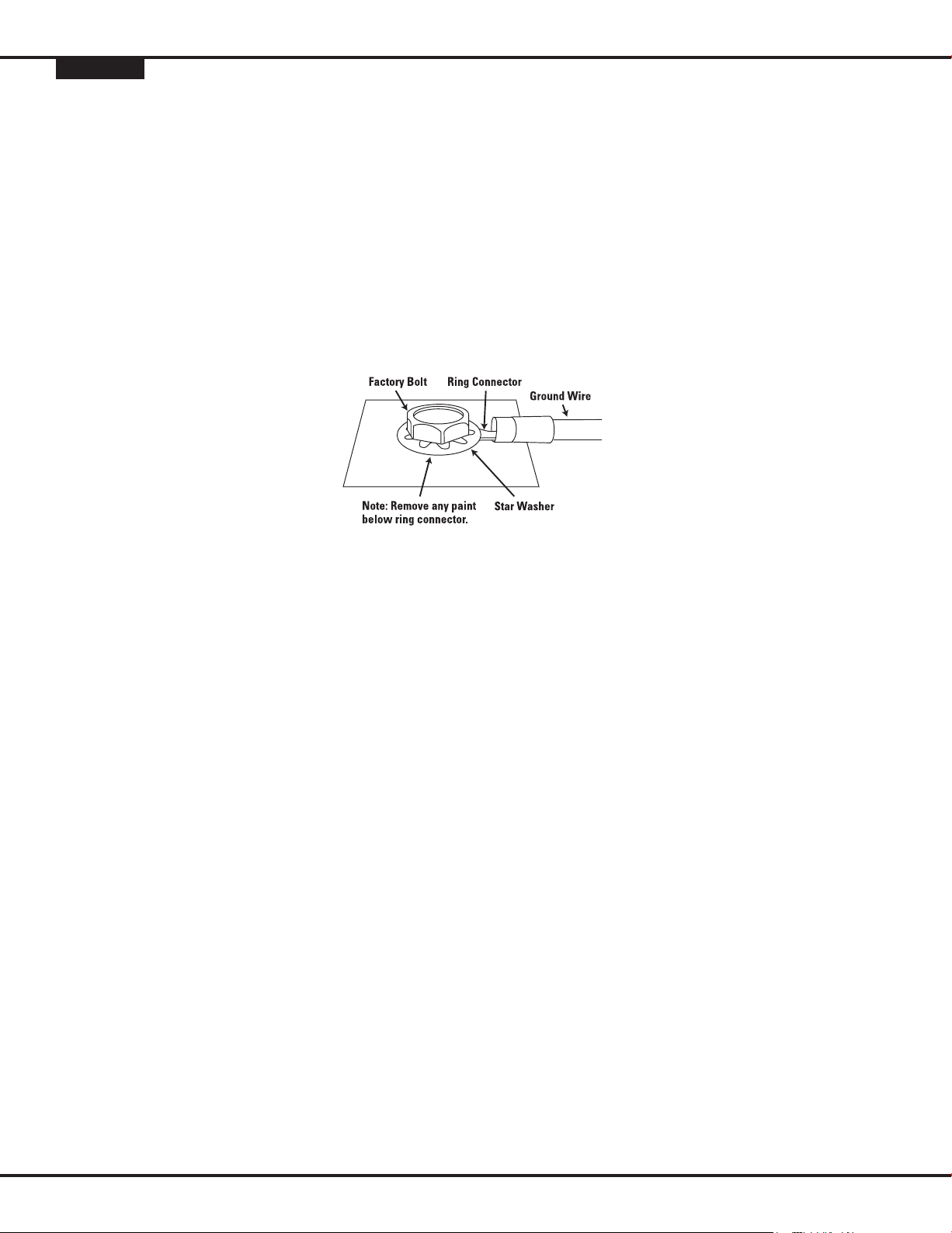

• GND: Connect to the vehicle’s chassis. Refer to
the picture below.
• REM: Connect to the “Remote Out” lead from the
source unit or to a source of switched
+12V (ACC).
3
Aux Output Connectors (RCA)
• Nonfiltered pass-through output. Connect to
the input of an additional amplifier.
4
Input Connectors (RCA)
• Connect to the RCA outputs from the source unit
or signal processor.
5
Input-Level Control
• Used to match the input level of the amplifier
to the output level of the source unit.
• See 9for the adjustment procedure.
6
Protect LED
• Illuminated under any of the following fault
conditions: battery over/under voltage, short
circuit in speaker wires, amplifier is too hot,
amplifier’s output circuit has failed (DC voltage is
present in the amplifier’s output).
7
Low-Pass Filter Frequency Control
• 12dB/octave low-pass filter,
variable from 32Hz to 320Hz.
• See Afor the adjustment procedure.
8
Power On LED
• Illuminated when the amplifier is on.
9
Setting Input Level
A Turn Input Level control counterclockwise to
6V (minimim).
B With a dynamic music track playing, turn the
head unit’s volume control to the 3/4 position.
C Turn Input Level control clockwise until the
bass output is proportionate to the output of
the high-frequency speakers, according to
your preference.
D Input level is now adjusted correctly.
A
Setting the Crossover
A Crossover setting for subwoofers.
Note: Acceptable frequency ranges are indicated
in gray.
This product is designed for mobile applications and is not
intended for connection to the mains.
A valid serial number is required for warranty coverage.
Features, specifications and appearance are subject to change
without notice.
Page 4
Declaration of Conformity
www.jbl.com
Harman Consumer Group, Inc.
250 Crossways Park Drive, Woodbury, NY 11797
www.jbl.com
© 2008 Harman International Industries, Incorporated. All rights reserved.
JBL is a trademark of Harman International Industries, Incorporated,
registered in the United States and/or other countries. GT Series is a
trademark of Harman International Industries, Incorporated.
Part No. GT5A3011OM 7/08
We, Harman Consumer Group, Inc.
2, route de Tours
72500 Château du Loir
France
declare in own responsibility that the product described in this owner’s
manual is in compliance with technical standards:
EN 55013:2001+A1:2003
EN 55020:2002+A1:2003
Klaus Lebherz
Harman Consumer Group, Inc.
Château du Loir, France 7/08
