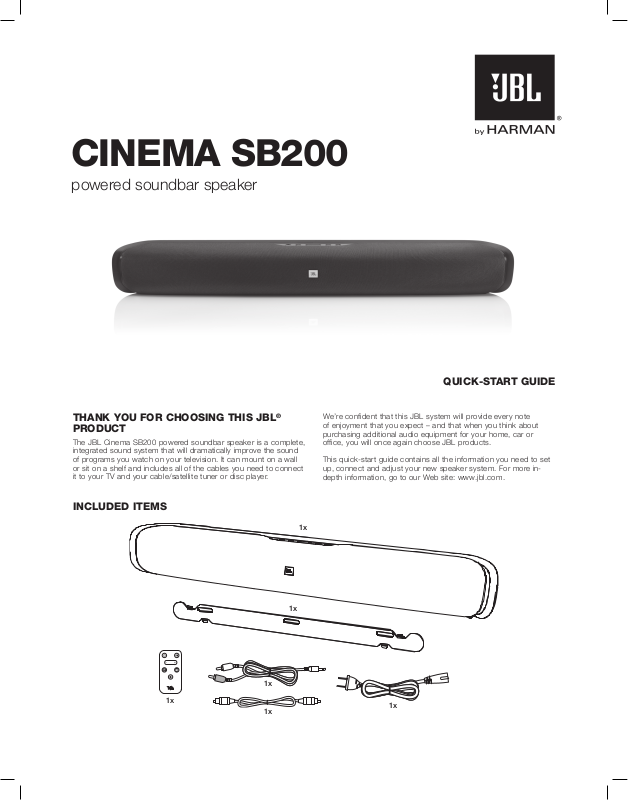

JBL CINEMA SB400 User Manual

CINEMA SB200

powered soundbar speaker

quICk-StArt guIdE

thANk You For ChooSINg thIS JBL ProduCt

The JBL Cinema SB200 powered soundbar speaker is a complete, integrated sound system that will dramatically improve the sound of programs you watch on your television. It can mount on a wall or sit on a shelf and includes all of the cables you need to connect it to your TV and your cable/satellite tuner or disc player.

INCLudEd ItEMS

BASS

We’re confident that this JBL system will provide every note of enjoyment that you expect – and that when you think about purchasing additional audio equipment for your home, car or office, you will once again choose JBL products.

This quick-start guide contains all the information you need to set up, connect and adjust your new speaker system. For more indepth information, go to our Web site: www.jbl.com.

SOUNDBAR REAR-PANEL CONTROLS AND CONNECTIONS

EQ Switch

SOUNDBAR TOP-PANEL CONTROLS AND REMOTE CONTROL

Optical

Input

Connector

EQ switch: Use this switch to adjust the soundbar’s bass for either wall or table mounting. If you’re mounting the soundbar on a wall with the included wall-mount bracket, set the EQ switch to the “Wall” position for the most natural-sounding bass performance. If you are placing the soundbar on a table, set the EQ switch to the “Table” position for the most natural-sounding bass performance.

Optical Input connector (digital): If your TV, disc player or cable/ satellite tuner has an optical digital output, use the included optical cable to connect it here.

NOTE: You can connect different source components to the analog and digital connections.

Aux Input Connector

Power Switch Power Cord

Connector

Power

Button

Power Button Mute Button

Surround Mode

Source Button

Power button: To turn the soundbar on when it is in the Standby mode, press the Power button on either the soundbar or the remote. (The Power indicator will turn white.) To put the soundbar in the Standby mode, press either Power button while the system is on. (The Power indicator will turn amber.) If you do not press the Power button, the soundbar will automatically go into the Standby mode approximately 10 minutes after the audio signal ceases.

NOTE: If you put the soundbar into the Standby mode by pressing the Power button, you must manually turn it on by pressing the Power button again.

Mute button (remote control only): Press the Mute button to mute the soundbar. While the system is muted, press the Mute button again or either Volume button to restore the sound.

Button

Source Button

Volume

Buttons

Surround

Button

BASS

Bluetooth

Button

Volume Buttons

Bass Boost Button

Aux Input connection (analog): Use the included stereo 3.5mm to stereo RCA audio cable to connect the stereo analog outputs of your TV, disc player or cable/satellite tuner here.

Power switch: Set this switch to the “On” position to activate the soundbar. In normal operation, this switch will be left in the “On” position. See information.

Power Cord connector: Connect the included power cord here. See

Power Connections

IMPORTANT: Do not connect the power cord to an AC outlet until you have made and verified all other connections.

If you will not be using the soundbar for an extended period – for instance, if you’re going on vacation – set the Power switch to the “Off” position.

Turning the Soundbar On and Off

, on page 5, for more information.

, on page 5, for more

NOTE: Pressing both of the soundbar’s Volume buttons at the same time while the system is on will mute the system. Pressing either Volume button while the system is muted will restore the sound.

Surround Mode button: This button turns the soundbar’s HARMAN Display Surround processing on and off. The Surround button indicator turns amber when HARMAN Display Surround is active, and turns white when HARMAN Display Surround is not active (normal stereo sound). See

Surround Mode Buttons

Volume Up/Down buttons: Press the “+” button to increase the volume; press the “–” button to decrease the volume. The buttons illuminate white for a few seconds after being pressed.

Source Selector button: This button switches between the sources connected to the Aux (analog) and Optical (digital) inputs. When the Aux input is active, the Source indicator turns white; when the Optical input is active, the Source indicator turns amber.

Bluetooth button (soundbar only): Press this button to play the audio stream from a paired Bluetooth device through the soundbar. (The button LED will illuminate blue when a paired Bluetooth device is the active source.) Press and hold this button to force the soundbar into the Bluetooth pairing mode. See Bluetooth Operation, on page 5, for more information.

Bass Boost button (remote control only): Press the remote’s Bass Boost button to enhance low-frequency performance. Pressing the Bass Boost button again will return the soundbar’s normal lowfrequency performance.

, on page 6, for more information.

www.jbl.com

English

SouNdBAr PLACEMENt

PLACING THE SOUNDBAR ON A TABLE

If your TV is placed on a table, you can place the soundbar on the table directly in front of the TV stand, centered with the TV screen. As long as the surface of the table is flat, the soundbar will rest on its rubber bumpers.

• Set the soundbar’s EQ switch in the “Table” position. See Soundbar Rear-Panel Controls and Connections, on page 2.

WALL-MOUNTING THE SOUNDBAR

If your TV is attached to a wall, you can use the included wall-mount bracket to mount the soundbar on the wall directly below the TV screen.

1. Determine the location for the soundbar on the wall. Make sure that the top of the soundbar will not block your view of the TV screen when it is mounted on the wall.

4. After reading the Connections section on page 4, connect all cables to the soundbar.

IMPORTANT: Do NOT plug the soundbar’s power cord into an AC outlet at this time.

• Set the soundbar’s EQ switch in the “Wall” position, and set the

soundbar’s Power switch in the “On” position. See Soundbar RearPanel Controls and Connections, on page 2.

5. Attach the soundbar to the bracket by sliding the bracket’s upper tabs into the slots on the back of the soundbar. The soundbar’s slots allow you to adjust the soundbar’s angle on the wall to ensure that it is level.

Insert Tabs on Bracket into Slots on Soundbar

2. Hold the bracket against the wall as a template and mark the locations of the soundbar wall-mount bracket holes on the wall. The three holes should be evenly spaced 7-1/16" (18cm) apart, and the bracket slots are designed to accept 4mm screws. Make sure that the holes are at the same height. See the illustration below.

Mark Three Bracket Hole Locations

7-1/16" (18cm) Apart

3. Making sure that the bracket’s flat side is against the wall, attach the wall-mount bracket to the wall at the locations you marked, using hardware that is appropriate for the wall’s construction and materials. Note that the soundbar weighs 7.5 lb (3.4kg). Be sure to use hardware that can support this weight.

CoNNECtIoNS

SOURCE CONNECTIONS Analog: Use the supplied stereo audio cable to connect the soundbar’s

Aux (analog) input to your TV’s stereo audio output. If your TV has two sets of audio output jacks, use the set that has a fixed (not variable) output level. This will let you turn your TV’s speakers all the way off while the TV still supplies a constant audio signal to the soundbar.

Digital: If your disc player, cable tuner or satellite tuner has an optical digital output, you can use the supplied optical digital audio cable to connect it to the soundbar’s Optical (digital) input.

NOTE: If your disc player, cable tuner or satellite tuner does not have an optical digital output, you can connect its analog audio output to your TV. The TV will send its audio signal to the soundbar through the analog connection described above.

Optical Cable (supplied)

Audio Cable (supplied)

Remove Caps

Disc Player or Cable/Satellite Tuner

ADJUSTING THE SYSTEM’S VOLUME

Press the soundbar’s or remote’s Volume + and – buttons to raise and lower the system’s volume one step at a time. Hold down the buttons to continuously raise or lower the volume.

Volume Buttons

BASS

For the best sound, we recommend turning your TV’s built-in speakers off. Consult your TV’s owner’s manual to find out how to do this.

MUTING THE SYSTEM

Momentarily press both of the soundbar’s Volume buttons at the same time, or press the remote’s Mute button to mute the system. Momentarily press either of the soundbar’s Volume buttons or press the remote’s Mute button again to un-mute the system.

Both Volume Buttons

Mute

Button

BASS

BOOSTING THE BASS

Press the remote’s Bass Boost button to enhance low-frequency performance, resulting in bass with more impact, which you may prefer while watching movies or listening to music. There is no harm in experimenting with this control. Pressing the Bass Boost button again will return the soundbar’s normal low-frequency performance.

BASS

Bass Boost Button

LEARNING YOUR TV REMOTE’S VOLUME AND MUTE COMMANDS

You can program the soundbar so it will respond to your TV remote’s volume up, volume down and mute commands. This will let you control both the soundbar and your TV with a single remote. Before you begin to program the soundbar, have your TV remote in hand.

1. Press and hold the soundbar’s Surround button until the button begins flashing amber.

Press and Hold Until

Button Flashes Amber

CHANGING THE SURROUND MODE

Press the soundbar’s or remote’s Surround Mode indicator to switch the sound between normal stereo (the Surround Mode indicator lights white) and HARMAN Display Surround (the Surround Mode indicator lights amber). The HARMAN Display Surround setting will produce a complete surround-sound experience for anyone sitting in front of and several feet away from the soundbar. Although it is particularly effective when watching movies, you can also try the HARMAN Display Surround setting for music.

Surround Mode Button

Surround Mode

Button

BASS

2. Hold your TV’s remote approximately 12” (30cm) from the front of the soundbar and aim the remote directly at the soundbar:

30cm

(12")

Remote

• Press the TV remote’s volume up button while pressing and holding

the soundbar’s Volume + button. If the programming was successful the soundbar’s Surround button will change from amber to solid white for one second, then will return to flashing amber.

A) Hold Down Soundbar’s

Volume + Button

B) Press TV Remote’s

Volume Up Button

www.jbl.com

English

• Press the TV remote’s volume down button while pressing and

holding the soundbar’s Volume – button. If the programming was successful the soundbar’s Surround button will change from amber to solid white for one second, then will return to flashing amber.

A) Hold Down Soundbar’s

Volume – Button

B) Press TV Remote’s

Volume Down Button

• Press the TV remote’s mute button while pressing and holding the

soundbar’s Volume + and Volume – buttons at the same time. If the programming was successful the soundbar’s Surround button will change from amber to solid white for one second, then will return to flashing amber.

A) Hold Down Soundbar’s

Volume + and – Button

SPECIFICAtIoNS

CINEMA SB200 POWERED SOUNDBAR SPEAkER

Low-frequency transducer: One 3-1/2" (89mm) cone per channel

High-frequency transducer: One 1" (25mm) dome per channel

Amplifier power: 60 watts peak per channel

Frequency response: 55Hz – 23kHz (-6dB)

Power requirement: 100V – 240V, 50Hz/60Hz, 60W

Power consumption: <0.5W (standby); 60W (maximum)

Dimensions (H x W x D): 4-9/16" x 35-1/2" x 4-1/16"

(116mm x 901mm x 103mm)

Weight (shipping): 11.5 lb (5.1kg)

B) Press TV Remote’s

Mute Button

3. When you’re finished, press and hold the soundbar’s Surround button until the button stops flashing amber.

The soundbar will now respond to your TV remote’s volume and mute commands.

HARMAN International Industries, Incorporated 8500 Balboa Boulevard, Northridge, CA 91329 USA

The Bluetooth word mark and logo are registered trademarks and are owned by the Bluetooth SIG, Inc., and any use of such marks by HARMAN International Industries, Incorporated, is under license.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Part No. 950-0471-001 Rev: A

www.jbl.com

COMMANDES ET CONNEXIONS DU PANNEAU ARRIÈRE DE LA BARRE DE SON

Commutateur d’égalisation

COMMANDES DU PANNEAU SUPÉRIEUR DE LA BARRE DE SON ET fONCTIONS DE LA TÉLÉCOMMANDE

Connecteur

d’entrée

optique

Commutateur d’égalisation: utilisez ce commutateur pour régler les graves de la barre de son selon que vous posez cette dernière sur une table ou l’installez

sur un mur. Si vous installez la barre de son sur un mur à l’aide du support mural

fourni, placez le commutateur d’égalisation en position «Wall» pour obtenir des

sons graves les plus naturels possible. Si vous posez la barre de son sur une

table, placez le commutateur d’égalisation en position «Table» pour obtenir des

sons graves les plus naturels possible.

Connecteur d’entrée optique (numérique): si votre téléviseur, lecteur de disques ou syntoniseur câble/satellite est équipé d’une prise de sortie numérique optique, utilisez le câble optique fourni pour le relier à la barre de son.

REMARQUE: vous pouvez connecter divers composants sources aux prises analogiques et numériques.

Connecteur d’entrée auxiliaire (analogique): utilisez le câble audio stéréo 3,5mm à stéréo RCA fourni pour raccorder les sorties analogiques stéréo de votre téléviseur, lecteur de disques ou syntoniseur câble/satellite à ce connecteur.

Interrupteur d’alimentation: placez cet interrupteur en position «ON» pour

mettre la barre de son sous tension. En mode de fonctionnement normal, cet interrupteur doit rester en position «ON». Pour obtenir de plus amples informations, reportez-vous à la section

, page 5.

son

Connecteur du câble d’alimentation: raccordez le câble d’alimentation fourni

à ce connecteur. Pour obtenir de plus amples informations, reportez-vous à la

Raccordement à la prise secteur

section

IMPORTANT: ne raccordez pas le câble d’alimentation à une prise secteur tant que tous les autres raccordements n’ont pas été effectués et vérifiés.

Si vous n’utilisez pas la barre de son pendant une période prolongée, notamment

si vous partez en vacances, placez l’interrupteur d’alimentation en position

«OFF».

Connecteur d’entrée auxiliaire

Interrupteur

d’alimentation

Connecteur du câble

d’alimentation

Mise sous et hors tension de la barre de

, page 5.

Touche

marche/

marche/arrêt

Touche de sélection

du mode surround

Touche de sélection

de la source

Touche marche/arrêt: pour mettre la barre de son sous tension lorsqu’elle est en mode veille, appuyez sur la touche marche/arrêt de la barre de son ou de la

télécommande (le voyant d’alimentation devient blanc). Pour mettre la barre de son

en mode veille, appuyez sur la touche marche/arrêt de la barre de son ou de la

télécommande lorsque l’appareil est sous tension (le voyant d’alimentation devient

orange). Si vous n’appuyez pas sur la touche marche/arrêt, la barre de son passe

automatiquement en mode veille environ 10minutes après l’arrêt du signal audio.

REMARQUE: si vous mettez la barre de son en mode veille en appuyant sur la

touche marche/arrêt, vous devez utiliser la même touche pour mettre la barre de son sous tension.

Touche de coupure du son (télécommande uniquement): appuyez sur cette

touche pour désactiver le son de la barre de son. Lorsque le son du système est désactivé, appuyez à nouveau sur cette touche ou sur les touches de réglage du volume pour rétablir le son.

REMARQUE: vous pouvez également appuyer simultanément sur les deux touches de réglage du volume de la barre de son pour désactiver le son du système. Appuyez sur l’une des touches de réglage du volume pour rétablir le son.

Touche de sélection du mode surround: cette touche permet d’activer et

de désactiver la fonction HARMAN Display Surround de la barre de son. Le

voyant de la touche surround s’allume en orange lorsque la fonction HARMAN

Display Surround est activée et s’allume en blanc lorsque la fonction HARMAN Display Surround est désactivée (son stéréo normal). Pour obtenir de plus amples

informations, reportez-vous à la section

Touches de réglage du volume: appuyez sur la touche «+» pour augmenter le volume; appuyez sur la touche «–» pour baisser le volume. Après avoir appuyé

dessus, ces touches s’illuminent en blanc pendant quelques secondes.

Touche de sélection de la source: cette touche permet de commuter les

sources raccordées aux prises AUX IN (analogique) et Optical (numérique). Lorsque l’entrée AUX IN est active, le voyant de la touche de sélection de la source s’allume en blanc; lorsque l’entrée Optical est active, le voyant de la touche de sélection de la source s’allume en orange.

Bluetooth (barre de son uniquement): appuyez sur cette touche pour lire le flux audio d’un appareil Bluetooth jumelé avec la barre de son (le voyant de la touche s’allume en bleu lorsqu’un appareil Bluetooth jumelé avec la barre de son

est la source active). Maintenez enfoncée cette touche pour activer le mode de

jumelage Bluetooth sur la barre de son. Pour obtenir de plus amples informations, reportez-vous à la section Utilisation de la fonction Bluetooth, page 5.

Touche d’amplification des graves (télécommande uniquement): appuyez

sur la touche Bass de la télécommande pour augmenter les performances des basses fréquences. Appuyez à nouveau sur cette touche pour rétablir un niveau normal de basses fréquences.

arrêt

Touche

Touche de

sélection

de la source

Touches de réglage du volume

Touche de

sélection

du mode

surround

BASS

Changement de mode surround

Bluetooth

Touche de coupure du son

Touches de réglage du volume

Touche d’amplification des graves

, page 6.
