JBL Incorporated, 8500 Balboa Boulevard, P.O.Box 2200, Northridge, California 91329 U.S.A.
JBL AC26/-WH
REV F
PACKAGE
WIRING DIAGRAM
04-10

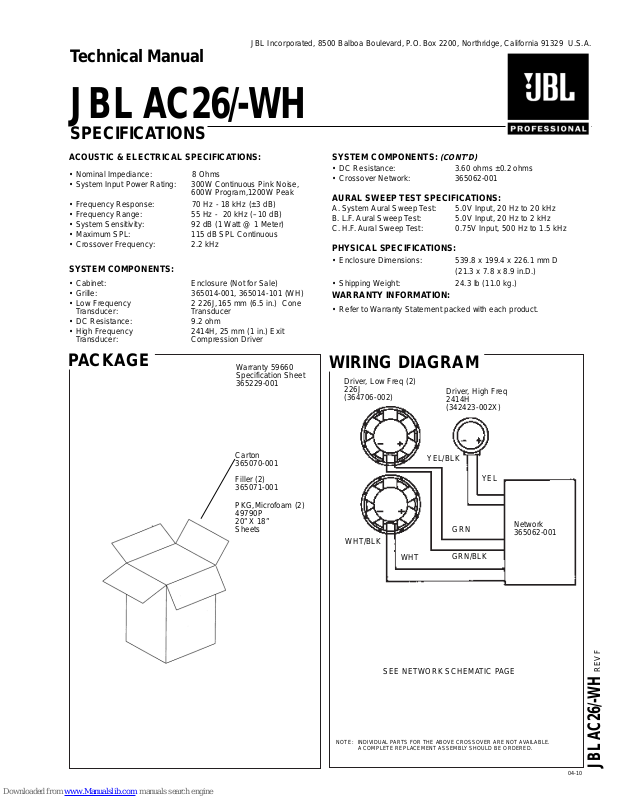

Technical Manual
JBL AC26/-WH
SPECIFICATIONS
ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• Nominal Impediance: 8 Ohms
• System Input Power Rating: 300W Continuous Pink Noise,
600W Program,1200W Peak
• Frequency Response: 70 Hz - 18 kHz (±3 dB)
• Frequency Range: 55 Hz - 20 kHz (–10 dB)
• System Sensitivity: 92 dB (1 Watt @ 1 Meter)
• Maximum SPL: 115 dB SPL Continuous
• Crossover Frequency: 2.2 kHz
SYSTEM COMPONENTS:
• Cabinet: Enclosure (Not for Sale)
• Grille: 365014-001, 365014-101 (WH)
• Low Frequency 2 226J,165 mm (6.5 in.) Cone
Transducer: Transducer
• DC Resistance: 9.2 ohm
• High Frequency 2414H, 25 mm (1 in.) Exit
Transducer: Compression Driver
SYSTEM COMPONENTS:
(CONT’D)
• DC Resistance: 3.60 ohms ±0.2 ohms
• Crossover Network: 365062-001
AURAL SWEEP TEST SPECIFICATIONS:
A. System Aural Sweep Test: 5.0V Input, 20 Hz to 20 kHz
B. L.F.Aural Sweep Test: 5.0V Input, 20 Hz to 2 kHz
C. H.F. Aural Sweep Test: 0.75V Input, 500 Hz to 1.5 kHz
PHYSICAL SPECIFICATIONS:
• Enclosure Dimensions: 539.8 x 199.4 x 226.1 mm D
(21.3 x 7.8 x 8.9 in.D.)
• Shipping Weight: 24.3 lb (11.0 kg.)
WARRANTY INFORMATION:
• Refer to Warranty Statement packed with each product.
Warranty 59660
Specification Sheet
365229-001
Network
365062-001
Driver, Low Freq (2)
226J
(364706-002)
Driver, High Freq
2414H
(342423-002X)
Carton
365070-001
Filler (2)
365071-001
PKG,Microfoam (2)
49790P
20” X 18”
Sheets
SEE NETWORK SCHEMATIC PAGE
WHT/BLK
WHT
GRN
GRN/BLK
YEL
YEL/BLK
NOTE: INDIVIDUAL PARTS FOR THE ABOVE CROSSOVER ARE NOT AVAILABLE.
A COMPLETE REPLACEMENT ASSEMBLY SHOULD BE ORDERED.
Molex #39-01-2025
Connector
10.0uF
250V
12.0uF
250V
2.4uF
250V
5.6uF
250V
1.2uF
250V
3.3uF
250V
1.3mH
0.15 Ohm
0.90mH
0.12 Ohm
5.0mH
0.35 Ohm
0.15mH
0.23 Ohm
0.68mH
0.55 Ohm
0.18mH
0.59 Ohm
0.17mH
0.50 Ohm
4.0 Ohm
10W
51.0 Ohm
10 W
Molex #39-01-2025
Connector
Molex #39-01-2023
Connector
SCHEMATIC (365062-001)
JBL AC26/-WH
+
+
+
-
-
-
T.250
T.250
T.250
T.187
T.187
T.250
JBL AC26/-WH
Individual Parts for the above crossover are not available.
A complete replacement assembly should be ordered.
JBL AC26/-WH
COMPONENT EXPLODED VIEW
JBL AC26/-WH
Logo
365033-001
Push Nut
350689-001
7/16”
Compression Spring
365201-001
Driver, Low Freq.(2)
226J
(364706-002)
Screw (8)
883-41110-12
8 x 3/4
PAN,PH,PB,
BLK ZINC,LCS
Terminal Cup
365106-002
Screw (4)
882-41110-10
6 x 5/8
PAN,PH,PB, BLK
ZINC,LCS
Label, Model
365068-004
Network Assembly
365062-001
Screw (8)
882-41110-10
6 x 5/8
PAN,PH,PB,BLK
ZINC,LCS
Screw (4)
816-93514-20
M6, 20MM
BTN-HD,SOCK
BLK,ALLOY
Enclosure Assembly AC26/-WH
(Not Available for Sale)
Driver,High Freq.
2414H
(342423-002X)
Waveguide
364914-001
Screw (8)
883-41110-12
8 x 3/4
PAN,PH,PB,
BLK ZINC,
LCS
Screw (4)
881-41110-10
4 x 5/8
PAN,PH,PB,
BLK ZINC,
LCS
Screw (4)
881-41160-10
4 x 5/8
PAN,PH,PB
WH,ZINC
LCS
Grille
Assembly
365014-001
365014-101
(WH)
Screw (6)
817-13614-20
M8 x 20MM
BTN-HD,SOCK
BLK,ALLOY
Screw (6)
817-13664-20
M8 x 20MM
BTN-HD,SOCK
WH,ALLOY
Screw (4)
816-93564-20
M6, 20MM
BTN-HD,SOCK
WH,ALLOY
