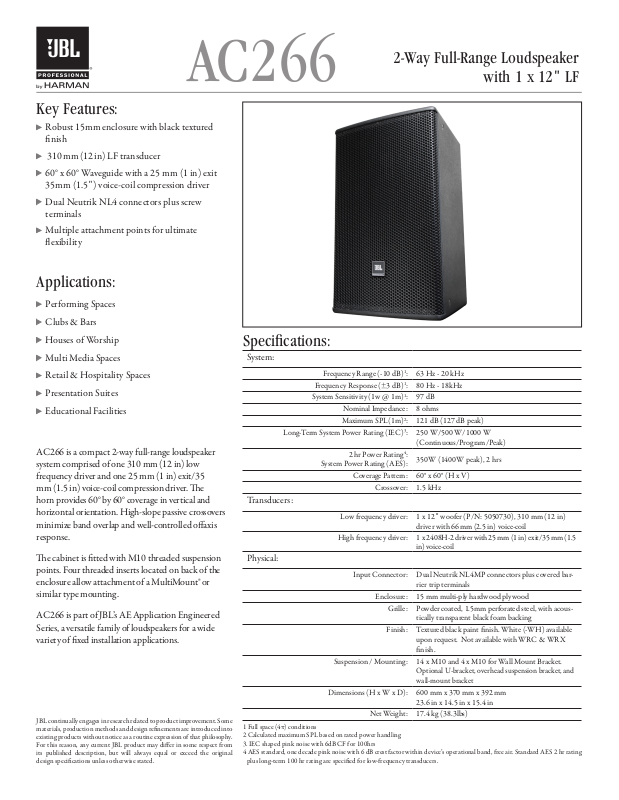

JBL AC266 User Manual

2-Way Full-Range Loudspeaker

AC266

Key Features:

Robust 15mm enclosure with black textured

nish

310 mm (12 in) LF transducer

60° x 60° Waveguide with a 25 mm (1 in) exit

35mm (1.5") voice-coil compression driver

Dual Neutrik NL4 connectors plus screw

terminals

Multiple attachment points for ultimate

exibility

Applications:

Performing Spaces

Clubs & Bars

Houses of Worship

Multi Media Spaces

Retail & Hospitality Spaces

Presentation Suites

Educational Facilities

AC266 is a compact 2-way full-range loudspeaker system comprised of one 310 mm (12 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. e horn provides 60° by 60° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled oaxis response.

e cabinet is tted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of a MultiMount® or similar type mounting.

AC266 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of xed installation applications.

JBL continually engages in research related to product improvement. S ome materials, production methods and design renements are introduced into existing products without notice as a routine expression of that philosophy. For this reason, any current JBL product may dier in some respect from its published description, but will always equal or exceed the original design specications unless otherwise stated.

with 1 x 12" LF

Specications:

System:

Frequency Range (-10 dB)1: 63 Hz - 20 kHz

Frequency Response (±3 dB)1: 80 Hz - 18kHz

System Sensitivity (1w @ 1m)1: 97 dB

Nominal Impedance: 8 ohms

Maximum SPL(1m)2: 121 dB (127 dB peak)

Long-Term System Power Rating (IEC)3: 250 W/500 W/1000 W

2 hr Power Rating4:

System Power Rating (AES):

Coverage Pattern: 60° x 60° (H x V)

Crossover: 1.5 kHz

Transducers:

Low frequency driver: 1 x 12" woofer (P/N: 5050730), 310 mm (12 in)

High frequency driver: 1 x 2408H-2 driver with 25 mm (1 in) exit/35 mm (1.5

Physical:

Input Connector: Dual Neutrik NL4MP connectors plus covered bar-

Enclosure: 15 mm multi-ply hardwood plywood

Suspension / Mounting : 14 x M10 and 4 x M10 for Wall Mount Bracket.

Dimensions (H x W x D): 600 mm x 370 mm x 392 mm

Net Weight: 17.4 kg (38.3lbs)

1 Full space (4π) conditions 2 Calculated maximum SPL based on rated power handling

3. IEC shaped pink noise with 6dB CF for 100hrs 4 AES standard, one decade pink noise with 6 dB crest factor within device’s operational band, free air. Standard AES 2 hr rating plus long-term 100 hr rating are spe cied for low-frequenc y transducers.

(Continuous/Program/Peak)

350W (1400W peak), 2 hrs

driver with 66 mm (2.5 in) voice-coil

in) voice-coil

rier trip terminals

Grille: Powder coated, 1.5mm perforated steel, with acous-

tically transparent black foam backing

Finish: Textured black paint nish. White (-WH) available

upon request. Not available with WRC & WRX nish.

Optional U-bracket, overhead suspension bracket, and wall-mount bracket

23.6 in x 14.5 in x 15.4 in

0.30 mm

0.50 mm

ANGULAR

30'

TOLERANCES UNLESS OTHERWISE SPECIFIED

370.0

14.567

600.0

23.622

392.0

15.433

100.0

3.937

100.0

3.937

130.0

5.118

250.0

9.843

18.0°

R1200.0

47.244 R20.0

0.787

213.5

8.406

173.1

6.815

REVISION HISTORY

DATE

REV.

PREVIOUS PART

NO.

DESCRIPTION

ZONE

6&7F, Tower B Kingdee Software Park, No.2 12th Road South High-tech Industrial Park Shenzhen 518057, CN

DRAWN BY

DATE

TITLE

SPKSYS,ASY,AC266

THIRD ANGLE

PROJECTION

PROPRIETARY AND CONFIDENTIAL

PROPERTY OF HARMAN. DO NOT DISCLOSE,

REPRODUCE, OR PUBLISH WITHOUT

WRITTEN HARMAN APPROVAL.

ROHS

AC266 2-Way Loudspeaker with 1 x 12" LF

Attenuation (dB)

20000

Frequency (Hz)

110

SPL (dB)

Impedance (Ohms)

Directivity Index (DI), dB

Directivity Factor (Q)

-6 dB Beamwidth (degrees)

Beamwidth Horizontal Le O-Axis Frequency Response

360

100

Horizontal

Vertical

20 100 1000 10000 20000

Frequency (Hz)

Directivity Index

20 100 1000 10000 20000

Frequency (Hz)

Impedance

100

-10

-20

-30 20 100 1000 10000 20000

Frequency (Hz)

Horizontal Right O-Axis Frequency Response

-10

-20

-30 20 100 1000 10000 20000

Frequency (Hz)

Vertical Up O-Axis Frequency Response

0 deg

10 deg

20 deg

30 deg

40 deg

50 deg

60 deg

70 deg

80 deg

0 deg

10 deg

20 deg

30 deg

40 deg

50 deg

60 deg

70 deg

80 deg

20 100 1000 10000 20000

Frequency (Hz)

Frequency Response, 1W/1M

100

20 100 1000 10000

2Pi 4Pi

Dimensions:

Dimensions in mm (inch)

0 deg

10 deg

-10

-20

-30 20 100 1000 10000 20000

Frequency (Hz)

20 deg

30 deg

40 deg

Vertical Down O-Axis Frequency Response

-10

-20

-30 20 100 1000 10000 20000

Frequency (Hz)

0 deg

10 deg

20 deg

30 deg

40 deg

FRONT SIDES REAR

TOP

JBL Professional 8500 Balboa Boulevard, P

.O. Box 2200

Northridge, California 91329 U.S.A.

AC266

07/15
