JBL 8124, 8128 SPECIFICATIONS

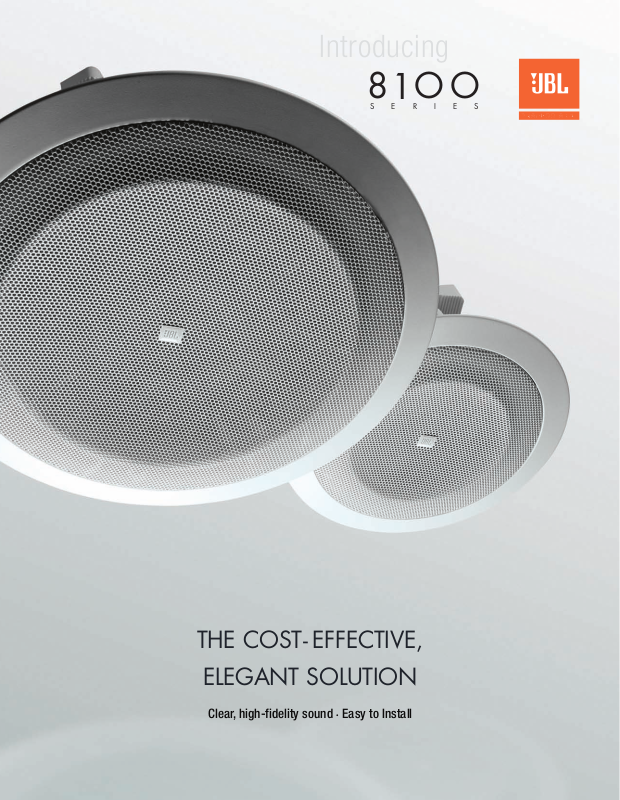

Introducing

8

SERIES

OO

1

THE COST- EFFECTIVE,

ELEGANT SOLUTION

Clear, high-fidelity sound •Easy to Install

Introducing
JBL’s 8100 Series
Ceiling Loudspeakers

The 8100 Series brings affordable high-fidelity
sound quality to commercial applications. Models
include 8124, a 4-inch loudspeaker featuring wide
coverage, and 8128, an 8-inch loudspeaker featuring
extended broadband performance.

High sensitivity drivers deliver maximum sound levels using minimal
amplifier power. With its contemporary grill design, 70V/100V taps and
open-back design, the 8100 series brings elegance and performance to basic
commercial sound systems, or any application not requiring a backcan for installation.

Perfect for use in

Restaurants
Retail Stores
Coffee Shops
Cafeterias

Professional Offices
Multi-Use Spaces
Ancillary Areas

Training Rooms
Lobbies/Foyers
Reception/Waiting Rooms

SPECIFICATIONS

8124

Component: 4 in (100 mm) Full-Range
Frequency Range: 60 Hz – 18 kHz
Sensitivity: 93 dB (1 kHz –8 kHz), 1W, 1m
Coverage: 130° conical
70V/100V Taps: 6W, 3W, 1.5W (0.75W at 70V only)
Termination: Bare wires
Dimensions: Ø8.1in (206mm) x 3.5in (89mm)
Weight: 2.5lb (1.2kg)
Optional Accessories: MTC-8124C C-ring, MTC-Rail tile rails

CAT 8100 6/08
© 2008 JBL Professional

8128

Component: 8 in (200 mm) Dual-Cone Full-Range
Frequency Range: 50 Hz – 16 kHz
Sensitivity: 97 dB (1 kHz –8 kHz), 1W, 1m
Coverage: 90° conical
70V/100V Taps: 6W, 3W, 1.5W (0.75W at 70V only)
Termination: Bare wires
Dimensions: Ø11.3 in (287 mm) x 4.1in (105mm)

Weight: 3lb (1.4kg)
Optional Accessories: MTC-8124C C-ring, MTC-Rail tile rails

8500 Balboa Boulevard
Northridge, CA 91329 USA

www.jblpro.com
