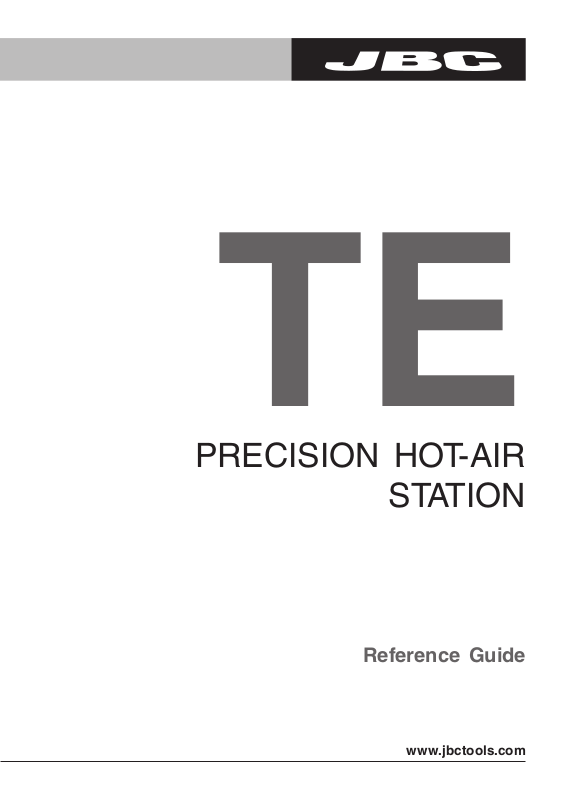

Page 1
TE
PRECISION HOT-AIR
STATION
Reference Guide
www.jbctools.com
Page 2
TE / PRECISION HOT-AIR
CONTENTS
CONTROL UNIT STAND
EXTRACTOR STAND *
0008752
Extractor
Protector
JT-SA
TRIPOD *
T2250 ø40
HEATING SET
TE-TA (230V/120V/100V)
NOZZLE
0009209 ø3
0009208 ø4
0009080 ø5
SUCTION TUBE *
0932330
SUCTION CUPS *
0930110
CORD MANUAL
* These accessories are not supplied with TE-2QA or TE-1QA stations
2
TE
PRECISION HOT-AIR
STATION
Reference Guide
Page 3
INSTALLATION
Suction
Tube
Connectable tools:
JT-T2A / JT-T1A
TE-TA
DESCRIPTION
Power Cord
Socket
Equipotencial
connector
Pedal 0964551 (Optional)
Heating element
Display
Function keys
Activation of
suction pump
Vacuum inlet for tripods
and extractors
Main switch
Heater inlet
3
Page 4
WORKING
Current temperature
Selected temperature
Decrease & move down
SETTINGS
ORIGINAL PIN: 0105
Time to stop 45 seconds
Tem p ºC
400
400ºC Select
Power 70%
SELECT Key 2 seconds
to access Menu
1 Reset settings
2
3
4
Air %
80
Selection
Main me nu
Settings
Counters
Program version
Remaining time
Selected flow
% Instant power supplied to the heater
Increase & move up
Setti ng s
1
Temp unit Celsius
2 Maximum
3 Minimum temp T OFF
4 Fix temp 4000C
5 Max air 100%
6 Min air 10%
7 Fix air 40%
8 Time to stop 120 sec
9 Beep ON
10 Pop up ON
11 Change PIN
4
temp 4500C
Back
Exit
Count er s
1 Station ON hours
2
Works hours 0
3 Works
cycles 0
Back
0
Page 5
DESOLDERING PROCEDURE
1. Lock the extractor
2. Hot-air melts the solder
3. IC is removed automatically
5
Page 6
MAINTENANCE
FOLLOW THIS PROCESS INVERTED TO RE-CONNECT THE HEATING ELEMENT
This step has to be performed when the tool is stopped and the heating set is cold.
1. Untighten screw.
2. Separate the heating element from the heating set’s handle.
3. Connect the new heating element, pushing it’s extreme.
4. Insert screw to avoid air-loss which could reduce the heating element’s lifetime.
Heating element
0006997 (230V/120V/100V)
Handle
0005896
CHANGING THE HEATING SET
Ensure that the tool is stopped.
Use a wrench to unscrew the cover.
Heating set
TE-TA (230V/120V/100V)
Move back the cover. Pull the connector from the socket to disconnect the heating set from the station.
Follow this process inverted to re-connect the heating set.
6
Page 7
7
Page 8
TECHNICAL SPECIFICATIONS
- Temperature selection from150 to 450°C (±5%) and “cool”.
- Power: 300W.
- Air flow regulation: 6-45l/min.
- TE-2A 230V control unit. Input: 230V 50/60Hz.
- TE-1A 120V control unit. Input: 120V 50/60Hz.
- TE-9A 100V control unit. Input: 100V 50/60Hz.
- Total weight of unit: 2.5Kg.
- Complies with CE standards on electrical safety, electromagnetic compatibility and ESD protected housing
“skin effect”.
- RoHS compliant.
- Equipotential connector and the tool tip are connected to station mains ground supply for ESD protection.
This product should not be
thrown in the garbage.
WARRANTY
The JBC 2 years warranty, guarantees this equipment against all
manufacturing defects, covering the replacement of defective parts
and all necessary labour.
Warranty does not cover product wear due to use or mis-use.
In order for the warranty to be valid, equipment must be returned,
postage paid, to the dealer where it was purchased enclosing this,
fully filled in, sheet.
SERIAL N`
STAMP OF DEALER
DATE OF PURCHASE
MORE INFORMATION
www.jbctools.com
0009325/0610
