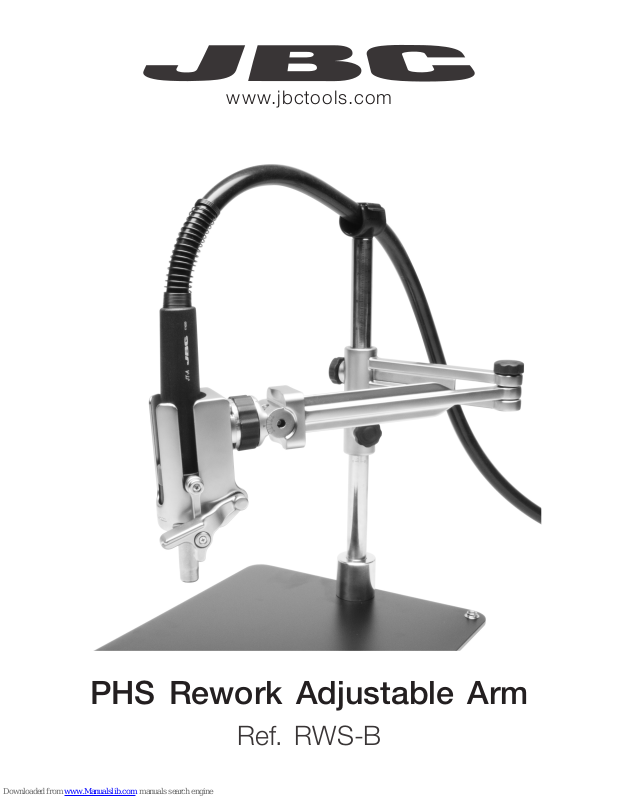

jbc RWS-B User Manual

PHS Rework Adjustable Arm

Ref. RWS-B

www.jbctools.com

Packing List

The following items should be included:

Tool Arm ...................................................... 1 unit

Adapters ...................................................... 1 unit

Ref. 0017058 (for JT-TA Heater)
0017059 (for TE-TB Precision Heater)

Base .............................................................. 1 unit

Screw ........................................................... 1 unit

Ref. 0017057

Allen key ...................................................... 1 unit

Ref. 0013609

Manual ......................................................... 1 unit

Ref. 0020498

Ref. RWS-B

PHS Rework Adjustable Arm

2

www.jbctools.com

IR Preheater Support

Ref. PHS-SA

to Hot Air

stations

ESD safe
connector

Ideal for working with JBC’s Hot Air stations and a Preheater, especially the PHS-KB.

Features

Hose ClampTool Holder

Turn the lever to lower the tool

Vertical axis with ruler

When you have finished
raise the tool to free up the
workspace.

Adjust the tool head holder
position according to your
work needs

www.jbctools.com

3

Assembly

Fit the tool arm onto the base and tighten the
screw.

Slide the adapter along the hose to the end of
the handle.

1. Setting up the Tool Arm

3. Mounting the Tool 4. Place the hose in the clamp.

2. Inserting the Adapter (JT/TE)

Adapter

Insert the tool as far as possible.

Allen key

4
