Premium
Complete Rework Station
with Pneumatic Pump
Ref. RMVE-D
INSTRUCTION MANUAL
www.jbctools.com
Packing List
The following items should be included:
Stand ................................ 1 unit
Ref. AD-SE
Pneumatic
Desoldering Module ........ 1 u
Ref. MVE-A
DDE Control Unit .............. 1 u
Ref. DDE-1B (120V)
DDE-2B (230V)
DDE-9B (100V)
Desoldering Iron ........... 1 unit
Ref. DR560-A
C560003 already inserted
Stand ............................... 1 unit
Ref. DR-SE
General Purpose
Handle .............................. 1 unit
Ref. T245-A
Heater hose set ............ 1 unit
Ref. JT-T1A (100V / 120V)
JT-T2A (230V)
Stand ................................ 1 unit
Ref. J T-SE
JTSE Control Unit ............ 1 u
Ref. JTSE-1A (100V - 120V)
JTSE-2A (230V)
2
ESD Tip Cleaner ........... 1 unit
Ref. CL8499
JT Accessory set
Ref. 0 012332
Extractor stand* ........... 1 unit
Ref. 0008752
Suction Tube*
Ref. 0932330
Suction Cups*
Ref. 0930110
Ø 10 - 0934050 (x3)
Ø 4.7 - 0934070 (x1)
Extractors*
Ref. E2184
E2064
E2052
Protectors*
Ref. P2220
P2230
P2235
P4000
P4010
Tripod*
Ref. T2050
(Ø 39mm)
T2250
(Ø 85mm)
Nozzles
Ref. JN2015 (x1)
JN2012 (x1)
JN2020 (x1)
Sponge ............ 1 unit
Ref. S0354
Metal Brush .... 1 unit
Ref. CL6 217
Cartridges ..... 2 units
Ref. C245903 (x1)
Ref. C245906 (x1)
* These accessories are not supplied with JTSE-1QA / JTSE-2QA stations.
Sponge ............ 1 unit
Ref. CL6210
www.jbctools.com
3
Venturi Filter ... 1 unit
Ref. 0008446
Suction Filter ... 1 unit
Ref. 0821830
Cotton Filter ... 1 unit
Ref. 0781046
It contains 10 filters
Filter Box ......... 1 unit
Ref. 0005966
It contains 50 filters
DR560 Accessories
Ref. 0010 211
Internal gasket .............. 1 unit
Ref. 0019208
It contains 2 gaskets
Tip cleaning set ................................... 1 unit
Ref. 0965970
Spanner ................... 1 unit
Ref. 0780550
Glass solder
collector .......................... 1 unit
Ref. 0812620
Long Tip Cleaning set ....................... 1 unit
Ref. 0965760
Metal solder
collector ................... 1 unit
Ref. 0812630
Tips .......................... 3 units
Ref. C560005 (x1)
Ref. C560013 (x1)
Ref. C560004 (x1)
Filter Box ................. 1 unit
Ref. 0780840
It contains 10 filters
4
INSTRUCTION MANUAL
Manual ...............................1 unit
Ref. 0020527
Premium
Complete Rework Station
with Pneumatic Pump
Ref. RMVE-D
Stand Cable ................. 2 units
Ref. 0011283
Power cord
For DDE ........................... 1 unit
Ref. 0013671 (100/120V)
0010569 (230V)
Module Cable ................ 1 unit
Ref. 0014874
Cleaning stick ................ 1 unit
Ref. 0786640
Pick & Place ................... 1 unit
Ref. T260-A
Straight Needles Set ... 1 unit
Ref. 0901546
Bent Needles Set ......... 1 unit
Ref. 0861660
Cups Set ......................... 1 unit
Ref. 0940163
Thermocouple
Type K .............................. 1 unit
Ref. PH218
Union Flanges ............... 1 unit
Ref. 00113 5 6
Power cord
For JTSE .......................... 1 unit
Ref. 0009417 (100V/120V)
0009401 (230V)
www.jbctools.com
5
www.jbctools.com

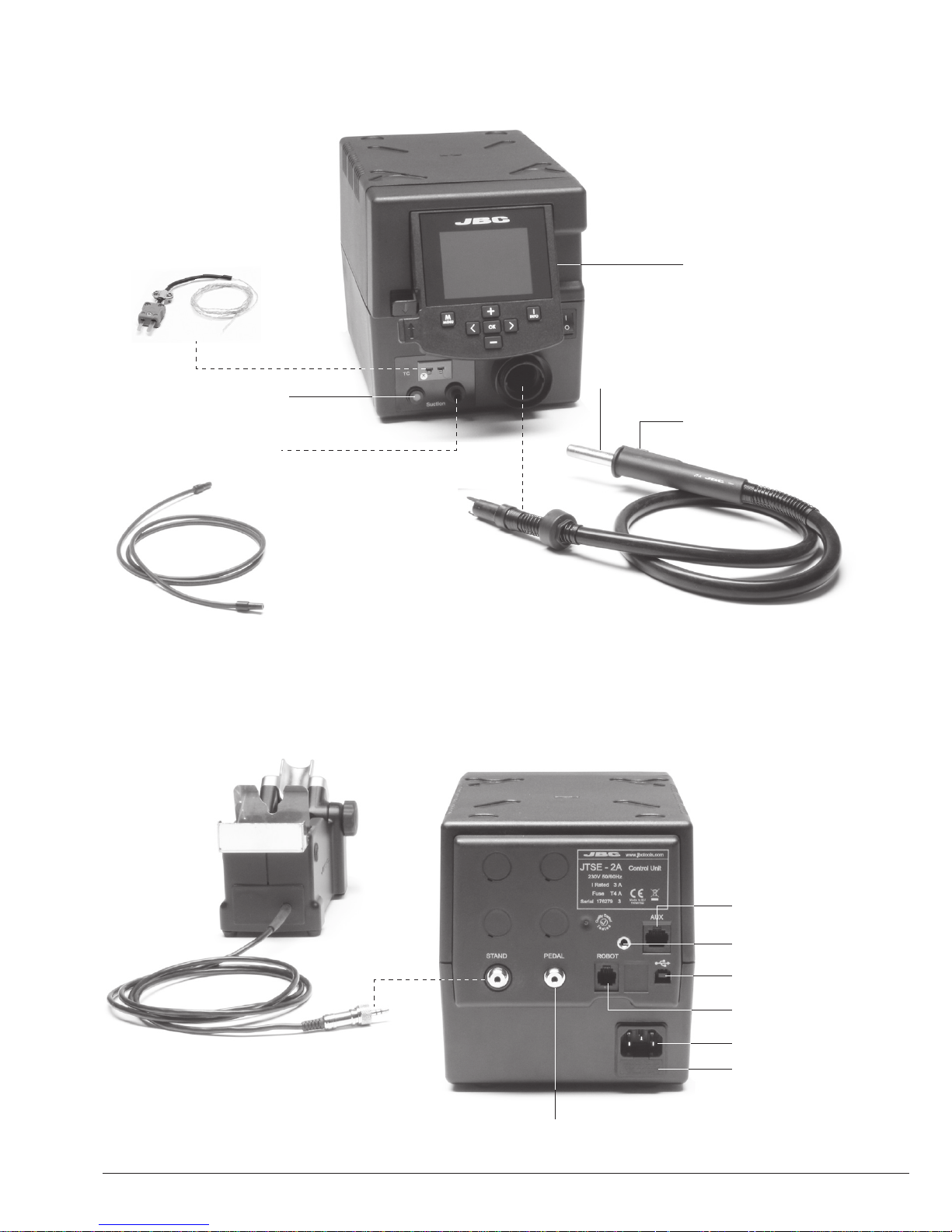

JTSE Features
Hot Air button
(On / Off)
Power Socket
Fuse
USB connector
Robot RS232
connector
P-005 Pedal connector
Equipotential
connector
Auxiliar
connector
Heating element
Suction Tube
For tripods and extractors
Heater Hose set
Ref. J T-T1A (100V/120V)
JT-T2A (230V)
Thermocouple type K
Ref. PH218
Stand
Ref. J T-SE
Activates the suction pump
USB-A connector
JTSE Connection
6
USB-A connector
Filter cover
LED status
indicators
2,8” Color TFT screen
Tilt the display
for easy reading
DDE Features
MVE Features
www.jbctools.com
7
Work simultaneously with up to 2 tools and join each station port with 1 module + 1 pedal (Peripherals).
RJ12 connector for Robot
USB-B connector
Equipotential connection
Power Socket
Control Unit
Ref. DDE-B
DDE & MVE Connections
Suction Filter
Ref. 0821830
Pneumatic
Desoldering Module
Ref. MVE-A
To another peripheral
Pedal
Ref. P-005
Stand
Ref. DR-SE
Stand
Ref. AD-SE
Desoldering Iron
Ref DR560-A
General purpose handle
Ref T245-A
Air pressure (4-6 bar)
Tubing Ø4 x Ø6 mm
(Not supplied)
8
* The MNE Nitrogen Flow Regulator is required.
**If you need to connect the MS, MV, MN or FS modules, an adapter is required (Ref. IM2496).
DDE Compatibility
MVE Compatibility
Hot Air Stations Compatibility
Select the equipment that best suit your soldering or desoldering needs.
Basic working system Peripherals**
Control
Unit
Tool
Cartridge
Range
Stand
MSE-A /
MVE-A
MNE-A FSE-A P-005
DDE-B
T210 -A C210
AD-SET245-A C245
T470-A C245
T210- NA* C210
DN-SET24 5-N A*
C245
T470-N A*
AP250-A C250 AP-SE
PA120-A C120 PA-SE
HT420-A C420 HT-S E
DS360-A C360 DS-SE
DR560-A C560 DR-SE
Module Tool
Cartridge
Range
Stand
Control Units Peripherals
DDE DME P-005
MVE-A
DS360-A C360 DS-SE
DR560-A C560 DR-SE
Basic working system Nozzle Peripherals
Control
Unit
Tool Heating Element Stand JN Series TN Series P-005
JTSE-A
TESE-B
JT-A
0014107 (230V)
JT-SE
0014105 (100V/120V)
TE-B 0012374 (100V/120V/230V) TE-SE
www.jbctools.com
9
Clean periodically
Maintenance
Before carrying out maintenance or storage, always allow the equipment to cool.
1. Pull off the fuse holder and remove the fuse.
If necessary use a tool to lever it off.
2. Press the new fuse into the fuse holder and
replace it in the station.
- Clean the station screen with a glass cleaner
or a damp cloth.
- Use a damp cloth to clean the casing and the
tool. Alcohol can only be used to clean the
metal parts.
- Periodically check that the metal parts of the
tool and stand are clean so that the station
can detect the tool status.
- Maintain tip surface clean and tinned prior to
storage in order to avoid tip oxidation. Rusty
and dirty surfaces reduce heat transfer to the
solder joint.
- Periodically check all cables and tubes.
Fuse holder
Fuse holder
Fuse
- Replace any defective or damaged pieces. Use original JBC spare parts only.
- Repairs should only be performed by a JBC authorized technical service.
- Replace a blown fuse as follows:
10
Safety
- Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire.
- The power cable must be plugged into approved bases. Make sure that it is properly grounded
before use. When unplugging it, hold the plug, not the wire.
- Do not work on electrically live parts.
- The tool should be placed in the stand when not in use in order to activate the sleep mode.
The soldering tip, the metal part of the tool and the stand may still be hot after the station
is turned off. Handle with care, including when adjusting the stand position.
- Do not leave the appliance unattended when it is on.
- Do not cover the ventilation grills. Heat can cause inflamable products to ignite.
- Avoid flux coming into contact with skin or eyes to prevent irritation.
- Be careful with the fumes produced when soldering.
- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when
working to avoid personal harm.
- Utmost care must be taken with liquid tin waste which can cause burns.
- This appliance can be used by children over the age of eight as well as persons with reduced
physical, sensory or mental capabilities or lacking experience provided that they have been given
adequate supervision or instruction concerning use of the appliance and understand the hazards
involved. Children must not play with the appliance.
- Maintenance must not be carried out by children unless supervised.
It is imperative to follow safety guidelines to prevent electric
shock, injury, fire or explosion.
www.jbctools.com
11
Specifications
Complete Rework station with Electric Pump
RMVE-1D / RMVE-2D / RMVE-9D
- Total weight: 14 kg (30.95 lb)
JTSE-1A 100V - 120V 50/60Hz. Input fuse: 8A. Rated current: 7A
JTSE-2A 230V 50/60Hz. Input fuse: 4A. Rated current: 3A
- Net Weight: 4.9 kg (10.86 lb)
- Dimensions (control unit): 148 x 184 x 140 mm (5.83 x 7.24 x 5.51 in)
- Nominal power: 700W
- Temperature selection: Room temp. / 150 - 450 °C (300 - 840 °F)
Cool mode: T off. Used to blow air to room temperature
- Ambient operating temp.: 10 - 40 ºC (50 - 104 ºF)
- Air flow regulation: 5 - 50 SLPM
- Vacuum: 30% / 228 mmHg / 9 inHg
- Connectors: USB station-PC
Robot RS232
P-005 Pedal
DDE-1B 120V 50/60Hz. Input fuse: 4A. Output: 23,5V.
DDE-2B 230V 50/60Hz. Input fuse: 2A. Output: 23,5V.
DDE-9B 100V 50/60Hz. Input fuse: 5A. Output: 23,5V.
- Net Weight: 3.8 kg (8.41 lb)
- Dimensions: 148 x 120 x 232 mm (5.83 x 4.72 x 9.13 in)
- Output Peak Power: 150W per tool
- Temperature Range: 90 - 450 °C (190 - 840 °F) ±5%
- Idle Temp. Stability (still air): ±1.5 ºC (±3 ºF)
- Tip to ground resistance: <2 ohms
- Tip to ground voltage: <2mV RMS
- Ambient operating temp.: 10 - 40 ºC (50 - 104 ºF)
- Connections USB-A / USB-B / Peripherals connectors
RJ12 connector for Robot
MVE-A
- Net Weight: 700 gr (1.54 lb)
- Dimensions: 145 x 55 x 225 mm (5.71 x 2.17 x 8.86 in)
- Air Pressure supply range: 4 - 6 Bar
- Vacuum at 6 Bar: 90% / 680 mmHg / 26.8 inHg
- Flow rate: 15 SLPM
- Ambient operating temp.: 10 - 40 ºC (50 - 104 ºF)
- P-005 Pedal connection
Complies with CE standards.
ESD protected.
12
产品中有害物质的名称及含量
有害物质含量表
部件名称
有害物质
铅(Pb) 汞(Hg) 镉(Cd)
六价铬
(Cr(VI))
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
烙铁头 O O O O O O
手柄 O O O O O O
电源线 O O O O O O
主机 O O O O O O
电源插座 O O O O O O
保险丝 O O O O O O
主开关 O O O O O O
电位连接 X O O O O O
变压器 O O O O O O
线路板 X O O O O O
O 表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572 规定的限量要求以下。
X 表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572 规定的限量要求。
www.jbctools.com
13

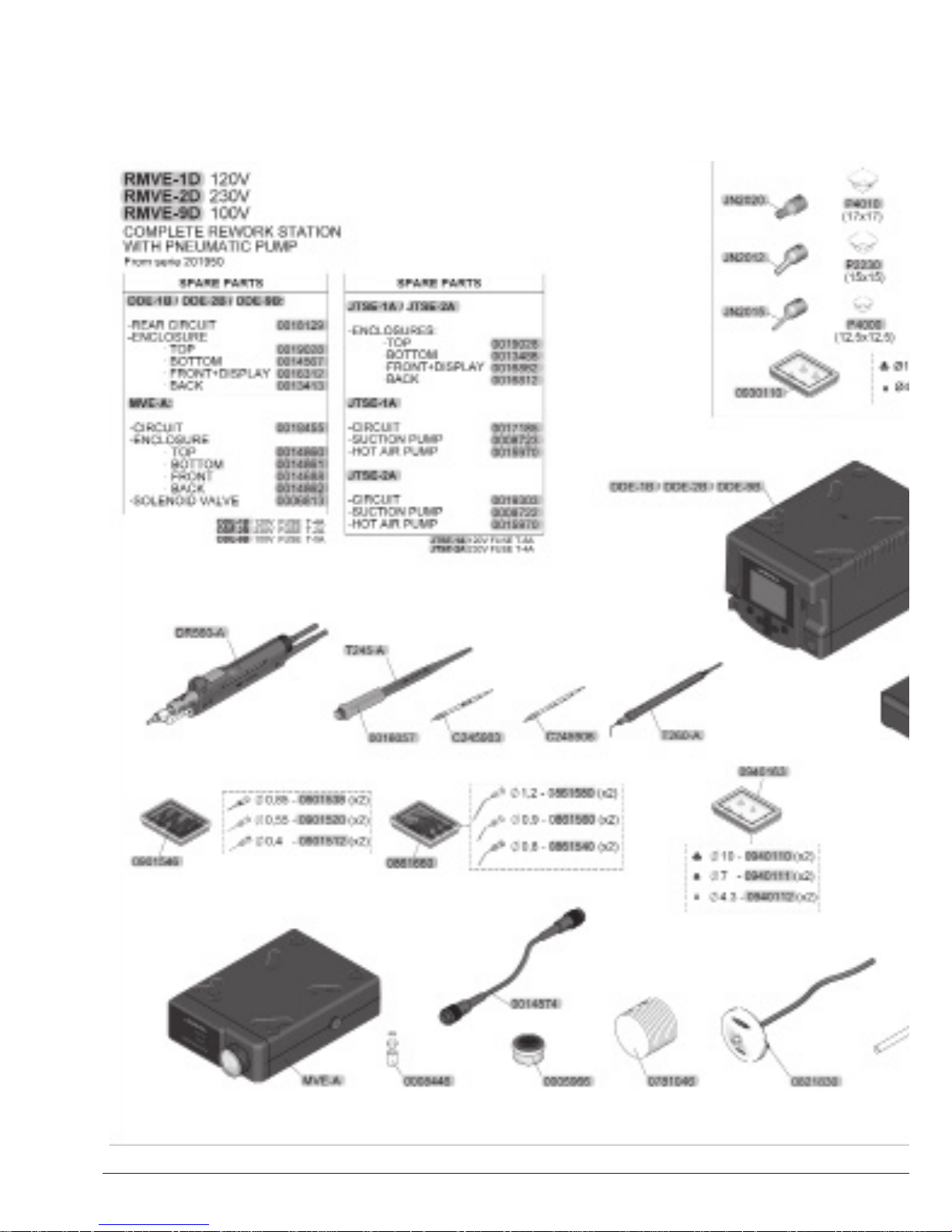

Exploded View
14
www.jbctools.com
15
This product should not be thrown in the garbage.
In accordance with the European directive 2002/96/EC, electronic equipment at the end of their life
must be collected and returned to an authorized recycling facility.
Manual in other languages available on our website
Warranty
JBC’s 2 year warranty covers this equipment against
all manufacturing defects, including the replacement
of defective parts and labour.
Warranty does not cover product wear or misuse.
In order for the warranty to be valid, equipment must
be returned, postage paid, to the dealer where it was
purchased.
Register your warranty within 30 days of purchase
in www.jbctools.com/productregistration
0020527-0518
