Jaycar XC4929 User Manual

User Manual

High Definition Digital Set Top Box

With Recording Via USB

XC4929

Please read this User Manual carefully to ensure proper use of this product and keep this manual for future reference.

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings, install in accordance with the instructions.

8) Do not install near any heat sources such as air conditioners, stoves, or other apparatus (including amplifiers) that produce heat.

9) Ensure mains plug fits correctly in its socket. Poor connection can result

in picture interference and potential safety hazards.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the

apparatus.

11) Only use attachments/accessories specified by the m anufac turer.

12) Unplug this apparatus and its antenna connections before the approach of lightning storms or when unused for long periods of time.

13) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

14) This device does not have an AC mains switch. The mains plug is used as the primary power disconnect device, and it must remain readily accessible and operable.

15) Ventilation should not be impeded by covering the ventilation openings with items such as newspapers, table-cloth, curtains, etc.

16) No naked flame sources, such as lighted candles, should be placed on or near the apparatus.

17) Your attention is drawn to the environmental aspects of battery disposal.

18) This device is not warranted for use in unreasonably hot, cold, or humid environments

19) The apparatus shall not be exposed to dripping or splashing, and no objects filled with liquids, such as vases, shall be placed on or near the apparatus.

20) This device is designed for indoor, fixed location use only. It must not be used in portable or mobile applications as vibration or excessive forces may cause damage.

This symbol indicates that dangerous voltages constituting a risk of electric shock are present within this unit.

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. When servicing, use only identical replacement parts.

CAUTION: If the apparatus has been exposed to an electrostatic discharge, (lightning or similar) it may malfunction and need to be reset by the user. Remove the mains power lead from the wall socket for a few minutes, then re-apply mains power. You may need to re-scan the TV channels and check that any programmed events (eg. PVR recording) have been correctly retained.

WARNING: When using a USB memory stick with this unit, it should be plugged into the unit directly. USB extension cables or hubs should NOT be used, to avoid data transfer errors or interference caused to TV reception.

WARNING:

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Table of Contents Front and Rear Panel

Front and Rear Panel. .............................................................................. 1

Remote Control. .......................................................................................2

Connecting to a Television. ........................................................................ 3

Connecting to a DVD Recorder or VCR. ..................................................... 3

Connecting to an Audio System. ................................................................ 4

First Time Installation. .......................................................................... 4-5

Menu settings. ...................................................................................... 5-9

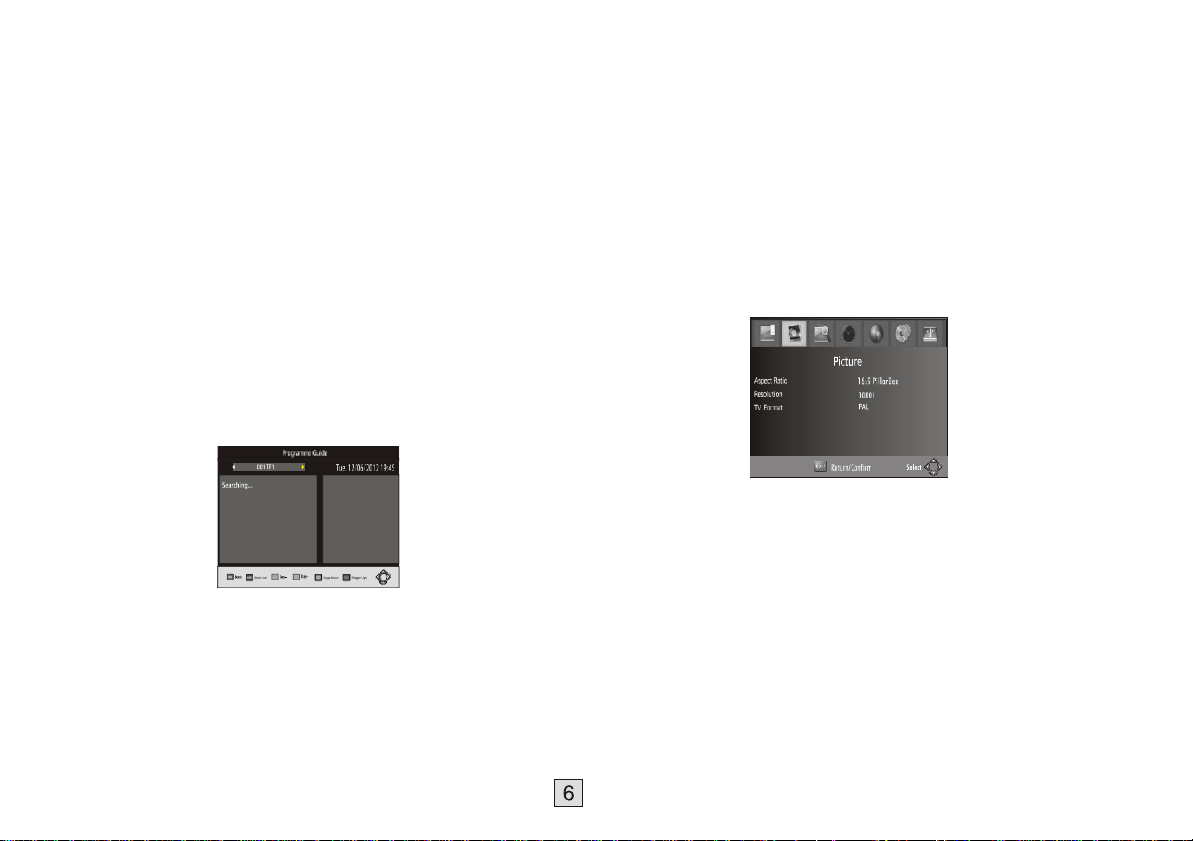

Electronic Program Guide (EPG). ............................................................. 6

USB Personal Video Recorder (PVR). ................................................... 9-11

Troubleshooting...................................................................................... 12

Technical Specifications. ........................................................................12

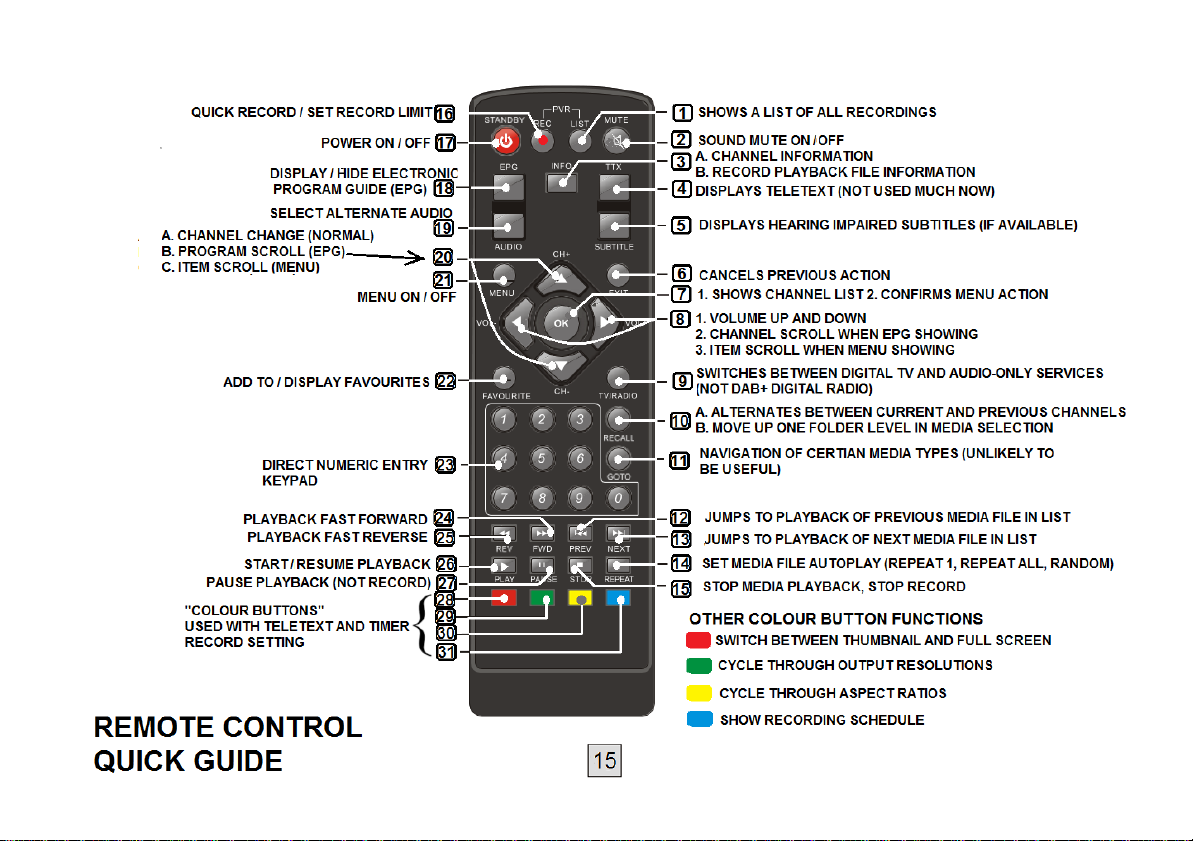

Using the XC4929 in New Zealand……………… …… ……………………… …13 Frequently Asked Q ue st io ns …… ………………… …… ……………………… …14 Remote Control Quick Guide …… …………………………… …… ………………15

USB: Data input from USB storage devices.

LED DISPLAY WINDOW: Used to display the channel number.

STANDBY: used to switch the set top box between On and Standby modes.

STANDBY INDICATOR: Green in normal operation, turns to red in standby

mode.

MENU: Turns on the Main Menu.

REMOTE CONTROL SENSOR: Used to receive the infra-red signal from the

remote control (Make sure this is not blocked by cables).

VOLUME+/-: Used to increase/decrease the volume without using the

Remote control.

CHANNEL +/-: Used to change channels without using the remote control.

OK: Confirms an entry or selection.

RF IN: Connect to your TV antenna.

RF LOOP THROUGH: Feeds auxiliary TV antenna signal to your TV

(Allows you to watch one channel while recording another )

COAXIAL: Connects to the Coaxial digital audio socket on a surround

sound system.

HDMI: High Definition Multimedia Interface: Connects high definition

audio and video to an HDMI equipped device (eg. flat screen TV).

VIDEO: (Yellow socket) Composite video signal for older model TVs

COMPONENT VIDEO OUT: Y, Cr, Cb analog outputs for older model TVs

AUDIO L/R: Analog Audio L/R signals for older model TVs.

MAINS CABLE: This is used to connect to the 240V mains power supply.

1. Front panel

3 4

6 7 8 9

2. Rear panel

Connecting to a Television

For a basic connection from this Set Top Box to your television, use the Composite video connection outlined below. For a higher quality connection, use the Component Video connection outlined below combined with the L/R Audio outputs. For the highest quality connection use a direct HDMI connection, see below.

TV Antenna

Connecting to a DVD Recorder or VCR

TV Antenna

HDMI

100-240V~

50/60Hz

Composite video and audio

NOTE: HDMI does not normally require setup. It just

“works”. If you don’t have an HDMI cable, you can use

the supplied red-yellow-white cable in the meantime.

Coaxial cable (Digital audio)

(Analogue audio)

Coaxial

Connecting to an Audio System

First Time Installation

Getting Started:

Once you have connected this Set Top Box (STB) to the appropriate video and audio input sockets on your TV, and have selected the matching inputs on the TV to receive these signals, you will need to be comfortable with selecting several basic operations before setting up your Set Top Box for the first time.

Firstly, the STB has two power modes: Standby and On. In Standby mode, the STB is powered up, but awaits a "Power On" command from either the Remote Control or from the Standby push-button located on the front of the STB. In this mode, the front panel LED indicator glows red.

When the STB is switched from Standby to the On mode, the power LED indicator on the front panel will change from Red to Green to indicate that the unit is fully powered up.

As most receiver operations are accessed using the supplied Remote Control, please take the time to review the button designations on page 2 of this manual. Especially take note of the most commonly used buttons; the cursor arrow buttons (LEFT, RIGHT, UP, DOWN) surrounding the OK button in the middle section of the remote control, as well as the MENU button at the top-left of the cursor keys, and the EXIT button at the top-right of the cursor keys. (If you get stuck, pressing “exit” several times should always get you back to the main screen).

First Powering on the STB:

When you first power up your STB, (or you reset the STB to its factory settings), it will automatically display the Installation Guide menu. This is where the Set Top Box searches for available TV stations and stores the station details it finds. Make sure a suitable TV antenna is connected before proceeding with this operation.

Amplifier

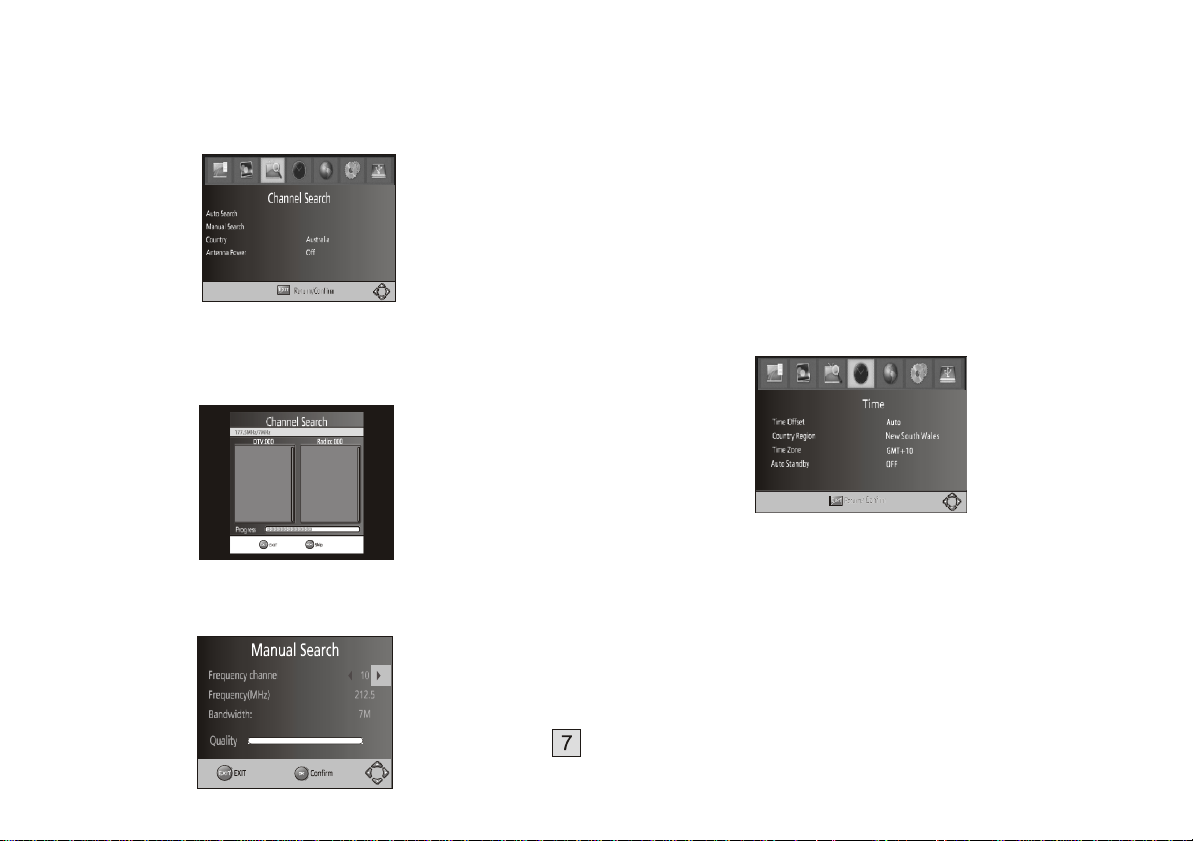

Alternatively, at any time you can select the Channel Search menu and use the "Auto Search" option" to force the receiver to locate all the available TV stations.
