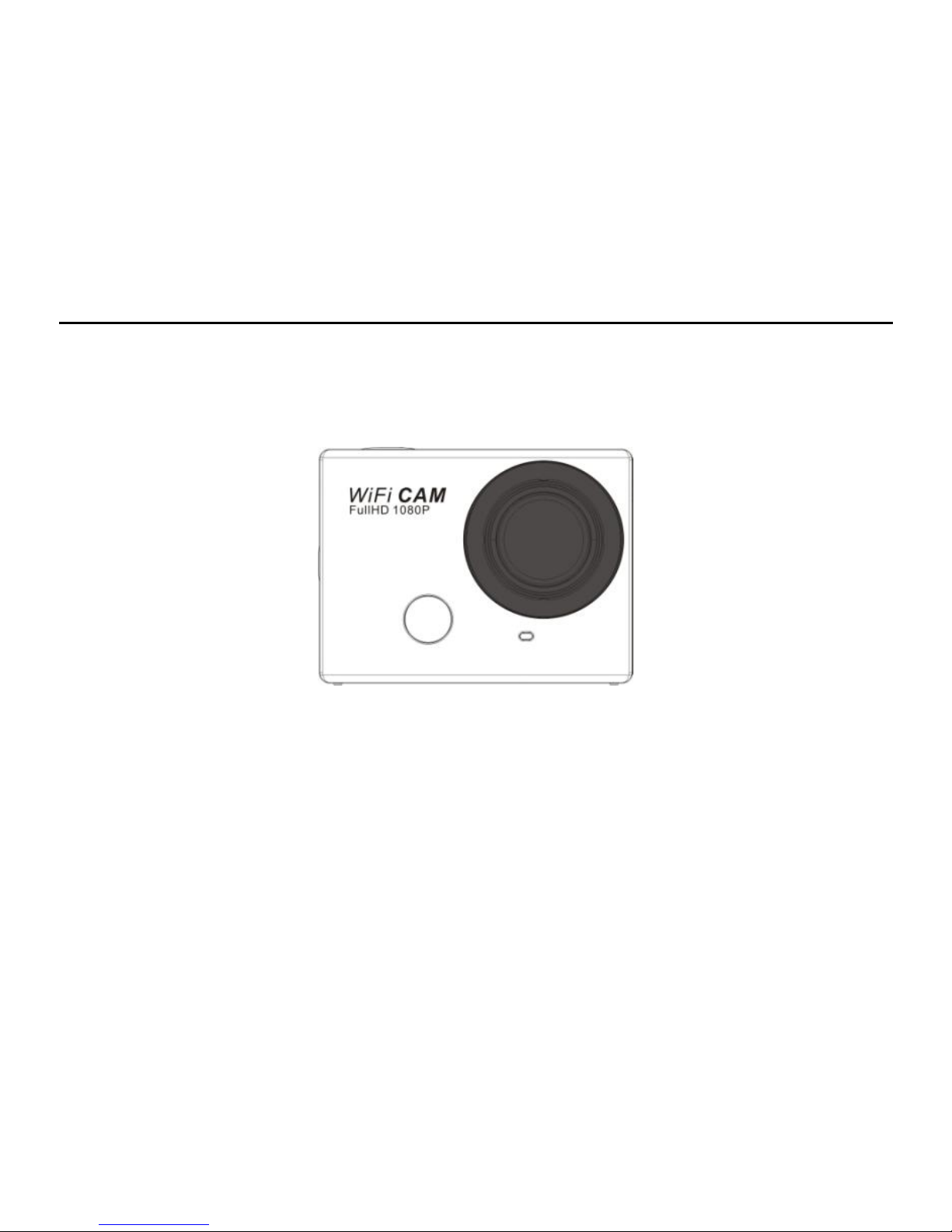

Page 1
1
Wifi Sports Camera
User Manual
Page 2
2
Quick Guide:
1. Download and install the app “SYMAGIX 2” from Itunes® or Google Play
2. Press the Wi-Fi button on the side of the camera to initialize the signal, the LED will be red
3. Search for the wireless signal “QC8028” on your smartphone or tablet using
the password “1234567890”.
4. You can now start using the camera once the wireless signal is connected and you have opened the app.
Note: Class 10 Micro SD Cards are required for this camera
Page 3
3
Care & Maintenance
Limit the cameras exposure to direct sunlight; also do not point its lens into direct sunlight. This may
damage the image sensor of the video camera.
Take precautions to prevent water or sand particles from entering the video camera when it is used on the
beach or near water, as this may damage the video camera.
Keep the video camera free of dust and chemical materials. Place it in a cool, dry and well ventilated place.
Avoid placing the video camera in high temperature conditions, moist or dusty places to avoid damage of
the video camera.
If dirt or stains are accumulated on the video camera or on its lens, use soft, clean and dry rag to wipe it
away gently. If the video camera or its lens is covered with sand particles, blow them away gently. Do not
use a cloth to wipe. Otherwise, it may scratch the surface of video camera or its lens.
If you are required to clean the camera lens surface, firstly blow away the sand or dust accumulated on this
surface, and then wipe the camera gently with a clean dry cloth. Do not use solvents to clean the video
camera.
Do not touch the lens surface with fingers.
Page 4
4
CCaammeerraa DDiiaaggrraamm::
Display/Menu key
2.0’’ HD LCD
Lens
IR Remote
Charging /Busy indicator
Busy indicator
Microphone
Page 5
5
Wifi/Down key
HDMI port
Power/Mode key
Battery Latch
Micro SD Card
Shutter/OK key
Micro USB port
Speaker
Page 6
6
OOppeeaarrttiinngg:: ______________
1. Charge the built-in lithium battery
Connect the camera to the computer for charging, at this time, the charging indicator will be in red, and it will be
off after charging. Generally, it takes 2-4 hours to charge the battery.
USB cable
Page 7
7
2. Use the storage card
1. Push the Microsd card into the slot till it is in place as per the instruction in concavely engraved words by the
storage card slot.
2. To take out the Micro Sd card, press the tail of the storage card inwardly softly and it will be popped out.
Note: There’s no built-in memory unit in the camera, so make sure to insert a storage card into it prior to
use (it is recommended at least Class 10 high speed microSD card).
Page 8
8
3. Power on/off
3.1 Power on: Press Power key for 3 seconds, the screen will be on and the camera will be started.
3.2 Power off: Hold on Power key for 3 seconds when the camera is in the idle state to turn it off.
3.3 Auto screen off: The screen will be turned off automatically when the time that the camera is in the idle
state for automatic screen off to save power. After that, the lamp for screen off will be on.
3.4 Power off when the camera is lack of electricity. When electrical quantity of the battery is very low, an
icon of will be displayed on the LCD screen, prompting you to charge it in time. When the icon turns
red and flickers, the camera will be turned off automatically.
Page 9
9
4. Shift among functional modes
The camera has 4 modes, namely video recording mode, car-carrying mode, shooting mode and replay mode.
After power is on, press Power key to shift among them.
Video recording mode Car-carrying mode Shooting mode
Replay mode
Note: after the shutdown of the system will save the current setting pattern, the next open opportunity
automatically entered into the model.
Page 10
10
5. Indicator
Busy indicator (red): When the camera is busy such as recording videos, shooting photos and turning off
screen automatically, the work indicator will flicker.
Charging indicator (blue): When it is on, the user is prompted that the camera is being charged and it will be
off after charging is completed.
6. Video recording mode
After power is on, the video camera will enter video recording mode directly and in preview mode, press
Shutter key to start video recording; Press it again to stop shooting. If the memory card is full or electrical
quantity is low, it will also stop shooting:
1. Icon of mode, indicating video recording mode;
2. Indicate quality of video;
3. Indicate size of video:FHD 1080P(60FPS)
/ FHD 1080P(30FPS)/HD 720P(120FPS) / HD 720P(60FPS)
4. Recording time, indicating recordable length of time;
5. Icon of battery, indicating current electrical quantity;
Note: short press power key to realize the camera video process
and save the image.
Page 11
11
7. Car-carrying mode
After power is on, press Power key to enter car-carrying mode
1. Icon of mode, indicating car-carrying mode;
2. Indicate quality of video;
3. Indicate size of video: FHD 1080P(60FPS)
/ FHD 1080P(30FPS)/HD 720P(120FPS) / HD 720P(60FPS
4. Recording time, indicating recordable length of time.
5. Icon of battery, indicating current electrical quantity
Prompt:
1.In car-carrying mode, a passage of video is kept every three minutes in recording. After the storage card is
full, the earliest passage will be deleted, and video will be recorded in a circulating way.
2. Boot after choosing to car-carrying mode, normal shutdown again after boot, connect the car charger will
automatically enter the vehicle model and start the video.
Page 12
12
8. Shooting mode
After power is on, press Power key twice to enter shooting mode, and in preview state, press Shutter key to take
a photo:
1. Icon of mode, indicating the current is shooting mode;
2. Size of video, and 5M/8M/10M/12M/16M is optional;
3. Counter, indicating number of photos to be taken;
4. Icon of electrical quantity of battery.
9. Replay mode
9.1 After power is on and entering Preview state, press Power key
continuously to shift to Replay mode. Select the file to be replayed
through the menu as follows:
Select CAR to replay files in car-carrying video mode;
Select VIDEO to replay files in general video mode;
Select JPG to replay files in shooting mode;
Page 13
13
9.2 Introduction to play screens
9.2.1 Screens of video files
1. Icon of replay mode;
2. Indicate serial number of current file/ total number of files;
3. Indicate parameter of recording time;
4. Operation buttons hint icon
5. Indicate recording time point.
When a video file is being played, click Ok key to pause play, and click Menu key to stop playing.
Page 14
14
9.2.2 Screen of photos
1. Indicate serial number of current file/ total number of files;
2. Operation buttons hint icon
In replaying, Press WIFI key to select other file type， in a circulating way.
10. Menu operation
There is a different menu in each working mode as shown in the following figures:
Menu for video recording
/car-carrying mode
Menu for shooting mode
Menu for setting mode
Menu for replay mode
Page 15
15
Operation: Press Menu key, the menu for this mode will be displayed on the LCD. At this time, press Power key
to move the cursor leftward or rightward and select on the menu, and press WIFI key to move the cursor upward
or downward and select on the menu in a circulating way. Press OK key to confirm and press Menu key to return
or exit from menu mode.
Application of remote controller
1. Definition of keys of remote controller
Remote controller is as shown in the right figure:
Power on/off key
Video recording key
Shooting key
Signal transmission port
Page 16
16
2. Use of remote controller:
Using the remote controller, you can achieve functions of video recording, shooting and power off without
operating on the camera. Just point the signal transmission port of the remote controller at RF signal receiving
lamp of the camera, and press corresponding keys to achieve functions of video recording, shooting and power
off.
RF remote control lamp
Page 17
17
Connect device to HDTV:
Connect the video camera to an HDTV with a HD cable as shown in the following figure, display signals in the
camera will be output into the HDTV automatically, and you can browse HD videos and photos that are recorded
or taken in the HDTV.
Diagram of connection
Signal transmission
Page 18
18
APP (for Android and iOS System)
I. How to Obtain the APP Installation Program
1. For the Android System, you can search “SYMAGIX2” in the Play Store to obtain corresponding installation
programs, and then you can install them according to the indicated steps or through scanning the
two-dimensional code .
2. For the IOS System, you can search “SYMAGIX2” in the APP Store to obtain corresponding installation
programs, and then you can install them according to the indicated steps or through scanning the
two-dimensional code .
Page 19
19
II. Camera WIFI and System Applications
Android Applications
1. Please install the SYMAGIX2 application program (provided by the Supplier or the Internet) for the Android
mobile phone or tablet PC, and then the Display Screen will show the Icon ;
2. Insert a Storage Card into the Camera and then power it on. Press the WIFI key to conduct WIFI connection,
and the Screen of the Camera will show the WIFI signal Icon with the external screen revealing WIFI
Connecting.
3. Enable the WIFI function of the Android mobile phone or tablet PC, and try to find the AP Name QC8028;
please conduct connection between them till the system reveals a successful connection;
Note：if you are conducting WIFI connection for the first time, please input the password: 1234567890.
4. Tap and enable the Application Program Icon on the Android mobile phone or tablet PC; you can
directly view the preview picture transmitted by the Camera (see the following picture), and then conduct
relevant operations.
Page 20
20
IOS Applications
1. Please install the SYMAGIX2 application program (provided by the Supplier or the Internet) for the IOS
mobile phone or tablet PC, and then the Display Screen will show the Icon ;
2. Insert a Storage Card into the Camera and then power it on. Press the WIFI key to conduct WIFI connection,
and the Screen of the Camera will show the WIFI signal Icon with the external screen revealing WIFI
Connecting.
3. Enable the WIFI function of the IOS mobile phone or tablet PC, and try to find the AP Name QC8028; please
conduct connection between them till the system reveals a successful connection;
if you are conducting WIFI connection for the first time, please input the password: 1234567890.
1. Resolution
2. White Balance
3. Settings (Enter Settings Menu)
4. Wi-Fi Signal Icon
5. Camera’s Battery Status Icon
6. Enter the Playback Mode
7. Shutter Button
8.Video Mode
9. Photo Mode
10. Timelaps Mode
1 2 3 4 5 6 7 8 9
10
Page 21
21
4. Tap and enable the Application Program Icon on the IOS mobile phone or tablet PC; you can directly
view the preview picture transmitted by the Camera (see the following picture), and then conduct relevant
operations.
1. DV battery icon
2. Video resolution
3. White balance
4. Setup (enter setup menu)
5. Enter Playback mode
6. Timelaps Mode
7. Photo mode
8. Video mode
9. Shutter button
1 2 3 4 5
6 7 8
9
Page 22
22
Notes:
1. If you need to record videos or download pictures using your mobile phone or tablet PC, please insert
one TF card for your camera;
2. When the Camera has been successfully connected with your mobile phone or tablet PC, the WIFI
Indicator Light will be on.
Application on PC
The camera has a plug-and-play function. Connect the power-on device to the computer with the USB cable, and
the mode can be automatically switched to the removable hard disk. Removable disk icon will appear in the "My
Computer" window. The pictures you shot stored in the removable disk I: \ jpg folder (I is this equipment
removable disk); video files your shot stored in I: \ video folder; vehicle-mounted files you shot saved in
I: \ CAR folder. Note: If using a mobile hard disk function on Windows 2000 or later versions of Windows
operating system, do not install the driver.
Page 23
23
System Requirements
System Requirements
Operating
System
MSDC
Microsoft Window 2000，XP, Vista, 7，8
Mac OS X ver: 10.0.0 or above version
CPU
Intel Pentium of more than 1GB Hz or other CPU with equivalent
performance
Internal Memory
Larger than 1GB
Sound Card and Display Card
The sound card and video card shall support DirectX8 or higher version.
CD Driver
Speed of 4 times or faster
Hard Disk
Free space of more than 2GB
Others
One standard USB1.1 or USB2.0 port
Page 24
24
Technical Parameters
Image Sensor
8.0 Million Image Sensor
Function Modes
Video recording mode, car-carrying mode, shooting mode and replay mode
Lens
F2.8, f=2.5mm
LCD Display Screen
2.0 inch HD LCD Screen
Photo Definition Ratio
16M, 12M, 10M, 8M, 5M
Video Definition Ratio
FHD 1080P(60FPS)
Storage Media
MicroSD Card (up to 32GB)
File Formats
Videos(MOV); H.264 Compressed Format; Photos(JPG)
USB Port
USB 2.0 Port
Power Supply
External 3.8V rechargeable lithium battery 1200mAh.
Language
English, Spanish, Portuguese, German, Italian, French, Dutch
Dimension
59x44x25.5mm
