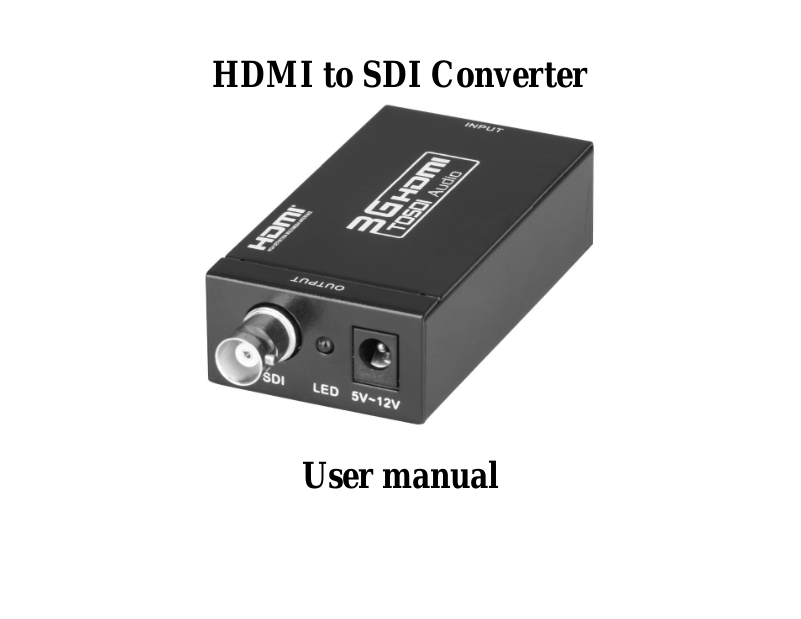

Page 1
HDMI to SDI Converter
User manual
Page 2
I. Introduction
The HDMI to SDI Converter allows HDMI signals to be shown on SDI display while ensuring
high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss. Supports SDI
output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
II. Features
SDI interface bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 G bit/s &
270 Mb/s.
Supports HDMI input timings: 480i@59.94, 576i, 720p@50/59.94/60, 1080i@50/59.94/60,
1080p@23.98/24/25/29.97/30/50/59.94/60.
Converts HDMI signal to SDI: 480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)
720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit /s )
1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)
1
Page 3
III. Package
HDMI to SDI Converter
5V DC Power Supply Adaptor
Opera tion Manual
IV. Specifications
Input Port 1 x HDMI
Output Port 1 x BNC (SDI/HD-SDI/3G-SDI)
SDI Transmission Rates 2.970 Gbit/s and 2. 970/1. 001 Gbit/s
In/Output Resolution 480i, 576i, 720p@50/59.94,60 , 1080i@50/59.94/60
1080p@23.97/24/25/29.97/30/50/59.94/60
Power Supply DC 5V -12V
ESD Protection Human body model ±8kV (air-gap discharge) , ±4kV ( contac t discharge)
Dimension 80mm x 41mm x 25 mm
2
Page 4
V. Operation controls and Fuctions
SDI-OUT: This socket connects to an SDI display.
POWER LED: This re d LED illuminate when the device is connected with power supply.
DC IN: Plug the 5V-12V DC power supply into the unit.
HDMI IN: This socket connects to an HDMI source.
3
Page 5
VI. Application Example
IMPORTANT:
- Never attempt to open, repair or modify any part of this unit or its accessories.
- Never get any part of the device or its accessories wet.
- Failure to adhere to these points will result in a void of warranty.
4
