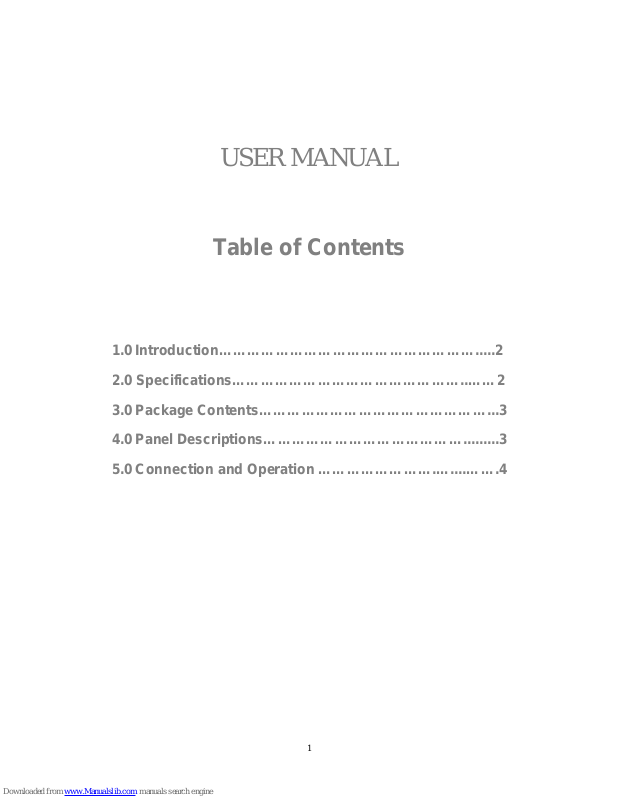

USER MANUAL
Table of Contents
1.0 Introduction……………………………………………….....2
2.0 Specifications…………………………………………..……2
3.0 Package Contents…………………………………………...3
4.0 Panel Descriptions…………………………………….........3
5.0 Connection and Operation …………………….…....…….4
VGA and USB Audio to HDMI Converter
2
VGA and USB Audio to HDMI Converter
Dear customer
For optimum performance and safety, please read these instructions carefully
before connecting, operating or adjusting this product. Please keep this
manual for future referenc e.
1.0 INTRODUCTION
This product is a VGA video converter. It converts VGA signal into complete
HDMI and allows PC users to enjoy their larger image on the display. The
Converter is also along with USB audio that allows you to enjoy high quality
sound on the HDTV. Besides, USB port ca n also suppl y power t o this conv erter
to save an extra power adapter.
1.1 FEATURES
This HDMI converter has many features that enable it to perform in a superior
manner. Among those features you will find:
Easy to Use: Install in seconds, no need of setting.
Conversion: It can convert PC’s VGA video and USB 2CH audio into
complete HDMI.
Supports common VGA video resolution.
Supports 165MHz/1.65Gbps per channel (6.75Gbps all channel)
bandwidth.
Supports 8bit per channel (24bit all channel) deep color.
Power from USB Port.
2.0 SPECIFICATIONS
Signal Inputs/Output
Input Video Signal 0.5-1.0 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Output Video HDMI
Common VGA Resolution 640x480 60Hz 75Hz
800x600 60Hz 75Hz
1024x768 60Hz 75Hz
1280x720 60Hz 75Hz
1280x768 60Hz 75Hz
1280x960 60Hz 75Hz
1280x1024 60Hz 75Hz
Operating Frequency
Vertical Frequency Range
50/60Hz
Video Amplifier Bandwi dth
1.65Gpbs/165MHz
Mechanical
VGA and USB Audio to HDMI Converter
3
Size(W-H-D) 80mmW x 12mmH x 55mmD
VGA line length 0.3m
USB line length 1m
Environmental
Operating Temperatur e
0 ℃ to +70℃
Storage Temperature -10℃ to +80℃
Power Requirement
External Power Supply
NO
Power consumption (Max)
2.2W
Note: Specifications are subject to change without noti ce.
3.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure
the following items contain:
Main unit.
User's Manual
4.0 PANEL DESCRIPTIONS
Please study the panel drawn below and become familiar with the signal
input(s), output(s) and power requirements.
①HDMI output
Connect this port to HDMI display
②USB A male port
Connect this port to the USB port of computer to gain the audio and Power.
③VGA male input
Connect this port to the VGA output of computer
5.0 CONNECTION AND OPERATION
Before installation, pl ease make sure all the devices you wi s h to connec t have
VGA and USB Audio to HDMI Converter
4
been turned off.
1) Connect the HDMI output of this product to the HDTV which has
HDMI input (HDMI Cables are optional).
2) Connect the VGA and USB port of this product to computer.
3) Power on the computer and TV.
4) Set the right resolution of PC to HDTV.
Note: Because the some r esol ution formats of VGA are not t he same with HDTV’s,
so not all resolutions of VGA can output to HDTV. Please set t hese resolutions as
listed in the Specification as possible.
5.1 CONNECTION DIAGRAM
P/N: D007-1
