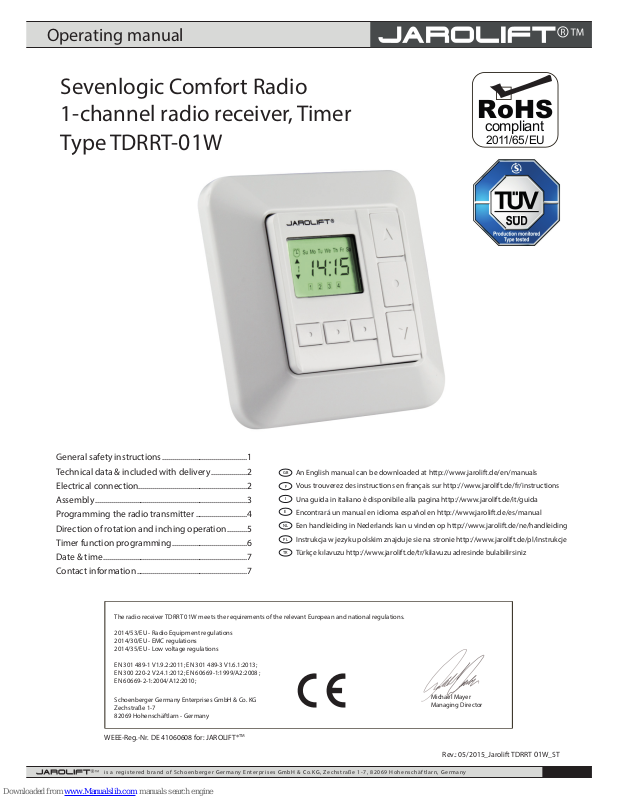

Operating manual
is a registered brand of Schoenberger Germany Enterprises GmbH & Co.KG, Zechstraße 1-7, 82069 Hohenschäftlarn, Germany
Sevenlogic Comfort Radio
1-channel radio receiver, Timer
Type TDRRT-01W
compliant
2011/65/EU
RoHS
Rev.: 05/2015_Jarolift TDRRT 01W_ST
WEEE-Reg.-Nr. DE 41060608 for: JAROLIFT®
TM
Michael Mayer
Managing Director
The radio receiver TDRRT 01W meets the requirements of the relevant European and national regulations.
2014/53/EU - Radio Equipment regulations
2014/30/EU - EMC regulations
2014/35/EU - Low voltage regulations
EN 301 489-1 V1.9.2:2011; EN 301 489-3 V1.6.1:2013;
EN 300 220-2 V2.4.1:2012; EN 60669-1:1999/A2:2008 ;
EN 60669-2-1:2004/A12:2010;
Schoenberger Germany Enterprises GmbH & Co. KG
Zechstraße 1-7
82069 Hohenschäftlarn - Germany
General safety instructions ...........................................1
Technical data & included with delivery ..................2
Electrical connection.......................................................2
Assembly .............................................................................3
Programming the radio transmitter ..........................4
Direction of rotation and inching operation ..........5
Timer function programming ......................................6
Date & time .........................................................................7
Contact information ........................................................7
GB
F
I
E
NL
PL
TR
An English manual can be downloaded at http://www.jarolift.de/en/manuals
Vous trouverez des instructions en français sur http://www.jarolift.de/fr/instructions
Una guida in italiano è disponibile alla pagina http://www.jarolift.de/it/guida
Encontrará un manual en idioma español en http://www.jarolift.de/es/manual
Een handleiding in Nederlands kan u vinden op http://www.jarolift.de/ne/handleiding
Instrukcja w jezyku polskim znajduje sie na stronie http://www.jarolift.de/pl/instrukcje
Türkçe kılavuzu http://www.jarolift.de/tr/kilavuzu adresinde bulabilirsiniz
1 General safety instructions
1
Failure to follow these instructions can endanger life!
Only authorised electricians are permitted to work on the
power connections of the wireless timer and all other electrical work. All work must comply with the wiring diagrams
provided in these instructions (see page 2).
Always disconnect the power prior to installing or connecting
any electrical equipment.
Any work on electrical equipment carries the risk of fatal injury
from electric shock.
Observe the regulations regarding installation in damp areas.
In particular, observe DIN VDE 0100, section 701 and 702 when
using in damp areas. These regulations contain compulsory protective measures.
Use of defective equipment can cause a hazard for persons and
material damage (electric shock, short circuit)
Never use defective or damaged units.
Check the motor and mains cable for any damage.
Please refer to our Service Team (see last page), if you nd any
damage to the equipment.
Please instruct all personnel on how to use the radio receiver
safely.
Improper use may lead to an increased risk of injury.
Observe the moving roller shutters and keep all personnel
clear until the shutter’s movement is completed.
Do not allow children to play with xed controls or the remote control.
Keep the hand transmitter in such a way to prevent any accidental operation, e.g. by children playing.
When cleaning the roller shutters, make sure to disconnect
the power.
IMPORTANT
In accordance with DIN EN 13695, care must be taken to ensure
that the movement conditions established for roller shutters as
per EN12045 are observed, therefore with side locking.
Shutter curtain slats with locking mechanisms are available at
www.jalousiescout.de.
Correct use / operating conditions
Use the tubular motor only to open and close roller shutters
and awnings.
The motor cable must be laid in an empty conduit as far as the
junction box, in accordance with local electrical regulations.
Only use the manufacturer’s original components and accessories.
Conditions for use
For electrical connection, the installation site must have a
constant 230 V / 50 Hz electricity supply, with a main circuit
disconnect device (fuse) on site.
IMPORTANT
Important installation instructions
IMPORTANT
Before assembly, compare the voltage / frequency information on the type label with that of the local electricity network.
Prior to installing the timer, please remove all wires and devices that are not necessary for operation, or shut the devices down.
After unpacking, compare the following:
contents of package and the delivery information in these instructions.
the type of motor and the corresponding information on the type label.

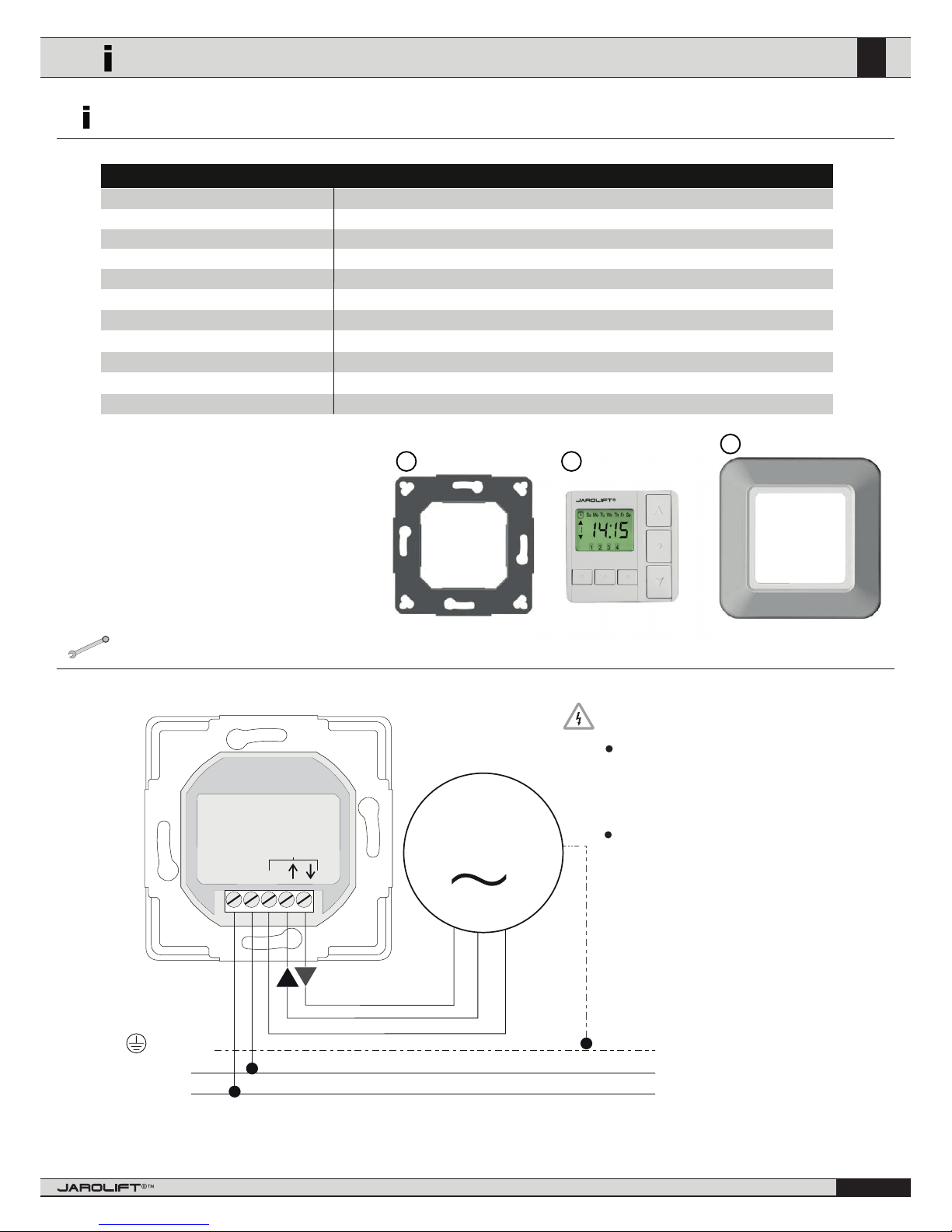

Technical data & included with delivery 2
2
Technical data & included with delivery
Technical data
230 V, 50 Hz
< 400 W
1 Watt
IP 20
-0°C to + 60°C
Rolling code
433.92 MHz
The receiver can store a maximum of 30 transmitting channels
Compatible with all TDR radio transmitters, as of production date 03/2010
Once you have unpacked the unit, compare the content of the package with the information provided in
these instructions about the scope of delivery:
1. Plastic support frame
2. Clock module, white
3. Outer frame, white
+ Instructions
1.5 mm
4 minutes
1
3
2
Electrical connection
M
Only authorised electricians are permitted
to work on the power connections of the
wireless timer and all other electrical work. All
work must comply with the wiring diagrams
provided in these instructions
Always disconnect the power prior to installing or connecting any electrical equipment.
Any work on electrical equipment carries the risk
of fatal injury from electric shock.
Motor
brown
black
blue
green/yellow
PE
N
L
1
L1
N
N
Power supply:
System load:
Standby consumption:
Protection:
max. authorised ambient temperature:
Radio coding:
Radio frequency:
Channels:
Compatibility:
Single-core connection cross section:
Power-on time:
3

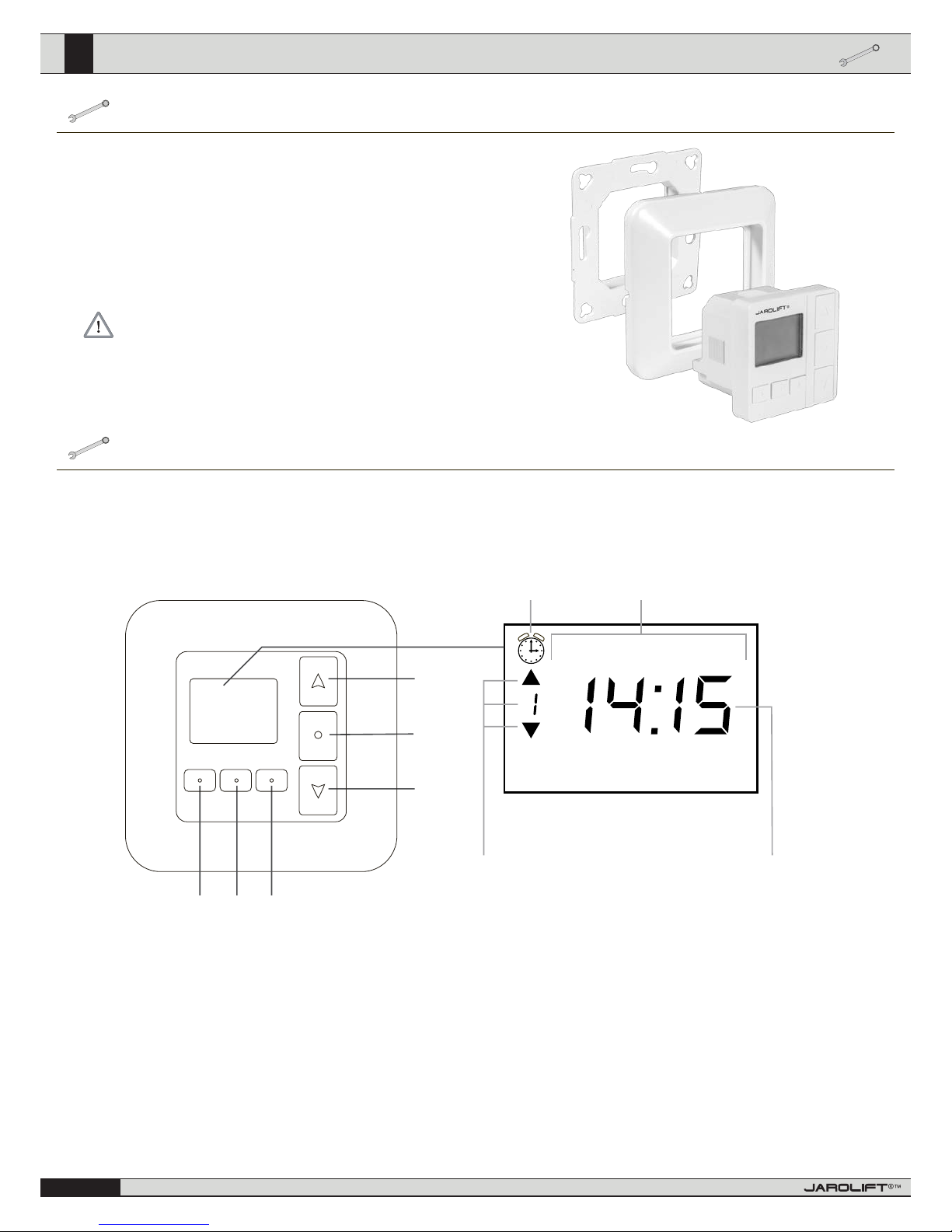

3 Assembly & overview of functions
Assembly
1.
First, push the clock module including its power supply from the inner support frame and the outer frame (in order to do this, hold on to
the outer frame on both sides and use your thumb to press against
the power supply from the back).
2.
Now install the connections in accordance with the connection plan
shown on page 2
3.
Now install the connections in accordance with the connection plan
shown on page 2
When making the connection, please note that the outer frame
must be already located on the clock module!
4.
Once the electrical installation is completed, press the clock module
including the outer frame into the previously installed support frame.
Function overview
Using the radio receiver timer TDRRT-01W, you can convert a simple tubular motor into a convenient wireless motor in no time. The motor can then be
controlled remotely using any of the Jarolift TDR radio transmitters available. In addition, the timer feature an integrated clock for the automatic control of
the motor, as well as buttons for manual operation on-site.
Time setting Days of the week
Program channel for
UP or DOWN cycle time
(8 channels)
current time or
UP/DOWN cycle time
(depending on the menu)
K1 K2 K3
UP
STOP
DOWN
Su Mo Tu We Th Fr Sa

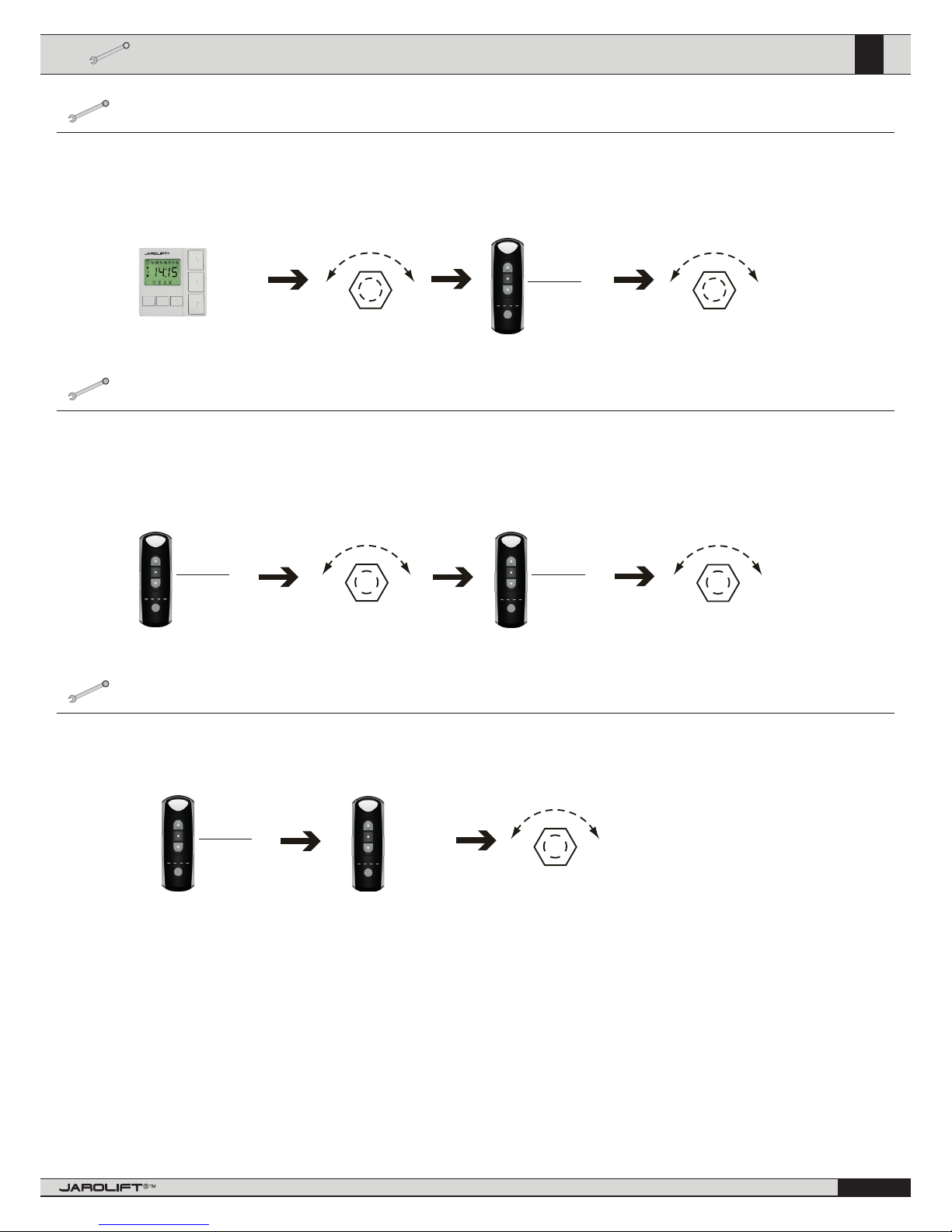

Programming the radio transmitter 4
4
Programming the radio code
Using the radio receiver timer TDRRT-01W, you can convert a simple tubular motor into a convenient wireless motor in no time. The motor can then be
controlled remotely using any of the Jarolift TDR radio transmitters available. In addition, the timer feature an integrated clock for the automatic control of
the motor, as well as buttons for manual operation on-site.
Each button on the hand-held transmitter must be pressed for approx. 1 second!
(Motor vibrates)
Press the UP / DOWN buttons at the same time
then press the STOP
button
(Motor vibrates)
Press the STOP
button for 3
seconds
Copying an existing radio code (only when a transmitter has been programmed)
1.
Press the UP and DOWN buttons at the same time on the transmitter already programmed. Then press the STOP button on this transmitter
eight times. The motor will vibrate brie y as con rmation.
2.
Within 5 seconds, simultaneously press the UP and DOWN button on the transmitter onto which the code should be copied and then press
the STOP button brie y. The motor will vibrate brie y again as con rmation. The code has been copied to the new transmitter.
Press the UP / DOWN buttons at the same time
then press the STOP
button 8x
Transmitter 1
(Motor vibrates)
Press the UP / DOWN buttons at the same time
then press the STOP
button
Transmitter 2
(Motor vibrates)
Deleting the radio code (only when a transmitter has been programmed)
1.
Press the UP and DOWN buttons on the transmitter at the same time. Then press the STOP button six times.
2.
Now press the UP button inside 5 seconds. The motor will con rm the code has been deleted by vibrating brie y.
Press the UP / DOWN buttons at the same time
then press the STOP
button 6x
Press the UP button
(Motor vibrates)
5

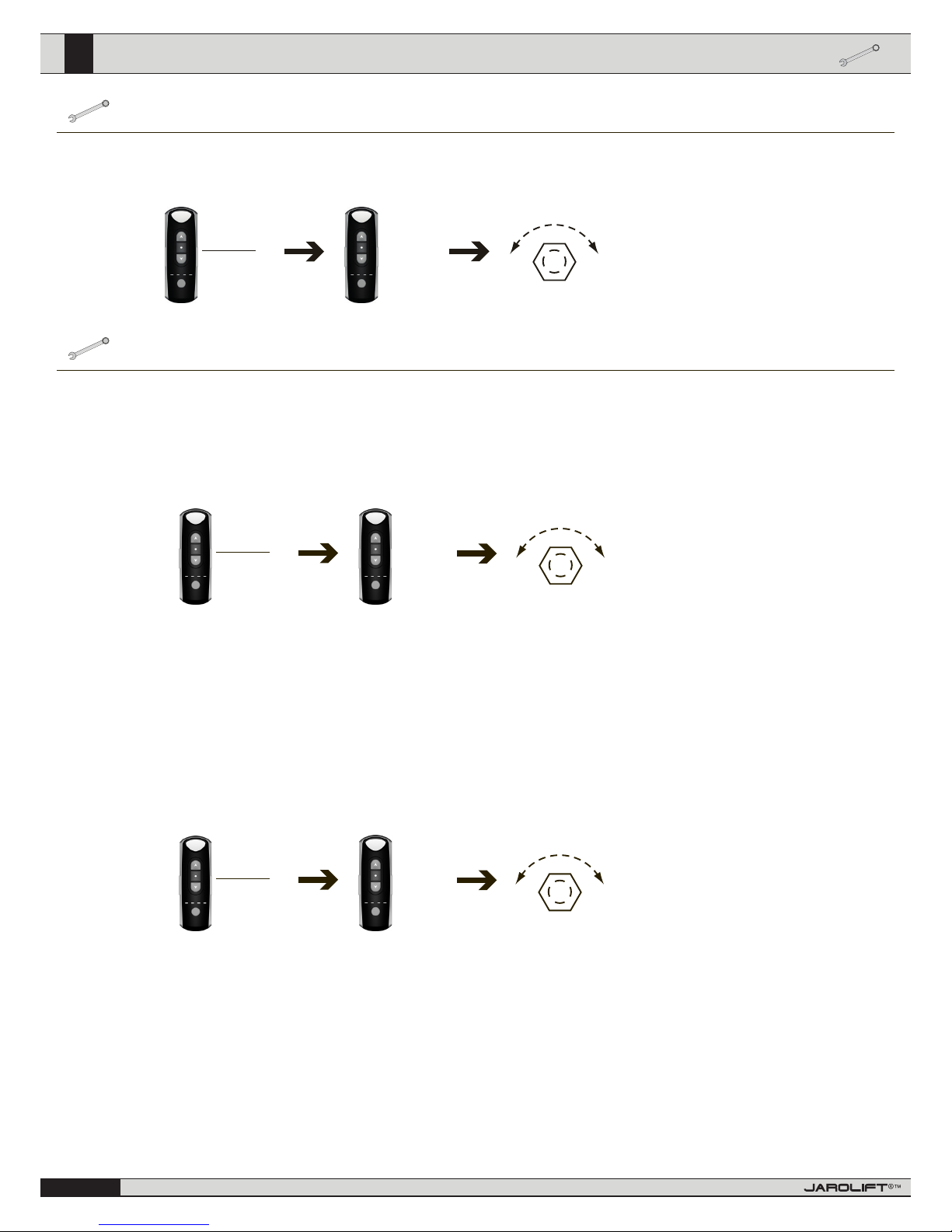

5 Setting the direction of rotation and inching mode
Changing the direction of rotation of the motor
1.
Press the UP and DOWN buttons on the programmed transmitter at the same time. Then press the STOP button four times.
2.
Now press the UP button briey inside 5 seconds. The motor will conrm the direction has been changed by vibrating briey.
Press the UP / DOWN buttons at the same time
then press the STOP
button 4x
Press the UP button
(Motor vibrates)
Setting inching mode
1.
Stop the motor using the STOP button.
Activating inching mode
2.
Press the UP and DOWN buttons on the transmitter at the same time and then press the STOP button six times.
3.
Now press the DOWN button within 5 seconds. A brief vibration of the motor conrms that the inching mode is activated.
Press the UP / DOWN buttons at the same time
then press the STOP
button 6x
Press the DOWN
button
(Motor vibrates)
The motor will now operate as long as you press the UP or DOWN button. In inching mode, press the UP or DOWN button for 3 seconds. The
motor moves to the end point or until you press the STOP button.
Please note, timer control will not function while inching mode is set!
1.
Stop the motor using the STOP button.
De-activating inching mode
2.
Press the UP and DOWN buttons on the transmitter at the same time and then press the STOP button six times.
3.
Now press the DOWN button within 5 seconds. A brief vibration of the motor conrms that the inching mode is deactivated.
Press the UP / DOWN buttons at the same time
then press the STOP
button 6x
Press the DOWN
button
(Motor vibrates)

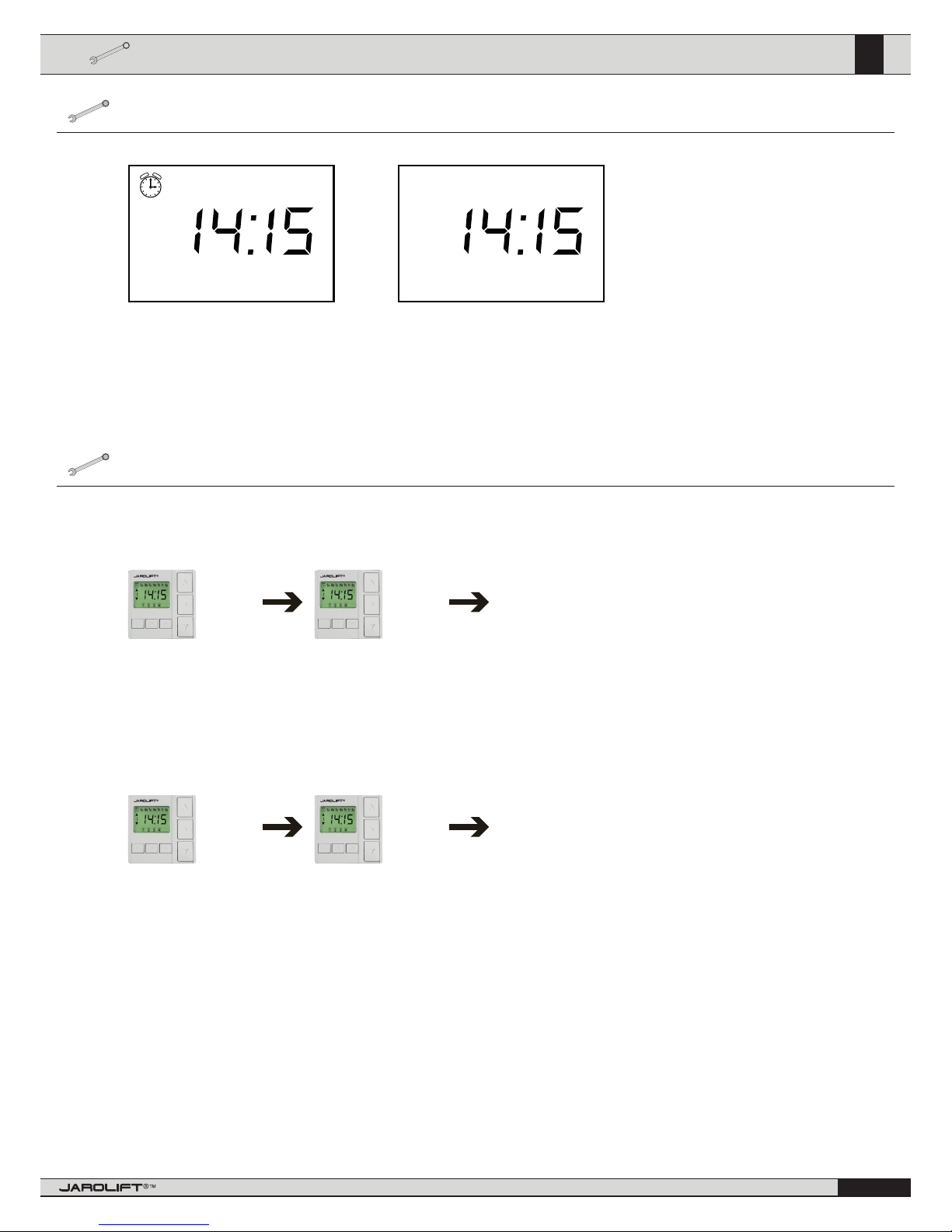

Programming the timer function 6
6
Activating and deactivating the timer function
Timer active Timer inactive
Ensure you are in the main view.
To come out of any menu in the main view, press the STOP button brie y.
While in the main menu, keep the STOP button depressed and brie y press the K2 button in order to activate or deactivate the cycle time function.
If the timer is active, the symbol of an alarm clock is shown in the main view.
Setting the inching mode (in the clock module)
Activating inching mode
Keep the STOP button depressed and then press the UP button brie y. Then release the STOP button.
Keep the
STOP button
depressed
Press the UP
button brie y
Release the STOP button
While pressing the UP or DOWN button for three seconds in the inching mode, the motor moves to the end point, or until you press the STOP button.
De-activating inching mode
Keep the STOP button depressed and then press the UP button brie y. Then release the STOP button.
Keep the
STOP button
depressed
Press the UP button
brie y
Release the STOP button
We We
7

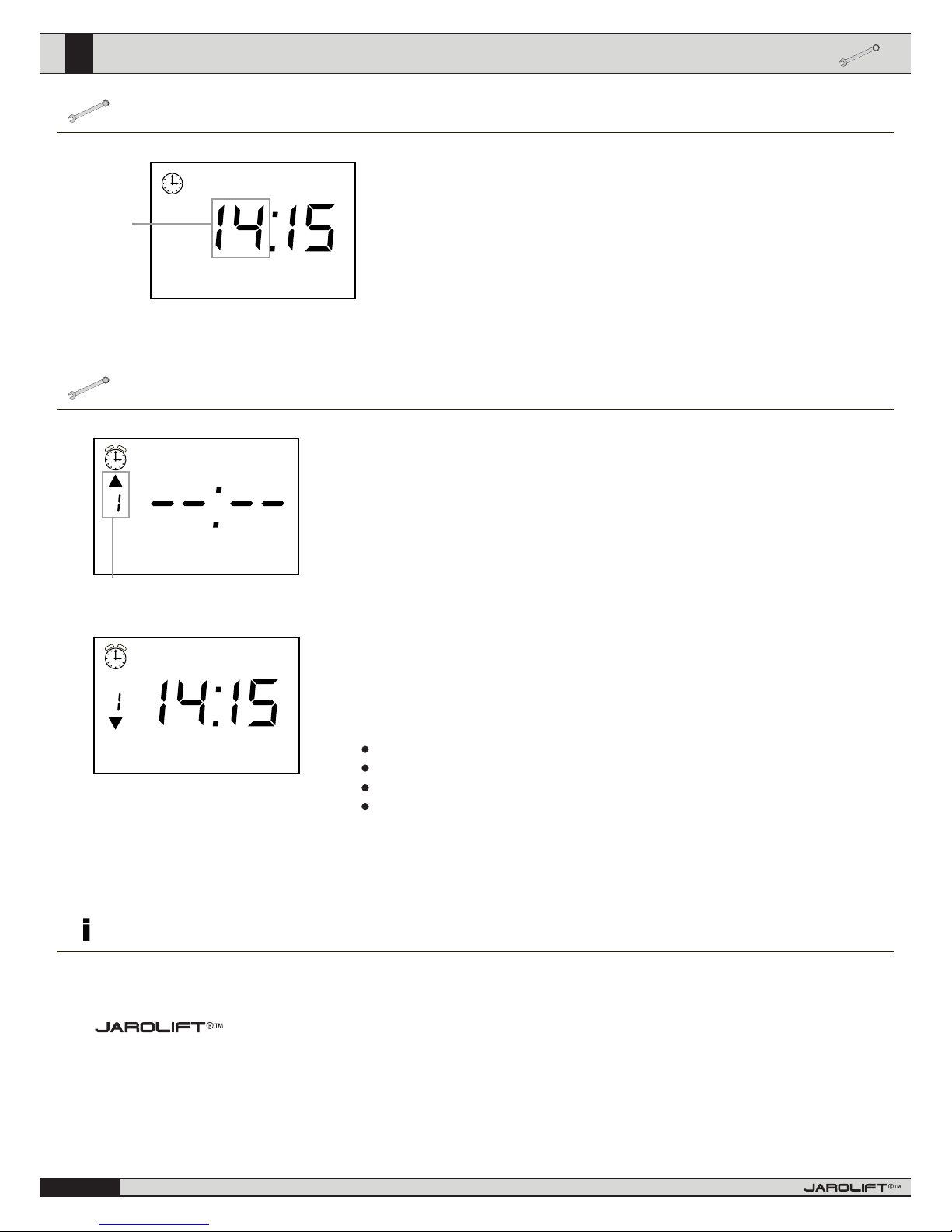

7 Setting the date and time
Setting the current time and the date
1.
First, go to the main menu and press the K1 button (for description, see page 4). In the upper left-hand corner, the symbol of an alarm clock is shown and the hour display blinks.
2.
Use the UP/DOWN arrow key to set the time; press the K1 button to conrm the input.
3.
Now the minute display ashes. Follow the procedure as described in point 2. Follow the
same steps when selecting the weekday.
Please note the abbreviations reect the English names for the days of the week
(Su=Sunday, Mo=Monday, Tu=Tuesday, We=Wednesday, Th = Thursday, Fr= Friday, Sa =
Saturday)
4.
Once you have completed the settings, press the STOP button. This completes the programming mode and the device goes back to the main menu.
Setting the UP and DOWN cycle times.
1.
Go to the main menu and press the K2 button in order to access the operating schedule menu. An
alarm clock is now shown in the upper left-hand corner of the display. You can program up to 8 UP
and 8 DOWN cycle times.
2.
Toggle through the individual memory positions by pressing the K2 button. (The arrows on the lefthand side of the display indicate whether the cycle time refers to the OPEN or CLOSE timing).
This display (-- : --) indicates that the memory position is inactive and the cycle time will not be activated. If a time is displayed already, continue with step 4; otherwise continue with step 3.
Speicherplatz 1 für die Auahrzeit
3.
In order to re-activate the deactivated memory position, press the K3 button. In order to deactivate
the memory position again, press the K3 button until the time (-- : --) is displayed.
4.
Now, press the K1 button to set the time. The hour display ashes now and can be adjusted with the
UP/DOWN button. Press the K1 button again to switch to the minute setting mode. You can use also
the Up/Down arrow key to adjust the minutes here.
5.
After pressing the K1 button again, you access the “Weekday” setting mode. Here you can dene to
which weekday(s) the previously adjusted time applies. Use the UP/DOWN arrow key to select the
desired setting.
You may select between:
Contact information
an individual weekday = e.g. “Tu” for Tuesday
shortened working week = Mo Tu We Th Fr (Monday to Friday)
total working week = Mo Tu We Th Fr Sa (Monday to Saturday)
entire week = Su Mo Tu We Th Fr Sa (Sunday to Saturday)
6.
If you are satised with your settings, press the K2 button again in order to switch to the next memory position and start from the beginning; or press the STOP button to leave the programming
process. In order to make changes to the cycle time you have just selected, press the K1 button.
is a registered brand of
Schoenberger Germany Enterprises GmbH & Co.KG
Zechstraße 1-7
82069 Hohenschäftlarn - Germany
Tel.: 08178 / 932 932
Fax.: 08178 / 932 970 20
info@jarolift.de
www.jarolift.de
If you have any concerns about our product or your unit is faulty, please contact us in writing or send an email to the following address:
We reserve the right to make technical changes,
and accept no liability for printing errors and other
errors.
ashes
We
Su Mo Tu We Th Fr Sa
Loading...
