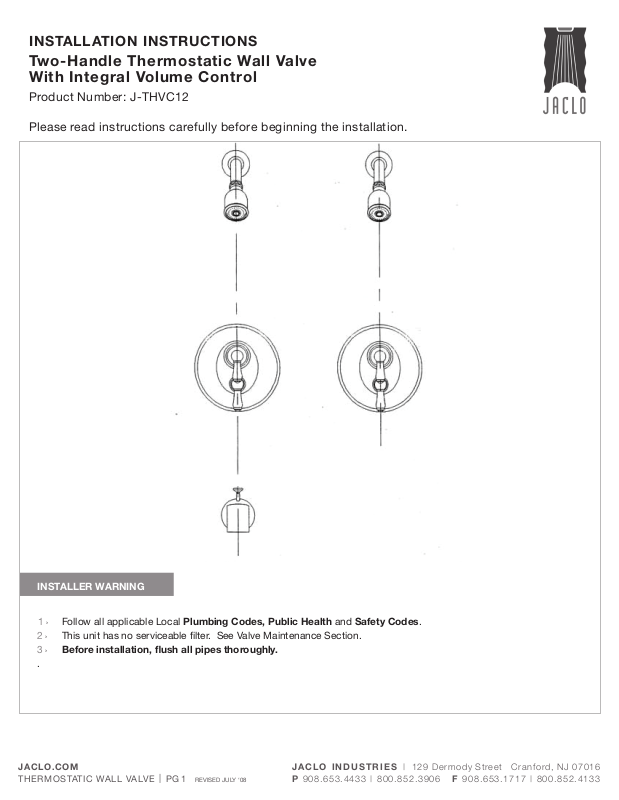

Jaclo J-THVC12 User Manual

INSTALLATION INSTRUCTIONS

Two-Handle Thermostatic Wall Valve
With Integral Volume Control

Product Number: J-THVC12

Please read instructions carefully before beginning the installation.

INSTALLER WARNING

› Follow all applicable Local Plumbing Codes, Public Health and Safety Codes.

1
2 › This unit has no serviceable filter. See Valve Maintenance Section.
3 › Before installation, flush all pipes thoroughly.

.

JA CLO.COM

|

PG 1 REVISED JULY ‘08TH ERMOSTATIC WALL VA LVE

j a c l o i n d u s t r i e s | 129 Derm ody S treet Cra nfo rd, N J 070 16
p 908 .653 .44 33 | 80 0.8 5 2.3 906 f 908 .653 .17 17 | 80 0.85 2.4 133

29

30

Thermostatic Valve Flush Tube Set

0-1050-29

JA CLO.COM

TH ERMOSTATIC WALL VA LVE

|

PG 2

ITEM QUANTITY DESCRIPTION PART #

1 1 Dual Therm. Valve Body J-THVC12-BODY
2 1 1/2" Therm Valve Replacement Cartridge J-TH12-CART
3 1 Therm. Valve Cartridge Lock Nut 0-1050-3
4 1 Therm. Valve Limit Stop Ring 0-2050-4
5 2 Stainless Steel Limit Stop 0-1050-5
6 1 Spline Adapter 1050-6-**
7 1 Temperature Dial 0-1050-7
8 1 Dial Pointer 0-1050-8
9 1 Dial Sleeve J-1050-9

10 1 Gasket Set for Dual Therm. 0-6000-GASKET

11H 1 Hot Check Stop Body 0-1050-11-C-SUB

11C 1 Cold Check Stop Body 0-1050-11-H-SUB

12 2 Therm. Valve Check Stop Lock Nut 0-1050-12
13 2 Check Stop O-Ring 0-1050-13
14 2 Check Stop Seal 0-1050-14
15 2 Check Stop Spring Washer 0-1050-15
16 2 Check Stop Spring 0-1050-16
17 2 Check Stop Seat 0-1050-17
18 1 Traditional Two Hole Plate J-6000-PLATE
19 1 Hot Replacement Cartridge 0-VB-1001-H
20 1 Gasket for Traditional Plate 0-1050-10
21 1 Extra Long Screw with Washer 0-30820-**
22 1 Volume Control Tube Gasket ****
23 2 Handles ****
24 1 O-Ring ****
25 1 Volume Control Cover Tube J-6000-12
26 1 Stem Broach for J-THVC12 0-VB-EXT-13
27 1 Screw for the 0-VB-EXT-13 0-1001-6-NYL
28 ~ Set Screw (Lever Handle Only) 0-30825-5
29 1 Therm. Valve Rough in Shield 0-1050-20
30 1 M4 x .7 x 10mm Long Screw 0-30776

SYSTEM REQUIREMENTS

› This thermostatic valve is designed for use with pressurized hot & cold water supplies only and should not be used

with low-pressure storage heating systems.

› This valve was factory set to 100°F maximum at a pressure of 45 PSI. The actual temperature must be checked

due to water temperature & pressure deviations.

› This thermostatic valve has a built-in volume control. For multiple outlets JACLO recommends use of our 20682

INSTALLER WARNING

3 function diverter valve

Pressure Valve 1/2” Female pipe inlets and outelts

Recommended range- 30PSI - 70 PSI

Temperature

Hot water inlet- 165°F Max.
Marked dial range- 70°F - 120°F
Safety stop- Adjustable

JA CLO.COM

TH ERMOSTATIC WALL VA LVE

|

PG 3
