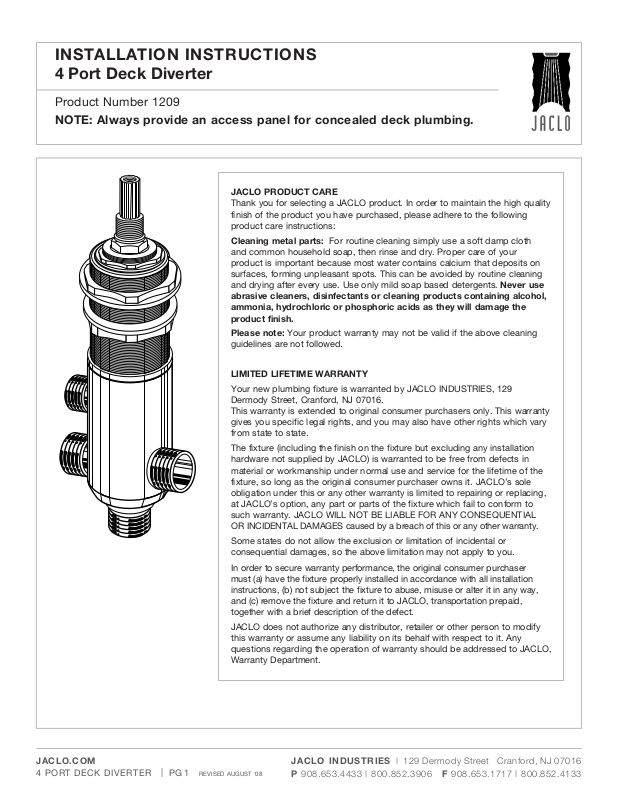

Jaclo J-1209 User Manual

INSTALLATION INSTRUCTIONS
4 Port Deck Diverter

Product Number 1209

NOTE: Always provide an access panel for concealed deck plumbing.

JACLO PRODUCT CARE

Thank you for selecting a JACLO product. In order to maintain the high quality
finish of the product you have purchased, please adhere to the following
product care instructions:

Cleaning metal parts: For routine cleaning simply use a soft damp cloth
and common household soap, then rinse and dry. Proper care of your
product is important because most water contains calcium that deposits on
surfaces, forming unpleasant spots. This can be avoided by routine cleaning
and drying after every use. Use only mild soap based detergents. Never use

abrasive cleaners, disinfectants or cleaning products containing alcohol,
ammonia, hydrochloric or phosphoric acids as they will damage the
product finish.

Please note: Your product warranty may not be valid if the above cleaning

guidelines are not followed.

LIMITED LIFETIME WARRANTY

Your new plumbing fixture is warranted by JACLO INDUSTRIES, 129
Dermody Street, Cranford, NJ 07016.
This warranty is extended to original consumer purchasers only. This warranty
gives you specific legal rights, and you may also have other rights which vary
from state to state.

The fixture (including the finish on the fixture but excluding any installation
hardware not supplied by JACLO) is warranted to be free from defects in
material or workmanship under normal use and service for the lifetime of the
fixture, so long as the original consumer purchaser owns it. JACLO’s sole
obligation under this or any other warranty is limited to repairing or replacing,
at JACLO’s option, any part or parts of the fixture which fail to conform to
such warranty. JACLO WILL NOT BE LIABLE FOR ANY CONSEQUENTIAL
OR INCIDENTAL DAMAGES caused by a breach of this or any other warranty.

Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation may not apply to you.

In order to secure warranty performance, the original consumer purchaser
must (a) have the fixture properly installed in accordance with all installation
instructions, (b) not subject the fixture to abuse, misuse or alter it in any way,
and (c) remove the fixture and return it to JACLO, transportation prepaid,
together with a brief description of the defect.

JACLO does not authorize any distributor, retailer or other person to modify
this warranty or assume any liability on its behalf with respect to it. Any
questions regarding the operation of warranty should be addressed to JACLO,
Warranty Department.

JA CL O.COM

4 PORT DECK D IVERTER | PG 1 REVISED AUGUST ‘08

ja cl o i nd us tr ie s | 129 Dermody Street Cranford, NJ 07016
p 908.6 53.4433 | 800.852.3906 f 908.653.1717 | 800.852.4 133

2¼" to

Top of

Adapter

Deck

Stem

Nipple

Valve Nut

3

4

1

Hot Water

Inlet

Cold Water

Inlet

9

7

8

6

Parts

1 › Top Valve Nut
2 › Bottom Valve Nut
3 › Stem
4 › Nipple
5 › Diverter Valve

6 › Handshower
7 › Handshower Deck
Mount Sleeve
8 › Handshower Base
9 › Handshower Hose

Installation Instructions

1 › Remove trim and smaller top valve nut (1) from valve.

2 › Provide 1-1/2" diameter hole in deck. Maximum deck

thickness is 2¼" for diverter only. Roman tub spouts
and valves may differ and must be checked.

3 › Thread bottom valve nut (2) all the way down on
valve (5).

4 › Slide valve (from underneath) through deck.

5 › Screw top valve nut (1) onto valve until top of stem

(3) is 2¼" above top of finished deck as shown. This
is important as it controls the space between handle
and escutcheon. Hand tighten bottom valve nut (2).

6 › Apply a small bead of silicone to the
bottom of the escutcheon and install onto valve.

7 › Install handle.

8 › Secure bottom valve nut (2).

9 › Install handshower (6) deck mount sleeve (7).

Connect handshower hose (9) to handshower base
(8) and to diverter valve.

10 › Connect hot and cold water supply to valve.
Note: Make sure any solder connections are at

least 1½" away from valve body.

½" IPS coupling

½" Outlet to

Handshower

Hot Water

Inlet from ¾"

Deck Valve

Stem

Nipple

Valve Nut

3

¾" Outlet to Roman Tub

4

1

Deck

2

Diverter Valve (5)

2¼" to
Top of
Adapter

Cold Water
Inlet from ¾"
Deck Valve

JA CL O.COM

4 PORT DECK D IVERTER | PG 2

636 Lever

for illustration purposes only.
