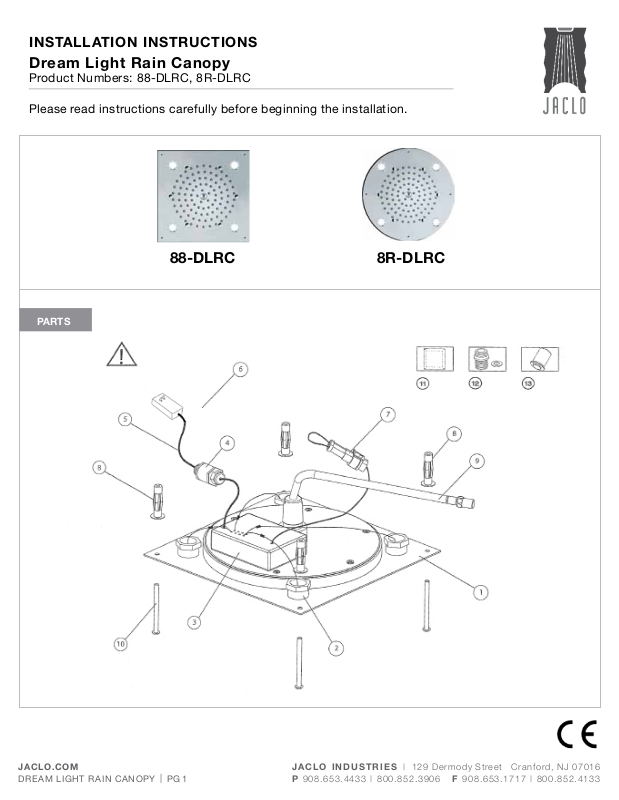

INSTALLATION INSTRUCTIONS

Dream Light Rain Canopy

Product Numbers: 88-DLRC, 8R-DLRC

Please read instructions carefully before beginning the installation.

88-DLRC 8R-DLRC

PARTS

JA CLO.COM

j a c l o i n d u s t r i e s | 129 Derm ody S treet Cra nfo rd, N J 070 16

|

PG 1 DR EAM LIG HT RAIN CANOPY

p 908 .653 .44 33 | 80 0.8 5 2.3 906 f 908 .653 .17 17 | 80 0.85 2.4 133

PLUMBING EQUIPMENT

Water line: arrange your shower box with
the water supply line and coupling for the
showerhead. The coupling must be above the
ceiling. (Fig. 1).

ELECTRICAL EQUIPMENT

Power connection: arrange your shower
box with the electrical connection for the
showerhead LED lights, placing it above the
false ceiling (Fig. 1).

Power source must be externally switched
GFCI circuit and must be installed in
accordance with local and national codes.

The transformer: 9VDC / 110VAC / 60Hz must

be installed outside the shower box in a safe
place (Fig. 1). Accordance with the national and
local laws/codes in force.

FALSE CEILING

Once the electrical and hydraulic systems are
hooked up, install the false ceiling with suitable
reinforcement and make sure it is perfectly level.

Keep a distance of at least 12 cm between the
ceiling and the false ceiling (Fig.1). Position the
template, mark with a pencil the 4 attachment
holes and the central break-through that will
house the electrical and hydraulic parts of the
showerhead (Fig.2).

Make the 4 attachment holes having a 10 mm
diameter.

Make the break-through (Fig.3).

Insert the 4 expansion screws and make sure
that they are placed accurately (Fig.4).
