Jaclo 1620-DLCT User Manual

INSTALLATION INSTRUCTIONS

Dream Light Chromatherapy

Product Numbers: 1620-DLCT, 1616-DLCT, 16R-DLCT

Please read instructions carefully before beginning the installation.

1620-DLCT

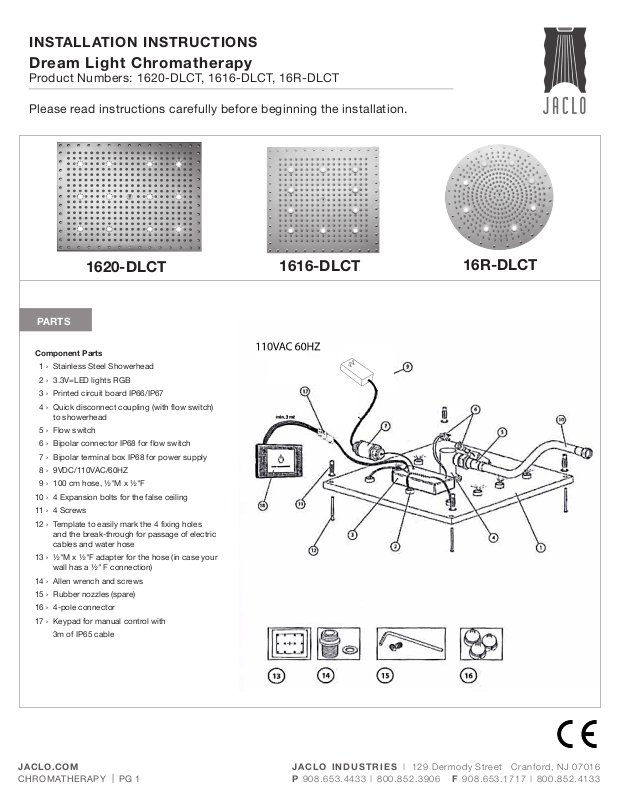

PARTS

Component Parts

1 › Stainless Steel Showerhead

2 › 3.3V=LED lights RGB

3 › Printed circuit board IP66/IP67

4 › Quick disconnect coupling (with flow switch)

to showerhead

5 › Flow switch

6 › Bipolar connector IP68 for flow switch

7 › Bipolar terminal box IP68 for power supply

8 › 9VDC/110VAC/60HZ

9 › 100 cm hose, ½"M x ½"F

10 › 4 Expansion bolts for the false ceiling

11 › 4 Screws

12 › Template to easily mark the 4 fixing holes

and the break-through for passage of electric
cables and water hose

13 › ½"M x ½"F adapter for the hose (in case your

wall has a ½" F connection)

14 › Allen wrench and screws

15 › Rubber nozzles (spare)

16 › 4-pole connector

17 › Keypad for manual control with

3m of IP65 cable

1616-DLCT

16R-DLCT

JA CLO.COM

j a c l o i n d u s t r i e s | 129 Derm ody S treet Cra nfo rd, N J 070 16

|

PG 1 CH ROMATHERAPY

p 908 .653 .44 33 | 80 0.8 5 2.3 906 f 908 .653 .17 17 | 80 0.85 2.4 133

PLUMBING EQUIPMENT

Water line: arrange your shower box with
the water supply line and coupling for the
showerhead. The coupling must be above the
ceiling. (Fig. 1).

20 litres of water per minute is enough for the
Dream Light showerhead to work. In fact, the
showerhead, which is installed parallel to the
floor, supplies a “free falling” stream of water
like soft rain. Make sure that the faucet supplies
at least 25 liters of water per minute. Naturally,
the higher the flow rate of the faucet, the better
the showerhead will work. Also make sure that
the hot water heater supplies enough hot water
for proper functioning.

ELECTRICAL EQUIPMENT

Power connection: arrange your shower
box with the electrical connection for the
showerhead LED lights, placing it above the
false ceiling (Fig. 1).

Power source must be externally switched
GFCI circuit and must be installed in
accordance with local and national codes.

The transformer: 9VDC / 110VAC / 60Hz must

be installed outside the shower box in a safe
place (Fig. 1). Accordance with the national and
local laws/codes in force.

Control keypad: fix a 3 module recessed box
to the wall. The box may be positioned either
inside or outside your shower box. Fit this with
a corrugated tube 20mm in diameter to connect
the recessed box to the upper part of the falst
ceiling (Fig.2). Warning: the keypad is supplied
with a connecting cable that is 3m long.

FALSE CEILING

Once the electrical and hydraulic systems are
hooked up, install the false ceiling with suitable
reinforcement and make sure it is perfectly level.

Keep a distance of at least 12 cm between the
ceiling and the false ceiling (Fig.1). Position the
template, mark with a pencil the 4 attachment
holes and the central break-through that will
house the electrical and hydraulic parts of the
showerhead (Fig.2).

Make the 4 attachment holes having a 10 mm
diameter.

Make the break-through (Fig.3).

Insert the 4 expansion screws and make sure
that they are placed accurately (Fig.4).
