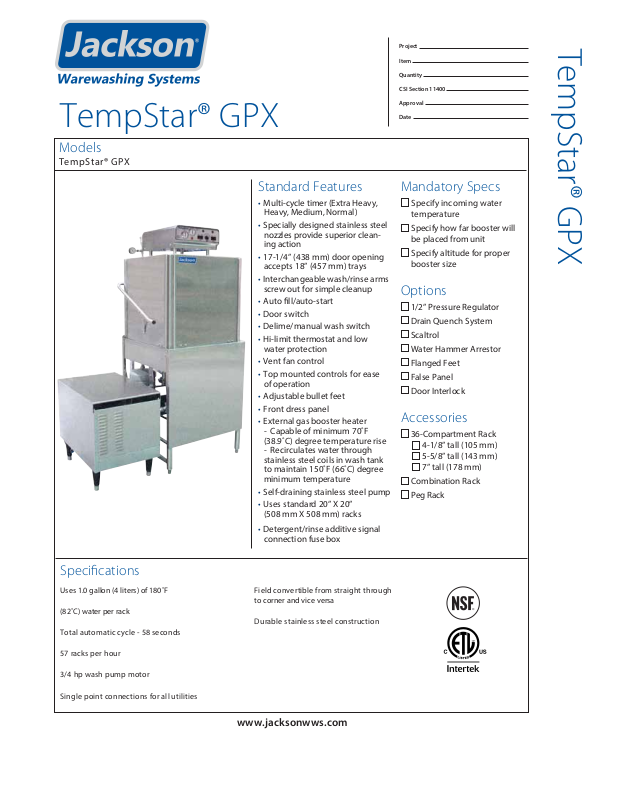

Jackson TEMPSTAR GPX User Manual
TempStar® GPX
Models
TempStar® GPX
Project
Item
Quantity
CSI Section 11400
Approval
Date
TempStar® GPX
Standard Features
• Multi-cycle timer (Extra Heavy,
Heavy, Medium, Normal)
• Specially designed stainless steel
nozzles provide superior clean ing action
• 17-1/4” (438 mm) door opening
accepts 18” (457 mm) trays
• Interchangeable wash/rinse arms
screw out for simple cleanup
• Auto ll/auto-start
• Door switch
• Delime/manual wash switch
• Hi-limit thermostat and low
water protection
• Vent fan control
• Top mounted controls for ease
of operation
• Adjustable bullet feet
• Front dress panel
• External gas booster heater
- Capable of minimum 70˚F
(38.9˚C) degree temperature rise
- Recirculates water through
stainless steel coils in wash tank
to maintain 150˚F (66˚C) degree
minimum temperature
• Self-draining stainless steel pump
• Uses standard 20” X 20”
(508 mm X 508 mm) racks
• Detergent/rinse additive signal
connection fuse box
Mandatory Specs
Specify incoming water
temperature
Specify how far booster will
be placed from unit
Specify altitude for proper
booster size
Options
1/2” Pressure Regulator
Drain Quench System
Scaltrol
Water Hammer Arrestor
Flanged Feet
False Panel
Door Interlock
Accessories
36-Compartment Rack
4-1/8” tall (105 mm)
5-5/8” tall (143 mm)
7” tall (178 mm)
Combination Rack
Peg Rack
Specifications
Uses 1.0 gallon (4 liters) of 180˚F
(82˚C) water per rack
Total automatic cycle - 58 seconds
57 racks per hour
3/4 hp wash pump motor
Single point connections for all utilities
Field convertible from straight through
to corner and vice versa
Durable stainless steel construction
www.jacksonwws.com
TempStar® GPX
24-5/8" (625.5mm)
MODEL NO.
TempStar® GPX
4 [102mm]
20-3/8" (517.5mm)
Water
Inlet
Water
Outlet
Alternate
Flue
Location
4 [102mm]
C
1
25
[642mm]
4
32 [813mm]
24-1/2" (622.3mm)
4" (102 mm)
Vent Adapter
Gas
Inlet
LEGEND
A - DRAIN 1 1/2” NPT
B - WATER INLET 1/2” NPT
C - ELECTRICAL CONNECTION
D - OUTLET TO BOOSTER
HEATER 3/4” NPT
E - INLET FROM BOOSTER
HEATER 3/4” NPT
All vertical dimensions are +/- 1/2"
due to adjustable bullet feet.
Water Outlet
Water Inlet
Gas Inlet
MACHINE DIMENSIONS
HEIGHT WIDTH DEPTH WEIGHT CLASS CUBE HEIGHT WIDTH DEPTH
64-1/2”
(1638 mm)
25-1/4”
(641 mm)
TPRV
3
4
[122mm]
4
34 [863mm]
25-1/4”
(641 mm)
1 [25mm]
DIMENSION REQUIREMENTS
Wall Clearance (Minimum) 4” (102 mm)
Standard Table Height 34” (864 mm)
Inside Clearance 17-1/4” (438 mm)
Machine Height with Door Open 76” (1930 mm)
OPERATING CAPACITY
Racks per Hour
OPERATING CYCLE (seconds)
Normal
Medium
Heavy
Extra Heavy 283 11 2 294
Normal57Medium29Heavy19Extra Heavy
Wash Rinse
Dwell Total Cycle
45 11 2 58
103 11 2 116
163 11 2 176
OPERATING TEMPERATURES
Wash (Minimum) 150˚F (66˚C)
Rinse (Minimum) 180˚F (82˚C)
WASH PUMP
Wash Pump Motor 3/4 hp
Recirculation Motor 1-1/2 hp
Wash Pump Capacity (GPM) 150 gal (1022 L)
HOW TO SPECIFY:
TempStar® GPX
17 [434mm]
E
DRAIN
HEIGHT
14-1/4”
(362 mm)
11
1
65
A
14
3
10
[1657mm]
4
1
[361mm]
4
1
[92mm]
2
3
[274mm]
4
17 [434mm]
76 [1930mm]
60
3
[1540mm]
4
1
18
4
5 [127mm]
[466mm]
C
D
B
1
19
[497mm]
E
2
1
4
[110mm]
4
13 [328mm]
SHIPPING INFORMATION
400 lbs
(181 kg)
92.5
65
cu. ft.
79”
(2007 mm)
33”
(838 mm)
43”
(1092 mm)
GAS REQUIREMENTS
Maximum Minimum
Natural Gas (inches-water column) 10.5 (267 mm) 5.0 (127 mm)
LP Propane Gas (inches-water column) 13.0 (330 mm) 11.0 (292 mm)
Gas Connection (NPT) 1/2”
Flue Adapter (Diameter) 4” (102 mm)
Gas Booster Capacity (BTU)
Input 55,000
Output 46,000
WATER REQUIREMENTS
Incoming Water Temperature 110˚F (43˚C)
Wash Tank Capacity 8 gal (30 L)
Flow Pressure (PSI) 15-25
Gallons per Hour 57.0
Gallons per Rack 1.0
Waterline Size (IPS Min.) 1/2”
Drainline Size (IPS Min. Inches)
1-1/2”
APPROXIMATE TOTAL LOAD AMPS
AMPS
115V/60HZ/1PH 13.2
208V/60HZ/1PH 6.6
230V/60HZ/1PH 6.6
Jackson WWS, Inc.
Shipping Address: 6209 North U.S. Highway 25E, Gray, KY 40734
www.jacksonwws.com
Mailing Address: P.O.Box 1060, Barbourville, KY 40906
Telephone: 888-800-5672 • Fax: 606-523-1799
Email: info@jacksonwws.com
07610-002-66-61C [03/16/16]
We reserve the right to change specications in this bulletin without incurring any obligation for equipment previously or subsequently sold.
