Jackson TEMPSTAR Service Manual

TEMPSTAR SERIES

UPRIGHT DOOR DISHMACHINES

INSTALLATION, OPERATION,

AND SERVICE MANUAL

FOR JACKSON MODEL(S):

TEMPSTAR

TEMPSTAR LT

TEMPSTAR NB

TEMPSTAR

WITH VENTLESS

AND ENERGY RECOVERY

STEAM HEATED MODELS:

TEMPSTAR S

TEMPSTAR/LT/NB/ VENTLESS/S Technical Manual • Rev T • P/N 7610-003-61-42 • Issued: 11-11-2008 • Revised: 01-11-16

MANUFACTURER'S WARRANTY

ONE YEAR LIMITED PARTS AND LABOR WARRANTY

ALL NEW JACKSON DISHWASHERS ARE WARRANTED TO THE ORIGINAL PURCHASER TO BE FREE FROM DEFECTS IN MATERIAL OR WORKMANSHIP, UNDER NORMAL USE AND OPERATION FOR A PERIOD OF (1) ONE YEAR FROM DATE OF PURCHASE, BUT IN NO EVENT TO EXCEED (18) EIGHTEEN MONTHS FROM DATE OF SHIPMENT FROM THE FACTORY.

Jackson WWS agrees under this warranty to repair or replace, at its discretion, any original part which fails under normal use due to faulty material or workmanship during the warranty period, providing the equipment has been unaltered, and has been properly installed, maintained, and operated in accordance with the applicable factory instruction manual and failure is reported to an authorized service agency within the warranty period. This includes the use of factory-speciﬁ ed genuine replacement parts, purchased directly from a Jackson-authorized parts distributor or service agency. Use of generic replacement parts may create a hazard and void warranty certiﬁ cation.

The labor to repair or replace such failed part will be paid by Jackson WWS, within the continental United States, Hawaii, and Canada, during the warranty period provided a Jackson WWS authorized service agency , or those having prior authorization from the factory, performs the service. Any repair work by persons other than a Jackson WWS authorized service agency is the sole responsibility of the customer. Labor coverage is limited to regular hourly rates; overtime premiums and emergency service charges will not be paid by Jackson WWS.

Accessory components not installed by the factory carry a (1) one year parts warranty only . Accessory components such as table limit switches, pre-rinse units, etc. that are shipped with the unit and installed at the site are included. Labor to repair or replace these components is not covered by Jackson WWS.

This warranty is void if failure is a direct result from shipping, handling, ﬁ re, water, accident, misuse, acts of God, attempted repair by unauthorized persons, improper installation, if serial number has been removed or altered, or if unit is used for a purpose other than originally intended.

TRAVEL LIMITATIONS

Jackson WWS limits warranty travel time to (2) two hours and mileage to (100) one-hundred miles. Jackson WWS will not pay for travel time and mileage that exceeds this, or any additonal fees—such as those for air or boat travel—without prior authorization.

WARRANTY REGISTRATION

T o register your product, go to www .jacksonwws.com or call 1-888-800-5672. Failure to register your product will void the warranty.

REPLACEMENT PARTS WARRANTY

Jackson replacement parts are warranted for a period of (90) ninety days from date of installation or (180) one-hundred-eighty days from the date of shipment from the factory, whichever occurs ﬁ rst.

PRODUCT CHANGES AND UPDATES

Jackson WWS reserves the right to make changes in design and speciﬁ cation of any equipment as engineering or necessity requires.

THIS IS THE ENTIRE AND ONLY WARRANTY OF JACKSON WWS. JACKSON’S LIABILITY ON ANY CLAIM OF ANY KIND, INCLUDING NEGLIGENCE, WITH RESPECT TO THE GOODS OR SER VICES COVERED HEREUNDER, SHALL IN NO CASE EXCEED THE PRICE OF THE GOODS OR SERVICES OR PART THEREOF WHICH GIVES RISE TO THE CLAIM.

THERE ARE NO WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING FOR FITNESS OR MERCHANTABILITY, THAT ARE NOT SET FORTH HEREIN, OR THAT EXTEND BEYOND THE DURATION HEREOF. UNDER NO CIRCUMSTANCES WILL JACKSON WWS BE LIABLE FOR ANY LOSS OR DAMAGE, DIRECT OR CONSEQUENTIAL, OR FOR DAMAGES IN THE NATURE OF PENALTIES, ARISING OUT OF THE USE OR INABILITY TO USE ANY OF ITS PRODUCTS.

ITEMS NOT COVERED

THIS WARRANTY DOES NOT COVER CLEANING OR DELIMING OF THE UNIT OR ANY COMPONENT SUCH AS, BUT NOT LIMITED TO, WASH ARMS, RINSE ARMS, OR STRAINERS AT ANYTIME. NOR DOES IT COVER ADJUSTMENTS SUCH AS, BUT NOT LIMITED TO, TIMER CAMS, THERMOSTATS, OR DOORS BEYOND (30) THIRTY DAYS FROM THE DATE OF INSTALLATION. IN ADDITION, THE WARRANTY WILL ONLY COVER REPLACEMENT WEAR ITEMS SUCH AS CURTAINS, DRAIN BALLS, DOOR GUIDES, OR GASKETS DURING THE FIRST (30) THIRTY DAYS AFTER INSTALLATION. ALSO, NOT COVERED ARE CONDITIONS CAUSED BY THE USE OF INCORRECT (NON-COMMERICAL) GRADE DETERGENTS, INCORRECT WATER TEMPERATURE OR PRESSURE, OR HARD WATER CONDITIONS.

REVISION HISTOR Y

Revision

Letter

A 11/11/08 ARL 8045 Release to Production B 04/22/09 ARL 8094 Added new NSF rating. C 06/22/09 JC 8114 Removed NSF Rating from steam heated unit. D 07/24/09 ARL 8104 Added information regarding electrical ﬁ eld conversion. E 02/02/10 RLC PENDING Added information about Fused Universal Timer (pg 19)

F 01/10/13 RLC 8252 G 03/07/13 RLC QOF NDB-219 Updated Jackson logo and company name. H 12/17/13 MHH N/A

I 05/28/14 MHH 8287 New bearing & part # on rinse arm assy, pg. 41

J 11/17/14 KAP N/A

K 01/06/15 KAP N/A

L 01/14/15 KAP QOF-386

M 03/02/15 KAP QOF-386 Updated wire colors on schematic pg’s 49, 50, 51, 52, & 53. N 04/06/15 KAP N/A Inserted note pertaining to corner installation pg. 5

P 05/08/15 KAP N/A

Q 06/25/15 KAP N/A Updated Schematic pages 65 & 67.

- 08/25/15 KAP N/A Updated P/N for item #5, on pg. 25

- 10/13/15 KAP N/A

R 11/09/15 JH N/A Corrected part number for item #33 on pg. 34. S 11/30/15 JH N/A Added delime instructions.

T 01/11/16 JH QOF-386

Revision

Date

Made By Applicable ECNs Details

Updated schematic and control box assembly for rotary switch/Removed EnergyStar Logo.

Corrected part number for “right false panel kit,” pg. 43. Removed “STOP” warning page, pg. 3.

Updated Drain Quench Image on pg. 45 Added Drain Quench Miscellaneous Parts on pg. 55

Updated part number for O-Ring & Diaphragm on pg. 39 P/N 06401-003-07-42 was replaced by P/N 4810-200-03-18.

Removed regulator, and added Y-Strainer to the assemblies on pg. 4, 36 & 38. Paragraph content was changed on pg. 7. Changes the PSI ﬂ ow on pg. 15

Added Ventless Operating Capacities on pg. 2 Added Pressure Regulator Option Dimensions on pg. 5 Added Ventless Machine Dimensions on pg. 6 Added Ventless pipe line size on pg. 9 Added Door interlock items on pg. 23 Updated Tub & Tub Assembly Thermostats on pg’s. 25-28 Added thermister to Rinse Tank Assembly on pg. 30 Added Ventless Plumbing pg’s. 41 & 42 Added Ventless and Energy Recovery Assembly pg. 46 Updated Schematic pg’s. 54 & 55 Added Solid State BB/LT Schematic on page 58 & 60

Updated part number for solenoid valve #8 on pg. 40 Changed P/N from 04820-002-01-32 to 04820-002-01-56

Changed item 12 on pg. 35 to 05700-003-07-76.

N/A

Added 05700-004-23-78 and 05700-004-23-79 to view (pg.

31) and parts list (pg. 32).

TEMPSTAR

Electrically-heated, high-temp, hot-water sanitizing, with

booster heater; door-type dishmachine

TEMPSTAR LT

Electrically-heated, low-temp, chemical sanitizing,

no rinse booster; door-type dishmachine

NOMENCLATURE

TEMPSTAR NB

Electrically-heated, high-temp, hot-water sanitizing,

no rinse booster; door-type dishmachine

TEMPSTAR

with Ventless and Energy Recovery

Electrically-heated, high-temp, hot-water sanitizing, with booster

heater and ventless heat recovery system;

door-type dishmachine

TEMPSTAR S

Steam-heated, high-temp, hot-water sanitizing;

door-type dishmachine

Model:

Serial No.:

Installation Date:

Jackson WWS, Inc. provides

technical support for all of the dishmachines detailed

in this manual. We strongly

recommend that you refer to

this manual before making a call

to our technical support staff.

Please have this manual with

you when you call so that our

staff can refer you, if necessary,

to the proper page. Technical

support is not available

on holidays.

Contact technical

support toll free at

1-888-800-5672.

Technical support is available

for service personnel only.

Service Rep. Name:

Phone Number:

T ABLE OF CONTENTS

SPECIFICATIONS

Dimensions ................................................................................................................................. 1

Table Dimensions .......................................................................................................................4

Operating Capacities ..................................................................................................................5

Electrical Requirements .............................................................................................................6

INSTALLATION/OPERATION INSTRUCTIONS

Installation Instructions ...............................................................................................................8

Electrical Installation Instructions .............................................................................................10

False Panel Installation ............................................................................................................ 11

Operating Instructions ..............................................................................................................13

Detergent Control .....................................................................................................................15

Delime Instructions ...................................................................................................................17

MAINTENANCE

Preventative Maintenance ........................................................................................................18

TROUBLESHOOTING

Common Problems ...................................................................................................................20

DRAWING/PARTS SECTION

Top Mounted Control Box Assembly (Universal Timer) ............................................................ 22

Hood Assembly (Bolted Single Support Design) ...................................................................... 27

Cantilever Arm/Door Assemblies ..............................................................................................28

Tub Assembly ...........................................................................................................................31

Steam Tub Assembly ................................................................................................................34

Frame Assembly .......................................................................................................................37

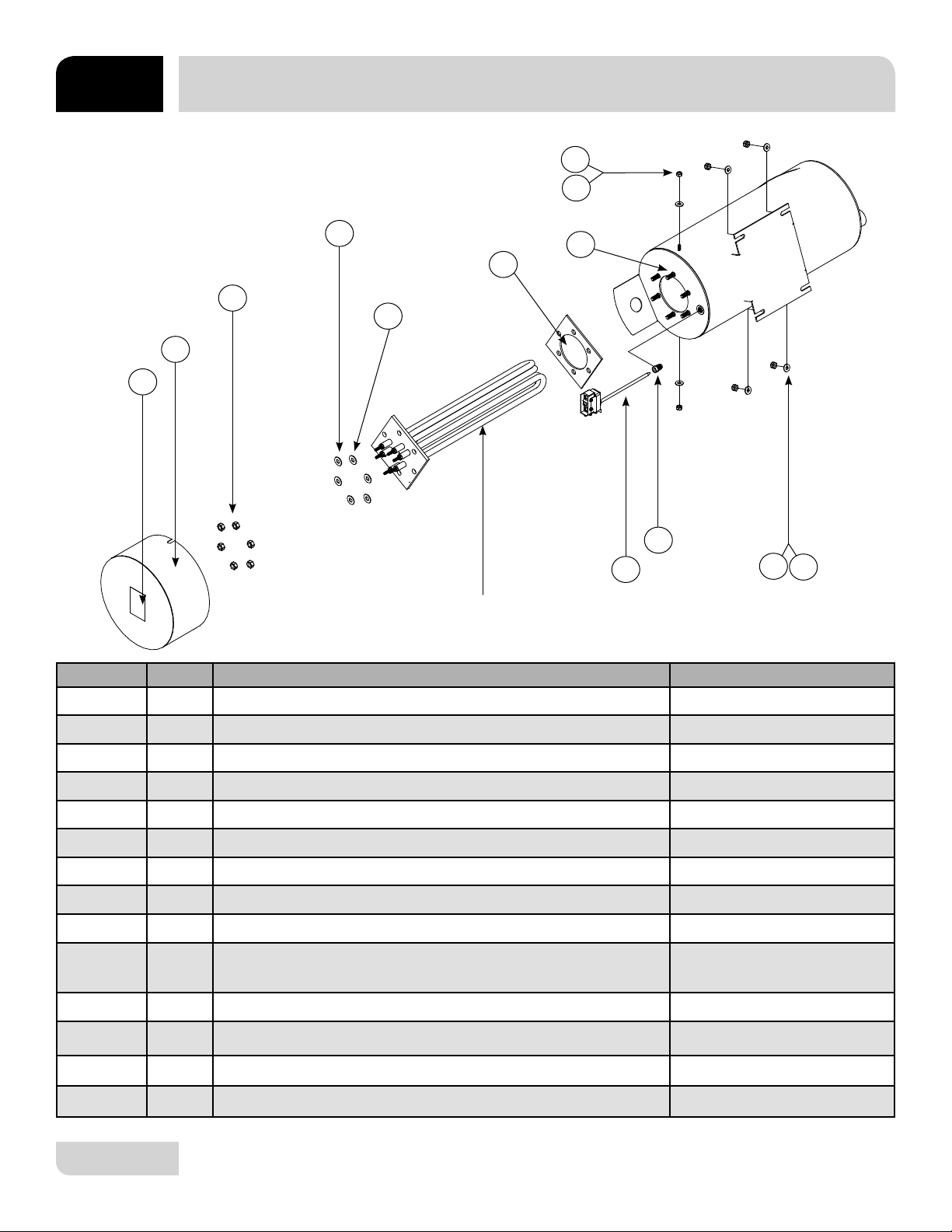

Rinse Tank Assembly ...............................................................................................................38

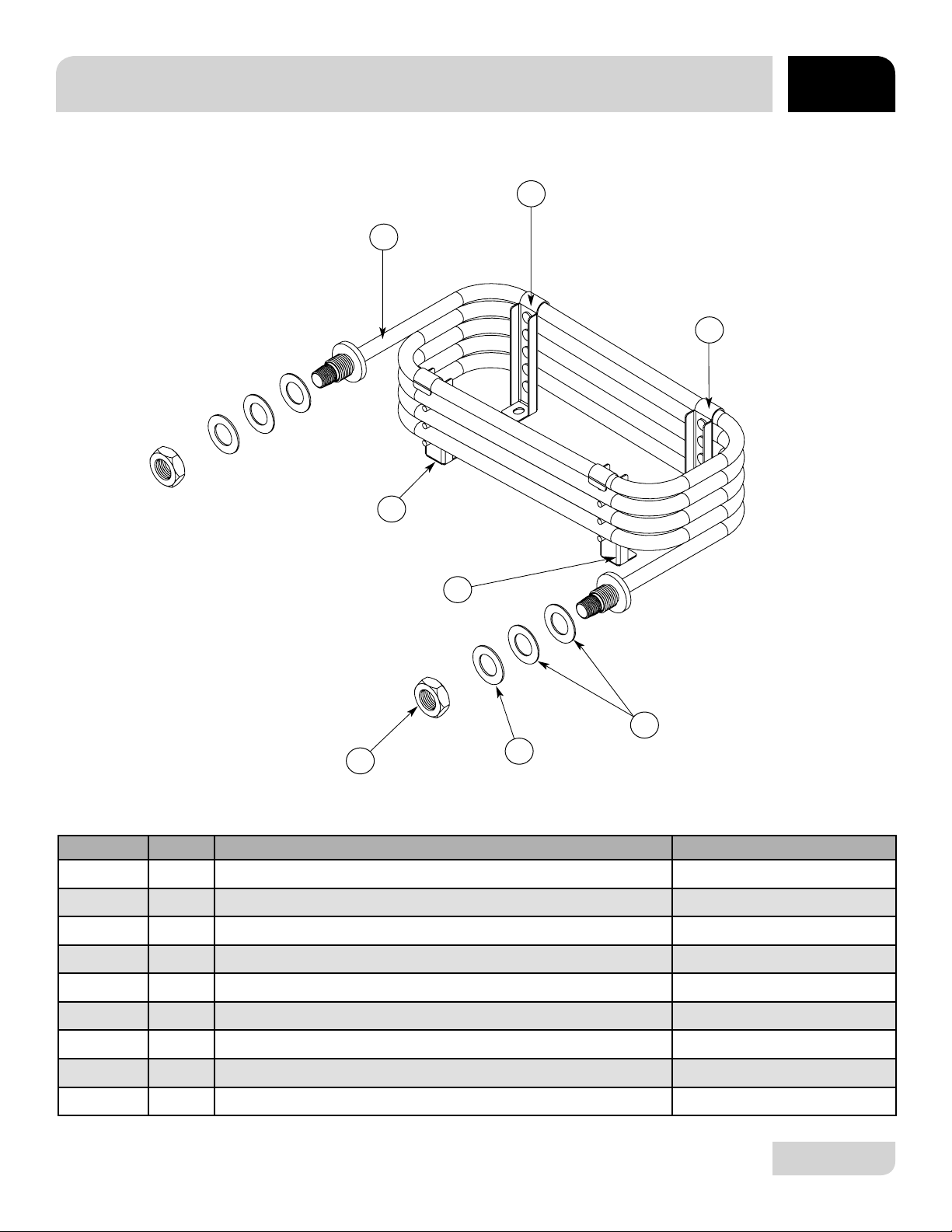

Coil Assembly ...........................................................................................................................40

Incoming Steam Plumbing Assembly .......................................................................................41

Wash Motors ............................................................................................................................43

Motor & Pump Assembly ..........................................................................................................44

Wash Heaters/Rinse Heaters ...................................................................................................45

Incoming/Outlet Plumbing Assembly ........................................................................................ 47

Tempstar - Ventless Plumbing ..................................................................................................53

1/2” Solenoid Valve & 1/2” NPT Vacuum Breaker Repair Parts Kits ........................................56

Wash and Rinse Arm/Manifold Assemblies .............................................................................. 57

Tempstar Ventless System Assembly .......................................................................................59

Tempstar Ventless Door Interlock Assembly ............................................................................60

Door Interlock, Exhaust Fan, Transformer Box ........................................................................ 62

GO*BOX Components .............................................................................................................63

Drain Quench Assembly ...........................................................................................................64

iii

TABLE OF CONTENTS

SCHEMATICS

Solid State 208 - 230V, 50/60 Hz, single/three phase .............................................................. 67

Tempstar (UT w/Cycle Switches) 208 - 230V, 50/60 Hz, single/three phase ..........................68

Solid State 460V, 60 Hz, three phase ....................................................................................... 69

Tempstar (UT w/Cycle Switches) 460V, 60 Hz, three phase ................................................... 70

Solid State Tempstar LT & NB 208 - 230V, 50/60 Hz, single/three phase ............................... 71

Tempstar LT & NB 208 - 230V, 50/60 Hz single/three phase ...................................................72

Tempstar LT & NB (UT w/Cycle Switches) 460V, 60 Hz, three phase .....................................73

Tempstar S (Universal Timer) 208 - 230V, 60 Hz, single/three phase ......................................74

SCHEMATIC OPTIONS

SDI Options ..............................................................................................................................75

Drain Quench Options ..............................................................................................................76

ADDENDUM

Jackson Technical Manual Addendum .....................................................................................77

SPECIFICATIONS

LEGEND

A- WATER INLET (1/2” NPT) B- ELECTRICAL CONNECTION POINT C- DRAIN (1 1/2” NPT) D- STANDARD CLEARANCE BETWEEN MACHINE AND WALL (WITH DISH TABLE) IS 4” (10.2 cm)

Y-STRAINER MACHINE DIMENSIONS

07610-003-61-42-T

PRESSURE REGULATOR MACHINE DIMENSIONS

SPECIFICATIONS

LEGEND

A- WATER INLET (1/2” NPT) B- ELECTRICAL CONNECTION POINT C- DRAIN (1 1/2” NPT) D- STANDARD CLEARANCE BETWEEN MACHINE AND WALL (WITH DISH TABLE) IS 4” (10.2 cm)

25 1/4” (64.1 cm)

32” (81.3 cm)

4 7/8” (12.4 cm)

17 1/2”

(44.5 cm) MACHINE OPENING

61 3/4”

(156.8 cm)

WATER

INLET TO

FLOOR

76” (193 cm)

W/ DOOR OPEN

60 5/8”

(154 cm)

64 3/8”

(163.5 cm)

07610-003-61-42-T

34” (86.4 cm)

TABLE

HEIGHT

14”

(35.6 cm)

DRAIN

FLOOR

15 1/2” (39.4 cm)

SPECIFICATIONS

VENTLESS MACHINE DIMENSIONS

LEGEND

A- DRAIN (1 1/2" IPS) B- WATER INLET (3/4") MIP C- ELECTRICAL CONNECTIONS

ALL VERTICAL DIMENSIONS ARE ± 1/2" DUE TO ADJUSTABLE BULLET FEET

(134mm)

(642mm)

(641mm)

32 (813mm)

17 (432mm)

(114mm)

3 (79mm)

(134mm)

82 (2083mm)

77 (1956mm)

(616mm)

(1468mm)

60 (1527mm)

(335mm)

(120mm)

(394mm)

07610-003-61-42-T

TABLE DIMENSIONS

SPECIFICATIONS

NOTE: Please remove the front dress panel from the dishmachine if mounting dishmachine for a corner installation and attaching side tables. Corner installation will trap panel making it difﬁ cult to remove.

4” (10.2 cm)

(6.4 cm)

2 1/2” (6.4 cm)

2 1/2”

OPENING

20 1/2” (52.1 cm)

TABLE DIMENSIONS

CORNER INSTALLATION

20 1/2” (52.1 cm)

OPENING

25 1/4”

(64.1 cm)

MINIMUM

4” (10.2 cm)

MINIMUM

3/4” (1.9 cm)

4” (10.2 cm)

MINIMUM

25 1/4”

(64.1 cm)

25 1/4”

(64.1 cm)

20 1/2”

(52.1 cm)

2 1/2”

20 1/2” (52.1 cm)

1 1/2” (3.81 cm) ROLL

TABLE DIMENSIONS

CONNECTION TO DISHMACHINE

(6.4 cm)

OPENING

07610-003-61-42-T

TABLE DIMENSIONS

STRAIGHT THROUGH INSTALLATION

25 1/4” (64.1 cm)

SPECIFICATIONS

OPERATING CAPACITIES

Model Designation: TEMPSTAR PERFORMANCE/CAPABILITIES Operating Capacity:

High Temperature Racks per Hour 58 Dishes per Hour 1450 Glasses per Hour 1450

Electrical Loads (as applicable):

Wash Motor HP 3/4 Wash Heater KW 4 Rinse Heater KW 4

WATER REQUIREMENTS TEMPSTAR & VENTLESS:

Low Temperature Racks per Hour 50 Dishes per Hour 1250 Glasses per Hour 1250

Operating Cycle (SECONDS): Minimum (other cycle times are available)

High Temperature Wash T ime 40 Rinse Time 13 Dwell Time 4 Total Cycle Time 57

High Temperature Ventless Wash T ime 40 Rinse Time 13 Dwell Time 4 Condensate Removal 30 Total Cycle Time 87

Low Temperature Wash T ime 45 Rinse Time 11 Dwell Time 10 Total Cycle Time 66

Tank Capacity (Gallons):

Wash Tank 8.0 Rinse Tank (TEMPST AR) 3.0

Wash Temperature (Minimum)(°F) 150 Wash Temperature (Minimum)(°C) 66 Rinse Temperature (Minimum)(°F) 180 Rinse Temperature (Minimum)(°C) 83 Inlet Water Temperature: 12KW Rinse Heater (°F) 140 12KW Rinse Heater (°C) 60 14KW Rinse Heater (°F) 110 14KW Rinse Heater (°C) 44 Ventless (°F) 40-70 Ventless (°C) 4.4-21 Flow Pressure (PSI) 10 Water Line Size (NPT) (Vented) 1/2” Water Linse Sze (Ventless) 3/4" Drain Line Size (NPT) 1 1/2”

TEMPSTAR LT:

Wash Temperature (Minimum)(°F) 130 Wash Temperature (Minimum)(°C) 55 Rinse Temperature (Minimum)(°F) 130 Rinse Temperature (Minimum)(°C) 55 Inlet Water Temperature (°F) 130 Inlet Water Temperature (°C) 55 Flow Pressure (PSI) 10 Water Line Size (NPT) 1/2” Drain Line Size (NPT) 1 1/2” Minimum Chlorine Required (PPM) 50

TEMPSTAR NB/ TEMPSTAR S:

Tank Capacity (Liters):

Wash Tank 30.3 Rinse Tank (TEMPST AR) 1 1.4

Steam Requirements:

Coil Size 3/4" Steam Flow Pressure (P.S.I) 10-20 Consumption @ 15 P.S.I. ( Lbs/Hr) 45

NOTE: Always refer to the machine data plate for speciﬁ c electrical and water requirements. The material provided on this page is for reference only and is subject to change without notice.

Wash Temperature (Minimum)(°F) 150 Wash Temperature (Minimum)(°C) 66 Rinse Temperature (Minimum)(°F) 180 Rinse Temperature (Minimum)(°C) 83 Inlet Water Temperature (°F) 180 Inlet Water Temperature (°C) 83 Flow Pressure (PSI) 10 Water Line Size (NPT) 1/2” Drain Line Size (NPT) 1 1/2”

07610-003-61-42-T

ELECTRICAL REQUIREMENTS

NOTE: Typical Electrical Circuit is based upon (1) 125% of the full amperage load of the machine and (2) typical ﬁ xed-trip circuit breaker sizes as listed in the NEC 2002 Edition. Local codes may require more stringent protection than what is displayed here. Always verify with your electrical service contractor that your circuit protection is adequate and meets all applicable national and local codes. These numbers are provided in this manual simply for reference and may change without notice at any given time.

TEMPSTAR Electrical Characteristics:

SPECIFICATIONS

VOLTS PHASE HZ

208 1 50 12KW@240V 71 A 90 AMP 208 1 50 14KW@240V 78 A 100 AMP

230 1 50 12KW@240V 78 A 100 AMP 230 1 50 14KW@240V 86 A 110 AMP

208 3 50 12KW@240V 45 A 60 AMP 208 3 50 14KW@240V 49 A 70 AMP

230 3 50 12KW@240V 48 A 60 AMP 230 3 50 14KW@240V 53 A 70 AMP

380 3 50 12KW@380V 29A 40 AMP

380* 3 50 14KW@208V 34A 45 AMP

415 3 50 12KW@415V 26 A 35 AMP 415 3 50 14KW@415V 29 A 40 AMP 440 3 50 12KW@460V 21 A 30 AMP

RINSE HEATER

RATINGS

TOTAL

AMPS

TYPICAL

ELECTRICAL CIRCUIT

440 3 50 14KW@460V 25 A 35 AMP

208 1 60 12KW@240V 69 A 90 AMP 208 1 60 14KW@240V 76 A 100 AMP

230 1 60 12KW@240V 76 A 100AMP 230 1 60 14KW@240V 84 A 110 AMP

208 3 60 12KW@240V 43 A 60 AMP 208 3 60 14KW@240V 47 A 60 AMP 230 3 60 12KW@240V 46 A 60 AMP

230 3 60 14KW@240V 51 A 70 AMP 460 3 60 12KW@480V 22 A 30 AMP 460 3 60 14KW@480V 25 A 35 AMP

* This model is wired in a wye conﬁ guration for the heaters.

07610-003-61-42-T

SPECIFICATIONS

TEMPSTAR LT/TEMPSTAR NB Electrical Characteristics:

ELECTRICAL REQUIREMENTS

VOLTS PHASE HZ

208 1 50 N/A 28 A 35 AMP 230 1 50 N/A 30 A 100 AMP

208 3 50 N/A 20A 25 AMP 230 3 50 N/A 21 A 30 AMP

380 3 50 N/A 10 A 15 AMP 415 3 50 N/A 10 A 15 AMP

440 3 50 N/A 8 A 15 AMP 208 1 60 N/A 26 A 35 AMP

230 1 60 N/A 28 A 35 AMP

208 1 60 N/A 26 A 35 AMP 230 1 60 N/A 28 A 35 AMP

RINSE HEATER

RATINGS

TOTAL

AMPS

TYPICAL

ELECTRICAL CIRCUIT

208 3 60 N/A 18 A 25 AMP 230 3 60 N/A 28 A 35 AMP

460 3 60 N/A 8 A 15 AMP

TEMPSTAR S Electrical Characteristics:

VOLTS PHASE HZ

208 1 60 N/A 6 A 15 AMP 230 1 60 N/A 6 A 15 AMP

208 3 60 N/A 6 A 15 AMP 230 3 60 N/A 6 A 15 AMP

RINSE HEATER

RATINGS

TOTAL

AMPS

ELECTRICAL CIRCUIT

TYPICAL

07610-003-61-42-T

INSTRUCTIONS

INSTALLATION

VISUAL INSPECTION

DO NOT THROW AWAY

CONTAINER IF DAMAGE

IS EVIDENT!

UNPACKING THE

MACHINE:

LEVEL THE

DISHMACHINE

Before installing the unit, check the container and machine for damage. A damaged container is an indicator that there may be some damage to the machine. If there is damage to both the container and machine, do not throw away the container. The dishmachine has been inspected and packed at the factory and is expected to arrive to you in new, in undamaged condition. However, rough handling by carriers or others may result in there being damage to the unit while in transit. If such a situation occurs, do not return the unit to Jackson; instead, contact the carrier and ask them to send a representative to the site to inspect the damage to the unit and to complete an inspection report. You must contact the carrier within 48 hours of receiving the machine. Also, contact the dealer that sold you the unit.

Once the machine has been removed from the container, ensure that there are no missing parts from the machine. This may not be obvious at ﬁ rst. If it is discovered that an item is missing, contact Jackson immediately to have the missing item shipped to you.

The dishmachine is designed to operate while being level. This is important to prevent any damage to the machine during operation and to ensure the best results when washing ware. The unit comes with adjustable bullet feet, which can be turned using a pair of channel locks or by hand if the unit can be raised safely. Ensure that the unit is level from side to side and from front to back before making any connections.

Raise

Frame with Adjustable Foot

Lower

PLUMBING THE

DISHMACHINE

CONNECTING THE

DRAIN LINE

07610-003-61-42-T

All plumbing connections must comply with all applicable local, state, and national plumbing codes. The plumber is responsible for ensuring that the incoming water line is thoroughly ﬂ ushed prior to connecting it to any component of the dishmachine. It is necessary to remove all foreign debris from the water line that may potentially get trapped in the valves or cause an obstruction. Any valves that are fouled as a result of foreign matter left in the water line, and any expenses resulting from this fouling, are not the responsibility of the manufacturer.

The drain for the Tempstar models covered in this manual are gravity discharge drains. All piping from the 1 1/2” FNPT connection on the wash tank must be pitched (1/4” per foot) to the ﬂ oor or sink drain. All piping from the machine to the drain must be a minimum 1 1/2” I.P.S. and shall not be reduced. There must also be an air gap between the machine drain line and the ﬂ oor sink or drain. If a grease trap is required by code, it should have a ﬂ ow capacity of 5 gallons per minute. Units equipped with Drain Quench Option,see page 60.

INSTALLATION

INSTRUCTIONS

WATER SUPPLY

CONNECTIONS

Take care not to confuse

static pressure with

ﬂ ow pressure!

Ensure that you have read the section entitled “PLUMBING THE DISHMACHINE” above before proceeding. Install the water supply line (1/2” pipe size minimum) (3/4" pipe ventless) to the dishmachine line strainer using copper pipe. It is recommended that a water shut-off valve be installed in the water line between the main supply and the machine to allow access for service. Units equipped with Drain Quench Option,see page 60.

The water supply line is to be capable of 10 PSI “ﬂ ow” pressure at the recommended temperature indicated on the data plate.

Jackson recommends the installation of a water pressure regulator in the incoming water line of all Tempstar models to ensure proper ﬂ owrate at all times. Jackson does provide such devices as options. Please contact your dealer with any questions you may have.

Do not confuse static pressure with ﬂ ow pressure. Static pressure is the line pressure in a “no ﬂ ow” condition (all valves and services are closed). Flow pressure is the pressure in the ﬁ ll line when the ﬁ ll valve is opened during the cycle.

Incoming Plumbing Y-strainer

Connection

STEAM LINE

CONNECTION

CHEMICAL

DISPENSING

EQUIPMENT

PLUMBING CHECK

It is also recommended that a shock absorber (not supplied with the Tempstar model) be installed in the incoming water line. This prevents line hammer (hydraulic shock), induced by the solenoid valve as it operates, from causing damage to the equipment.

The steam machines come with lines by which the source steam needs to be connected. Connect all steam lines to the machine as all applicable codes provide. See machine data plate for information concerning steam ﬂ ow pressure.

The Tempstar LT machine requires that a separate chemical feeder be connected to it to provide the required detergent and sanitizer. This feeder needs to be able to operate against a head of 25 PSI and provide 1.79 ml of a 10% Chlorine sanitizer per minute.

Slowly turn on the water supply to the machine after the incoming ﬁ ll line and the drain line have been installed. Check for any leaks and repair as required. All leaks must be repaired prior to placing the machine in operation.

07610-003-61-42-T

INSTRUCTIONS

INSTALLATION

ELECTRICAL POWER

CONNECTIONS

DISCONNECT ELECTRICAL

POWER SUPPLIES & TAG

OUT IN ACCORDANCE

WITH APPROPRIA TE

PROCEDURES & CODES

AT THE DISCONNECT

SWITCH TO INDICATE

THE CIRCUIT IS BEING

SERVICED.

Electrical and grounding connections must comply with the applicable portions of the National Electrical Code ANSI/NFPA 70 (latest edition) and/or other electrical codes.

Disconnect electrical power supply and place a tag at the disconnect switch to indicate that you are working on the circuit.

The dishmachine data plate is located on the right side and to the front of the machine. Refer to the data plate for machine operating requirements, machine voltage, total amperage load and serial number.

Power Block Ground Lug

To install the incoming power lines, open the control box. This will require taking a phillipshead screwdriver and removing the four (4) screws on the front cover of the control box. Install 3/4” conduit into the pre-punched holes in the back of the control box. Route power wires and connect to power block and grounding lug. Install the service wires (L1, L2, and L3 (3 phase only)) to the appropriate terminals as they are marked on the terminal block. Install the grounding wire into the lug provided. Tighten the connections. It is recommended that “DE-OX” or another similar anti-oxidation agent be used on all power connections.

Incoming Power Connection

VOLTAGE CHECK

07610-003-61-42-T

Ensure that the power switch is in the OFF position and apply power to the dishmachine. Check the incoming power at the terminal block and ensure it corresponds to the voltage listed on the data plate. If not, contact a qualiﬁ ed service agency to examine the problem. Do not run the dishmachine if the voltage is too high or too low. Shut off the service breaker and mark it as being for the dishmachine. Advise all proper personnel of any problems and of the location of the service breaker. Replace the control box cover and tighten down the screws.

INSTALLATION

Rack rail removed & repositioned for a corner operation.

FALSE PANEL INSTALLATION

Insert this side ﬁ rst.

False panel positioned in unit.

07610-003-61-42-T

FALSE PANEL INSTALLATION

1. Remove the rack assembly from the unit.

2. False panel will mount inside the dishmachine.

3. Position panel in unit on side to be closed.

4. Hold panel against side of dishmachine and push up.

5. Panel will clip in at the top, inside unit.

6. Holes in false panel will line up with rack assembly holes.

7. Re-install screws for rack assembly which will secure false panel to unit.

8. Re-assemble the rack track in an “L” shape for a corner operation.

INSTALLATION

07610-003-61-42-T

OPERATION

OPERATING INSTRUCTIONS

PREPARATION

POWER UP

FILLING THE

WASH TUB

Before proceeding with the start-up of the unit, verify the following:

1. The pan strainer and pump suction strainer are in place and are clean.

2. The overﬂ ow tube and o-ring are installed.

3. That the wash and rinse arms are screwed securely into place and that their endcaps are tight. The wash and rinse arms should rotate freely.

To energize the unit, turn on the power at the service breaker. The voltage should have been previously veriﬁ ed as being correct. If not, the voltage will have to be veriﬁ ed.

Ensure that the delime switch is in the NORMAL position, and place the power switch into the ON position. The Tempstar should ﬁ ll automatically and shut off when the appropriate level is reached (just below the pan strainer). Verify that the drain stopper is preventing the wash tub water from leaking excessively . There may be some slight leakage from the drain hole. Verify that there are no other leaks on the unit before proceeding any further. The wash tub must be completely ﬁ lled before operating the wash pump to prevent damage to the component. Once the wash tub is ﬁ lled, the unit is ready for operation.

WARE

PREPARATION

DAILY MACHINE

PREPARATION

Proper preparation of ware will help ensure good results and less re-washes. If not done properly , ware may not come out clean and the efﬁ ciency of the dishmachine will be reduced. It is important to remember that a dishmachine is not a garbage disposal and that simply throwing unscraped dishes into the machine simply defeats the purpose altogether of washing the ware. Scraps should be removed from ware prior to being loaded into a rack. Pre-rinsing and pre-soaking are good ideas, especially for silverware and casserole dishes. Place cups and glasses upside down in racks so that they do not hold water during the cycle. The dishmachine is meant not only to clean, but to sanitize as well, to destroy all of the bacteria that could be harmful to human beings. In order to do this, ware must be properly prepared prior to being placed in the machine.

Refer to the section entitled “PREPARATION” at the top of this page and follow the instructions there. Afterwards, check that all of the chemical levels are correct and/or that there is plenty of detergent available for the expected workload.

07610-003-61-42-T

OPERATING INSTRUCTIONS

OPERATION

WARM-UP CYCLES

W ASHING A RACK

OF WARE

OPERATIONAL

INSPECTION

For a typical daily start-up, it may be necessary to run the machine through 3 cycles to ensure that all of the cold water is out of the system and to verify that the unit is operating correctly . To cycle the machine, ensure that the power is on and that the tub has ﬁ lled to the correct level. Lift the doors and the cycle light will illuminate. When the light goes out, close the doors, the unit will start, run through the cycle, and shut off automatically. Repeat this two more times. The unit should now be ready to proceed with the washing of ware.

To wash a rack, open the doors completely (being careful for hot water that may drip from the doors) and slide the rack into the unit.

Close the doors and the unit will start automatically. Once the cycle is completed, open the door (again watching for the dripping hot water) and remove the rack of clean ware. Replace with a rack of soiled ware and close the doors. The process will then repeat itself.

Based upon usage, the pan strainer may become clogged with soil and debris as the workday progresses. Operators should regularly inspect the pan strainer to ensure it has not become clogged. If the strainer does, it will reduce the washing capability of the machine. Instruct operators to clean out the pan strainer at regular intervals or as required by work load.

SHUTDOWN &

CLEANING

At the end of the workday, close the doors. When the unit completes the cycle, turn the power switch to the OFF position and open the doors. Remove and clean the pan strainer. Remove the drain stopper from the tub and allow the tub to drain (NOTE: the wash tank water will be hot so caution is advised). Once the wash tub is drained, remove the pump suction strainer. Remove soil and debris from the strainer and set to the side. Unscrew the wash and rinse arms from their manifolds. Remove the endcaps and ﬂ ush the arms with water. Use a brush to clean out the inside of the arms. If the nozzles appear to be clogged, use a toothpick to remove the obstruction. Wipe the inside of the unit out, removing all soil and scraps. Reassembly the wash and rinse arms and replace them in the unit. The arms only need to be hand tight, do not use tools to tighten them down. Reinstall the drain stopper and strainers and close the doors.

07610-003-61-42-T

OPERATION

DETERGENT CONTROL

DETERGENT

CONTROL

Detergent usage and water hardness are two factors that contribute greatly to how efﬁ ciently your dishmachine will operate. Using detergent in the proper amount can become, in time, a source of substantial savings. A qualiﬁ ed water treatment specialist can tell you what is needed for maximum efﬁ ciency from your detergent, but you should still know some basics so you’ll understand what they are talking about.

First, you must understand that hard water greatly effects the performance of the dishmachine. Water hardness is the amount of dissolved calcium and magnesium in the water supply. The more dissolved solids in the water, the greater the water hardness. Hard water works against detergent, thereby causing the amount of detergent required for washing to increase. As you use more detergent, your costs for operating the dishmachine will increase and the results will decrease. The solids in hard water also may build-up as a scale on wash and rinse heaters, decreasing their ability to heat water. W ater temperature is important in removing soil and sanitizing dishes. If the water cannot get hot enough, your results may not be satisfactory. This is why Jackson recommends that if you have installed the machine in an area with hard water, that you also install some type of water treatment equipment to help remove the dissolved solids from the water before it gets to the dishmachine.

Second, hard water may have you adding drying agents to your operating cycle to prevent spotting, when the real problem is deposited solids on your ware. As the water evaporates off of the ware, the solids will be left behind to form the spotting and no amount of drying agent will prevent this. Again, using treated water will undoubtedly reduce the occurrences of this problem.

Third, treated water may not be suitable for use in other areas of your operation. For instance, coffee made with soft water may have an acid or bitter ﬂ avor. It may only be feasible to install a small treatment unit for the water going into the dishmachine itself. Discuss this option with your qualiﬁ ed water treatment specialist.

Even after the water hardness problems have been solved, there still must be proper training of dishmachine operators in how much detergent is to be used per cycle. Talk with your water treatment specialist and detergent vendor and come up with a complete training program for operators. Using too much detergent has as detrimental effects as using too little. The proper amount of detergent must be used for job. It is important to remember that certain menu items may require extra detergent by their nature and personnel need to be made aware of this. Experience in using the dishmachine under a variety of conditions, along with good training in the operation of the machine, can go a long way in ensuring your dishmachine operates as efﬁ ciently as possible.

07610-003-61-42-T

DETERGENT CONTROL

OPERATION

DETERGENT

CONTROL

(CONTINUED)

Certain dishmachine models require that chemicals be provided for proper operation and sanitization. Some models even require the installation of third-party chemical feeders to introduce those chemicals to the machine. Jackson does not recommend or endorse any brand name of chemicals or chemical dispensing equipment. Contact your local chemical distributor for questions concerning these subjects.

Some dishmachines come equipped with integral solid detergent dispensers. These dispensers are designed to accommodate detergents in a certain sized container. If you have such a unit, remember to explain this to your chemical distributor upon ﬁ rst contacting them.

As explained before, water temperature is an important factor in ensuring that your dishmachine functions properly. The data plate located on each unit details what the minimum temperatures must be for either the incoming water supply, the wash tank and the rinse tank, depending on what model of dishmachine you have installed. These temperatures may also be followed by temperatures that Jackson recommends to ensure the highest performance from you dishmachine. However, if the minimum requirements are not met, the chances are your dishes will not be clean or sanitized. Remember, a dish can look clean, but it may not be sanitized. Instruct your dishmachine operators to observe the required temperatures and to report when they fall below the minimum allowed. A loss of temperature can indicate a much larger problem such as a failed heater or it could also indicate that the hot water heater for your operation is not up to capacity and a larger one may need to be installed.

07610-003-61-42-T

There are several factors to consider when installing your dishmachine to ensure that you get the best possible results from it and that it operates at peak efﬁ ciency for many years. Discuss your concerns with your local chemical distributor and water treatment specialist before there is a problem.

OPERATION

DELIME INSTRUCTIONS

DELIME

INSTRUCTIONS

To proceed with the delime operation, ﬁ ll the dishmachine with the correct amount of delime solution as recommended by the chemical manufacturer. The tank capacities of the machine can be found in the Speciﬁ cations section of this manual.

After the chemicals are added, perform the following steps:

1. Disconnect or turn off chemical feeder pumps.

2. Close the door.

3. Flip the Auto/Manual Switch to Manual.

4. Run the machine for the length of time required by the chemical solution

manufacturer.

5. Flip the Auto/Manual Switch to Auto to shut the unit off.

6. Open the door and step away for 5 minutes.

7. Inspect the inside of the unit to determine if your expectations have been met. If

not, you may need to run the delime solution through the unit again.

8. Once clean, place the Auto/Manual switch in Auto and turn the Power Switch off.

9. Drain the machine completely.

10. Close the door.

11. Place the Power Switch in the ON position to reﬁ ll the unit.

12. Run the unit in Manual for 10 minutes.

13. Press the Power Switch to turn the unit off.

14. Open the door.

15. Drain the unit.

16. Flip the Auto/Manual Switch to Auto.

17. Your machine is ready to use.

Auto/Manual Switch

Power Switch

This equipment is not recommended for use with deionized water or other

aggressive ﬂ uids. Use of deionized water or other aggressive ﬂ uids will result

in corrosion and failure of materials and components. Use of deionized water

or other aggressive ﬂ uids will void the manufacturer’s warranty.

07610-003-61-42-T

PREVENTATIVE MAINTENANCE

MAINTENANCE

PREVENTATIVE

MAINTENANCE

The dishmachines covered in this manual are designed to operate with a minimum of interaction with the operator. However, this does not mean that some items will not wear out in time. Jackson highly recommends that any maintenance and repairs not speciﬁ cally discussed in this manual should be performed by QUALIFIED SERVICE PERSONNEL ONLY. Performing maintenance on your dishmachine may void your warranty if it is still in effect, so if you have a question or concern, do not hesitate to contact a QUALIFIED SERVICE AGENCY.

There are many things that operators can do to prevent catastrophic damage to the dishmachine. One of the major causes of component failure has to do with prescrapping procedures. A dishmachine is not a garbage disposal; any large pieces of material that are put into the machine shall remain in the machine until they are either broken up (after spreading out on your ware!) or physically removed. Strainers are installed to help catch debris, but they do no good if they are clogged. Have operators regularly inspect the pan strainers to ensure (1) that they are free of soil and debris and (2) they are laying ﬂ at in the tub.

When cleaning out strainers, do NOT beat them on waste cans. The strainers are made of metal and can be forgiving; but once severe damage is done, it is next to impossible for the strainer to work in the way it was designed to. Wipe out strainers with a rag and rinse under a faucet if necessary. For stubborn debris, a toothpick should be able to dislodge any obstructions from the perforations. Always ensure that strainers are placed back in the machine before operation and that they lay ﬂ at in the tub.

07610-003-61-42-T

You may wish to learn more about how your water hardness will effect the performance of your machine. Hard water makes dishmachines work harder and decreases efﬁ ciency .

Again, it is important to remind operators that trying to perform corrective maintenance on the dishmachine could lead to larger problems or even cause harm to the operator. If a problem is discovered; secure the dishmachine using proper shut down procedures as listed in this manual and contact a QUALIFIED SERVICE AGENCY.

Some problems, however, may having nothing to do with the machine itself and no amount of preventative maintenance is going to help. A common problem has to do with temperatures being too low. Verify that the water temperatures coming to your dishmachine match the requirements listed on the machine data plate. There can be a variety of reasons why your water temperature could be too low and you should discuss it with a QUALIFIED SERVICE AGENCY to determine what can be done.

MAINTENANCE

PREVENTATIVE MAINTENANCE

PREVENTATIVE

MAINTENANCE

(CONTINUED)

By following the operating and cleaning instructions in this manual, you should get the most efﬁ cient results from your machine. As a reminder, here are some steps to take to ensure that you are using the dishmachine the way it was designed to work:

1. Ensure that the water temperatures match those listed on the machine data plate.

2. Ensure that all strainers are in place before operating the machine.

3. Ensure that all wash and/or rinse arms are secure in the machine before operating.

4. Ensure that drains are closed/sealed before operating.

5. Remove as much soil from dishes by hand as possible before loading into racks.

6. Do not overﬁ ll racks.

7. Ensure that glasses are placed upside down in the rack.

8. Ensure that all chemicals being injected to machine have been veriﬁ ed as being at the

correct concentrations.

9. Clean out the machine at the end of every workday as per the instructions in the manual.

10. Always contact a QUALIFIED SER VICE AGENCY whenever a serious problem

arises.

1 1. Follow all safety procedures, whether listed in this manual or put forth by local, state

or national codes/regulations.

07610-003-61-42-T

+ 60 hidden pages
