Jackson PTAUSB Instructions Manual

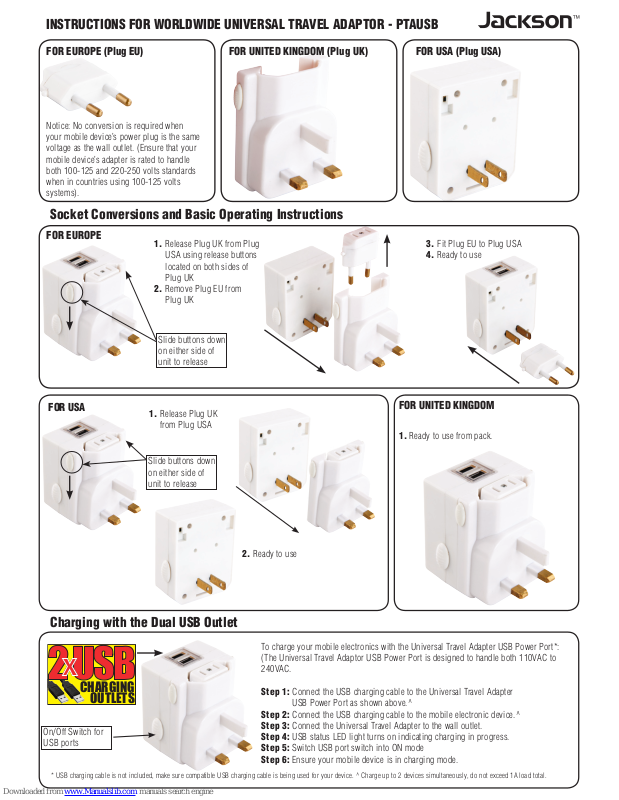

INSTRUCTIONS FOR WORLDWIDE UNIVERSAL TRAVEL ADAPTOR - PTAUSB

Socket Conversions and Basic Operating Instructions

Notice: No conversion is required when
your mobile device’s power plug is the same
voltage as the wall outlet. (Ensure that your
mobile device’s adapter is rated to handle
both 100-125 and 220-250 volts standards
when in countries using 100-125 volts
systems).

FOR EUROPE (Plug EU) FOR UNITED KINGDOM (Plug UK) FOR USA (Plug USA)

3. Fit Plug EU to Plug USA

4. Ready to use

1. Release Plug UK from Plug

USA using release buttons
located on both sides of
Plug UK

2. Remove Plug EU from
Plug UK

Charging with the Dual USB Outlet

To charge your mobile electronics with the Universal Travel Adapter USB Power Port*:
(The Universal Travel Adaptor USB Power Port is designed to handle both 110VAC to
240VAC.

Step 1: Connect the USB charging cable to the Universal Travel Adapter

USB Power Port as shown above.^

Step 2: Connect the USB charging cable to the mobile electronic device.^
Step 3: Connect the Universal Travel Adapter to the wall outlet.
Step 4: USB status LED light turns on indicating charging in progress.
Step 5: Switch USB port switch into ON mode
Step 6: Ensure your mobile device is in charging mode.

* USB charging cable is not included, make sure compatible USB charging cable is being used for your device. ^ Charge up to 2 devices simultaneously, do not exceed 1A load total.

FOR EUROPE

1. Release Plug UK

from Plug USA

FOR USA

2. Ready to use

FOR UNITED KINGDOM

1. Ready to use from pack.

Slide buttons down
on either side of
unit to release

Slide buttons down
on either side of
unit to release

2 U S B

XX

CHARGING

OUTLETS

On/Off Switch for
USB ports

Power up your gear through the AC power port and USB power ports simultaneously

The USB charger

is compatible with

both 100-125 and

220-250 volt power

supplies.

The Universal Travel Adapter with Dual USB power outlets allows you to
power up and charge up to two devices at the same time.

The AC POWER and USB status LED lights indicate ON/OFF status
respectively.

Please connect your devices as shown.

Note: The AC POWER outlet does not convert voltage, please ensure your
mobile electronics adapter is rated to handle both 100-125 and 220-250
volt standards.

AC Power and USB Power Status LED

The Universal Travel Adapter with Dual USB charger - AC POWER and
USB POWER Status indicators are located at the USB charging ports.
RED -> Indicates USB Ports are Charging
*Please ensure ON/OFF button is switched to ON.

Country Compatability Guide (Note: Not all countries shown)

EUROPE
Albania EU
Armenia EU
Austria UK, EU
Azores EU
Belgium US, EU
Bosnia EU
Bulgaria EU
Croatia EU
Czech Republic EU
Denmark EU
Finland US, EU
France US, EU
Germany (Western) EU
Gibraltar UK, EU
Greece EU
Greenland EU
Hungary EU
Iceland EU
Ireland US, UK, EU
Isle of Man UK, EU
Italy EU
Liechtenstein EU
Madeira EU
Malta UK
Monaco EU
Netherlands EU
Northern Ireland UK
Norway EU
Poland EU
Portugal EU
Republic of Ireland UK
Romania EU
Russia US, EU
Scotland UK, EU
Spain US, EU
Sweden EU
Switzerland EU
United Kingdom UK, EU
Wales UK, EU

Yugoslavia EU

CENTRAL / SOUTH AMERICA
Argentina , EU
Belize US, UK
Brazil US, EU
Columbia US, EU
Costa Rica US
El Salvador US
Falkland Islands UK
Guadeloupe EU
Guatemala US
Honduras US
Martinique EU
Mexico US, EU
Nicaragua US
Peru ES, EU
Suriname EU
Uruguay AU
Venezuela US

CARIBBEAN
Antigua US, UK
Aruba US
Bahamas US, UK, EU
Bermuda US, UK
British Virgin Islands UK
Dominican Republic US, UK, EU
Haiti US
Jamaica US, UK, EU
Leeward Islands EU
Puerto Rico US
Virgin Islands UK

NORTH AMERICA / CANADA
Canada US, EU
United States US

AFRICA / MIDDLE EAST
Abu Dhabi UK, EU

Algeria US, EU
Angola EU
Bangladesh EU
Benin EU
Botswana UK
Brunei UK, EU
Bulgaria EU
Cameroon EU
Chad Republic EU
Congo EU
Egypt UK, EU
Ethiopia EU
Eritrea EU
Gambia UK
Iran UK, EU
Iraq UK
Israel EU
Jordan UK, EU
Kenya UK, EU
Kuwait UK, EU
Mali EU
Morocco US, EU
Mozambique EU
Nigeria UK, EU
Oman UK
Pakistan US, EU
Qatar UK, EU
Rwanda EU
Saudi Arabia US, UK, EU
Senegal UK, EU
Sierra Leone UK, EU
Somalia EU
South Africa UK
Sudan UK, EU
Tunisia UK, EU
Turkey EU
United Arab Emirates UK, EU
Yemen UK, EU
Zaire EU
Zambia UK, EU

Zimbabwe UK, EU

ASIA / PACIFIC
Afganistan EU
Bali EU
Bhutan UK, EU
Burma UK, EU
China US, UK, EU
Fiji US, UK, EU
French Polynesia EU
Guam US
Hong Kong UK, EU
India UK, EU
Indonesia US, UK, EU
Japan US
Malaysia UK, EU
Maldives UK, EU
Myanmar UK, EU
Nepal UK, EU
New Caledonia EU
North Korea US, EU
Palau US, EU
Papua New Guinea US
Philippines US, EU
Singapore UK, EU
South Korea US, EU
Sri Lanka UK, EU
Tahiti US, EU
Taiwan US, EU
Thailand US, UK, EU
Tibet EU
Vietnam US, EU
Western Samoa US, EU

INDUSTRIES Pty Ltd

A WHOLLY OWNED AUSTRALIAN COMPANY

PHONE: [phone]

www.ji.com.au ABN: 81 003 438 104

Approved to Australian standards

2 U S B

XX

CHARGING

OUTLETS

iPhone, iPod and iPad are registered trademarks of Apple Inc. Bluetooth is a registered trademark of Bluetooth SIG.

PKG050312

• Rating: 100-240Vac, 50/60Hz

• Current: 10A max. 2400W

• Surge protected 175J • Indoor use only

• Surge current: 6,000A • Response time: <20ns

• Total load connected to both USB outlets

must not exceed 1A.

• Approval Number: NSW22269

• Australian Registered Design No. 325015

N95

• Note: This adaptor does not convert voltage. Please

check the supply voltage and the voltage required
by your appliance. If they differ, then an appropriate
transformer must be used.

• This product is only suitable for devices that

do not require an earth.

iPods® and

iPhones

®

iPads Bluetooth

®

MP3 Players

Portable GPS

Works with most...

Phone: [phone] Web: www.ji.com.au

Postal: PO Box 6388 BHBC,

Baulkham Hills NSW 2153

NEED HELP?

Contact us with your questions or comments

E-Book

Readers

Mobile Phones

& P D A’s
