Outdoor Portable Power
Model: SP100BKH
Foldable Solar Charger 100W
Jackery Inc.
TM and 2018 Jackery Inc. All rights reserved.
Made in China www.jackery.com
Technical Parameters
2
1
3
4 5

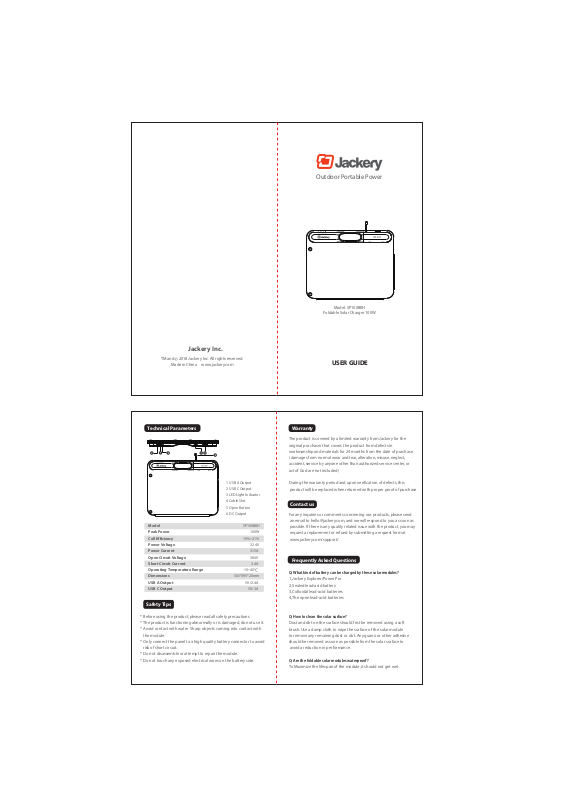

USER GUIDE
Warranty
The product is covered by a limited warranty from Jackery for the
original purchaser that covers the product from defects in
6
workmanship and materials for 24 months from the date of purchase
( damages from normal wear and tear, alteration, misuse, neglect,
accident, service by anyone other than authorized service center, or
act of God are not included)
Model
SP100BKH
Peak Power
Cell Efficiency
Power Voltage
Power Current
Open Circuit Voltage
Short Circuit Current
Operating Temperature Range
Dimensions
USB A Output
USB C Output
100W
19%~21%
32.4V
3.15A
38.3V
3.4A
565*395*20mm
5V /2.4A
5V/ 3A
Safety Tips
1 USB A Output
2 USB C Output
3 LED Light Indicator
4 Cable Slot
5 Open Button
6 DC Output
-10~40℃
During the warranty period and upon verification of defects, this
product will be replaced when returned with proper proof of purchase
Contact us
For any inquiries or comments concerning our products, please send
an email to hello@jackery.com, and we will respond to you as soon as
possible. If there is any quality related issue with the product, you may
request a replacement or refund by submitting a request form at
www.jackery.com/support/.
Frequently Asked Questions
Q: What kind of battery can be charged by these solar modules?
1, Jackery Explorer/Power Pro
2, Sealed lead-acid battery
3, Colloidal lead-acid batteries
4, The open lead-acid batteries
* Before using the product, please read all safety precautions
* The product is functioning abnormally or is damaged, do not use it.
* Avoid contact with water Sharp objects coming into contact with
the module.
* Only connect the panel to a high quality battery connector to avoid
risk of short circuit.
* Do not disassemble or attempt to repair the module.
* Do not touch any exposed electrical wires on the battery side.
Q: How to clean the solar surface?
Dust and dirt on the surface should first be removed using a soft
brush. Use a damp cloth to wipe the surface of the solar module
to remove any remaining dust or dirt. Any guano or other adhesive
should be removed as soon as possible from the solar surface to
avoid a reduction in performance.
Q: Are the foldable solar modules waterproof?
To Maximize the lifespan of the module, it should not get wet.
