I Tel 0410 Users Manual

GGeettttiinngg SSttaarrtteed

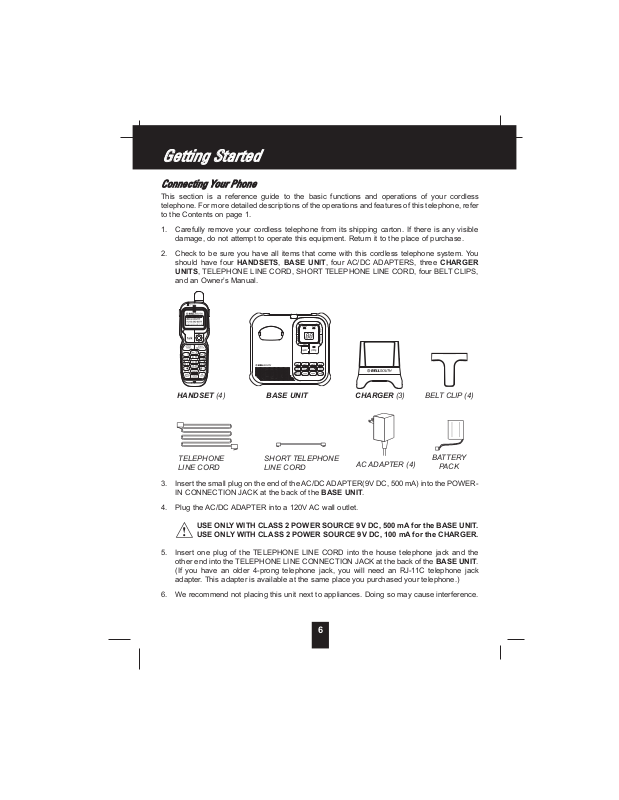

CCoonnnneeccttiinngg YYoouurr PPhhoonne

This section is a reference guide to the basic functions and operations of your cordless telephone. For more detailed descriptions of the operations and features of this telephone, refer to the Contents on page 1.

1. Carefully remove your cordless telephone from its shipping carton. If there is any visible damage, do not attempt to operate this equipment. Return it to the place of purchase.

2. Check to be sure you have all items that come with this cordless telephone system. Yo u should have four HANDSETS, BASE UNIT, four AC/DC ADAPTERS, three CHARGER UNITS, TELEPHONE LINE CORD, SHORT TELEPHONE LINE CORD, four BELT CLIPS, and an Owner’s Manual.

HANDSET (4)

TELEPHONE LINE CORD

3. Insert the small plug on the end of the AC/DC ADAPTER(9V DC, 500 mA) into the POWERIN CONNECTION JACK at the back of the BASE UNIT.

4. Plug the AC/DC ADAPTER into a 120V AC wall outlet.

BASE UNIT

SHORT TELEPHONE LINE CORD

CHARGER (3)

AC ADAPTER (4)

BELT CLIP (4)

BATTERY

PACK

USE ONLY WITH CLASS 2 POWER SOURCE 9V DC, 500 mA for the BASE UNIT.

USE ONLY WITH CLASS 2 POWER SOURCE 9V DC, 100 mA for the CHARGER.

5. Insert one plug of the TELEPHONE LINE CORD into the house telephone jack and the other end into the TELEPHONE LINE CONNECTION JACK at the back of the BASE UNIT. (If you have an older 4-prong telephone jack, you will need an RJ-11C telephone jack adapter. This adapter is available at the same place you purchased your telephone.)

6. We recommend not placing this unit next to appliances. Doing so may cause interference.

RReemmoottee CCoonnttrrooll OOppeerraattiioon

RReemmoottee OOppeerraattiioonn tthhrroouugghh aa TToonnee TTeelleepphhoonne

You can use many Answering System features when you are away from home. To protect your privacy, most of the features can be used only after you enter the three-digit Remote Access Code.

RReemmoottee AAcccceessss CCooddees

The Remote Access Codes are preset at the factory as below. You can use the preset codes or choose your own.

PRIMARY MAILBOX: 999

MAILBOX 1: 555

MAILBOX 2: 666

MAILBOX 3: 777

MAILBOX 4: 888

NOTE: After a power failure, the BASE UNIT Remote Access Codes will return to the factory

preset codes.

CChhaannggiinngg ooff tthhee RReemmoottee AAcccceessss CCooddees

All of the digits of the Remote Access Codes are a combination of the numbers 5, 6, 7, 8, 9, and

IMPORTANT: Digits 1, 2, 3, 4, and the sequence 000 cannot be used when changing the

1. Press a mailbox button for MAILBOX 1, 2, 3, or 4. For the PRIMARY MAILBOX, follow

2. Press and hold down the button until you hear the announcement, “Please enter

3. Press and hold down the button. Release the button when you hear the desired

4. Press and hold down the button. Release the button when you hear the desired

5. Press and hold down the button. Release the button when you hear the desired

6. Press the button, the 3-digits you have selected will be announced.

7. If your new Remote Access Code is the same as that of another mailbox, the Answering

Remote Access Codes for any mailbox (including the PRIMARY MAILBOX).

steps 2 through 6.

code

new password.”

first digit of the code.

second digit of the code.

min

third digit of the code.

code

System will not record your password and will announce, “Please try again.”

RReemmoottee CCoonnttrrooll OOppeerraattiioon

UUssiinngg tthhee RReemmoottee IInnssttrruuccttiioonn CCoodde

1. Dial your telephone number.

2. Listen to or bypass the OGM in the PRIMARY MAILBOX by entering your Remote Access Code.

3. A“beep” will sound when your Remote Access Code is correctly accepted by your Answering System.

4. If the announcement does not stop, enter the Remote Access Code again.

5. The Answering System will request that you enter the Instruction Code or press “0” for help.

A. If you do not know the Instruction Code, press the “0” button immediately. The Answering

System will announce the Instruction Codes. Otherwise, if a command is not received by the Answering System within 10 seconds, it will signal 3 “beeps” and hang up.

The following is the Remote Instruction Code Help Menu:

Instruction Codes

To playback announcement press “5.”

To record memo press “6.” (Press “0” for PRIMARY MAILBOX, press “1” for MAILBOX 1, press “2” for MAILBOX 2, press “3” for MAILBOX 3, and press “4” for MAILBOX 4.)

To record announcement press “7.”

To turn answering machine OFF or ON press “8.”

To change mailbox press “(star).”

To playback message press “2.”

While in message playback:

To repeat message press “1.”

To skip message press “3.”

To stop press “4.”

To erase message press “9.”

B. Press the corresponding number of the Instruction Code you wish to activate. You do not

have to listen to the entire Instruction Code Help Menu before giving a command. Yo u may enter the desired Instruction Code Number at any given time.

C. After accessing the Answering System, you must enter the next command within 10

seconds after the end of each operation. Otherwise, your Answering System will hang up the phone automatically.

SSppeeaakkeerrpphhoonnee OOppeerraattiioon

This telephone allows you to answer calls using the BASE UNIT speakerphone function.

1. When the phone rings, press the button.

2. Start your conversation.

3. To end your conversation, press the button again.

NOTE:Press the or button to adjust the BASE UNIT speaker volume to a

comfortable listening level. The LED Message Display will display the selected volume level: “0”- Speaker off

“1~8”- Volume from low to high

SSeeccuurriittyy SSyysstteem

Your cordless telephone uses a digital coding security system to prevent unauthorized use of your telephone line by another nearby cordless telephone. The system has its own identifying signal created by microcomputers in both the BASE UNIT and the HANDSET.

SSeeccuurriittyy CCoodde

This telephone has an internal security code with 130,000 possible combinations.

7755 CChhaannnneell AAuuttoo--HHoop

Your cordless telephone automatically selects the best channel from the 75 frequencies available to transmit signals between the BASE UNIT and the HANDSET. When interference is received from other cordless telephones, your telephone automatically hops to the next clear channel.

spkr

RReecchhaarrggiinngg tthhee BBAATTTTEERRYY PPAACCK

BBaatttteerryy TTyyppe

Use the following type and size of BATTERYPACK:

NOTES: 1. During a power interruption, the BASE UNIT does not operate, and a phone

RReecchhaarrggiinngg tthhee BBaatttteerryy PPaacck

The nickel metal hydride (Ni-MH) BATTERYPACK in the HANDSET can be recharged many times using the built-in charger in the BASE UNIT.

When the BATTERY CHARGE INDICATOR starts blinking on the LCD Screen, this indicates that the BATTERYPACK needs to be recharged.

Charge the BATTERYPACK at least once every 90 days of non-use to avoid battery failure. When the BATTERYPACK can no longer be charged, replacement of the BATTERYPACK will be necessary.

The BATTERYPACK used in your telephone may develop a condition known as “MEMORY”. Once subjected to a regular short discharging routine, the BATTERYPACK assumes the discharging pattern it was subjected to. This causes rapid discharging thereby shortening the BATTERYPACK charge span. If you believe your BATTERYPACK has developed a “MEMORY” condition, do not charge the HANDSET until the BATTERY CHARGE INDICATOR starts blinking on the LCD Screen. When the BATTERY CHARGE INDICATOR starts blinking on the LCD Screen, then charge the HANDSET fully for 12 hours.

Cordless Telephone BATTERYPACK

3.6V, 600mAh U.S. Electronics Inc. Ni-MH Battery Pack: Model B655 (GP60AAAH3BML)

This BATTERYPACK is available through:

U.S. Electronics Service Center 105 Madison Avenue New York, NY 10016 1-800-828-5208

conversation cannot be made on the HANDSET.

2. A “beep” will be heard when the HANDSET is properly positioned in the BASE UNIT CHARGE CRADLE and charging. Securely positioning the HANDSET in the BASE UNIT will also prevent the HANDSET from falling.

IMPORTANT

In order to get maximum life from the HANDSET

BATTERYPACK, be sure to charge the HANDSET for 12

hours before initial use.

CChhaannggiinngg tthhee BBAATTTTEERRYY PPAACCK

Changing the Battery Pack

The BATTERYPACK provides power for the HANDSET of your cordless telephone.

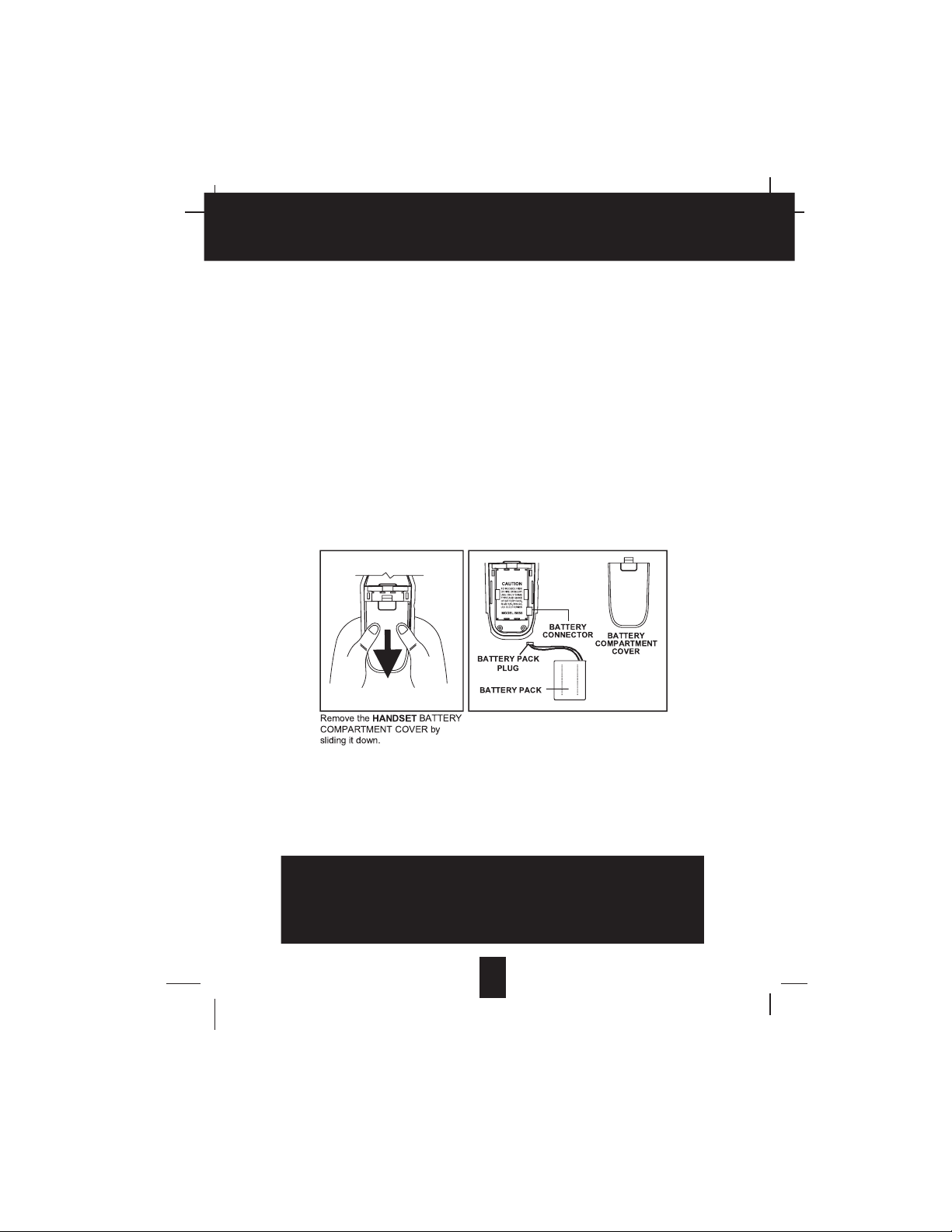

To Replace BATTERY PACK:

1. Remove the HANDSET BATTERY COMPARTMENT COVER by sliding it down.

2. Pull out the BATTERYPACK PLUG and remove the BATTERYPACK.

3. Plug the new BATTERYPACK into the BATTERY CONNECTOR.

4. Slide the HANDSET BATTERY COMPA RTMENT COVER firmly into place in its closed

position.

5. Before use, charge the new BATTERYPACK for 12 hours.

AATTTTEENNTTIIOONN:

The telephone that you have purchased contains a rechargeable BATTERYPACK. The BATTERYPACK is recyclable. At the end of its useful life, under various state and local laws, it may be illegal to dispose of this BATTERYPACK into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.

IMPORTANT

In order to get maximum life from the HANDSET

BATTERYPACK, be sure to charge the HANDSET for 12

hours before initial use.

PPrroobblleemm SSoollvviinng

PPrroobblleemm SSoollvviinngg SSeeccttiioon

For your assistance, we have listed below a few common problems.

PPhhoonnee ddooeess nnoott wwoorrkk,, cchheecckk tthhee ffoolllloowwiinngg:

1. BASE UNIT is plugged into a power source.

2. HANDSET is charged.

3. TONE/PULSE Select switch is in the right position.

4. TELEPHONE LINE CORD is plugged into the TELEPHONE JACK.

RRaannggee ooff pphhoonnee lliimmiitteedd,, cchheecckk tthhee ffoolllloowwiinngg:

1. BASE UNIT is centrally located in your residence.

2. BASE UNIT is not located near appliances.

NNoo ddiiaall ttoonnee,, cchheecckk tthhee ffoolllloowwiinngg:

1. TELEPHONE LINE CORD plugs are connected to the telephone jack and TELEPHONE LINE CONNECTION JACK.

2. BASE UNIT is plugged into a power source.

3. BASE UNIT has experienced a power failure or was unplugged, replace the HANDSET on the BASE UNIT for 2 to 5 seconds to reset the system.

NNoo ccoonnnneeccttiioonn bbeettwweeeenn tthhee HHAANNDDSSEETT aanndd tthhee BBAASSEE,, cchheecckk tthhee ffoolllloowwiinngg:

1. Be sure to register your HANDSET to the BASE UNIT (see page 25 for details).

RReecceeiivveedd ssiiggnnaall fflluutttteerrss oorr ffaaddeess,, cchheecckk tthhee ffoolllloowwiinngg:

1. BATTERY PACK in the HANDSET is fully charged.

2. HANDSET is not too far from the BASE UNIT.

IInntteerrffeerreennccee oonn rreecceeppttiioonn,, cchheecckk tthhee ffoolllloowwiinngg:

1. Noise may be picked up from electrical products in the home or electrical storms. Generally, this noise is a minor annoyance and should not be interpreted as a defect in your system. (See Technical Information on page 43.)

EExxcceessss ssttaattiicc,, cchheecckk tthhee ffoolllloowwiinngg:

1. Check to see that the ANTENNA is not touching another metal object.

talk

IIff aafftteerr pprreessssiinngg tthhee tthhee ffoolllloowwiinngg:

1. BASE UNIT is plugged into a power source.

2. BASE UNIT has experienced a power failure or was unplugged.

bbuuttttoonn,, yyoouu rreecceeiivvee tthhrreeee

bbeeeepps

“

”

aanndd nnoo ddiiaall ttoonnee,, cchheecck

PPrroobblleemm SSoollvviinng

AAnnsswweerriinngg SSyysstteemm ddooeess nnoott wwoorrkk,, cchheecckk tthhee ffoolllloowwiinngg:

1. BASE UNIT is plugged into a power source.

AAnnsswweerriinngg SSyysstteemm ddooeess nnoott aannsswweerr ccaallllss,, cchheecckk tthhee ffoolllloowwiinngg:

1. ANSWER ON/OFF LED indicator is lit.

AAnnsswweerrss ccaallllss oonnllyy aafftteerr 1100 rriinnggss,, cchheecckk tthhee ffoolllloowwiinngg:

1. ANSWER ON/OFF LED indicator is lit.

2. Message Memory is not full.

DDooeess nnoott rreessppoonndd ttoo rreemmoottee ccoommmmaannddss,, eennssuurree tthhee ffoolllloowwiinngg:

1. Correct Remote Access Code is entered.

2. ATONE telephone is being used.

MMeessssaaggee iiss iinnccoommpplleettee,, eennssuurree tthhee ffoolllloowwiinngg:

1. Message Memory is not full.

2. Caller may be hesitating and pausing for more than 7 seconds.

AAnnsswweerr ccaallllss bbuutt ddooeess nnoott rreeccoorrdd mmeessssaaggeess,, cchheecckk tthhee ffoolllloowwiinngg:

1. ANNC/ICM switch is set to ICM.

2. Memory is not full.

3. Extension telephone was not picked up.

NNoo SSoouunnddss oonn tthhee BBAASSEE UUNNIITT:

1. Adjust the volume by using and button and make sure the volume level is not

“0”.

RReesseett yyoouurr ccoorrddlleessss tteelleepphhoonnee:

1. You can reset your unit if the unit is not working properly. Unplug and then plug the AC ADAPTER into its power source, then press and hold down the button for at least 3 seconds, then release the button and the unit will “beep”. (See detail operations in page 29.)

stop

NOTE: If none of the telephones in the house are working, disconnect one set at a time to

verify that none of the phones are causing the problem. If you still have a problem after doing this, and your telephone still does not work, please contact your local telephone service provider.

TTeecchhnniiccaall IInnffoorrmmaattiioon

This cordless telephone uses radio frequencies to allow mobility. There are certain difficulties in using radio frequencies with a cordless telephone. While these are normal, the following could affect the operation of your system.

NNooiisse

Electrical pulse noise is present in most homes at one time or another. This noise is most intense during electrical storms. Certain kinds of electrical equipment such as light dimmers, fluorescent bulbs, motors, and fans also generate noise pulses. Because radio frequencies are susceptible to these noise pulses, you may occasionally hear them in your HANDSET. Generally they are a minor annoyance and should not be interpreted as a defect in your system.

RRaanngge

Because radio frequency is used, the location of the BASE UNIT can affect the operating range. Try several locations in your home or office and pick the one that gives you the clearest signal to the HANDSET.

IInntteerrffeerreenncce

Electronic circuits activate a relay to connect the cordless telephone to your telephone line. These electronic circuits operate in the radio frequency spectrum. While several protection circuits are used to prevent unwanted signals, there may be periods when these unwanted signals enter the BASE UNIT. You may hear clicks or hear the relay activate while you are not using the HANDSET. If the interference occurs frequently, it can be minimized or eliminated by relocating the BASE UNIT. You can check for interference before selecting the final BASE UNIT location by plugging in the telephone.

NNOOTTIICCEE:

This cordless telephone uses radio communication between the HANDSET and the BASE UNIT and may not ensure privacy of communication. Other devices, including another cordless

telephone, may interfere with the operation of this cordless telephone or cause noise during operation. Units not containing coded access may be accessed by other radio communication systems. Cordless telephones must not cause interference to any licensed radio service.

FFCCCC RReeqquuiirreemmeenntts

FFeeddeerraall CCoommmmuunniiccaattiioonnss CCoommmmiissssiioonn RReeqquuiirreemmeenntts

This equipment complies with Part 68 of the FCC rules. A label on the BASE UNIT of the equipment contains, among other information, the ACTA Product Number and the Ringer Equivalence Number (REN) for this equipment. You must, upon request, provide this information to your telephone service provider.

The REN is also useful in determining the number of devices that you may connect to your telephone line and still allow all of these devices to ring when your telephone number is called. In most, but not all areas, the sum of the RENs of all devices connected to one line should not exceed five (5.0). To be certain of the number of devices that you may connect to your line, contact your local telephone service provider.

If your equipment should cause harm to the telephone network, the telephone service provider may temporarily disconnect your service. If possible, they will notify you in advance that temporary discontinuance of service may be required.

However, when advance written notice is not possible, the telephone service provider may temporarily discontinue service without notice if such action is necessary under the circumstances. The telephone service provider may make changes in its communication facilities, equipment, operations, or procedures where such action is reasonably required in the operation of its business and is not inconsistent with the rules and regulations of the Federal Communications Commission.

Do not attempt to repair or modify this equipment.

Warning: Changes or modifications not expressly approved by the party responsible for its

compliance could void the user’s authority to operate the equipment.

Some cordless telephones operate at frequencies that may cause interference to nearby TV’s and VCR’s. To minimize or prevent such interference, the BASE UNIT of the cordless telephone

should not be placed on or near a TV or VCR. If interference is experienced, moving the cordless telephone farther away from the TV or VCR will often reduce or eliminate the interference.

This equipment should not be used on coin telephone lines. Connection to party line service is subject to state tariffs. If trouble is experienced, disconnect this equipment from the telephone line to determine if it is causing the malfunction. If the equipment is determined to be malfunctioning, its use should be discontinued until the problem has been corrected.

IMPORTANT

Placing your BASE UNIT near appliances such as

another telephone, televisions, refrigerators, radios,

or microwave ovens may cause interference.

)

FFCCCC RReeqquuiirreemmeenntts

FFeeddeerraall CCoommmmuunniiccaattiioonnss CCoommmmiissssiioonn RReeqquuiirreemmeennttss ((ccoonnttiinnuueedd)

CAUTION: Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If the equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving ANTENNA.

• Increase the distance between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause

undesired operation.

The Relevant Guidelines and Standards are:

• FCC Report and Order FCC 96-326 (August, 1996)

• American National Standards Institute (C95-1-1992)

• National Council Radiation Protection and Measurements (NCRP-1986)

• International Commission on Non-Ionizing Radiation Protection (ICNIRP-1998)

limits are designed to provide reasonable

WWaarrrraanntty

WWaarrrraannttyy IInnffoorrmmaattiioon

BellSouth Products

One-Year Limited Warranty

This limited warranty sets forth all BellSouth Products responsibilities regarding your telephone. There are no other expressed or implied warranties from BellSouth Products.

WWaarrrraannttyy SSeerrvviiccee PPrroovviiddeed

If you purchased the telephone new from a retail vendor, BellSouth Products warrants the telephone against defects in material and workmanship for a period of one (1) year from the original date of purchase. This warranty is in lieu of all other express warranties. This warranty begins when you purchase the telephone and continues for one (1) year unless you sell or rent the telephone, in which case the warranty stops.

BellSouth Products disclaims any implied warranty, including the warranty of merchantability and the warranty of fitness for a particular purpose, as of the date of 90 days from your original purchase of the telephone. BellSouth Products assumes no responsibility for any special, incidental, or consequential damages.

This warranty gives you specific legal rights and you may have other rights which vary from state to state. Some states do not allow the exclusion or limitations of special, incidental or consequential damages, or limitations on how long a warranty lasts, so the above exclusion and limitation may not apply to you.

WWaarrrraannttyy SSeerrvviiccee NNoott PPrroovviiddeed

This warranty does not cover damage resulting from accident, misuse, abuse, improper installation or operation, lack of reasonable care, unauthorized modification, or the affixing of any attachment not provided by BellSouth Products with the telephone, and/or loss of parts. This warranty is voided in the event any unauthorized person opens, alters or repairs the telephone.

All BellSouth Products equipment being returned for repair must be suitably packaged.

Telephone service providers use different types of equipment and offer various types of services to customers. BellSouth Products does not warrant that this telephone is compatible with the type of equipment of any particular telephone service provider or the services provided by it.

WWaarrrraanntty

WWhhaatt TToo DDoo ffoorr WWaarrrraannttyy SSeerrvviicce

During the first thirty (30) days, a defective product is eligible for over-the-counter exchange at the retailer from whom it was purchased. After thirty (30) days, the defective product should be returned to the authorized service center. Please allow 2-3 weeks for the return of your telephone product. The shipping address of the authorized service center is:

NOTE:Atelephone product received which was not made for BellSouth Products or which

is not defective as determined by our test procedures will not be repaired and will be returned to you C.O.D., freight collect.

TToo OObbttaaiinn WWaarrrraannttyy SSeerrvviicce

• Provide proof of the date of purchase within the package.

• Prepay all shipping costs to the authorized service center.

• Include a return shipping address within the package.

Please retain your sales receipt, the carton, the packing materials, and the printed material. The original carton is the best shipping container for the telephone should you have to return it.

For your reference:

Serial Number

Date of Purchase

Name of Dealer

U.S. Electronics Consumer Center C/O Southern Bonded Warehouse 7137 Southlake Parkway Morrow, GA 30260

Customer Service Telephone Number:

U.S.A. & Canada: 1-800-210-8950

OUTSIDE THE U.S.A. & Canada Call: 1-212-242-6978

Visit Us on the Web:

www.uselectronics.info

IMPORTANT

In order to get maximum life from the HANDSET

BATTERYPACK, be sure to charge the HANDSET for 12

hours before initial use.

IMPORTANT

Placing your BASE UNIT near appliances such as

another telephone, televisions, refrigerators, radios,

or microwave ovens may cause interference.

IMPORTANT

To obtain better sound quality for locally recorded

(OGMs and Memos) message, speak directly into the

MICROPHONE from a distance of 9 to 12 inches.

IMPORTANT

The AC/DC ADAPTER must always be plugged into an

electrical outlet.

IMPORTANT

If you live in an area which gets frequent

thunderstorms, we strongly recommend plugging your

AC/DC ADAPTER into a surge protector.

IMPORTANT

In order to utilize the Caller ID feature, you must

subscribe to Caller ID service from your local

telephone service provider.

STOP

Make certain you receive the best

performance from your telephone.

Read this manual first.

Visit Us on the Web:

www.uselectronics.info

Made in China

I Tel 0410 Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
