User Maintenance Manual
EUROPA ADVANCED 4520
VENUS ADVANCED 4951
CALISTO ADVANCED 4953
Isothermal Technology Limited, Pine Grove, Southport, Merseyside, PR9 9AG, England
Telephone: +44 (0)1704 543830 Fax: +44 (0)1704 544799 Email: info@isotech.co.uk Website: www.isotech.co.uk
Europa – Venus – Calisto (Advanced) 04-11/16
Guarantee
Isothermal Technology Limited
This instrument has been manufactured to exacting standards and is guaranteed for twelve months against electrical break-down or mechanical failure caused through defective material or workmanship, provided the failure is not the result of misuse.
In the event of failure covered by this guarantee, the instrument must be returned, carriage paid, to the supplier for examination and will be replaced or repaired at our option.
FRAGILE CERAMIC AND/OR GLASS INTERFERENCE WITH OR FAILURE INVALIDATE THIS GUARANTEE
PARTS ARE NOT COVERED BY |
THIS GUARANTEE |
TO PROPERLY MAINTAIN THIS |
INSTRUMENT MAY |
The company is always willing to give technical advice and assistance where appropriate. Equally, because of the programme of continual development and improvement we reserve the right to amend or alter characteristics and design without prior notice. This publication is for information only.
This handbook contains information that has been reproduced with the kind permission of Eurotherm. Such data is subject to the following notice.
2014 Eurotherm Limited
Eurotherm, the Eurotherm logo, Chessell, nanodac, and Itools, are trademarks of Invensys plc, its subsidiaries and affiliates.
All rights are strictly reserved. No part of this document may be reproduced, modified or transmitted in any form by any means, neither may it be stored in a retrieval system other than for the purpose to act as an aid in operating the equipment to which the document relates, without the prior written permission of Invensys Eurotherm Limited.
Eurotherm Limited pursues a policy of continuous development and product improvement. The specifications in this document may therefore be changed without notice. The information in this document is given in good faith, but is intended for guidance only.
Isothermal Technology Limited
Pine Grove, Southport, Merseyside, PR9 9AG, England
Telephone: +44 (0)1704 543830 / Fax: +44 (0)1704 544799
Email: info@isotech.co.uk / Website: www.isotech.co.uk
2
Contents |
|
|
1 UNPACKING AND INITIAL INSPECTION........................................................................................ |
6 |
|
2 BEFORE YOU USE THE EQUIPMENT ................................................................................................. |
7 |
|
3 SUMMARY OF SYMBOLS................................................................................................................... |
8 |
|
4 ELECTRICITY SUPPLY....................................................................................................................... |
9 |
|
5 |
THE UNIT MUST BE EARTHED ................................................................................................ |
10 |
6 |
EMC INFORMATION ................................................................................................................. |
11 |
7 |
CAUTIONARY NOTE................................................................................................................. |
12 |
8 |
SAFETY WARNINGS ................................................................................................................ |
13 |
|
8.1 ENVIRONMENTAL CONDITIONS........................................................................................................................ |
13 |
|
8.2 DO NOT MODIFY OR DISASSEMBLE................................................................................................................. |
13 |
|
8.3 BEWARE OF ELECTRICAL CONSIDERATIONS...................................................................................................... |
13 |
|
8.4 BE CAREFUL WHERE IT IS USED ..................................................................................................................... |
13 |
|
8.5 BE CAREFUL WITH EXTREMES OF TEMPERATURE.............................................................................................. |
13 |
|
8.6 BE CAREFUL WITH INSERTS ........................................................................................................................... |
13 |
|
8.7 BE CAREFUL WITH FLUIDS ............................................................................................................................. |
14 |
9 CONSIDER THE ENVIRONMENT ..................................................................................................... |
15 |
|
10 INTRODUCTION ............................................................................................................................. |
16 |
|
|
10.1 COMPARISON CALIBRATION .......................................................................................................................... |
16 |
|
10.2 BASIC OPERATION....................................................................................................................................... |
16 |
|
10.3 SITE OR SELF-CONTAINED CALIBRATORS....................................................................................................... |
16 |
|
10.4 EXTERNAL STANDARDS + BASIC ................................................................................................................... |
17 |
|
10.5 ADVANCED CALIBRATORS.......................................................................................................................... |
17 |
11 MODE OF OPERATION ................................................................................................................... |
18 |
|
|
11.1 METAL BLOCK BATH .................................................................................................................................... |
18 |
|
11.2 STIRRED LIQUID BATH................................................................................................................................. |
18 |
|
11.3 BLACKBODY SOURCE.................................................................................................................................... |
19 |
|
11.4 SURFACE SENSOR CALIBRATION.................................................................................................................... |
19 |
|
11.5 ITS-90 FIXED POINT CALIBRATION .............................................................................................................. |
19 |
12 HOW TO MEASURE THE TRUE TEMPERATURE INSIDE THE ACCESSORIES SUPPLIED WITH |
||
THE ISOCAL-6 ...................................................................................................................................... |
20 |
|
|
12.1 THE CONTROLLER ....................................................................................................................................... |
20 |
|
12.2 THE REFERENCE THERMOMETER ................................................................................................................... |
20 |
|
12.3 THE INDUSTRIAL THERMOMETER .................................................................................................................. |
20 |
13 OPERATION OF THE ADVANCED DRY BLOCK TEMPERATURE CALIBRATOR.......................... |
21 |
|
|
13.1 A TOUR OF THE EQUIPMENT........................................................................................................................ |
21 |
|

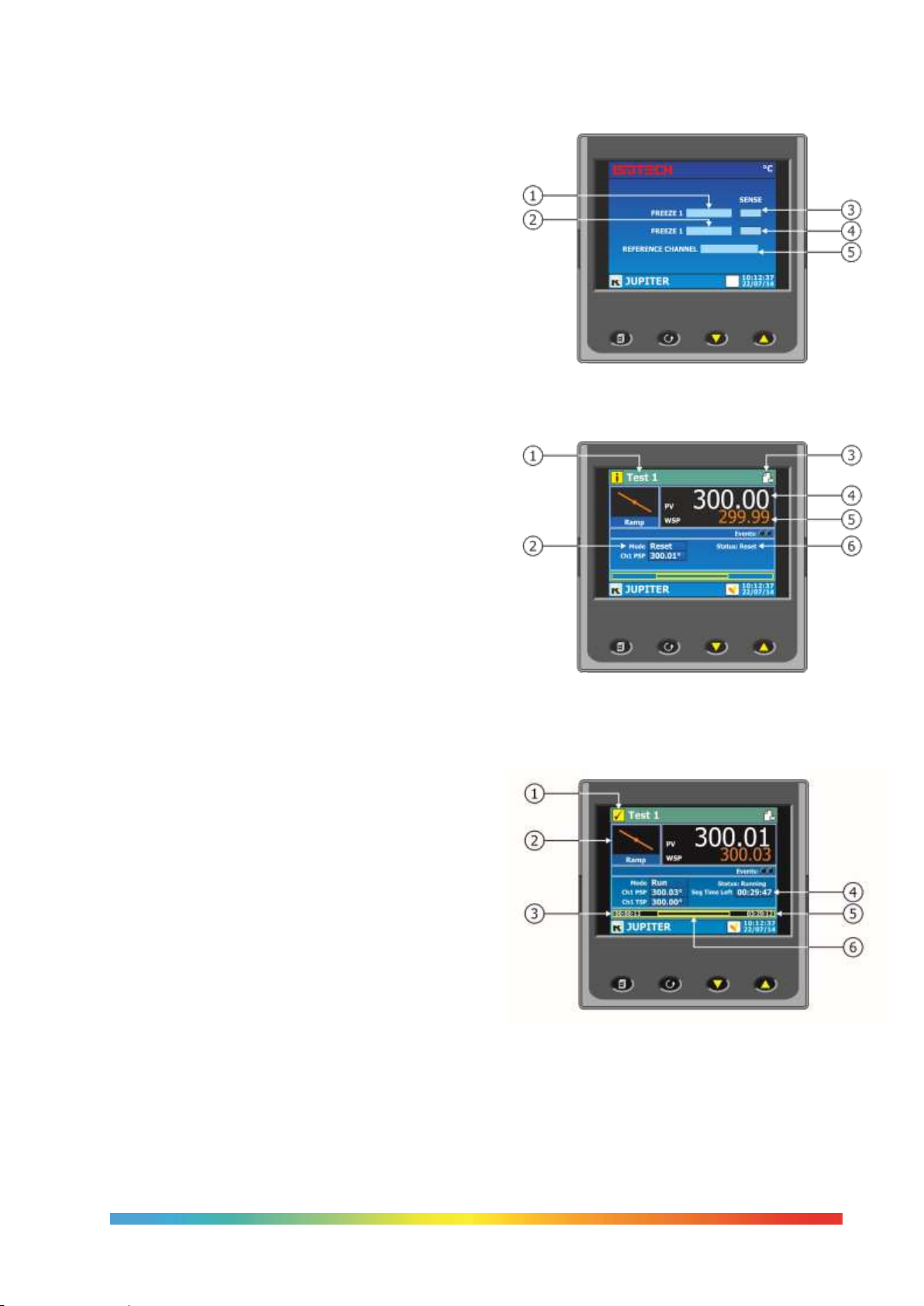

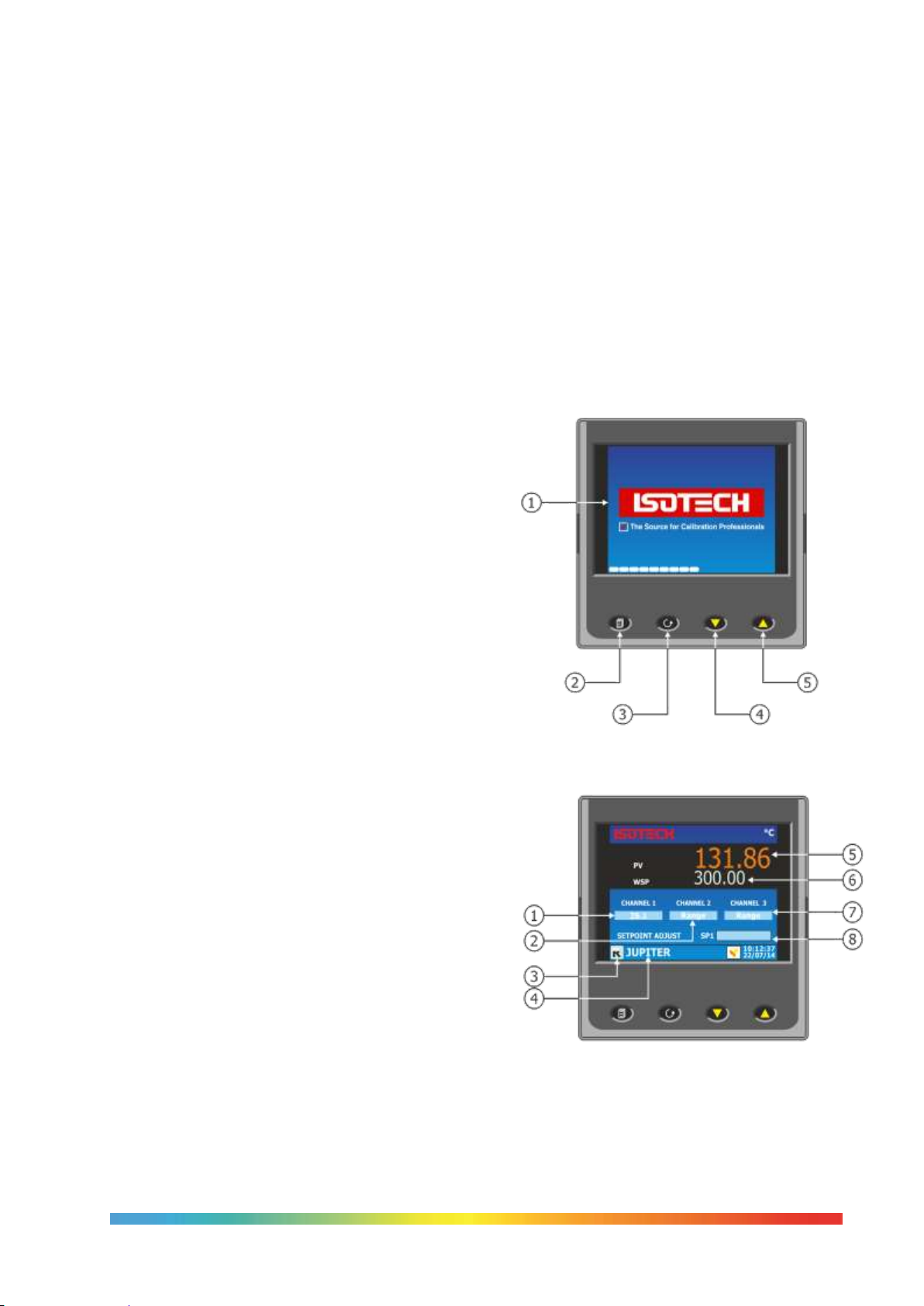

13.2 THE USER INTERFACE START UP SCREEN AND CONTROLS.......................................................................... |
22 |
|
13.3 THE ISOTECH HOMEPAGE .......................................................................................................................... |
22 |
|
13.4 THE THERMOSTAT TESTING PAGE .......................................................................................................... |
23 |
|
13.5 THE PROGRAM PAGE (NO ACTIVE PROGRAM) ............................................................................................. |
23 |
|
13.6 THE PROGRAM PAGE (ACTIVE PROGRAM RUNNING)..................................................................................... |
23 |
|
13.7 THE USER ACCESS PAGE........................................................................................................................... |
24 |
3
14 GETTING STARTED ........................................................................................................................ |
25 |
14.1 CHANGING THE SET POINT .......................................................................................................................... |
25 |
15 USING THE ADVANCED FEATURES OF THIS EQUIPMENT ........................................................ |
26 |
15.1 TO SET FROM THE FRONT PANEL ................................................................................................................. |
26 |
15.1.1 Operator Access .............................................................................................................................. |
26 |
15.1.2 Supervisor Access (in addition to the above functions) ............................................................... |
26 |
15.1.3 Engineer Access............................................................................................................................... |
26 |
15.2 HOW TO LOG IN AS THE SUPERVISOR ...................................................................................................... |
27 |
15.3 HOW TO LOG IN AS THE ENGINEER........................................................................................................... |
27 |

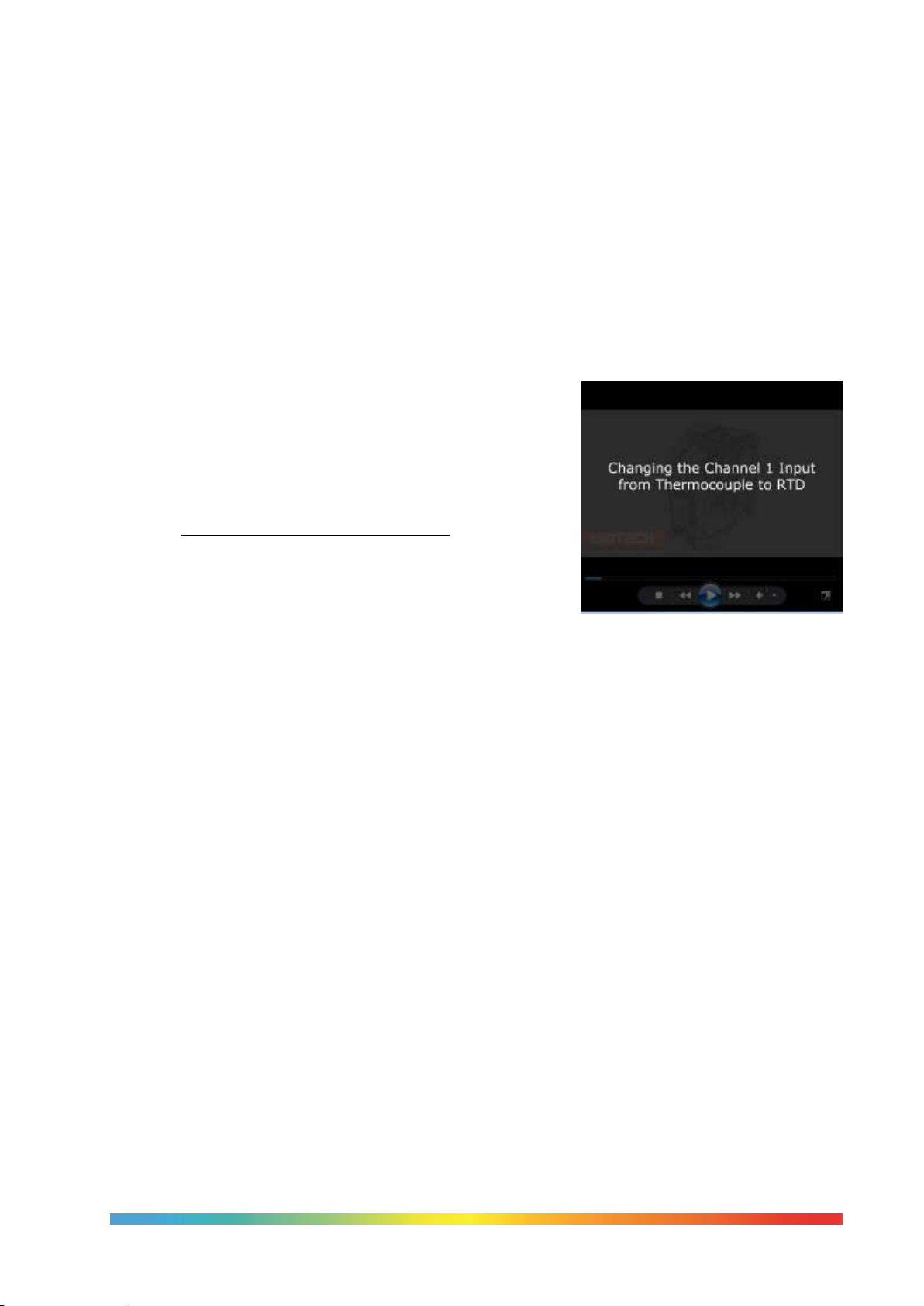

15.4 HOW TO CHANGE INPUT SENSOR ON CHANNELS 1, 2 AND 3 .......................................................................... |
28 |
15.5 HOW TO GLOBALLY CHANGE FROM °C TO °F OR KELVIN (FIRMWARE VERSION A5.40 BEFORE NOVEMBER 2016) .29 |
|
15.6 HOW TO GLOBALLY CHANGE FROM °C TO °F OR KELVIN (FIRMWARE VERSION A5.43 AFTER NOVEMBER 2016) ... |
29 |
15.7 THERMOSTAT TESTING USING THE ADVANCED UNIT..................................................................................... |
29 |
15.8 ENABLING THE AUTOTUNE FEATURE .......................................................................................................... |
30 |
15.9 USING THE SETPOINT TRIM FEATURE FOR OFFSET ELIMINATION ................................................................. |
30 |
15.10 HOW TO CHANGE THE DATE AND TIME OR THE LANGUAGE OF THE ADVANCED EQUIPMENT ............................ |
31 |
15.11 THERMOMETER INPUT CHANNELS................................................................................................................ |
31 |
15.12 PROCESS TO APPLY A USER CALIBRATION TO THE CONTROLLER USING A PRT CONNECTED TO CHANNEL 1 ......... |
32 |
15.13 THE NETWORK INTERFACE .................................................................................................................. |
33 |
15.14 TO ACCESS THE NETWORK INTERFACE .................................................................................................. |
33 |

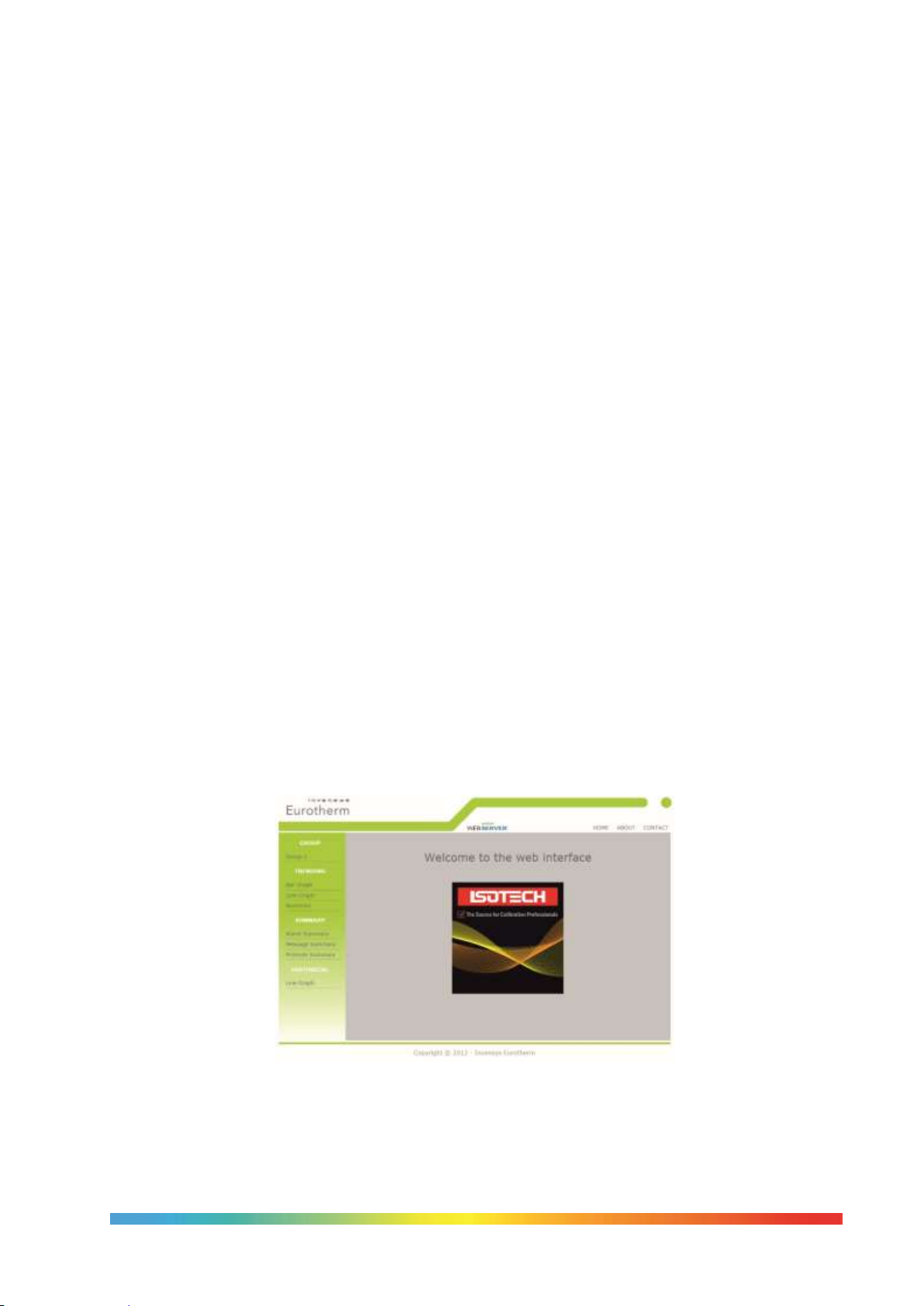

15.15 THE WEB BROWSER .............................................................................................................................. |
33 |
15.16 DATA LOGGING ......................................................................................................................................... |
34 |
15.17 FTP SERVER ARCHIVING............................................................................................................................ |
35 |
15.18 PROGRAMMER FUNCTION ........................................................................................................................... |
35 |
15.19 PROGRAM DETAILS.................................................................................................................................... |
36 |
15.19.1 Operation ....................................................................................................................................... |
36 |
15.19.2 Status ............................................................................................................................................. |
36 |
15.19.3 Program ......................................................................................................................................... |
36 |
15.19.4 Holdback Style ............................................................................................................................... |
36 |
15.19.5 Program ......................................................................................................................................... |
36 |
15.19.6 Ch1 Holdback................................................................................................................................. |
37 |
15.19.7 Ch1 Holdback value....................................................................................................................... |
37 |
15.19.8 Ch2 Holdback................................................................................................................................. |
37 |
15.19.9 Ch2 Holdback value....................................................................................................................... |
37 |
15.19.10 Ramp Style................................................................................................................................... |
37 |
15.19.11 Time ............................................................................................................................................. |
37 |
15.19.12 Ch1 Ramp Units........................................................................................................................... |
37 |
15.19.13 Ch2 Ramp Units........................................................................................................................... |
37 |

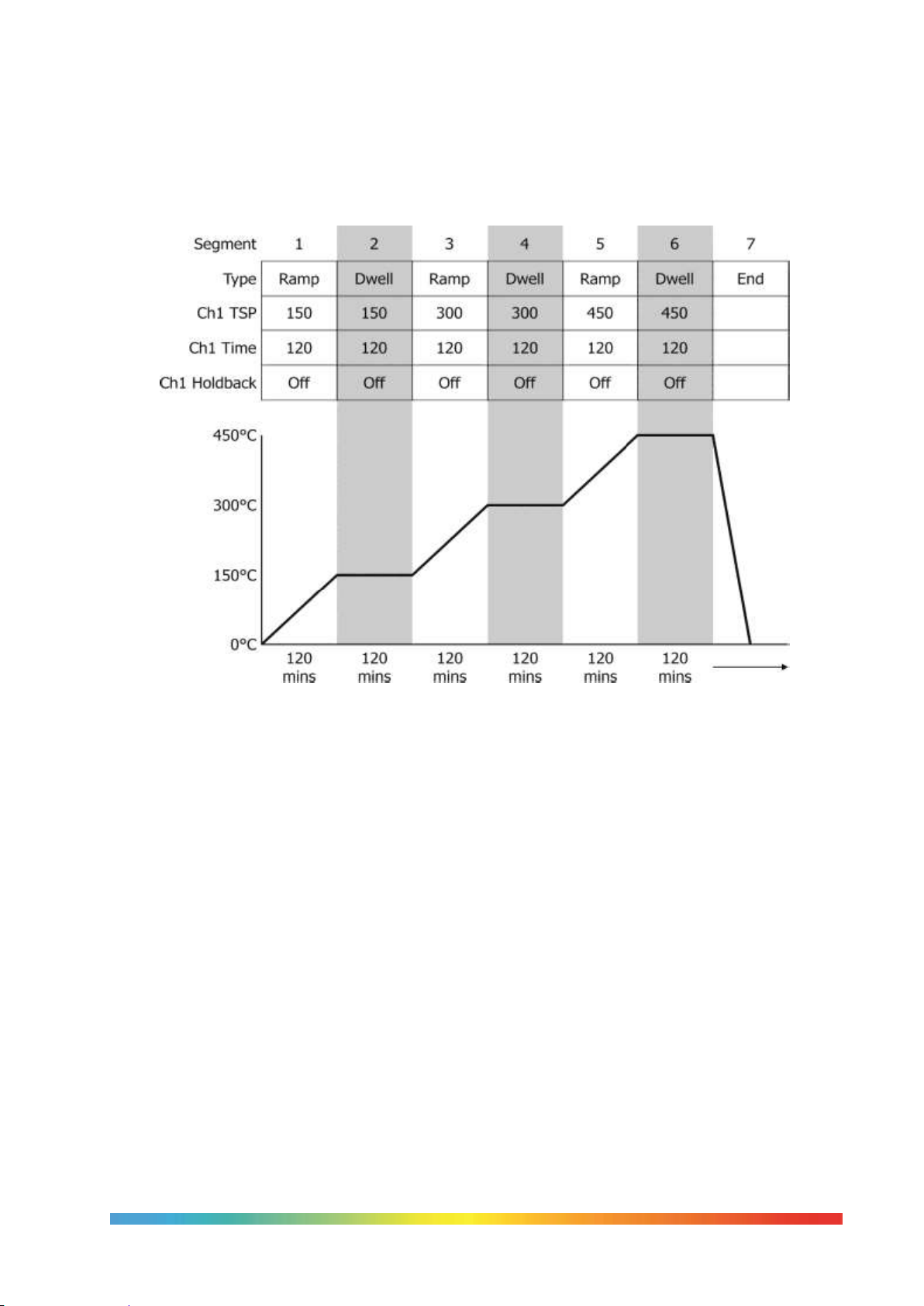

15.20 HOW TO CREATE A SIMPLE PROGRAM USING THE CONTROLLER INTERFACE ................................................... |
38 |
15.21 TO ENABLE/RUN THIS PROGRAM............................................................................................................. |
39 |
15.22 TO EDIT AN EXISTING PROGRAM .............................................................................................................. |
39 |

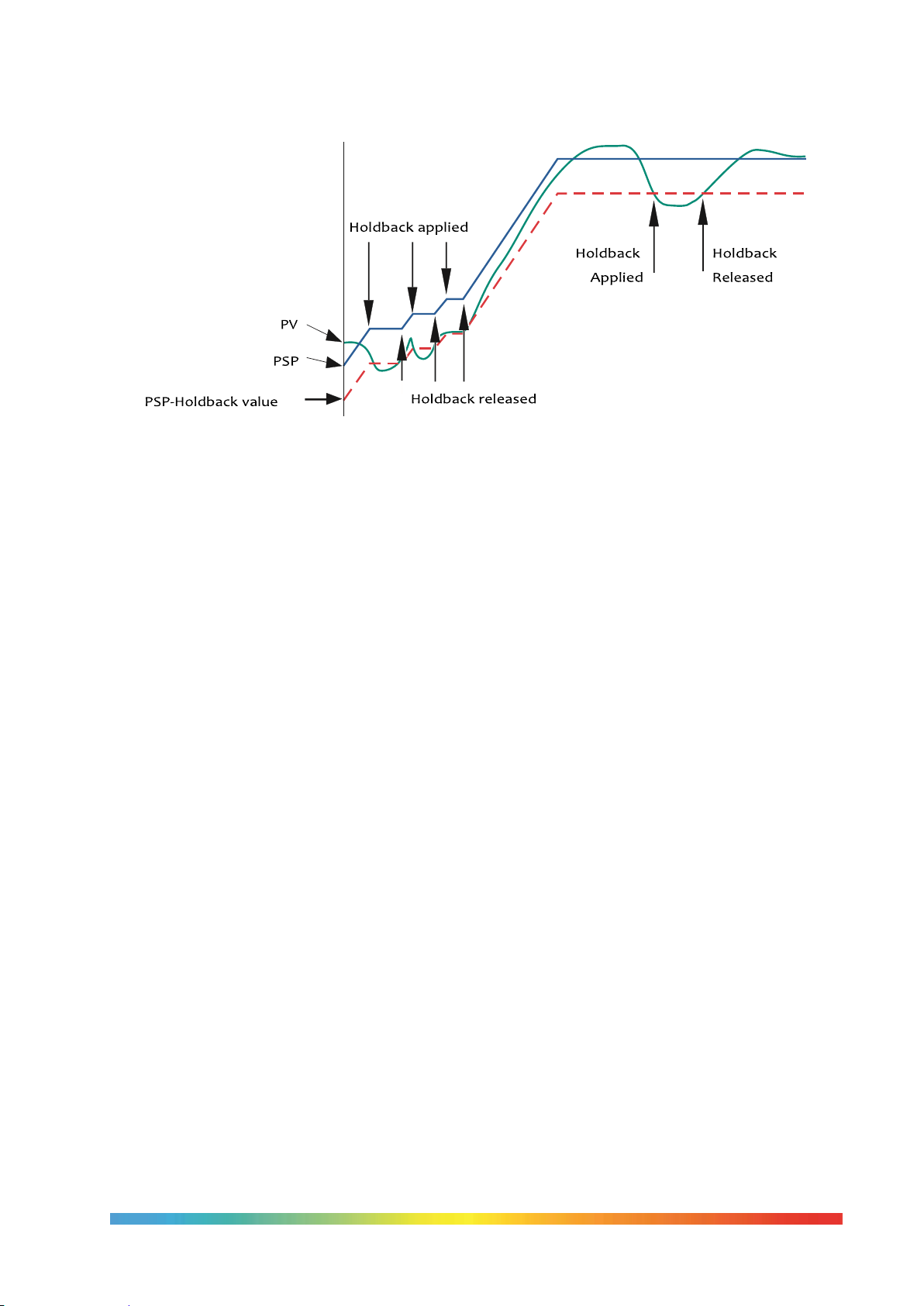

15.23 USING THE HOLDBACK FEATURE .............................................................................................................. |
39 |
16 CONNECTING TEMPERATURE SENSORS ..................................................................................... |
41 |

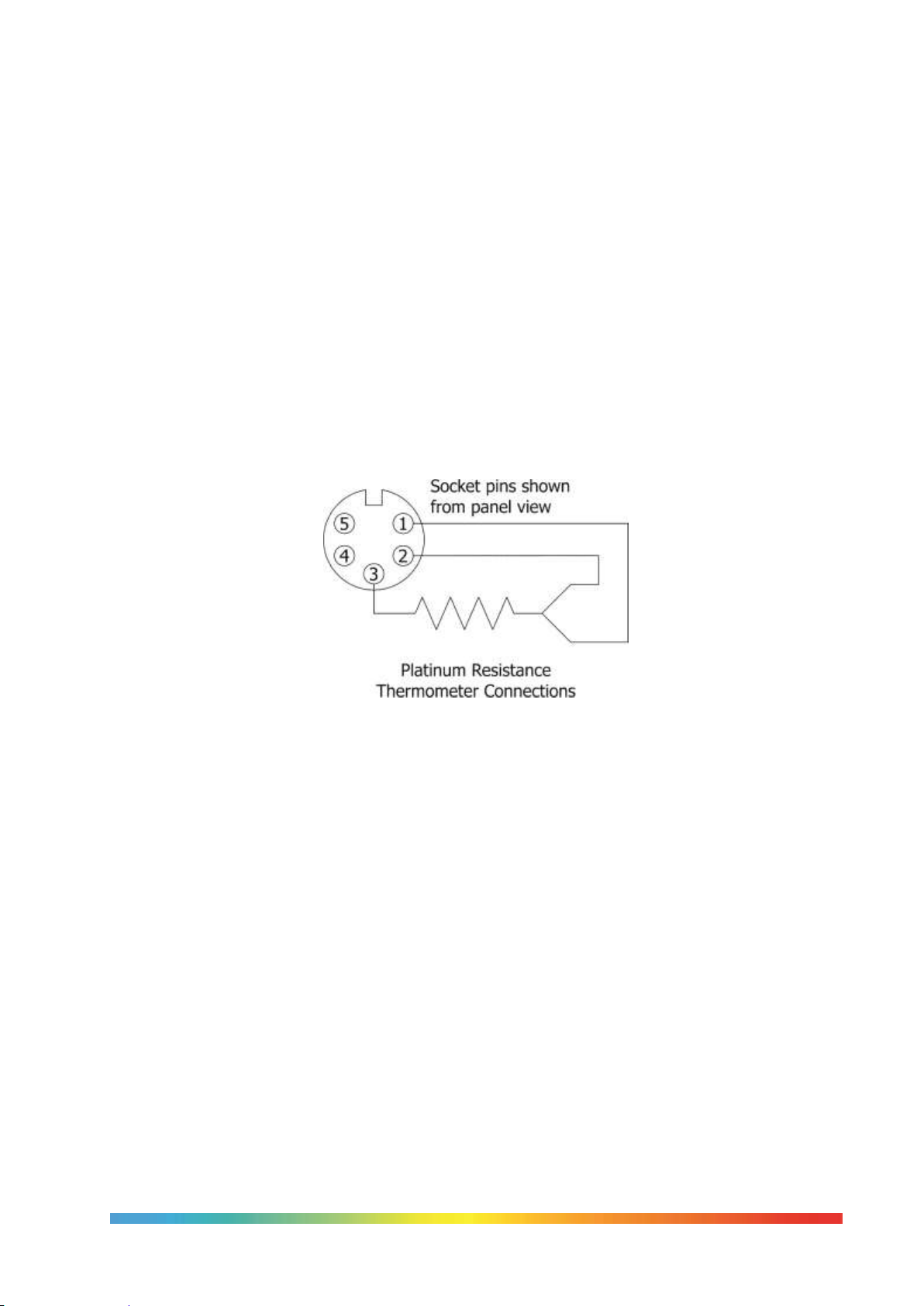

16.1 PLATINUM RESISTANCE THERMOMETERS, PRTS ............................................................................................. |
41 |
16.2 INPUT CONNECTIONS................................................................................................................................... |
41 |
16.3 CONNECTING THERMOCOUPLES .................................................................................................................... |
41 |

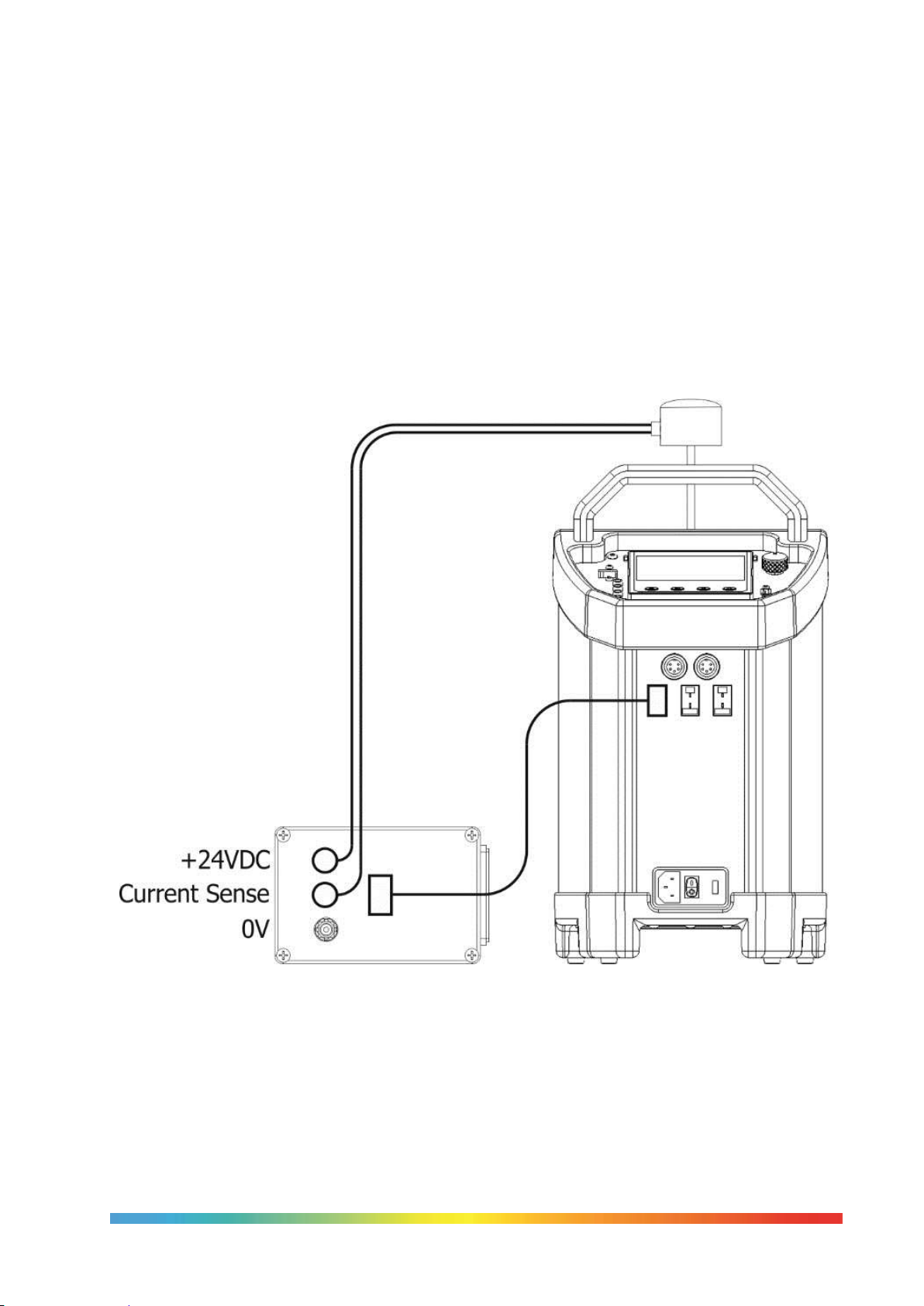

16.4 CONNECTING 4 – 20MA CURRENT TRANSMITTERS ......................................................................................... |
42 |
16.4.1 Using the Current Loop Interface (935-06-161) ........................................................................... |
42 |
16.4.2 Altering Channel 1 setting to read in mA ...................................................................................... |
42 |
16.4.3 Altering Channel 1 setting to read in °C ........................................................................................ |
43 |
17 SPECIFICATION ............................................................................................................................. |
44 |
300 Watts .................................................................................................................................................... |
44 |
|
4 |
115Vac or 230 ............................................................................................................................................. |
44 |
14kg ............................................................................................................................................................. |
44 |
18 CONNECTING TO A PC................................................................................................................... |
45 |

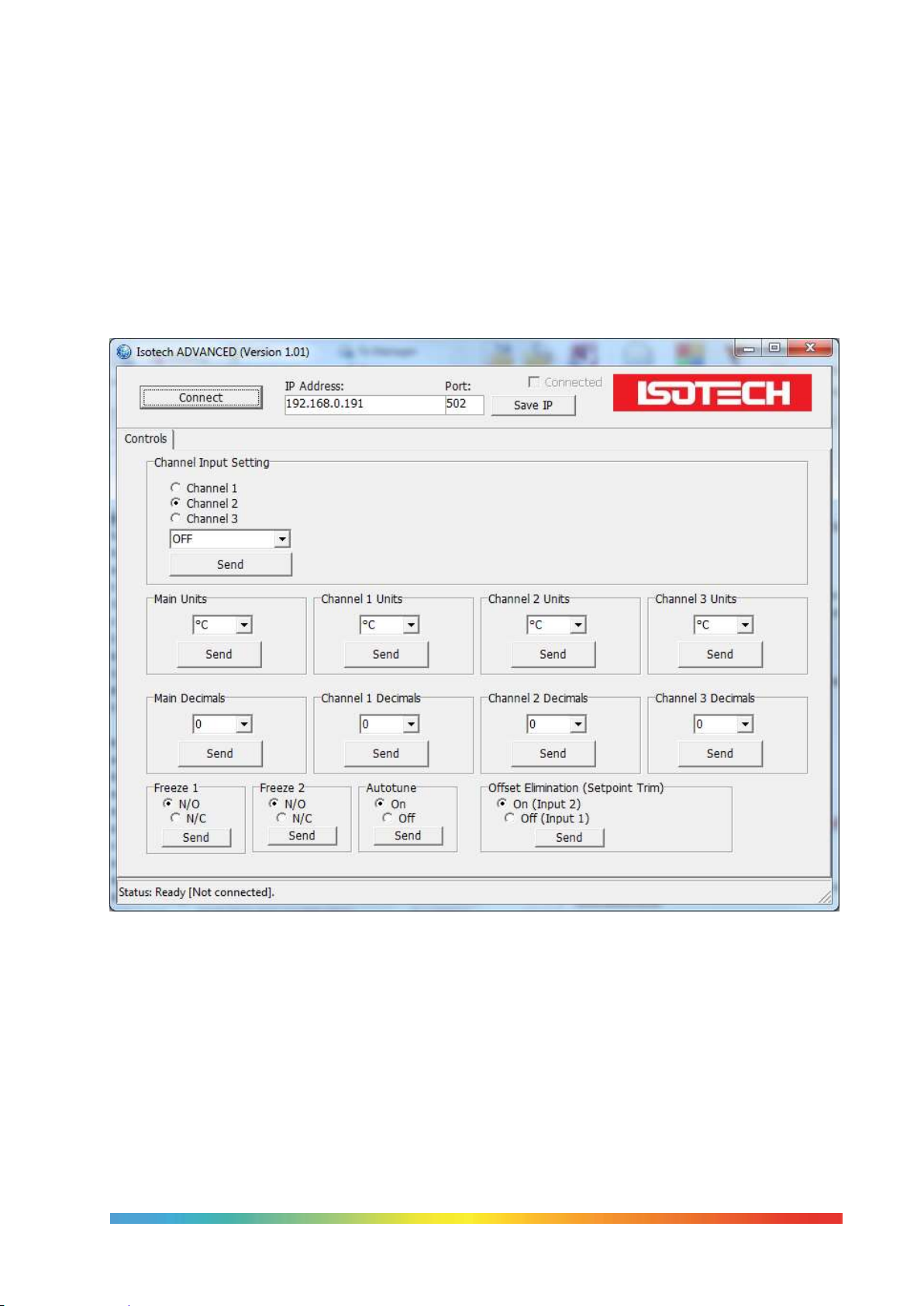

18.1 ISOTECH CONFIG UTILITY ............................................................................................................................ |
45 |
18.2 ISOTECH I-CAL EASY.................................................................................................................................. |
46 |
18.3 PROGRAM EDITOR ....................................................................................................................................... |
46 |
18.4 REVIEW...................................................................................................................................................... |
47 |
19 ACCESSORIES................................................................................................................................. |
48 |
5
1 Unpacking And Initial Inspection
Our Packing Department uses custom designed packaging to send out your unit, but as accidents can still happen in transit, you are advised, after unpacking the unit, to inspect it for any sign of shipping damage and confirm that your delivery is in accordance with the packing check list. If you find any damage or that part of the delivery is missing notify us or our agent and the carrier immediately. If the unit is damaged you should keep the packing for possible insurance assessment.
6
2 Before You Use The Equipment
Please read the handbook and familiarise yourself with all warnings, hazards and safety information. Regularly inspect the equipment, accessories and electrical leads. Do not use if there is any sign of damage. Keep the equipment clean, only use a damp cloth. Do not use solvents or allows liquids to enter the case.
7
3 Summary of Symbols
|
ISO3864 – Caution, read the entire manual before use |
|
|
|
IEC 417 – Caution, hot surface (risk of burn) |
|
|
O |
Off |
|
|
l |
On |
|
|
|
Waste Electrical and Electronic Equipment (WEEE directive) symbol |
|
|
|
Complies with European regulations (CE mark) |
|
|
|
USB symbol |
|
|
|
Ethernet RJ45 symbol |
|
|
|
Risk of Electrical Shock |
|
|
8
4 Electricity Supply
Before connecting to the electricity supply please familiarise yourself with the parts of the manual relevant to your model.
Your unit's supply voltage requirement is specified on a label on the instrument along with the serial number. Only connect to a power supply matching the requirement stated on the equipment.
9
5
The Unit Must Be Earthed
This equipment is a Class 1 Appliance and must be earthed (grounded). Use the supplied power cord and plug it directly into an AC outlet with a protective earth.
If using an alternative cord ensure it is of adequate rating.
If fitting a plug to the cable we have supplied the cable is colour coded as follows:
Colour |
Function |
Green/yellow |
Earth (Ground) |
Brown |
Live (line) |
Blue |
Neutral |
Do not use the equipment if it is not correctly earthed. If in doubt consult Isothermal Technology Ltd or a qualified electrician.
10
6
EMC Information
This product meets the requirements of the European Directive on Electromagnetic Compatibility (EMC) 89/336/EEC as amended by EC Directive 92/31/EEC and the European Low Voltage Directive 73/25/EEC, amended by 93/68/EEC. To ensure emission compliance please ensure that connecting leads are fully screened.
The product meets the susceptibility requirements of EN 50082-1, criterion B.
11
7
Cautionary Note
Operators of this equipment should be adequately trained in the handling of hot and cold items. It is important the user has been trained about the selection and use of liquids over a wide temperature range. It is expected that personnel using this equipment will be competent with the management of apparatus which may be powered or under extremes of temperature and are able to appreciate the hazards which may be associated with and the precautions to be taken with, such equipment.
12
8
Safety Warnings
8.1 Environmental Conditions
Operating temperature: 5-40°C (41-122°F)
Relative Humidity: 5-80% - Non-condensing
8.2 Do Not Modify Or Disassemble
Do not use the apparatus for jobs other than those for which it was designed, i.e. the calibration of thermometers
There are no user serviceable parts inside. Do not dismantle or modify the apparatus. For repair information contact Isothermal Technology Ltd
For equipment with fans, the fan should kept free from dust build up; a soft brush or vacuum cleaner may be used on the external grill
8.3 Beware Of Electrical Considerations
The equipment is for installation category II (transient voltages) and pollution degree II in accordance with IEC 664 at altitudes to 2000 metres
Sensor Input Connection must never exceed 30V with reference to ground
Thermostat test inputs should be voltage free: isolate from any voltage source during test
8.4 Be Careful Where It Is Used
The equipment is not for use in hazardous areas or in an environment close to flammable materials or gases
The equipment must be used on a flat level surface, with adequate space around it for air flow and avoid blocking ventilation slots
Ensure free space above the unit to avoid risk of burn or fire
The equipment should only be used indoors
Site in a way that allows access to the power switch, and to allow the cable to be disconnected
Avoid excessive heat, humidity, dust and vibration ensuring it will not be subjected to dripping or splashing liquids
8.5 Be Careful With Extremes Of Temperature
In normal use the calibration volume, inserts and probes will become very hot and present a burn hazard
Do not remove inserts, probes or handle the equipment when it is hot or cold.
Allow the equipment and accessories to reach a temperature between ambient and 70°C before switching off or storing the equipment in its case
Do not use the equipment outside its recommended temperature range
Operating the equipment at extremes of temperature for extended periods may call for early replacement of the heating assembly
Wear appropriate protective clothing
8.6 Be Careful With Inserts
Only use inserts supplied with, or ordered specifically for, this model
Do not handle inserts while they are very hot or cold
Inserts for low temperature models may melt and cause a fire if used in high temperature models
Only use Isotech inserts which are specially treated to avoid them from becoming stuck in the calibration volume
Do not use powders, liquids or compounds in the insert; this may lead to the insert or probes becoming stuck
13
8.7 Be Careful With Fluids
Isocal-6 models can be used as liquid baths; the Hyperion and Drago models can have the liquid directly in the block or the liquid container. For all other models do not add liquid directly to the block; you must place the liquid in the appropriate Isotech liquid container kit.
To avoid risk of toxic fumes or ignition only use the appropriate fluid and be careful not to exceed the stated temperature range
Do not handle hot fluids
Wear appropriate eye protection and be careful to avoid spills, overspills or splashing
Do not overfill - liquids will expand on heating, allow room for expansion
Be careful to select an appropriate liquid – viscous liquids will offer poor thermal performance.
Never mix fluids and keep containers clean and dry before introducing a new fluid
Do not use oils below the dew point. Water introduced into oil can present a hazard at higher temperatures due to steam generation
Ensure adequate ventilation of any liquid fumes
14
9 Consider The Environment
The equipment should be recycled or disposed of in a proper way; following the Waste Electrical and Electronic Equipment (WEEE) directive
15
Loading...
