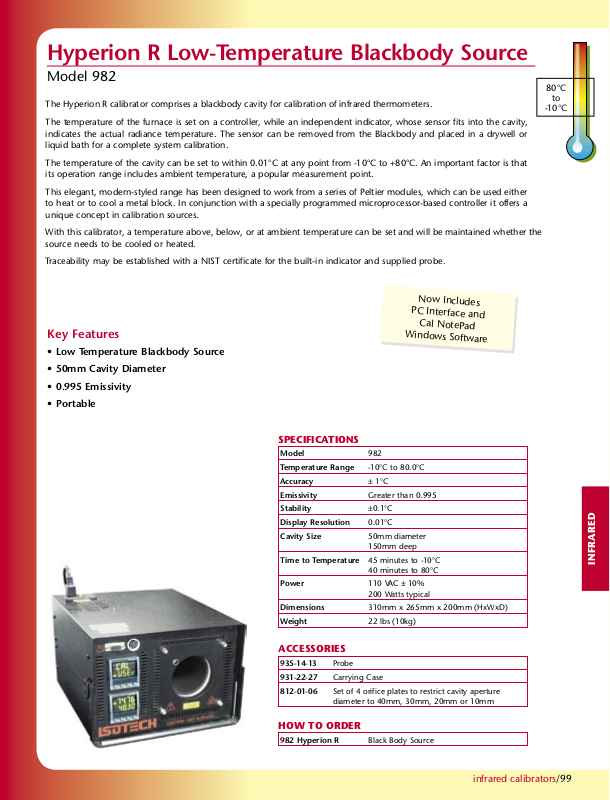

Isotech 982 Data sheet

infrared calibrators/99

Hyperion R Low-Temperature Blackbody Source

Model 982

The Hyperion R calibrator comprises a blackbody cavity for calibration of infrared thermometers.

The temperature of the furnace is set on a controller, while an independent indicator, whose sensor fits into the cavity,
indicates the actual radiance temperature. The sensor can be removed from the Blackbody and placed in a drywell or
liquid bath for a complete system calibration.

The temperature of the cavity can be set to within 0.01°C at any point from -10°C to +80°C. An important factor is that
its operation range includes ambient temperature, a popular measurement point.

This elegant, modern-styled range has been designed to work from a series of Peltier modules, which can be used either
to heat or to cool a metal block. In conjunction with a specially programmed microprocessor-based controller it offers a
unique concept in calibration sources.

With this calibrator, a temperature above, below, or at ambient temperature can be set and will be maintained whether the
source needs to be cooled or heated.

Traceability may be established with a NIST certificate for the built-in indicator and supplied probe.

Key Features

• Low Temperature Blackbody Source

• 50mm Cavity Diameter

Now Includes

PC Interface and

Cal NotePad

Windows Software

80°C

to

-10°C

• 0.995 Emissivity

• Portable

SPECIFICATIONS

Model

982

Temperature Range

Accuracy

Emissivity

Stability

Display Resolution

Cavity Size

Time to Temperature

Power

Dimensions

Weight

22 lbs (10kg)

-10°C to 80.0°C

± 1°C

Greater than 0.995

±0.1°C

0.01°C

50mm diameter
150mm deep

45 minutes to -10°C
40 minutes to 80°C

110 VAC ± 10%
200 Watts typical

310mm x 265mm x 200mm (HxWxD)

ACCESSORIES

935-14-13 Probe

931-22-27 Carrying Case

812-01-06 Set of 4 orifice plates to restrict cavity aperture

diameter to 40mm, 30mm, 20mm or 10mm

INFRARED

HOW TO ORDER

982 Hyperion R Black Body Source
