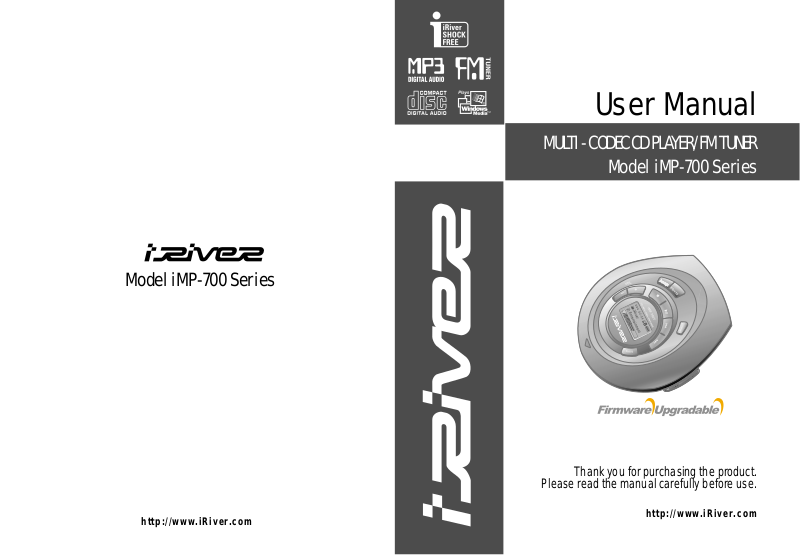

IRiver iMP-700 User Manual

Model iMP-350

Model iMP-700 Series

http://www.iRiver.com

User Manual

MULTI-CODECCDPLAYER/FMTUNER

Model iMP-700 Series

Thank you for purchasing the product.

Please read the manual carefully before use.

http://www.iRiver.com

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE, RECEIVED,

INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

NOTE : This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures :

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

NOTE : THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY

RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

Multi-Codec CD Player

Supports MP3, WMA and ASF format as well as conventional Audio CD.

Firmware Upgrade

Provides the latest updated features via firmware upgrade.

Built-in Recharging with Over Charge Protection Circuit

Over Charge protection circuit prevents over powering the batteries.

Graphic LCD supporting Multiple Languages

iMP-700 Series come with graphic LCD which can support multiple languages, including: English, French, Spanish, German, Italian, other alphabet-oriented fonts, Korean, Japanese (Katakana, Hiragana, Kanji), Chinese (Traditional, Simplified) and others. A total of 39 languages are supported.

Strong Anti-Shock protection

160 Sec for standard Audio CD/480Sec for MP3 (44.1KHz, 128kbps standard)/960 Sec for WMA(44.1KHz, 64kbps)

iRiver ShockFree Anti-Shock System+ESP function

Using exclusive iRiver anti-skip technology, the iMP-700 Series provide maximum skip protection by buffering your music before playback.

Enhanced Battery Life

With MP3 files, the iMP-700 Series can play for up to 33 hours.

FM Tuner

Auto scanning and frequency memory function make it easy for you to enjoy listening to the FM Radio. (FM Tuner is included on the iMP-700T only.)

Recognize Discs in Packet Write or Multi session Format WinAmp Playlist support.

iMP-700 Series support Winamp Playlist as long as it has the filename extension .m3u (maximum 20 lists)

Supports 9 Equalizer Patterns. Graphic User Interface Menu Support

URL : http://www.iRiver.com Provides information on our company, products, and email addresses

for customer support. Unique feature of "Firmware (system software) Upgrade" is available for

download on our site. The Firmware Upgrade allows for premium disc readability and provides new features as well as enhancements to current features. New CODECs that will be introduced in the future may be supported via Firmware Upgrade.

Register your iRiver product online so that our Customer Service is enabled to provide support as efficiently as possible.

iRiver Limited does not assume any responsibility for errors or omissions in this document or make any commitment to update the information contained herein. iRiver is a registered trademark of iRiver Limited in the Republic of Korea and / or other countries and is used under license. Microsoft Windows Media and the windows Logo are trademarks or registered trademarks of Microsoft Corporation in the United States and / or other countries. WinAmp and WinAmp logo is registered trademark of NullSoft Inc. All other brand and product names are trademarks of their respective companies or organization. All other product names may be trademarks of the companies with which they are associated.

4 5

FRONT VIEW

INSIDE VIEW

Getting started

FCC Certification......................................................................

Unique Features.......................................................................

Internet......................................................................................

Contents....................................................................................

1. Locating the Controls

Front View, Inside View...............................................................

Side View, LCD Window.............................................................

Remote Control, Basic Operation Function.................................

2. Basic Operation

Listening to Music.......................................................................

Operating the FM Tuner...............................................................

("FM Tuner is included on the iMP-700T only.)

3. Useful Features

Navigation Mode.......................................................................

Playback Mode/ iRiver Shock Free...........................................

Program Mode............................................................................

+10/EQ Mode...............................................................................

BOOKMARK...............................................................................

MENU..........................................................................................

Using the Password.....................................................................

Using WinAmp Playlist................................................................

4. Additional Information

About Power Supply...................................................................

FAQ..............................................................................................

Trouble Shooting.........................................................................

Precautions.................................................................................

References...................................................................................

Accessories..................................................................................

Specifications...............................................................................

Regulatory Information.................................................................

Safety Warning.............................................................................

OPEN

(NEXT)

VOLUME +

NAVI/MENU/ PRESET

(STOP)

(BACK)

VOLUME -

(PLAY/PAUSE)

MODE/CD FM/ STEREO

PROGRAM/A-B

MEMORY

EQ/+10

BATTERY COMPARTMENT

CD DOOR

1 2 3 4

5 6 7~8

9~10 11~12

13 14 15~16 17 18 19~29 30~31 32~33

34~36 37~42 43~44 45~46 47 48 49 50 51

SIDE VIEW

LCD Window

HOLD

REMOTE CONTROL/

EARPHONE

TRACK NUMBER

BIT RATE

PLAY TIME

PLAYBACK MODE

BATTERY INDICATOR

VOLUME/ EQ/ LEVEL METER

FOLDER NAME

SAMPLE RATE

PROGRAM / PLAYLIST

FILE

FORMAT

ARTIST AND SONG TITLE

HOLD

The remote control operates all functions of the player using 1 switch

and 5 buttons.

PLAY / PAUSE / MUTE

Remote Control

(NEXT)

(BACK)

VOLUME -

VOLUME +

DC IN 4.5V : Connect the Adapter to charge rechargeable batteries or

using external power. Insert them by matching the + and - polarity.

LINE OUT : Usetorecordto

another audio device or to listen through your home stereo.

Slide the open button on the side of the player and insert the disc with the disc label facing out. Close the lid.

Connect Remote Control and Earphones.

Slide HOLD switch on the remote or the player to the Off position.

Press the PLAY/PAUSE button to play.

Push to select the previous track, broadcasting or frequency Push to select the next track, broadcasting or frequency

Push VOL - to decrease volume Push VOL + to increase volume

Basic Operation Function

To power on, play CD or pause To power off

Set the HOLD switch to OFF to use the buttons on the remote. Set the HOLD switch to ON to disable the buttons on the

remote control.

Play/Pause

STOP

Play Next Track

Play Previous Track

ASF WMA Conventional MP3

Audio CD

IRM

File Format displayed as below

Selecting Frequency (FM 87.5MHz ~ 108MHz)

FM tuner reception will be affected in weak transmission areas. When player does not have any preset channels, EMPTY will be displayed at preset mode then fade out.

To change frequency, push and release or .

Auto Scan function : To Auto Scan for a station, release the PRESET mode by pushing the NAVI button. Findthe station by scrolling

PRESET Mode : To select memorized channel, push the Navi button and find the memorized channel by scrolling

or .

(ex : 87.5 87.6)

Example)

IRM (iRiver Rights Management)

iRiver Rights Management is a digital music format. Please visit our web site for details about this music format.

Play Next Folder (FF Skip)

Play Previous Folder (RW Skip)

Go Forward Quickly

Go Backward Quickly

Power Off

While playing a CD, you can switch back and forth between CD and FM mode with a long click of the Mode button.

To select Stereo/Mono

The STEREO indicator is displayed during stereo FM reception.

Power Off

To mute To release the muting

FM Tuner is included on the iMP-700T only.

The sound output may be delayed while switching from CD to FM mode.

NOTE

Navigation mode is useful for quickly searching your files by using file name. (Refer to page 33 for reservation)

Playing

Press the or to select a track to play.

: Press the or to select a track to play.

The song will be played when you press the play button.

: To move to the upper folder.

KHZ

128

KBPS

L R

PREV NEXT

Press the NAVI button to display the list of audio tracks. The current track will also be displayed.

Select Folder or Move to the upper folder.

Press the

orIto select a folder to play. And press the NAVI or

button to select the folder.

: To enter the folder

PREV NEXT

NAVIGATION

Memory Function (Save channels)

Push the Navi button to release PRESET mode, select the station by pressing or .

Memory delete function (Delete saved channels)

Select channel to be deleted by pressing the NAVI and

button at PRESET mode. Press and hold the PRGM button.

The next channel will appear when channel delete is completed. Press and hold the PRGM button if you want to delete the next channel also.

Press or and select the desired channel

Select CH02

Save complete

again

MEMORY

will exit the memory function without saving.

Up to 20 channels can be memorized.

Auto memory function : (To save the Channels automatically) push the Navi button to release PRESET, push and hold the PRGM button. CH01 to CH20 will be saved automatically with the first 20 stations the player finds.

FM Tuner is included on the iMP-700T only.

When navigating, the operation of the button in the remote control is same as the operation of the button in the player, so it cannot move to the upper folder.

Various ways of music playback are available. Please refer to the MODE (page 27) for user-defined configurations.

When MODE button is pressed, icon in the playback mode indicator is changed.

REPEAT

Play a single track repeatedly. Play all tracks in the folder and stop. Play all tracks in the folder repeatedly. Play all tracks in the disc repeatedly.

Randomly play all tracks in the disc repeatedly and stop. Play a single track repeatedly. Press to skip to an new random track. Randomly play all tracks in the folder repeatedly and then stop. Randomly play all tracks in the folder repeatedly. Randomly play all tracks in the disc repeatedly.

INTRO: Play beginning 10 seconds of each track in sequential order. INTRO HIGHLIGHT: Plays 10 seconds from 1 minute into each track

in sequential order. You can set this function in the MENU function.

iRiver Shock Free

This is the function to prevent skipping when playing a Standard Audio CD. Press and hold the PRGM button to activate the iRiver Shock Free Mode. In case the CD is dirty or defective, iRiver Shock Free may skip more than normal operation. In this case, use the player after cancelling the iRiver Shock Free. If STUDY mode is selected, holding the PRGM button activates the BOOKMARK function, see page 18).

Pressing the Mode button for a few seconds while playing will set the Enhanced Anti-shock on and off.

SHUFFLE

INTRO

PROGRAM MODE

USE PROGRAM MODE TO SELECT SONGS IN A PARTICULAR

ORDER (I.E. PROGRAM YOUR FAVORITE SONGS).

Select Program/Playlist:

Playback play lists if the disc contains WinAmp play list *.m3u files. (Refer to page 32~33)

While in Stop Mode

Change to Program mode

ProgrammodeisactivatedwhileinStopMode. Repeat A-B is activated while in Play Mode.

After selecting the desired track using , , +10 button (or NAVI button),

To add all the songs in a certain folder, use the NAVI button and select the folder using

or button and then press PRGM button. (Subfolders can not be added.)

TO REMOVE A PROGRAMMED SONG

Select the song to be deleted using the PRGM button and press the Mode button. The program list will be updated automatically.

The order of

programmed track

Activating Program mode

The order of track

in the CD
