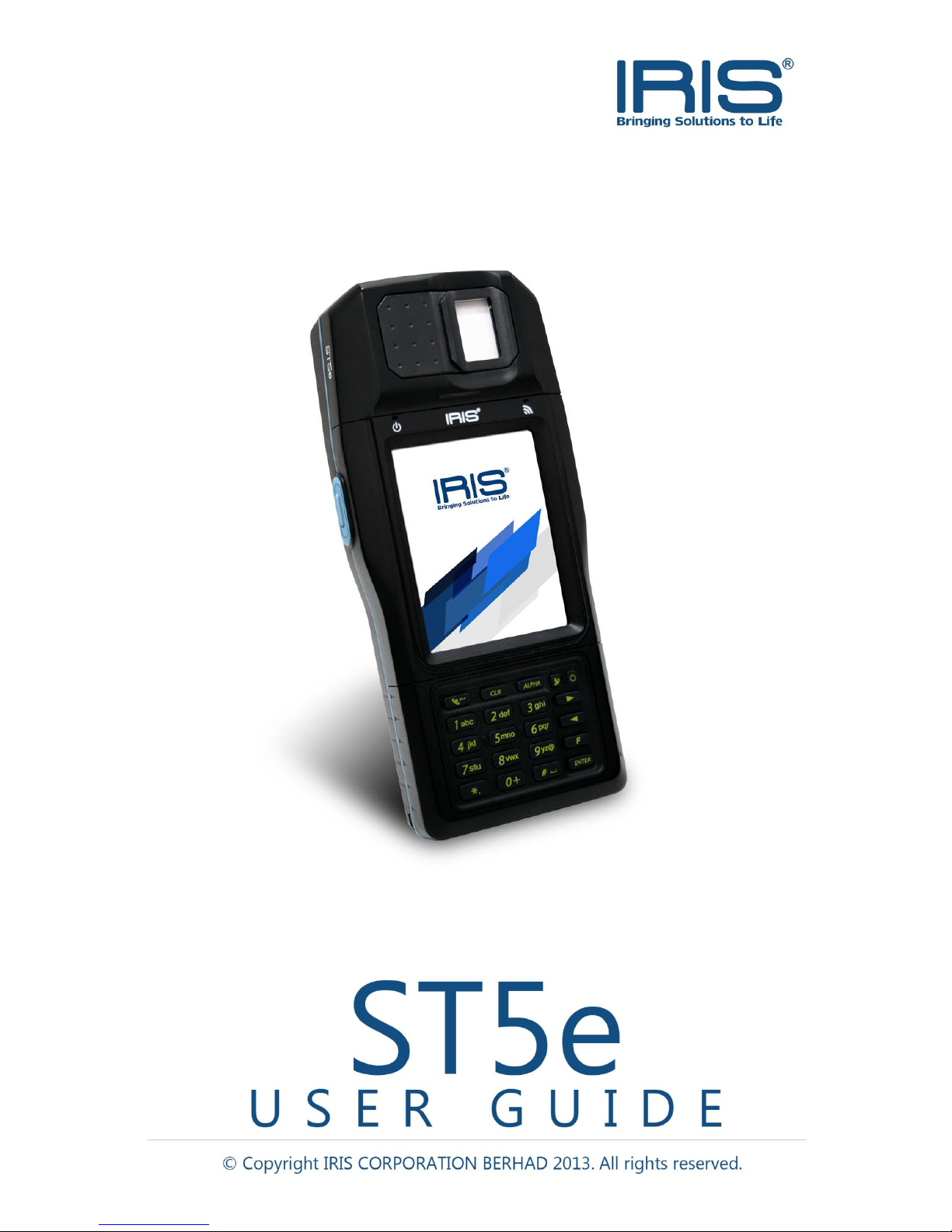

IRIS ST5e User Manual

0

ST5e – Version 3.0

1

Table of Contents

KNOWING YOUR DEVICE 3

DEVICE SPECIFICATION 5

BASIC INSTALLATIONS 6

THE BATTERY 6
GUIDELINE FOR INSTALLING SIM/SAM CARD 6
GUIDELINE FOR INSTALLING MICRO SD CARD 7

FIRST TIME USE 8

SCREEN CALIBRATION 8
TIME, DATE AND TIME ZONE CONFIGURATION 8

TOUCH SCREEN OPERATIONS 9

USING THE STYLUS 9

START MENU 10

SHELL TASKBAR 11

SOFTWARE INPUT PANEL (SIP) 12

KEYPAD 13

CUSTOMIZING ST5E 14

LCD BRIGHTNESS CONTROL 15
KEYPAD LIGHT CONTROL 17
POWER 18
DISPLAY 19
MOUSE 20
KEYBOARD 20
AUDIO VOLUME 21
STYLUS PROPERTIES 21

2

NETWORK & DIAL – UP CONNECTION 22
REGIONAL AND LANGUAGE SETTING 22
OWNER PROPERTIES 23
PC CONNECTION 23
STORAGE PROPERTIES 24
SYSTEM PROPERTIES 25
PASSWORD PROPERTIES 25
SCREEN ROTATION 26
TASKBAR & SECURE SHELL 26
INPUT SELECTION PANEL 27
DATE & TIME PROPERTIES 27
INTERNET OPTIONS 28
REMOVE PROGRAMS 28

INTERNET EXPLORER 29

FEATURES 30

WIRELESS LAN (WI-FI) USAGE 30
BLUETOOTH USAGE 32
GSM USAGE 37
USING THE CONTACT CARD READER 39

USING THE FINGERPRINT SENSOR

40

USING THE BARCODE SCANNER

40

APPENDIX: TROUBLESHOOTING GUIDE

41

RESET THE ST5E AND CLEAR MEMORY

41

IF ST5E RUNS OUT OF POWER

42

IF ST5E RUNS OUT OF MEMORY

43

INACCURATE RESPONSE TO STYLUS TAPS

44

ROUTINE MAINTENANCE

44

BATTERY GUIDELINES 45
TRAVEL GUIDELINES 45
SHIPPING GUIDELINES 46

3

FRONT

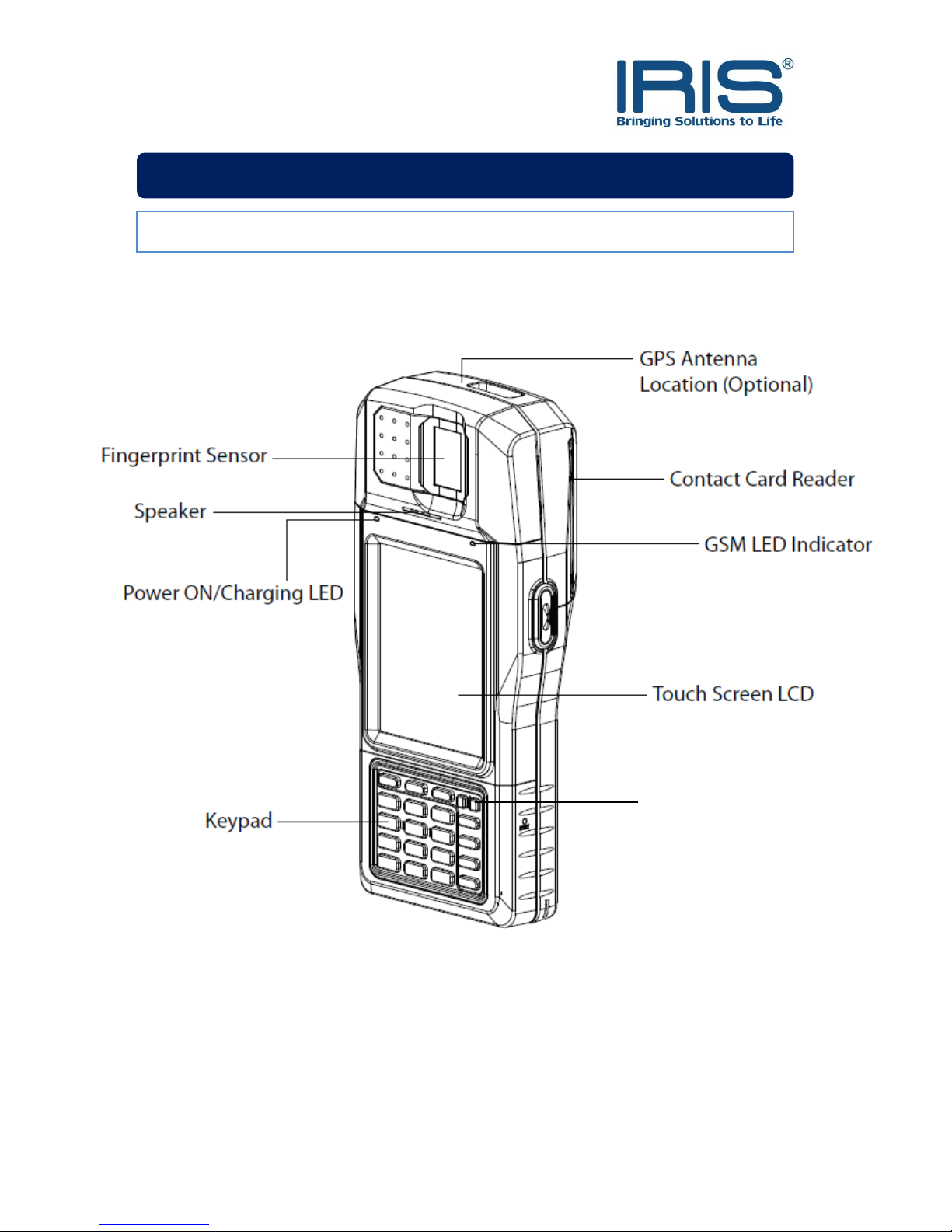

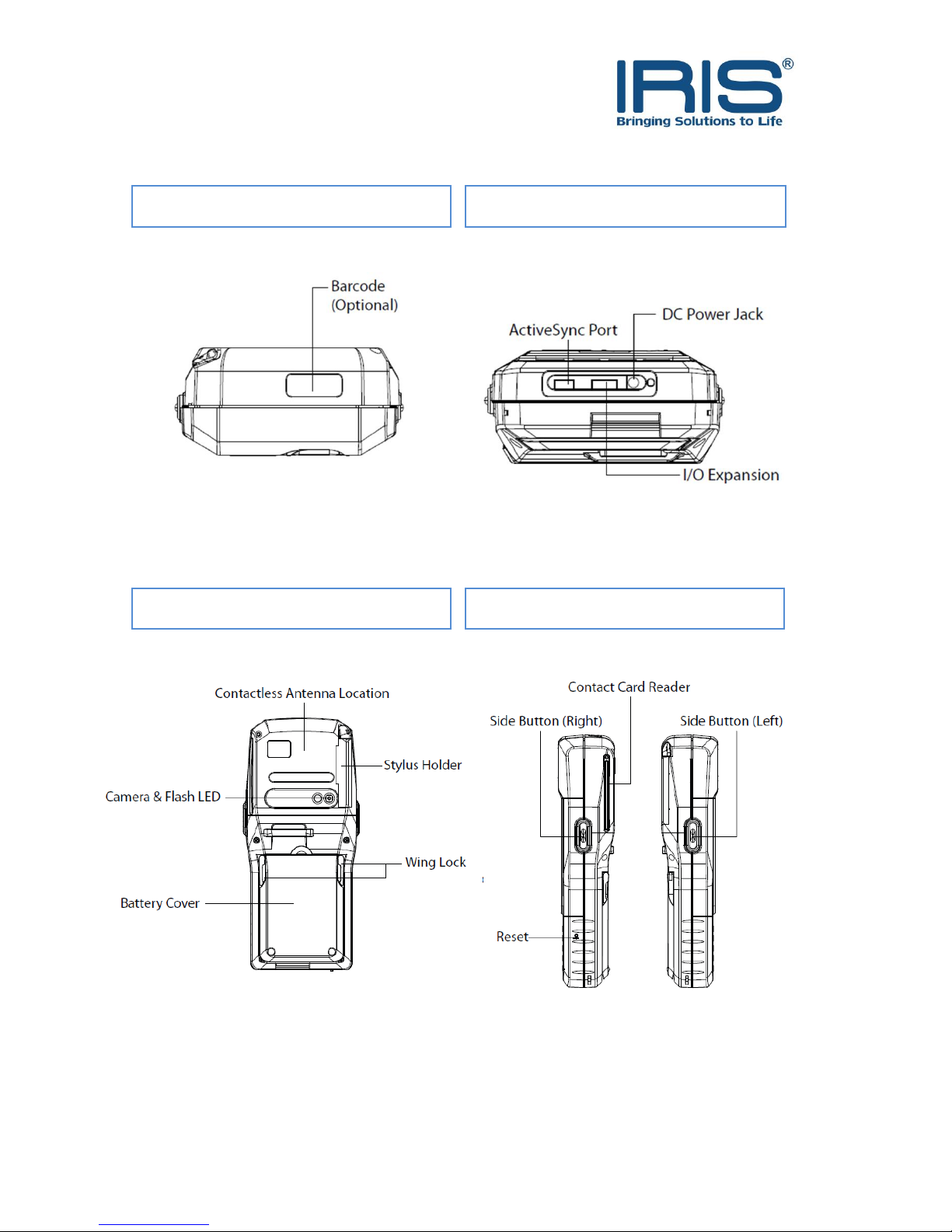

Knowing Your Device

Power Button

4

TOP

BOTTOM

REAR

SIDE

5

Device Specification

Systems

Memory 256MB DDR-2 RAM, 4GB Flash
Memory Expansion 1 x micro-SD Memory Slot (Support up to 32GB)
Device Operating System WinCE 6.0
Host PC Operating System Windows® 7/ Vista/ XP
Programming Language C++ Programming, NET Programming in Microsoft® Visual Studio 2005

Communication Interfaces

Bluetooth Bluetooth Version 2.0
Wireless LAN IEEE 802.11 b/g Wi-Fi
Network 3.5G - W-CDMA, 850, 1900, 2100 MHz ,GSM/ GPRS/ EDGE (1 x SIM Slot)
USB USB Client 1.1 (ActiveSync)

Human Interfaces

Displays 3.5” (480x640) Transflective TFT Colour Touch Screen
Keypad 12 Alphanumeric Buttons, 3 Function Buttons and 1 Power On/Off Button
LED 1 x Power Status, 1 x Network Status, 1 x Charge Status
Speaker Built-in Mono Speaker

Power

Battery 7.4V 1800mAH Li-ion Battery
Operating Time 4 - 6 Hours

Mechanical

Dimension (LxWxH)(mm) 197 x 92 x 44
Weight Approximately 600g

Environment

Operating Temperature -10°C to +50°C
Storage Temperature -20°C to +60°C
IP Rating (Water & Dust Protection) IP65
Drop Test 1.5m

Contact Card Reader

Standard ISO/IEC 7816 Part 1, 2, 3, (T=0, T=1)
Card Slot 1 x ID-1 Card Slot
3 x ID-0 SAM Slots
Communication Speed 9.6 kbps up to 115.2kbps
Card Type Class A & B

Contactless Reader

Standard ISO/IEC 14443 A/B Part 1, 2, 3, 4
Card Type MiFARE Classic / Ultralight / Ultralight C /Desfire / MiFARE Plus / Sony
FeliCa / HID iclass
Card Transmission Rate Up to 848 kbps (Card Type Dependant)

Camera

Resolution 5 Megapixels (LED Flash)

Fingerprint Sensor

Sensor Optical sensor
Resolution 500dpi
Active Area 14mm x 22mm
Supported Template Sagem Algorithm
Template Formats Morpho Proprietary, ISO 19794-2, ANSI/ INCITS 378, RAW/Bitmap,
WSQ (Optional)

1D/2D Barcode Scanner (Optional)

Supported Standards EAN8, EAN13, CODE39, CODE128, Interleaved 2 out of 5, PDF417, DATA

MATRIX, QR-Code, Aztec

GPS (Optional) A-GPS

6

The Battery

The battery has been partially charged at the factory, however please charge it for 4 hours
before switching on the device for the first time.

Guideline for Installing SIM/SAM card

WARNING

 Keep all SIM cards out of the reach of children.
 The SIM card and its contacts can be easily damaged by scratches or bending.
 Be careful when handling, inserting or removing the card.

 Before installing the SIM card, always make sure that the device is fully charged as the

application will not work properly with insufficient amount of power.

To insert SIM card

1) Close all programs and switch off the device.

2) Remove the hand strap.

3) Unlock both wing locks.

4) Remove the Battery cover.

5) Remove the Battery pack.

6) Unlock the SIM Slot and pull back the cover for insertion.

7) Ensure that the cut corner faces top right and the gold contacts of the card is facing

downwards into the device.

8) Push down the SIM slot cover and slide outward to lock it.

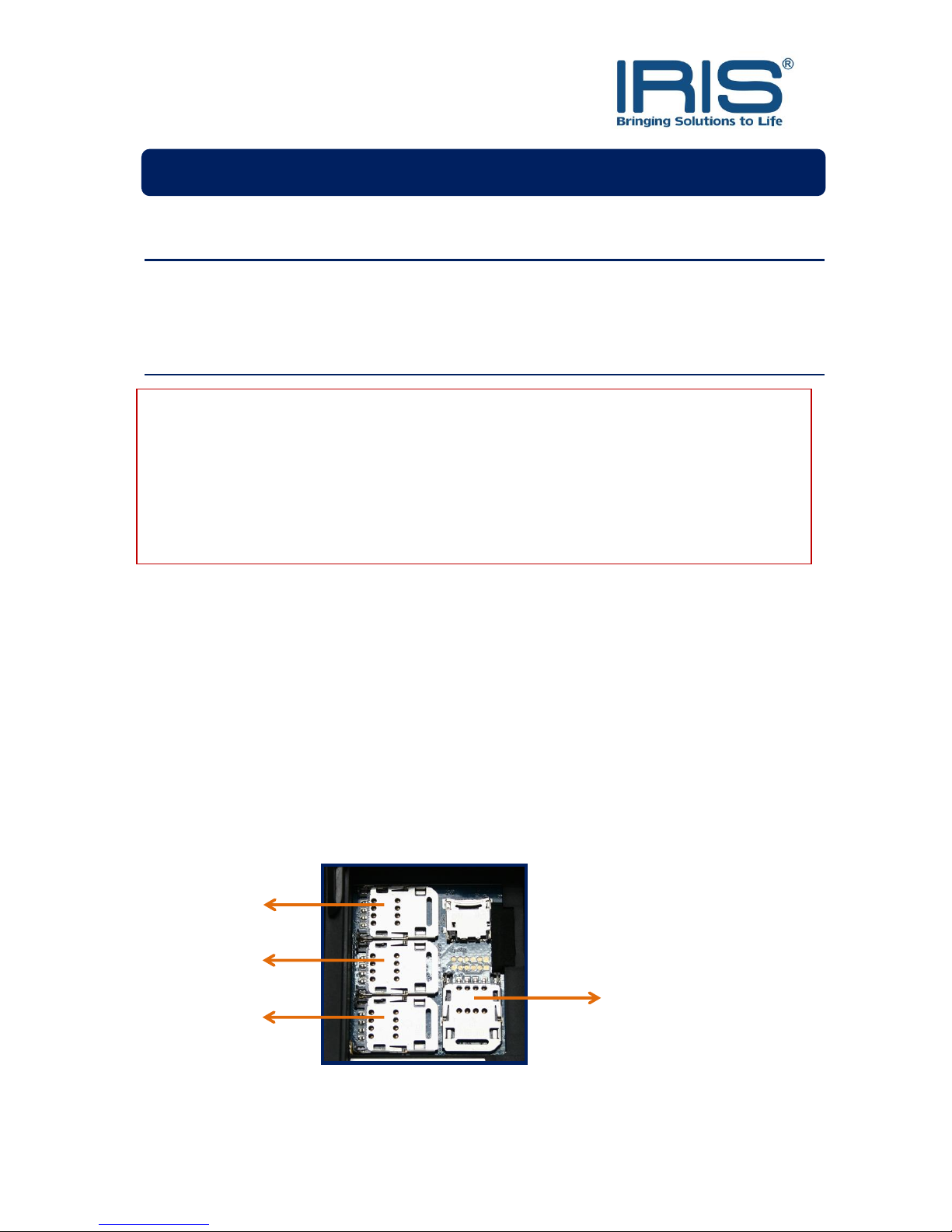

SAM A

SAM B

SAM C

SIM

(Slot 0)

(Slot 2)

(Slot 3)

Basic Installations

7

9) Place the battery back followed by battery cover.

10) Push the wing lock to secure the battery cover and finally install the hand strap back

into the hand strap tab.

To insert SAM card

1) Insert the SAM cards into slot 0, 2, 3.

2) Insertion steps are the same as SIM card insertion steps.

3) SAM card is for internal security.

Guideline For Installing Micro SD Card

1) Close all the programs and switch off the device.

2) Remove the hand strap.

3) Unlock both wing locks.

4) Remove the battery cover.

5) Remove the battery pack.

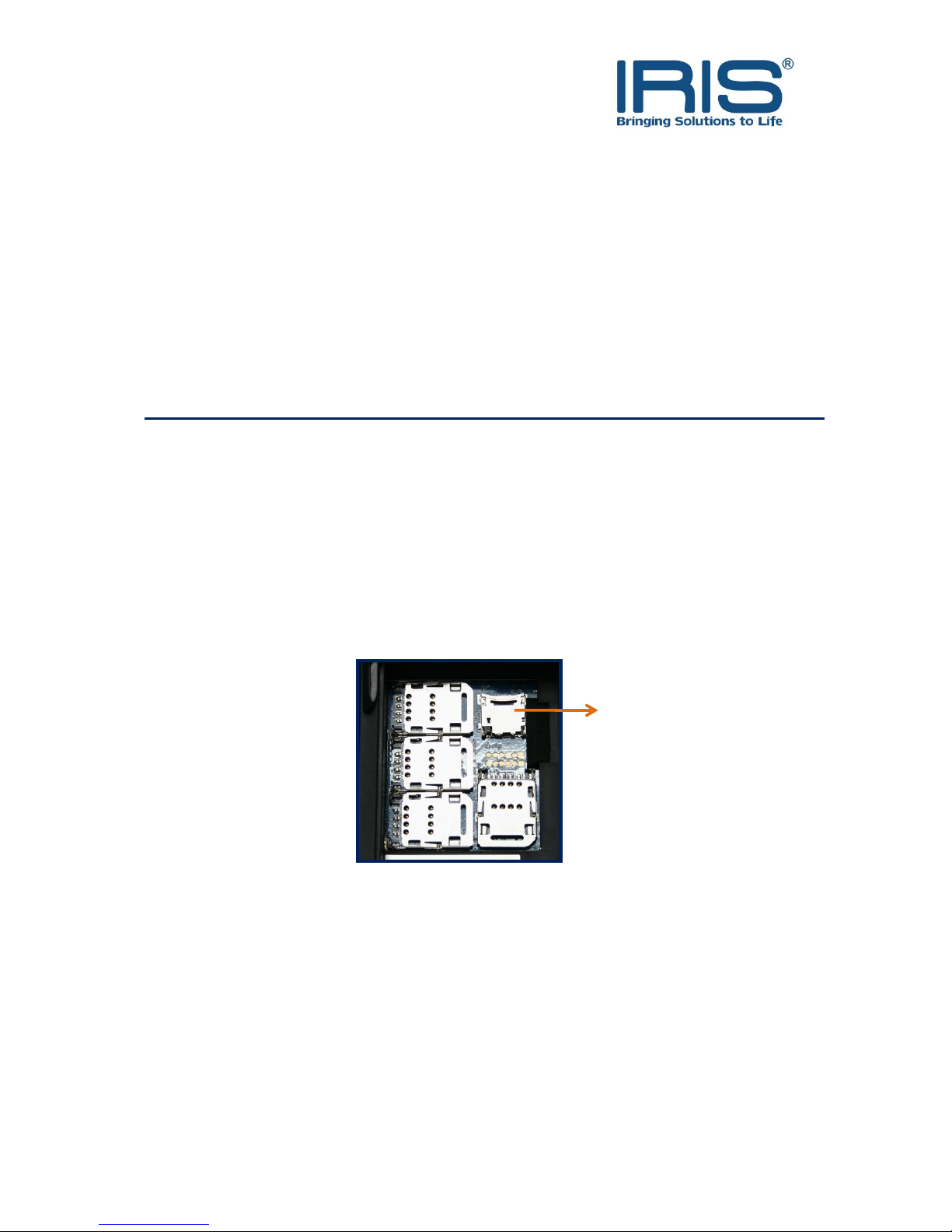

6) Unlock the Micro SD slot and pull back the cover until easy for insertion.

7) When inserting the Micro SD card, ensure that the gold contacts of the card is

facing downwards into the device.

8) Push the Micro SD slot cover down and slide inward to lock it.

9) Place the battery back followed by battery cover.

10) Push the wing lock to secure the battery cover and finally install the hand strap back

into the hand strap tab.

Micro SD

8

Screen Calibration

Once the charging has completed, turn on the device by pressing the power button.

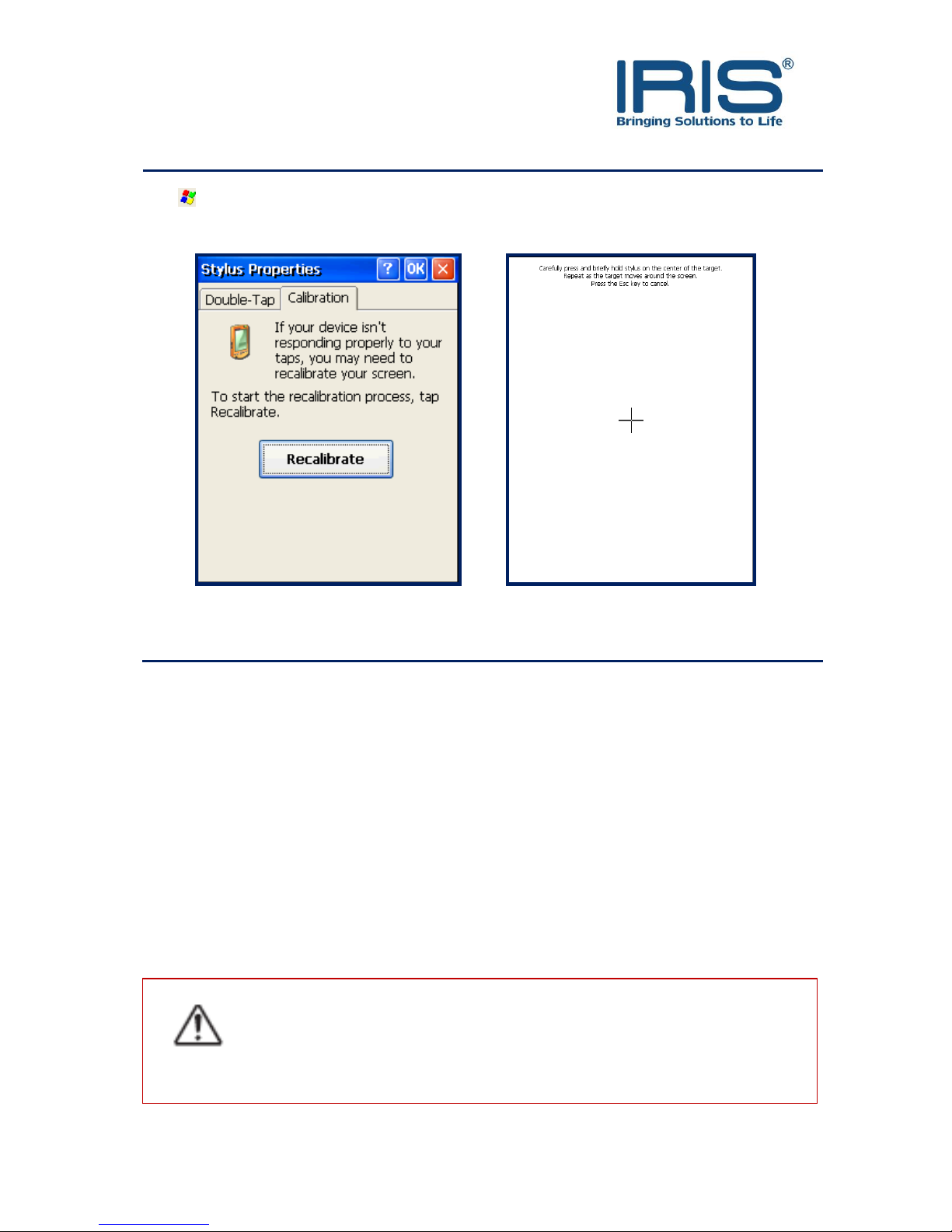

On the first time basis, it is advisable to calibrate the screen by going to:

-> Settings -> Control Panel -> Stylus.

Follow the cursor and tap on it. Kindly set the Time, Date and Time Zone as the default time,
date and time zone differ from place to place.

Time, Date and Time Zone configuration

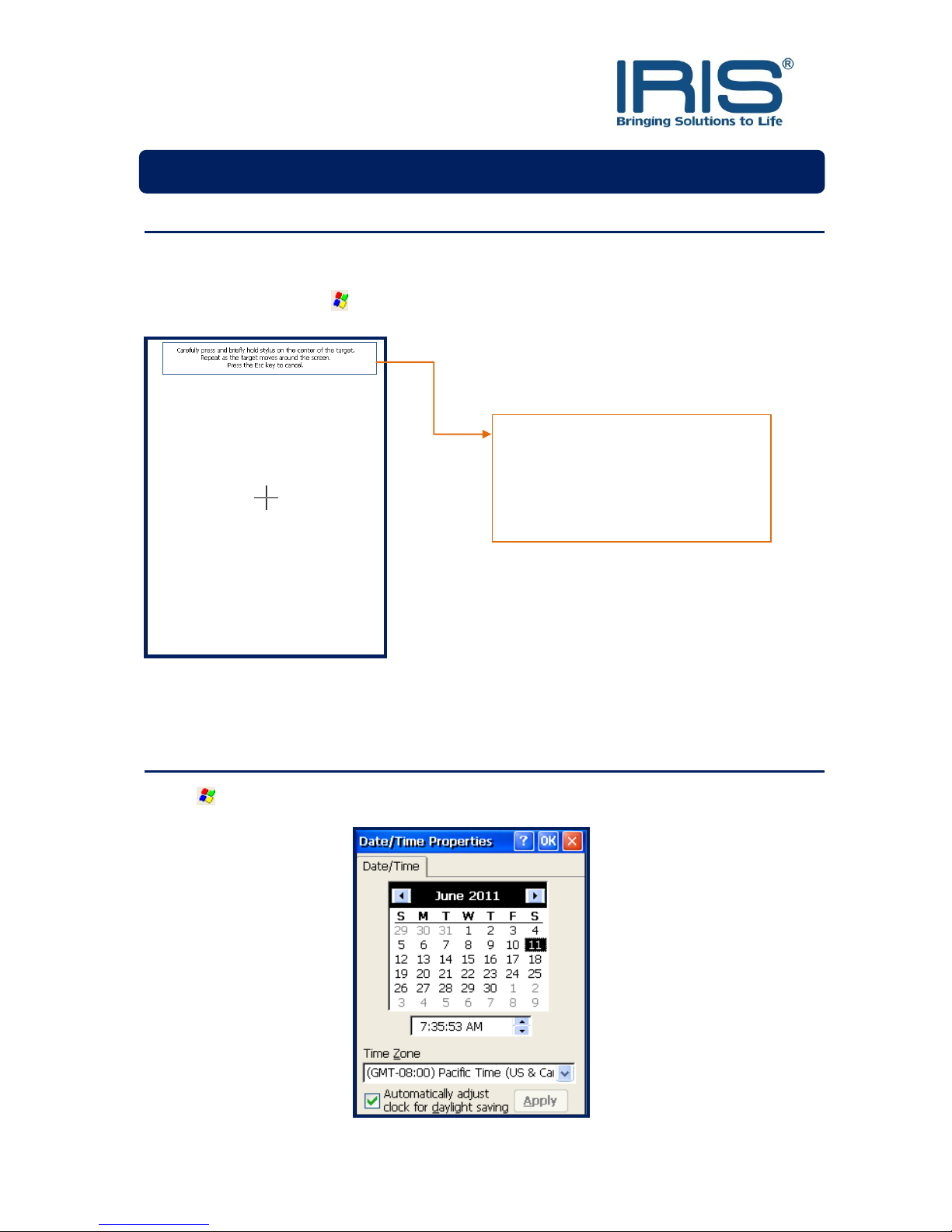

Go to -> Settings -> Control Panel -> Date/Time to set the Time, Date and Time Zone.

First Time Use

Carefully press and briefly hold the
stylus on the center of the target.
Repeat as the target moves around
the screen. Press the ESC key to

9

The following defines the various operations that the user can perform with the stylus.

Tap

Tap once to select a program

Double Tap

Tap the item twice to open or execute a program

Drag

Hold the stylus on the screen to drag objects

The stylus is housed inside the stylus holder at the right corner of the device.

IMPORTANT

 Avoid misplacing the stylus by always storing it in the stylus holder when not in use.
 Avoid breaking the tip of the stylus.
 Use only the stylus that comes with the ST5e or some other stylus type instrument with

a soft, blunt point to perform touch screen operations. Never use a pen, pencil, or other
sharp writing element.

Touch Screen Operations

Using the Stylus

10

The ST5e is pre-installed with a collection of useful programs such as Microsoft WordPad and
other customized programs. Tap the “START” button to explore the list of programs available
for selection.

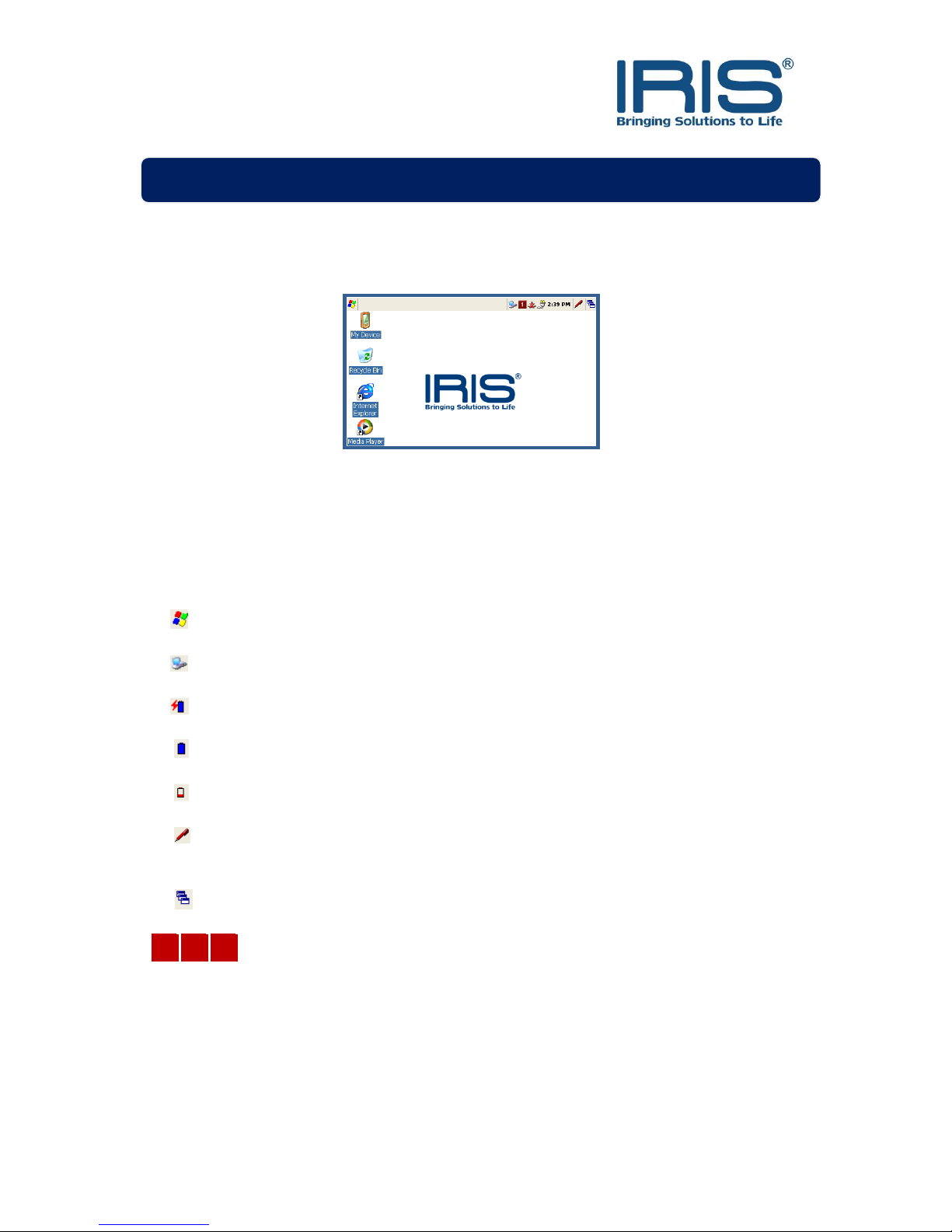

Taskbar Items

The following are the standard status icons that will appear on the taskbar.

Status Icon Meaning

Start Menu, Tap to switch to a program

Indicate device connected to PC ActiveSync

Battery is charging

Battery is fully charged

Battery is low

Tap for display or hide keyboard, tap and hold to choose other input

method

Quick launch menu

Start Menu

1 a A

Current Keypad Input method

11

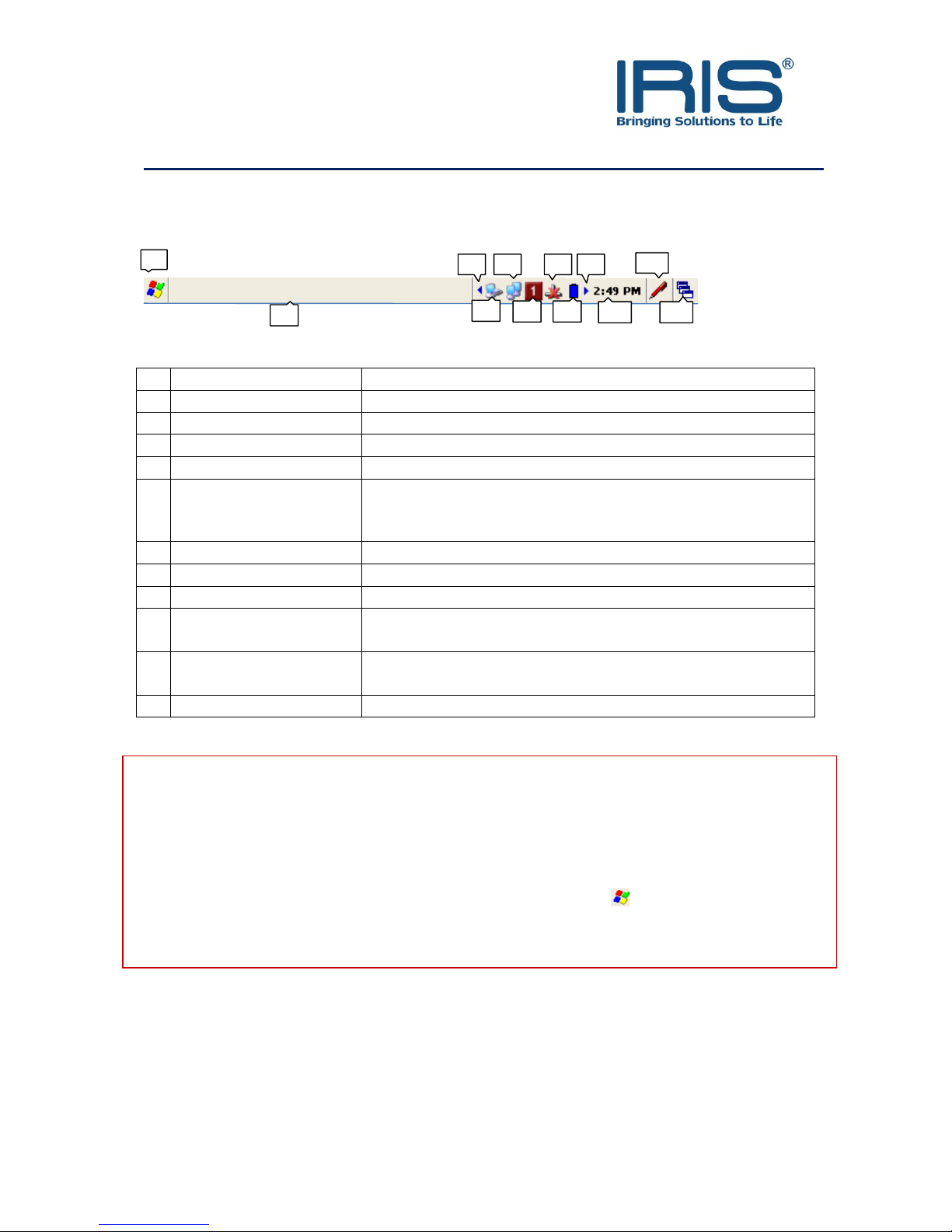

Shell taskbar

The taskbar appears on the top of ST5e’s screen.

1

Start button

Single tap to display the Start menu

2

Active application

Display the latest application running

3

Left arrow

Single tap to see the hidden icon on the left

4

Direct Connection

Double tap to execute the direct network status dialog

5

WI-FI Connection

Double tap to execute the WI-FI network setting

6

Keypad Input Method

Single press on the ‘ALPHA’ to change mode of input by
keypad

Numerical (1) , Small Alphabet (a) , Capital Alphabet(A)

7

Bluetooth Network

Single tap to execute Bluetooth network setting

8

Power icon

Single tap to display the power status on user’s ST5e

9

Right

Single tap to see the hidden icon on the left

10

Time , Date and Time
Zone

Single tap to display the time, date and time zone menu

11

Software Input Panel
(SIP)

Single tap to display or hide the Keypad

12

Application switching

Single tap to display all the active application

NOTE:

● An internal battery icon appears in the status icon. See Taskbar Item for more

information about icons.

● Messages also appear on the screen to warn user when the battery power is critically low.

User can check the current battery level at any time by tapping -> Settings -> Control

Panel -> Power to display Power Properties.

1

2

3 4 5 6 7 8 9

10

11

12

12

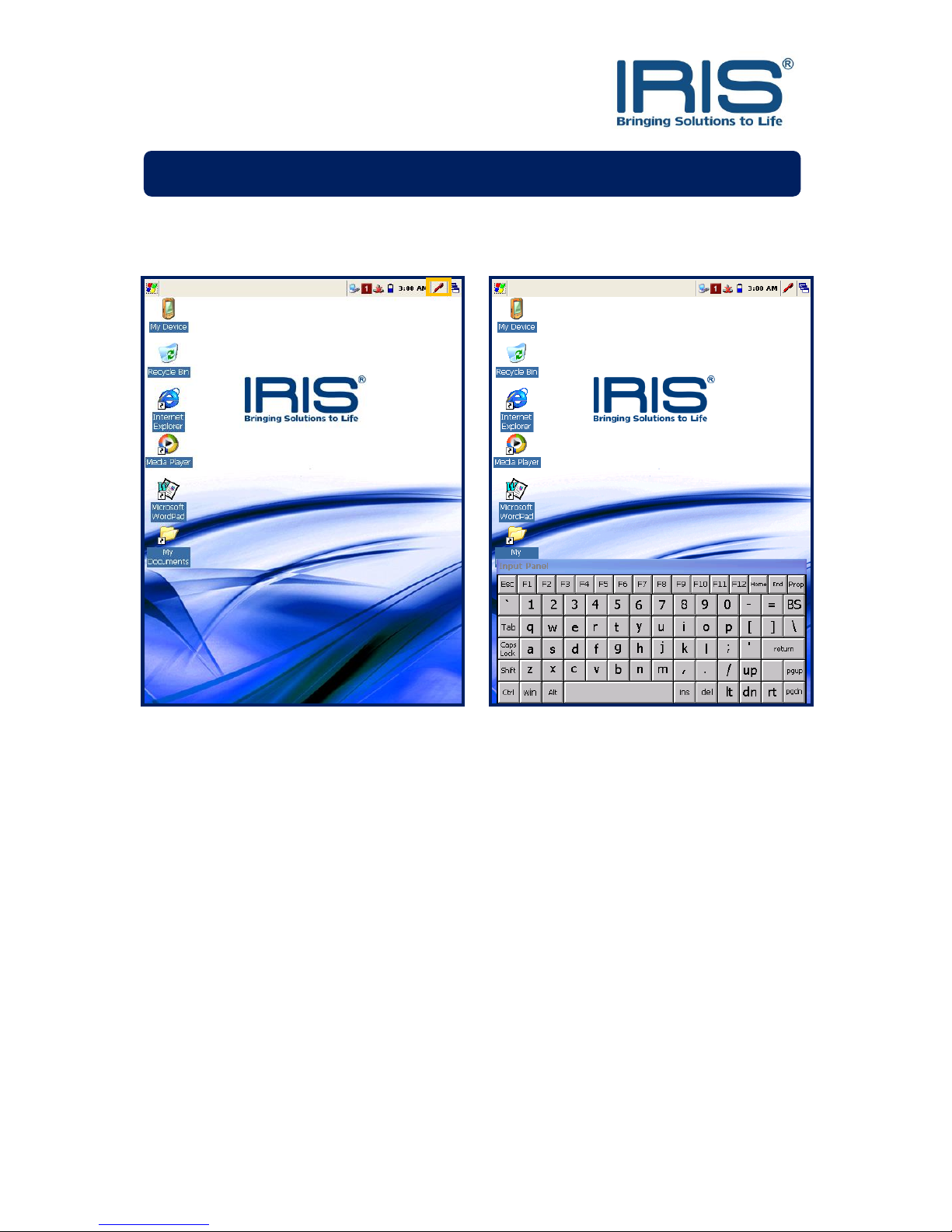

Tap the SIP icon on the taskbar as shown below to use the input panel. Tap on the SIP icon
again, to hide the input panel.

Software Input Panel (SIP)

13

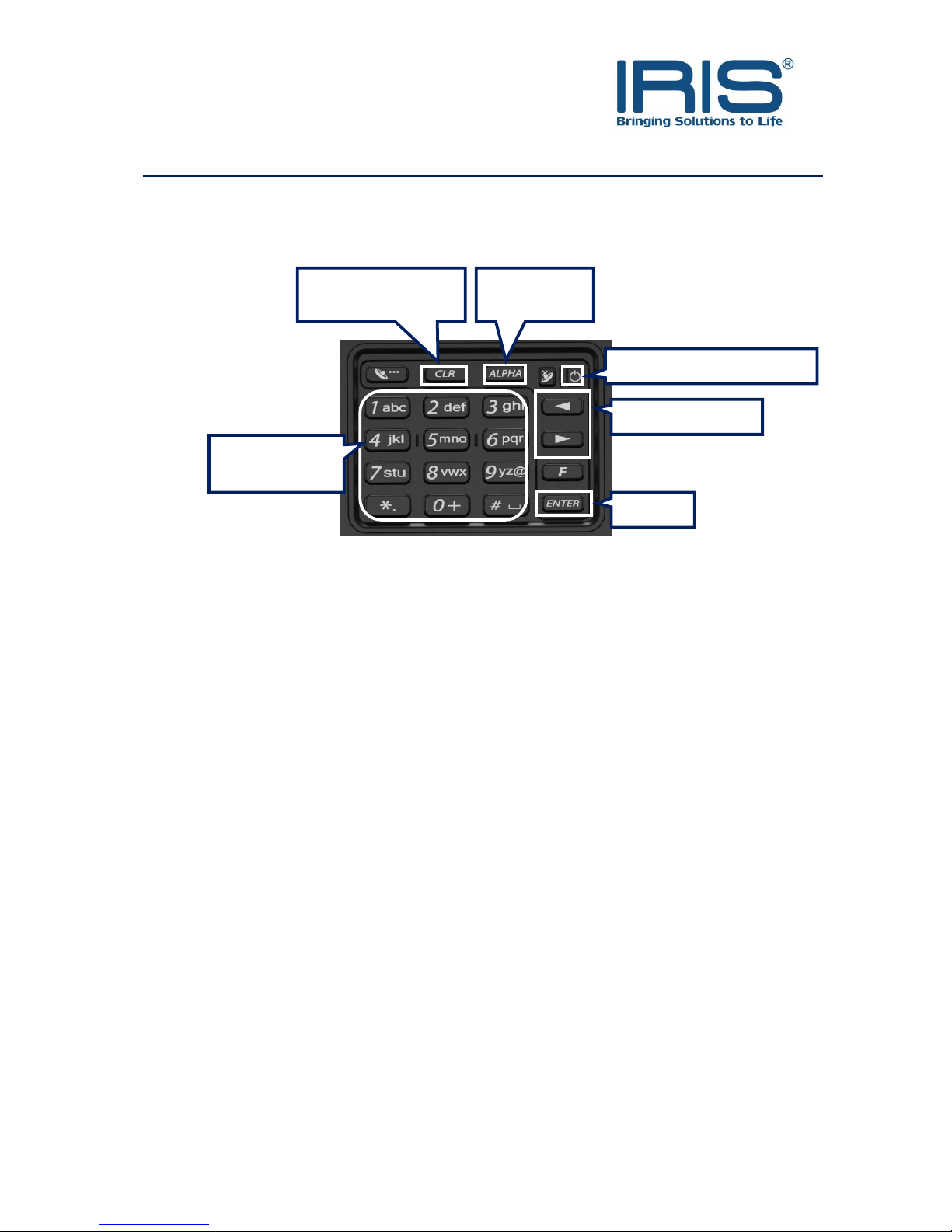

Keypad

Controls and Interfaces

● Nav. Left & Right

Navigate to left or right.

● Enter button

To open a selected program.

● Power button

To turn on/off the device.

● CLR

To clear entry or use as backspace function.

● Alpha numerical keypad

To key in preferred character or command.

● Alpha button

To change the mode of entering characters by keypad. Sequences of the modes are
Numerical (1) , Small Alphabet (a) , Capital Alphabet(A).

Alpha Numerical

Keypad

Nav. Left & Right

Enter

Clear entry or

Backspace function

Keypad input

mode

Power on, Wake or Suspend

14

The setting of ST5e can be customized to suit the user’s specific requirements. For e.g. setting
password to protect the device’s information, LCD Brightness and many more.

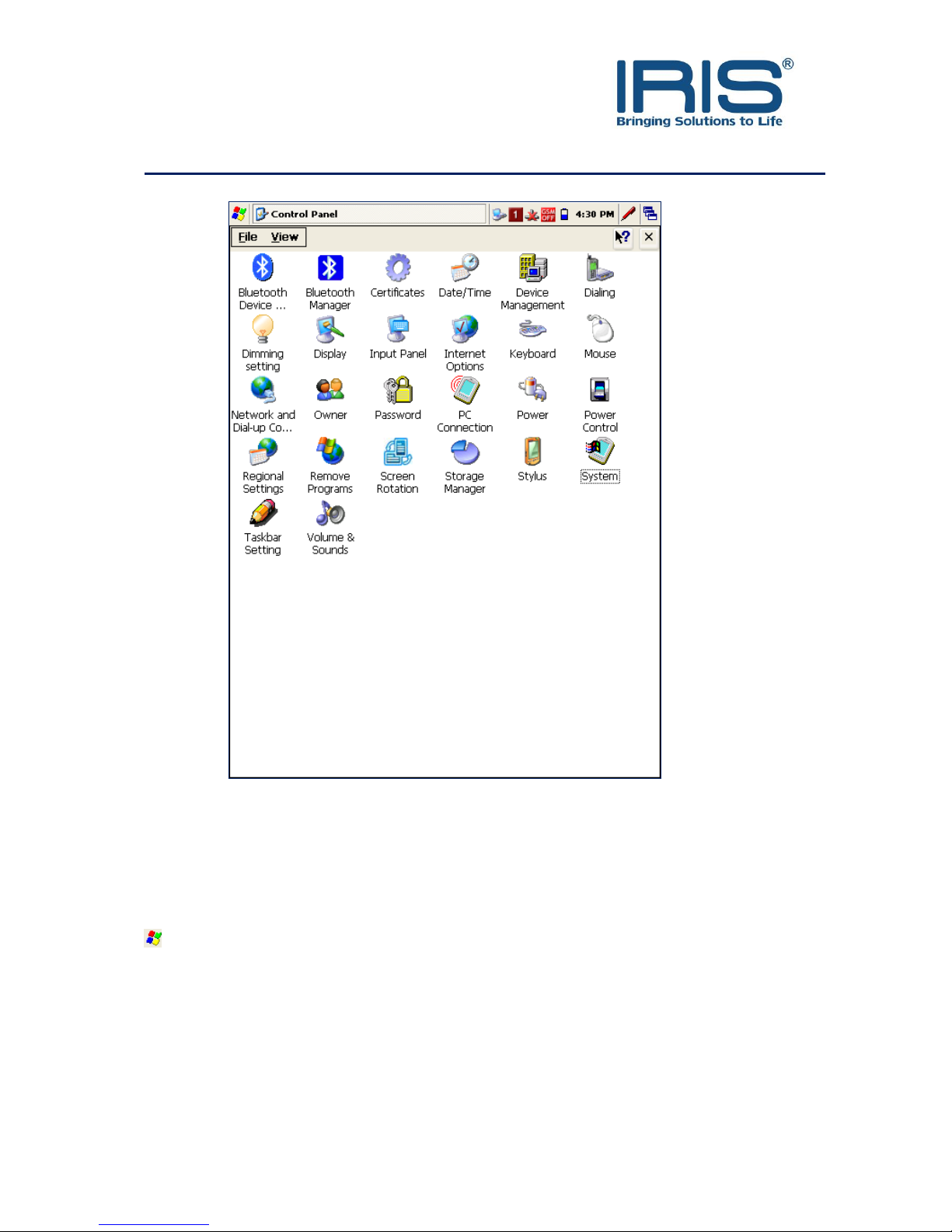

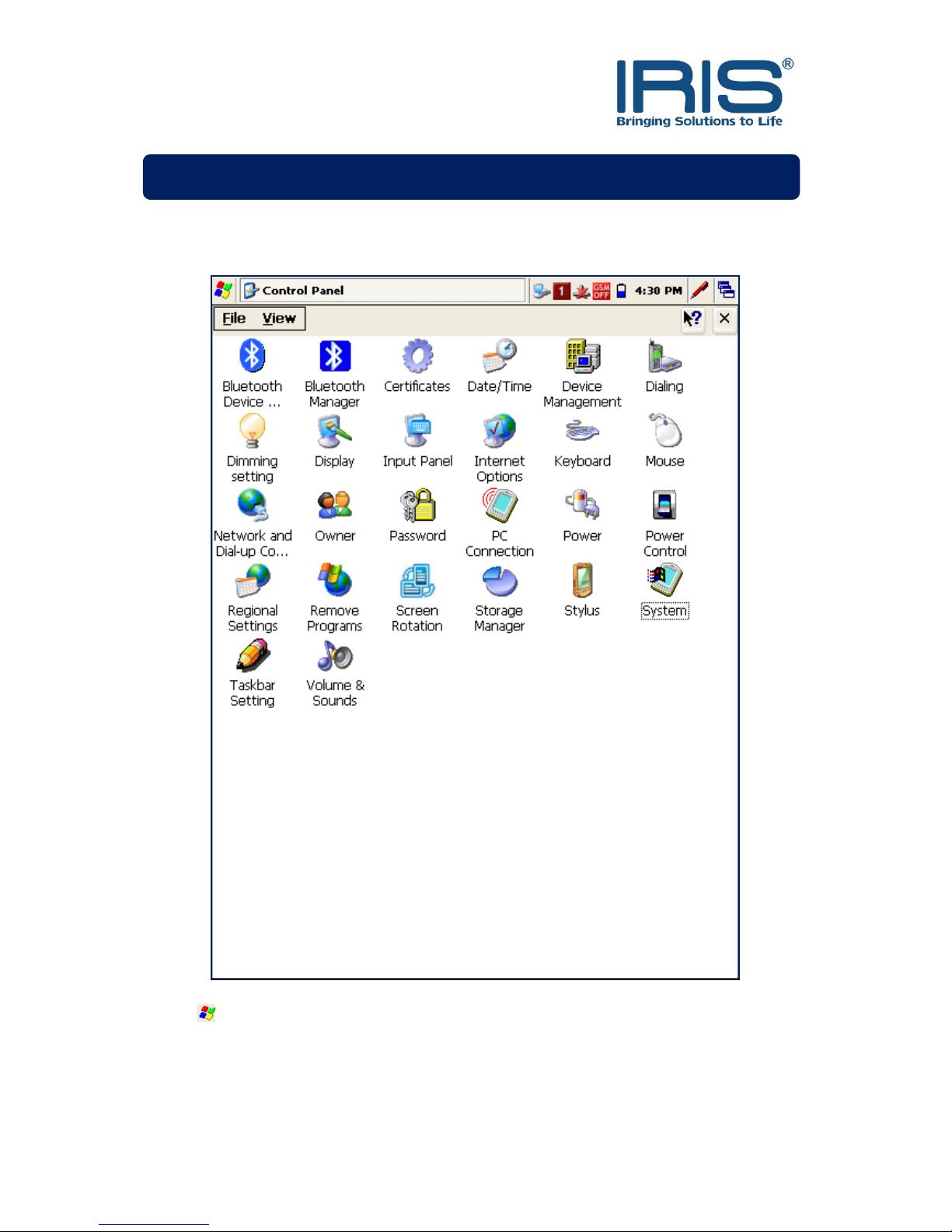

Tap on -> Settings -> Control Panel, to view the menu as shown in the figure above.

Customizing ST5e

15

LCD Brightness Control

Adjusting Display Brightness

Use the following operations to adjust the display brightness.

-> Settings -> Control Panel -> Dimming Setting

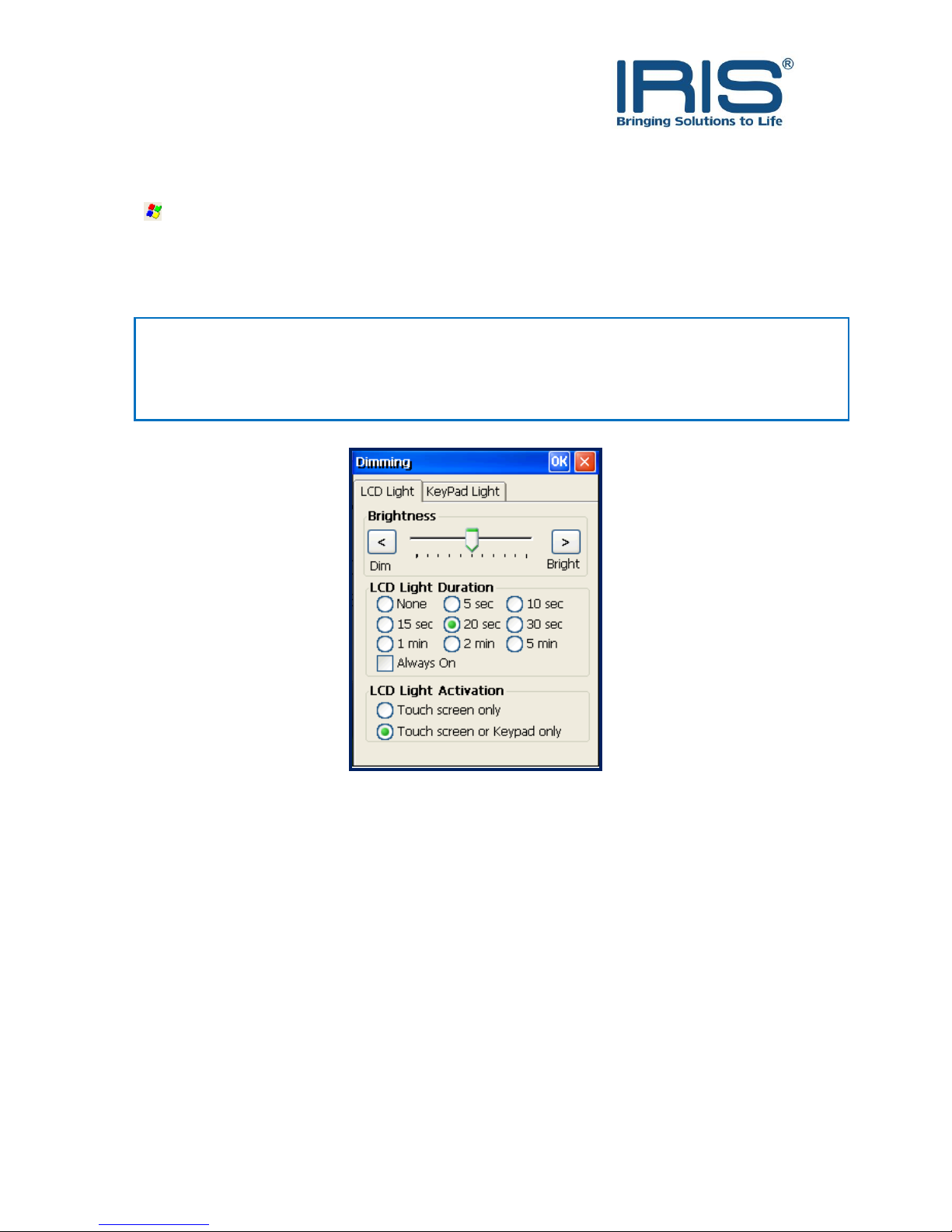

A screen box will appear. Make sure it is on the LCD Light tab. Tap the dark or bright tab to
control the brightness of the screen.

16

Adjust how the Screen Light can be Turned On

Use the following operations to adjust the display brightness.

-> Settings -> Control Panel -> Dimming Setting

Select the LCD Light tab. There are two options available to turn on the screen light.

Kindly set the duration for LCD Light to hibernate. (5 seconds to 5 minutes)

Touch screen or Keypad - to turn on the light of the LCD by touching either the Touch Screen
or Keypad.

Touch screen only - to turn on the light of the LCD by touching either the Touch Screen only.

17

Keypad Light Control

Light Emitting Duration

Use the following operations to adjust the display brightness.

-> Settings -> Control Panel -> Dimming Setting

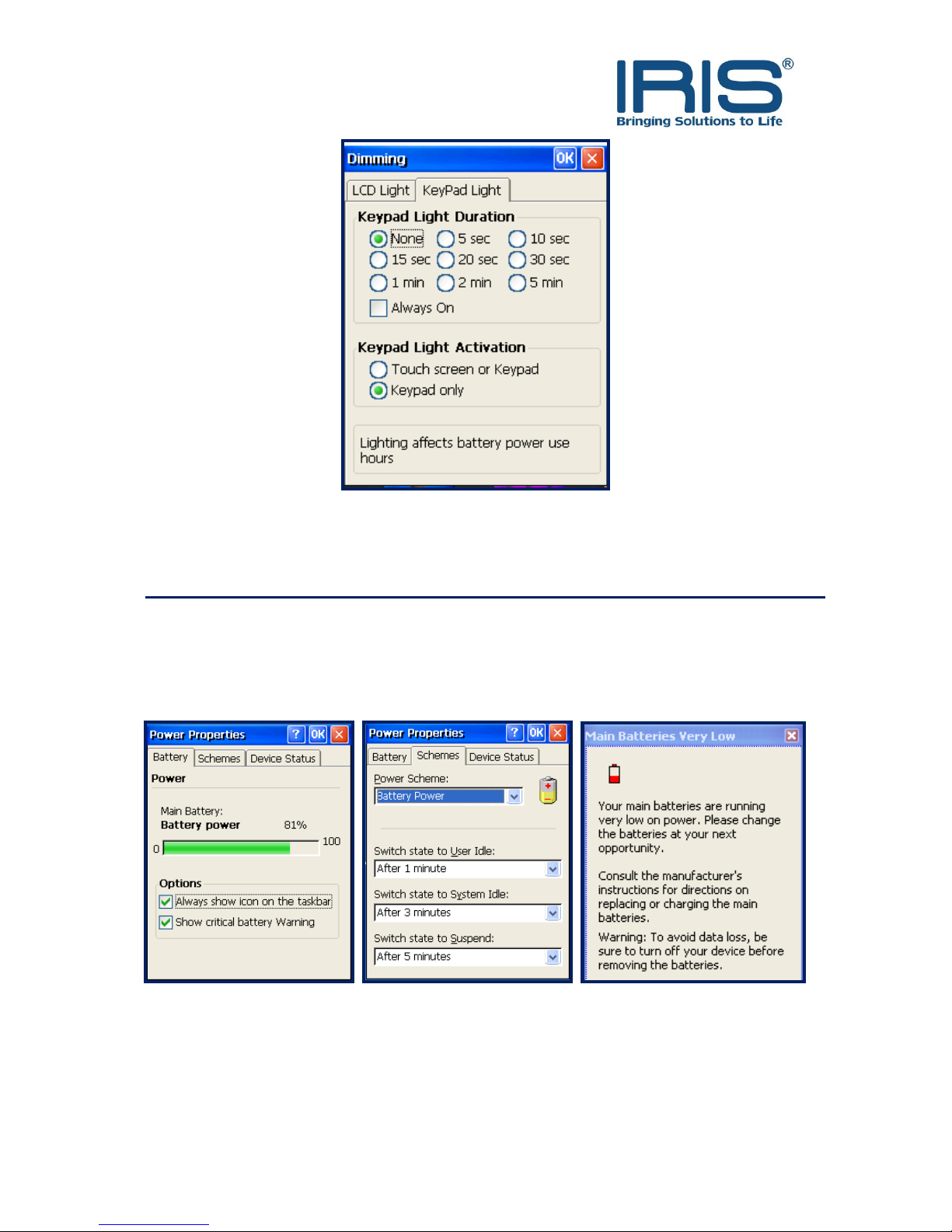

Select the KeyPad Light tab. Kindly set the duration for keypad light to hibernate. (5 seconds
to 5 minutes)

Keypad Light

Use the following operations to adjust the display brightness.

-> Settings -> Control Panel -> Dimming Setting

Keypad Light Control

Use the following operations to adjust the display brightness.

-> Settings -> Control Panel -> Dimming Setting

Select ON when LCD or Keypad pressed to enable the previous option. Select Always OFF,
the keypad light will be turned off the completely and select Always ON, the keypad light
will be turned on all the time until the device is suspended.

Touch screen or Keypad - To turn on the light of keypad by touching the screen or pressing the
keypad.

Keypad only - To turn on the light by pressing any key in the keypad.

ON when LCD or Keypad pressed - To turn on the light of keypad by touching the screen or

pressing the keypad.

Always OFF – To turn off the keypad light completely.

Always ON – To turn on the keypad light permanently.

18

Power

User can check the power status of the main battery by clicking on the Power Properties
icon in the control panel. In the power properties menu, in the Battery tab, user can select
their preferred option; Always show icon on the taskbar or Show critical battery Warning,
which means a window, will pop out when the battery is low.

19

System Power States
The OS (Operating System) has 4 different power states as for the internal power manager
state machine. The state transition reflects on the system conditions as stated below:

a) User activities
b) System activities
c) Application requests
d) Timers

The four states are:

 On - In this state, the device is active and user can use all the different peripherals,

and consequently the battery consumption is on maximum level.

 User Idle - When the user is not using the device actively, the display backlight

intensity will decrease and the unused peripherals will be disabled to reduce power
consumption.

 System Idle -When the system is inactive, the power manager switches to this state.
 Suspend – In this state, the device will consume minimal power. Therefore, the device

can’t be used. The processor clock will be weak and the peripherals will be turned off
automatically.

The transition from On to User Idle and User Idle to Suspend is done once the timer
expires. The timer value can be set through the power applet in the control panel.

Display

The resolution for the device is 640x480 pixels.

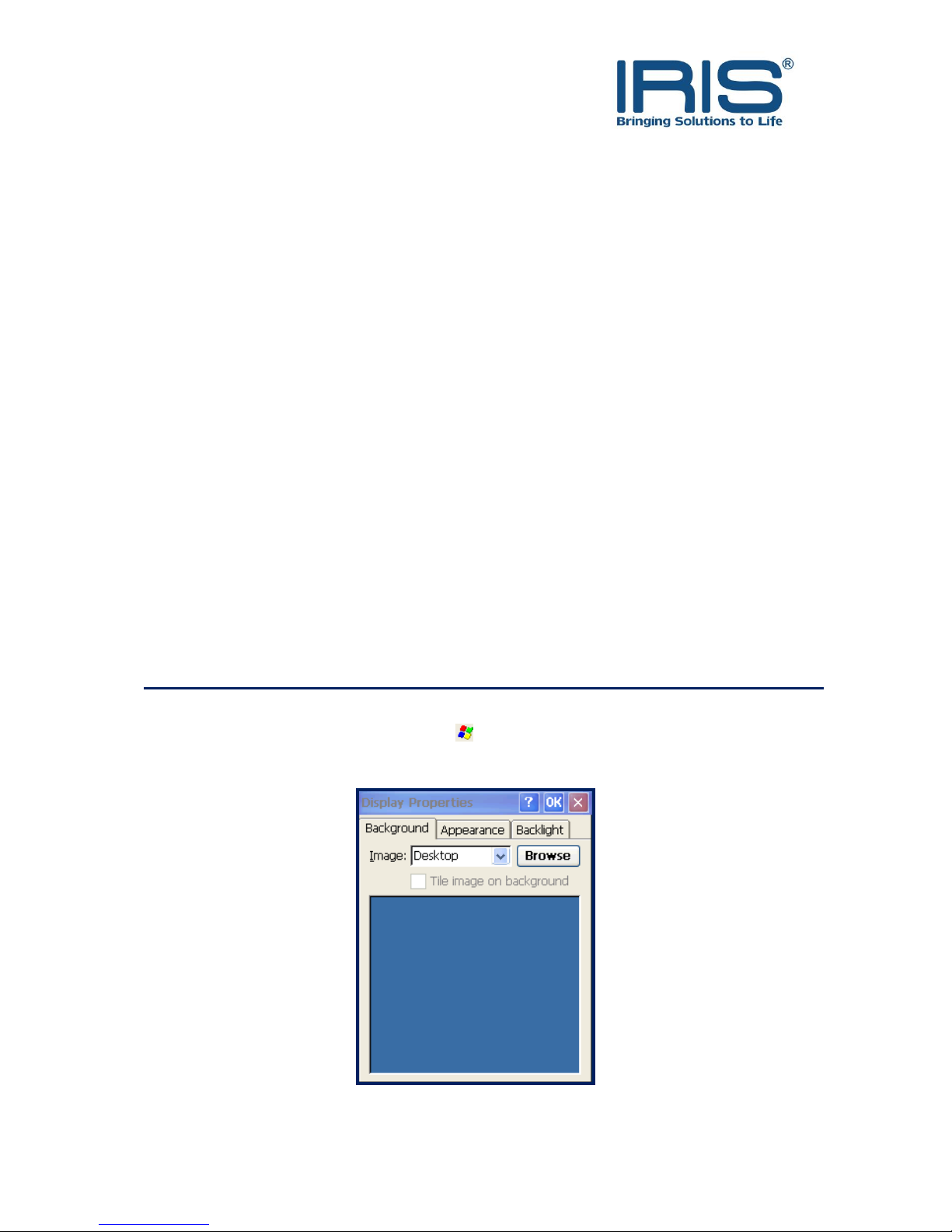

To customize the display screen, go to -> Settings -> Control Panel -> Display

Properties.

20

Mouse

In the “Mouse Properties”, user can set and test the sensitivity and speed of their mouse for
better usage.

Keyboard

In the “Keyboard Properties”, user can customize the repeat delay, repeat rate and character
repeat.

21

Audio Volume

User can set the speaker volume and enable sounds for warning, application and notification
in the “Volume and Sounds Properties”, while customizing the volume on the volume tab.

Stylus Properties

User can recalibrate the sensitivity of the stylus as well as checking on the mouse double-tap
setting under “Stylus Properties”.

22

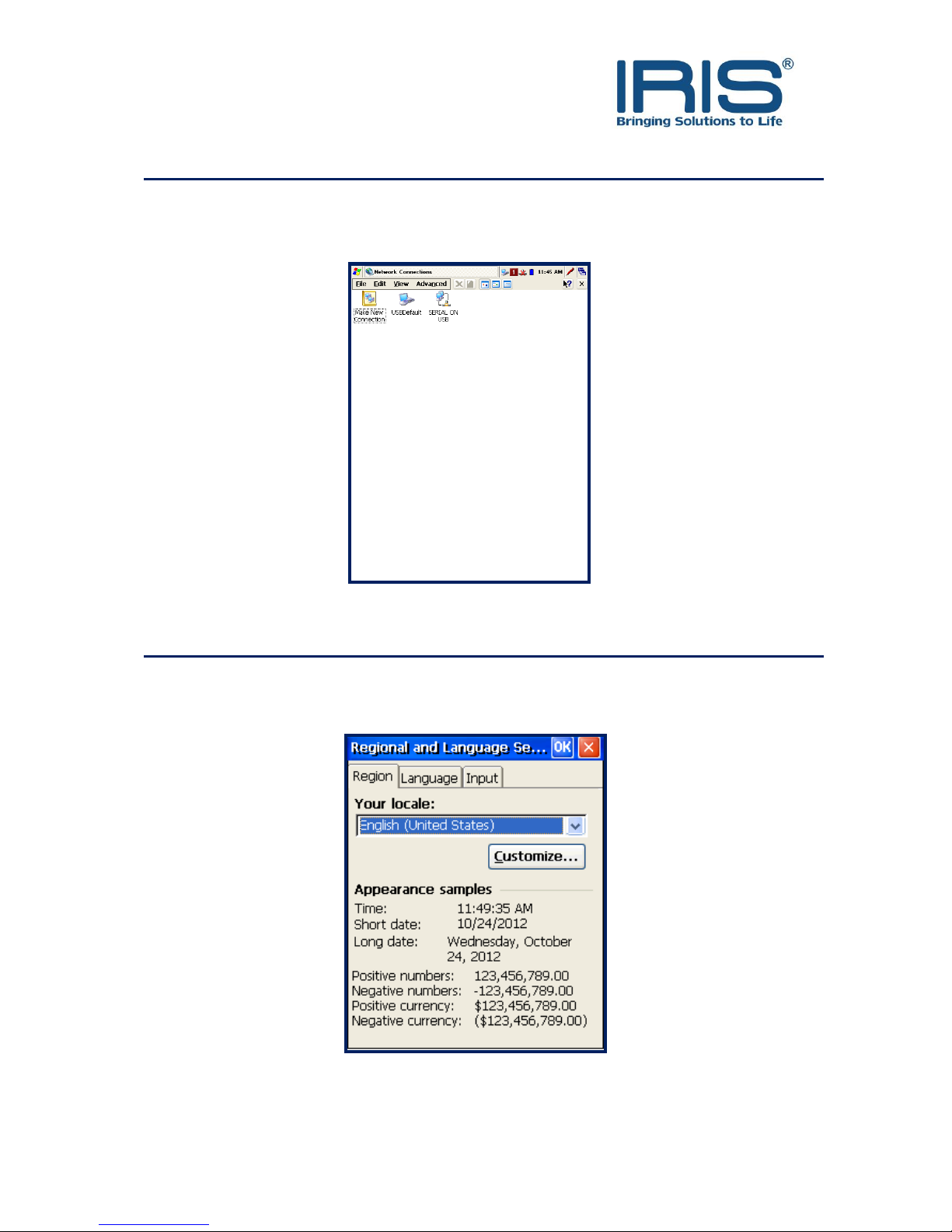

Network & Dial – Up Connection

When tapping at the “Network and Dial-up Connection”, a default connection will be
created as “USB ActiveSync”. User can also view the entire network their handheld is

connected to under this setting.

Regional And Language Setting

Set the local language, number, current time and date accordingly under “Regional and
Language Setting”.

23

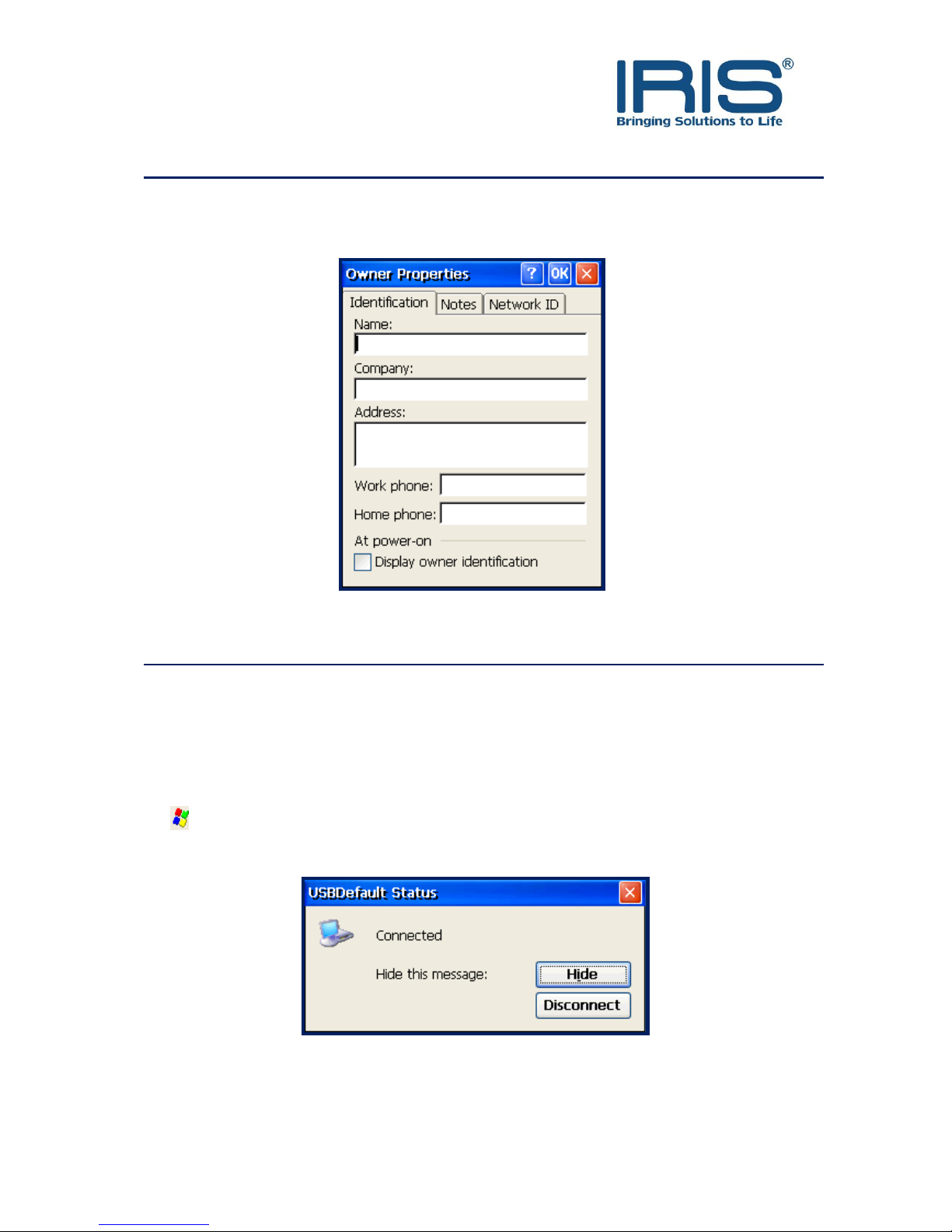

Owner Properties

Depending on User’s preferences, personal information and network ID can be inserted
under “Owner Properties”.

PC Connection

PC Connection is to enable the device to communicate directly with personal computer or

other communication devices. The default is set to USB ActiveSync. However, if there is more
than one connection being created on the "Network and Dial-Up Connection", user needs to
change the connection settings before linking any other communication devices. To check

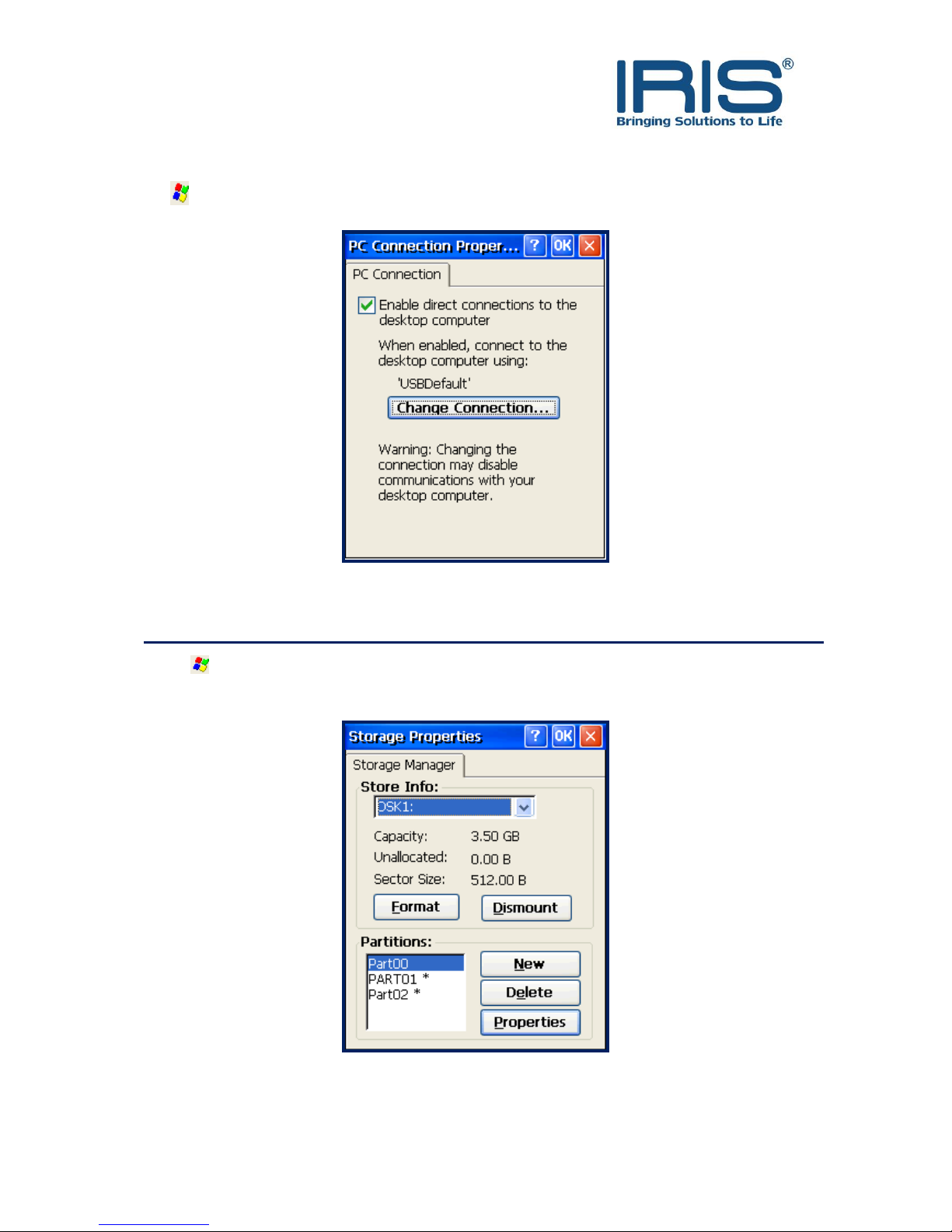

the status of PC connection, go to

-> Settings -> Control Panel -> Network and Dial-up Connection -> USB Default.

24

For PC Connection Properties, go to

-> Settings -> Control Panel -> PC Connection.

Storage Properties

Go to -> Settings -> Control Panel -> Storage Manager. In the “Storage Properties”,
user can manage the storage by formatting, dismounting or creating a new partition on it.

25

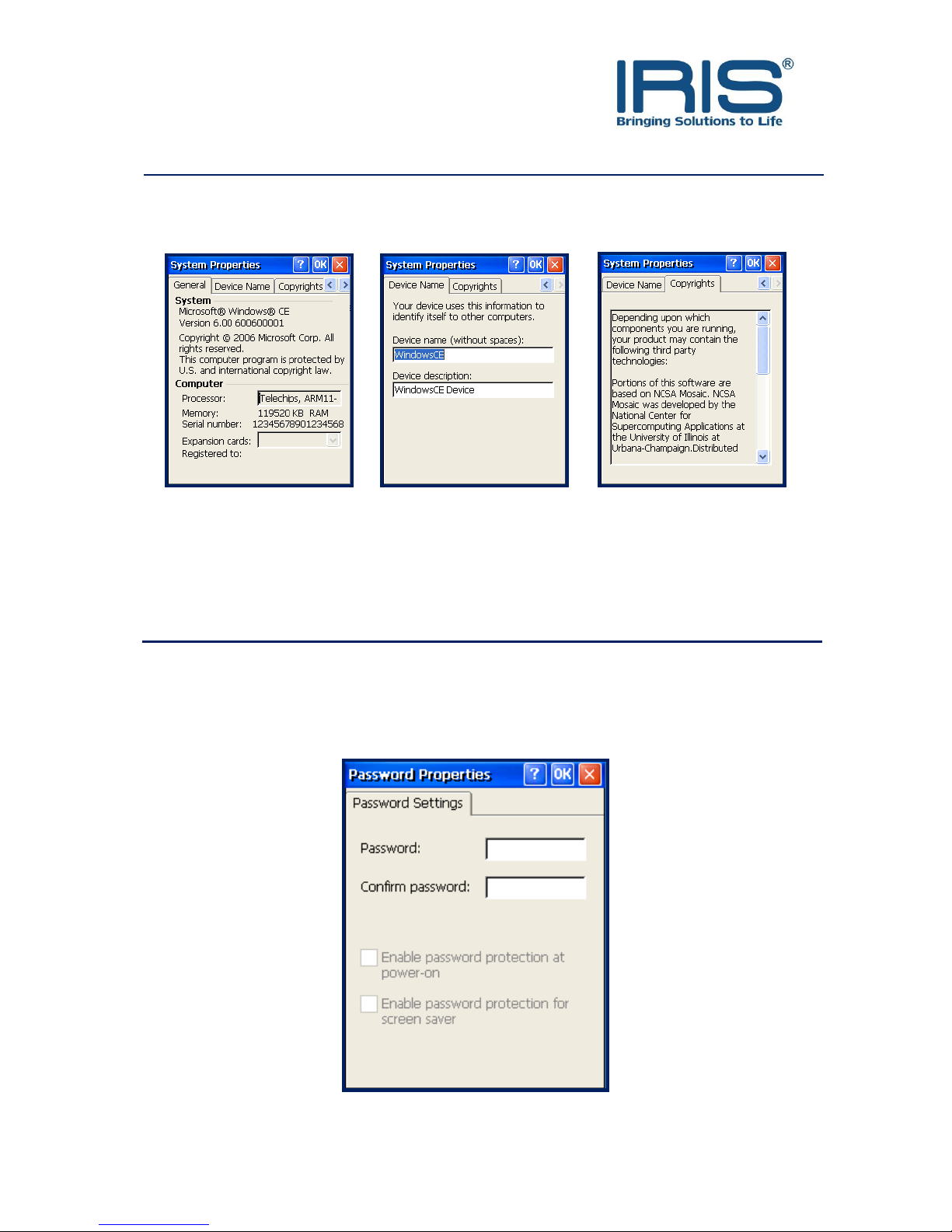

System Properties

User can view the system information, device name and copyrights information under

“System Properties”.

Password Properties

In the “Password Properties”, user can set the Password to maintain privacy or prevent
others from accessing the device.

26

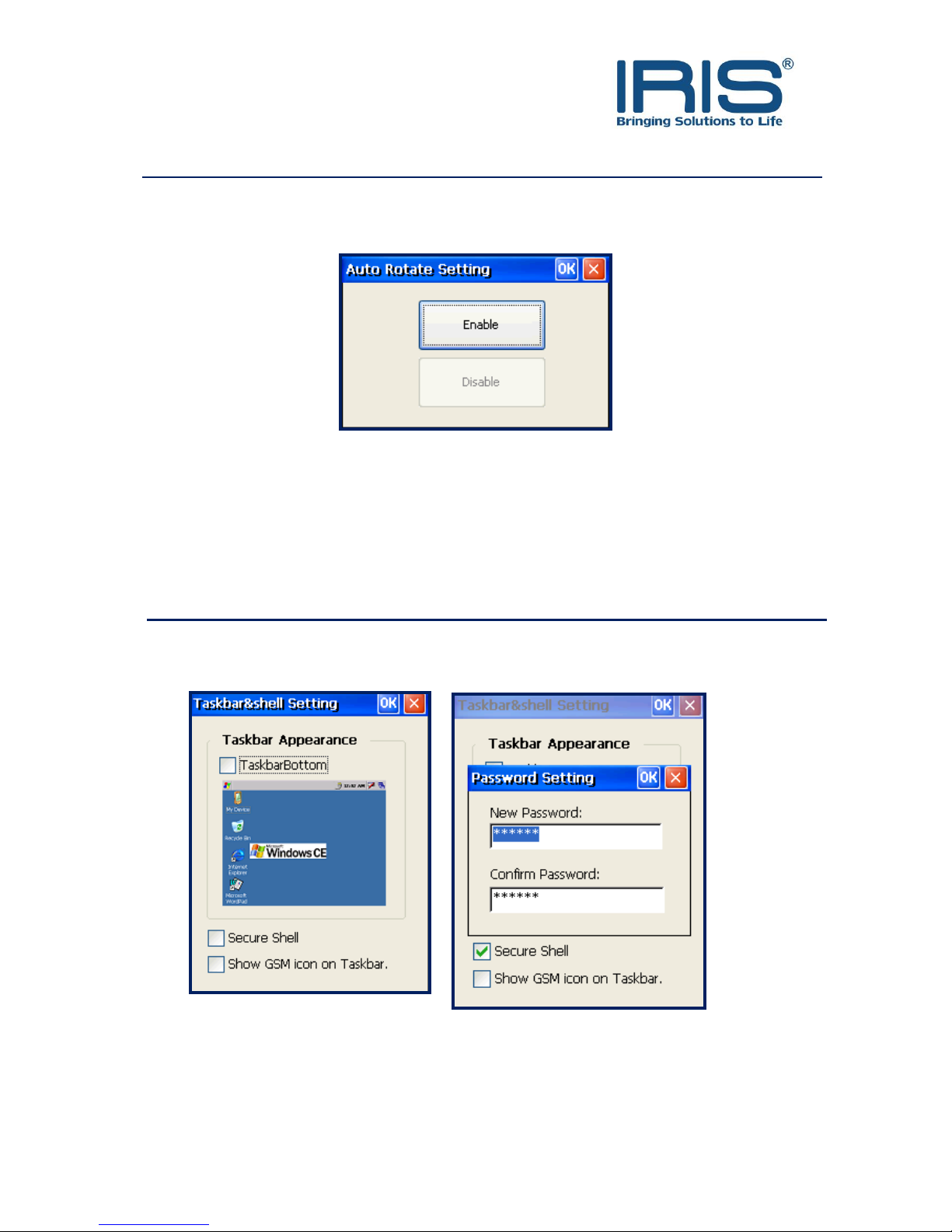

Screen Rotation

This feature allows user to enable the auto rotation setting.

Taskbar & Secure Shell

Secure Shell enables user to control the accessibility of Control Panel. The default password is
“123456”.

27

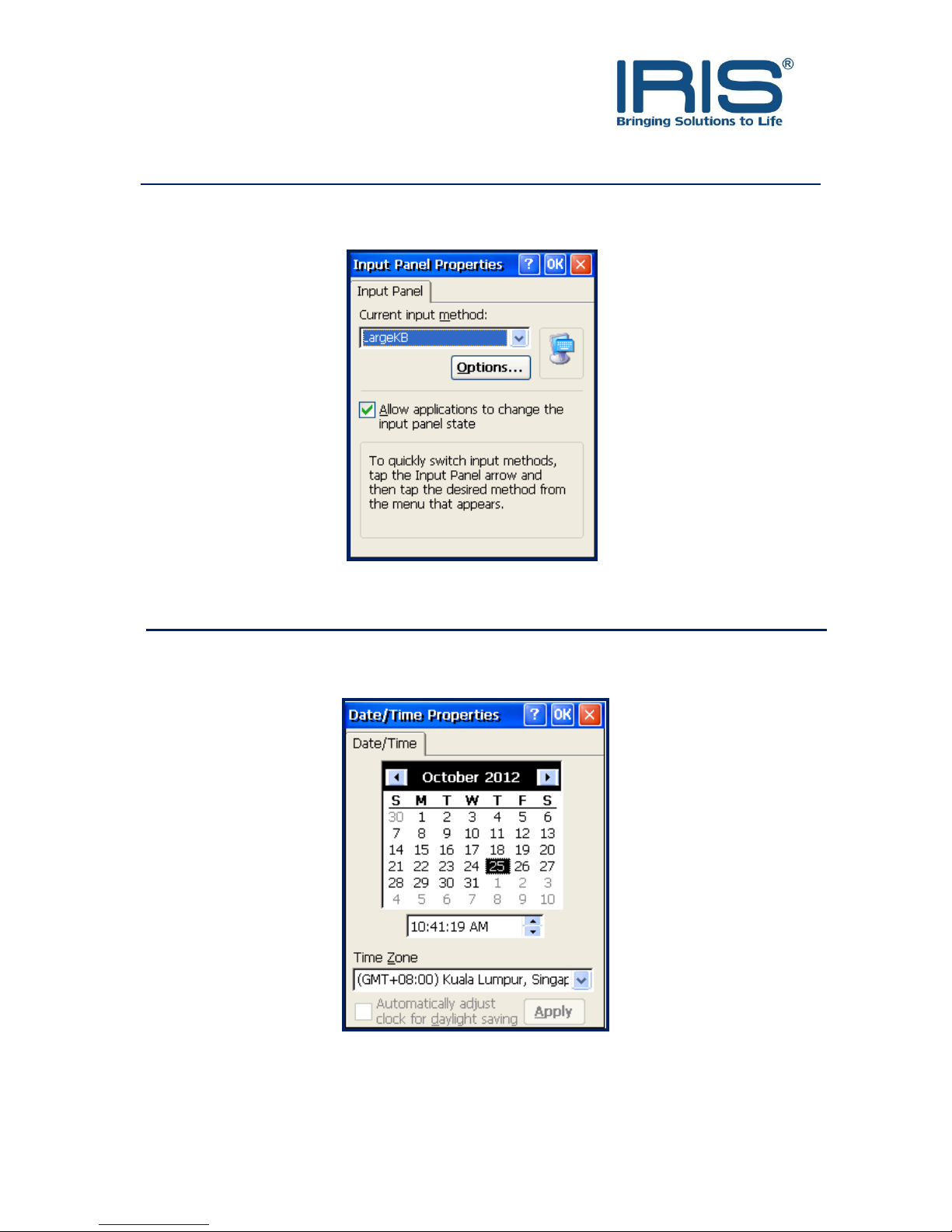

Input Selection Panel

In the “Input Selection Panel”, user can change the current state of Input Panel by tapping
once on the SIP at the taskbar.

Date & Time Properties

Allow user to configure the date, time and time zone. It also comes with the daylight saving
feature.

28

Internet Options

Allow user to configure the network connection setting and the default homepage.

Remove Programs

Allow user to remove any unwanted installed programs.

29

Internet Explorer makes it easier to get the most from the World Wide Web, whether to
search for new information or browsing through websites.

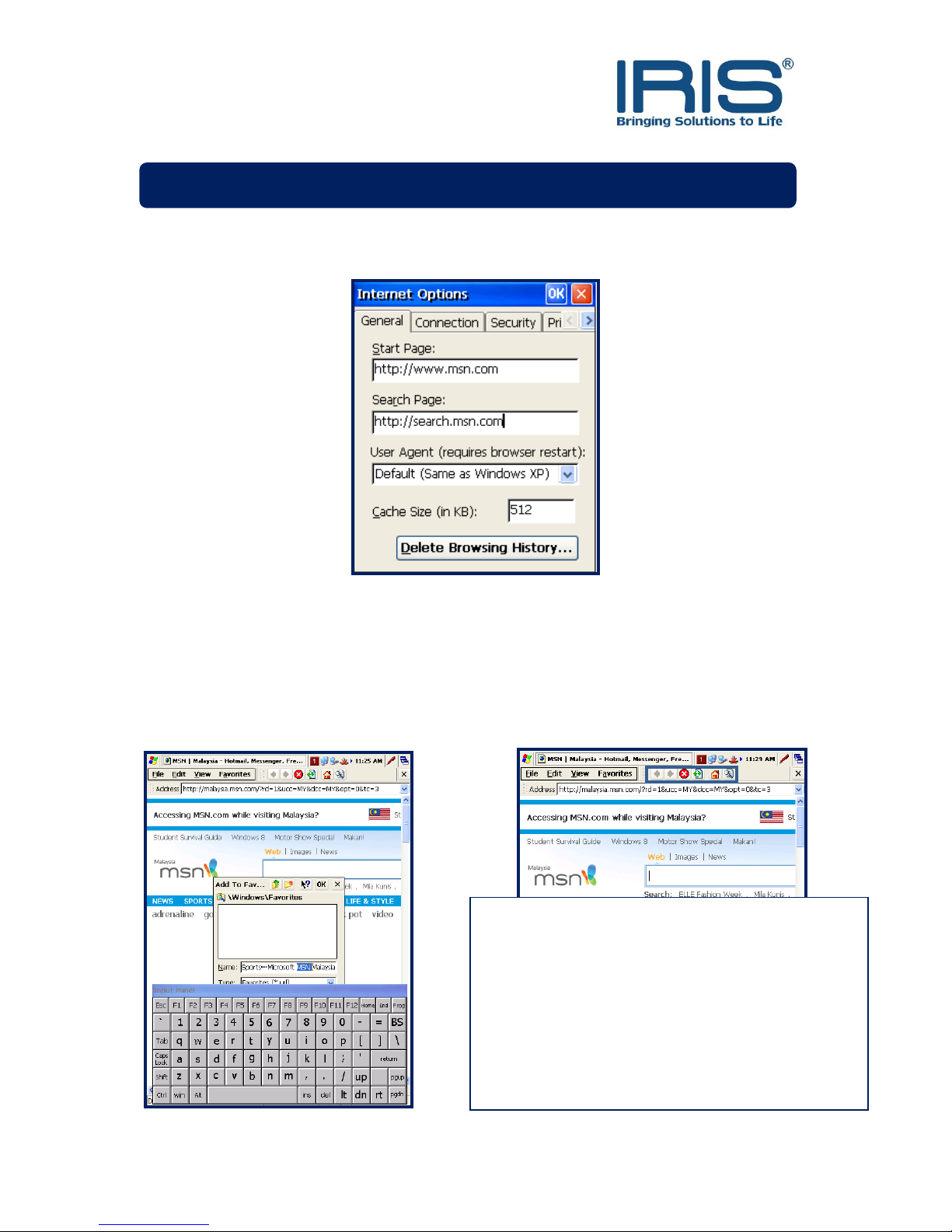

In the control panel menu, under the internet option, user may customize the appearance of
the browser when the program is launched.

The start page of Internet Explorer. The View menu allows user the option of
limiting the taskbar to be shown and font size.

Internet Explorer

User could also go to a webpage, by typing the internet
address – for example,

www.iris.com.my

in the address bar and then click the Go button. The
Back and Forward buttons will enable user to return to

the previous page or view the next page.
The Stop button will enable user to stop viewing a page

when the webpage is taking too long to open. When
receiving a message that a web page cannot be
displayed or to make sure user has the latest version of
the page, click the refresh button.

30

Getting Connected

All the features and peripherals of ST5e can be accessed and enabled by getting into the
Power Control screen. The following pathway would lead the user to the Power Control
screen.

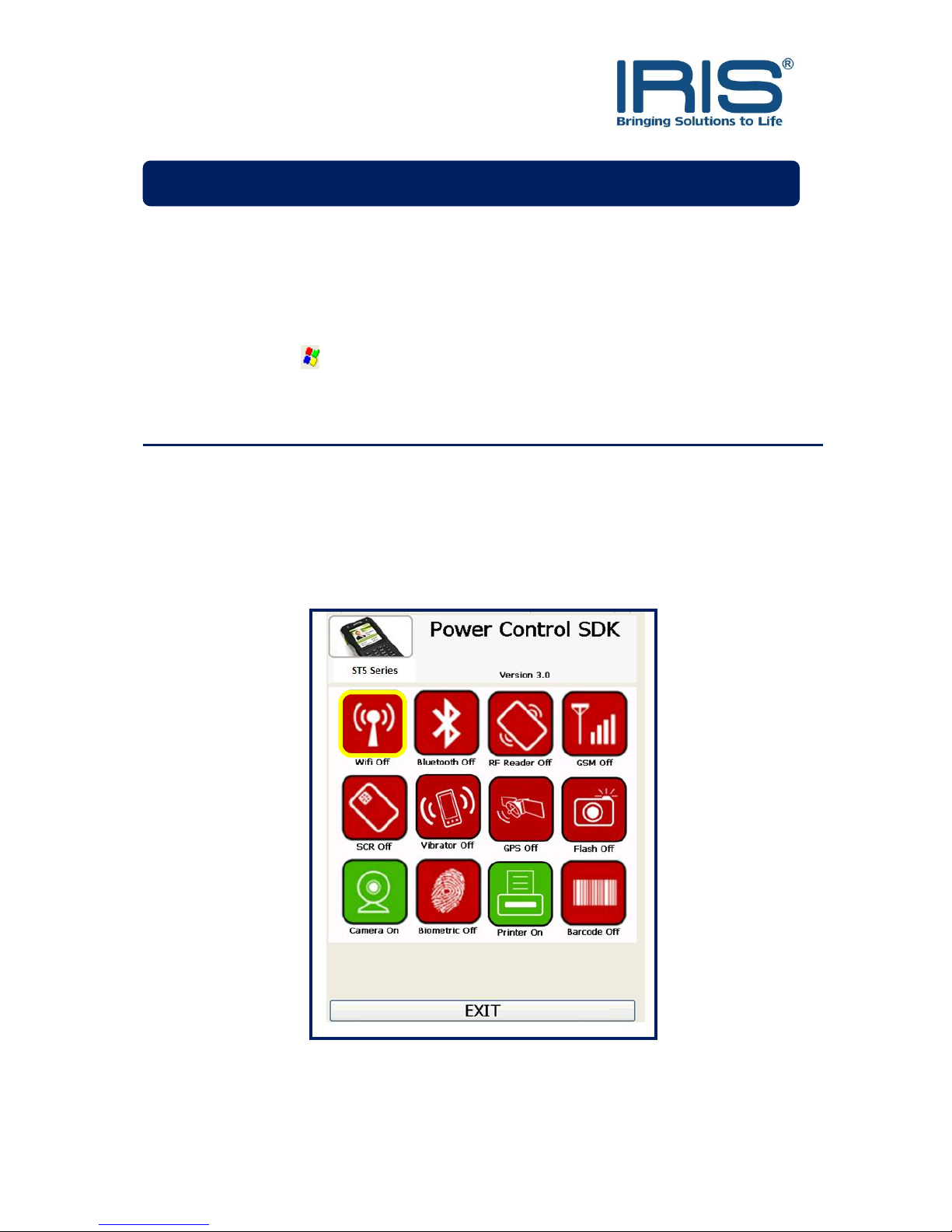

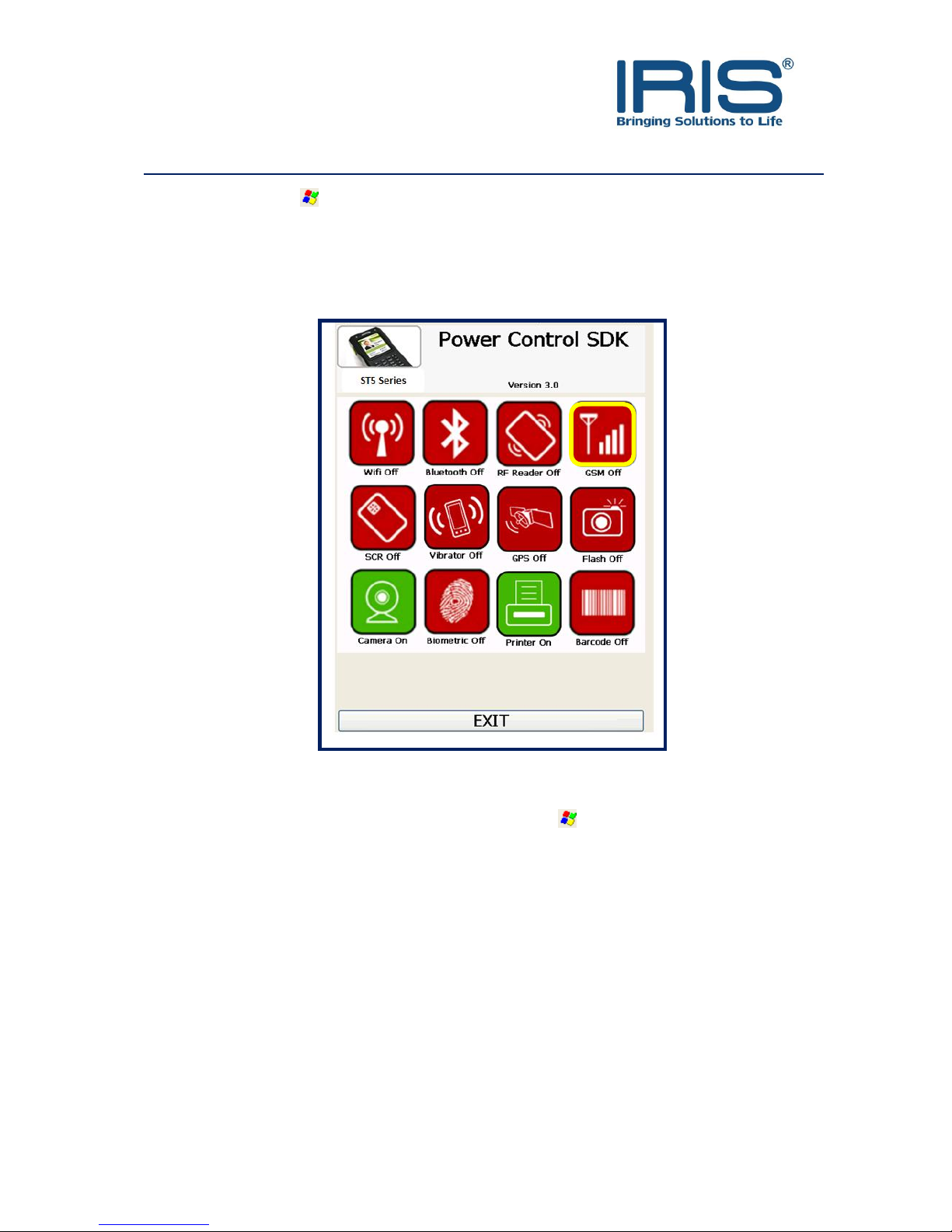

-> Settings -> Control Panel -> Power Control

Wireless LAN (Wi-Fi) Usage

ST5e is equipped with built-in wireless LAN that enables user to access Internet through
available wireless networks.

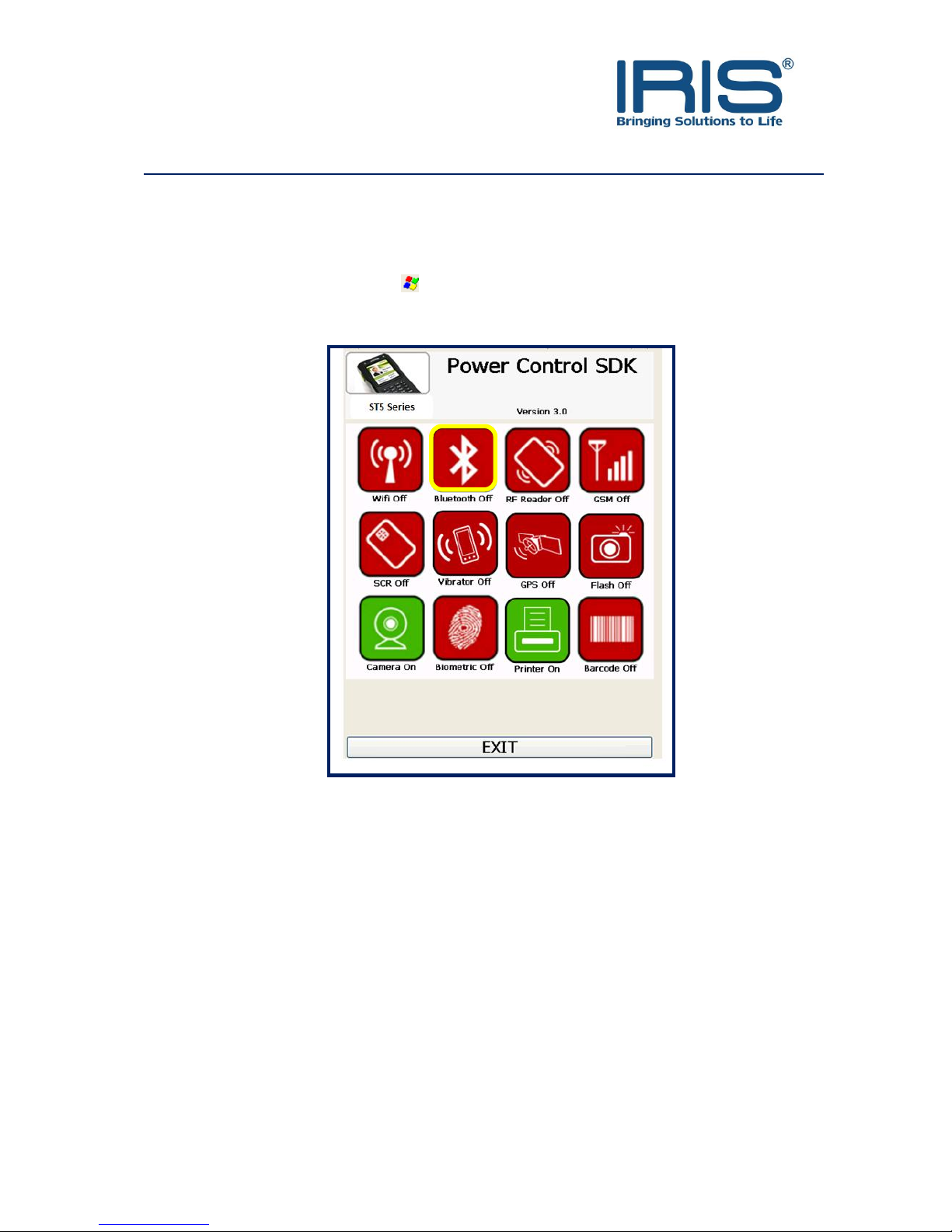

To turn ON the wireless LAN, go to Power Control screen as shown below and tap once on
the WiFi icon. The icon should be in green when it is turned ON.

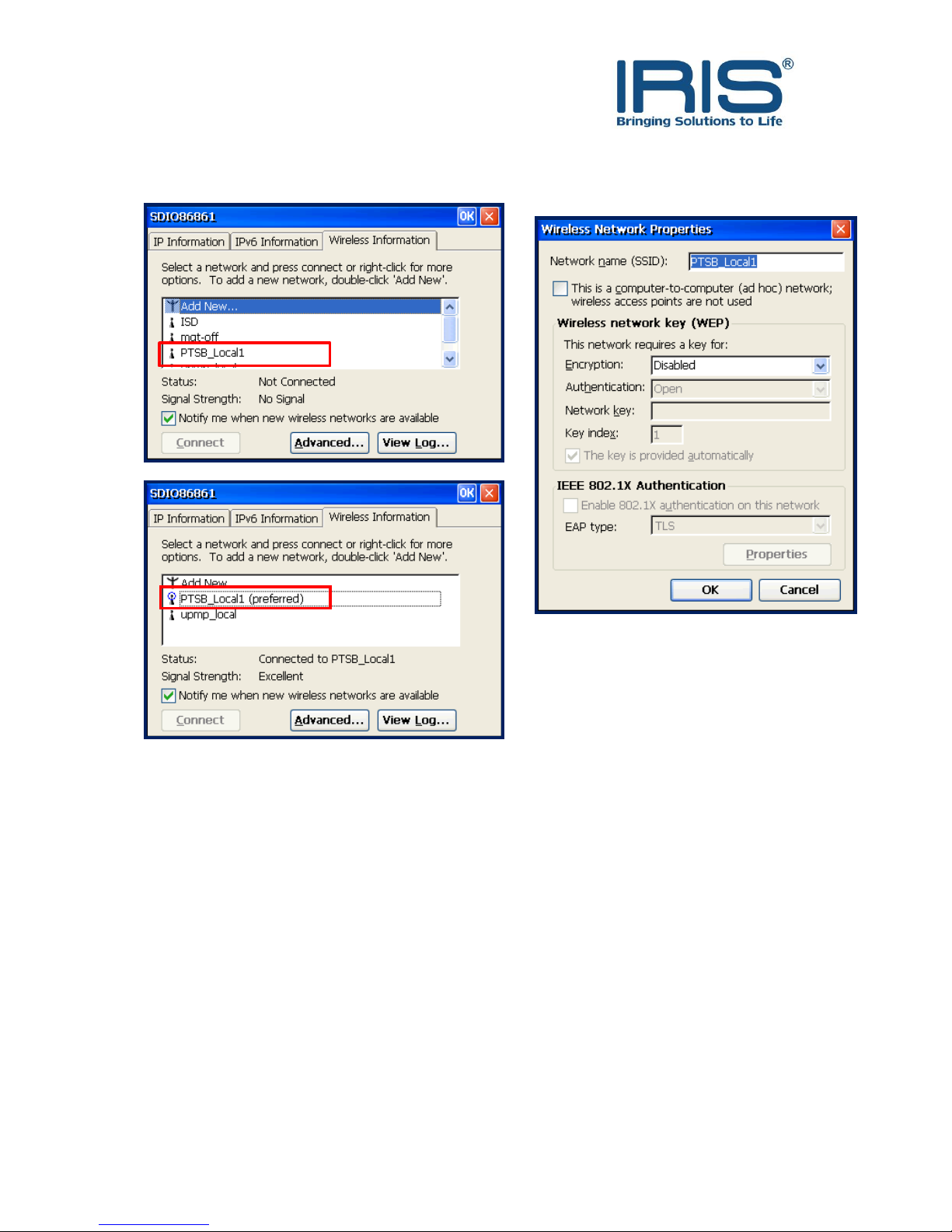

The network icon will pop up on the shell taskbar. Double tap on the icon to configure the
WiFi network properties. On the Wireless Information tab, check on the Notify me when
new wireless networks are available. Select the prefered network, press Connect and a

Features

HRTSeries

31

Wireless Network Properties window will pop out. Enter the Network key if needed, else
press OK.

32

Bluetooth Usage

Bluetooth Manager allows user to scan, pair and link with other Bluetooth devices. The

Bluetooth feature of the device must be turned ON in order to do the scanning. For the steps
on turning ON the Bluetooth feature, please refer to the manual below.

To access Bluetooth function, go to -> Settings -> Control Panel -> Power Control and
press once on the Bluetooth icon to activate it. If the icon is green, it is turned ON and if the
icon is red it is OFF or inactive.

User may scan and pair with other Bluetooth devices such as mobile phones, PCs, laptops
and other Bluetooth enable device.

HRTSeries

33

In order to connect to another device, user needs to run a scan for the device. The following
are the steps to establish a Bluetooth connection successfully.

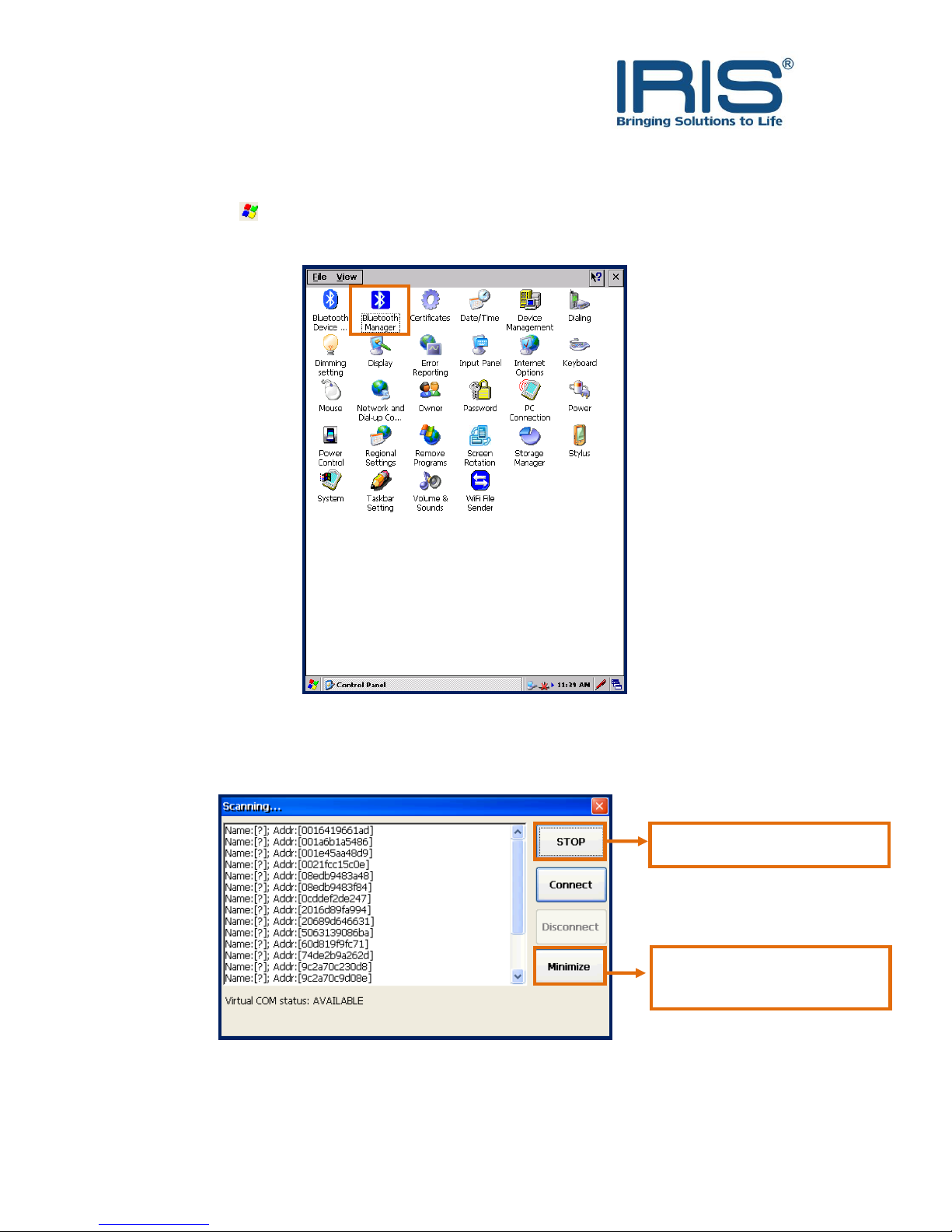

1) Go to -> Settings -> Control Panel -> Bluetooth Manager. Double tap on the

Bluetooth Manager icon.

.

2) The Bluetooth Manager window will appear as below.

No connection established

Minimizes Bluetooth Manager
Window into the taskbar

34

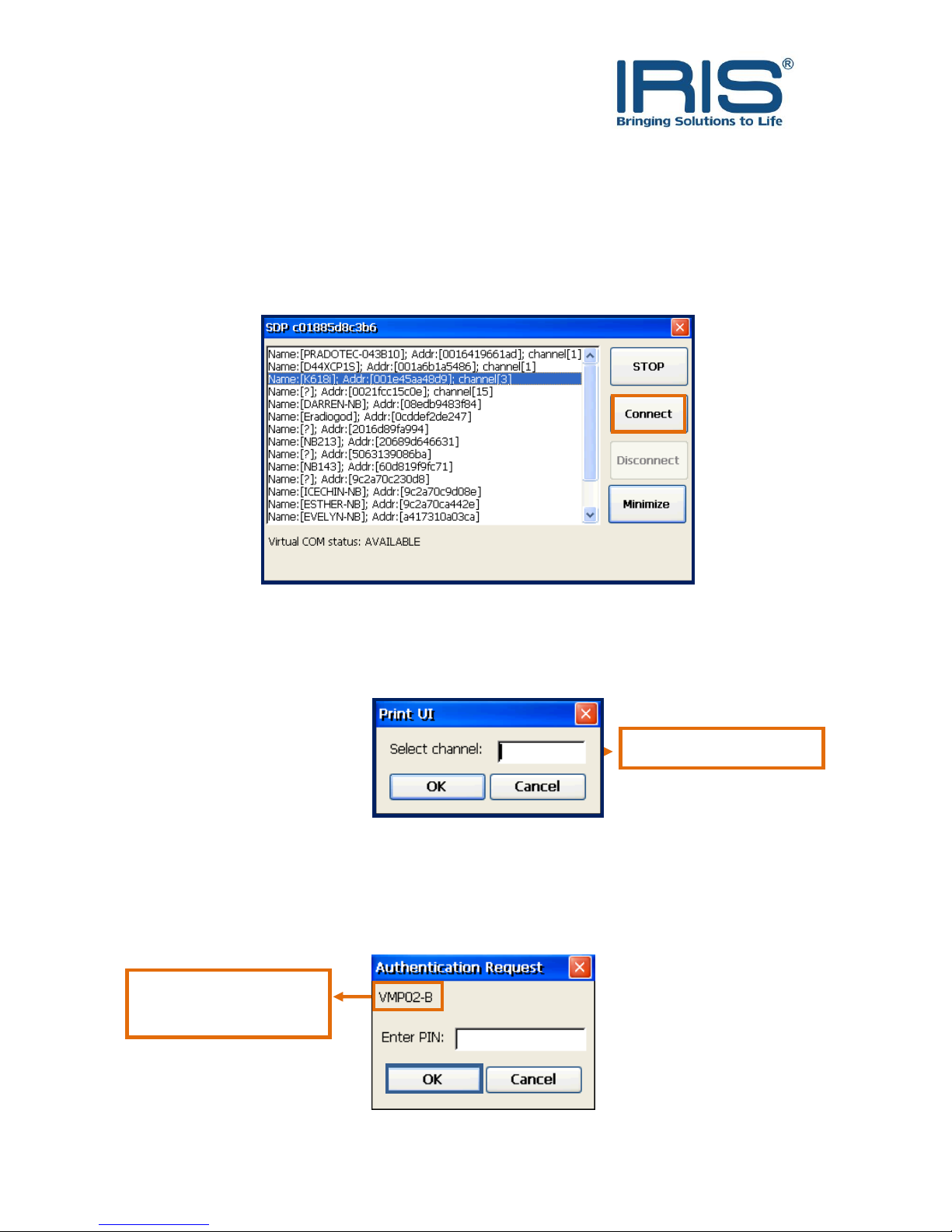

3) Make sure the Bluetooth pairing device is within the coverage range. Tap Scan to

start scanning.

4) Tap STOP if you would like to stop the device from scanning.

5) Select the device that wish to be connected and tap Connect.

6) A Print UI window will pop up if the channel is not stated. Insert channel between 1 to

30, channels below 1 or above 30 are bad channels. Then press OK.

7) An Authentication Request window will pop up. Enter the same PIN for both devices.

Once the device is successfully connected, a window will pop up. Tap OK to complete
the connection.

Channel between 1 to 30

Name of the pairing
device

35

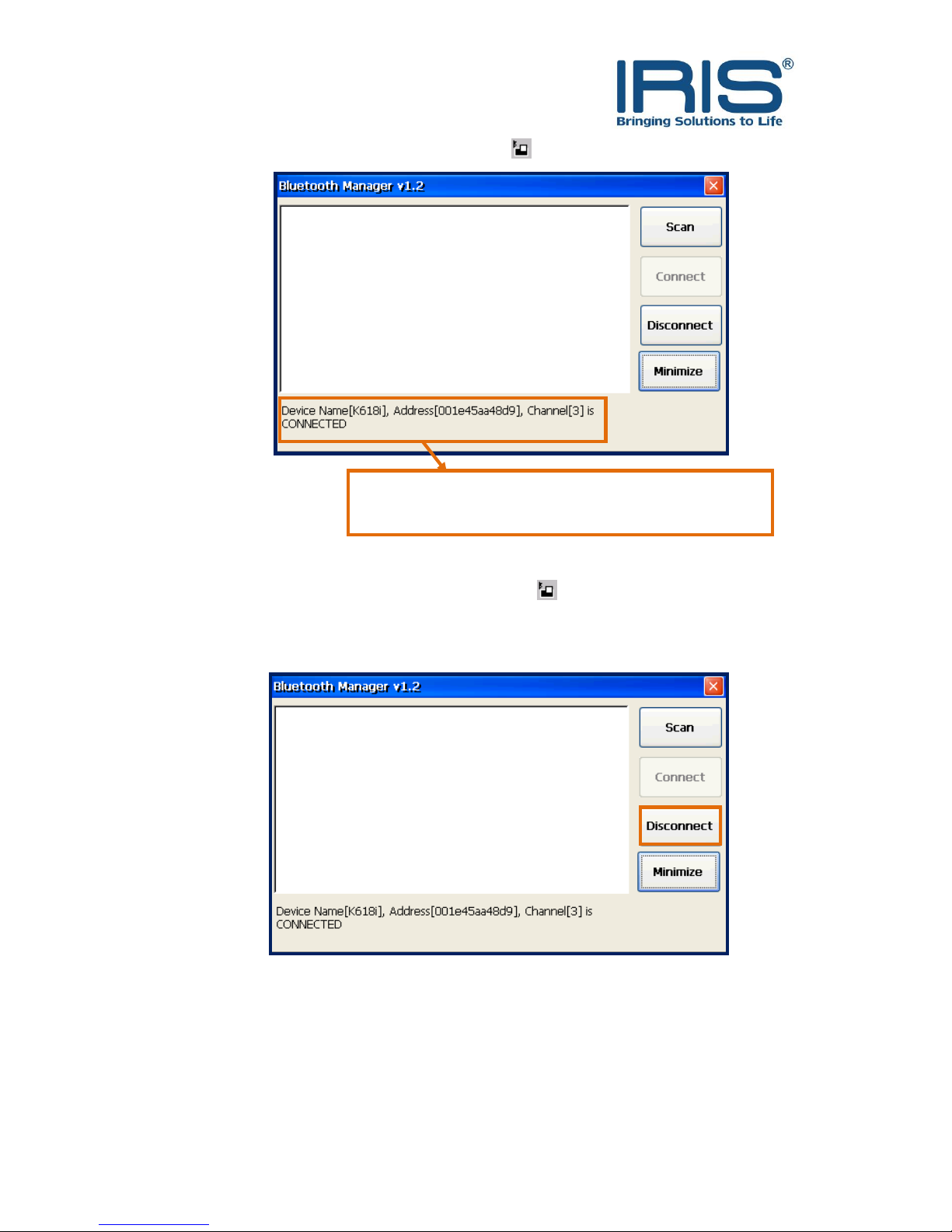

8) Click once on the Bluetooth Manager icon, to check on the connection.

9) Click once on the Bluetooth Manager icon, to reopen the dialog. A device is

connected to ST5e by Virtual COM. In order to connect with other device, ST5e
needs to be disconnected by pressing “Disconnect”.

This is the address and channel of the device that is
connected to the device

36

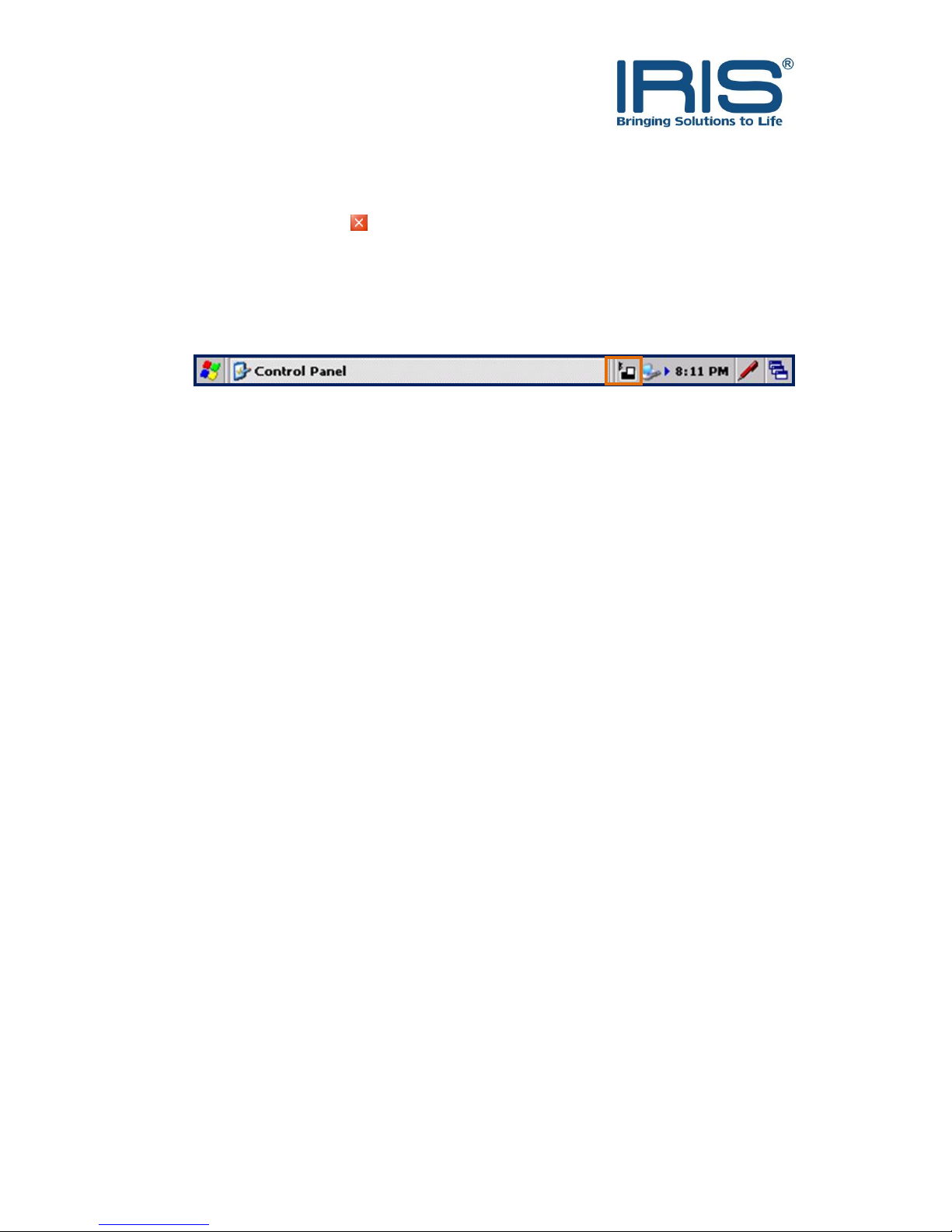

10) Please make sure that the Bluetooth Manager icon remains at the taskbar. If the icon

disappears, launch the program again. There are few scenarios that the taskbar icon
may disappear:

 Close button, is pressed. This will cause the entire application to close.
 Soft reset button is pressed. All the running application will end.

11) If the device is suspended, make sure the Bluetooth feature is turned ON again.

12) By pressing the soft reset button, all the applications will end. Make sure the

Bluetooth feature is turned ON again. It will then connect to the last connected
device prior to the soft-reset provided it is not disconnected.

13) The connection will remain active until the device is disconnected or is being hard-

reset, which is Restore to factory setting.

37

GSM Usage

To access GSM, go to -> Settings -> Control Panel -> Power Control and tap once on
the GSM icon to activate it.

Icon is Green – ON
Icon is Red – OFF

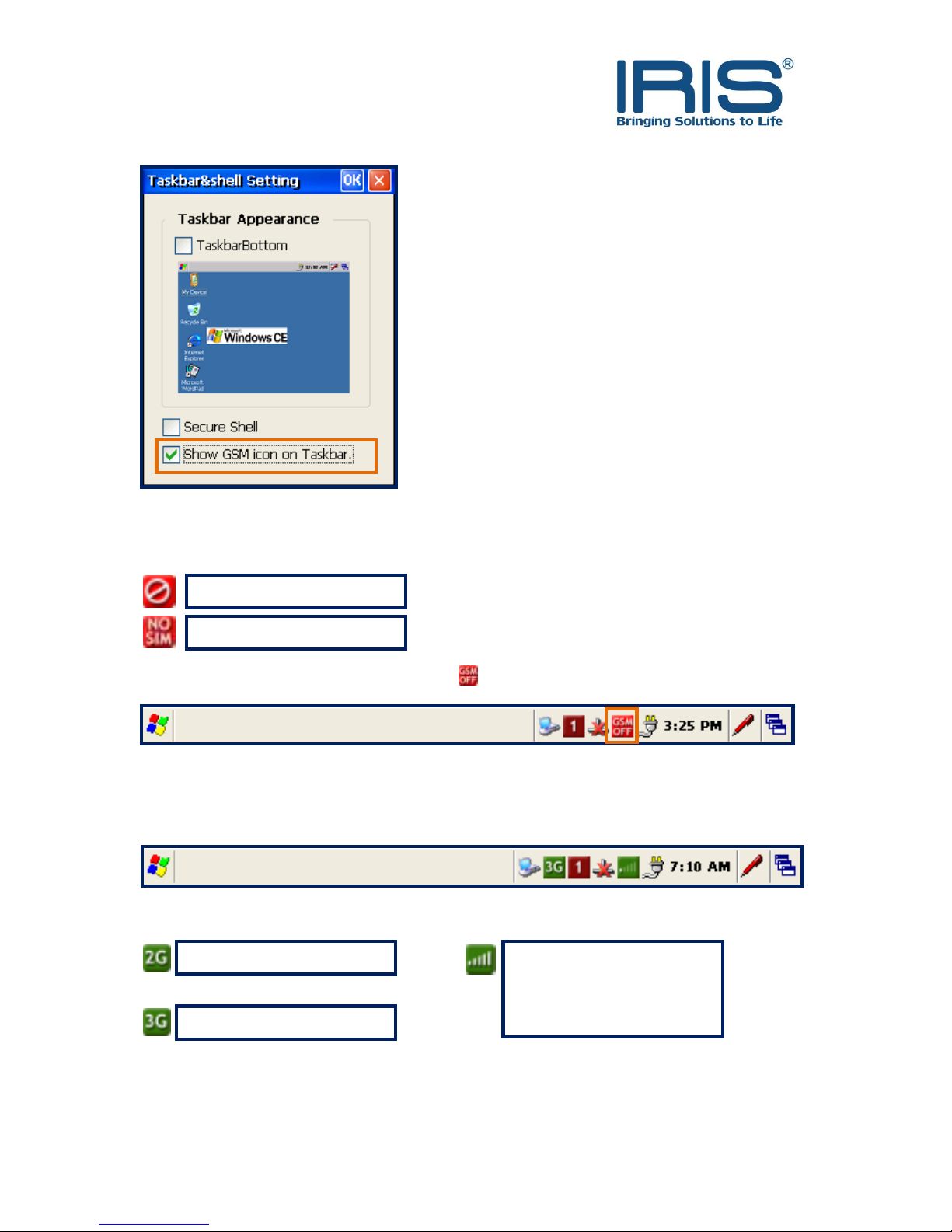

The GSM status will be displayed at the top right of the device via a GSM icon.

In order to check the service and coverage of GSM, go to -> Settings -> Control Panel -

> Taskbar Setting. Check on the Show GSM icon on Taskbar.

38

If there is no SIM card inserted into ST5e, there are two icons shown on the taskbar.

Before GSM module is configured, this icon,

- GSM OFF will appear on the taskbar.

After the GSM module is configured, two new icons will appear on the taskbar. Both of the
icons show the status of the GSM module of the ST5e.

No GSM service

No SIM card inserted

2G Service

3G Service

Coverage of GSM

Empty means low while full
means excellent

39

Using the Contact Card Reader

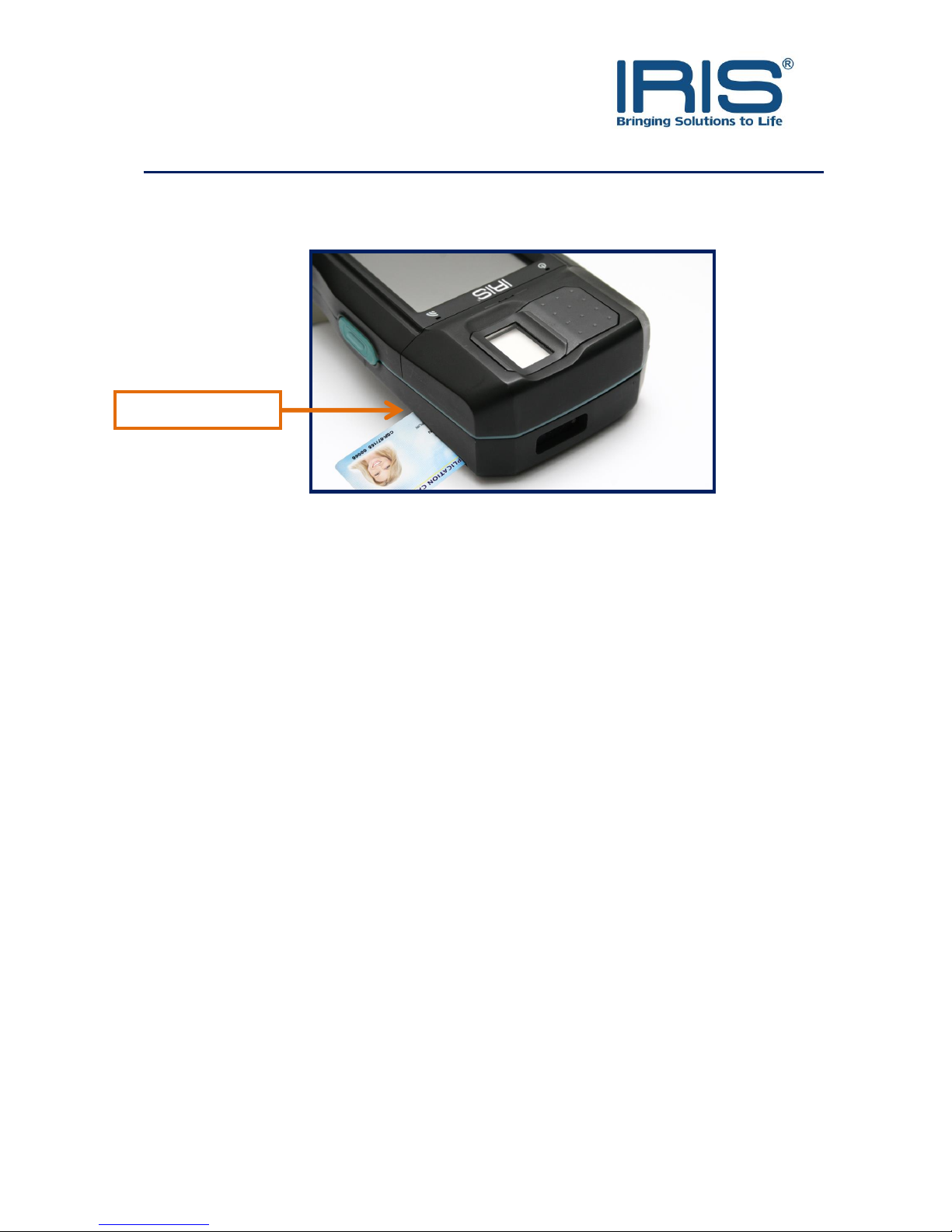

1. Insert the smart card (chip facing inwards) into the contact card slot which is located

by the right side of the device.

Contact card Slot

40

Using the Fingerprint Sensor

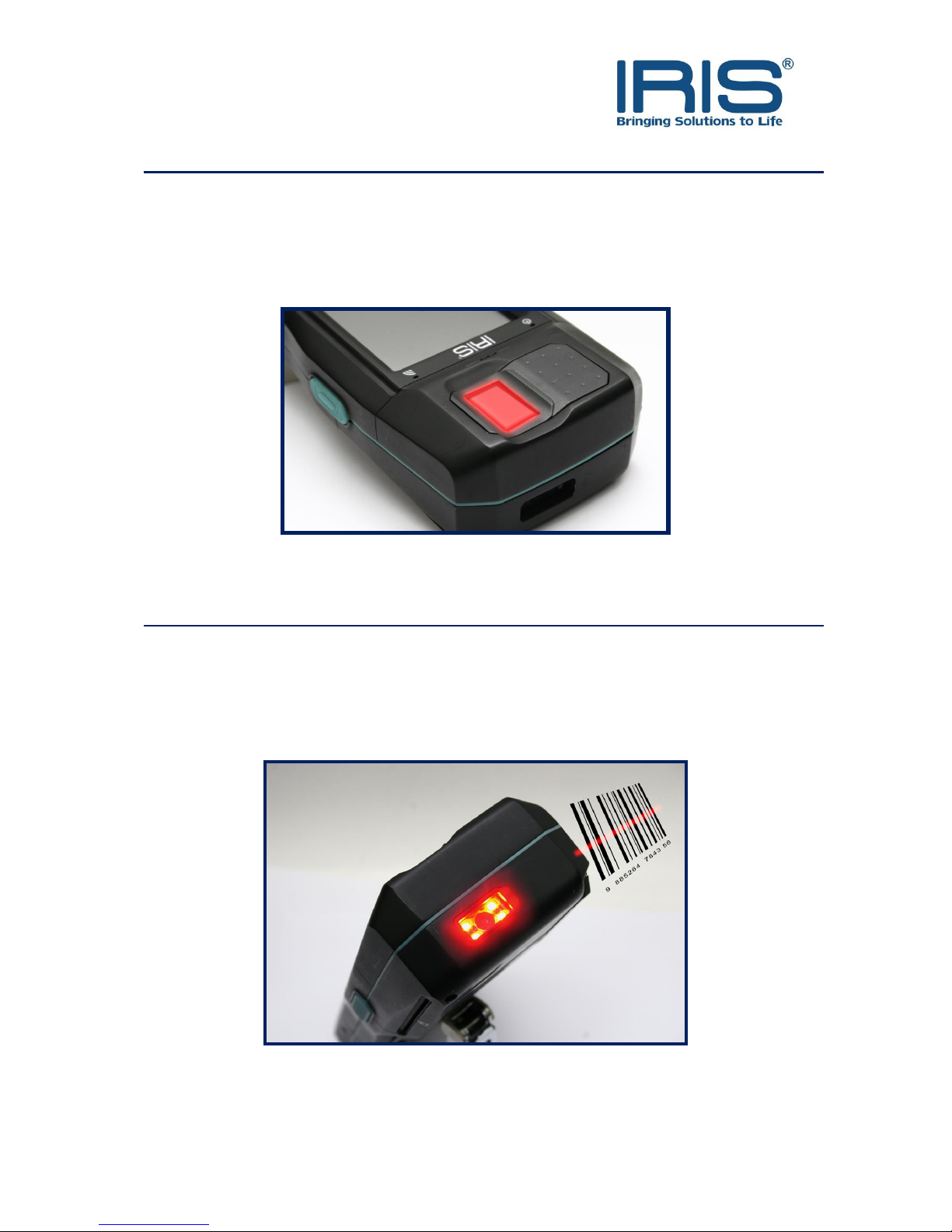

1. When the optical finger print sensor is ready, the sensor window will light up.

2. Place the finger on the centre of the finger print sensor window.

3. Wait and remove the finger only when the sensor light turns dim.

Using the Barcode Scanner

1. Trigger the barcode scanner.

2. Aim the scanner towards the barcode to do read it.

3. Once done, the scanner will be automatically turned off and result will be displayed.

41

Reset the ST5e and clear memory

To Reset the ST5e

If the ST5e responds slowly or “freezes”, try resetting it.

Please note that any unsaved data in the open windows may be lost during the reset.

● Use the stylus to press the Reset button.

Restore to Factory Setting

1. Turn the ST5e ON.

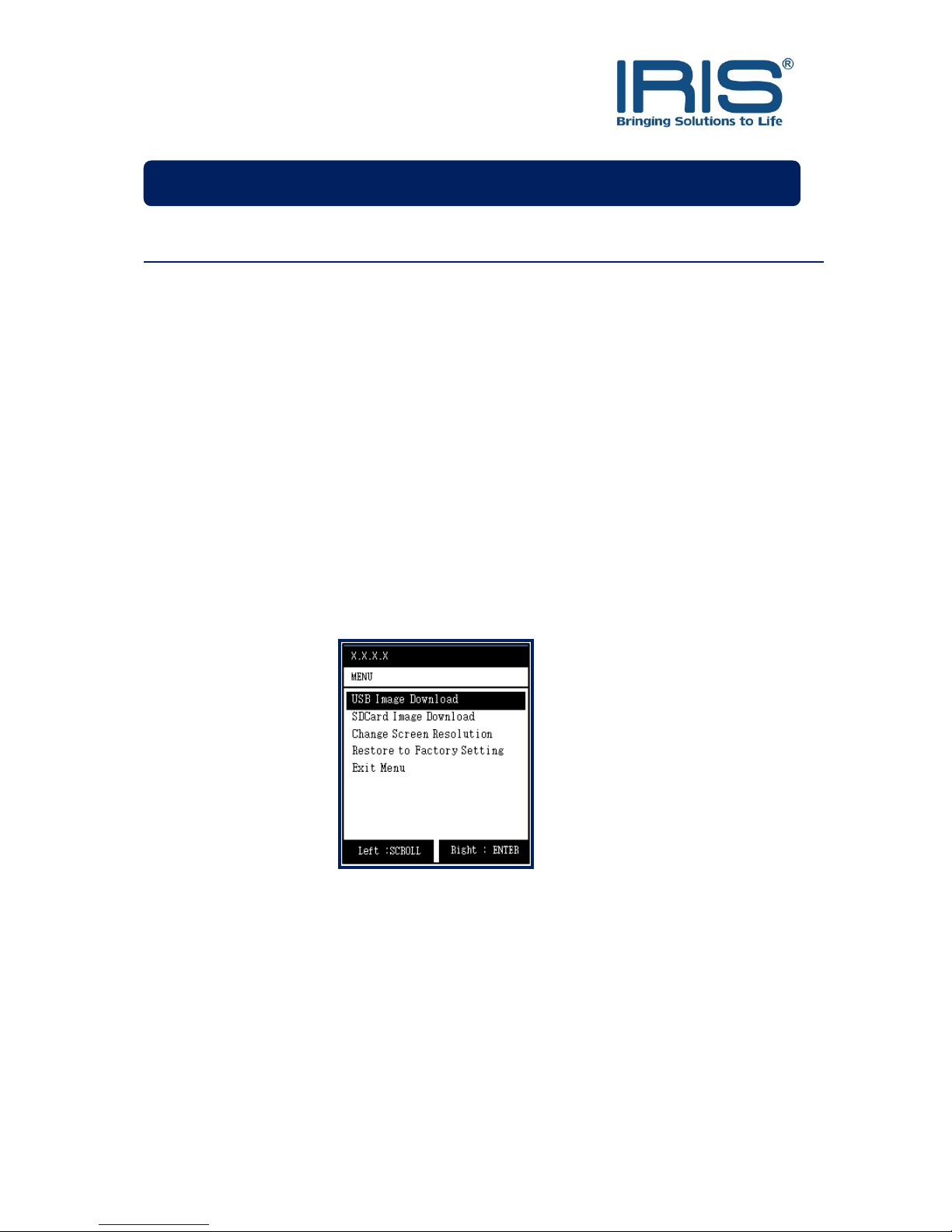

2. Press and hold the Side Button (right) button, and use the stylus to press the Reset

button. A window as below will be shown on the screen.

3. Press the Side Button (left) button to scroll, select Restore to Factory Setting.

4. Press the Side Button (right). Then, select Yes by pressing Side Button (right) again.

Appendix: Troubleshooting Guide

42

If ST5e runs out of Power

Low Battery Power

When battery is running low, user will see a low battery icon in the navigation bar. Kindly
replace or recharge the battery as soon as possible. Running on low battery power will affect
the device’s peripheral performance. Hence, the device will automatically shut down when
the battery power is critically low. Under normal conditions, a fully charged battery can be
used for long hours.

WARNING

If the battery is low during handheld operation, user could face the risk of losing the data in
ST5e.

Use External Power Whenever Possible

Use the AC adapter to plug the ST5e into external power whenever possible, especially
during:

● Establishing a remote connection (some modems use a lot of power).

● Using the backlight feature of user’s ST5e display.

● Connecting to a desktop computer.

Shorten the Auto-Suspend Time

ST5e will automatically suspend after a predefined idle period. Maximize the battery’s
lifespan by shortening the idle time. Tap and then Settings. On the Control Panel tab, tap
Power, and then adjust the Schemes setting.

Turn Off the Sounds when Necessary

ST5e produces sounds in response to a number of events, such as warnings, appointments,
and screen taps or when user press hardware-button. To optimize battery’s lifespan, turn off
any unnecessary sounds. Tap and then Settings. On the Control Panel tab, tap Volume
& Sounds and clear check boxes on the Events, Application, keyClicks and Notification
tabs.

Turn Off the Unused Peripherals

Turning OFF all the unused peripherals in the device will save and optimize the battery‘s

lifespan. To turn OFF all the unused peripherals, tap and then Settings. On the
Control Panel tab, tap Power Control and switch OFF all the unused peripherals.

43

If ST5e runs out of Memory

Memory of ST5e is shared between storage memory and program memory.Storage memory
is used to store the information created and programs installed. Program memory is used to
run programs in the ST5e. The ST5e automatically manages the allocation between storage
and program memories. However, in some situations, such as when memory is low, the ST5e
may not be able to automatically adjust the allocation. If user receives a message stating that
storage or program memory is unavailable, try the following solutions.

Storage Memory-Secure Digital (SD) Storage Card

1. Move data to a Secure Digital (SD) Storage Card.

2. Tap , Program and then Windows Explorer. A folder named “Storage Card” will

appear once the SD memory card is inserted.

3. This folder will disappear automatically once the card is taken out from the slot.

4. Move any file or data into the “Storage Card” folder for backup purposes.

5. Files or data save in the SD card can be opened in any other SD card reader or
computer.

6. Files copied from computer can also be opened in the device, as long
as it does not exceed the memory of the device.

Program memory

1. Stops inactive programs.

2. Clear storage memory as described in the preceding section.

3. Reset the device, as described in “Reset the ST5e”.

Screen is Blank

If the ST5e does not respond when user presses the Power button, press and hold the button
for a full second. If this does not work:

1. Make sure user’s battery cover is locked and all expansion slots are secured.

2. Plug the ST5e into AC power.

3. Change or recharge the main battery.

Screen is Dark

Prolonged exposure of the ST5e to direct sunlight may cause user’s ST5e screen to be
temporarily dim. This is a normal case for LCD screens and it is not permanent.

44

Inaccurate Response to Stylus Taps

Tap and then Settings. On the Control Panel, tap Stylus. In the Stylus Properties,
choose Calibration. Tap “Calibrate”.

Routine Maintenance

This section provides routine maintenance guidelines. Following these guidelines, helps to
ensure the lifespan of ST5e and reduces the risk of damage.

Routine Care

To keep ST5e in good condition and working properly, follow these guidelines:

 Keep ST5e away from excessive moisture and extreme temperature.
 Do not expose ST5e to liquids or precipitation.
 Do not place anything on top of ST5e to prevent damage to the screen.
 Store ST5e in a protective case when not in use.
 Clean ST5e by wiping the screen and the exterior with a soft, damp cloth

moistened only with water.

To reduce the risk of electric shock or damage to the internal components, do
not spray liquid directly on the screen or allow excess liquid to drip inside the
ST5e. Using soap or other cleaning products on the screen may discolor and
damage the screen.

45

 Avoid exposing ST5e to direct sunlight or strong ultraviolet light for extended

periods of time. Also avoid scratching the surface of the screen and banging it
against hard objects.

 Use only ST5e’s stylus to prevent scratches on the screen.

Battery Guidelines

Follow local regulations regarding the safe disposal of ST5e. Vendors can advise user on local
regulations and the existence of any battery disposal programs in the operation.

ST5e should not be disposed along with the general household waste. In order to forward it
for recycling or proper disposal, please use the public collection system or return it to IRIS or
the authorized partners.

Travel Guidelines

For safety and convenience when traveling with ST5e, follow these guidelines:

● Back up data before travel.

● Take a backup copy.

● Disconnect all external equipment from ST5e.

● Take along the AC adapter and new batteries.

● Hand-carry ST5e in a protective case. Do not check in with luggage.

● Beware of potential effects of airport security devices on the ST5e.

There are three types of airport security devices: X-ray machines, magnetic
detectors (the device passenger walks through for security scanning), and
security magnetic wands. The device can be sent through airport’s X-ray
machines. However, it is recommended that the device does not send through
the magnetic detectors or expose it to security magnetic wands.

● Check with the airline if there is a plan to use the device on the plane. In-flight,

the use of electronic devices is at the discretion of the airline.

International Travel

Before traveling internationally with ST5e, be sure to:

● Check local customs regulations on wireless devices.

46

Shipping Guidelines

When shipping the ST5e, follow these guidelines:

● Safeguard data by making a backup copy.

● If shipping the backup copy, be sure that the medium (diskette, tape, or SD

card) is not exposed to electrical or magnetic impulses while stored or in
transit.

● Turn off ST5e and disconnect all external devices.

● Pack ST5e and all external devices (such as the cradle, cords, and cables) in

their original packing boxes or in similar packaging with sufficient packing
material to protect them.
