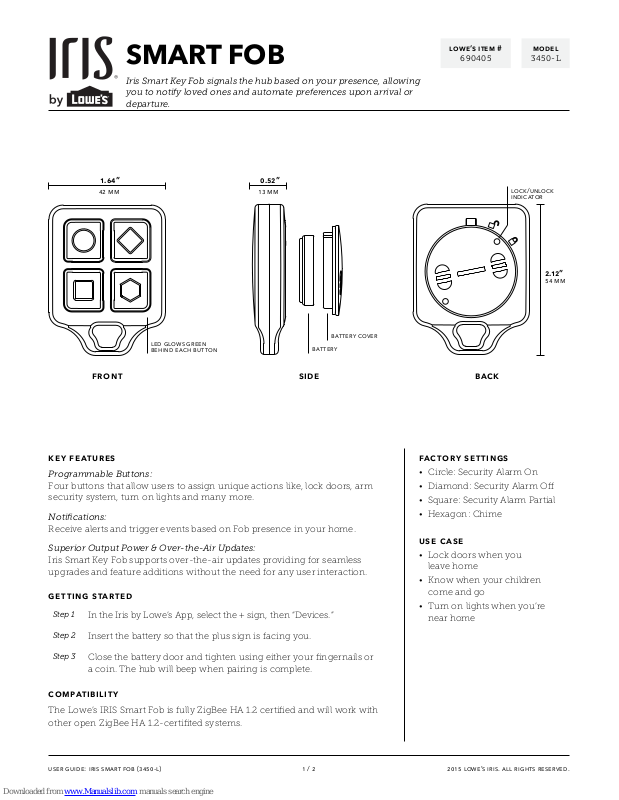

SMART FOB
Iris Smart Key Fob signals the hub based on your presence, allowing
you to notify loved ones and automate preferences upon arrival or
departure.
lowe’s item #
690405
model
3450-L
1.64”
42 mm
front
led glows green
behind e ach but ton
0.52”
13 mm
battery cover
battery
side
key features
Programmable Buttons:
Four buttons that allow users to assign unique actions like, lock doors, arm
security system, turn on lights and many more.
Notifications:
Receive alerts and trigger events based on Fob presence in your home.
Superior Output Power & Over-the-Air Updates:
Iris Smart Key Fob supports over-the-air updates providing for seamless
upgrades and feature additions without the need for any user interaction.
getting started
Step 1
Step 2
In the Iris by Lowe’s App, select the + sign, then “Devices.”
Insert the battery so that the plus sign is facing you.
lock/unlock
indicator
2.12”
54 mm
back
factory settings
• Circle: Security Alarm On
• Diamond: Security Alarm O
• Square: Security Alarm Partial
• Hexagon: Chime
use case
• Lock doors when you
leave home
• Know when your children
come and go
• Turn on lights when you’re
near home
Step 3
Close the battery door and tighten using either your fingernails or
a coin. The hub will beep when pairing is complete.
compatibility
The Lowe’s IRIS Smart Fob is fully ZigBee HA 1.2 certified and will work with
other open ZigBee HA 1.2-certifited systems.
user guide: iris smart fob (3450-l) 2015 lowe’s iris. all rights reserved.1 / 2
SMART FOB
lowe’s item #
690405
model
3450-L
approvals (english)
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
Conforms to FCC Part 15B
Contains FCC ID: T3L-SS011
IC: 12192A-SS011
Industry Canada licence-exempt RSS Standards. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) This device must accept any interference received, including interference that may cause undesired operation.
Under Industry Canada regulations, this radio trans mitter may only operate
using an antenna of a type and maximum (or lesser) gain approved for the
transmitter by Industry Canada. To reduce potential radio interference to
other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for
successful communication.
This equipment complies with FCC and IC radiation exposure limits set forth
for an uncontrolled environment. This equipment is in direct contact with
the body of the user under normal operating conditions. This transmitter
must not be co-located or operating in conjunction with any other antenna
or transmitter.
Changes or modifications not expressly approved by Lowes, Inc. could void
the user’s authority to operate the equipment.
For more information, visit IrisByLowes.com.
troubleshooting
Step 1
Remove and replace battery from
device. Twist the rear battery
door counterclockwise using a
coin. Remove battery and replace
with a new CR-2450 battery. Reassemble and test operation.
Step 2
Remove and replace battery.
Within 10 seconds, press any of
the buttons five (5) times. This
will factory reset the device. Repeat the “Getting Started” steps to
rejoin the ZigBee network.
for additional help
Check out support.IrisByLowes.
com or call 1-855-469-IRIS (4747).
technical specifications
Power
Rated: 3V
Battery: CR-2450 (1x)
Battery Life: Up to 2 years
Environmental
Operating Temperature: 0° to 40°C
approvals (franÇais)
Le présent appareil est conforme aux CNR d’Industrie Canada applicables
aux appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.
Conformément à la réglementation d’Industrie Canada, le présent émetteur
radio peut fonctionner avec une antenne d’un type et d’un gain maximal
(ou inférieur) approuvé pour l’émetteur par Industrie Canada. Dans le but de
réduire les risques de brouillage radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance
isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à
l’établissement d’une communication satisfaisante.
Pour plus d’informations, visitez IrisByLowes.com.
user guide: iris smart fob (3450-l) 2015 lowe’s iris. all rights reserved.2 / 2
Shipping/Storage
Temperature: -20° to 50°C
Humidity Range: 0 to 90% RH.
(non-condensing)
Approvals
Wireless RF Protocol
Protocol: ZigBee HA 1.2
TX Strength: +3 dBm
RF Channels: 16
Range: 130 ft. (40m) LOS
