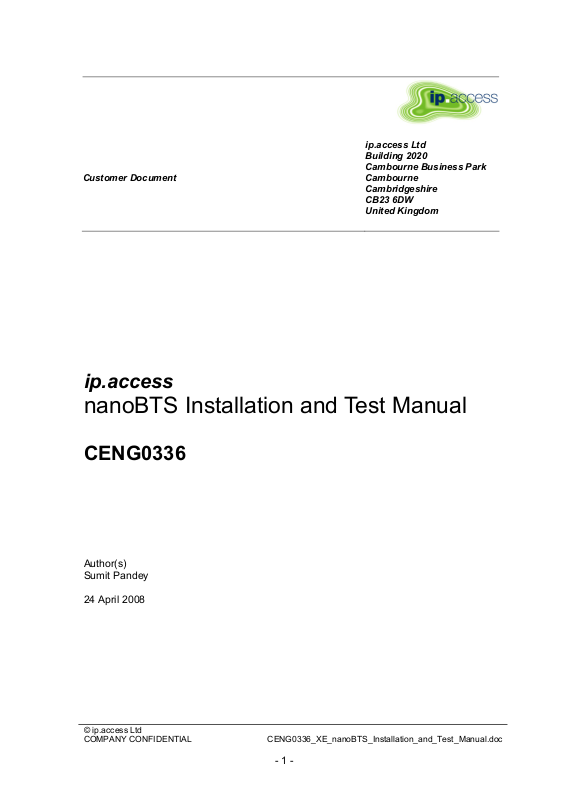

ip access KU02ZZR User Manual

Customer Document

ip.access Ltd Building 2020 Cambourne Business Park Cambourne Cambridgeshire CB23 6DW United Kingdom

ip.access

nanoBTS Installation and Test Manual

CENG0336

Author(s) Sumit Pandey

24 April 2008

- 1 -

The information contained in this document is commercially confidential and must not

be disclosed to third parties without prior consent.

- 2 -

Revision History

Version Change Summary Date Author

XA SR3.1 Release 16 January 2007 MH1 XB Updated CENG0048 27 April 2007 SP

C Reformatted. 12 Oct 2007 AM4 D Minor updates to CENG0048. 21 Nov 2007 AM4

XE Updates made to CENG0048(L) and

CENG0133

24 Apr 2008 KP, AM4

Document Approval

Author: Signature: Date:

Approved By: Signature: Date:

- 3 -

Table of Contents

1 Introduction .............................................................................................7

1.1 Purpose and Scope...................................................................................... 7

1.2 Related Documents...................................................................................... 7

2 Overview ..................................................................................................7

3 Customer safety and regulatory information (CENG0133) ..................8

3.1 Introduction .................................................................................................. 8

3.1.1 Purpose and Scope .............................................................................. 8

3.1.2 Related Documents .............................................................................. 8

3.1.3 Terminology.......................................................................................... 8

3.1.4 Change Control .................................................................................... 8

3.1.5 Document Organisation........................................................................ 8

3.2 Model 109 Power Supply ............................................................................. 9

3.2.1 109 - Handbook - Warnings and Cautions ........................................... 9

3.2.2 109 - Handbook - FCC Text ................................................................ 9

3.2.3 109 – Handbook - Industry Canada text............................................. 10

3.2.4 109 – Handbook - Regulatory Compliance Statement ....................... 10

3.3 Model 126 Ethernet Switch and Power Inserter......................................... 11

3.3.1 126 - Handbook - Warnings and Cautions ......................................... 11

3.3.2 126 – Handbook - FCC Text............................................................... 12

3.3.3 126 – Handbook - Industry Canada text............................................. 12

3.3.4 126 – Handbook - Regulatory Compliance Statement ....................... 12

3.4 NANOBTS Products................................................................................... 14

3.4.1 NanoBTS - Handbook - Warnings and Cautions................................ 14

3.4.2 NanoBTS - Handbook - Parts required for each nanoBTS................ 14

3.4.3 NanoBTS - Handbook - Provision of Power to the nanoBTS ............. 15

3.4.4 NanoBTS - Handbook – FCC Text ..................................................... 16

3.4.5 NanoBTS - Handbook – IC Text......................................................... 17

3.4.6 NanoBTS – Handbook - Regulatory Compliance Statement.............. 17

3.5 Model 129 BSC (Base Station Controller).................................................. 19

3.5.1 BSC – Handbook – Warnings and Cautions ...................................... 19

3.5.2 BSC – Handbook - FCC Text ............................................................. 20

3.5.3 BSC - Handbook - Industry Canada text ............................................ 21

3.5.4 BSC - Handbook - Regulatory Compliance Statement....................... 21

4 BTS Hardware Installation (CENG0210) ..............................................22

4.1 Introduction ................................................................................................ 22

4.1.1 Purpose and Scope ............................................................................ 22

4.2 Warnings.................................................................................................... 22

4.3 Regulatory Information............................................................................... 22

4.4 Unpacking .................................................................................................. 22

4.5 Fitting the External Antenna Kit (optional).................................................. 23

4.5.1 139/140 Hardware .............................................................................. 23

4.5.2 165 Hardware ..................................................................................... 24

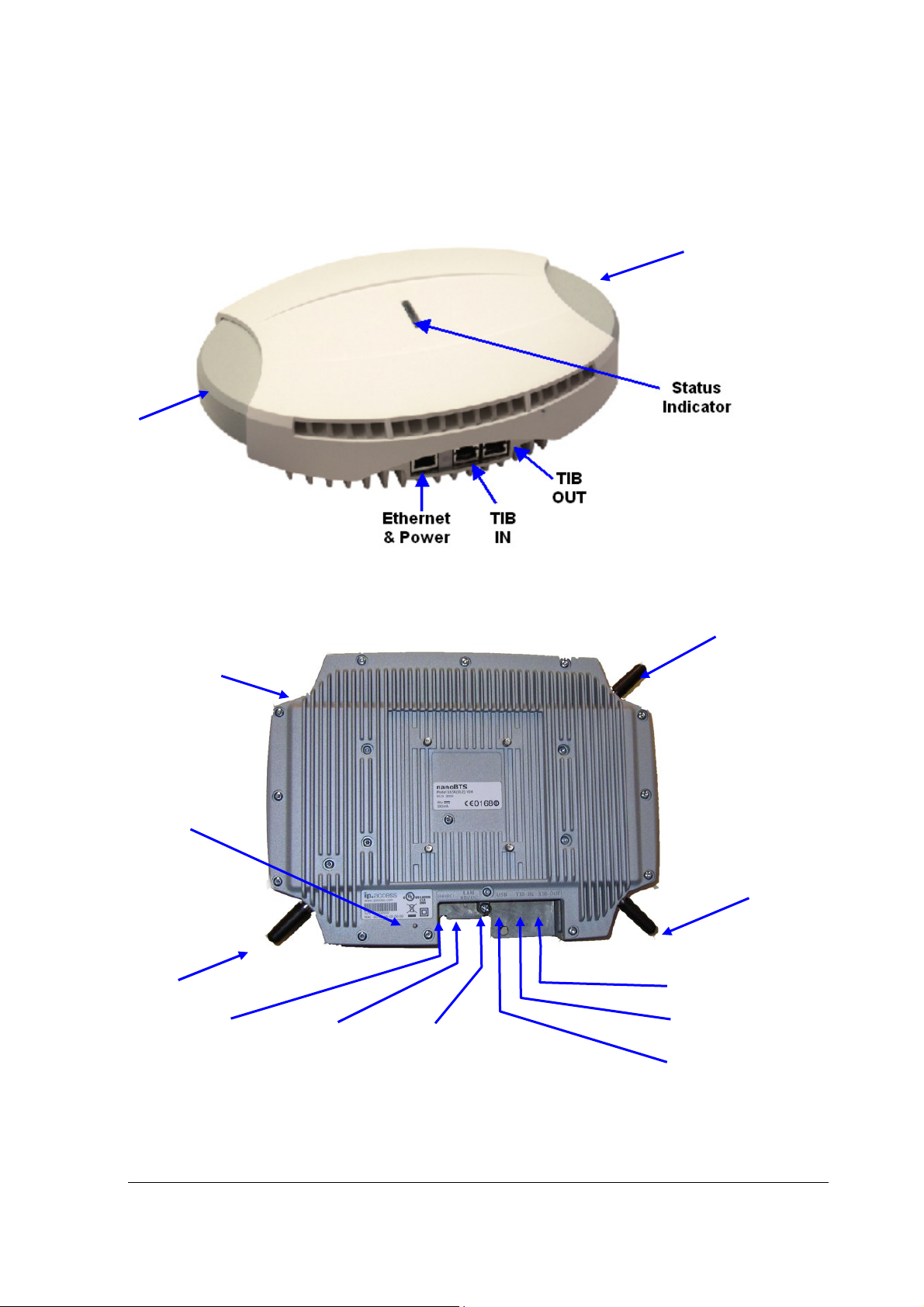

4.6 Cabling the nanoBTS................................................................................. 25

4.6.1 139/140 Hardware .............................................................................. 25

- 4 -

4.6.2 165 Hardware ..................................................................................... 25

4.6.3 Ethernet .............................................................................................. 26

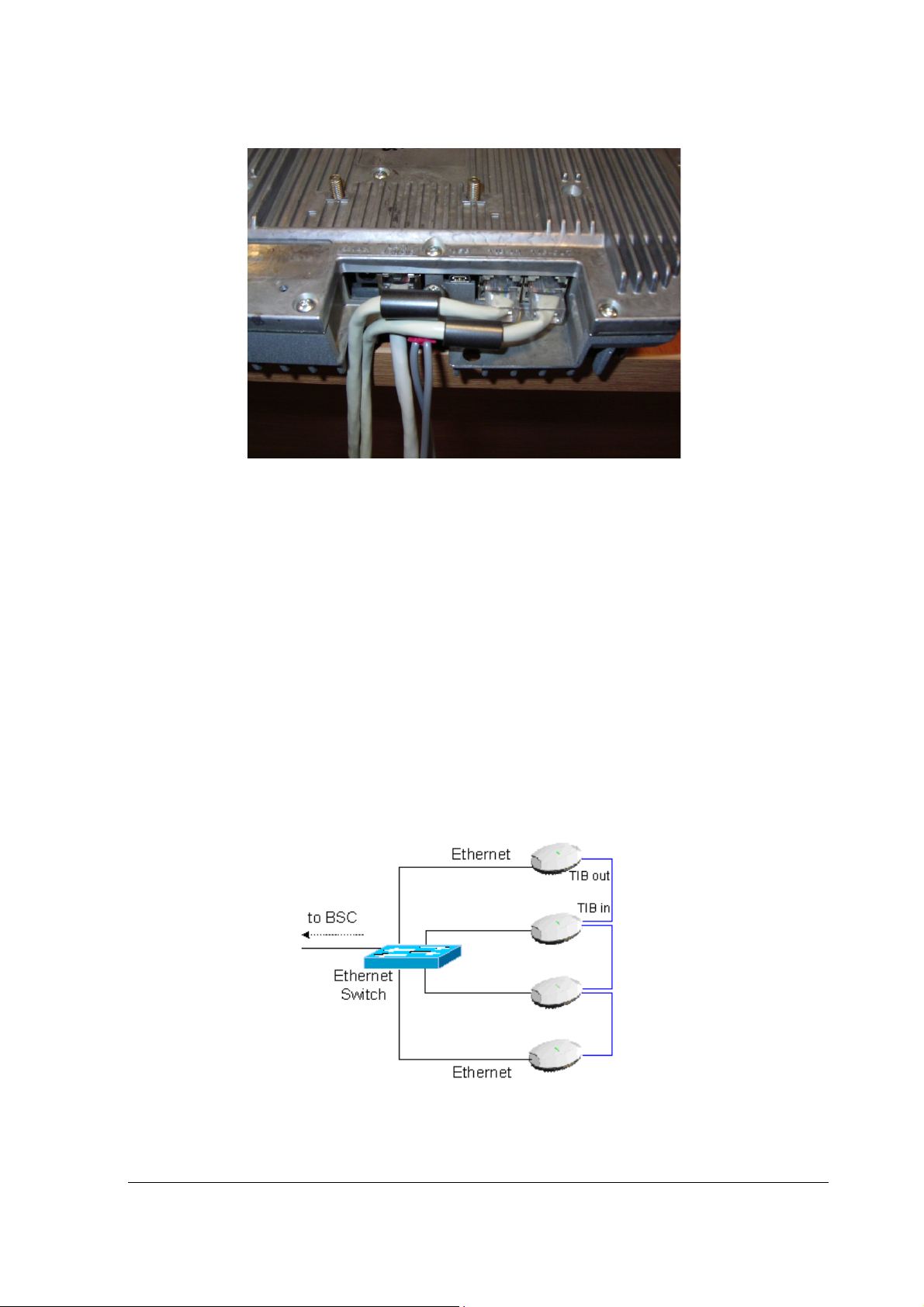

4.6.4 Timing Interface Bus (TIB) – Multi-TRX only ...................................... 26

4.6.5 Chassis Bond Strap – Multi-TRX only ................................................ 27

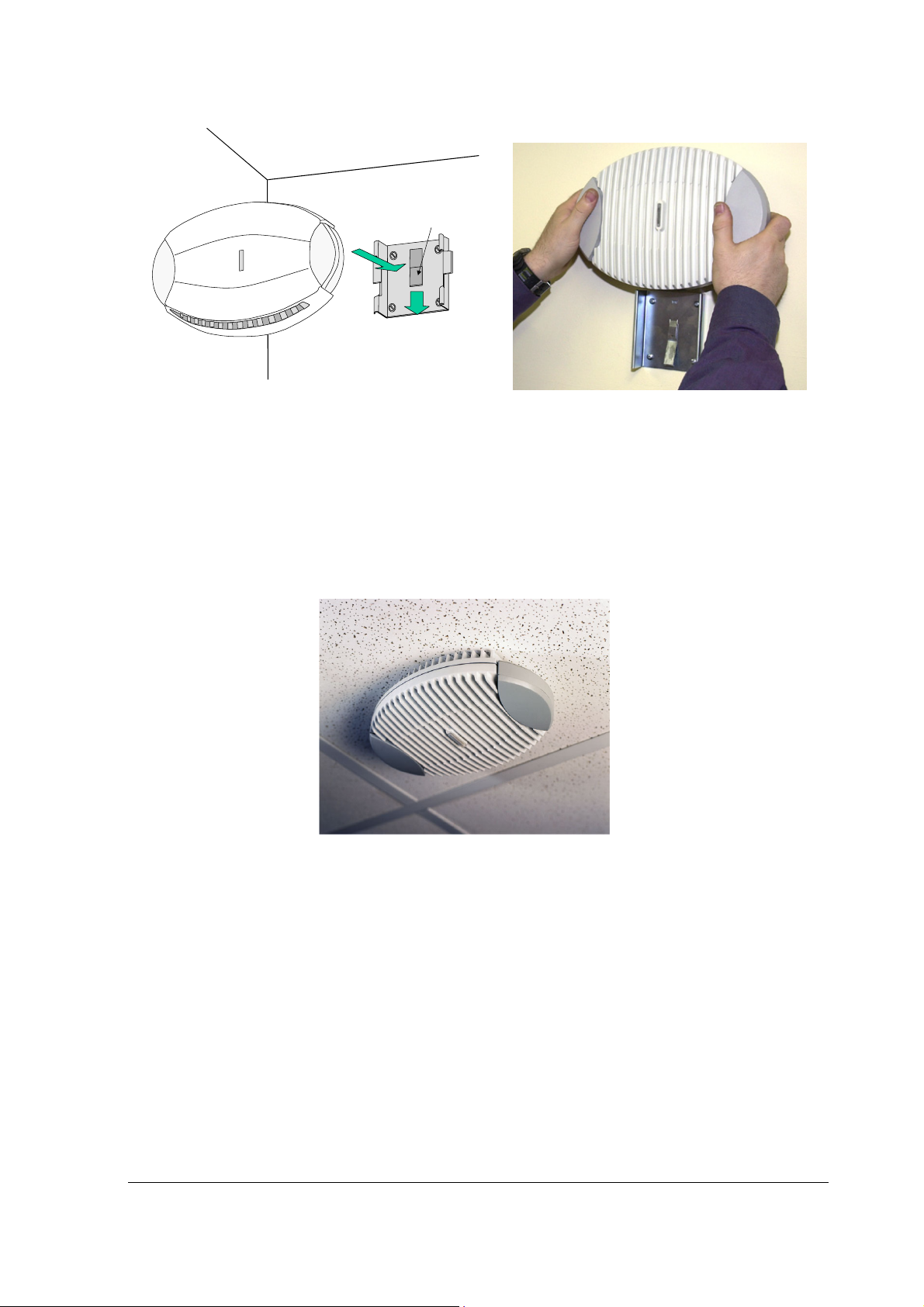

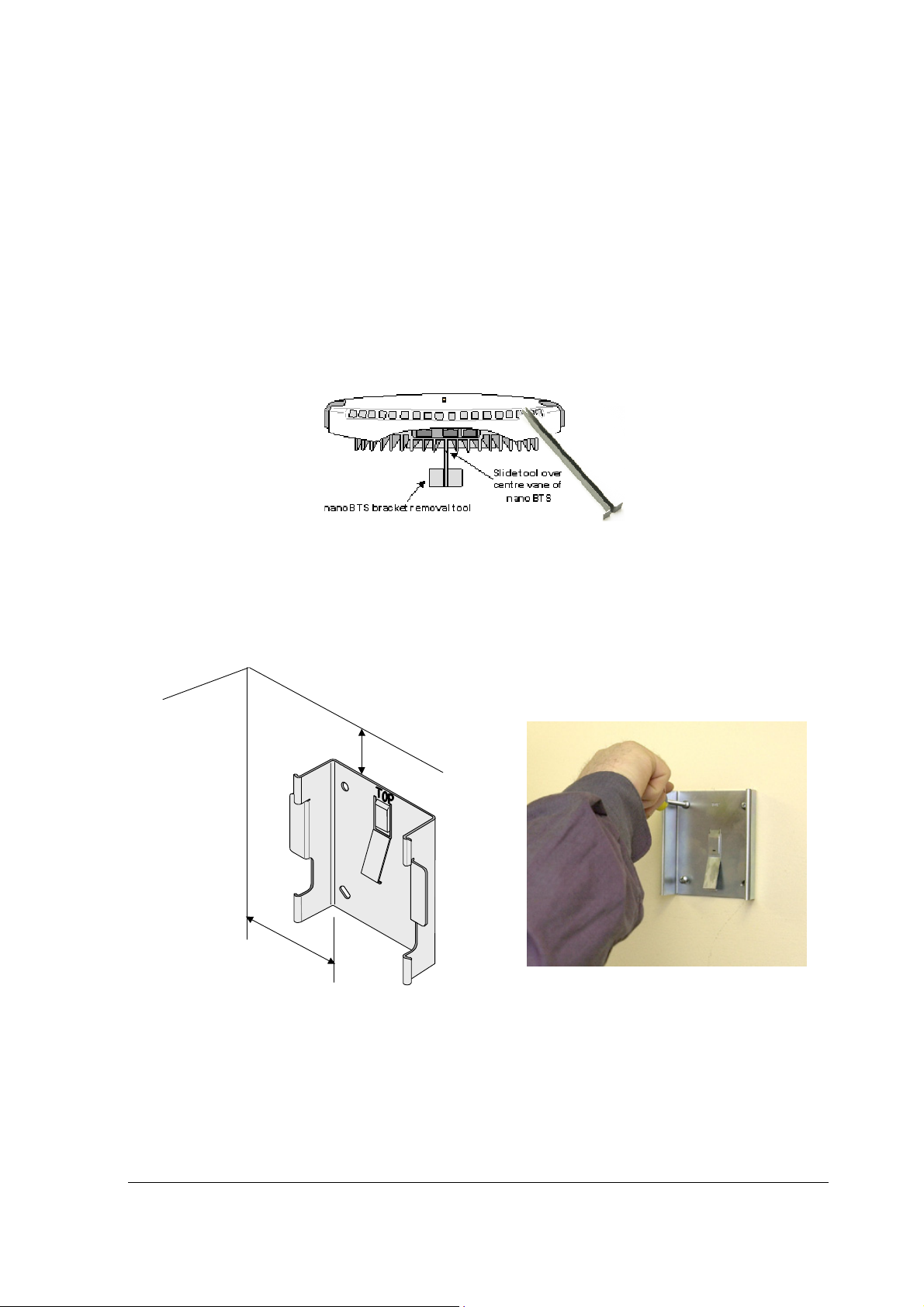

4.7 Mounting the nanoBTS .............................................................................. 28

4.7.1 Mounting Multi-TRX nanoBTS............................................................ 29

4.7.2 Mounting Multi-TRX 165 nanoBTS..................................................... 29

4.8 Initial Frequency Calibration....................................................................... 31

4.9 LED Status Indicators ................................................................................ 32

4.10 Annex A – Drawing 165#018 ..................................................................... 33

5 PSU Installation Guide (CENG0033) ....................................................34

5.1 Introduction ................................................................................................ 34

5.1.1 Purpose and Scope ............................................................................ 34

5.1.2 Related Documents ............................................................................ 34

5.1.3 Warnings ............................................................................................ 34

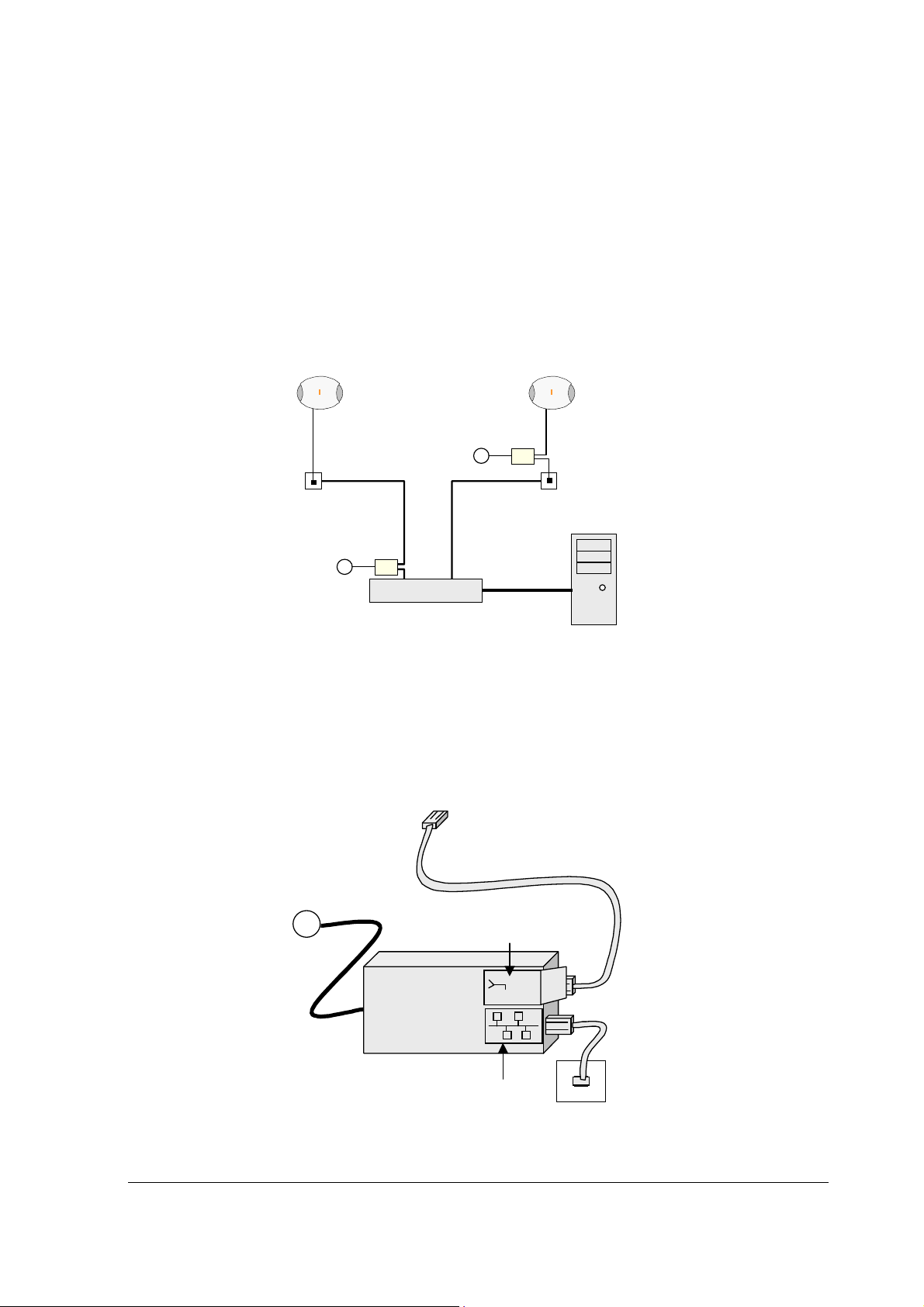

5.2 Overview .................................................................................................... 35

5.3 Installation.................................................................................................. 36

5.3.1 Single Power Supply Unit ................................................................... 36

5.3.2 8 Port Powered Ethernet Switch......................................................... 38

6 BTS Installer User Guide (CENG0048).................................................40

6.1 Introduction ................................................................................................ 40

6.1.1 Purpose and Scope ............................................................................ 40

6.1.2 Related Documents ............................................................................ 40

6.2 Capabilities................................................................................................. 40

6.3 Concepts.................................................................................................... 42

6.3.1 The BTS Database ............................................................................. 43

6.3.2 Configuration Phases ......................................................................... 44

6.3.3 Modes of Operation ............................................................................ 44

6.3.4 The Configuration File ........................................................................ 46

6.4 Getting Started........................................................................................... 47

6.4.1 Installing BTS Installer........................................................................ 47

6.4.2 Starting BTS Installer.......................................................................... 47

6.4.3 Entering the password........................................................................ 48

6.4.4 Setting Up BTS Installer ..................................................................... 48

6.4.5 Creating a BTS Database Entry ......................................................... 49

6.4.6 Assigning an IP address..................................................................... 49

6.4.7 Setting desired nanoBTS attributes.................................................... 49

6.4.8 Perform desired operations ................................................................ 50

6.5 User Interface Reference ........................................................................... 51

6.5.1 BTS Installer Configuration section .................................................... 51

6.5.2 DHCP Server section ......................................................................... 56

6.5.3 BTS Database Log section................................................................. 58

6.5.4 BTS Status section ............................................................................. 59

6.5.5 Manual configuration operations ........................................................ 63

6.6 The DHCP Server ...................................................................................... 76

6.6.1 Function of the DHCP server.............................................................. 76

6.6.2 Prerequisites for the DHCP server to work......................................... 76

- 5 -

6.6.3 Assigning an IP address to a nanoBTS.............................................. 77

6.6.4 Other IP configuration parameters ..................................................... 78

6.7 BTS Attribute Reference ............................................................................ 78

6.7.1 The BTS Configuration Dialog box ..................................................... 78

6.7.2 Current Values Display....................................................................... 80

6.7.3 Identifying a nanoBTS ....................................................................... 81

6.7.4 How Defaults Work............................................................................. 82

6.7.5 Enabling Configuration Phases .......................................................... 82

6.7.6 The BTS tab ....................................................................................... 83

6.7.7 The DHCP tab .................................................................................... 85

6.7.8 The Unit ID tab ................................................................................... 87

6.7.9 The NV Attr (1) tab ............................................................................. 88

6.7.10 The NV Attr (2) tab ............................................................................. 90

6.7.11 The NV Attr (3) tab ............................................................................. 92

6.7.12 The NV Attr (4) tab ............................................................................. 94

6.7.13 The Download tab .............................................................................. 95

6.8 Using Network Listen ............................................................................... 101

6.8.1 Introduction to Network Listen .......................................................... 101

6.8.2 Starting Network Listen .................................................................... 101

6.8.3 Configuring a Network Listen Test ................................................... 103

6.8.4 Channel Usage Test......................................................................... 108

6.8.5 BCCH Channel Usage Test.............................................................. 109

6.8.6 BCCH Information Test .................................................................... 111

6.8.7 Frequency Synchronisation Test ...................................................... 115

6.8.8 Beacon Transmit Test ...................................................................... 119

6.9 Using BTS Installer via a proxy ................................................................ 122

6.9.1 The Two Types of Proxy................................................................... 122

6.9.2 Starting BTS Installer from Config Manager..................................... 124

6.9.3 Command line parameters ............................................................... 124

6.10 Connecting to a nanoBTS via SSL........................................................... 126

6.10.1 Enabling secure connections............................................................ 126

6.10.2 Connecting to a nanoBTS ................................................................ 127

6.11 Configuration File Reference ................................................................... 129

6.11.1 File format......................................................................................... 129

6.11.2 Data types ........................................................................................ 130

6.11.3 Sections............................................................................................ 130

6.11.4 BTS configuration parameters.......................................................... 131

6.11.5 DHCP Configuration Phase.............................................................. 131

6.11.6 Unit ID Configuration Phase ............................................................. 132

6.11.7 Non-volatile Attribute Configuration Phase....................................... 132

6.11.8 Download Configuration Phase ........................................................ 135

- 6 -

1 Introduction

1.1 Purpose and Scope

This document provides the reader with all the necessary information required to install the ip.access nanoBTS. The document provides step-by-step instructions for the hardware installation, PSU Installation and BTS Installation and configuration steps of required to bring the BTS into service.

1.2 Related Documents

This document comprises:

Reference

Number

1 CENG0133 Customer Safety and Regulatory Information 2 CENG0210 Hardware Installation – BTS 3 CENG0033 PSU Installation Guide 4 CENG0048 BTS Installation User Guide

Document Title Description

2 Overview

This document takes the user from unpacking a BTS from it’s box, installing the BTS onto a wall/ceiling then using BTS Installer to configure the BTS to communicate with the BSC.

- 7 -

3 Customer safety and regulatory information (CENG0133)

3.1 Introduction

3.1.1 Purpose and Scope

This document provides the customer with safety and regulatory warnings, cautions and information for the IP Access range of products.

Products covered are the model 108, 110, 139, 140, 165 and 178 range of nanoBTSs, model 109 and 126 power supplies, model 129 4U circuit switched BSC.

3.1.2 Related Documents

This document shall be referenced by the individual product’s user guides.

3.1.3 Terminology

UL Underwriters Laboratories FCC Federal Communications Commission ICE Industry Canada CE European Union

3.1.4 Change Control

Changes to this document shall be agreed and implemented according to the ECN procedures described within QS019, Approvals Liaison Engineer signature is required in all cases.

3.1.5 Document Organisation

This document is divided into sections by product type.

- 8 -

3.2 Model 109 Power Supply

3.2.1 109 - Handbook - Warnings and Cautions

This document is written in English, please request a copy in your local language if required.

This product is only intended to power products approved by IP Access. Ensure that only IP Access products are connected to an Ethernet circuit enabled for 48V operation, this also applies to outlets remote from the unit.

For indoor use only, output cabling is SELV / LAN for indoor routing only.

Do not cover casing or otherwise impede cooling.

Do not apply power to unit if there is any evidence of condensation.

Do not open casing as mains voltages may be present within the unit.

90 to 264VAC input is via a 2 pin IEC C7 (figure 8) connector. Inlet cable assembly must carry a suitable local approval (e.g. UL marked for US and Canadian markets).

PSU109 – Environmental Specification

• -10 to +45 degrees Centigrade ambient operating temperature.

• This product has been Listed by UL for use in a 25 degree C ambient.

• -20 to +80 degrees C ambient storage temperature.

• 5 to 95% RH non condensing humidity.

3.2.2 109 - Handbook - FCC Text

WARNING This is a class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

- 9 -

Federal Communications Commission Note: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

3.2.3 109 – Handbook - Industry Canada text

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numériqué de la classe B est conformé à la norme NMB-003 du Canada.

3.2.4 109 – Handbook - Regulatory Compliance Statement

EMC Standards

• EN 55022 and EN55024 (CE marked)

• FCC Part 15 class B

• ICES-003

Safety Standards

• EN60950 (CE marked)

• UL60950 Listed (File number E231617) (USA and Canada)

“Hereby, ip.access declares that this Ethernet Power Inserter is in compliance with the essential requirements and other relevant provisions of Directives 73/23/EEC and 89/336/EEC."

The PSU109 is supplied by Poly-Products Industries, model number ILA1711112.

A copy of regulatory compliance documentation may be obtained in writing from

“IP access Ltd, Building 2020, Cambourne Business Park, Cambourne, Cambridge, CB23 6DW, UK”.

- 10 -

3.3 Model 126 Ethernet Switch and Power Inserter

A

3.3.1 126 - Handbook - Warnings and Cautions

This document is written in English, please request a copy in your local language if required.

This product is only intended to power products approved by IP Access.

Ensure that only IP Access approved products are connected to an Ethernet circuit enabled for 48V operation, this also applies to outlets remote from the unit.

To be located in a restricted access location only (accessible to maintenance personnel only).

For indoor use only, output cabling is SELV / LAN for indoor routing only.

Do not block ventilation holes or otherwise impede cooling.

Refer to National Engineering Code (USA). Wiring methods must be in accordance with NEC Article 300.

When rack mounting, secure via front panel plate with 4 bolts and ensure that no additional load is placed upon the caseworks (e.g. heavy objects on top).

When rack mounting, ensure that the internal rack temperature does not exceed the rating of this product.

Do not apply power to unit if there is any evidence of condensation.

Do not open casing as mains voltages may be present within the unit.

C inlet cable must carry suitable local approval (e.g. UL marking for US and

Canadian markets).

126 - Input Power Source Specification

• Unit may be powered via AC or DC (not both).

- 11 -

• 90 to 132 and 180 to 264VAC (auto-ranging) via an IEC C13 connector. 135W, 2A rating.

• 47 to 57V DC via screw terminals on the front panel. 115W 3A rating. The installer must ensure that this supply connection is fused externally at 5A and provision is made for an external disconnection device.

• Appliance must be earthed, either via the mains connector (mains operation) or screw terminal on the front panel (DC operation).

126 – Environmental Specification

• -5 to +45 degrees C ambient operating

• -20 to +80 degrees C ambient storage

• 5 to 95% RH non condensing

3.3.2 126 – Handbook - FCC Text

WARNING This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Federal Communications Commission Note: This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

3.3.3 126 – Handbook - Industry Canada text

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numériqué de la classe A est conformé à la norme NMB-003 du Canada.

3.3.4 126 – Handbook - Regulatory Compliance Statement

The nanoBTS conforms to the following regulatory standards.

EMC Standards

• EN 55022 and EN55024 (CE marked)

• FCC Part 15 class A

• ICES-003

Safety Standards

• EN60950 (CE marked)

• IEC 60950

• UL60950 Listed (File number E230296) (USA and Canada)

- 12 -

• CB certificate (DK-7033)

“Hereby, ip.access declares that this Ethernet Switch / Power Inserter is in compliance with the essential requirements and other relevant provisions of Directives 73/23/EEC and 89/336/EEC."

A copy of regulatory compliance documentation may be obtained in writing from

“IP access Ltd, Building 2020, Cambourne Business Park, Cambourne, Cambridge, CB23 6DW, UK”.

- 13 -

3.4 NANOBTS Products

3.4.1 NanoBTS - Handbook - Warnings and Cautions

This system is designed to be operated indoors as a fixed system device and must be located either on or near the ceiling away from the user. It must be mounted in a manner to ensure that all users and bystanders are kept a minimum of 20cm away from the integral antennas at all times.

Do not touch or move the antenna(s) while the unit is transmitting or receiving.

Do not hold any component containing a radio such that the antenna is very close to or touching any exposed parts of the body, especially the face or eyes while transmitting.

In most parts of the world, regulatory approval(s) are needed before the nanoBTS is operated.

Do not connect any device other than the nanoBTS to any RJ45 socket that has been enabled for nanoBTS connection (i.e. 48Vdc operation).

The nanoBTS is intended for dry indoor applications only. If evidence of condensation is present do not apply power to the nanoBTS.

The nanoBTS must only be powered using an ip.access model 109 PSU (PPI part number ILA1711112) or ip.access model 126 Ethernet switch and power inserter (unless prior written approval is obtained from IP Access). Model 165 BTS’s may also be powered by a direct 48V connection using a PSU specified in writing by IP Access Ltd.

PSU’s supplied by ip.access must not be used for powering any other equipment (unless carried out in a manner having prior written approval from IP Access).

TIB ports on the NanoBTS may only be connected with ip.access supplied cables with part numbers 139-040, 139-041, 139-042, 139-043 or 165-076.

Fitting external antenna or antenna cabling to the BTS invalidates the type approval, CE marking and UL listing referred to herein (unless carried out in a manner having prior written approval from IP Access).

Maximum cable length from the Ethernet Hub, Switch or PSU is limited to 100m.

3.4.2 NanoBTS - Handbook - Parts required for each nanoBTS

• WALL FIXINGS: These are not normally provided as part of the NanoBTS but should be suitable for the wall material and weight of the NanoBTS (2.7kg).

- 14 -

Suggested materials are 4 x 30mm no.10 woodscrews or M5 bolts and wall plugs (if required).

• PSU.

• NanoBTS complete with mounting bracket.

• RJ45-RJ45 connecting leads

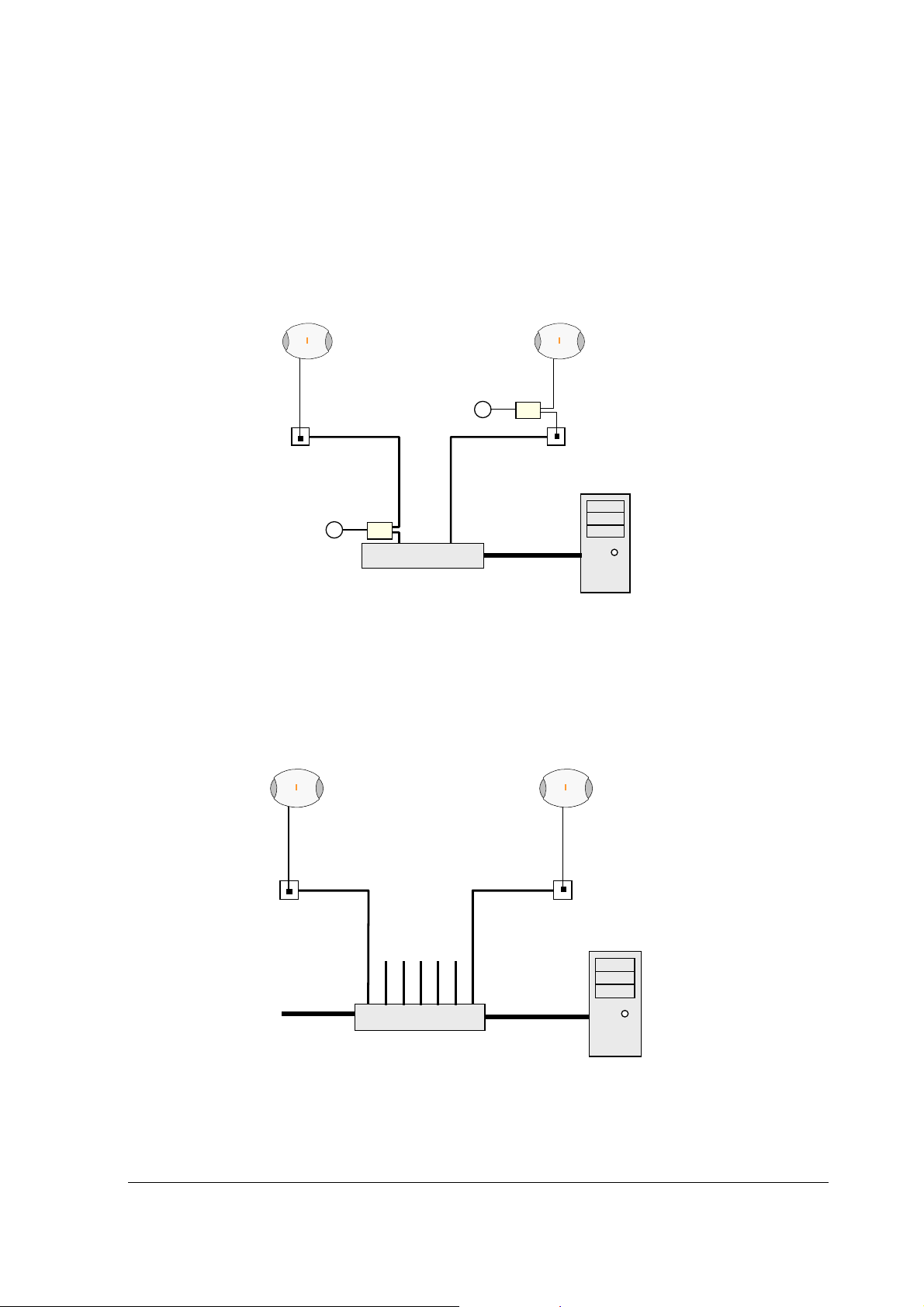

3.4.3 NanoBTS - Handbook - Provision of Power to the nanoBTS

Power for the NanoBTS may be inserted at either the RJ45 outlet or at the output of the last Ethernet switch/hub/router etc. see figure below.

nanoBTS

PSU φ

~

RJ45(48v)

PSU θ

RJ45

~

Ethernet Switch

θ PSU located at the switch φ PSU located at nanoBTS

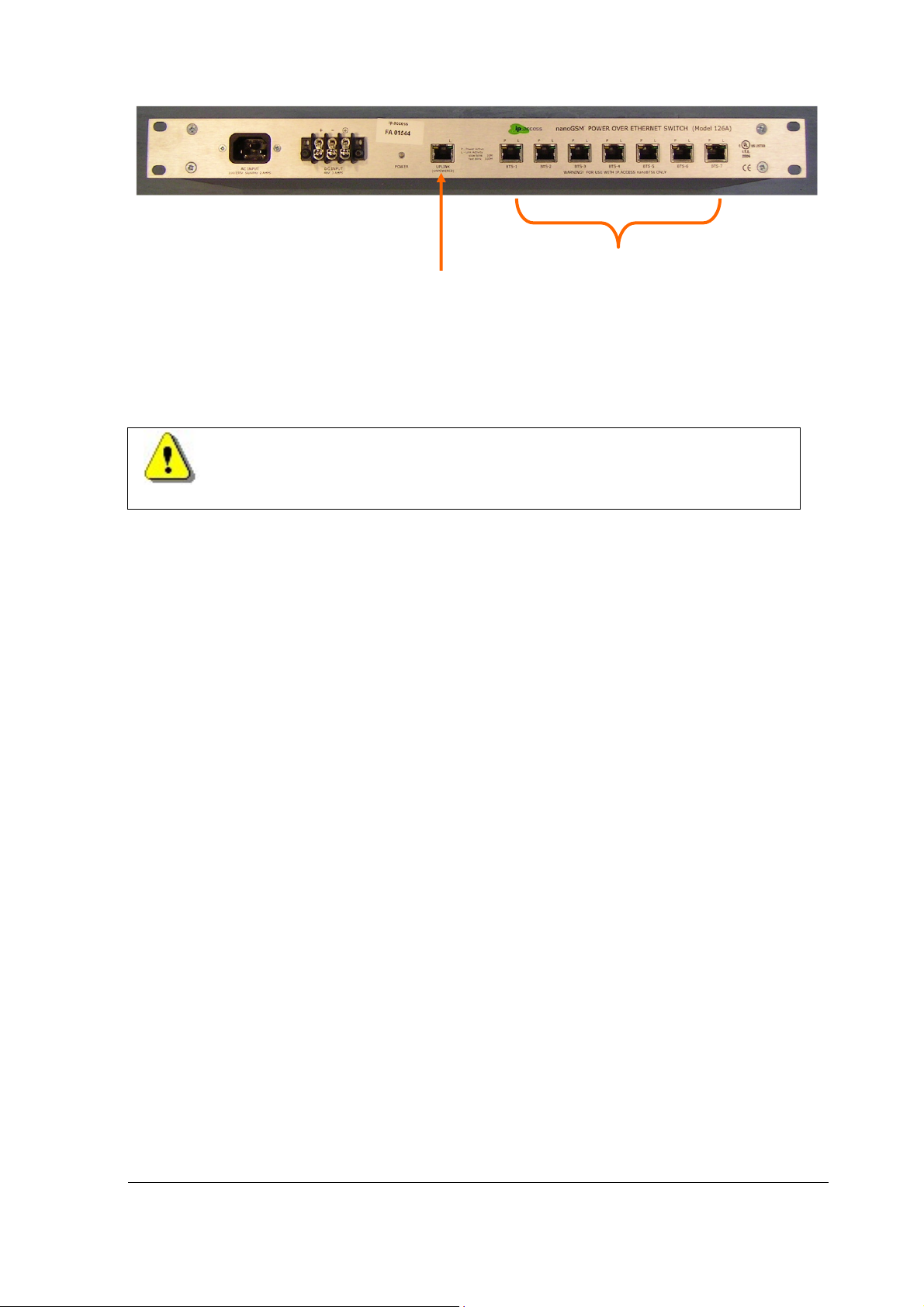

When using the ip.access model 126A Ethernet Switch and Power Inserter, external PSU’s are not required, the NanoBTS is connected locally or via site cabling to the powered ports of the 126.

BSC

nanoBTS (max qty 7)

RJ45(48v)

~

RJ45(48V)

Ethernet

126A Ethernet Switch

and 48V Power Inserter

- 15 -

BSC

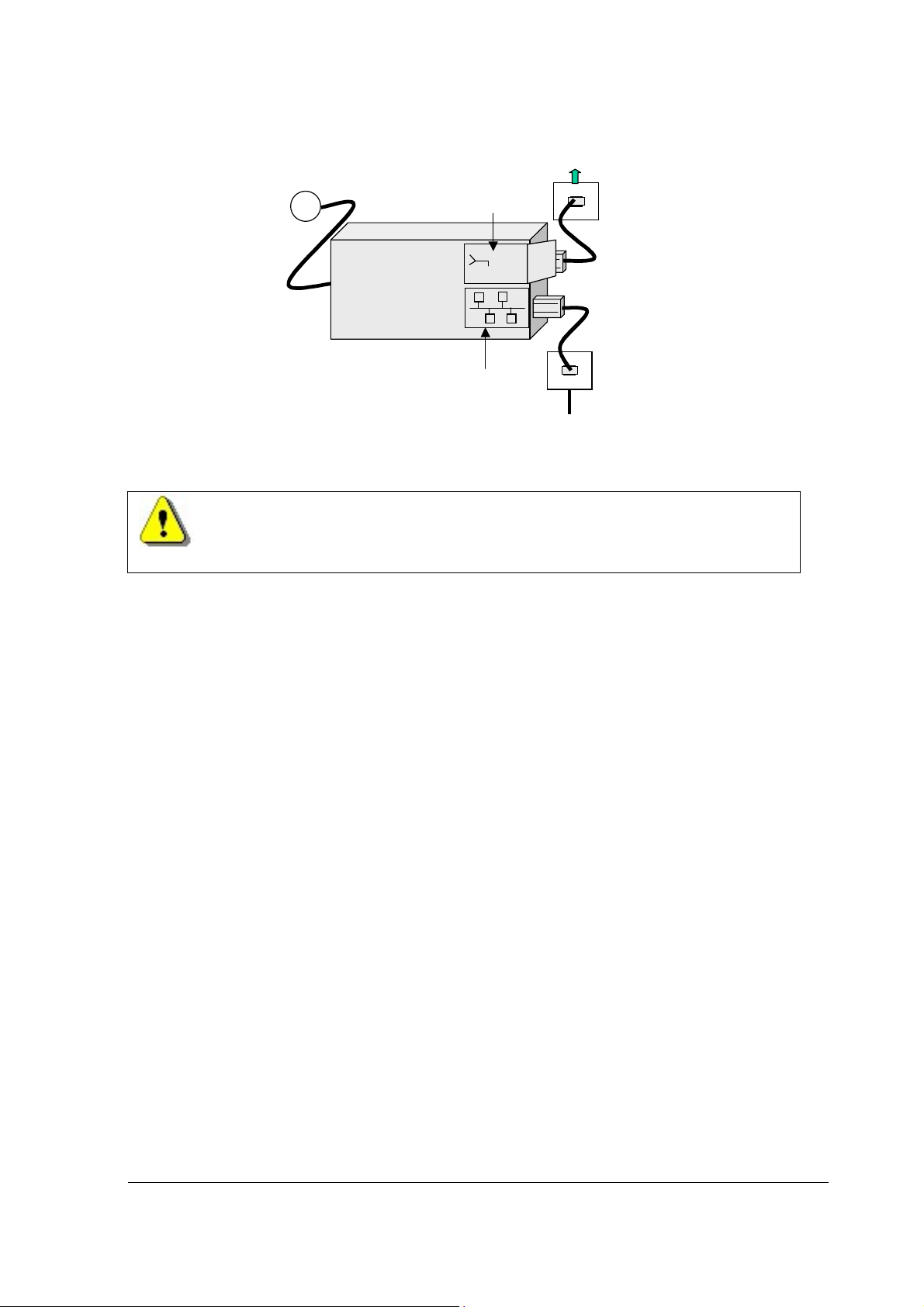

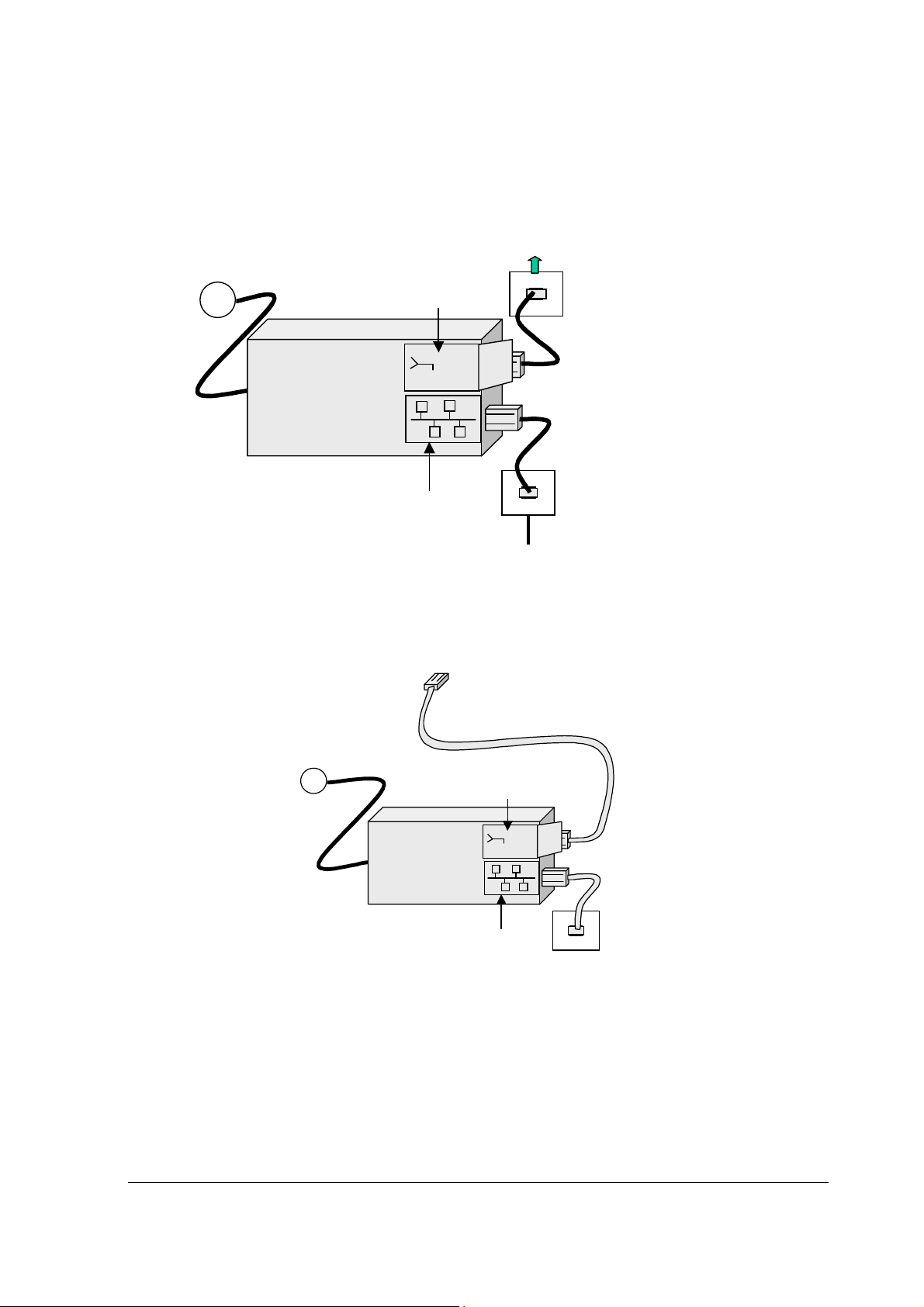

3.4.3.1 NanoBTS - Handbook - Installing the PSU at the Ethernet switch.

If the 109 PSU is located at the patch panel /output port of the Ethernet switch, it is important that the 109 PSU is connected exactly as illustrated below (failure to do so may cause damage to the switch). Ensure that the 109 PSU is placed in a location that is ventilated and that the connection leads provide no safety hazard.

Cable to nanoBTS

110-230Vac

~

Connection to nanoBTS

48Vdc

c d

!

V 8 4

PSU

RJ45

Connection to LAN

Ethernet Switch

3.4.3.2 Nano - BTS Handbook - Installing the PSU at the nanoBTS.

Ensure that the 109 PSU is placed in a location that is ventilated and that the connection leads provide no safety hazard.

110-230Vac

~

Connection to nanoBTS

48Vdc

PSU

Connection to LAN

c d

!

V 8 4

RJ45

3.4.4 NanoBTS - Handbook – FCC Text

Standards

• FCC Rule 47 Parts 2, 15, 24

NOTE: Changes or modifications not expressly approved by the party responsible for compliance may void the user's authority to operate this equipment.

Model 110 NanoBTS has FCC ID QGGM180TVX

- 16 -

Model 140 NanoBTS has FCC ID QGGKU02ZZT Model 165B NanoBTS has FCC ID QGGKU02ZZP Model 165D NanoBTS has FCC ID QGGKU02ZZR

Federal Communications Commission Note: This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

3.4.5 NanoBTS - Handbook – IC Text

Standards

• RSS133 issue 2

NOTE: Changes or modifications not expressly approved by the party responsible for compliance may void the user's authority to operate this equipment.

Model 110 NanoBTS has IC (Industry Canada) ID 4644A-M180TVX Model 140 NanoBTS has IC (Industry Canada) ID 4644A-KU02ZZT Model 165B NanoBTS has IC (Industry Canada) ID 4644A-KU02ZZP Model 165D NanoBTS has IC (Industry Canada) ID 4644A-KU02ZZR

3.4.6 NanoBTS – Handbook - Regulatory Compliance Statement

The nanoBTS conforms to the following regulatory standards.

Type Approvals

• GSM essential requirements under article 3.2 of the R&TTE directive ETSI EN 301 502. CE Marking (CE0168).

• FCC - see above.

• ICE – see above.

EMC Standards

• ETSI EN 301 489-1 and –8, ETSI EN 301 502.

• FCC - see above.

• ICE – see above.

Environmental Standards

• ETS 300 019.

Safety Standards

• EN60950 (CE Marking)

• IEC 60950

• UL60950 Listed (file number E230296, USA and Canada)

• CB Certificate

- 17 -

“Hereby, ip.access declares that this NanoBTS is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC."

A copy of regulatory compliance documentation may be obtained in writing from “IP access Ltd, Building 2020, Cambourne Business Park, Cambourne, Cambridge, CB23 6DW, UK”.

- 18 -

3.5 Model 129 BSC (Base Station Controller)

A

3.5.1 BSC – Handbook – Warnings and Cautions

This document is written in English, please request a copy in your local language if required.

To be located in a restricted access location (accessible to maintenance personnel only).

For indoor use only, Ethernet and E1/T1 cabling is LAN / SELV for indoor routing and termination only.

Do not block ventilation holes or otherwise impede cooling.

Refer to National Engineering Code (USA). Wiring methods must be in accordance with NEC Article 300.

When rack mounting, ensure that no additional load is placed upon the caseworks (e.g. heavy objects on top).

Unit Weight is 13Kg (29lbs). When rack mounting use 4 off M6 bolts (or equivalent) to secure the BSC chassis to the rack rails.

When rack mounting, ensure that the internal rack temperature does not exceed the rating of this product.

Do not apply power to unit if there is any evidence of condensation.

Do not open casing as mains voltages may be present within the unit.

Casing is to be operated with all covers (including slot covers) in place for safe operation and to ensure correct cooling airflow.

C inlet cables must carry suitable local approval (e.g. UL marking for US

and Canadian markets).

Connection points are provided at the front and rear of the BSC for personal electrostatic discharge wrist straps, these should be used when servicing the BSC to prevent damage to cards.

- 19 -

The processor card utilises a clock backup battery. CAUTION, Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the suppliers instructions.

To avoid electric shock, do not connect safety extra low voltage (SELV) circuits to telephone network voltage (TNV) circuits. LAN ports contain SELV circuits, and WAN ports contain TNV circuits. Some LAN and WAN ports use RJ45 connectors, Use caution when connecting cables.

BSC - Input Power Source Specification

• There are two variants of the 4U chassis, AC powered or DC powered.

• 90 to 264VAC via three IEC-C13 connectors. 300W, 4A rating (per input).

• The AC variant has three independent inlets for the purposes of power source

migration and redundancy, at least two of these require power for operation, all three require power for normal redundant operation.

• -38 to -75V (-48V nominal) DC via two sets of screw terminals. 500W 10A rating. The installer must ensure that each DC supply connection is fused externally at 5A and provision is made for an external disconnection device. Plastic covers (supplied) are to be fitted over -48V BSC connections.

• The DC variant has two inlets for the purposes of power source migration, these are internally diode combined, the external -48V supplies must therefore share a common reference.

• Appliance must be earthed, either via the mains connectors (AC mains operation) or screw terminal on the rear panel (DC operation). Earth cable to be minimum 0.75mm^2 section.

BSC – Environmental Specification

• 0 to +45 degrees C ambient operating

• -20 to +80 degrees C ambient storage

• 10 to 90% RH non condensing

• -100m to +3050m altitude

3.5.2 BSC – Handbook - FCC Text

WARNING This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Federal Communications Commission Note: This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

- 20 -

3.5.3 BSC - Handbook - Industry Canada text

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numériqué de la classe A est conformé à la norme NMB-003 du Canada.

3.5.4 BSC - Handbook - Regulatory Compliance Statement

The model 129 4U Circuit BSC carries CE and cTUVus markings, it conforms to the following regulatory standards.

EMC Standards

• ETSI EN 301 489-1 and ETSI EN 301 489-8 (CE Marking)

• ETSI EN 300 386 (CE Marking)

• FCC Part 15 class A (USA)

• ICES-003 (Canada)

Safety Standards

• EN60950 (CE Marking)

• IEC60950 (international)

• cTUVus – the BSC 4U chassis (including backplane, power supplies and

cooling fan tray) is a TUV Rheinland Listed product for USA and Canadian markets.

“Hereby, ip.access declares that model 129 4U CircuitBSC is in compliance with the essential requirements and other relevant provisions of Directives 1999/5/EC, 73/23/EEC and 89/336/EEC ."

A copy of regulatory compliance documentation may be obtained in writing from “IP access Ltd, Building 2020, Cambourne Business Park, Cambourne, Cambridge, CB23 6DW, UK”.

- 21 -

4 BTS Hardware Installation (CENG0210)

4.1 Introduction

4.1.1 Purpose and Scope

This documents the procedure used to install the nanoBTS hardware and physical connections together with applying the base software configuration.

4.2 Warnings

Please refer to the appropriate section of CENG0133 [1].

4.3 Regulatory Information

For all regulatory information please see CENG0133 [1].

4.4 Unpacking

Unpack nanoBTS and check to see that the unit has not been damaged in transit. Any damaged units should be returned to your supplier.

Figure 1 - Unpacking the nanoBTS

- 22 -

4.5 Fitting the External Antenna Kit (optional)

4.5.1 139/140 Hardware

NOTE: When looking at the nanoBTS with the connections facing down and the LED

visible the antenna on the left is the Transmit antenna and the antenna on the right hand side is the Receive antenna.

NOTE: The RF feeder cable must not be bent sharply as this may result in a degraded performance.

Remove the plastic covers by removing the top and bottom plates from both ends of the nanoBTS. Lever gently apart with screwdriver in notch.

Antenna Cover

Top

Notch to aid removal of

cover

Antenna Cover

Body

Antenna Cover

Bottom

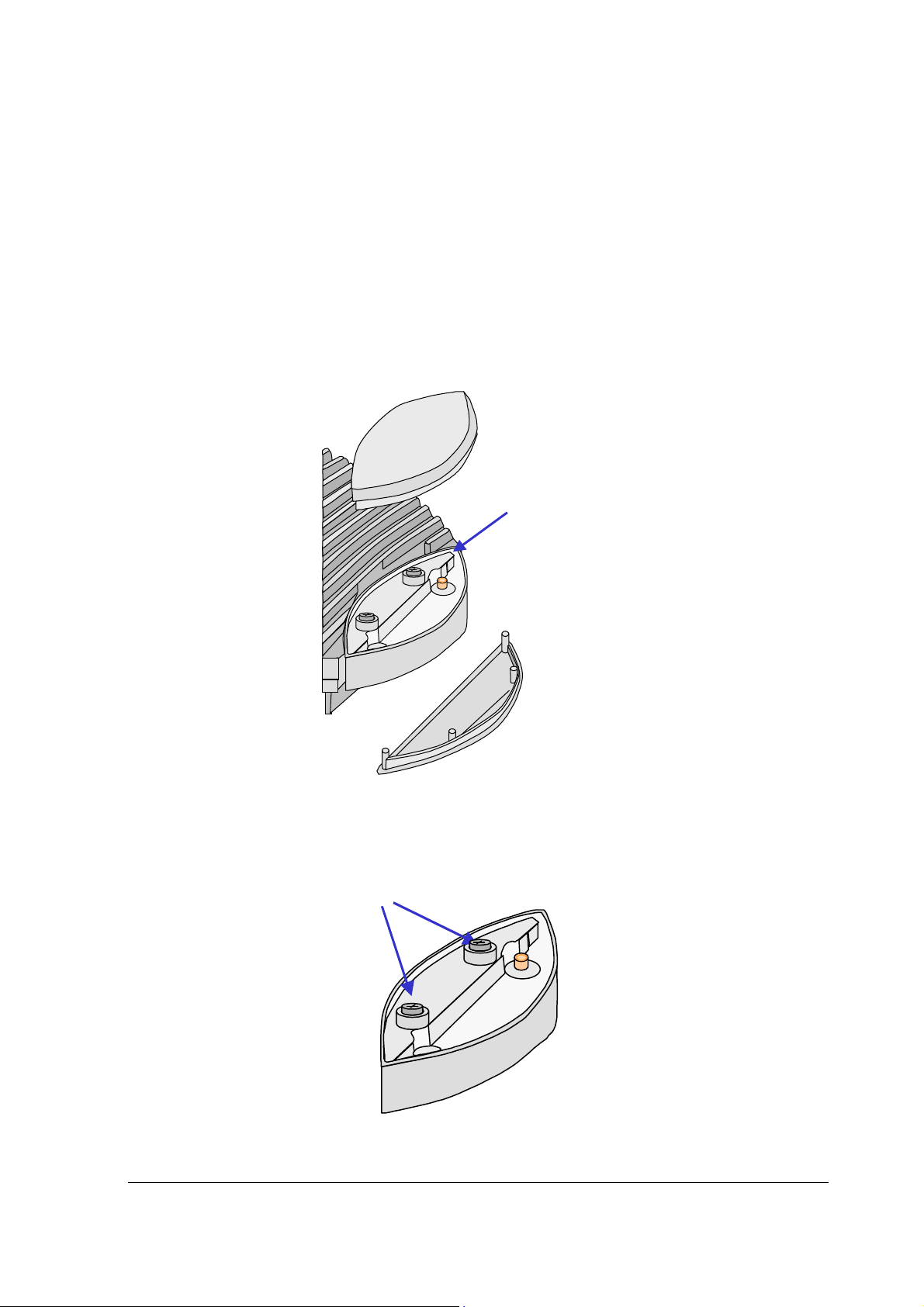

Figure 2 - Removal of antenna covers

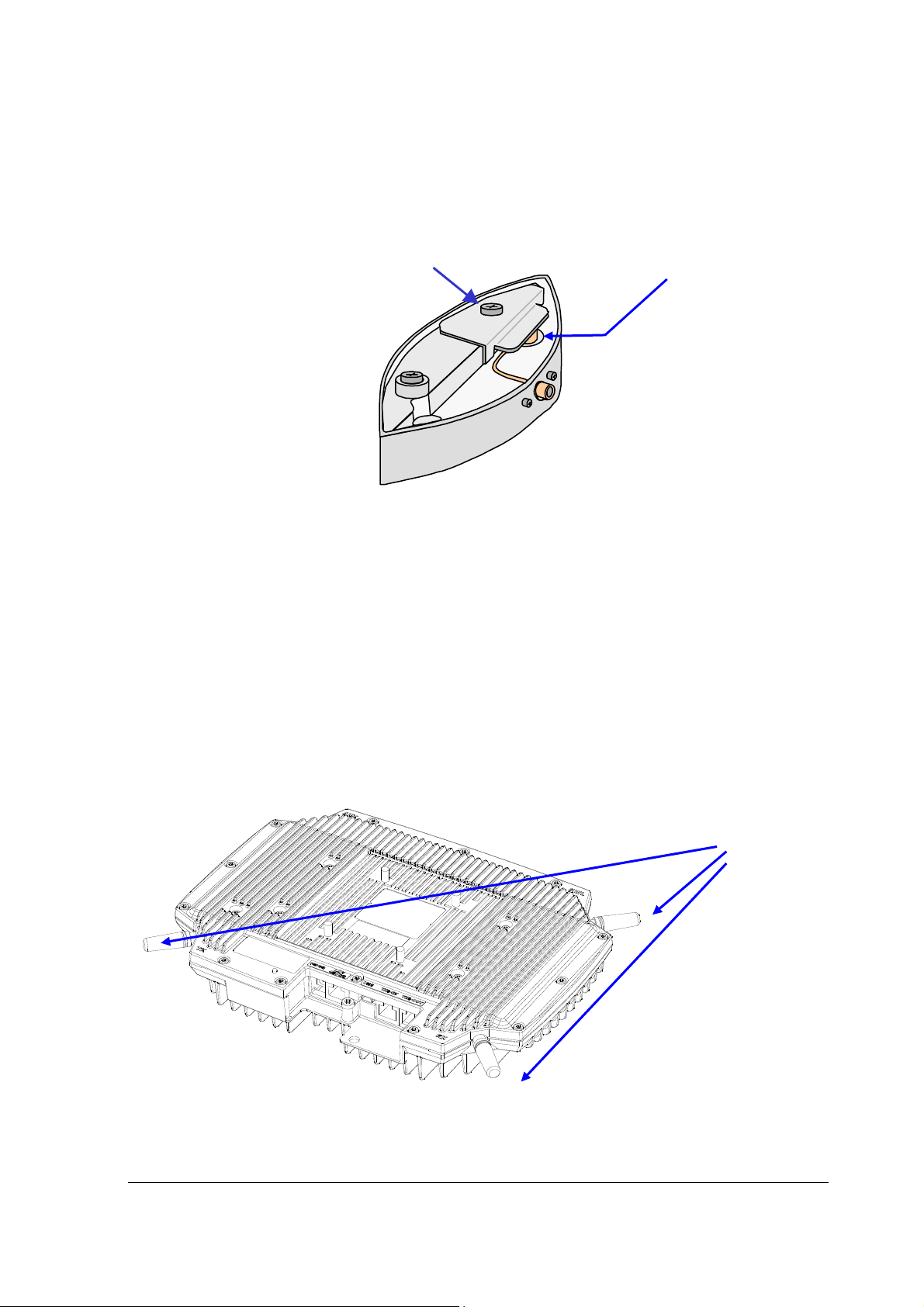

Remove the antenna cover body, by unscrewing the two Torx T20 screws retaining

Remove Torx Screws

Figure 3 - Removal of antenna cover body

- 23 -

Fit the replacement antenna cover body ensuring that the feeder cable connector fits into the antenna. Note that one cover only fits the receiver whilst the other fits the transmitter.

Fit the clamp as shown below and second Torx screw, then replace top and bottom covers.

Clamp plate

Compression Spring

Figure 4 - Fit clamp plate

Repeat the process for the other end of nanoBTS

4.5.2 165 Hardware

NOTE: When looking at the front of 165 nanoBTS with the Ethernet and TIB

connectors facing downwards, the TX antenna is bottom left, the RX antenna is bottom right and the Network Listen (NWL) antenna is top right.

To fit external antennas, remove the plastic cover from the unit and unscrew the the antennas to expose the SMA connectors. Connect directly to these connectors.

Removable Antennas

Figure 5 - 165 nanoBTS Removable Antennas

- 24 -

4.6 Cabling the nanoBTS

4.6.1 139/140 Hardware

TX Port

RX Port

Figure 6 – 139/140 nanoBTS Connections

4.6.2 165 Hardware

Secondary

TX location

See 4.7.2

LED

Status

Indicator

TX Port

48v DC Power

Option

Powered

Ethernet

Chassis

Bond

NWL Port

RX Port

TIB out

TIB in

USB Port

(Not used)

Figure 7 – 165 nanoBTS Connections

- 25 -

Figure 8 below illustrates the correct cabling of the Ethernet and TIB cables:

Figure 8 - Ethernet and TIB cabling

4.6.3 Ethernet

Each 139/140/178 nanoBTS must be connected to an Ethernet switch or hub via either a 109 ip.access single power inserter or 126 ip.access Powered Ethernet Switch. Refer to CENG0033 for details of the power supply connections. The 165 EDGE nanoBTS may use either the above power options or a separate 48V DC power supply available from ip.access.

4.6.4 Timing Interface Bus (TIB) – Multi-TRX only

The Timing Interface Bus (TIB) is used to provide clock and signaling between the nanoBTS when operating in a Multi-TRX configuration.

The TIB OUT from the Master TRX must be connected to the TIB IN of the slave TRX. This in turn has its TIB OUT connected to the next TRX in the chain. See Figure 9.

Figure 9 - TIB Connections

- 26 -

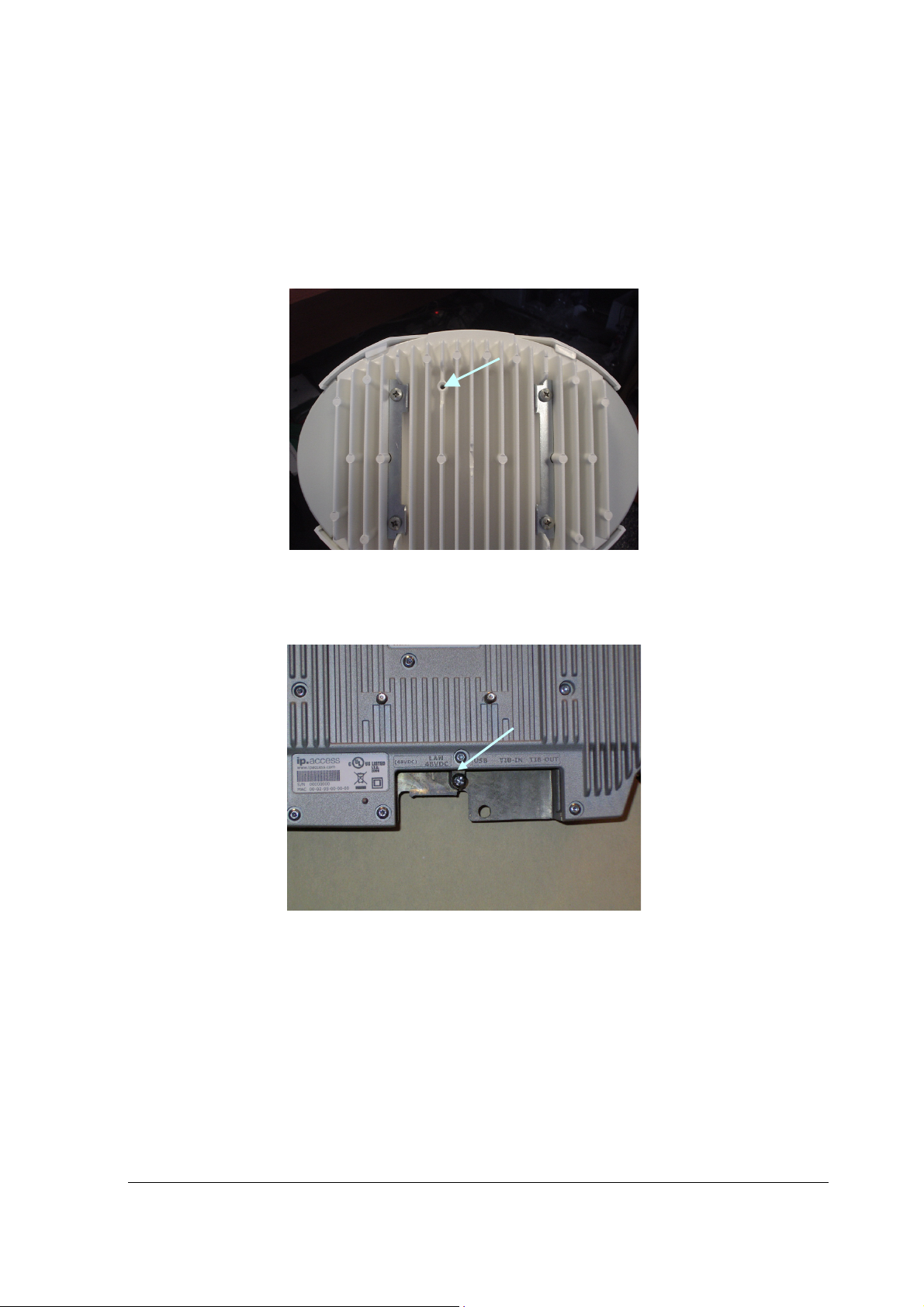

4.6.5 Chassis Bond Strap – Multi-TRX only

When the nanoBTS is operated in a Multi-TRX configuration, each of the nanoBTS must be connected together using the supplied chassis bond kit.

To fit the chassis bond strap, remove the nanoBTS from the mounting plate

Using the screw provided, screw the Chassis Bond Strap to the screw on the rear of the nanoBTS, see Figure 10 or Figure 11.

Chassis

Bond Point

Figure 10 – Chassis Bond Screw Location – 139/140 BTS

Connect the other end of the Chassis Bond lead to the next nanoBTS chassis bond point in the chain.

Chassis

Bond Point

Figure 11 – Chassis Bond Screw Location – 165 BTS

- 27 -

4.7 Mounting the nanoBTS

The location of each nanoBTS is shown on the installation floor plan produced at the network planning stage. The network wiring must be complete before the nanoBTS can be installed and commissioned. The nanoBTS should be placed on a wall at or above head height or on a ceiling. Unless explicitly stated otherwise, the following procedure is common for both 139/140 and 165 hardware variants.

Remove the nanoBTS from the bracket by sliding the removal tool over the central fin between the bracket and the body of the unit to disengage the locking spring, slide bracket to separate it from the main body of the unit. The tool may be inserted from the top or bottom of the nanoBTS

Figure 12 - nanoBTS Bracket Removal

Position the bracket on the wall and mark the position of the four screw holes. The top of the bracket MUST be positioned uppermost. Ensure that the bracket is level and sufficient clearance is maintained to allow the unit to be located on the bracket (at least 80mm from the bracket to the top of wall and 120mm from the side of the bracket to a side wall). See the diagram below, Figure 13 - Fixing the wall bracket.

80mm min

120mm min

Figure 13 - Fixing the wall bracket

Drill the four holes in the positions marked previously and insert wall plugs (if required) and fix the mounting bracket securely to the wall. The bracket is designed to allow the nanoBTS unit to be mounted with the connections at the bottom of the unit. Slide the nanoBTS onto the bracket and ensure that the retaining spring engages into the indent at the rear of the unit.

- 28 -

Locking Spring

P

O

T

1

2

Figure 14 - Mounting the nanoBTS

When fixing to a ceiling or a sloping wall the same fixing process and clearances should be observed as for fixing to a wall (at least 80mm from the bracket to the top of wall and 120mm from the side of the bracket to a side wall). On a sloping surface the top of the bracket MUST be uppermost. Once the unit has been attached to the bracket the outer cover MUST be removed to expose the cooling vanes, as shown in Figure 15 - Ceiling Mounted nanoBTS

Figure 15 - Ceiling Mounted nanoBTS

4.7.1 Mounting Multi-TRX nanoBTS

When the nanoBTS are to be installed in a Multi-TRX configuration, then each TRX should be installed in a similar orientation but not closer than 30cm to each other.

A further specific constraint is that the TIB cables must be <1.5m and a 1.5mm

2

Chassis Bond cable must also be connected between each TRX with a length not exceeding that of the TIB cable.

4.7.2 Mounting Multi-TRX 165 nanoBTS

The 165 (EDGE) BTS may be installed in a stacked two-TRX configuration. See Annex A - Drawing 165#018 for details. The procedure for mounting a stacked twoTRX configuration is as follows:

• Fit the first wall bracket to the wall in the desired position

- 29 -

• Remove the plastic cover from the bottom unit

• Relocate the TX antenna as illustrated in Annex A

• Fit the antenna cable (part number 165_072) as illustrated in Annex A

• Fit the second wall bracket to the bottom unit as illustrated in Annex A

• Mount the bottom unit on the wall

• Fit the Ethernet and TIB cables to the bottom unit

• Fit the skirt (part number 165_028) to the bottom unit

• Remove the plastic cover from the top unit and attach it to the bottom unit

• Attach the Ethernet and TIB cables to the top unit

• Replace the plastic cover on the top unit

- 30 -

4.8 Initial Frequency Calibration

NOTE: The nanoBTS must be powered on for a minimum of 24 hours prior to final

frequency calibration. It is recommended that during installation an initial, local calibration is made following a powered on time of > 10 minutes followed by a final operational calibration after 24 hours power on time.

NOTE: If the nanoBTS is used in a Multi-TRX configuration, then the TIB OUT must be disconnected from each nanoBTS in the chain prior to calibration and reconnected afterwards. Only the Master TRX should be calibrated.

• Using BTSInstaller, select the nanoBTS that is to be calibrated and then click on the “Listen” button in the “BTS Status” pane.

• Select the frequency band to match that of the nanoBTS to be installed.

• Click on the “Connect” button, this will cause the nanoBTS TRX to power up.

The status LED will flash green when completed.

• Click on the “Channel Usage” tab and then click on the “Start Test” button.

• When completed click on the “BCCH Channel Usage” tab and then click on the

“Start Test” button.

• When completed, click on the “Frequency Synchronisation” tab.

• Select “Configure Test”

• Select the “Freq Sync Options” tab and then click on the “Apply Frequency

Synch Options” and change the Option to “Adjust The Clock To Correct The Reported Errors” then click “OK”

• Click on the “Start Test” button.

Once the test completes then the calibration is completed and the procedure should be repeated for all installed nanoBTS before reconnecting the TIB cables.

Following the 24-hour period, the Frequency Calibration procedure should be performed as per the Operations procedure – Ref {2}

- 31 -

4.9 LED Status Indicators

The following table shows the meaning of the state LED under normal and fault conditions.

State Pattern When Precedence

LED_SELF_TEST_FAILURE Red

Steady

LED_UNSPECIFIED_FAILURE Red

Steady

LED_NO_ETHERNET Orange

Slow Flash

LED_FACTORY_RESET Red

Fast Blink

LED_NOT_CONFIGURED Alternating

Red/Green Fast Flash

LED_DOWNLOADING_CODE Orange

Fast Flash

LED_ESTABLISHING_XML Orange

Slow Blink

LED_SELF_TEST Orange

Steady

LED_NWL_TEST Green

Fast Flash

LED_OCXO_CALIBRATION Alternating

Green/Orange Slow Blink

LED_NOT_TRANSMITTING Green

Slow Flash

LED_OPERATIONAL Green

Steady

In boot or application code when a power on self-test fails. On s/w fatal errors. 2

Ethernet disconnected. 3

Dongle detected at start up and the factory defaults have been applied. The unit has not been configured.

Code download procedure is in progress. A management link has not yet been established but is needed for the TRX to become operational. Specifically: for a master a Primary OML or Secondary OML is not yet established; for a slave an IML to its master or a Secondary OML is not yet established. From power on until end of backhaul power on self-test OML established, NWL test in progress The unit is in the fast calibrating state [SYNC].

The radio carrier is not being transmitted. Default condition if none of the above apply.

1 (High)

4

5

6

7

8

9

10

11

12 (Low)

- 32 -

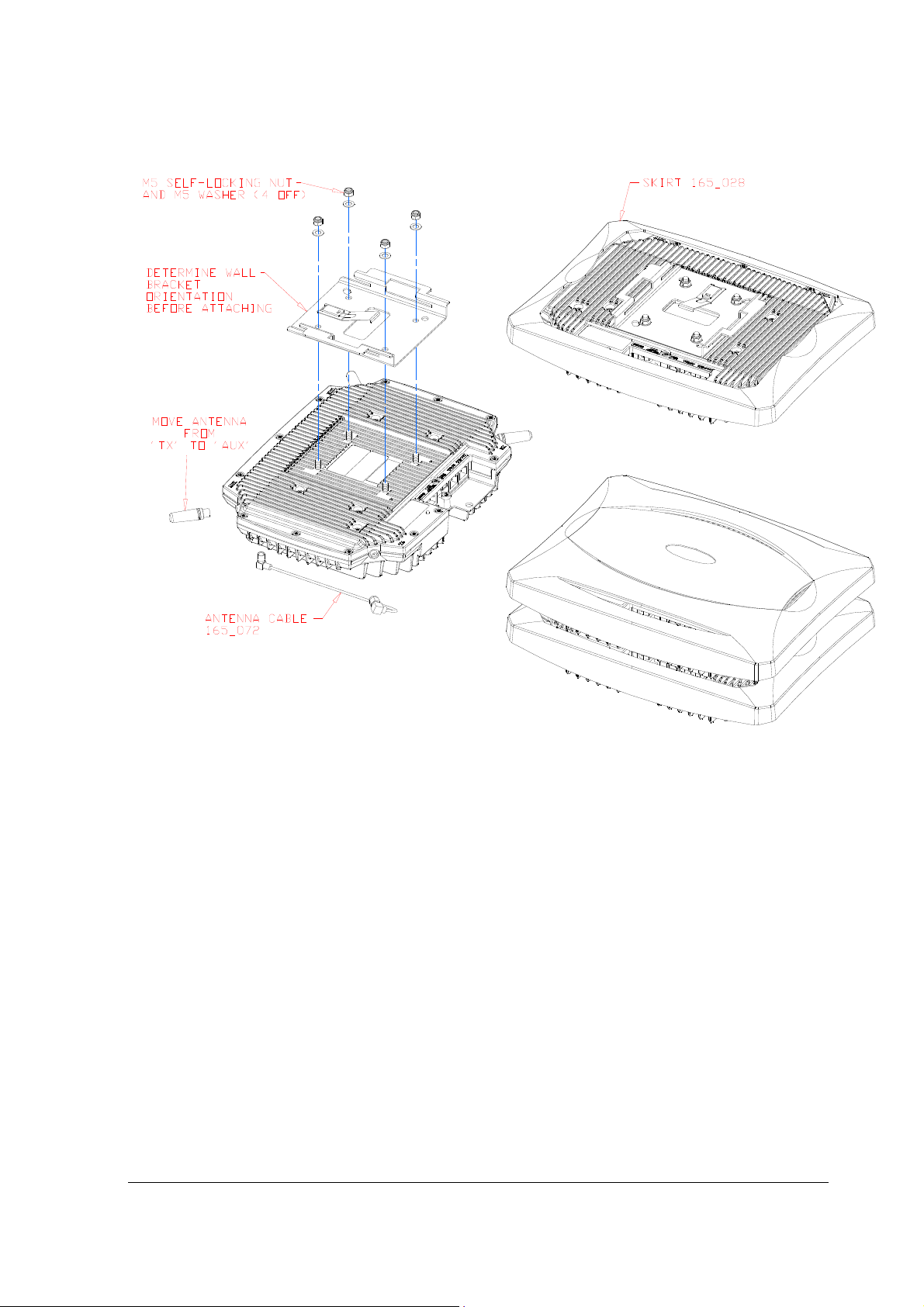

4.10 Annex A – Drawing 165#018

- 33 -

5 PSU Installation Guide (CENG0033)

5.1 Introduction

5.1.1 Purpose and Scope

The purpose of this document is to provide an overview of the installation procedure for the range of ip.access Power Over Ethernet power supplies.

5.1.2 Related Documents

None

5.1.3 Warnings

Do not connect any device other than a nanoBTS to any RJ45 socket that

is enabled for nanoBTS connection (i.e. 48V DC operation).

Ensure that the connection to the main LAN (Server) is only made to the

UPLINK (i.e. 48V DC operation).

- 34 -

5.2 Overview

Two power supply modules are available from ip.access, designed for use with the ip.access nanoBTS product range.

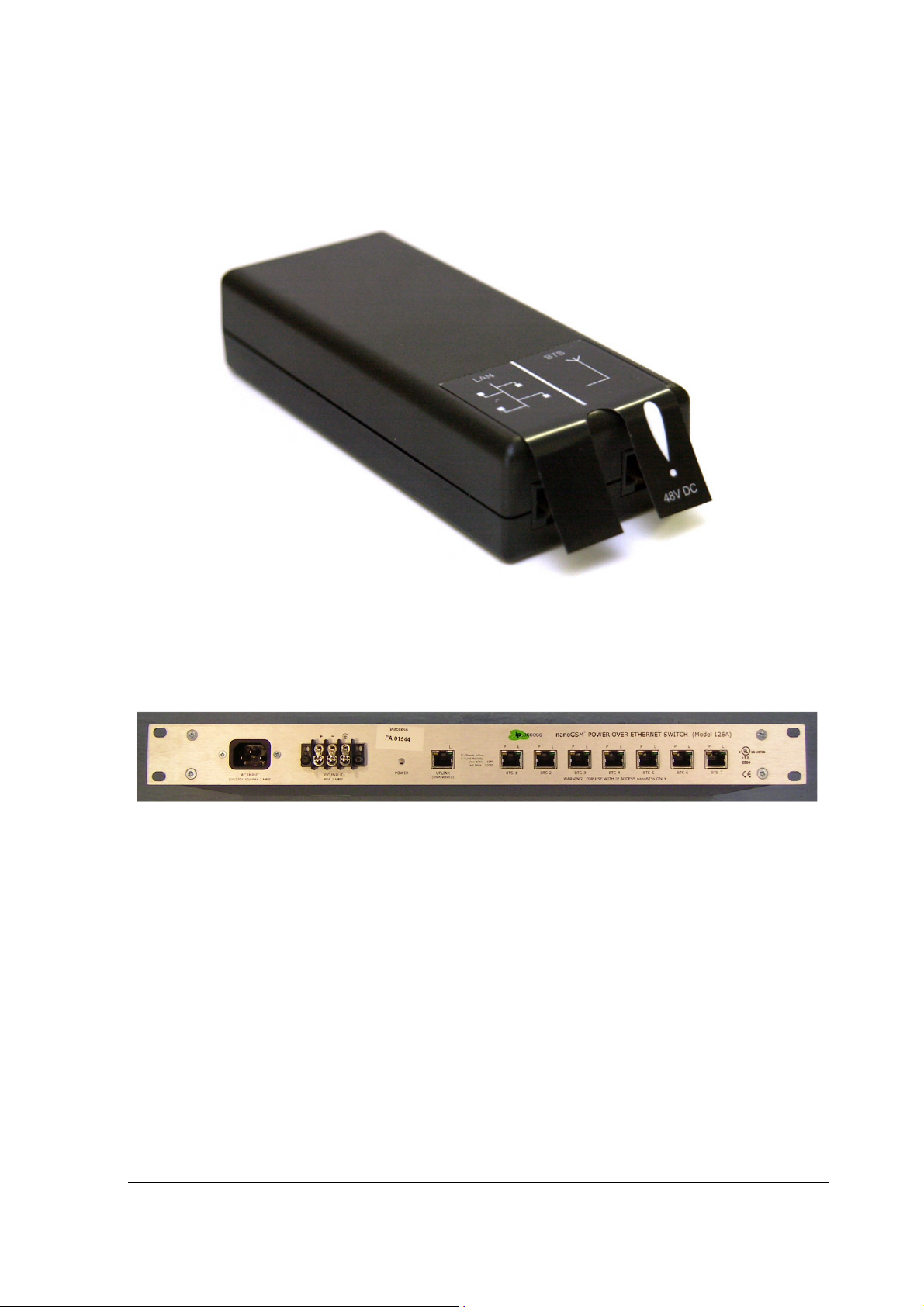

Figure 16 - Single Power Supply Unit

The single output power supply, shown in Figure 16 is commonly used for single site installat used at site

ions, where as the powered Ethernet switch shown in Figure 17 is generally

s where multiple nanoBTS installations exist.

Figure 17 - 8 Port Powered Ethernet Switch

- 35 -

5.3 Installation

5.3.1 Single Power Supply Unit

The single power supply unit is supplied as standard with each nanoBTS. The power supply has two Ethernet connections, one for connection to the main LAN, the other for connection to the nanoBTS. Figure 18 shows the network connections for two possible inst

The mains input is provided via a figure 8 mains lead connected to the mains supply of either

allation options.

nanoBTS

PSU φ

~

RJ45(48v)

PSU θ

RJ45

~

Ethernet Switch

θ PSU located at the switch φ PSU located at nanoBTS

Figure 18 - Locating the PSU

The power supply can be either located locally at the nanoBTS, as shown in Figure 19, or remotely

at the network switch, as long as no other network elements are installed

between the two points, as shown in Figure 20.

BSC

110-230Vac

~

Connection to nanoBTS

48Vdc

PSU

Connection to LAN

dc

!

V 48

RJ45

Figure 19 - PSU located at the nanoBTS

- 36 -

Cable to nanoBTS

110-230Vac

~

Connection to nanoBTS

48Vdc

PSU

Connection to LAN

c d

!

V 8 4

RJ45

Figure 20 - PSU Installation At The Switch

Do not connect any device other than a nanoBTS to any RJ45 socket that

is enabled for nanoBTS connection (i.e. 48Vdc operation).

- 37 -

5.3.2 8 Port Powered Ethernet Switch

The 8 port powered Ethernet switch, is a combined power inserter, for use with the ip.access range of products and a fully functional 10/100 Ethernet switch.

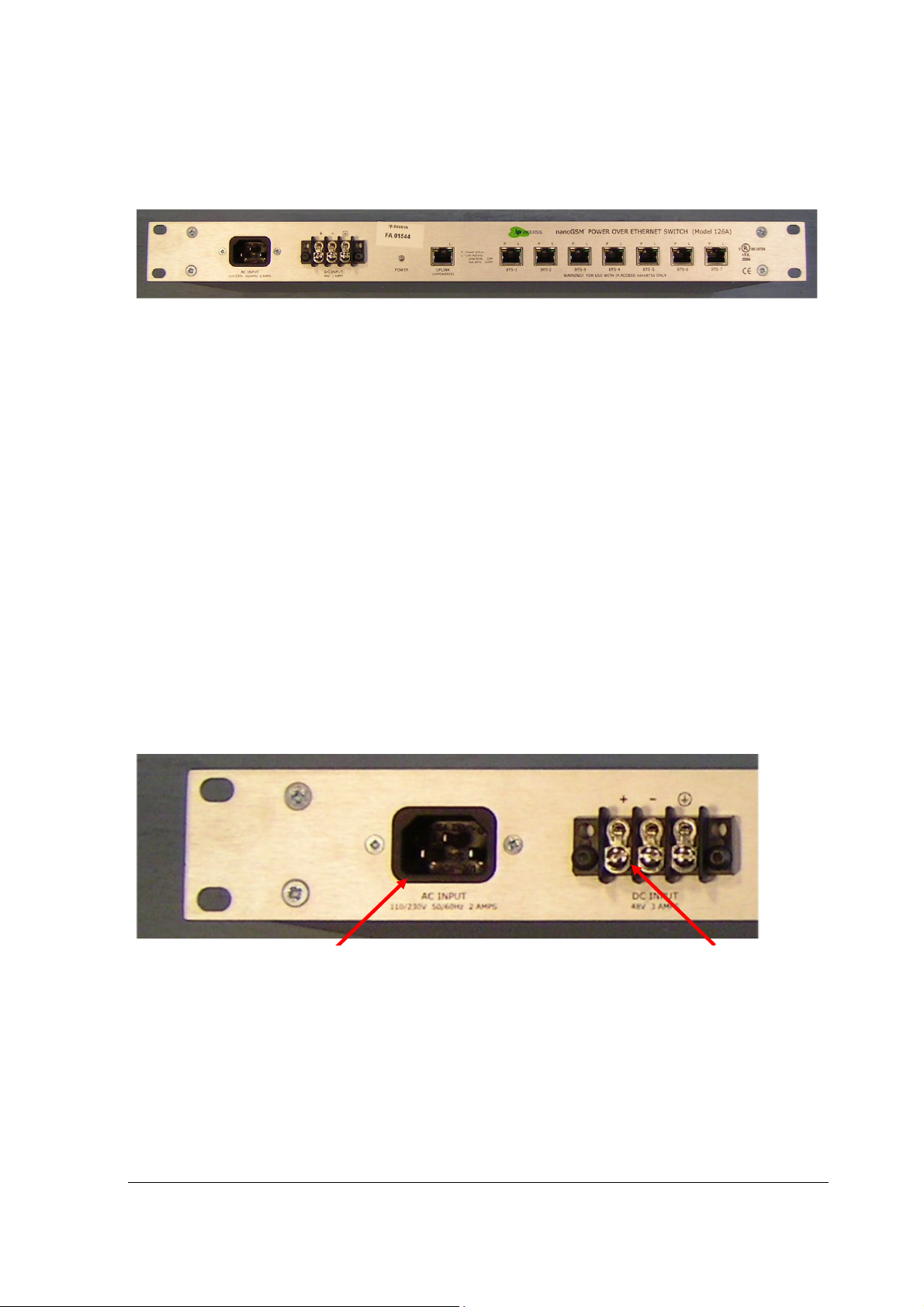

Figure 21 – The 8 Port Powered Ethernet Switch

Power to the unit is provided via a 110 – 240 volt ac mains plug or via a 48-volt dc plug and housed in a 1U 19” rack mount case.

5.3.2.1 Mounting The 8 Port Powered Ethernet Switch

The unit is designed to be mounted within a standard 19” rack, and occupies just 1U height, with all connections accessible from the front panel.

Insert 4 cage nuts in the 19” equipment rack at the height and location that the 8 Port Powered Ethernet Switch is to be positioned.

Taking care, slide the 8 Port Powered Ethernet Switch into location, holding the switch steady, then with 4 mounting screws, secure the 8 Port Powered Ethernet Switch into the rack.

5.3.2.2 Connecting The 8 Port Powered Ethernet Switch

Connect “ONE” of the required power input connectors to the 8 Port Powered Ethernet Switch, either mains 110/240V ac or 48V DC.

Figure 22 - Supply Connections

48Volt dc Mains 110 – 240 V AC

Once the 8 Port Powered Ethernet Switch is mounted and the mains / DC supply is connected, the main network can be connected, as shown in Figure 23. When powered from the AC

mains, ensure the unit is earthed via the IEC power cord. When powered from a 48VDC supply, ensure the unit is earthed via a cable to the screw terminal.

- 38 -

Uplink

connection

Downlink

connections

Figure 23 - Ethernet Connections

Ensure that the connection to the main LAN (Server) is only made to the

UPLINK (i.e. 48Vdc operation).

Connect each nanoBTS to the powered output of the power inserted as shown in

Figure 23, ensuring that the connection is made only to an ip.access nanoBTS.

- 39 -

6 BTS Installer User Guide (CENG0048)

6.1 Introduction

6.1.1 Purpose and Scope

The purpose of this document is to provide the user of the ip.access software package, “BTS Installer”, with the knowledge to use the application to its full potential.

Using BTS Installer, the user is able to configure (and reconfigure) nanoBTS™ installation parameters, download new software to nanoBTSs and perform Network Listen tests.

This document covers only those aspects of nanoBTS installation that involve using BTS Installer. For full details of how to install a nanoBTS, please refer to [CENG0336].

6.1.2 Related Documents

[CENG0336] CENG0336, “nanoBTS Installation and Test Manual”, ip.access (latest

issue)

6.2 Capabilities

BTS Installer contains a collection of related tools that enable you to:

• Perform initial installation and manual configuration of nanoBTSs.

• Upgrade and reconfigure nanoBTSs.

• Perform Network Listen tests.

These include all the operations necessary to install and configure a nanoBTS to the stage where it will connect correctly to a BSC, from which point its telecommunications behaviour can be configured using management software.

Before a nanoBTS can connect to a BSC:

• It must have an IP address, and other IP configuration parameters must be set.

• It must have a Unit ID, as this is what it uses to identify itself to the BSC.

• It must have various non-volatile attributes configured; as a minimum it must

know where to find the BSC before it can connect to it.

At various times, either during initial installation of a nanoBTS or after it has already been operational for a while, it may be necessary to:

• Change the nanoBTS’ IP configuration, Unit ID or non-volatile attributes.

• Download a new version of software to the nanoBTS.

• Perform various diagnostic operations on the nanoBTS, such as querying its

current configuration.

A nanoBTS can optionally communicate with the BSC via a secure SSL link. To configure it to do so it is necessary to:

• Download a certificate to the nanoBTS

- 40 -

• Download certificate revocation lists to the nanoBTS from time to time

BTS Installer contains tools to carry out all these actions. It can do so

• To one nanoBTS at a time or several nanoBTSs at once.

• Automatically or manually.

• According to information either loaded from a configuration file or entered via

the graphical user interface.

To allocate IP addresses and other IP configuration to nanoBTSs, BTS Installer contains a built-in DHCP server. This will respond to requests from nanoBTSs only, so should co-exist with any other DHCP servers that are present on the same network.

In addition BTS Installer contains a Network Listen tool that enables you to control a nanoBTS to:

• Listen to its GSM band and report on received signal strength and BCCH details for each ARFCN.

• Correct its clock by reference to the signals from other cells.

• Transmit a beacon signal that can be listened to and measured by other

nanoBTSs, which can be useful in ensuring adequate coverage of an area.

- 41 -

6.3 Concepts

This section describes some basic concepts behind the operation of BTS Installer; without an understanding of these it will be difficult to make sense of instructions for using the tool. Figure 24 is an illustration of BTS Installer’s user interface, and this is referred to when explaining some of these concepts. Detaile aspects of the user interface will be found in later sections.

d explanations of all

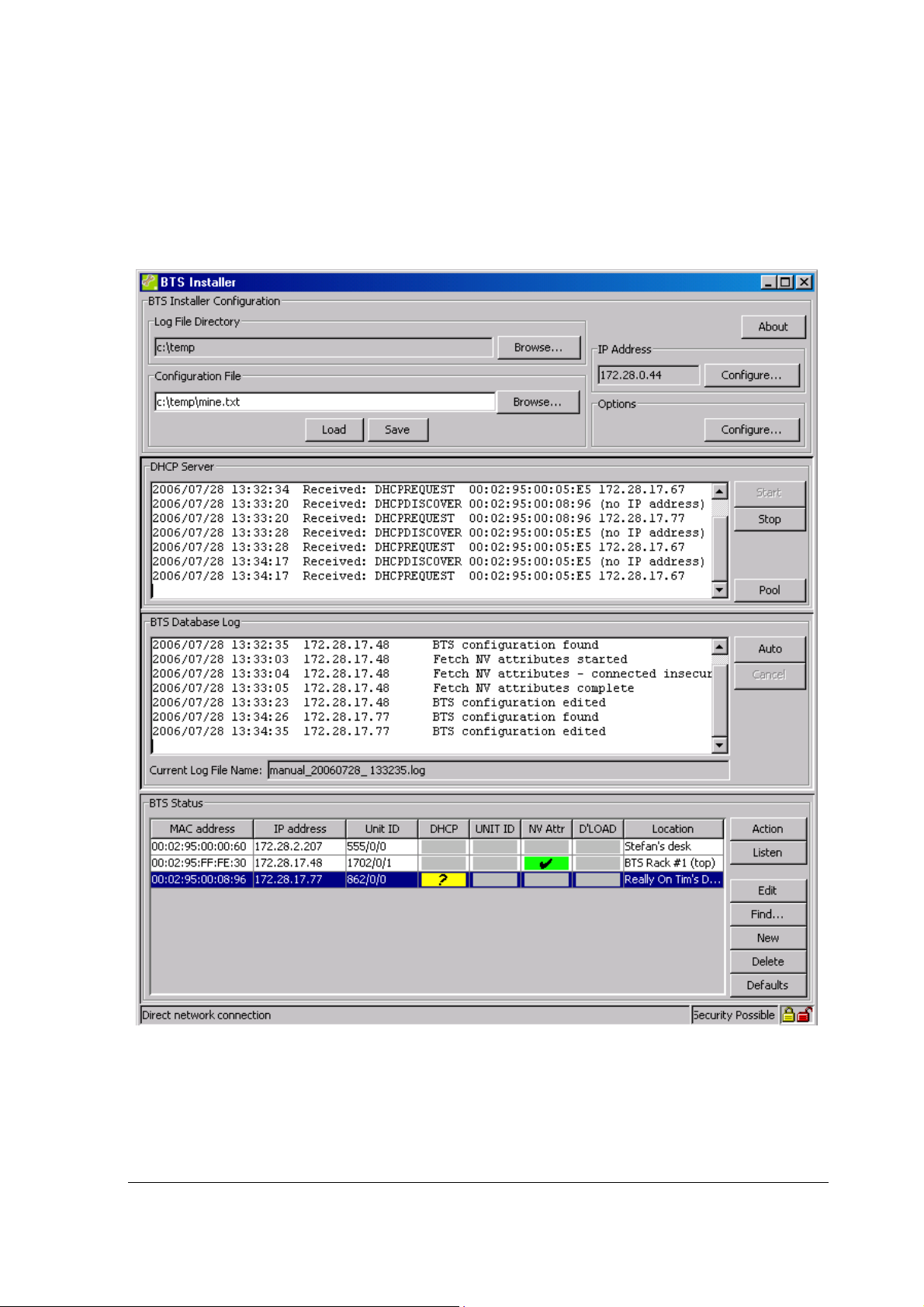

Figure 24 - Main Display

- 42 -

6.3.1 The BTS Database

BTS Installer will only operate on a nanoBTS that it knows about.

The collection of nanoBTSs that BTS Installer knows about is called the BTS Database.

The BTS Status section at the bottom of the graphical user interface is a display of the current status of each entry in the BTS Database – each row in this table represents one nanoBTS that BTS Installer knows about.

There are several ways in which BTS Installer can get to know about a nanoBTS, ie ways in which a nanoBTS can be added to the BTS Database:

• Information about the nanoBTS can be loaded from a configuration file (see section 6.3.4).

• The Find co nanoBTSs that BTS Installer was able to locate on the local LAN (these nanoBTSs must already have valid IP configurations for the Find command to work).

• The New command will create a BTS Database entry full of default values; the user must edit some values in this entry before it is useful, and in particular must enter either a MAC address or an IP address or a Unit ID before BTS Installer will be able to identify the nanoBTS to which the entry relates.

• The IP address and optionally the Unit ID of the nanoBTS can be specified on the command line when BTS Installer is started.

BTS Database entries are deleted:

• When the Delete command is used.

• When a new configuration file is loaded.

• When BTS Installer is shut down.

A BTS Database entry can be edited:

• Using the Edit command.

• Indirectly using the Defaults command, which affects all BTS Database entries

that don’t have more specific values.

None of BTS Installer’s tools, including the DHCP server, will operate on a nanoBTS for which there is no BTS Database entry.

mmand will create BTS Database entries for one or more

- 43 -

6.3.2 Configuration Phases

Configuration of a nanoBTS takes place in a number of phases. In automatic mode (see section 6.3.3.1) all enabled phases are run automatically one after another in a fixed order; in manual mode the user

chooses which phase to run, one at a time, and can also perform other actions which are not equivalent to automatic configuration phases.

The configuration phases are, in the order in which they are run in automatic mode:

• Setting the nanoBTS’ IP configuration using the built-in DHCP server.

• Setting the nanoBTS’ Unit ID.

• Setting the nanoBTS’ non-volatile attributes.

• Downloading a file to the nanoBTS.

Each phase can be enabled or disabled separately for each nanoBTS. The download file can download any one of: software; a certificate; a certificate revocation list, but can only download one file at a time.

The BTS Status section of the user interface gives a quick reference to which phases are enabled for which nanoBTSs: this is indicated by the colour code in the columns headed respectively DHCP, UNIT Id, NV Attr, D’LOAD – grey indicates that this phase is disabled for this nanoBTS, any other colour indicates that this phase is enabled for this nanoBTS. Status colours other than grey are accompanied either by explanatory text, or by a symbol (Grey = no symbol, Red = cross, Yellow = question mark, Red = tick).

6.3.3 Modes of Operation

BTS Installer has a variety of different modes of operation, to suit different circumstances and requirements.

6.3.3.1 Manual and Automatic Operation

BTS Installer has an automatic mode of operation, in which it will apply all enabled phases of configuration to all known nanoBTSs in parallel, and when it has finished it will produce a summary in the log window and log file and will display in the BTS Status window which phases of configuration for which nanoBTSs have succeeded and which have failed.

This automatic mode of operation is initiated by pressing the Auto button in the BTS Database Log section of the user interface.

BTS Installer also has a manual mode of operation, in which the user performs just one operation at a time on just one nanoBTS at a time, and has immediate feedback as to the success or failure of the operation.

The various manual operations are available from pressing the Action button in the BTS Status section of the user interface.

Some example scenarios are:

• A number of operating nanoBTSs are to have their software upgraded. Automatic mode is used to download the new version of software to all of them at once.

- 44 -

• A particular nanoBTS is not operating correctly. Manual mode is used to investigate its configuration and diagnose and fix the problem.

6.3.3.2 The Unknown BTS Mode

Normally the BTS Database contains entries for specific nanoBTSs. In particular the DHCP server will only normally only supply an IP configuration to a nanoBTS whose MAC address matches that explicitly specified in the BTS Database entry.

There is a special “Unknown BTS” mode of operation in which the BTS Database contains just one special entry. This special entry acts as if it had a wildcard MAC address, and the DHCP server will recognise any nanoBTS that asks for an IP configuration.

IN THIS MODE THERE IS NOTHING IN BTS Installer TO STOP THE CONFIGURATION OF ANY nanoBTS THAT IS CONNECTED TO THE NETWORK FROM BEING CHANGED.

This special mode of operation is designed to be used when only one nanoBTS at a time is connected to the computer running BTS Installer, usually on a tiny private network, perhaps just a crossover cable. It bypasses the normal safeguards that BTS Installer uses to ensure that it makes configuration changes only to BTSs that are identified as those that the user has specified.

There is no way to create this special BTS Database entry from the graphical user interface; it must be loaded from a configuration file. There is no particular indication to the user that BTS Installer is in Unknown BTS Mode, except that the Find and New buttons in the BTS Status section of the user interface are disabled.

6.3.3.3 Proxy and Direct Operation

There are various network configurations in which BTS Installer may be used, and the general design of the IP network configuration is outside the scope of this document.

In some network configurations BTS Installer is on the same network as the nanoBTSs, in that there is an IP route from BTS Installer to the nanoBTSs. In such configurations BTS Installer can communicate directly with the nanoBTSs in direct connection mode.

There are two different types of direct connection that BTS Installer can make to a nanoBTS: a normal TCP connection or a secure SSL connection.

In other network configurations BTS Installer and the nanoBTSs are on different networks, and there is no IP routing between the two. Typically in this scenario the BSC will be multihomed, and will have an interface to each network but will not route IP packets between the two networks. An optional system component, the BTS Installer Proxy, can be installed as part of the BSC, and will forward requests from BTS Installer to the nanoBTSs and return the replies. In such configurations BTS Installer communicates with the nanoBTSs in proxy mode.

There are two different types of proxy that might be present on a BSC: a Primary OML Proxy and a Secondary OML Proxy. Which can be used depends on the network configuration.

- 45 -

Direct connection or proxy mode is indicated to the user in the status bar at the bottom of the user interface. A later section explains how to start BTS Installer in proxy mode, and lists the limitations of BTS Installer whilst in proxy mode.

6.3.4 The Configuration File

BTS Installer can be given the information it needs

• in a configuration file, or

• via the graphical user interface, or

• via some combination of both.

The configuration file is a text file which can be created with any text editor and which contains definitions for:

• default values for BTS attributes

• the nanoBTSs to be operated on

• attributes to be set for the BTSs

• the DHCP server’s IP address pool.

It is not necessary to create a configuration file for most uses of BTS Installer, as almost all necessary information can be entered via the graphical user interface. The only exception is that a BTS Database entry for the “Unknown BTS” cannot be entered via the GUI and can only be entered via the configuration file.

At any point it is possible to save the current state of the BTS Database and IP address pool to a configuration file; this can be done even if no configuration file has been loaded and all data has been entered via the GUI. This allows you to

• enter configuration information via the GUI

• save this to a new configuration file

• load the configuration file in a later run of BTS Installer.

In other words, you can use BTS Installer itself to create a configuration file for later use, instead of using a text editor.

Section 6.10 gives details of the syntax of the configuration file.

- 46 -

6.4 Getting Started

This section contains information about installing BTS Installer, preparing it for use, and performing an operation on a nanoBTS.

6.4.1 Installing BTS Installer

BTS Installer is a Java application. It requires that the Sun J2SE Java Runtime Environment be installed: version is 1.5 is required (there is no particular requirement as to which subversion of 1.5 is used). The J2SE Java Runtime Environment is available, with installation instructions, from Sun’s Java web-site (http://www.java.sun.com

6.4.1.1 Microsoft Windows

To install BTS Installer run the supplied .msi file and follow the instructions on screen. If it is desired to use BTS Installer to make secure (SSL) connections to nanoBTSs then

• the Aladdin eToken run time environment must be installed, which in turn requires that the computer is running either Windows 2000 SP4 or Windows XP or later

• the eToken, which is a hardware device which contains a certificate and private key for BTS Installer, must be plugged into a USB port.

6.4.1.2 Other Platforms

).

Details of installing BTS Installer on platforms other than Microsoft Windows are beyond the scope of this document. However in most cases copying the file BtsInstaller.jar to a suitable directory will be adequate. On platforms other than Windows there is no support for making SSL connections to the nanoBTS.

6.4.2 Starting BTS Installer

6.4.2.1 From Config Manager

BTS Installer can be started from Config Manager, in which case it will be prepopulated with some nanoBTSs selected in Config Manager and will operate in proxy mode. See section 6.9.2 for details.

6.4.2.2 Microsoft

BTS Installer can be started by double clicking the desktop item or by selecting the menu entry in the normal way.

6.4.2.3 Other Platforms

Details of starting BTS Installer on platforms other than Microsoft Windows are beyond the scope of this document. However on platforms with a command line interface a command like:

java -jar BtsInstaller.jar

is likely to be useful.

Windows

- 47 -

ip access KU02ZZR User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1 Introduction
