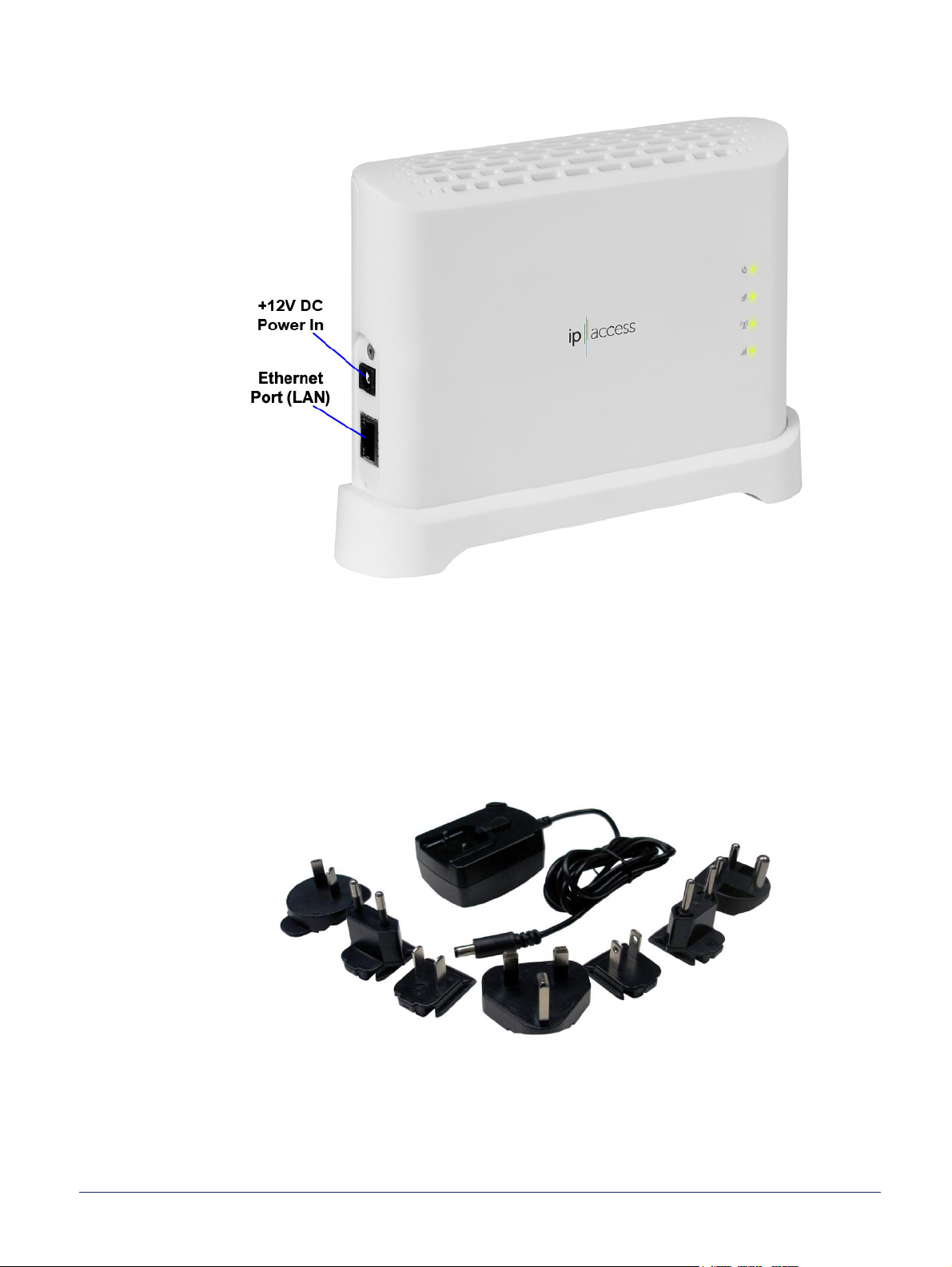

3.1 Unpack the S60 AP............................................................................................ 8
3.2 Cable Connections............................................................................................. 8
3.3 Mount the nanoLTE S60 AP on its Stand .......................................................... 9
3.4 Mount the S60 AP on a Wall............................................................................ 10
4 Troubleshooting ..................................................................................11
4.1 nanoLTE S60 AP Does Not Power Up ............................................................ 11
4.2 nanoLTE S60 AP LEDs ................................................................................... 11
4.3 Factory Reset................................................................................................... 13
4.3.1 S60 Factory Reset.............................................................................................. 15
5 nanoLTE AP and PSU Regulatory Information .................................16
5.1 Warnings and Cautions.................................................................................... 16
5.2 Regulatory Statements for nanoLTE S60 AP .................................................. 18
5.2.1 US FCC Compliance .......................................................................................... 18
5.2.2 EU Regulatory Compliance ................................................................................ 19
5.2.3 Safety Standards................................................................................................ 19
5.2.4 Environmental Standards ................................................................................... 19
5.2.5 RF Exposure Statement ..................................................................................... 19
5.3 Regulatory Statements for PSAA20R-120L6 PSU .......................................... 20
nanoLTE S60 AP Hardware Installation
NANO_INST_43315 v200_0.5 for N4G_2.0 © ip.access Limited 2017 Page i
5.3.1 Output Specification ........................................................................................... 21
nanoLTE S60 AP Hardware Installation
NANO_INST_43315 v200_0.5 for N4G_2.0 © ip.access Limited 2017 Page ii
1 Introduction
The ip.access nanoLTE S60 AP is an indoor Access Point for SOHO and enterprise small
cell applications.
This manual provides all the necessary information required for hardware installation of a
nanoLTE S60 AP.
1.1 Overview
This manual is organised as follows:
• This introduction
• An overview of nanoLTE S60 AP installation, including site requirements
• nanoLTE S60 AP hardware installation
• Troubleshooting
• Regulatory warnings and safety information
1.2 Warnings and Regulatory Information
For all warnings and regulatory information, see section 5.
1.3 Related Information
[GST_41050] nanoLTE System Planning (NANO_GST_41050)
[INST_43370] nanoLTE AP Pre-Provisioning and Configuration (NANO_INST_43370)
[OPM_43005] nanoLTE AP Operations (NANO_OPM_43005)
[REF_11105] System Glossary (NANO_REF_11105)
[REF_43005] nanoLTE AP Open Source Software (NANO_REF_43005)
[TRB_43005] nanoLTE AP Troubleshooting (NANO_TRB_43005)
[21.905] Vocabulary for 3GPP Specifications (3GPP TR 21.905)
1.4 Licenses and Copyright Notices
Portions of the AP are constructed from third-party software and open source code and
ip.access Ltd gratefully acknowledges the contributions that these libraries, technologies
and components have made to the product. Each of these is supplied under the terms of a
license agreement and these are either reproduced or referenced in [REF_43005], in line
with the stipulations of their authors.
1.5 Terminology
Common System terminology is defined in [REF_11105].
For additional terminology, see [21.905].
nanoLTE S60 AP Hardware Installation Introduction
NANO_INST_43315 v200_0.5 for N4G_2.0 © ip.access Limited 2017 Page 1
2 Installation Overview and Requirements
2.1 Installation Tasks
The tasks that must be completed to install a nanoLTE S60 AP and make it ready to provide
service are:
• Pre-Provisioning
• Site installation
These tasks can be completed in any order. In most cases, however, the most practical
approach is to pre-provision an S60 AP before site installation.
2.1.1 Pre-Provisioning
For information about nanoLTE AP pre-provisioning, see the nanoLTE AP Configuration
manual [INST_43370].
This manual has no further information on AP configuration.
2.1.2 Site Installation
Physical installation of a nanoLTE S60 AP at its operating site, including providing the AP
with power and a suitable network connection. The network connection provides a backhaul
path to the NOS Server and EPC or S1 Gateway.
The network connection must also provide Internet access so that the S60 AP can the
services it needs at boot time, including NTP, the Redirector and the public CRL mirror.
If a nanoLTE S60 AP has been enabled for service prior to the site visit, the installation
engineer can make test calls immediately.
2.2 Mounting Options
The mounting options for the nanoLTE S60 AP are:

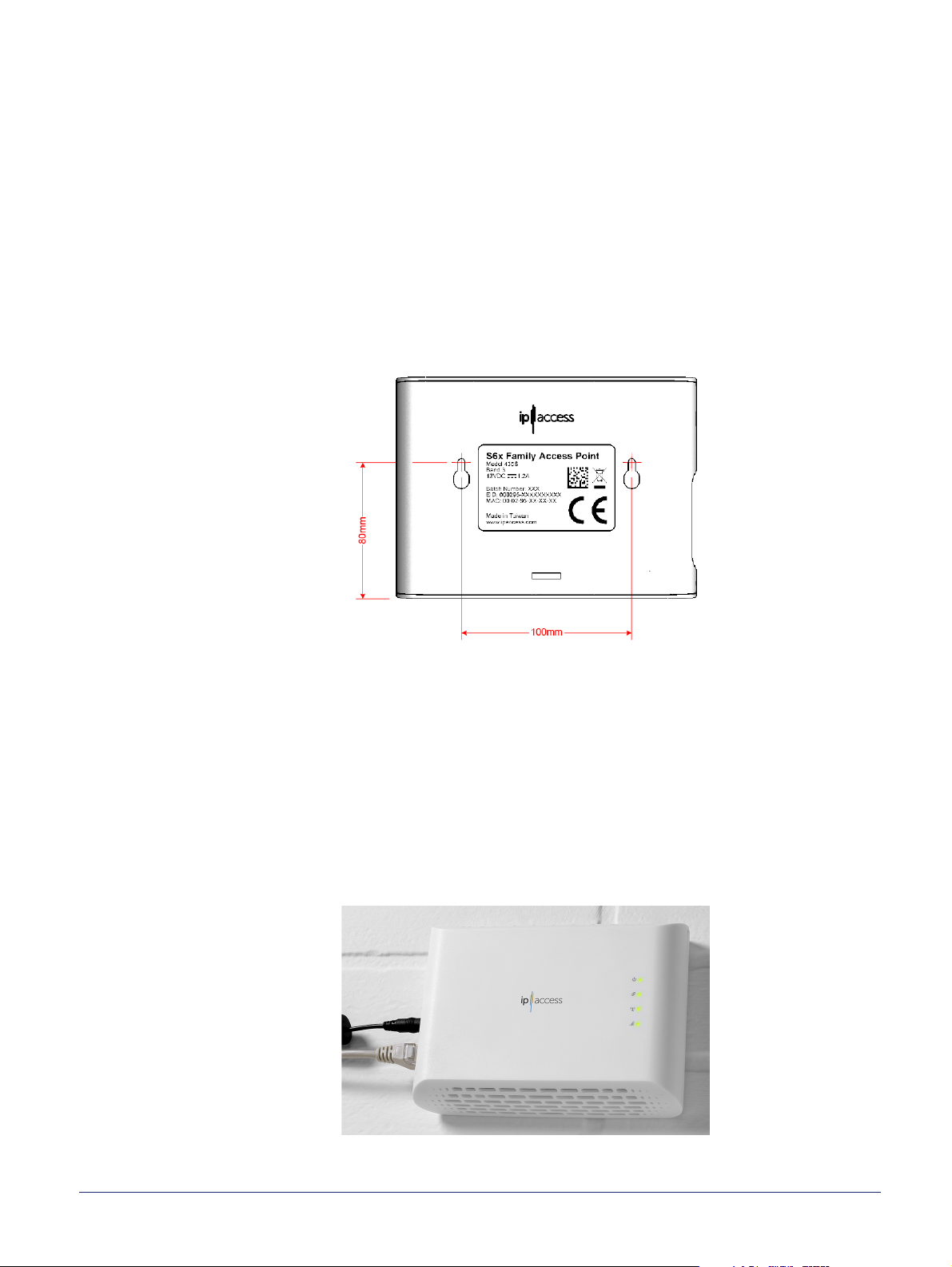

• Wall mounted, by using the wall mounting holes on the back of the unit (suitable
pan-head screws must be sourced separately)
• Free standing, on the supplied stand, which must be placed on a stable flat surface
The hardware installation instructions in section 3 cover both options.
nanoLTE S60 AP Hardware Installation Installation Overview and Requirements
NANO_INST_43315 v200_0.5 for N4G_2.0 © ip.access Limited 2017 Page 2
2.3 nanoLTE S60 AP Site Requirements
The basic requirements are:
• A mounting location for the S60 AP.
• Power supplied via the supplied mains adaptor unit, which requires a suitable
mains power supply point near the AP that is within reach of the adaptor’s cabling.
• An Ethernet cable connection to the Internet, or equivalent backhaul network
2.3.1 General Site Installation Requirements
All nanoLTE APs have the following general requirements for installation:
• A permanent means to provide power to the AP
• An Ethernet connection to the backhaul via CAT5 Ethernet cabling
• Access to a DHCP service on the backhaul to allow dynamic IP address
configuration
• Access to a DNS service on the backhaul to resolve symbolic addresses
• Access to NTP services on the backhaul to set the correct time and date each time
the AP starts up
• Internet access so that the AP can connect to the Redirector
• If IPsec will be used to secure the interface across the backhaul, access to the
relevant Security Gateway that terminates the IPsec tunnel
• If a firewall is in place on the network an AP will use for backhaul, this must be
configured to allow traffic to and from the AP - see the port usage information in
section 2.3.3
Note: If possible, the engineer should stay on site until the AP is brought into service, ready to
make test calls to verify the AP has been configured correctly from the NOS.
2.3.2 nanoLTE AP Cooling
Special attention must be given to ensure a nanoLTE AP will meet its air cooling
requirements in its installed location.
Take the following points into consideration for the physical location of an AP:
• All AP models must be installed so that they are upright, to ensure proper air will
flow through the body of the AP to provide cooling.
• All AP models must not be installed in enclosed spaces where air flow is
restricted. This includes, but is not necessarily limited to:
• Roof or ceiling spaces
• Small cabinets
• Tightly enclosed shelf spaces
nanoLTE S60 AP Hardware Installation Installation Overview and Requirements
NANO_INST_43315 v200_0.5 for N4G_2.0 © ip.access Limited 2017 Page 3
2.3.3 Port Usage
This information is provided in case it is needed for configuring local on-premises
equipment, especially any hardware firewalls between the AP and the rest of the backhaul
network.
All connections are outgoing. That is, they are initiated from the AP. Port usage has some
dependency on whether or not the AP is using IPsec.
Port Usage Before IPsec
The AP can use any of the following ports before the IPsec tunnel is established:
Protocol Destination Port Use
udp 67 DHCP
udp 68 DHCP
udp 53 DNS
udp 123 NTP
tcp 443 HTTPS for connecting to the Redirector
tcp 80 HTTP for first CRL download for a new AP or after
Factory Reset
The AP may continue to use some of these ports outside the IPsec tunnel. For example, for
contacting NTP servers.
Port Usage With IPsec
With IPsec, the standard two ports are used:
Protocol Destination Port Use
udp 500 IPSec initial connection
udp 4500 IPSec operations
The AP will need to continue using these ports:
Protocol Destination Port Use
udp 53 DNS
udp 123 NTP
nanoLTE S60 AP Hardware Installation Installation Overview and Requirements
NANO_INST_43315 v200_0.5 for N4G_2.0 © ip.access Limited 2017 Page 4
If the NOS is configured for HTTPS access to the Certificate Validation Service for CRL
Mirror server functionality, the AP will also need to use this port outside of the IPsec tunnel:
Protocol Destination Port Use
tcp 443 HTTPS for CRL download from the NOS
Port Usage Without IPsec
Without IPsec, the following ports are used:
Protocol Destination Port Use
sctp 36412 SCTP connection
udp 2152 PS GTP from AP
udp 2152 PS GTP to AP
tcp 8080 or 7547 TR-069 to the NOS (the NOS listens for TR-069
connections on both ports)
tcp 80 PM upload, software download, CRL download, AP
diag upload
This assumes the AP is on a secure network that does not need IPsec. For example, a
self-contained test network.
nanoLTE S60 AP Hardware Installation Installation Overview and Requirements
NANO_INST_43315 v200_0.5 for N4G_2.0 © ip.access Limited 2017 Page 5
2.3.4 nanoLTE S60 AP Power Requirements
Maximum expected power consumption:
• 15 Watts (Rated +12V on the DC input)
The S60 AP only uses power from a suitable DC source (+12V, 1.67A rated centre positive
2.1mm jack). Use the supplied mains adaptor only.
PSU
The following 12V PSU, rated up to 20W, is included in the box with the S60 AP:
There must be a suitable mains power supply point for plugging in the power adapter. The
lead on the PSU is 1.5m long, hence the power supply point must be within 1.5m of the AP.
The S60 AP does not use PoE or PoE+. The S60 AP can use an Ethernet connection
carrying PoE or PoE+, but will not power up from the cable.
nanoLTE S60 AP Hardware Installation Installation Overview and Requirements
NANO_INST_43315 v200_0.5 for N4G_2.0 © ip.access Limited 2017 Page 6
2.3.5 S60 AP Physical Requirements
An S60 AP is installed by mounting it on a wall or partition on screws or by sitting it on the
supplied stand.
Pay attention to ensure that air can circulate freely around the unit. The unit must be
vertical.
It is recommended to install the AP with its front surface facing the area requiring cellular
coverage, unobstructed by walls or partitions that may cause significant RF attenuation.
Dimensions and weight
without stand
Dimensions and weight with
stand
Environmental Cooling Vents on the top and bottom
2.3.6 Thermal Protection
The nanoLTE S60 AP may become warm during normal operation.
Ensure the AP is in a location where it will be at least 20cm away from personnel and any
items that may be heat sensitive.
Height 130mm
Width 176mm
Depth 34mm
Approximate Weight 360g
Height 137mm
Width 188mm
Depth 46mm
Approximate Weight 385g
Operating Temperature 0°C to +45°C
Operating Humidity 10 to 70% non-condensing
2.3.7 S60 AP Backhaul (IP) Bandwidth Requirements
At maximum capacity and with IPsec in use, a nanoLTE S60 AP will require:
• Downlink: 150Mbps
• Uplink: 50Mbps
This will provide bandwidth for 32 users.
2.3.8 S60 AP Installation Tool Requirements for Wall Mounting
To mount the S60 on a wall:
• 2 pan head screws, size No. 6 (approx 3.5mm (0.14in) in diameter).
• Wall plugs if required.
• Suitable drills and screwdriver.
None of these items are included in the box with the S60 AP.
nanoLTE S60 AP Hardware Installation Installation Overview and Requirements
NANO_INST_43315 v200_0.5 for N4G_2.0 © ip.access Limited 2017 Page 7
3 nanoLTE S60 AP Hardware Installation
PSU
LAN Cable to
nearest switch/gateway
Mains
Input
12V DC
cable to AP
Backhaul
Network to
NOS and
EPC/S1GW
3.1 Unpack the S60 AP
1) Unpack the AP and its accessories.
Box contents may vary, but typically the box should contain the following:
• S60 AP unit with wall bracket attached
• Tabletop stand
• Mains power supply unit with plug adaptors
• Ethernet cable (approx 2m)
2) Check that the serial number on the AP unit matches the label on the box.
3) Check that the items have not been damaged in transit.
For any damaged units, contact the supplier immediately for returns advice.

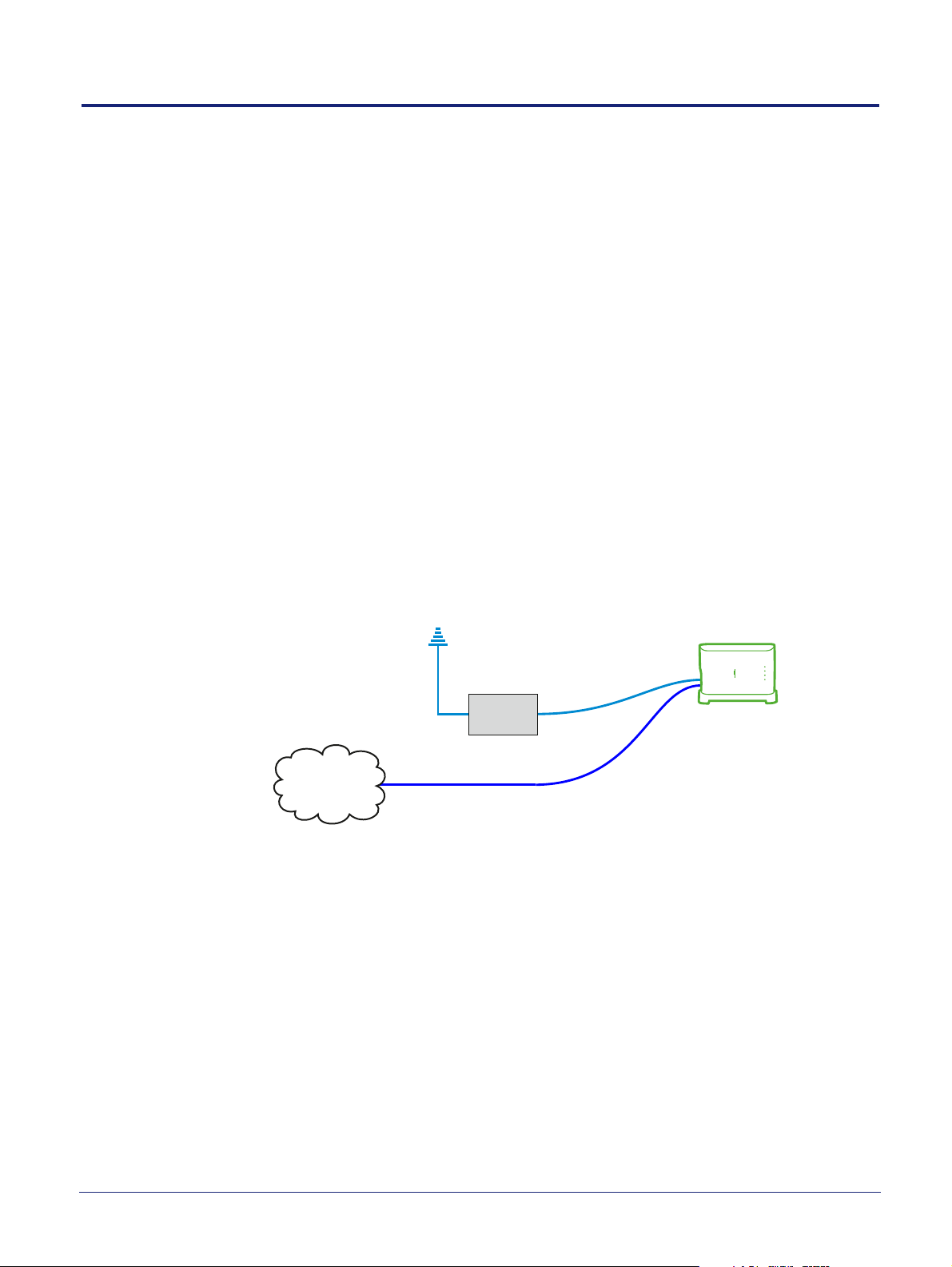

3.2 Cable Connections
The nanoLTE S60 AP requires an Ethernet cable connection to the backhaul and power
from the mains via the supplied power adapter:
S60 AP
(max 100m)
A mains socket providing power to the AP must be within reach of the cabling included with
the PSU. This is typically less than 1.5m. Use the PSU supplied for use with the S60 AP.
Note: The nanoLTE S60 AP cannot be powered with PoE or PoE+. The presence of power on the
Ethernet connection has no effect on the S60 AP.
nanoLTE S60 AP Hardware Installation nanoLTE S60 AP Hardware Installation
NANO_INST_43315 v200_0.5 for N4G_2.0 © ip.access Limited 2017 Page 8

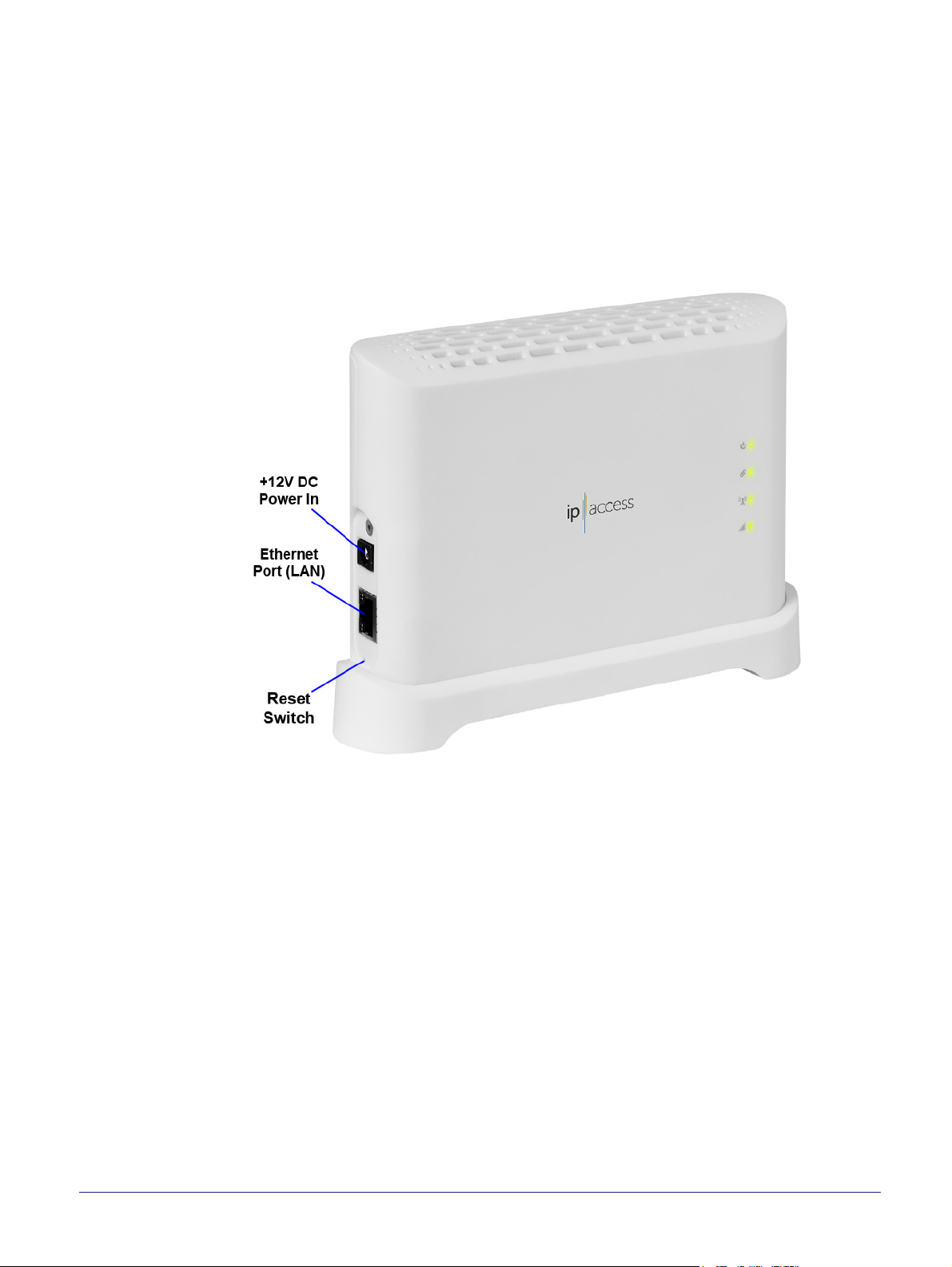

3.3 Mount the nanoLTE S60 AP on its Stand
1) Fit the S60 AP onto its stand. It should click into place when the unit is oriented
correctly on the stand.
2) Position the S60 AP in a suitable location, within reach of a power supply point and
an Ethernet connection. When it is on its stand, the AP must be on a stable flat
surface.

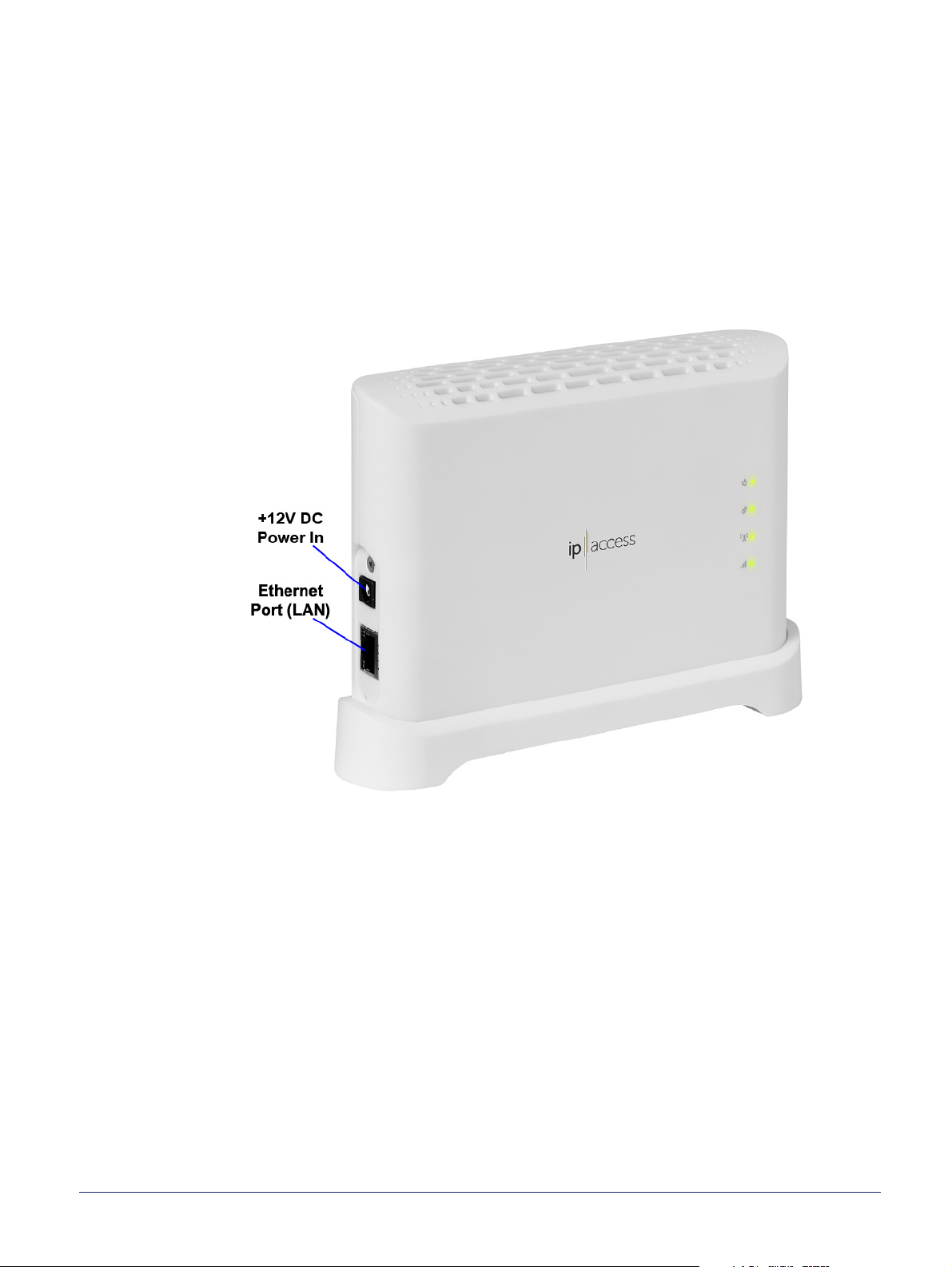

3) Plug in the required cables. Plug an Ethernet cable from a switch/gateway into
LAN and the included power supply into the +12V DC input:
Route the cables safely. Do not create a tripping hazard with the cables.
nanoLTE S60 AP Hardware Installation nanoLTE S60 AP Hardware Installation
NANO_INST_43315 v200_0.5 for N4G_2.0 © ip.access Limited 2017 Page 9
3.4 Mount the S60 AP on a Wall
Note: The S60 AP should be installed in a position so that it is at least 2m away from the area
where handsets are normally used.
The S60 AP must be mounted vertically to ensure air circulation around the unit.
The location of each S60 AP should be shown on an installation floor plan produced at the
network planning stage. For example, it must take into account that all APs must be at least
2m from any mobile equipment. Any additional network wiring must be complete before the
S60 AP can be installed. When it is wall mounted, position the S60 AP at or above head
height.
1) Mark the position of the two screw holes on a flat area of wall, 100mm apart
horizontally to match the mounting holes on the back of the unit:
To ensure adequate ventilation, allow at least 200mm around the holes to the
nearest obstructions, typically to a corner in the walls and the ceiling.
2) Drill the two holes in the positions marked previously and insert wall plugs (if
required) and fix the screws in place, leaving enough of each screw protruding
from the wall so it is easy to hang the S60 on the screws.
3) Slide the S60 AP onto the two screws.
4) Plug in the required cables. Plug an Ethernet cable from a switch/gateway into
LAN and the power supply into the +12V DC input:
Note: Route the cables safely.
nanoLTE S60 AP Hardware Installation nanoLTE S60 AP Hardware Installation
NANO_INST_43315 v200_0.5 for N4G_2.0 © ip.access Limited 2017 Page 10
4 Troubleshooting
This section covers the following topics that may be useful for troubleshooting a nanoLTE
S60 AP during installation:
• 4.1 nanoLTE S60 AP Does Not Power Up
• 4.2 nanoLTE S60 AP LEDs
• 4.3 Factory Reset
For more information on AP troubleshooting, see [TRB_43005].
4.1 nanoLTE S60 AP Does Not Power Up
Check the following:
• Verify the correct power supply is in use and that mains power is available.
• Ensure that PoE or PoE+ is not being used to attempt to power the AP. The
presence of power on the Ethernet connection has no effect on the S60 AP.
4.2 nanoLTE S60 AP LEDs
The following table shows the meaning of the status indicators under normal and fault
conditions.
LED Colour Description
Off The nanoLTE AP is not switched on.
Green The nanoLTE AP is powered up normally.
Power
nanoLTE S60 AP Hardware Installation Troubleshooting
NANO_INST_43315 v200_0.5 for N4G_2.0 © ip.access Limited 2017 Page 11
Red The LED should only be Red for a short time when the
nanoLTE AP is starting up. If the LED stays Red, this means
there is a fault with the AP.
If the LED turns Red after previously turning Green, this means
that there is a hardware power fault with the nanoLTE AP.
LED Colour Description
Off The AP does not yet have an IP address. This should change
shortly after the AP is switched on.
Red If this LED has previously been Green, Red means that there
Connection
Green Flashing Green indicates the AP is acquiring NTP or
Green This LED will always be green for the nanoLTE S60 AP, to
Mode
Off The nanoLTE AP is not provisioned, it has no IP address. This
is an error, such as the AP losing its IPsec connection with the
security gateway.
connecting to its IPsec Security Gateway. Steady Green
indicates the AP is connected to its serving IPsec security
gateway.
indicate that it is operating in LTE mode. This LED may be off
temporarily during startup.
may be a temporary condition when the AP is switched on for
the first time, or after factory reset.
Service
Red Service not available because the AP is administratively
locked (from the NOS).
Red flashing There is an error condition. Usually this means that the cell is
also down.
Flashing green
(1800ms on, 200ms
off), Red off
Green flashing
(500ms on, 500ms
off), Red off
Green flashing(50ms
on, 50ms off), Red off
Green flashing(50ms
on, 200ms off), Red
off
Cell down, service not available.
Cell locked, service not available.
Normal reboot, when reset button pressed for less than 5
seconds.
Factory reset, when reset button pressed for more than 5
seconds.
Note: The Ethernet port has standard indicator LEDs, showing when the network connection is up
and flashing for network activity.
nanoLTE S60 AP Hardware Installation Troubleshooting
NANO_INST_43315 v200_0.5 for N4G_2.0 © ip.access Limited 2017 Page 12
4.3 Factory Reset
Only use a factory reset when there is no other way to repair the AP connection to either the
IPsec SecGW and/or the NOS Server. First ensure that all other possibilities have been
explored and eliminated.
A factory reset will clear the configuration supplied to the AP by the NOS (or TR-069 ACS if
the NOS is not used). Hence the AP will retain the following information after a factory reset:
• Factory configuration data that cannot be changed, which includes:
• The AP’s Equipment ID (EID)
• The FQDN for the ip.access NTP services hosted by ntp.org
• The FQDN of the Field Redirector
• The FQDN of the primary ip.access CRL mirror server
• If the AP has already successfully obtained its unique OLM Package, it will also
have:
• The DOCP, containing the parameters the AP needs to connect to its serving
NOS (see below)
• Certificates
The DOCP parameters are permanently stored by the AP, and will be used if the AP
performs a factory reset. However, they are overridden with the configuration that the AP
obtains from the NOS server when it connects for the first time. If this downloaded
configuration is incorrect, this may subsequently prevent the AP from successfully
re-connecting to the Security Gateway and/or the correct NOS.
In the NOS Client, check these parameters, which are the parameters supplied to the AP in
the DOCP, as downloaded from the Field Redirector in its unique OLM Package:
Select in Navigation
Parameter Notes
Pane
Device.ManagementSe
rver
Device.Time X_000295_DefaultNTPServer If this is incorrectly configured, the AP will
Device.Security X_000295_DefaultCRLServer
Device.IPsec X_000295_DefaultIPsecEnableIf it is expected that the AP will use IPsec,
Device.IPsec X_000295_DefaultRemoteTraf
X_000295_DefaultMgmtServer
URL
BaseUrl
ficSelectors
The NOS the AP will attempt to connect
to.
be unable to set its clock time. Hence it
will be unable to validate any certificates
and establish an IPsec tunnel. In this
case, the "Default" values are likely to be
null.
If this is incorrectly configured, the AP will
be unable to validate any certificates and
establish an IPsec tunnel. In this case, the
"Default" values are likely to be null.
this will only be unchecked if the AP has
not yet been able to connect to the NOS.
A list of remote Traffic Selectors supplied
to the AP.
nanoLTE S60 AP Hardware Installation Troubleshooting
NANO_INST_43315 v200_0.5 for N4G_2.0 © ip.access Limited 2017 Page 13
Select in Navigation
Pane
Parameter Notes
FAPService.{i}.FAPCon
trol.UMTS.Gateway
X_000295_DefaultSecGWSer
ver
The serving IPsec gateway address.
If all these Default values are null, this means that the AP has never connected to the NOS,
so it has been unable to inform the NOS with these values. In this case, check the AP’s
ability to connect to the Field Redirector and the IPsec SecGW. For example, ensure any
on-site firewall is allowing the AP to connect to the Internet and also allows IPsec to pass
through.
If the default values are populated, this shows means the AP has been able to connect at
least once. Hence, in this case, check the AP configuration provisioned from the NOS. That
is, ensure these parameters are set correctly:
Select in Navigation
Parameter Notes
Pane
Device.ManagementSe
rver
Device.Time NTPServer1, NTPServer2,
URL The configured NOS address. In most
cases, this should be the same NOS as
provided in the DOCP and shown in
X_000295_DefaultMgmtServerURL.
The operator's NTP server addresses. All
NTPServer3 and NTPServer4
four parameters should have an NTP
server address. If all of them are
incorrectly configured, the AP will be
unable to set its clock time. Hence it will
be unable to validate any certificates and
establish an IPsec tunnel.
Device.Security X_000295_CRLServerBaseUrl If this is incorrectly configured, the AP will
be unable to validate any certificates and
establish an IPsec tunnel.
Device.IPsec Enable If the AP should use IPsec, this must be
checked (enabled). If this is unchecked
(disabled) then the AP will not attempt to
establish an IPsec tunnel, which means it
will be unable to reconnect to the NOS.
Device.IPsec X_000295_ConfiguredRemote
TrafficSelectors
FAPService.{i}.FAPCon
trol.UMTS.Gateway
SecGWServer1 The configured IPsec gateway. If this is
The list of configured remote end Traffic
Selectors for the AP.
When using an ACME SecGW, leave
these at the default values. In this
scenario, if they are configured, the AP
may be able to establish an IPsec tunnel,
but may then be unable to reconnect to
the NOS.
incorrect, the AP will be unable to find the
SecGW, and hence will be unable to
reconnect to the NOS.
nanoLTE S60 AP Hardware Installation Troubleshooting
NANO_INST_43315 v200_0.5 for N4G_2.0 © ip.access Limited 2017 Page 14
To resolve any incorrect provisioned values, correct them in the NOS then perform a factory
reset. The AP will reconnect to the NOS using the default factory configuration and then
obtain the updated configuration.
4.3.1 S60 Factory Reset
1) Use a thin rod to press and hold the reset button, which is accessed through a
small hole under the Ethernet port.
2) Keep the reset button pressed until the Service LED changes from blinking fast
(50ms on, 50ms off) to blinking slowly (50ms on, 200ms off).
The 4G Service LED blinks fast (50ms on, 50ms off) until the factory reset
commences, then it blinks slowly (50ms on, 200ms off). When the factory restore
process is complete, the LED extinguishes and the AP automatically reboots. The
AP will then attempt to re-contact the Redirector via the Internet, in case there is an
updated OLM Package available (for example, if the DOCP for the AP has been
modified and/or there are new certificates for the AP). The AP will then attempt to
reconnect to the specified IPsec Security Gateway and NOS. If the AP is unable to
reconnect to the Redirector, it will use the existing DOCP parameters.
3) See the nanoLTE AP Troubleshooting manual [TRB_43005] for the full AP restart
sequence following a factory reset.
nanoLTE S60 AP Hardware Installation Troubleshooting
NANO_INST_43315 v200_0.5 for N4G_2.0 © ip.access Limited 2017 Page 15
5 nanoLTE AP and PSU Regulatory Information
This chapter provides the customer with safety and regulatory warnings, cautions and
information for the ip.access Ltd range of products.
• 5.1 Warnings and Cautions
• 5.2 Regulatory Statements for nanoLTE S60 AP
• 5.3 Regulatory Statements for PSAA20R-120L6 PSU
5.1 Warnings and Cautions
Electrical Safety
CAUTION
The nanoLTE AP is intended for dry indoor applications only. If evidence of
condensation is present do not apply power to the nanoLTE AP.
CAUTION
The nanoLTE AP is designed to be operated as a fixed system device and must be
located away from the user. It must be mounted in a manner to ensure that all users
and bystanders are kept a minimum of 20cm away from the integral antennas at all
times.
WARNING
Do not immerse any part of the nanoLTE AP or its power supply in water or any other
liquid. Do not install or use the nanoLTE AP or its power supply near open water. Do
not spill liquids of any type on the nanoLTE AP or its power supply.
WARNING
Do not use liquid, solvent or aerosol cleaning agents on or near the nanoLTE AP or its
power supply.
CAUTION
To avoid the risk of fire and/or electrical shock, do not push objects through openings
into the nanoLTE AP or its power supply. The only exception is the recess for the
Reset switch, which is recessed to prevent accidental operation.
CAUTION
Do not disassemble the nanoLTE AP or its power supply.
CAUTION
The nanoLTE AP must only be powered using the ip.access power supply provided for
use with the nanoLTE AP.
CAUTION
Before using the power supply, verify that the mains voltage is within the range
specified by the voltage printed on the power supply.
CAUTION
The PSU supplied with the nanoLTE AP must not be used for powering any other
equipment.
CAUTION
To avoid the risk of fire and/or electrical shock, do not overload power outlets or
extension cables.
nanoLTE S60 AP Hardware Installation nanoLTE AP and PSU Regulatory Information
NANO_INST_43315 v200_0.5 for N4G_2.0 © ip.access Limited 2017 Page 16
CAUTION
When disconnecting the power supply from the mains, pull the plug. Pulling the cable
may result in damage to the cable.
Interference with Electronic Devices
CAUTION
If using a pacemaker, ensure you are using the device in accordance with its safety
requirements with respect to RF devices. Consult your doctor if you have questions
about RF signals and your pacemaker.
CAUTION
If using a hearing aid, RF devices may cause interference.
CAUTION
Unshielded electronic devices should not be used near the nanoLTE AP. Conversely,
the nanoLTE AP should not be installed adjacent to unshielded electrical or electronic
devices (such as unshielded speakers).
Other Warnings and Cautions
WARNING
Do not install the nanoLTE AP in a position where the power supply cable or network
cable may cause a tripping or choking hazard.
WARNING
Do not install the nanoLTE AP or the power supply on an unstable surface. All caution
must be observed to prevent the device from falling and causing injury to a person
and/or damage to the device.
WARNING
The nanoLTE AP should not be disposed of in household waste bins. Please follow
local regulations for disposal of electronic devices.
CAUTION
Do not install the nanoLTE AP in a position where the power supply cable or network
cable may be damaged by walking on the cables.
CAUTION
Do not attempt to fit an external antenna or antenna cabling to the nanoLTE AP.
nanoLTE S60 AP Hardware Installation nanoLTE AP and PSU Regulatory Information
NANO_INST_43315 v200_0.5 for N4G_2.0 © ip.access Limited 2017 Page 17
5.2 Regulatory Statements for nanoLTE S60 AP
5.2.1 US FCC Compliance
• FCC CFR47 Parts 15B, 24
Note: Changes or modifications not expressly approved by the party responsible for compliance
may void the user's authority to operate this equipment.
Model LTE Band FCC ID
nanoLTE S60 435R 2 QGGIPA435R
WARNING
This is a class B product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:.
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
nanoLTE S60 AP Hardware Installation nanoLTE AP and PSU Regulatory Information
NANO_INST_43315 v200_0.5 for N4G_2.0 © ip.access Limited 2017 Page 18
5.2.2 EU Regulatory Compliance
The nanoLTE AP model 435S (Band 3) conforms to the following regulatory standards:
Health (Art 3.1(a)): EN50385: 2002
Safety (Art 3.1(a)): EN 62368-1:2014
EMC (Art 3.1(b)): Draft EN 301 489-1 V2.1.0, Draft EN 301 489-50 V2.1.0
Spectrum (Art 3.2): EN 301 908-14 V11.1.1
This product is intended for use in all
Member States of the European Union.
"Hereby, ip.access Ltd, declares that the nanoLTE 435S is in compliance with the essential
requirements and other relevant provisions the Radio Equipment Directive 2014/53/EU."
A copy of regulatory compliance documentation may be obtained in writing from "IP Access
Ltd, Building 2020, Cambourne Business Park, Cambourne, Cambridge, CB23 6DW, UK".
5.2.3 Safety Standards
• EN 62368-1:2014
5.2.4 Environmental Standards
• ETSI 300 019-2-3
• ETSI 300 019-2-2
5.2.5 RF Exposure Statement
This equipment complies with radiation exposure limits set forth for an uncontrolled
environment and meets radio frequency (RF) Exposure Guidelines for base stations. This
equipment should be installed and operated keeping the product 20cm or more away from a
person's body.
nanoLTE S60 AP Hardware Installation nanoLTE AP and PSU Regulatory Information
NANO_INST_43315 v200_0.5 for N4G_2.0 © ip.access Limited 2017 Page 19
5.3 Regulatory Statements for PSAA20R-120L6 PSU
Safety Approvals UL/cUL 60950-1
CB
CE
SAA+C-TICK+MEPS
Mechanical Characteristics L x W x H:
71.7mm x 50.0mm x 39.1mm (2.82" x 1.97" x 1.54")
Weight::
180.8g (6.38oz)
AC Input Voltage Rating 100 to 240V AC
Emissions FCC Class B
EN55022 Class B
AC Input Voltage Range 90 to 264V AC
Immunity IEC61000-4-2 Level 4
IEC61000-4-3 Level 2
IEC61000-4-4 Level 2
IEC61000-4-5 Level 2
IEC61000-4-6 Level 2
IEC61000-4-8 Level 1
IEC61000-4-11
AC Input Frequency 47 to 63Hz
Input Current 0.8A (RMS) maximum at 120V AC and max load
0.5A (RMS) maximum at 240V AC and max load
Leakage Current 0.25mA maximum
Inrush Current <60A for 100V AC at maximum load
<100A for 240V AC at maximum load
(Cold start at ambient 25°C)
Over-Current Protection Short circuit: Auto restart
Short-Circuit Protection Output can be shorted permanently without damage
Input Power Saving 0.1W maximum at no load
Dielectric Withstand (Hi-pot) Test Primary to Secondary: 3000VAC or 4242VDC, 10mA
1min. 3600VAC or 5090VDC, 10mA 3s.
Output Efficiency DOE Level VI
Insulation Class II Double Insulated
Environmental Operation: 0 to +40C
Non-operation: -20 to +75C
Humidity: 20 to 90%
DC Output Connector 5.5mm O.D., 2.1mm I.D., 9.5mm length. Centre
conductor positive.
nanoLTE S60 AP Hardware Installation nanoLTE AP and PSU Regulatory Information
NANO_INST_43315 v200_0.5 for N4G_2.0 © ip.access Limited 2017 Page 20
5.3.1 Output Specification
Model DC Output Load
Min Max
PSAA20R-120L6 12V / 20W 0A 1.67A 120mV ±5% VI
Ripple
P-P (max)
Regulation
Line / Load
Efficiency
Level
nanoLTE S60 AP Hardware Installation nanoLTE AP and PSU Regulatory Information
NANO_INST_43315 v200_0.5 for N4G_2.0 © ip.access Limited 2017 Page 21
Loading...
