PocketZip™ USB Drive
Quick Install
All manuals and user guides at all-guides.com
all-guides.com
1
Read the USB guidelines on the User’s Manual CD for
important information about USB compatibility.
To view the User’s Manual on the CD, you must have
Microsoft
®
Internet Explorer® 4.0 or higher or Netscape
Navigator
™
4.5 or higher installed on your system.
All manuals and user guides at all-guides.com
2
Insert the IomegaWare™ CD and install the software.
Mac® Users—to install the software, double-click the
Start Here icon.
PC Users—if the IomegaWare program does not start
up automatically, refer to the User’s Manual CD.
Follow the instructions on the screen to install the
software.
All manuals and user guides at all-guides.com
3

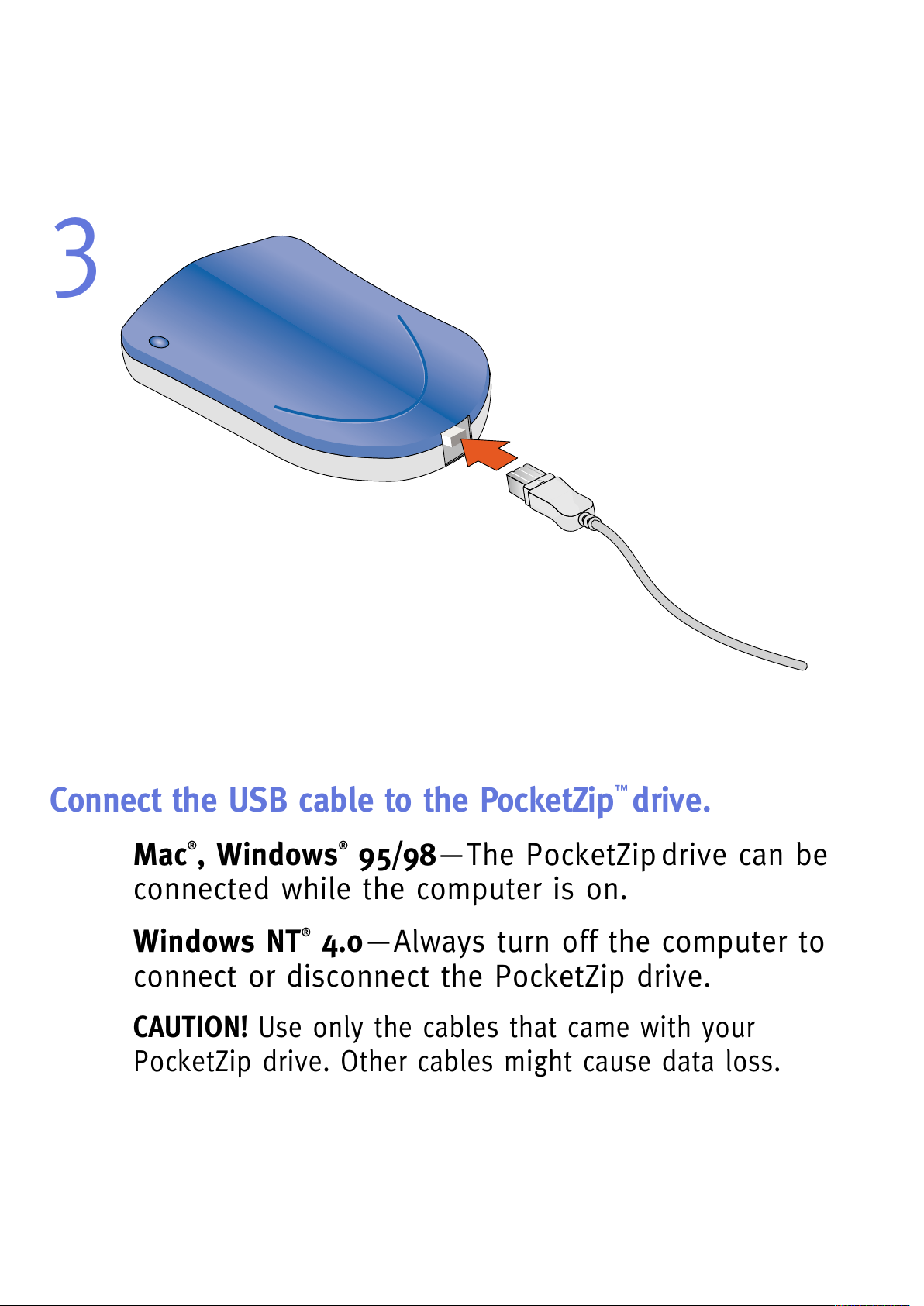

Connect the USB cable to the PocketZip™ drive.
Mac®, Windows® 95/98—The PocketZip drive can be
connected while the computer is on.
Windows NT
®
4.0—Always turn off the computer to
connect or disconnect the PocketZip drive.
CAUTION! Use only the cables that came with your
PocketZip drive. Other cables might cause data loss.
All manuals and user guides at all-guides.com
4

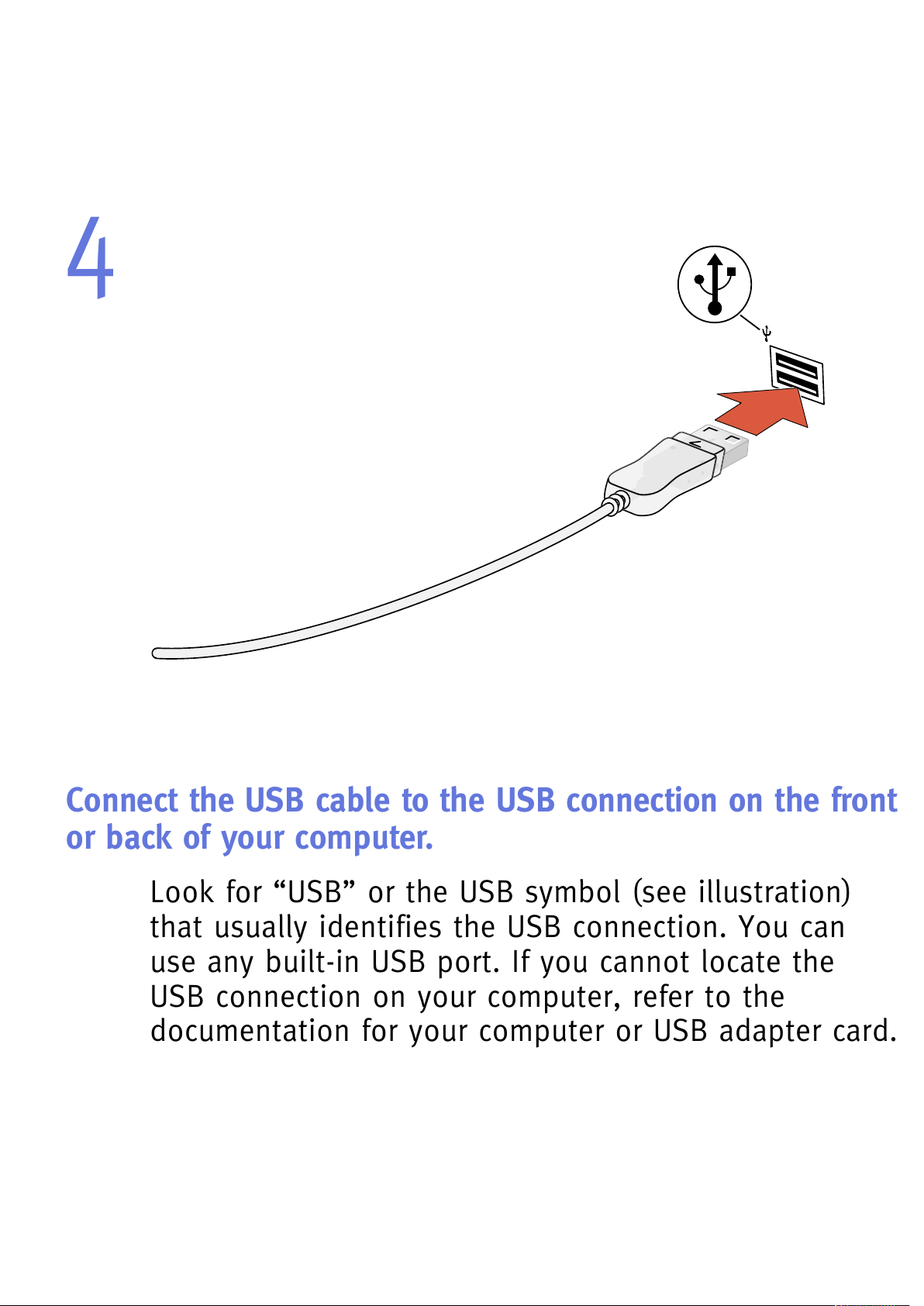

Connect the USB cable to the USB connection on the front
or back of your computer.
Look for “USB” or the USB symbol (see illustration)
that usually identifies the USB connection. You can
use any built-in USB port. If you cannot locate the
USB connection on your computer, refer to the
documentation for your computer or USB adapter card.
All manuals and user guides at all-guides.com
Insert a 40MB PocketZip™ or Clik!™ disk into the drive. The
PocketZip drive is now ready to use.
Gently insert the disk (label side up) until it “clicks.”
Mac Users
®
—You should see the PocketZip drive icon on
your desktop.
PC UsersPC Users
PC UsersPC Users
PC Users—You should see the PocketZip
drive icon in My Computer or Windows
®
Explorer. Refer to
“Troubleshooting” on the User’s Manual CD if you cannot
find the PocketZip drive icon.
CAUTION!CAUTION!
CAUTION!CAUTION!
CAUTION! Never insert the disk backwards (black tabs first).
Always insert it label side up and rounded edge first.
5
All manuals and user guides at all-guides.com
all-guides.com
Refer to the User’s Manual CD for important information
and don’t forget to register your PocketZip™ drive online.
The User’s Manual CD includes information about
connecting and using your PocketZip drive, as well as
ejecting and caring for PocketZip disks. The User’s
Manual CD also contains troubleshooting information.
We have made it easier and faster to register your
Iomega product. Simply enter the following web
address http://www.iomegareg.com to register online.
6
All manuals and user guides at all-guides.com

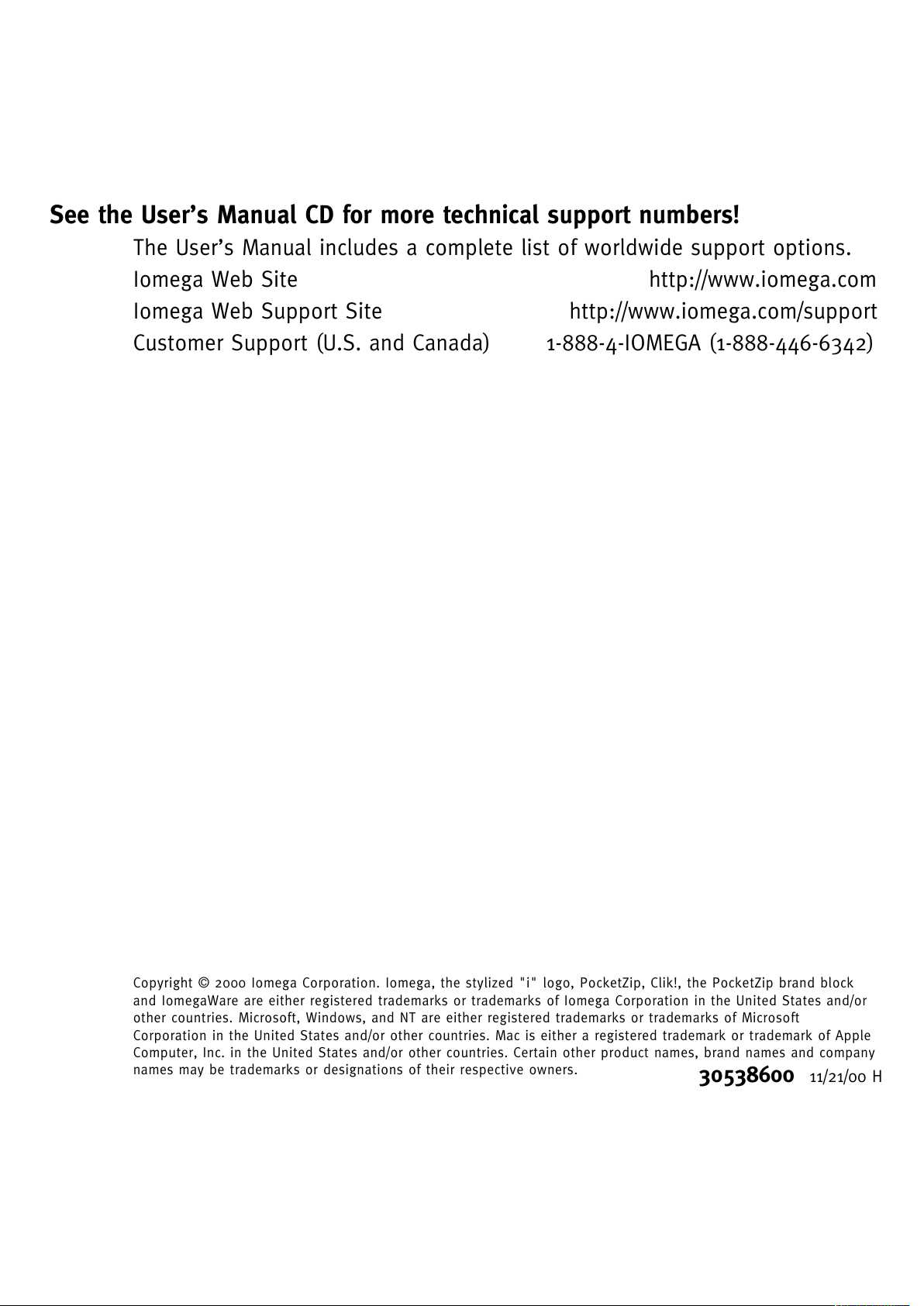

See the User’s Manual CD for more technical support numbers!
The User’s Manual includes a complete list of worldwide support options.
Iomega Web Site http://www.iomega.com
Iomega Web Support Site http://www.iomega.com/support
Customer Support (U.S. and Canada) 1-888-4-IOMEGA (1-888-446-6342)
30538600 11/21/00 H
Copyright © 2000 Iomega Corporation. Iomega, the stylized "i" logo, PocketZip, Clik!, the PocketZip brand block
and IomegaWare are either registered trademarks or trademarks of Iomega Corporation in the United States and/or
other countries. Microsoft, Windows, and NT are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries. Mac is either a registered trademark or trademark of Apple
Computer, Inc. in the United States and/or other countries. Certain other product names, brand names and company
names may be trademarks or designations of their respective owners.
