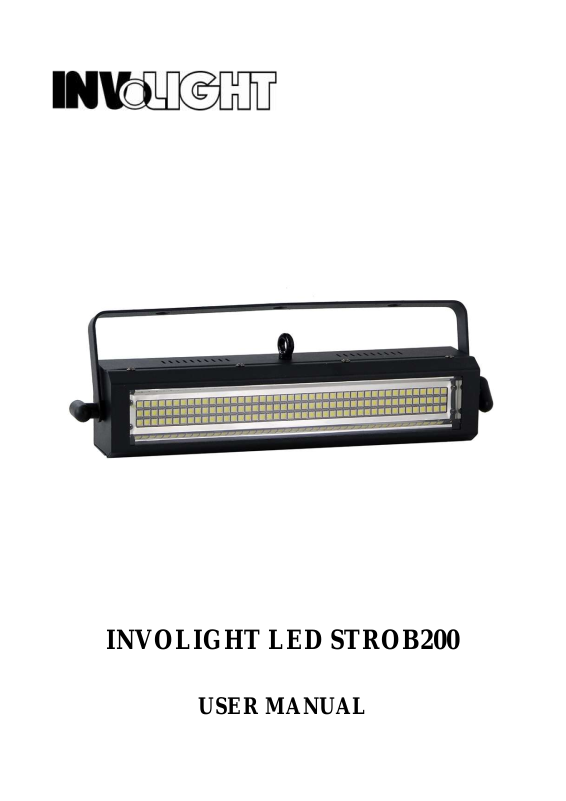

INVOLIGHT LED STROB200

USER MANUAL

LED Mini-strobe

User Manual

Our LED mini strobe light offers many possibilities to achieve the effects which you want. It is suitable for DJs,
bands, nightclubs and other performers who want LED stage light. Please read the manual before operation.

A. SPECIFIATION

1. Voltage: AC 100V/240V, 50Hz/60Hz

2. Power consumption: 24W

3. LED: 108PCS, 5050 Warm white

4. Beam distance: 2m/170 Lux

5. Power linking: 45pcs@240V, 20pcs@110V

6. Fuse: 1A/ 250V;

7. Working mode: sound active, slave mode, DMX mode, dimming mode

8. DMX channels: 3CH

9. Operation mode: LED display

B. OPERATION

This series has four working modes:

 Sound active mode
 Slave mode
 DMX mode
 Dimming mode

1. Sound-Active Mode

1) Press the “MODE”, enter sound active mode “SE.x”.

2) press the “UP” or “DOWN”, adjust the sound active sensitivity “SE.0～SE.9”.

3) Press the “SETUP”, enter into the sound response rate adjusting menu “ry. x”;

4) press the “UP” or “DOWN”, set the sound active response rate “ry.1～ry.9”

2. Master/slave Mode

Press the “MODE”, enter into slave mode “SLA”.

3. DMX Mode

CH1

CH2

CH3

FUNCTION

Dim 0-255

Flash 0-255

0-9

Dim & Flash

No use

10-255
sensitivity

Sound

1) Press the “MODE”, enter into DMX mode “d--.”.

2) Press the “SETUP”, enter into DMX address setting state “xxx.”.

3) press the “UP” or “DOWN”, set the DMX address “001.～512.”.

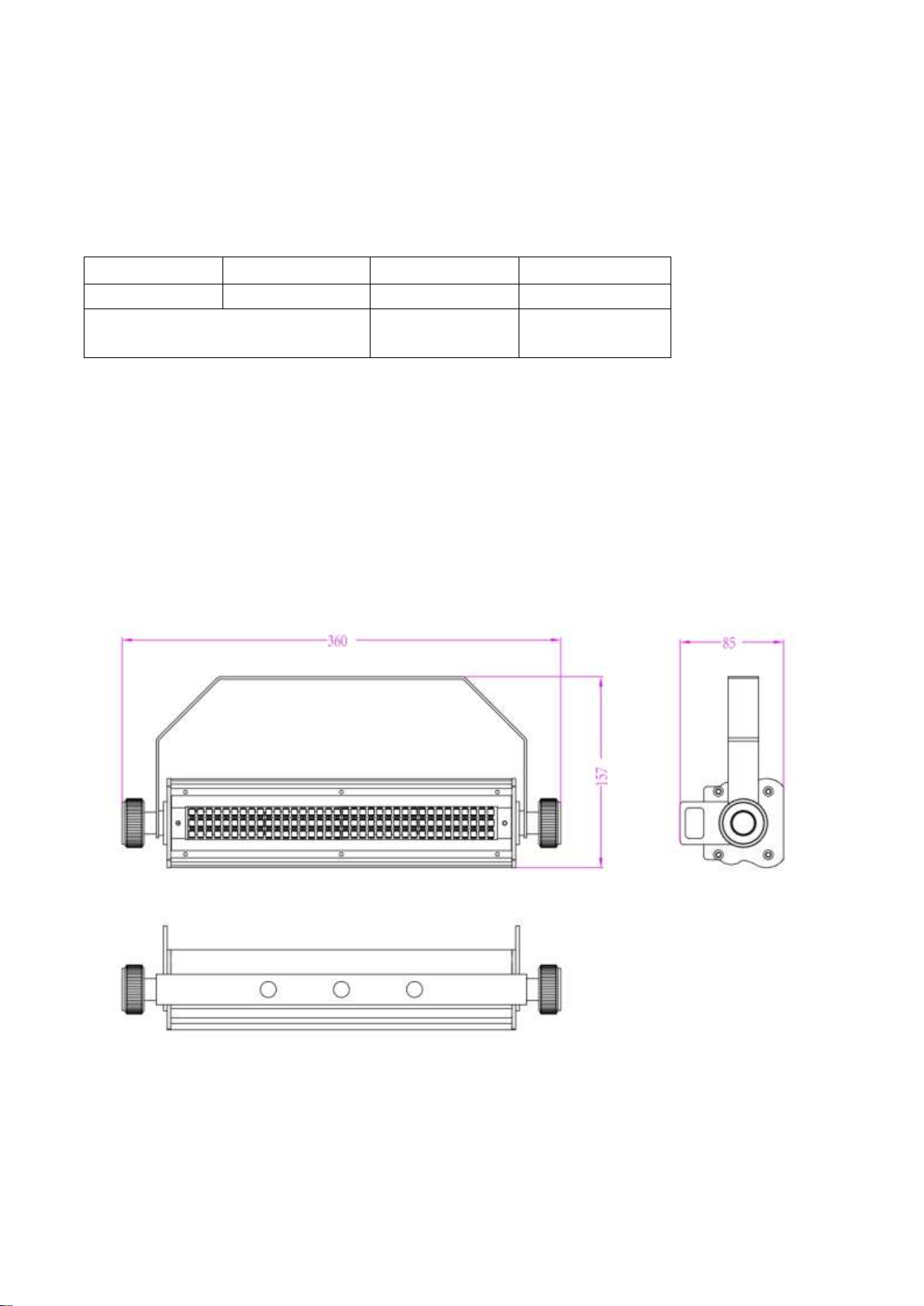

DMX mode control sheet:

4. Dimming Mode

1) Press the “MODE”, enter dimming mode “CON”.

2) Press the “SETUP”, enter into brightness adjusting state “xxx”.

3) Press the “UP” or “DOWN”, adjusting the brightness “000～255”.

4) Press the “SETUP”, enter into strobe speed adjusting state “F.xx”.

5) Press the “UP” or “DOWN”, adjusting the strobe speed “F.00～F.45”.
