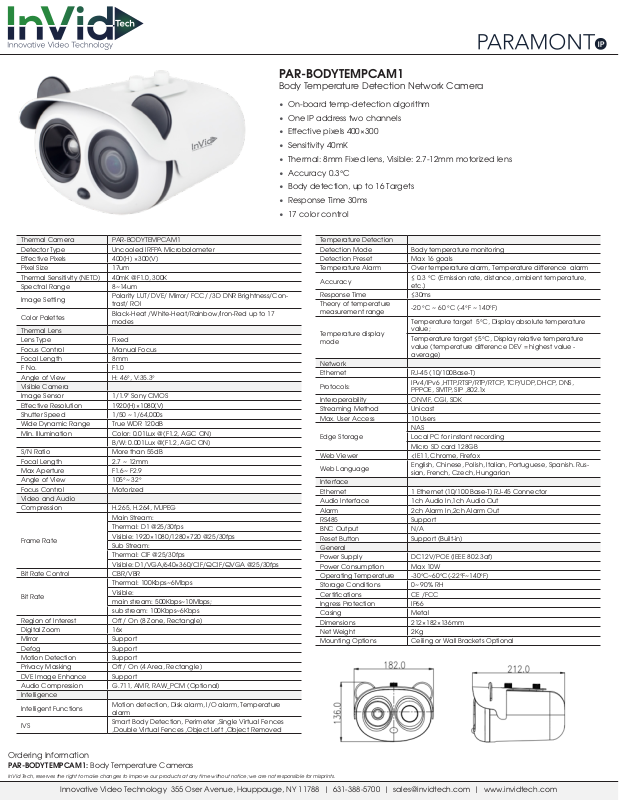

InVid SEC-BODYTEMPCAM-KIT User Manual
PAR-BODYTEMPCAM1
Body Temperature Detection Network Camera
• On-board temp-detection algorithm
• One IP address two channels
• Eective pixels 400×300
• Sensitivity 40mK
• Thermal: 8mm Fixed lens, Visible: 2.7-12mm motorized lens
• Accuracy 0.3°C
• Body detection, up to 16 Targets
• Response Time 30ms
• 17 color control
Thermal Camera PAR-BODYTEMPCAM1
Detector Type Uncooled IRFPA Microbolometer
Eective Pixels 400(H) ×300(V)
Pixel Size 17um
Thermal Sensitivity (NETD) 40mK @F1.0, 300K
Spectral Range 8~14um
Image Setting
Color Palettes
Thermal Lens
Lens Type Fixed
Focus Control Manual Focus
Focal Length 8mm
F No. F1.0
Angle of View H: 46°, V:35.3°
Visible Camera
Image Sensor 1/1.9" Sony CMOS
Eective Resolution 1920(H)×1080(V)
Shutter Speed 1/50 ~ 1/64,000s
Wide Dynamic Range True WDR 120dB
Min. Illumination Color: 0.01Lux @(F1.2, AGC ON)
S/N Ratio More than 55dB
Focal Length 2.7 ~ 12mm
Max Aperture F1.6~ F2.9
Angle of View 105°~ 32°
Focus Control Motorized
Video and Audio
Compression H.265, H.264, MJPEG
Frame Rate
Bit Rate Control CBR/VBR
Bit Rate
Region of Interest O / On (8 Zone, Rectangle)
Digital Zoom 16x
Mirror Support
Defog Support
Motion Detection Support
Privacy Masking O / On (4 Area, Rectangle)
DVE Image Enhance Support
Audio Compression G.711, AMR, RAW_PCM (Optional)
Intelligence
Intelligent Functions
IVS
Polarity LUT/ DVE/ Mirror/ FCC/ /3D DNR Brightness/Contrast/ ROI
Black-Heat /White-Heat/Rainbow/Iron-Red up to 17
modes
B/W: 0.001Lux @(F1.2, AGC ON)
Main Stream:
Thermal: D1 @25/30fps
Visible: 1920×1080/1280×720 @25/30fps
Sub Stream:
Thermal: CIF @25/30fps
Visible: D1/VGA/640×360/CIF/QCIF/QVGA @25/30fps
Thermal: 100Kbps~6Mbps
Visible:
main stream: 500Kbps~10Mbps;
sub stream: 100Kbps~6Kbps
Motion detection, Disk alarm, I/O alarm, Temperature
alarm
Smart Body Detection, Perimeter ,Single Virtual Fences
,Double Virtual Fences,Object Left ,Object Removed
Temperature Detection
Detection Mode Body temperature monitoring
Detection Preset Max 16 goals
Temperature Alarm Over temperature alarm, Temperature dierence alarm
Accuracy
Response Time ≤30ms
Theory of temperature
measurement range
Temperature display
mode
Network
Ethernet RJ-45 (10/100Base-T)
Protocols:
Interoperability ONVIF, CGI, SDK
Streaming Method Unicast
Max. User Access 10 Users
Edge Storage
Web Viewer <IE11, Chrome, Firefox
Web Language
Interface
Ethernet 1 Ethernet (10/100 Base-T) RJ-45 Connector
Audio Interface 1ch Audio In,1ch Audio Out
Alarm 2ch Alarm In,2ch Alarm Out
RS485 Support
BNC Output N/A
Reset Button Support (Built-in)
General
Power Supply DC12V/POE (IEEE 802.3af)
Power Consumption Max 10W
Operating Temperature -30°C~60°C(-22°F~140°F)
Storage Conditions 0~ 90% RH
Certications CE /FCC
Ingress Protection IP66
Casing Metal
Dimensions 212×182×136mm
Net Weight 2Kg
Mounting Options Ceiling or Wall Brackets Optional
≤ 0.3 ℃ (Emission rate, distance, ambient temperature,
etc.)
-20 °C ~ 60 °C (-4°F ~ 140°F)
Temperature target ＞5℃, Display absolute temperature
value;
Temperature target ≤5℃, Display relative temperature
value (temperature dierence DEV = highest value average)
IPv4/IPv6 ,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS,
PPPOE, SMTP, SIP ,802.1x
NAS
Local PC for instant recording
Micro SD card 128GB
English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian
Ordering Information
PAR-BODYTEMPCAM1: Body Temperature Cameras
