Intex CS15110 User Manual

(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
IMPORTANT
SAFETY RULES
Read, understand, and follow all
instructions carefully before
installing and using this product.
TM
Krystal Clear
Sand Filter Pump 14” (360mm) & Saltwater System
English
163
OOWWNNEERRSS MMAANNUUAALL
For illustrative purposes only.
Don’t forget to try these other fine Intex products: pools, pool accessories, inflatable pools and in-home toys, airbeds and boats available at fine retailers or visit our website.
IIMMPPOORRTTAANNTT!!
DO NOT RETURN PRODUCT TO STORE
To purchase parts and accessories or to obtain non-technical assistance,
Visit www.intexcorp.com
For technical assistance and missing parts call us toll-free (for U.S. and Canadian Residents):
1-800-234-6839
Monday through Friday, 8:30am to 5:00pm Pacific Time
163-***-R2-1211
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
English
Warnings.......................................................................... 3
Parts List & References.................................................. 4-8
Setup Instructions ......................................................... 9-16
Product Specifications................................................... 11
Operating Instructions .................................................. 17-21
LED Code Chart.............................................................. 22
Salt & Pool Water Volumes............................................. 23
Intex Pools Salt Table...................................................... 24
163
Intex Pools Operating Time Table ................................. 25
Intex Pools Cyanuric Acid Table.................................... 26
Non-Intex Pools Salt Table.............................................. 27
Non-Intex Pools Operating Time Table.......................... 27
Non-Intex Pools Cyanuric Acid Table............................ 27
Maintenance.................................................................... 28-32
Long Term Storage.......................................................... 32
Troubleshooting Guide................................................... 33-35
Common Pool Problems................................................. 36
General Aquatic Safety................................................... 37
Limited Warranty............................................................. 38
TTAABBLLEE OOFF CCOONNTTEENNTTSS
Intex Service Center Locations..................................... 39
SAVE THESE INSTRUCTIONS
Page 2
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
English
IMPORTANT SAFETY RULES
Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product.
READ AND FOLLOW ALL INSTRUCTIONS
WARNING
To reduce the risk of injury, do not permit children to use this product. Always
• supervise children and those with disabilities.
• Children must stay away from this product and electrical cord(s).
• Assembly and disassembly by adults only.
• Risk of electric shock. Connect only to a grounding type receptacle, this product is provided with a ground-fault circuit interrupter. If replacement of the plug or cord is needed, use only identical replacement parts.
• Always unplug this product from the electrical outlet before removing, cleaning, servicing or making any adjustment to the product.
• The unit is provided with a ground-fault circuit interrupter (GFCI). To test the GFCI, push the test button. The GFCI should interrupt power. Push the reset button, power should be restored. If the GFCI fails to operate in this manner. The GFCI is defective. If the GFCI interrupts power to the pump without the test button being pushed, a ground current is flowing, indicating the possibility of an electric shock. Do not use this pump. Disconnect the pump and have the problem corrected by a qualified service representative before using.
• Do not bury the electrical cord. Locate the cord where it will not be damaged by lawn mowers, hedge trimmers and other equipment.
• To reduce the risk of electric shock, replace damaged cord immediately. Use a qualified electrician to replace the cord.
• To reduce the risk of electric shock, do not use extension cords, timers, plug adaptors or converter plugs to connect unit to electric supply; provide a properly located outlet.
• Do not attempt to plug in or unplug this product while standing in water or when your hands are wet.
• Do not use an appliance leakage current interrupter (ALCI) in place of a GFCI since the ALCI will not protect people.
• Position this product away from pool, so as to prevent children from climbing on it and access the pool.
• Do not operate this product when pool is occupied.
• To reduce the risk of entrapment hazard, never enter the pool if suction strainer component is loose, broken, cracked, damaged or missing. Replace loose, broken, damaged, cracked or missing suction strainer components immediately.
• Never play or swim near suction fittings. Your body or hair may be trapped causing permanent injury or drowning.
• To prevent equipment damage and risk of injury, always turn pump off before changing the filter control valve position.
• Never operate this product above the maximum working pressure stated on the filter tank.
• Hazardous Pressure. Improper tank valve cover assembly could cause the valve cover to blow off and cause serious injury, property damage or death.
• This product is intended to be used only for the purposes described in the manual!
163
SSAAFFEETTYY RRUULLEESS
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN PROPERTY DAMAGE, ELECTRIC SHOCK, ENTANGLEMENT OR OTHER SERIOUS INJURY OR DEATH.
CAUTION
This product is for use with storable pools only. Do not use with permanently-installed pools. A storable pool is constructed so that it is capable of being readily disassembled for storage and reassembled to its original integrity. A permanently-installed pool is constructed in or on the ground or in a building such that it cannot be readily disassembled for storage.
These product warnings, instructions and safety rules provided with the product represent some common risks of water recreation devices and do not cover all instances of risk and danger. Please use common sense and good judgement when enjoying any water activity.
SAVE THESE INSTRUCTIONS
Page 3
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
1
4 5
7
PARTS LIST
2
8
English
3
6
9
163
PPAARRTTSS LLIISSTT
10 11 12
13 14 15
16 17 18
19 20 21
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
SAVE THESE INSTRUCTIONS
Page 4
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
PARTS LIST (continued)
22 2423
25 26 27
28 29 30
English
163
PPAARRTTSS LLIISSTT
31 32 33
34 35 36
37
Optional Optional
40
38
41
39
Optional
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
SAVE THESE INSTRUCTIONS
Page 5
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
English
163
PARTS REFERENCE
efore assembling your product, please take a few minutes to check the contents
B
and become familiar with all the parts.
2
21
22
23
42
1
13
3
4
5
6
7
47
49
18
27
44
24
46
12
14
41
15
16
17
8
9
10
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
11
48
26
43
45
25
20
19
18
PPAARRTTSS RREEFFEERREENNCCEE
SAVE THESE INSTRUCTIONS
Page 6
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
PARTS REFERENCE (continued)
efore assembling your product, please take a few minutes to check the contents
B
and become familiar with all the parts.
30 31 32 33 34
28
29
30 31 32 33
English
163
28
29
30 35 36 37
PPAARRTTSS RREEFFEERREENNCCEE
28
29
30 35 36 38
28
29
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
SAVE THESE INSTRUCTIONS
Page 7
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
English
PARTS REFERENCE (continued)
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
REF. NO. DESCRIPTION QTY. SPARE PART NO.
1 2 3 4 5 6 CLAMP 1 11380 7 8 CENTER PIPE HUB 1 11383
9 10 11 LATERAL 10 11384 12 13 14 LEAF TRAP NUT 1 11479 15 LEAF TRAP O-RING 1 11232 16 BASKET 1 11260 17 FILTER HOUSING NUT 1 11261 18 19 SEDIMENT RELEASE VALVE 1 10460 20 VALVE O-RING 1 10264 21 22 23 TITANIUM ELECTRODE 1 11389 24 25 PRE-FILTER ASSEMBLY 1 11371 26 PUMP MOTOR & CONTROL 1 11465EG 27 28 29 HOSE O-RING 2 10262 30 STEP WASHER 2 10745 31 STRAINER NUT 2 10256 32 FLAT STRAINER RUBBER WASHER 2 10255 33 34 ADJUSTABLE POOL INLET NOZZLE 1 11074 35 ADAPTOR B 2 10722 36 STRAINER CONNECTOR 2 11070 37 POOL INLET NOZZLE 1 11071 38 STRAINER GRID 1 11072 39 CHLORINE TEST STRIPS 1 19635 40 COPPER TEST STRIPS 1 11254 41 LEAF TRAP COVER 1 11480 42 ELECTROLYTIC CELL NUT 1 11432 43 COPPER ELECTRODE O-RING 1 11440 44 COPPER ELECTRODE HOUSING 1 11441 45 SAND FILTER PUMP MOTOR INLET O-RING 2 11457 46 COPPER ELECTRODE NUT 1 11488 47 14" SAND FILTER PUMP AND COMBO TANK 1 11498 48 14" SAND FILTER PUMP TANK BASE 1 11513 49 O-RING ON TITANIUM PLATES 1 11515
PRESSURE GAUGE 6-WAY VALVE SET DRAIN OUTLET COVER TANK O-RING SCREW
SAND SHIELD
DRAIN VALVE CAP DRAIN VALVE O-RING
HOSE WITH NUTS SAND FILTER INTERCONNECTING HOSE
L-SHAPE O-RING
FLOW SENSOR ELECTROLYTIC CELL
COPPER ELECTRODE
L-SHAPE O-RING PLUNGER VALVE (HOSE O-RING & STEP WASHER INCLUDED)
THREADED STRAINER CONNECTOR
1 11411 1 11378 1 11131 1 11379 2 11381
1 11382
1 11456 1 11385
2 11009 1 11390
4 11228
1 11460 1 11372
1 11234
1 11439 2 10747
2 11235
163
PPAARRTTSS RREEFFEERREENNCCEE
When ordering parts, be sure to quote the model number and part numbers.
SAVE THESE INSTRUCTIONS
Page 8
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
English
POOL OUTLET - STRAINER & PLUNGER VALVE SETUP
The strainer grid prevents large objects from jamming and/or damaging the filter pump. If your pool has an inflatable top ring, install the strainer, nozzle and plunger valve before inflating the pool liner top ring. The part numbers here onward refer to the parts depicted in the Parts List section of this manual. To install, do the following:
1. In a counter-clockwise motion unscrew
plunger valve union from the threaded strainer connector (33) (see drawing 1). Be careful not to lose the step rubber washer (30). Place the plunger valve on the ground in a safe place.
2. In a counter-clockwise motion unscrew the strainer nut (31) from the threaded connector (33). Leave the flat washer (32) on the connector (33).
3. Install the strainer and plunger valve at the lower position of pool outlet (marked "+"). From the inside of the pool liner insert the connector (33) into one of the pre-cut holes with the washer remaining on the connector to be placed against the inside of the liner wall.
4. Before assembly, lubricate the threads with a petroleum jelly. With the flat side of the strainer nut (31) facing the outside wall of the liner in a clockwise motion screw the strainer nut (31) back onto the threaded connector (33) (see drawing 2).
5. Finger tighten the strainer nut (31) onto the threaded connector (33).
6. Grasp the plunger valve assembly. Make sure the step washer (30) is in place.
7. In a clockwise motion screw the plunger valve union back onto the threaded connector (33) (see drawing 3).
8. Examine the plunger valve to see if the handle is pushed fully down to the "0/1" position. If not, then grasp the handle at the top and push down turning the handle in a clockwise direction until the plastic protruding notch anchors in the "0/1" position. This will prevent water from flowing out during filling (see
drawings 4.1 & 4.2).
31
2
1
2
1
2
30
INSIDE
LINER WALL
32
33
1
4.1
INSIDE
LINER WALL
163
1
2
3
SSEETTUUPP IINNSSTTRRUUCCTTIIOONNSS
4.2
SAVE THESE INSTRUCTIONS
Page 9
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
POOL INLET - NOZZLE & PLUNGER VALVE SETUP
1. In a counter-clockwise motion unscrew
lunger valve union from the threaded
p strainer connector (33) (see drawing 5). Be careful not to lose the step rubber washer (30). Place the plunger valve on the ground in a safe place.
2. In a counter-clockwise motion unscrew the strainer nut (31) from the threaded connector (33). Leave the flat washer (32) on the connector (33).
3. Install the nozzle and plunger valve at the upper position of pool inlet. From the inside of the pool liner insert the connector (33) into one of the pre-cut holes with the washer remaining on the connector to be placed against the inside of the liner wall.
4. Before assembly, lubricate the threads with a petroleum jelly. With the flat side of the strainer nut (31) facing the outside wall of the liner in a clockwise motion screw the strainer nut (31) back onto the threaded connector (33) (see drawing 6).
5. Finger tighten the adjustable pool inlet nozzle (34) and the strainer nut (31) onto the threaded connector (33).
6. Grasp the plunger valve assembly. Make sure the step washer (30) is in place.
7. In a clockwise motion screw the plunger valve union back onto the threaded connector (33) (see drawing 7).
8. Examine the plunger valve to see if the handle is pushed fully down to the "0/1" position. If not, then grasp the handle at the top and push down turning the handle in a clockwise direction until the plastic protruding notch anchors in the "0/1" position. This will prevent water from flowing out during filling (see
drawings 8.1 & 8.2).
9. Adjust the direction of nozzle head pointing
away from the pool outlet for a better circulation result (see drawing 9).
10. The pool liner is now ready to fill with water. Consult the above-ground-pool owner’s manual for filling instructions.
31
English
2
1
INSIDE
LINER WALL
32 33 34
1
2
1
2
5
6
7
8.1
INSIDE
LINER
WALL
163
SSEETTUUPP IINNSSTTRRUUCCTTIIOONNSS
8.2
9
WATER
FLOW
SAVE THESE INSTRUCTIONS
POOL
Page 10
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
English
PRODUCT SPECIFICATIONS
he sand filter removes suspended particles and sanitize your pool. Pool
T chemistry is a specialized area and you should consult your local pool service specialist for details.
Power: 110-120 Volt AC Amperage: Saltwater System - 0.9 A; Filter Pump - 3 A Wattage: Saltwater System - 100 W; Filter Pump - 370 W Ideal Salt Level: 3000 ppm (parts per million) Maximum Sanitizer Output/hour: 10 grams/hour Copper Ionizer Output Current: 175mA Maximum working pressure: 3.5 bar (50 psi) Effective filtering area: 0.1 m Maximum Flow Rate: 6050 liters/hour (1600 gallons/hour) Recommended filtering media: (Not included) range 0.45 to 0.85 mm (0.018 to 0.033 inches).
Recommended filtering media quantity:
Limited Warranty: see “Limited Warranty”
2
(1.1 ft2)
No. 20 silica sand or glass sand. Particle size
Uniformity Coefficient less than 1.75. No. 20 silica sand 18 Kg (40 Lbs).
25 Kg (55 Lbs)
or glass sand
163
SETUP INSTRUCTIONS
TOOLS REQUIRED: One (1) Phillips screwdriver Pump location and mounting:
The system must be installed on a solid level and vibration-free base.
Provide a location protected from the weather, moisture, flooding and
freezing temperature.
Provide adequate access, space and lighting for routine maintenance.
Pump motor requires free circulation of air for cooling. Do not install
the pump in a damp or non-ventilated location.
A team of 2 or more people is recommended for setting up this product.
Motor pre-filtering assembly setup:
1. Remove the sand filter and its accessories
from the packaging carefully and inspect for any visible damage. If parts are damaged contact your local service center listed at the back of this owner’s manual.
2. In a counter-clockwise motion unscrew the leaf
trap cover (14) from the pre-filter housing. Take out the basket (16) and filter housing nut (17) (see drawing 10). Connect the pre-filter housing to the motor
3.
water inlet. Note: Align the connector in the pre-filter housing with the water inlet on the motor (see drawing 11).
14
41
16
17
10
11
SAVE THESE INSTRUCTIONS
PPRROODDUUCCTT SSPPEECCSS && SSEETTUUPP IINNSSTTRRUUCCTTIIOONNSS
Page 11
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
160mm
English
SETUP INSTRUCTIONS (continued)
4. In a clockwise motion screw filter housing nut (17) onto the motor water inlet (See drawings 12.1 & 12.2).
12.1
17
5. Replace the basket (16) and leaf trap cover (14) back to the pre-filter housing (See drawings 13.1 & 13.2).
14
41
13.1 13.2
16
12.2
17
163
Sand tank installation:
1. Place the tank support base at the selected location.
2. Place the tank on the tank support base (See drawing 14.1).
3. Connect the motor pre-filtering assembly unit to the tank support base (See drawing 14.2). NOTE: Ensure the pre-filter housing water inlet hose connection
is facing towards the pool.
IMPORTANT: Some countries, especially in the European community, require the product to be secured to the ground or to a base in a permanent upright position. Check your local authorities to determine if there is a regulation in your area regarding above-the-ground swimming pool filter-pumps. If yes, then the product can be mounted to a platform using the two holes located in the base. See drawing 14.3.
The product can be mounted on a cement base or onto a wooden platform to prevent accidental falling over.
The mounting holes are 6.4 mm in diameter and spaced 160 mm apart.
Use two bolts and lock nuts with a maximum of 6.4 mm in diameter.
14.1
14.2
SSEETTUUPP IINNSSTTRRUUCCTTIIOONNSS
14.3
SAVE THESE INSTRUCTIONS
Page 12
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
MAX
MIN
MAXMAX
MINMIN
MAX
M
IN
English
SETUP INSTRUCTIONS (continued)
and loading:
S
IMPORTANT: Use No. 20 silica sand or glass sand with particle size range
0.45 to 0.85 mm (0.018 to 0.033 inches) and a Uniformity Coefficient less than 1.75.
NOTE: Before loading the tank with sand, ensure the center pipe hub assembly is securely in place at the bottom of the tank, and vertically centered inside the tank.
1. Place the sand shield (7) over the top of the center pipe. Pour the sand into the tank at a slow rate. (see drawing 15).
2. Fill the tank approximately half way, remove the sand shield (7). (see drawing 16).
15
7
7
16
163
3. Evenly distribute the sand inside the tank, then fill the tank with some water to
provide a cushioning effect when the remaining sand is poured in. This prevents the center pipe hub (8) from excessive shock (see drawing 17). Place the sand shield (7) back and continue to pour the sand into the tank.
4. Sand shall be filled between the “MAX” and “MIN” marked gauge on the center pipe. Evenly spread and level out the sand by hand (see drawings 17 & 18).
17
8
5. Remove the sand shield (7).
6. Wash away all sand around the top edge of the tank.
8
18
SSEETTUUPP IINNSSTTRRUUCCTTIIOONNSS
SAVE THESE INSTRUCTIONS
Page 13
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
English
SETUP INSTRUCTIONS (continued)
WARNING
Improper tank valve and clamp assembly could cause the valve and clamp to blow off and cause serious injury, property damage or death.
6-way valve installation:
1. Lower the 6-way valve over the tank slowly, and ensure the bypass pipe protruding underneath the 6-way valve fits securely into the center pipe hub (8) top opening (see drawing 19).
MPORTANT: There are three hose connection ports on the 6-way valve, ensure
I the outlet connection (from filter to the pool) on the valve is facing towards the pool, and the inlet connection (from motor to valve) is aligned with the motor outlet (see drawing 20).
2. Remove the clamp bolt, and install the clamp around the tank and 6-way valve flanges,
then replace the clamp bolt and use a phillips screwdriver (not included) to tighten it.
(see drawing 21).
19
WATER
INLET
20
WATER
OUTLET
21
6
163
8
3. Connect the sand filter interconnecting hose (13) between the 6-way valve inlet and
motor outlet, and insert the electrolytic cell (22) into the 6-way valve outlet. Hand tighten them securely (see drawings 22 and 23).
22
13
22
4. Screw and tighten the flow sensor (21) to the electrolytic cell (22), then plug in the electrolytic cell line cord and tighten the nut (see drawings 24 and 25).
21
22
24
23
SSEETTUUPP IINNSSTTRRUUCCTTIIOONNSS
25
SAVE THESE INSTRUCTIONS
Page 14
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
English
SAND FILTER PUMP HOSE CONNECTION SETUP
WARNING
Position this product away from the pool, so as to prevent children from
• climbing on it and accessing the pool.
The 6-way valve has three hose connection ports.
1. Connect one hose (12) end to the pre-filter inlet and the other end of the hose
to the lower plunger valve with the strainer. Ensure the hose nuts are securely tighten.
2. Connect the second hose (12) between the electrolytic cell outlet and the upper plunger valve with the inlet-nozzle. Ensure the hose nuts are securely tighten.
3. The third hose connection port (drain/waste outlet) on the 6-way valve shall be directed to a proper draining receptacle using a hose or pipe (not provided). Remove the drain cap before attaching the drain/waste hose or pipe.
4. The sand filter pump is now ready to filter the pool.
163
TO
DRAIN
6-WAY VALVE
WATER LEVEL
PLUNGER
VALVE
OUTSIDE
LINER WALL
(ILLUSTRATION NOT TO SCALE)
ADJUSTABLE
POOL INLET
NOZZLE
THREADED
STRAINER
CONNECTOR
SSEETTUUPP IINNSSTTRRUUCCTTIIOONNSS
SAVE THESE INSTRUCTIONS
Page 15
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
English
SAND FILTER PUMP HOSE CONNECTION SETUP (continued)
For NON-INTEX pool:
1. Connect the hose (12) to the pool inlet/outlet connection with a large hose
clamp. Tighten securely. Remove the drain valve (3) from the 6-way valve
utlet and connect the hose to the outlet.
o
12
LARGE HOSE
CLAMP
3
POOL
163
For INTEX pool size 16' and below:
1. In a counter-clockwise motion unscrew plunger valve union from the threaded strainer connector (25). Be careful not to lose the step rubber washer (22).
2. Grasp the plunger valve assembly. Make sure the step washer (22) is in place. Connect adaptor B (27) to plunger valve union.
3. Remove wall plug and then insert the strainer (28 & 30) into the lower position of protruding hose connection, and the nozzle (28 & 29) into the upper position of protruding hose connection. Adaptor B (27) fits over the strainer connection (28) inserted into the connection. Tighten securely.
4. Remove the drain valve (3) from the 6-way valve outlet and connect the hose
to the outlet.
28 & 29
3
28 & 30
POOL
SSEETTUUPP IINNSSTTRRUUCCTTIIOONNSS
SAVE THESE INSTRUCTIONS
Page 16
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
R
E
T
L
I
F
E
S
N
I
R
ET
A
L
U
C
RI
C
E
R
E
S
O
L
C
ETSA
W
E
S
N
I
R
ETALU
C
RICER
H
S
A
W
K
C
A
B
E
S
O
L
C
E TSAW
R
E
T
L
I
F
E
S
N
I
R
E
TALU
C
RICER
H
S
A
W
K
C
A
B
ETSA
W
B
E
S
N
I
R
ETALU
C
RICER
H
S
A
W
K
C
A
B
E
S
O
L
C
E TSAW
R
E
T
L
I
F
E
S
N
I
R
E
TALU
C
RICER
H
S
A
W
K
C
A
B
ETSA
W
R
E
T
L
I
F
E
S
N
I
R
E
TALU
C
RICER
H
S
A
W
K
C
A
B
ETSA
W
English
OPERATING INSTRUCTIONS
WARNING
• Risk of electric shock. Connect this product only to a grounding type eceptacle protected by a ground-fault circuit interrupter (GFCI) or
r residual current device (RCD). Contact a qualified electrician if you cannot verify that the receptacle is protected by a GFCI/RCD. Use a qualified electrician to install the GFCI/RCD, which has a maximum rate of 30mA. Do not use a portable residual current device (PRCD).
To reduce the risk of electric shock, do not use extension cords, timers,
plug adaptors or converter plugs to connect unit to electric supply; provide a properly located outlet.
Do not attempt to plug in or unplug this product while standing in water
or when your hands are wet.
• Never operate this product above the maximum working pressure stated
on the filter tank.
• Always switch off pump before changing the 6-way valve position.
• Operating this product without water flowing through the system can
cause a build up of hazardous pressure which can result in an explosive situation, serious injury, property damage or death.
• Never test this pump with compressed air. Never operate the system with
water temperature above 35° C (95° F).
163

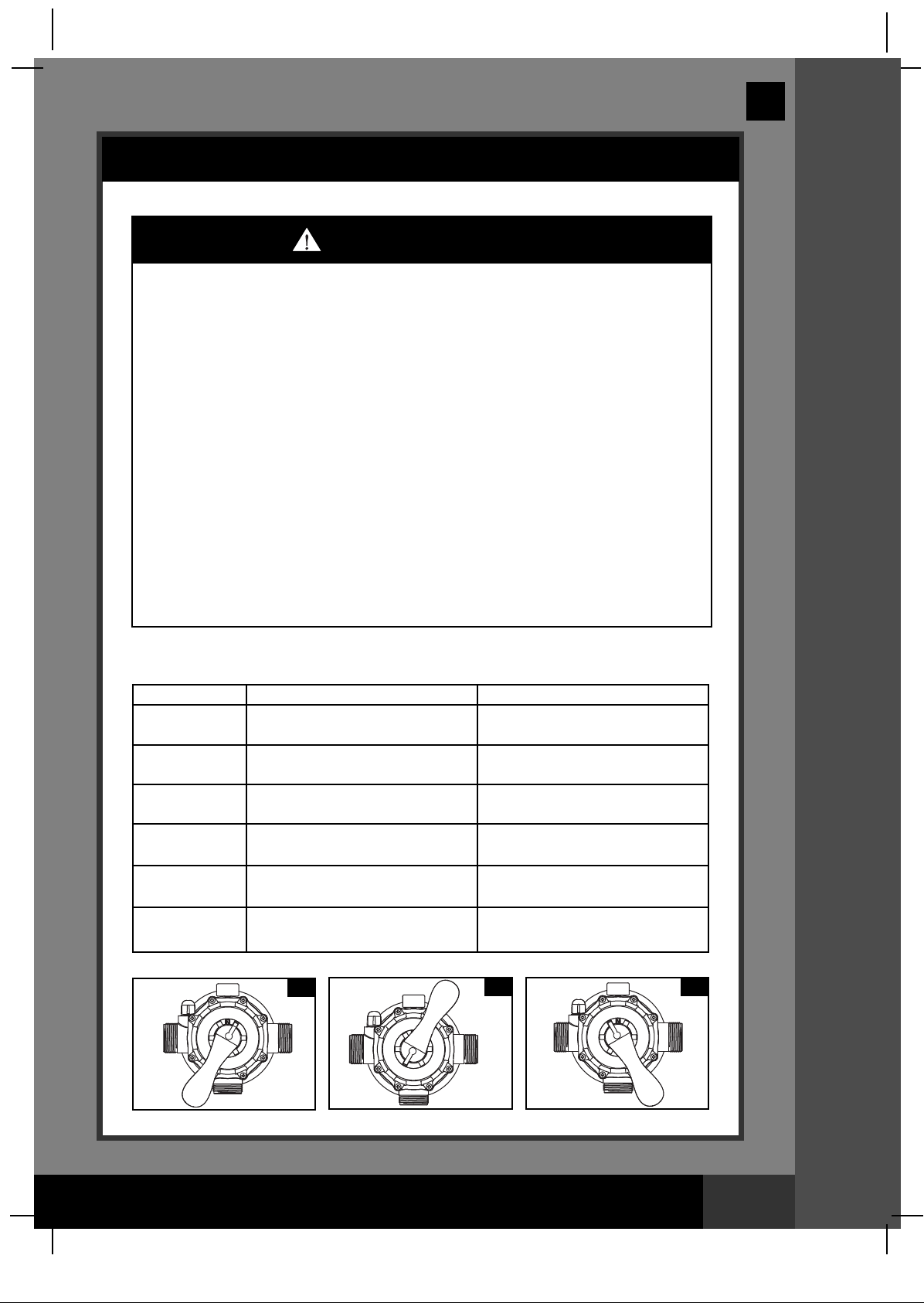

6-way valve positions and function:
Valve Position Function Water Flow Direction
FILTER
(see drawing 26)
BACKWASH
(see drawing 27)
RINSE
(see drawing 28)
WASTE
(see drawing 29)
RECIRCULATE
(see drawing 30)
CLOSED
(see drawing 31)
Normal filtration and regular vacuuming of pool
Reverses water flow to clean
filter media
For initial startup cleaning of the sand, and leveling the sand bed after backwashing
For vacuuming directly to waste, lowering pool level or to drain the pool
For circulating water back to pool without going through the filter media
Shuts off all flow to filter and pool
“Do not use this setting with pump running”
26
From pump through filter media to pool
From pump through filter media to valve waste/drain outlet
From pump through filter media to valve waste/drain outlet
From pump to valve waste/drain outlet bypassing the filter media
From pump through valve to pool bypassing the filter media
27
28
OOPPEERRAATTIINNGG IINNSSTTRRUUCCTTIIOONNSS
SAVE THESE INSTRUCTIONS
Page 17
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
R
E
T
L
I
F
E
S
N
I
R
ET
A
L
U
C
RI
C
E
R
E
S
O
L
C
ETSA
W
E
S
N
I
R
ETALU
C
RICER
H
SA
W
K
C
A
B
E
S
O
L
C
E TSAW
R
E
T
L
I
F
E
S
N
I
R
E
TALU
C
RICER
H
S
A
W
K
C
A
B
ETSA
W
R
E
T
L
I
F
E
S
N
I
R
ER
H
S
A
W
K
C
A
B
E
S
O
L
C
ETSAW
R
E
T
L
I
F
ES
N
I
R
E
TA
L
U
C
R
I
CE
R
H
S
A
W
K
C
A
B
E
S
O
L
C
R
E
T
L
I
F
ETALUC
R
ICER
H
S
A
W
K
C
A
B
E
S
O
L
C
ETSAW
B
E
S
N
I
R
ETALU
C
RICER
H
SA
W
K
C
A
B
E
S
O
L
C
E TSAW
R
E
T
L
I
F
E
S
N
I
R
E
TALU
C
RICER
H
S
A
W
K
C
A
B
ETSA
W
R
E
T
L
I
F
ES
N
I
R
E
TA
L
U
C
R
I
CE
R
H
S
A
W
K
C
A
B
E
S
O
L
C
R
E
T
L
I
F
ETALUC
R
ICER
H
S
A
W
K
C
A
B
E
S
O
L
C
ETSAW
R
E
T
L
I
F
E
S
N
I
R
E
TALU
C
RICER
H
S
A
W
K
C
A
B
ETSA
W
R
E
T
L
I
F
ETALUC
R
ICER
H
S
A
W
K
C
A
B
E
S
O
L
C
ETSAW
English
OPERATING INSTRUCTIONS (continued)
29
Initial startup and operation:
Before operating, be sure that:
• All the hoses have been connected and tightened securely, and correct amount
of filter sand have been loaded.
• The entire system is connected to a grounding type receptacle protected by a
ground-fault circuit interrupter (GFCI) or residual current device (RCD).
30
CAUTION
163
31
The filter control valve has a closed position. The pump should never be on when the valve is in the closed position. If the pump is operated with the valve closed, and explosive situation could exist.
1. Grasp a plunger valve handle. Turn the handle counter-clockwise, pull up until it
stops, and then turn it clockwise until the metal protruding notch anchor is in the "0/1" position. Repeat for the second plunger valve. This opens the valves to allow water to flow into the sand filter pump.
2. Ensure the drain/waste outlet on the 6-way valve is not covered and directed to a proper draining receptacle.
3. Ensure the pump is off, depress the 6-way
32
valve and turn it to the “BACKWASH” position (see drawings 27 & 32). IMPORTANT: To prevent damage to the
2
1
6-way valve, always depress the valve handle before turning. Always switch off pump before changing the 6-way valve position.
4. Switch on the pump (see drawing 33). Water
is circulating backward through the sand media and to waste/drain outlet. Backwash until a clear flow of water is observed in the waste/drain outlet or through the drain sediment
ON
OFF
33
OOPPEERRAATTIINNGG IINNSSTTRRUUCCTTIIOONNSS
window. NOTE: The initial backwash of the filter is recommended to remove any impurities or fine sand particles in the sand media.
SAVE THESE INSTRUCTIONS
Page 18
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
English
OPERATING INSTRUCTIONS (continued)
. Switch off the pump, change the 6-way valve to “RINSE” position (see
5
drawing 28).
. Switch on the pump and run the pump for about one minute to level out the
6
sand bed after backwashing the sand media.
7. Switch off the pump, change the 6-way valve to “FILTER” position (see drawing 26).
8. Switch on the pump. The system is now operating in the normal filtering mode.
Run the pump until the desired pool water clearance is obtained and no more than 12 hours per day.
9. Record the initial pressure gauge reading when the filter media is clean. NOTE: During initial setup of the system, it may be necessary to backwash
frequently due to unusual heavy dirt present in the water and sand. After that, as the filter removes dirt and impurities from the pool water, the accumulated dirt in the sand media will cause the pressure to rise and the flow to diminish. If there is no vacuuming device attached to the system and the pressure gauge reading is in the yellow zone it is time to backwash the sand media, see “BACKWASH” under “initial startup and operation” section. Vacuuming device (i.e. Intex auto pool cleaner) attached to the system may also cause the flow to diminish and the pressure to rise. Remove any vacuuming device from the system and check if the pressure gauge reading has dropped from the yellow zone to the green zone.
163
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
OOPPEERRAATTIINNGG IINNSSTTRRUUCCTTIIOONNSS
SAVE THESE INSTRUCTIONS
Page 19
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
OK
0
Copper (ppm)
0.1 0.2 0.5 0.9 1.3
SALTWATER SYSTEM OPERATION
1. Start up the unit:
Plug the power cord into the electrical outlet and test
he GFCI/RCD (circuit breaker). Switch on the unit.
t With the Filter Pump turned “ON” and operating. Flashing code“00” appears on the electronic control station’s LED, indicating that the unit is ready to be programmed.
2. Set operating hours for Saltwater System:
With code “00” flashing, press button to set the desired operating hours. See the “Operating Time Table” for the required operating hours related to each pool size. Pressing will increase the time from 01 to 12 hours maximum. If you have selected too many hours keep pressing to repeat the cycle. The built-in timer will now activate your Saltwater System, at the same time each day, for the number of hours you have set. NOTE: The Saltwater System will not operate if the filter pump is not operating.
(1 to 12 hours max per cycle)
English
163
3. Lock keypad controls:
With the desired hour value showing, press button until you hear a “beep”. The green “WORKING” indicator on the control panel will light up within a few seconds to indicate that the saltwater system has started sanitizer production. Locking the control buttons into this setting prevents unauthorized changing of the operating cycle. NOTE: If you forget to lock the keypad controls, the system will automatically lock it and start working 1 minute later.
4. Readjust operating time if necessary:
The operating hours can be re-adjusted if necessary. Press button until you hear a “beep” to unlock the keypad and the current programmed time will flash. Repeat steps 2 to 3.
5. Test the copper concentration in the
pool water.
The Saltwater System recommends a copper level of 0.1 to 0.2 ppm. This is easily tested by the copper ion test strips provided. If the test result is
0.1~0.2ppm, go directly to step 7.
OOPPEERRAATTIINNGG IINNSSTTRRUUCCTTIIOONNSS
SAVE THESE INSTRUCTIONS
Page 20
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
English
SALTWATER SYSTEM OPERATION (continued)
6. Boost cycle
If the test result is below 0.1ppm, press and hold “BOOST”
button for 5 seconds until the indicator lights up and the LED display display “80”. This indicates that the saltwater system has started copper ion and more chlorine sanitizer production. You can press and hold the “BOOST” button for
nother 5 seconds until the indicator is off, which will cancel
a the Boost cycle. Note: Once the system has started copper ion and more chlorine sanitizer production, the boost button can’t be re-set until the power switch is off.
The boost operating hours is 4 times the amount of time programmed into the system, i.e. if your saltwater system operating time is 2 hours, the boost procedure will run 4 x 2 = 8 hours. After boost procedure has been completed, the system will automatically switch to the normal working mode.
After a heavy rain or if the pool is dirty, press the “BOOST” button to shock the pool again.
7. Test pool water regularly: Once the copper level appears to be balanced, test the pool water every week to maintain the proper sanitizer level. It’s very important that the free chlorine is between 0.4-1.5 ppm and copper ion concentration is between 0.1~0.2 ppm. When the copper level is below 0.1 ppm, repeat step 6. NOTE: A High copper ion concentration may cause blonde hair to exhibit a green hair. To prevent this, wear a swimming cap during swimming, and wash hair with special shampoo after using the pool. See “Troubleshooting Guide”.
163
8. Stand-by/power saving mode:
When the cycle ends, the green “SLEEP” indicator on the
control panel lights up and the LED display flashes “93”. The system is now in Stand-By mode. After a while, it shuts down and sets itself in a Power Saving mode. The system will automatically turn itself back on in 24 hours, starting its daily cycle of chlorine production.
The “SLEEP” indicator stays on, while the system is in the Power Saving mode. The LED display however, goes blank after 1 hour. Press any button ( or ) to view the last LED code.
9. Running the pump alone without the Saltwater System:
To run the pump alone without the Saltwater System function, press and hold both ( ) and ( ) buttons for 5 seconds until you hear a “beep” and the LED display shows “FP”. The pump is now operating alone. To stop the pump, manually turn the switch OFF. NOTE: The pump cannot be operated alone under an automatic timer mode.
IMPORTANT: To keep the initial automatic operating cycle setting of the Saltwater System, turn the switch ON, the LED display shows “FP”, then unlock and lock the keypad controls again, see previous steps 2 and 3. The LED display shows the initial input hours and the Saltwater System cycle repeats again.
OOPPEERRAATTIINNGG IINNSSTTRRUUCCTTIIOONNSS
SAVE THESE INSTRUCTIONS
Page 21
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
LED CODE CHART
ED Reading
L
FP Filter Pump Working Mode
0 Boost Mode
8 00 Stand-By Mode (Start-up) 01 Minimum Operating Hour (1 hour remaining) 02 Operating Hours (2 hours remaining) 03 Operating Hours (3 hours remaining) 04 Operating Hours (4 hours remaining) 05 Operating Hours (5 hours remaining) 06 Operating Hours (6 hours remaining) 07 Operating Hours (7 hours remaining) 08 Operating Hours (8 hours remaining) 09 Operating Hours (9 hours remaining) 10 Operating Hours (10 hours remaining) 11 Operating Hours (11 hours remaining) 12 Maximum Operating Hours (12 hours remaining) 90 Alarm Code (Low Water Flow / No Flow) 91 Alarm Code (Low Salt Level) 92 Alarm Code (High Salt Level) 93 Stand-By Mode (Operating Process finished)
“BLANK” No Power or “Power Saving Mode” waiting to start next
Saltwater System cycle.
efinitions
D
English
163
LLEEDD CCOODDEE CCHHAARRTT
SAVE THESE INSTRUCTIONS
Page 22
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
English
SALT & POOL WATER VOLUMES
Which kind of salt to use:
• Use only Sodium Chloride Salts
se only sodium chloride (NaCl) salt that is at least 99.8% pure. It is also
U acceptable to use water conditioning salt pellets (the compressed forms of
vaporated salt). However, it will take a longer time for them to dissolve. Do not use
e iodized or yellow (yellow prussiate of soda) colored salt. Salt is added to the pool water and the electrolytic cell uses the salt to create the sanitizer. So, the purer the salt the better the performance of the electrolytic cell.
• Optimum Salt Levels
The ideal salt level in the pool water is between 2500-3500 ppm (parts per million). The optimal level is 3000 ppm. A too low salt level will reduce the efficiency of the saltwater system and result in low sanitizer production. A high salt level may generate a salty taste to the pool water (this may occur at a salt level above 3500-4000ppm). Too high of a salt level may damage the power supply and cause corrosion to pool metal fixtures and accessories. The Salt Table page of this manual, shows the correct dosage of salt needed. The salt in the pool is constantly recycled. Salt loss occurs only when pool water is physically removed from the pool. Salt is not lost due to evaporation.
163
• Adding Salt
1. Switch on the unit, then press and hold both and button for 5 seconds,
the LED flashes “FP”. The unit is now in a Filter pump working mode and switch the filter pump on to start the water circulation.
2. Keep the Saltwater System turned off.
3. Determine the amount of salt to be added (see “Salt Table”).
4. Evenly spread the proper amount of salt around the inside perimeter of the
pool.
5. Avoid clogging the filter by not adding salt through the skimmer.
6. Brush the pool bottom to speed up the dissolving process. Do not allow salt to
pile up on the bottom of the pool. Run the filter pump 24 consecutive hours to thoroughly dissolve the salt.
7. After 24 hours and if all the salt is dissolved, turn on the Saltwater System, press button until you hear a “beep”, code “00” flashing (see “System Operation” section steps 2 to 4) and set the saltwater pool system to desired operating time (see “Operating Time Table”).
• Removing Salt
If too much salt has been added, the unit will beep and display “Code 92” (see “Alarm Codes”). You will need to lower the salt concentration. The only way to do so, is to partially drain the pool and refill it with fresh water. Drain and refill approximately 20% of the pool’s water until the “Code 92” disappears.
• Pool Volume Calculation
Types of Pool
Rectangular
Circular
Oval
Gallons
(pool size in feet)
Length x Width x Average Depth x 7.5 Length x Width x Average Depth Length x Width x Average Depth x 5.9 Length x Width x Average Depth x 0.79 Length x Width x Average Depth x 6.0 Length x Width x Average Depth x 0.80
Cubic Meters
(pool size in meters)
SSAALLTT && PPOOOOLL WWAATTEERR VVOOLLUUMMEESS
SAVE THESE INSTRUCTIONS
Page 23
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
English
INTEX POOLS SALT TABLE
This table shows the dosage of salt needed to achieve and maintain the optimal 3000 ppm salt
evel.
l
Pool Size
INTEX ABOVE GROUND POOLS (AGP’s)
15' x 33" (457cm x 84cm)
15' x 36" (457cm x 91cm)
15' x 42" (457cm x 107cm)
EASY SET
POOL
CIRCULAR
METAL
FRAME POOL
ULTRA FRAME
POOL
SEQUOIA SPIRIT™
POOL SET
OVAL FRAME
POOL
RECT. ULTRA
FRAME POOL
®
15' x 48" (457cm x 122cm)
16' x 42" (488cm x 107cm)
16' x 48" (488cm x 122cm)
18' x 42" (549cm x 107cm)
18' x 48" (549cm x 122cm)
18' x 52" (549cm x 132cm)
15' x 36" (457cm x 91cm)
15' x 42" (457cm x 107cm)
15' x 48" (457cm x 122cm)
16' x 48" (488cm x 122cm)
18' x 48" (549cm x 122cm)
18' x 52" (549cm x 132cm)
20' x 52" (610cm x 132cm)
24' x 48" (732cm x 122cm)
16' x 48" (488cm x 122cm)
18' x 52" (549cm x 132cm)
16'8" x 49" (508cm x 124cm)
18'8" x 53" (569cm x 135cm)
18' x 10' x 42" (549cm x 305cm x 107cm)
20' x 12' x 48" (610cm x 366cm x 122cm)
24' x 12' x 48" (732cm x 366cm x 122cm)
18' x 9' x 52" (549cm x 274cm x 132cm)
24' x 12' x 52" (732cm x 366cm x 132cm)
Water Capacity (Calculated at
90% for Frame Pool and 80%
for Easy Set & Oval Pool)
(Gals)
2587 9792 65 30 15 10 2822 10681 65 30 20 10 3284 12430 80 35 20 10 3736 14141 95 45 25 10 3754 14209 95 45 25 10 4273 16173 110 50 30 15 4786 18115 120 55 30 15 5455 20647 135 60 35 15 5894 22309 150 65 40 20 3282 12422 80 35 20 10 3861 14614 100 45 25 10 4440 16805 110 50 30 15 5061 19156 125 55 35 15 6423 24311 160 75 40 20 6981 26423 175 80 45 20 8638 32695 220 100 60 25
11483 43462 290 130 75 35
5061 19156 125 55 35 15 6981 26423 175 80 45 20 5061 19156 125 55 35 15 6981 26423 175 80 45 20 2885 10920 65 30 20 10 4393 16628 110 50 30 15 5407 20465 135 60 35 15 4545 17203 115 50 30 15 8403 31805 210 100 55 25
(Liters) (Lbs) (Kgs) (Lbs) (Kgs)
Salt Needed for
Startup
3.0g/L (3000ppm)
Salt Needed when Low Salt Detected
(CODE “91”)
163
SAVE THESE INSTRUCTIONS
Page 24
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
INTEX POOLS OPERATING TIME TABLE (WITH CYANURIC ACID)
Operating Time (hours)
at different ambient/air
temperatures
10 - 19°C
(50 - 66°F)
1 1 1 2 2 2 2 3 3 1 2 2 3 3 4 4 7 3 4 3 4 1 2 3 2 5
Pool Size
INTEX ABOVE GROUND POOLS (AGP’s)
15' x 33" (457cm x 84cm)
15' x 36" (457cm x 91cm)
15' x 42" (457cm x 107cm)
EASY SET
POOL
CIRCULAR
METAL
FRAME POOL
ULTRA FRAME
POOL
SEQUOIA SPIRIT
POOL SET
OVAL FRAME
POOL
RECT. ULTRA
FRAME POOL
®
®
®
15' x 48" (457cm x 122cm)
16' x 42" (488cm x 107cm)
16' x 48" (488cm x 122cm)
18' x 42" (549cm x 107cm)
18' x 48" (549cm x 122cm)
18' x 52" (549cm x 132cm)
15' x 36" (457cm x 91cm)
15' x 42" (457cm x 107cm)
15' x 48" (457cm x 122cm)
16' x 48" (488cm x 122cm)
18' x 48" (549cm x 122cm)
18' x 52" (549cm x 132cm)
20' x 52" (610cm x 132cm)
24' x 48" (732cm x 122cm)
16' x 48" (488cm x 122cm)
18' x 52" (549cm x 132cm)
16'8" x 49" (508cm x 124cm)
569
18'8" x 53" (
18' x 10' x 42" (549cm x 305cm x 107cm)
20' x 12' x 48" (610cm x 366cm x 122cm)
24' x 12' x 48" (732cm x 366cm x 122cm)
18' x 9' x 52" (549cm x 274cm x 132cm)
24' x 12' x 52" (732cm x 366cm x 132cm)
cm x 135cm)
Water Capacity (Calculated at
90% for Frame Pool and 80% for
Easy Set & Oval Pool)
(Gals) (Liters)
2587 2822 3284 3736 3754 4273 4786 5455 5894 3282 3 861 4440 5061 6423 6981 8638
11483
5061 6981 5061 6981 2885 4393 5407 4545 8403
9792 10681 12430 14141 14209 16173 18115 20647 22309 12422 14614 16805 19156 24311 26423 32695 43462 19156 26423 19156 26423 10920 16628 20465 17203 31805
English
20 - 28 °C
(68 - 82 °F)
1 1 2 2 2 3 3 3 3 1 2 3 3 4 4 5 7 3 4 3 4 1 3 3 3 5
29 - 36 °C
(84 - 97 °F)
2 2 2 3 3 3 3 4 4 2 3 3 4 5 5 6 8 4 5 4 5 2 3 4 3 6
163
SAVE THESE INSTRUCTIONS
Page 25
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
English
INTEX POOLS CYANURIC ACID TABLE
Cyanuric acid is a chemical that reduces the loss of chlorine in water due to ultraviolet rays. To maintain maximum performance, we recommend that the cyanuric acid level be maintained at
pproximately 1% of the salt, i.e. 100 Lbs (45 Kgs) salt x1% = 1 Lbs (0.45 Kgs) cyanuric acid.
a
Cyanuric Acid Needed for
Startup
0.03g/L (30ppm)
Lbs)
(
Kgs)
(
Pool Size
INTEX ABOVE GROUND POOLS (AGP’s)
15' x 33" (457cm x 84cm)
15' x 36" (457cm x 91cm)
15' x 42" (457cm x 107cm)
EASY SET
POOL
CIRCULAR
METAL
FRAME POOL
ULTRA FRAME
POOL
SEQUOIA SPIRIT
POOL SET
OVAL FRAME
POOL
RECT. ULTRA
FRAME POOL
®
®
®
15' x 48" (457cm x 122cm)
16' x 42" (488cm x 107cm)
16' x 48" (488cm x 122cm)
18' x 42" (549cm x 107cm)
18' x 48" (549cm x 122cm)
18' x 52" (549cm x 132cm)
15' x 36" (457cm x 91cm)
15' x 42" (457cm x 107cm)
15' x 48" (457cm x 122cm)
16' x 48" (488cm x 122cm)
18' x 48" (549cm x 122cm)
18' x 52" (549cm x 132cm)
20' x 52" (610cm x 132cm)
24' x 48" (732cm x 122cm)
16' x 48" (488cm x 122cm)
18' x 52" (549cm x 132cm)
16'8" x 49" (508cm x 124cm)
569
18'8" x 53" (
18' x 10' x 42" (549cm x 305cm x 107cm)
20' x 12' x 48" (610cm x 366cm x 122cm)
24' x 12' x 48" (732cm x 366cm x 122cm)
18' x 9' x 52" (549cm x 274cm x 132cm)
24' x 12' x 52" (732cm x 366cm x 132cm)
cm x 135cm)
Water Capacity (Calculated at
90% for Frame Pool and 80%
for Easy Set & Oval Pool)
(Gals)
2587 9792 0.6 0.3 2822 10681 0.7 0.3 3284 12430 0.8 0.4 3736 14141 0.9 0.4 3754 14209 0.9 0.4 4273 16173 1.1 0.5 4786 18115 1.2 0.5 5455 20647 1.4 0.6 5894 22309 1.5 0.7 3282 12422 0.8 0.4 3861 14614 1.0 0.4 4440 16805 1.1 0.5 5061 19156 1.3 0.6 6423 24311 1.6 0.7 6981 26423 1.7 0.8 8638 32695 2.2 1.0
11483 43462 2.9 1.3
5061 19156 1.3 0.6 6981 26423 1.7 0.8 5061 19156 1.3 0.6 6981 26423 1.7 0.8 2885 10920 0.7 0.3 4393 16628 1.1 0.5 5407 20465 1.4 0.6 4545 17203 1.1 0.5 8403 31805 2.1 1.0
Liters)
(
163
SAVE THESE INSTRUCTIONS
Page 26
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
SALT CALCULATION FORMULA FOR ALL POOLS
Salt Needed for Startup
(Lbs)
Water Capacity (Gals) x 0.025
Salt Needed for Startup
(Kgs)
Water Capacity (Liters) x 0.003
Salt Needed when
Low Salt Detected (Lbs)
Water Capacity (Gals) x 0.0067 Water Capacity (Liters) x 0.0008
Salt Needed when
Low Salt Detected (Kgs)
SALT TABLE FOR COMMON NON-INTEX POOLS
Salt Needed when
ater Capacity
W
(Gals) (Liters) (Lbs) (Kgs) (Lbs) (Kgs)
2000 7500 50 20 10 5 4000 15000 100 45 25 10 6000 22500 150 65 40 20 8000 30000 200 90 55 25
10000 37500 250 110 70 30 12000 45500 300 135 80 35 14000 53000 350 160 95 45
alt Needed for Startup
S
ow Salt Detected
L
(CODE “91”)
English
163
OPERATING TIME TABLE FOR COMMON NON-INTEX POOLS
Water Capacity
(Gals) (Liters)
2000 4000 6000
8000 10000 12000 14000
7500 15000 22500 30000 37500 45500 53000
10 - 19°C
(50 - 66°F)
1 2 3 5 6 7 9
Operating Time (hours)
at different ambient/air temperatures
20 - 28 °C
(68 - 82 °F)
1 2 3 5 6 8 9
29 - 36 °C
(84 - 97 °F)
CYANURIC ACID TABLE FOR COMMON NON-INTEX POOLS
Water Capacity
(Gals) (Liters) (Lbs) (Kgs)
2000 4000 6000
8000 10000 12000 14000
7500 15000 22500 30000 37500 45500 53000
Cyanuric Acid Needed for Startup
0.5
1.0
1.5
2.0
2.5
3.0
3.5
0.03g/L (30ppm)
0.23
0.45
0.68
0.90
1.13
1.37
1.59
1 3 4 6 7 9
10
SAVE THESE INSTRUCTIONS
Page 27
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
1
2
English
MOTOR PRE-FILTER CLEANING AND MAINTENANCE
1. Make sure the filter pump is switched off, then disconnect the power cord from the electrical outlet.
2. Grasp a plunger valve handle. Turn the handle counter-clockwise, push down until it stops and then turn it clockwise until the plastic protruding notch anchors in the "0/1" position. Repeat for the second plunger valve. This prevents the water from flowing out of the pool.
3. Release the pressure first by opening the sediment release valve (19) located on the lower side of the pre-filter housing
(see drawing 34).
4. In a counter-clockwise motion unscrew the
leaf trap cover (14), then remove the basket (16) and leaf trap o-ring (15) from the pre-filter housing (see drawing 35).
5. Empty and flush the basket using a garden hose, may use a plastic brush to remove deposits from the basket. Do not use metal brush.
6. Clean and rinse the inside of the pre-filter housing and the leaf trap O-ring with a garden hose.
7. Reinstall the leaf trap O-ring, basket and leaf trap cover to the pre-filter housing.
8. Close the sediment release valve (19) back.
14
15
19
41
16
163
34
35
MMAAIINNTTEENNAANNCCEE
FFLLOOWW SSEENNSSOORR CCLLEEAANNIINNGG
1. In a counter-clockwise motion unscrew the collar of the flow sensor (21) and remove it from the electrolytic cell conduit (22). See “Part Reference”.
2. If deposits and debris are seen on the surface of the flow sensor, then use a garden hose to wash it off.
Hinge
3. If flushing with water does not remove the deposits, use a plastic brush to clean the surface and the hinge if necessary. Do not use a metal brush.
4. After the flow sensor has been inspected and cleaned, align the locator notch on the flow sensor to the connection ridge in the conduit. Now turn the collar in a clockwise motion, tightening the sensor back into its position. Do not overtighten.
Locator Notch
Connection Ridge
SAVE THESE INSTRUCTIONS
Page 28
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
English
ELECTROLYTIC CELL CLEANING
If the pool water is hard (high mineral content) the cell may require periodic manual cleaning. To maintain maximum performance, we recommend that you open and
isually inspect the electrolytic cell (22) once every month.
v The following steps are some instructions on how to clean your cell.
1. Switch off the unit, unplug the power cord from the electrical socket.
2. Disconnect the hose (12) from the electrolytic cell (22) outlet and cover the outlet with the drain outlet cover (3) from the 6-way valve (see drawings 36 and 37).
3. Remove the electrolytic cell from the 6-way valve outlet by unscrewing the electrolytic cell (22) collar (see drawing 38).
4. Pour kitchen grade vinegar into the cell to immerse the titanium plates (see drawing 39). Soak for about 1 hour and then flush with a high-pressure
garden hose.
5. Reverse steps 2 to 4 to reconnect the electrolytic cell.
36
22
37
38
39
163
3
22
COPPER ELECTRODE CLEANING
1. Switch off the unit, unplug the power cord from the electrical socket.
2. In a counter-clockwise motion, unscrew the electrical plug collar from the copper electrode cell, and remove the electrical plug from electrode cell (see drawings 40 and 41).
3. Unscrew the copper electrode cell collar, then remove the electrode cell and
place it on a bucket.
4. Pour kitchen grade vinegar into the bucket until the copper electrode cell is immersed (see drawing 43). Soak for 1 hour and then flush with a high-pressure garden hose.
5. Reverse steps 2 to 4 to reconnect the copper electrode cell.
42
24
40
41
MMAAIINNTTEENNAANNCCEE
43
SAVE THESE INSTRUCTIONS
Page 29
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
English
MAINTENANCE (continued)
INTEX®COPPER ION TEST STRIPS (PACKED WITH THE PRODUCT)
The Copper Ion Test Strips can be used to test the copper ion concentration in the water.
Directions and Use
1. Dip the entire strip into the water for 3 seconds, then remove it.
. Hold the strip level for 15 seconds. Do not shake excess water from the strip.
2
3. Now compare the copper ion strip pad to the color chart on the packaging label.
INTEX®3-WAY TEST STRIPS (PACKED WITH THE PRODUCT)
The 3-Way Test Strips can test the “Free Chlorine”, “pH”, and “Total Alkalinity” levels at the same time. We recommend that you test the water chemistry weekly, and maintain the chlorine concentration at 0.4-1.5 ppm.
Directions and Use
1. Dip the entire strip into the water and remove immediately.
2. Hold the strip level for 15 seconds. Do not shake excess water from the strip.
3. Now compare the strip pad to the color chart on the packaging label. If necessary,
adjust the chemical level in the pool water. It is very important, to use the proper technique when testing the water's chemical level. Read and follow the written strip instructions carefully.
163
MMAAIINNTTEENNAANNCCEE
POOL CARE & CHEMICALS
All pools require care to keep the water clear and hygienically clean. With proper chemical control, your filter will help attain this objective. Consult your pool supply dealer for instructions regarding the proper use of chlorine, algaecide and other chemical agents required for sparkling clear water.
Keep pool chemicals away from children.
Do not replenish chemicals in pool while pool is occupied. Skin or eye irritations could occur.
Daily pH checking and chemical treatment of the water is very important and cannot be overemphasized. Maintenance of proper pH levels are required when filling the pool as well as during the season. Consult your local swimming pool supply store for instructions.
The season's first filling of the pool may have brackish water requiring extra water additives and extra filtering time. Do not allow swimming in pool until the pH level is balanced. Consult your local swimming pool supply store for instructions.
Chlorinated water may damage lawns, gardens or shrubbery as children play in the pool and splash water outside the pool. Lawn areas underneath the pool liner will be destroyed. Note that some types of grass may grow through the liner.
Filter run time depends on pool size, weather and usage level. Experiment with various run times so as to produce clean clear water.
SAVE THESE INSTRUCTIONS
Page 30
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
English
POOL MAINTENANCE & CHEMICAL DEFINITIONS
Preferred Water Chemistry Reading
Minimum Ideal Maximum
Copper Ions 0 0.1 - 0.2 ppm 0.2 ppm Free Chlorine 0 0.4 - 1.5 ppm 3.0 ppm
ombined Chlorine 0 0 ppm 0.2 ppm
C pH 7.2 7.4 - 7.6 7.8 Total Alkalinity 100 ppm 100 - 140 ppm 140 ppm Calcium Hardness 150 ppm 200 - 400 ppm 500 - 1000 ppm Stabilizer (Cyanuric Acid) 10 ppm 30 - 50 ppm 100 ppm
Consult with local swimming pool dealer for water treatment.
Free Chlorine - Is the chlorine residual present in pool water.
Combined Chlorine - Is formed by the reaction of free chlorine with ammonia
wastes. Result if too high - Sharp chlorinous odor, eye irritation.
pH
- A value that indicates how acidic or basic a solution is.
Result if too low - Corroded metals, eye & skin irritation,
destruction of total alkalinity.
Result if too high - Scale formation, cloudy water, shorter
filter runs, eye & skin irritation, poor chlorine efficiency.
163
MMAAIINNTTEENNAANNCCEE
Total Alkalinity - Indicates the degree of the water's resistance to change
in pH. It determines the speed and ease of pH change, so always adjust total alkalinity before adjusting the pH level. Result if too low - Corroded metals, eye & skin irritation.
Low alkalinity will cause the pH to be unstable. Any chemical added to the water will have an affect on pH.
Result if too high - Scale formation, cloudy water,
eye & skin irritation, poor chlorine efficiency.
Calcium Hardness - Refers to the amount of calcium and magnesium
dissolved in the water. Result if too high - Scale will form and will cause the
water to become cloudy.
Stabilizer - Stabilizers extend the life of chlorine in swimming pools.
(Cyanuric Acid)
• Do not add pool chemicals directly to the skimmer. This may damage the cell.
• Maintaining a salt and sanitizer level above the recommended range can contribute to the corrosion of the pool equipment.
• Check the expiry date of the test kit as the test results may be inaccurate if the kit is used after that date.
• If, due to heavy pool usage, it is required to increase the sanitizer level, then use a chemical based on trichlor, TCCA or dichloro.
SAVE THESE INSTRUCTIONS
Page 31
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
English
LONG TERM STORAGE & WINTERIZATION
CAUTION
Allowing the water to freeze will damage the sand filter and void the warranty. If anti-freeze solution is needed, use only propylene glycol. Propylene glycol is non-toxic and will not damage plastic system components; other anti-freezes are highly toxic and may damage plastic components in the system.
1. Before emptying your pool for long term storage, or relocation, be sure the
water is directed towards an acceptable drain water receptacle away from the house. Check local regulations for specific directions regarding disposal of swimming pool water.
2. Switch off the unit, and disconnect power cord from electrical outlet.
3. When the pool is empty, disconnect all hoses from pump and plunger valves
and remove the strainers/plunger valves from the pool wall.
4. In a counter clockwise motion unscrew the drain valve cap (9) from the drain valve to thoroughly drain the tank. The drain valve is located at the bottom of the filter tank.
5. Disassemble the pump motor from the tank base.
6. Leave sand filter pump pieces and hoses outside to thoroughly air dry.
7. Coat the following o-rings and washers with petroleum jelly for long term
storage:
• L-shape o-ring (27).
• o-ring A (18).
• Pump hose O-rings (29).
• Strainer valve assembly step washers (30).
• Flat strainer rubber washers (32).
8. Depress the 6-way valve handle and rotate so as to set the pointer on the valve top “N” position. This allows the water to drain from the valve. Leave the 6­way valve in this inactive position.
9.
It is best to place all dry pieces and pump motor in the original packaging for storage. To avoid condensation or corrosion problem, do not cover or wrap pump motor with plastic bags.
10. Store the pump motor and accessories in a dry place. The storage's temperature should be controlled, between 0 degrees Celsius (32 degrees Fahrenheit) and 40 degrees Celsius (104 degrees Fahrenheit).
163
MMAAIINNTTEENNAANNCCEE
SAVE THESE INSTRUCTIONS
Page 32
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
TROUBLESHOOTING GUIDE
TROUBLE CAUSE SOLUTION
FILTER MOTOR FAILS TO START
FILTER DOESN’T CLEAN POOL
• The power cord is loose.
• The GFCI/RCD circuit breaker is tripped.
• Motor too hot and overload protection is shut off.
• Stand-by/power saving mode.
• Without cyanuric acid.
• Improper chlorine or pH levels.
• No filtering media in tank.
• Wrong 6-way valve setting position.
• Excessively dirty pool.
• Dirt or sand on pool floor.
• The basket is restricting the water flow.
• Line cord must be plugged into a 3 wire outlet that is protected by a Class A Ground Fault Circuit Interrupter, or RCD.
• Reset circuit breaker. If circuit breaker trips repeatedly, your electrical system may have a defect. Turn off circuit breaker and call an electrician to correct the problem.
Let the motor cool down and restart again.
• See “Saltwater system operation”.
• See “Cyanuric acid table”.
• Adjust
• Load with filter sand, see “sand loading
• Set valve to “ FILTER” position.
• Operate
• Use Intex pool vacuum to clean bottom
• Clean
the Consult your local swimming pool supply stores.
instructions”.
of pool.
chlorine and pH level.
the
the
basket.
English
filter for longer periods.
163
FILTER DOESN’T PUMP WATER OR FLOW IS VERY SLOW
PUMP DOESN’T WORK
6-WAY VALVE/COVER LEAKING
HOSE LEAKING
PRESSURE GAUGE DOESN’T WORK
• Clogged inlet or discharge.
• An air leak on the intake line.
• Excessively dirty pool.
• Sand media clogged with dirt.
• Nozzle and strainer connections are reversed.
• Crusting or caking on the filtering sand surface.
• Pool vacuuming device attached to the system.
• Low water level.
• Strainer screen clogged up.
• An air leak on the intake hose.
• Faulty motor or the impeller is jammed.
• Sand tank o-ring missing.
• Sand tank o-ring dirty.
• Flange clamp not tight.
• 6-way valve damage.
• Hose nut not securely tight.
• Hose connection fitting o-ring/L-shape o-ring missing.
• Clogged inlet of the pressure gauge.
• Pressure gauge damage.
• Clear any obstructions in the intake hose by discharging it inside pool wall.
• Tighten hose nuts, check hoses for damage, check pool water level.
• Clean the pre-filtering basket more often.
• Backwash filter.
• Install the nozzle at the upper position of the pool inlet, and the strainer at the lower position of the pool outlet.
• Remove about 1” of sand if necessary.
• Remove any pool vacuuming device attached to the system line.
• Fill pool to correct water level.
• Clean strainer screens at pool inlet.
• Tighten hose nuts, check hose for damage.
• Contact Intex service center.
Remove 6-way valve cover and ensure the o-ring is in place.
Clean sand tank o-ring with garden hose water.
Tighten the clamp with wrench supplied.
Contact Intex service center.
• Tighten/reinstall hose nut.
• Ensure o-ring/L-shape o-ring is in place and not damaged.
• Clear any obstructions in the intake by unscrewing it from the 6-way valve.
• Contact Intex service center.
TTRROOUUBBLLEESSHHOOOOTTIINNGG GGUUIIDDEE
SAND IS FLOWING BACK INTO THE POOL
• Sand is too small.
• Sand bed is calcified.
• Use only No. 20 silica sand with particle size range 0.45 to 0.85 mm (0.018 to 0.033 inches) and a Uniformity Coefficient less than 1.75.
• Change sand.
SAVE THESE INSTRUCTIONS
Page 33
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
TROUBLESHOOTING GUIDE (continued)
PROBLEM CAUSE SOLUTION
INSUFFICIENT CHLORINE
INSUFFICIENT COPPER ION LEVEL
POOL IS STAINED
Without cyanuric acid.
Insufficient operating hours of
the Saltwater System.
The salt level in the pool water is less than 2000ppm. This is insufficient.
Chlorine loss due to intense sunlight exposure.
The bather load has increased.
Clogged or dirty electrolytic cell.
Insufficient operating hours.
The PH is too high.
The bather load has increased.
Clogged or dirty electrolytic cell.
Copper electrode defective.
High copper ion concentration.
See “Cyanuric acid table”.
Increase the daily Saltwater System
operating time. See “Operating Instructions”.
Check the salt level with the Test Kit. Adjust as needed. See “Salt & Pool Water Volumes”.
se a pool cover when the pool is not in use
U
nd/or when the unit is operating.
a
Increase the daily Saltwater System operating time. See “Operating Instructions”.
Remove the cell for inspection, clean it if necessary. See “Maintenance”.
Increase operating time per day. See “Operating Instructions”.
Use PH decrease chemical to adjust, contact your local pool chemical store.
Increase the operating time per day. See “Operating Instructions”.
Remove the cell for inspection, clean it if necessary. See “Maintenance”.
Contact Intex Service Center. Drain about 20% of the pool water and add
fresh water to decrease the copper ion concentration below 0.2ppm.
Add aluminum sulfate: 1000 liters water need around 2g (1000 gals need 0.27 ounce) or aluminum potassium sulfate: 1000 liters water need around 3g (1000 gals need 0.4 ounce) to pool.
Use a lemon based cleaning product (preferably containing citric acid). Don’t scrub with aggressive cleaning products because this might etch the underlying surface.
English
163
WHITE FLAKES IN THE WATER
NO LED DISPLAY
GREEN HAIR
Excessive calcium hardness is present in pool water.
No power supply.
• RCD/GFCI has not reseted.
A power fuse has blown.
LED failure.
High copper ion concentration.
Drain about 20 to 25% of the pool
water and add fresh water to decrease the calcium hardness. Inspect the electrolytic cell for scale buildup. Clean the electrolytic cell if necessary.
Plug the cell cord firmly into the cell housing receptacle.
Reset the RCD/GFCI.
Contact Intex Service Center.
Contact Intex Service Center.
Drain about 20% of the pool water and
add fresh water to decrease the copper ion concentration below 0.2ppm.
Add aluminum sulfate: 1000 liters water need around 2g (1000 gals need
0.27 ounce) or aluminum potassium sulfate: 1000 liters water need around 3g (1000 gals need 0.4 ounce) to pool.
Use ‘Ultra-Swim’ shampoo, or shampoo containing chelating agents.
TTRROOUUBBLLEESSHHOOOOTTIINNGG GGUUIIDDEE
SAVE THESE INSTRUCTIONS
Page 34
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
English
TROUBLESHOOTING GUIDE (continued)
LED PANEL
CODE
ED Panel Code Flash & Alarm On (NOTE: Always turn off the power before cleaning and servicing).
L
1. Circulation line is blocked.
2. Incorrect inlet and outlet hose
direction.
3. Scale on the flow sensor.
4. Flow sensor cord is loose.
PROBLEM
SOLUTION
If your unit has plunger valves, ensure that they are open.
Clear your basket and cell from debris and dirt. See “Maintenance”.
Depress the 6-way valve, release all trapped air in the circulation line.
Check the direction of the inlet and the outlet hose. Reverse the hoses if necessary. See “Set Up Instructions”.
Clean the flow sensor, paying special attention to the hinge. See “Maintenance”.
Plug the flow sensor firmly into the flow sensor receptacle.
163
5. Flow sensor failure.
1. Dirt or scale on titanium plates.
2. Low salt level / No salt.
3. Electrolytic cell cord is loose.
4. Possible electrolytic cell failure.
1. High salt level.
2. Possible electrolytic cell failure.
1. Display and all lights are off - the
system does not power up.
Contact Intex Service Center.
Remove the electrolytic cell for
inspection. Clean it if necessary. See “Maintenance”.
Add salt. See “Salt & Pool Water Volumes”.
Ensure that the cell cord is plugged firmly into the cell housing receptacle.
Contact Intex Service Center. Replace the cell if needed.
Partially drain the pool and refill it with fresh water. See “Salt & Pool Water Volumes”.
Contact Intex Service Center. Replace the cell if needed.
Household voltage is too high or too low (+
20%). Check the voltage is within the
range stated on the device housing.
Contact Intex Service Center.
SAVE THESE INSTRUCTIONS
Page 35
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
COMMON POOL PROBLEMS
PROBLEM DESCRIPTION CAUSE SOLUTION
ALGAE
COLORED WATER
FLOATING MATTER IN WATER
• Greenish water.
• Green or black spots on pool liner.
• Pool liner is slippery and/or has a bad odor.
• Water turns blue, brown, or black when first treated with chlorine.
• Water is cloudy or milky.
• Chlorine and pH levels need adjustment.
• Copper, iron or maganese in water being oxidized by the added chlorine. This is Common.
• "Hard water" caused by a too high pH level.
• Chlorine content is low.
• Foreign matter in water.
• Super chlorinate with shock treatment. Correct pH to your pool store's recommended level.
• Vacuum pool bottom.
• Maintain proper chlorine level.
• Adjust pH level to the recommended level.
• Run filter until water is clear.
• Correct the pH level. Check with your pool dealer for advice.
• Adjust the chlorine level.
English
163
CHRONIC LOW WATER LEVEL
SEDIMENT ON POOL BOTTOM
SURFACE DEBRIS
• Level is lower than on previous day.
• Dirt or sand on pool floor.
• Leaves, insects etc.
• Rip or hole in pool liner or hoses.
• The drain valves are loose.
• Heavy use, getting in and out of pool.
• Pool too close to trees.
• Repair with a patch kit.
• Finger tighten all caps.
• Use Intex pool vacuum to clean bottom of pool.
• Use Intex pool skimmer.
IMPORTANT
If you continue to experience difficulty, please contact our Consumer Service Department for assistance. See back cover for contact information.
CCOOMMMMOONN PPRROOBBLLEEMMSS
SAVE THESE INSTRUCTIONS
Page 36
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
English
GENERAL AQUATIC SAFETY
Water recreation is both fun and therapeutic. However, it involves inherent risks of injury and death. To reduce your risk of injury, read and follow all product, package and package insert warnings and instructions. Remember, however, that product warnings, instructions and safety guidelines cover some common risks of water recreation, but do not cover all risks and or dangers.
For additional safeguards, also familiarize yourself with the following general guidelines as well as guidelines provided by nationally recognized Safety Organizations:
• Demand constant supervision. A competent adult should be appointed as a “lifeguard” or water watcher, especially when children are in and around the pool.
• Learn to swim.
• Take the time to learn CPR and first aid.
• Instruct anyone who is supervising pool users about potential pool hazards and about the use of protective devices such as locked doors, barriers, etc.
• Instruct all pool users, including children what to do in case of an emergency.
• Always use common sense and good judgement when enjoying any water activity.
• Supervise, supervise, supervise.
163
For additional information on safety, please visit
• The Association of Pool and Spa Professionals: The Sensible Way to Enjoy Your Aboveground/Onground Swimming Pool www.nspi.org
• American Academy of Pediatrics: Pool Safety for Children www.aap.org
• Red Cross www.redcross.org
• Safe Kids www.safekids.org
• Home Safety Council: Safety Guide www.homesafetycouncil.org
• Toy Industry Association: Toy Safety www.toy-tia.org
SSAAFFEETTYY GGUUIIDDEELLIINNEESS
SAVE THESE INSTRUCTIONS
Page 37
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
English
LIMITED WARRANTY
Your Sand Filter Pump & Saltwater system has been manufactured using the highest quality materials and workmanship. All Intex products have been inspected and found free of defects prior to leaving the factory. This Limited Warranty applies only to the Sand Filter Pump & Saltwater system and accessories listed below.
The provisions of this Limited Warranty apply only to the original purchaser and is not transferable. This Limited Warranty is valid for the period noted below from the date of the initial retail purchase. Keep your original sales receipt with this manual, as proof of purchase will be required and must accompany warranty claims or the Limited Warranty is invalid.
Sand Filter Pump & Saltwater system Warranty – 2 Years Hoses, Plunger Valves & Fittings Warranty – 180 days
If a manufacturing defect is found within the periods noted above, please contact the appropriate Intex Service Center listed in this manual. The Service Center will determine the validity of the claim. If the Service Center directs you to return the product, please carefully package the product and send with shipping and insurance prepaid to the Service Center. Upon receipt of the returned product, the Intex Service Center will inspect the item and determine the validity of the claim. If the provisions of this warranty cover the item, the item will be repaired or replaced at no charge.
163
Any and all disputes regarding the provisions of this Limited Warranty shall be brought before an informal dispute settlement board and unless and until the provisions of these paragraphs are carried forth, no civil action may be instituted. The methods and procedures of this settlement board shall be subject to the rules and regulations set forth by the Federal Trade Commission (F.T.C.). IMPLIED WARRANTIES ARE LIMITED TO THE TERMS OF THIS WARRANTY AND IN NO EVENT SHALL INTEX, THEIR AUTHORIZED AGENTS OR EMPLOYEES BE LIABLE TO THE BUYER OR ANY OTHER PARTY FOR DIRECT OR CONSEQUENTIAL DAMAGES OR LIABILITIES. Some states, or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
This Limited Warranty does not apply if products are subject to negligence, abnormal use or operation, accident, improper operation, improper voltage or current contrary to operating instructions, or to damage by circumstances beyond Intex’s control, including but not limited to, ordinary wear and tear and damage caused by exposure to fire, flood, freezing, rain, or other external environmental forces. This Limited Warranty applies only to those parts and components sold by Intex. The Limited Warranty does not cover unauthorized alterations, repairs or disassembly by anyone other than Intex Service Center personnel.
DO NOT GO BACK TO THE PLACE OF PURCHASE FOR RETURN OR REPLACEMENT. IF YOU ARE MISSING PARTS OR NEED ASSISTANCE, PLEASE CALL US TOLL-FREE (FOR U.S. AND CANADIAN RESIDENTS): 1-800-234-6839 OR VISIT OUR WEBSITE: WWW.INTEXSTORE.COM.
Proof of Purchase must accompany all returns or the warranty claim will be invalid.
SAVE THESE INSTRUCTIONS
Page 38
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
English
COUNTRIES/REGIONS SERVICE CENTER LOCATIONS
• UNITED STATES INTEX RECREATION CORP.
• CANADA 1665 Hughes Way
Long Beach, CA 90801 Tel: 1-800-234-6839 Fax: 310-549-2900
ebsite: www.intexcorp.com (U.S./Canada only)
W Consumer Service Hours: 8:30 am to 5:00 pm Pacific Time, Mon. thru F
• MEXICO KAY INTERNACIONAL, S.A. DE C.V.
SAN JERONIMO # 550- INT.501 Y 502. COL. JARDINES DEL PEDREGAL. C.P. 01900 MÉXICO D.F. Tel: 01-800-347-4020 (Collect Call) Tel: 55-9172-8035 Fax: 55-9172-8047 E-mail: servicenter@kayinternacional.com Website: www.intexmexico.com.mx
• PANAMA SUPRO MUNDIAL S.A./
• PARAGUAY PRODUCTOS SUPERIORES S.A.
• ECUADOR Boulevard Andrews, Albrook,
• HONDURAS Panama, Rep. of Panama
• EL SALVADOR Tel: 507-300-3800
• NICARAGUA Fax: 507-300-3813
E-mail: suproadmin@supropanama.com
RI. only.
163
• COSTA RICA CENTURY USA, LLC
• DOMINICAN REPUBLIC 4731 W. Atlantic Ave., Suite B-3
• GUATEMALA Delray Beach, FL 33445, USA
• COLOMBIA Tel: 561-495-0648
• VENEZUELA Fax: 561-495-4782
E-mail: sales@centuryusa.com
• MIDDLE EAST REGION FIRST GROUP INTERNATIONAL
REGION AL MOOSA GROUP BUILDING, 1ST FLOOR,
OFFICE 102 & 103, UMM HURAIR ROAD, KARAMA, DUBAI, UAE TEL: 00971-4-800INTEX(46839) / +971-4-3373322 FAX: 00971-4-3375115 E-mail: intex@firstgroupinternational.com. Website: www.firstgroupinternational.com
• ASIA INTEX DEVELOPMENT CO. LTD.
9th Floor, Dah Sing Financial Centre 108 Gloucester Road, Wanchai, Hong Kong Tel: 852-28270000 Fax: 852-23118200 E-mail: xmservicesupport@intexcorp.com.cn Website: www.intexdevelopment.com
For answers to most frequently asked questions, please visit www.intexcorp.com. Non U.S. Residents, please visit www.intexdevelopment.com.
SAVE THESE INSTRUCTIONS
Page 39
®
(163) MODEL CS15110 SAND FILTER PUMP & FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 11/08/2011
English
For Residents of the U.S. & Canada:
INTEX RECREATION CORP. Attn: Consumer Service 1665 Hughes Way Long Beach, CA 90801 Phone: 1-800-234-6839 Fax: (310) 549-2900
Consumer Service Hours: 8:30 am to 5:00 pm Pacific time Monday thru Friday only Website: www.intexcorp.com
For Residents outside of the U.S. and Canada: Please refer to the Service Center Locations
©2011 Intex Marketing Ltd. - Intex Development Co. Ltd. ­Intex Trading Ltd. - Intex Recreation Corp. All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle Rechte vorbehalten. Printed in China/Imprimé en Chine/Impreso en China/Gedruckt in China.
®™ Trademarks used in some countries of the world under license from/®™ Marques utilisées dans certains pays sous licence de/Marcas registradas utilizadas en algunos países del mundo bajo licencia de/Warenzeichen verwendet in einigen Ländern der Welt in Lizenz von/Intex Marketing Ltd.
to/à/a/an Intex Trading Ltd., Intex Development Co. Ltd., G.P.O Box 28829, Hong Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the
European Union by/Distribué dans l’Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union durch/Intex Trading B.V., P.O. Box nr.
1075 – 4700 BB Roosendaal – The Netherlands
I N T E X
Loading...
