User’s Manual
ISL32741EVAL1Z
User’s Manual: Evaluation Board
Industrial Precision
Rev 1.00 Aug 2017
Page 2
USER’S MANUAL
LOGIC
I/O
RS-485
I/O
3.3V
SUPPLY
J5J2
J1
ISL32741EIBZ
ISOLATED
RS-485
TRANSCEIVER
ISOLATED
DC-DC
CONVERTER
5V
3
ISL32741EVAL1Z
Evaluation Board
1. Overview
The ISL32741EVAL1Z board enables the evaluation of the ISL32741EIBZ reinforced isolated, half-duplex RS-485
transceiver in a typical bus node application, used in isolated industrial networks.
1.1 Key Features
• Drive capability of up to 160x1/5UL-transceivers
• Isolated 3.3V to 5V DC/DC converter with regulated output
1.2 Specifications
This board has been configured and optimized for the following operating conditions:
• Up to 40Mbps data rate
•V
= 3.3V
CC
1.3 Ordering Information
Part Number Description
ISL32741EVAL1Z ISL32741EIBZ evaluation board
UG126
Rev.1.00
Aug 24, 2017
1.4 Related Literature
• For a full list of related documents, visit our website
• ISL32741E
product page
Figure 1. Block Diagram
UG126 Rev.1.00 Page 2 of 10
Aug 24, 2017
Page 3
ISL32741EVAL1Z 2. Functional Description
2. Functional Description
The ISL32741E is a reinforced isolated, 40Mbps, half-duplex RS-485 transceiver. The device incorporates a patented
refresh circuit to maintain the correct output state with respect to data input. At power-up, the bus outputs follow the
tables in “
The DE input should be held low during power-up to prevent false drive data pulses on the bus. This is accomplished
by connecting DE through a 10kΩ pull-down resistor to GND1.
This transceiver uses a differential input receiver for maximum noise immunity and common-mode rejection. Input
sensitivity is ±200mV, as required by the RS-485 specification.
The receiver input resistance is 54kΩ minimum. The receiver includes a “full fail-safe” function that ensures a highlevel receiver output if the receiver inputs are unconnected (floating) or shorted. The receiver output is tri-statable
through the active low RE
The driver is a differential output device that delivers at least 2.1V across a 54Ω purely differential load. The driver
features low propagation delay skew to maximize bit width and to minimize EMI.
The driver in the ISL32741E is tri-statable through the active high DE input. The outputs of the ISL32741E driver are
not slew rate limited, so faster output transition times allow data rates of at least 40Mbps.
Important Notice:
For convenience, an isolated DC/DC converter is used to provide the power supply across the isolation barrier. Its
isolation ratings however, are lower than those of the transceiver. Therefore, ensure that the ground potential difference
between the left side (GND1, GND2) and the right side (GND3, GND4) of the board remain below 50VAC (see
Figure 2
Truth Tables”.
input.
).
2.1 Truth Tables
Receiving
Inputs Output
RE
00 V
0 0 -0.05V > V
00 V
0 0 Inputs Open/Shorted 1
1 1 X High-Z
1 0 X High-Z*
Inputs Outputs
RE
X11101
X10110
0 0 X 0 High-Z High-Z
1 0 X 0 High-Z* High-Z*
Note: *Transceiver shutdown mode
DE D ISODE B A
DE A-B RO
≥ -0.05V 1
AB
> -0.2V Undetermined
AB
≤ -0.2V 0
AB
Transmitting
UG126 Rev.1.00 Page 3 of 10
Aug 24, 2017
Page 4
ISL32741EVAL1Z 3. PCB Layout Guidelines
3. PCB Layout Guidelines
Both supplies, V
possible to the supply pins for proper operation.
DD1
and V
, must be bypassed with 100nF ceramic capacitors. These should be placed as close as
DD2
3.1 ISL32741EVAL1Z Evaluation Board

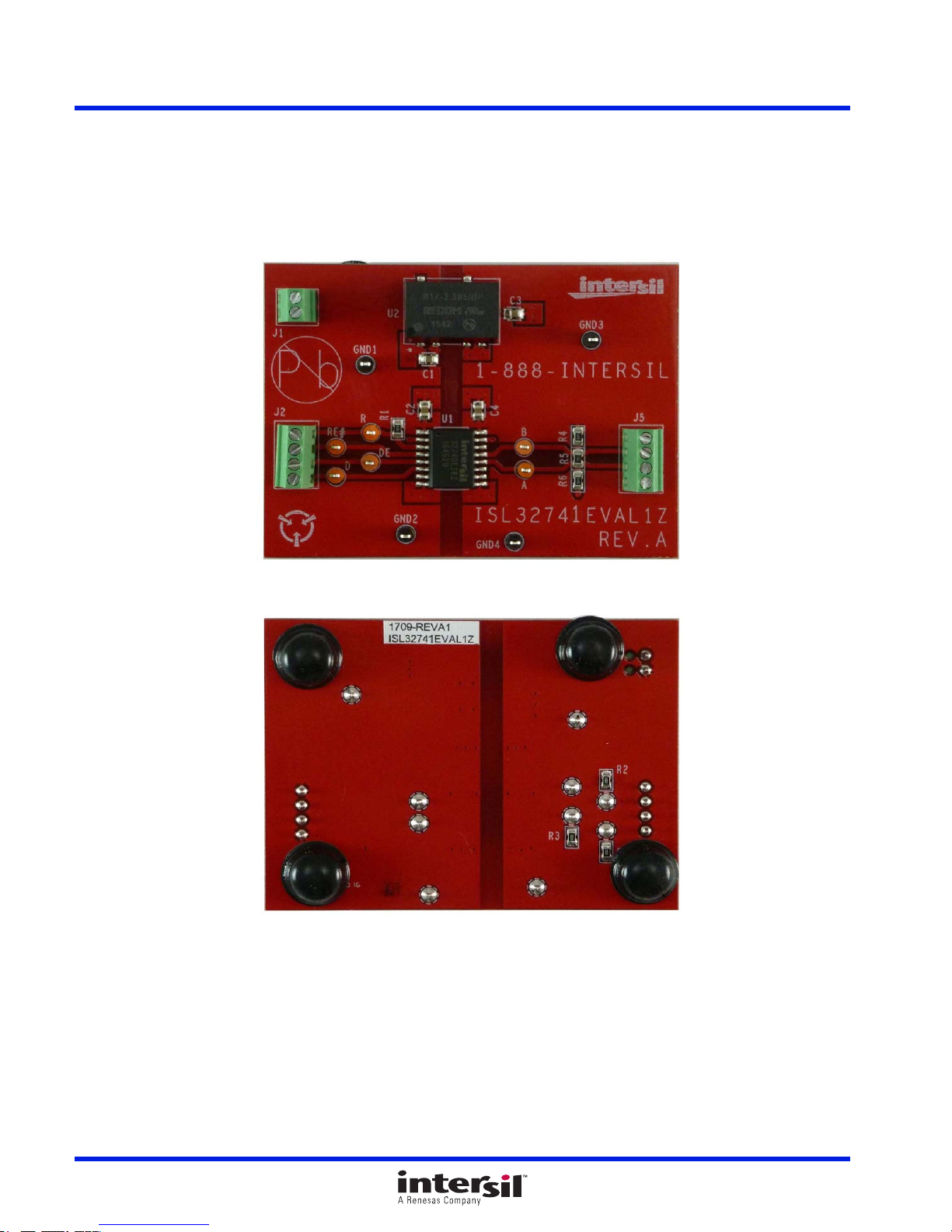

Figure 2. Top Side
UG126 Rev.1.00 Page 4 of 10
Aug 24, 2017
Figure 3. Bottom Side
Page 5
UG126 Rev.1.00 Page 5 of 10
Aug 24, 2017
ISL32741EVAL1Z 3. PCB Layout Guidelines
3.2 ISL32741EVAL1Z Circuit Schematic

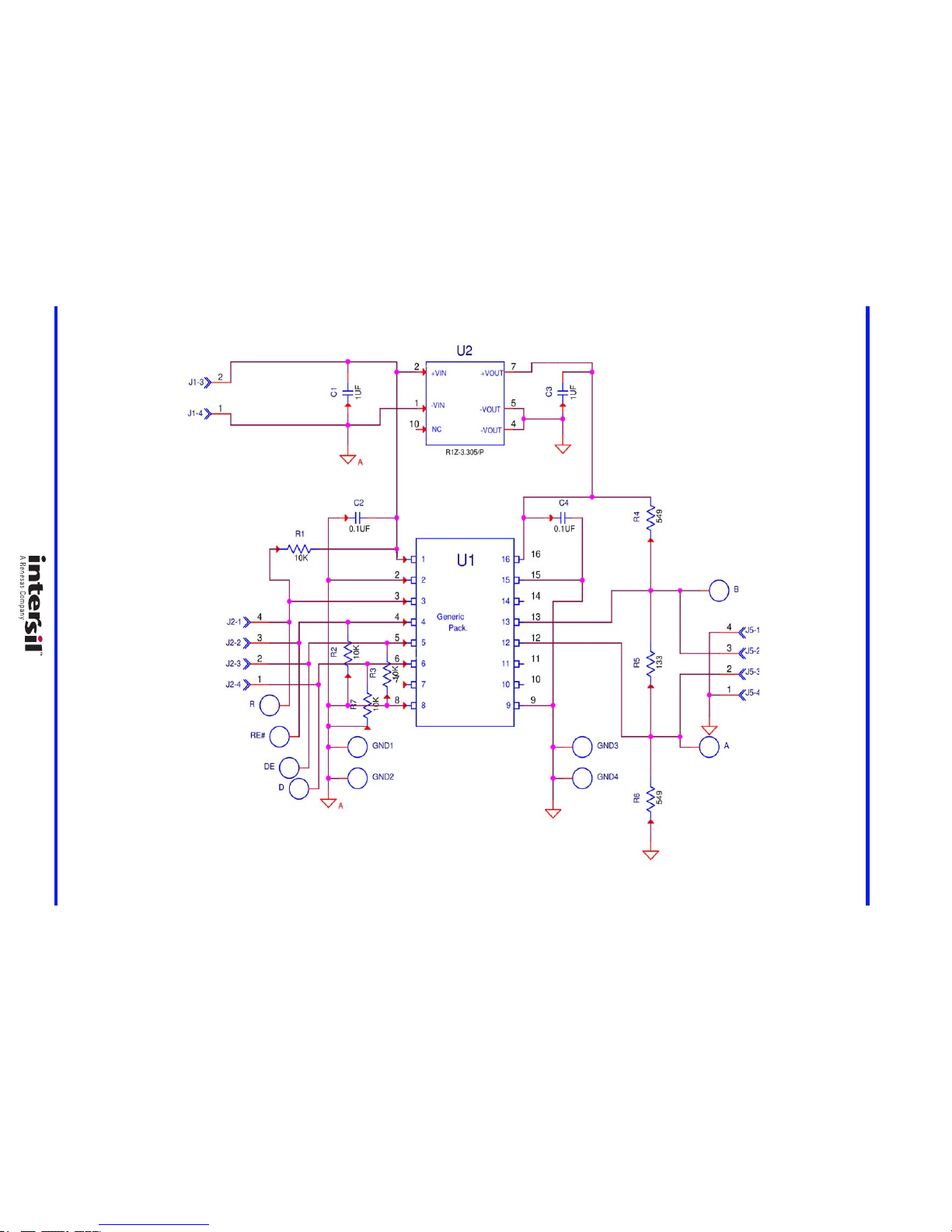

Figure 4. ISL32741EVAL1Z Schematic
ISL32741EIBZ
Page 6
ISL32741EVAL1Z 3. PCB Layout Guidelines
3.3 Bill of Materials
Reference
Manufacturer Part Qty
ISL32741EVAL1ZREVAPCB 1 PWB-PCB, ISL32741EVAL1Z, REVA, ROHS Imagineering Inc
Designator Description Manufacturer
ISL32741EIBZ 1 U1 6KV REINFORCED ISOLATED, 40Mbps,
HALF-DUPLEX RS-485 TRANSCEIVER, ROHS
R1Z-3.305/P 1 U2 ISOLATED 3.3V-TO-5V DC/DC CONVERTER WITH
REGULATED OUTPUT, ROHS
CR0805-8W1002FT(PbFREE)
RK73H2AT1330F 1 R5 RES, SMD, 0805, 133Ω, 1/8W, 1%, TF, ROHS KOA
RC0805FR-07549RL 2 R4, R6 RES, SMD, 0805, 549Ω, 1/8W, 1%, TF, ROHS Yageo
C0805X5R160-106KNE 2 C1, C3 CAP, SMD, 0805, 10µF, 16V, 10%, X5R, ROHS Venkel
ECJ-2VB1E104K 2 C2, C4 CAP, SMD, 0805, 0.1µF, 25V, 10%, X7R, ROHS Panasonic
1725656 1 J1 CONN-TERMINAL BLK, TH, 2P, 6A, 125V,
1725672 2 J2, J5 CONN-TERMINAL BLOCK, 4POS, 0.1, 26-20AWG,
5001 4 GND1 - GND4 CONN-MINI TEST PT, VERTICAL, BLK, ROHS Keystone
5003 6 A, B, D, R, DE, RE# CONN-MINI TEST POINT, VERTICAL, ORG, ROHS Keystone
S-2261 1 Place assy in bag BAG, STATIC, 4x6, ZIPLOC, ROHS ULINE
4 R1 - R3, R7 RES, SMD, 0805, 10k, 1/8W, 1%, TF, ROHS Venkel
20-30AWG, 2.54mm, ROHS
63V, 6A, ROHS
Intersil
RECOM-POWER
Phoenix Contact
Phoenix Contact
LABEL-DATE CODE 1 AFFIX TO BACK OF
PCB
UG126 Rev.1.00 Page 6 of 10
Aug 24, 2017
LABEL-DATE CODE_LINE 1: YRWK/REV#, LINE 2:
BOM NAME
Intersil
Page 7
ISL32741EVAL1Z 3. PCB Layout Guidelines

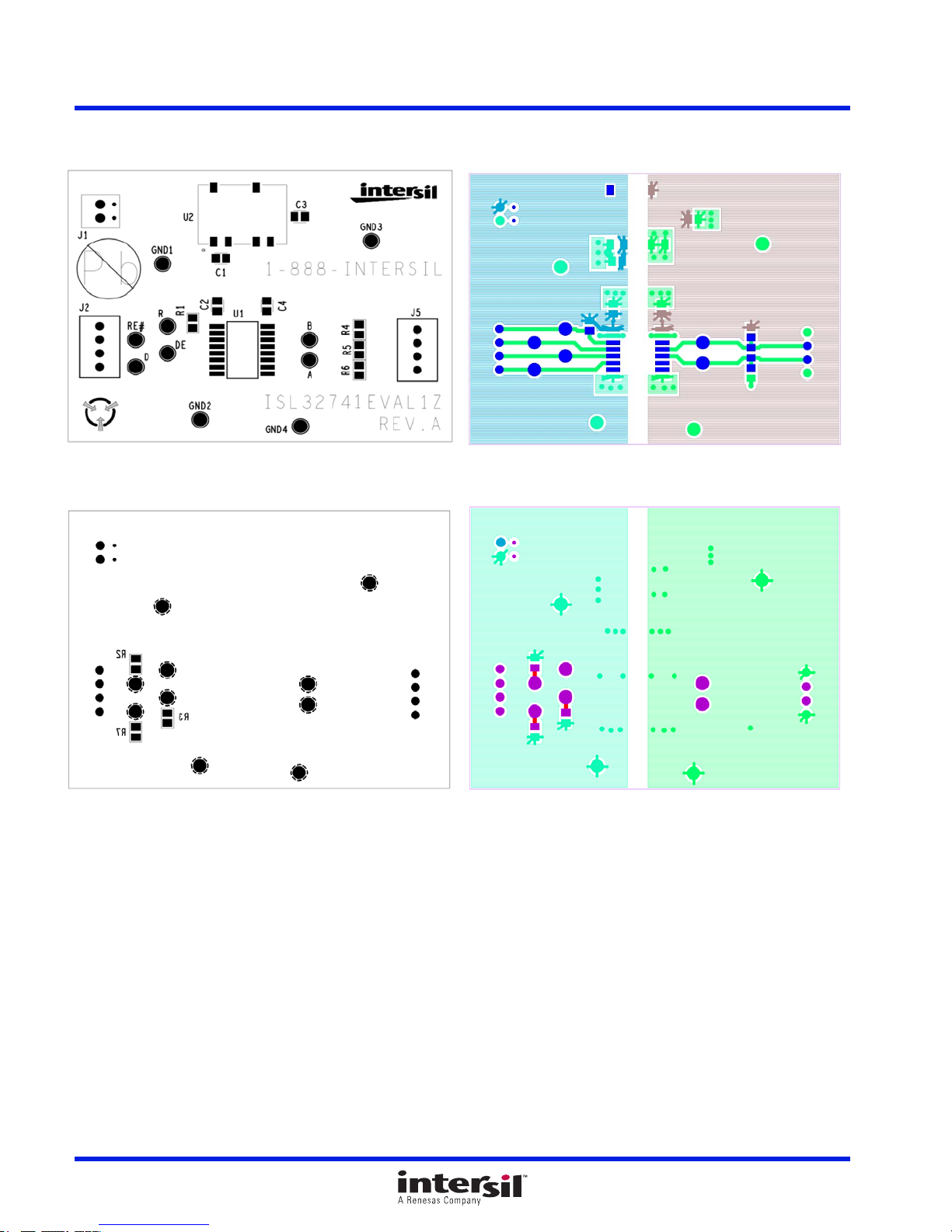

3.4 Board Layout
Figure 5. Silkscreen Top
Figure 7. Silkscreen Bottom
Figure 6. Top Layer
Figure 8. Bottom Layer
UG126 Rev.1.00 Page 7 of 10
Aug 24, 2017
Page 8
ISL32741EVAL1Z 4. Typical Performance Curves
DI
A
B
TIME: 80ns/DIV
SIGNAL: 2V/DIV
A
B
TIME: 80ns/DIV
SIGNAL: 2V/DIV
RO
DI
A
B
TIME: 10ns/DIV
SIGNAL: 2V/DIV
RO
A
B
TIME: 10ns/DIV
SIGNAL: 2V/DIV

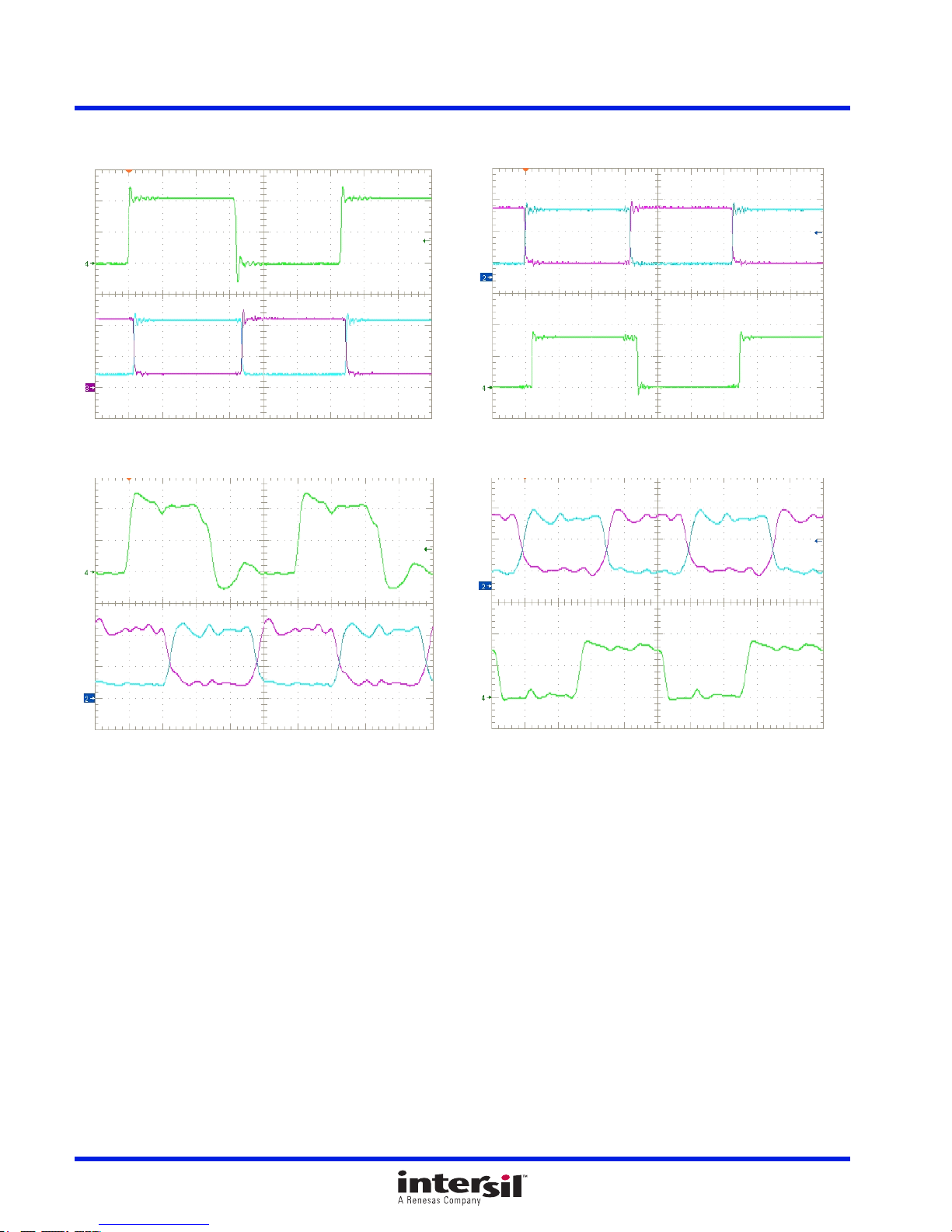

4. Typical Performance Curves
Figure 9. Transmit Mode
Figure 11. Transmit Mode
Figure 10. Receive Mode
Figure 12. Receive Mode
UG126 Rev.1.00 Page 8 of 10
Aug 24, 2017
Page 9
ISL32741EVAL1Z 5. Revision History
5. Revision History
Rev. Date Description
1.00 Aug 24, 2017 Updated the truth tables on page 3.
0.00 May 31, 2017 Initial release
© Copyright Intersil Americas LLC 2017. All Rights Reserved.
All trademarks and registered trademarks are the property of their respective owners.
Intersil Corporation reserves the right to make changes in circuit design, software and/or specifications at any time without notice. Accordingly, the
reader is cautioned to verify that the document is current before proceeding.
For information regarding Intersil Corporation and its products, see www.intersil.com
UG126 Rev.1.00 Page 9 of 10
Aug 24, 2017
