Interquartz IQ750, IQ750EHS Quick Reference Manual

The IQ750 and IQ750EHS offer superior performance and durability and
are covered by a 10 year warranty.

Model IQ750 offers many features including headset support, handsfree
speakerphone, caller ID display, headset support, phone book and
memories.

Model IQ750EHS offers the above PLUS integrated operation with
Plantronics wireless headsets with full EHS (Electronic Hook Switch)
capability. This means that calls can be answered and terminated
directly from the headset.

To view/download a complete list of features and a more detailed user
manual, please visit www.interquartz.com.au

INSTALLATION

Install the IQ750 or IQ750EHS on a desk, table or shelf away from
excessive heat, damp, dust, direct sunlight, vibration, and sources of
electrical or electromagnetic or radio frequencies. If the unit is to be
wall-mounted, use the IQ235 WALL MOUNTING BRACKET or Wall
Mount Kit No. 3 (please order separately).

UNPACKING

The carton contains the following:

Telephone body and handpiece
Coiled Handset cord, line cord and Interquartz EHS Cable (for
IQ750EHS only)
9VDC Adaptor
This Quick Start-Up Guide
Headset Stand (optional)
Headset Riser (optional)

GENERAL SETTING UP

Fit the line cord and coiled cord and insert the power adaptor plug to
the power socket, and set the Ringer Volume and the Ringer Pitch
controls found on the underside. Lift the handset to check for dial tone
and to wake up the display. See following sections to complete the
setup.

LINE CONNECTION

This telephone is supplied with a modular plug compatible with RJ45
and RJ11/12 modular sockets, with the centre pair being reserved for
speech and signalling. Other types of plugs and cords are available on
request.

Fig. 4 DATE AND TIME SET UP DISPLAY

It is recommended to set up the Date and Time during installation to
ensure correct functioning of the Date display, as follows:

FIRST TIME INSTALLATION OF DATE AND TIME

The display will automatically show step by step prompts to guide you
through the Date and Time setup procedure. The following procedure
assumes that all steps in the "General Setting Up" have been carried
out.

1.If the display is blank, lift the Handset briefly to wake up the
telephone and replace the Handset in the cradle

2.For 10 seconds the display will show "20100101" and "DATE­YYYYMMDD" when the unit is first powered up

3.If the display is alive but not showing "20100101" and "DATE­YYYYMMDD", press STORE, TIMER; the display will return to the
"20100101" and "DATE-YYYYMMDD" mode for a further 10
seconds

4.Enter Year (4 digits), Month (2 digits) and Date (2 digits)

5.Hour Mode Setting - the display will now show "1-12HR 2-24HR"

6.Press 1 for 12 hour mode or 2 for 24 hour mode display (if 24 hour
mode was chosen, please go to step 9)

7.If 12-hour mode was selected above, the display will show "1-AM 2­PM"

8.Press 1 or 2 to select AM or PM time display

9.The display will show "TIME-HHMM" after completion of the Hour
Mode Setting

10.To set the current time enter 2 digits for the hour, followed by two
digits for the minutes

11.The display will show "CLOCK STORED" and the date and time will
be updated.

Note:use Cursor or to correct your numeric entries at any stage in

the above procedures.

HEADSET CONNECTION

CORDED HEADSET

Connect the headset's cable to the socket at the rear marked
"Headset". Please see the following sections entitled "HEADSET
POLARITY SWITCH" and "HEADSET MIC ADJUST CONTROL" to learn
about the settings needed for your headset.

WIRELESS HEADSET (IQ750) with HANDSET LIFTER

Connect the headset as shown in Fig 1. The connections shown
illustrate the *Plantronics CS60 and the use of an optional handset lifter
(a Plantronics accessory) and are to be used as a guide. Connections
using other headsets and lifters are similar.

WIRELESS HEADSET using EHS mode (IQ750EHS)

Connect the headset as shown in Fig 2. The connections shown
illustrate the *Plantronics CS60 and the use of the Interquartz EHS
cable (supplied with the IQ750EHS) and are to be used as a guide.
Connections using other headsets are similar. More details of settings
for other headset models can be obtained from Interquartz.

On Line Indicator

The IQ750EHS is fitted with a jack to support the operation of an On
Line Indicator (not manufactured by Interquartz). Connect the OLI into
the OLI Jack on the telephone as shown in Fig 1 & 2.

*Plantronics is a trademark or registered trademark of Plantronics, Inc.

HEADSET POLARITY SWITCH

- (Fig. 5) - Set this switch in either
position to suit your Headset. Try each position to find the setting that
suits your Headset.

Fig. 5 HEADSET MIC ADJUST CONTROL

HEADSET MIC ADJUST CONTROL

- (Fig. 5) - Set to adjust your
Headset's outgoing microphone level (adjust with a small screwdriver).
To make a Headset mic level adjustment, make a call and speak via the
Headset. Then, during the call, lift the Handset and use the other
party's help to decide if your voice level is the same loudness. If not,
press HANDSFREE/HEADSET to reactivate the Headset microphone
and use the control to adjust the Headset's mic level. Clockwise rotation
increases the Headset mic output level. Note: the recommended
settings in Fig 1 & 2.

TIMER KEY

To use the timer function as a stop watch when the telephone is idle
(not in use on a call)

1. Press TIMER once to view the last timer value

2. Press TIMER again to start the timer; the timer will count up from

00:00 to 59:59 and then roll over to 00:00 again

3. Press TIMER once more to stop the timer; the display will show the

timer value for 10 seconds

4. Press TIMER again to resume the clock display in less than 10

seconds if required.
To use the timer as a call timer, telephone will automatically enter the
Timer mode when commencing a call. After hanging up, the timer will
stop and its value will stay on the display for 10 seconds.

BRIGHTNESS ADUSTMENT

Press Cursor to darken the display
Press Cursor to brighten the display

BASIC OPERATION

IQ750 or IQ750EHS can be used in the same way as a normal
telephone; simply lift the Handset to answer an incoming call, or lift the
Handset and dial on the Keypad to commence an outgoing call. Please
refer to other sections for more about Handsfree, Headset, Caller ID

display and Memory operations. The telephone will also operate in a
basic mode when mains power has failed (will automatically power up
approximately 1 second after lifting handset). If 4 x AA Alkaline
batteries (not supplied) are fitted in the absence of mains adaptor or
during mains power failure, they can provide up to one month's support
of all functions.

Please see the Quick Start-up Guide overleaf for information
regarding general operation and controls. Should you require

assistance or have any queries, please send an email to

[e-mail]

HOLDING AND TRANSFERRING CALLS

- This is dependent on
your system type, so please check your system's Extension User Guide
to find out how to use the RECALL Key. It is sometimes known as the
Flash or Facility Key.

MESSAGE WAITING LIGHT COMPATIBILITY

If you have a PABX system, an optional circuit may be fitted to suit - the
red lens in the top right hand corner will light. If you have a Centrex
system (eg. Spectrum, Customnet) or a compatible residential line
service such as Telstra Messagebank, the Caller key indicator and the
"Mail" (envelope) icon will flash and "MESSAGE WAITING" will be
displayed. To retrieve your message, consult your voice mail system
user guide.

HEADSET OPERATION

USING A CORDED HEADSET

HEADSET/HANDSET/HANDSFREE MODES

- A call can be switched

between one mode to any other as follows:

1. To swap to the Handset from the Headset during a call, lift Handset

2. To swap from the Handset to the Headset during a call, press

HANDSFREE/HEADSET.

TRAINEE/SUPERVISOR MODE

- Allows for the Handset and a
Headset to be used in tandem. This will enable a supervisor to monitor
a trainee's progress during a call, or "take over" a call. The following
procedures assume that the trainee is using the Headset and a call is in
progress.

1. During a trainee's call the supervisor may lift the Handset (Handsfree

/ Headset indicator will turn off)

2. Quickly press HANDSFREE/HEADSET and the indicator will

illuminate

3. The trainee may continue the conversation with the supervisor only

listening to the call.

USING A WIRELESS HEADSET (IQ750EHS)

To answer or start a call, press the Headset's Call Control key (this is
typically the button on the headset's earpiece: see Headset User
Guide). During the call, various functions of the IQ750EHS will be
disabled or modified to protect the wireless headset user's privacy while
maintaining their control of the call, as follows:

1. The MUTE Key will not respond (use the Headset's mute function

instead)

2. The Handset, if lifted off the cradle, will not interrupt the headset and

cannot disconnect the call if replaced in the cradle. There will be no
audio to or from the handset.

3. The red indicator on the HANDSFREE/HEADSET Key, when ON, will

signify that the telephone is in use. However, pressing this key will

not disconnect the call.
The telephone will resume its normal functions as described elsewhere
in this manual when the call on the wireless headset is terminated or if
the telephone is connected to a corded headset.

On Line Indicator

The OLI will be illuminated whenever there is a call on the telephone.

Silent Ringing

Designed for call centers or any application where call-related noise is
to be kept to a minimum, this feature allows incoming calls to ring
silently; the operator is aware of the incoming call, but the telephone
does not add to the room noise even when ringing.
To use the telephone in Silent Ringing mode:

1. Set the Ringer Volume Switch to the OFF position (signified by the

square symbol without a bell symbol inside it)

2. Put your Headset on and wait for the next incoming call

3. When a call arrives, the Ringer/Message Waiting Indicator will flash

and the operator will hear the ringing tone at a low level in the

Headset

4. Press HANDSFREE/HEADSET to answer the call.

ALERT LIGHT SUPPORT

- The IQ750 or IQ750EHS is designed to
support the "Alert Light" available on some Headsets. When pressing
HANDSFREE/HEADSET on the telephone, the "Alert Light" indicator on
the Headset will be illuminated, signifying that the user is on a call. This
feature can be used effectively in call centre applications so that the
user's colleagues will be aware that the user has a call in progress.

CALLER ID DISPLAY

When an incoming call is received, information including the Caller's
name, number, date & time will be transmitted to your Caller Display
Telephone between the first and second rings. The Caller's name will
be displayed if delivered with the Caller's number or if the number
matches to numbers stored in the Direct Access or Directory Memories.
The IQ750 and IQ750EHS are also Call Waiting compatible.

Caller ID during an incoming call:

1. The Ringer sounds and the Ringer Indicator will flash

2. After about 1 second, the Caller's information is displayed on the

display

3. If the call is not answered, the Caller's information will be kept on the

display for a further 10 seconds after the last ring; the Caller key

indicator will also flash.
The Caller List can store up to 80 caller records. When it has reached
its full capacity, the oldest record will be replaced by the new call.

To view the Caller List and dial a Number from the Caller List

1. Press CALLER to display the most recent incoming call; if there is no

entry in the Caller List, the display will show "NO ENTRIES"

2. Press SCROLL up to move on to the previous call; subsequent

presses will display successively earlier calls

3. To dial a number displayed; press DIAL

4. If the end of the Caller List is reached, the display will show "END OF

LIST"; you may continue to scroll up or down to review the list again

5. If you choose not to dial any number from the Caller List, the display

will revert to clock mode in 10 seconds.

To store a Call into a Direct Access Memory

1. Press CALLER, the most recent incoming Caller's name and number

will be displayed

2. Press SCROLL up or down to select the number you want to save

into the Direct Access Memory

3. Press STORE; the display will show "STORE"

4. Press a Memory Key (One-Touch or Two-Touch Memory Key); and

the display will show "ENTER NUMBER" below the telephone number

5. Press STORE to confirm. You can use Cursor or to change the

number before saving

6. The display will show the Caller's name; press STORE to confirm.

You can use the Cursor or to edit the name before saving

7. The LCD will show "MEMORY STORED"

To store a Call into the Directory Memory

1. Press CALLER, the most recent incoming Caller's name and number

will be displayed

2. Press SCROLL up or down to select the number you want to save

into the Directory Memory

3. Press STORE; the display will show "STORE"

4. Press DIRECTORY; and the display will show "ENTER NUMBER"

below the telephone number

5. Press STORE to confirm. You can use the Cursor keys to change the

number before saving

6. The display will show the Caller's name; press STORE to confirm.

You can use the Cursor keys to edit the name before saving

7. The display will show "DIRECTORY STORED"

To delete a Call from the Caller List or to delete the entire Caller List

1. Press CALLER and press SCROLL up or down to find the entry you

wish to delete

2. To erase the displayed call, press CLEAR twice in rapid succession;

the display will show "ERASED"

3. To erase the entire Caller list, press CLEAR twice in rapid

succession and hold the key down on the second depression; the

display will show "HOLD TO CLR CALL"

4. To prevent entire directory erasure release the CLEAR key at this

time before 6 seconds has elapsed; otherwise keep holding the key

down and go to the next step

5. 6 seconds from step 3 the directory will be deleted and the display

will show "CALL MEM CLEAR".

Note: See MEMORY OPERATION section for more details of storing
and dialing operations using Direct Access and Direct Memories.

MEMORY OPERATION

Model IQ750 or IQ750EHS has 20 Direct Access Memories, 100 Directory
Memories, 80 Caller List and 5 Last Number Redial Memories. All
memories have a maximum 32 digits capacity and 16 characters name
capacity.
The Caller List, Direct Access and Directory Memories are non-volatile (no
batteries needed). Memory Storage can be done in either off-line (with
adaptor or battery powered) or on-line. To enter any number, press
desired digits. To enter letters for name entries, use the letters marked on
the keys. For example, press key 7 (P, Q, R, S) once to enter P, twice to
enter Q and so on. Press Cursor to make a space. To store, lift
Handset or press HANDSFREE/HEADSET before commencing the
procedures described for storing numbers and names into the Direct
Access Memory and Directory Memory. You can store some of your
favorite network facility codes (e.g. Diversion, Call Forward, Call Back
etc). Consult your system User Guide for the codes that you need to store.

DIRECT ACCESS MEMORY

There are 20 Direct Access Memories accessible via 10 keys. Each
memory can store up to 32 digits plus Pause, , , and Recall. To delete
any incorrect digits while storing, use the Cursor or to move to the
unwanted character and press CLEAR.

To store a Number and Name

1. Press STORE; the display will show "STORE"

2. Press the Memory Key either once to store in a One-Touch memory or
twice for a Two-Touch memory; the display will show "ENTER
NUMBER"

3. Enter the telephone number and press STORE

4. Enter the name by using the Keypad and press STORE to confirm; the
display will show "MEMORY STORED"

To dial from a Direct Access Memory
Press the desired Memory Key either once to dial from its One-Touch
memory or twice to dial from its Two-Touch memory location.

Memory Lock

The upper row of memory keys can be pre-programmed and locked to
prevent them being overwritten. If your upper-row memory keys (the row
nearest the display, see Fig. 3 overleaf) are locked and prevent storage of
new numbers, please contact your system administrator, Interquartz or
your dealer to find out if they can be unlocked.

DIRECTORY MEMORY

The Directory Memory can store up to 100 names & numbers. When the
memory is full; the display will show "DIRECTORY FULL" If attempting to
store a telephone number and name that matches a previous entry, the
display will show "DIRECTORY EXIST"

To Store a Number and Name into Directory Memory

1. Press STORE; the display will show "STORE"

2. Press DIRECTORY; the display will show "ENTER NUMBER"

3. Enter the telephone number, then press STORE; the display will show
"ENTER NAME"

4. Enter the name by using the Keypad

5. Press STORE; the display will show "DIRECTORY STORED"

To dial from the Directory Memory using Name Search

1. Press DIRECTORY, the first entry in the directory will be displayed

2. On the keypad, press the key bearing the first letter of the name that
you wish to dial

3. Press SCROLL up or down to find the name and number, then press
DIAL to dial it out.

To edit an entry in the Directory Memory

1. Press DIRECTORY; the first entry in the directory will be displayed

2. Press SCROLL up or down to select the entry you want to edit

3. Press STORE; the first digit of the telephone number will begin to flash

4. Use Cursor or to navigate to the digit(s) to be changed and make
the necessary changes

5. Press STORE to confirm

6. The first letter of the name will flash; use Cursor or to navigate to
the letters to be changed and make the necessary changes

7. Press STORE to confirm; the display will show "DIRECTORY STORED"

To delete an entry from Directory Memory

1. Press DIRECTORY; the first entry in the directory will be displayed

2. Press SCROLL up or down to select the entry you want to delete

3. Press CLEAR twice briefly; the display will show "ERASED".

Caution: If CLEAR is pressed continuously for 6 seconds, the entire

directory list may be deleted.

LAST NUMBER REDIAL MEMORY

There are 5 Last Number Redial Memories with a maximum of 32
digits each.
Using the Last Number Redial Memory

1. To dial the most recently dialled number, press REDIAL. If you
require an earlier number go to step 2, otherwise proceed to step 3

2. Press SCROLL up or down to select a number from the 5 redial
memories. The most recently dialled number will be identified as
"REDIAL 1" on the display

3. Press DIAL to dial the selected number.

See REDIAL KEY for Direct Redial Function

CALLER LIST

The Caller List can store up to 80 callers' details. When viewing the
calls, the "CALL #" "NEW" "REPEATED" "ANSWERED"
"UNANSWERED", prompts as well as Date and Time details provide
information about the incoming call displayed in the list.

THUNDERSTORMS

The telephone, in common with household electrical appliances, can
be a source of electric and acoustic shock during thunderstorms. The
possibility of a telephone user experiencing a shock is minimal.
Nevertheless, customers should be aware of some simple precautions
to follow during thunderstorms:
Use your telephone only for calls of the utmost urgency. Keep these
calls brief. Whilst using your telephone keep clear of electrical
appliances and metal fixtures such as: stoves, air conditioners,
refrigerators, window frames and sinks.

WARRANTY - 10 YEARS

Interquartz (A'Asia) Pty Ltd warrants the original purchaser against
failure, under normal usage and in the environment and network for
which it was designed, resulting from defective material and
workmanship at time of manufacture for a period of TEN YEARS from
the date of purchase. For a more complete Warranty statement please
consult the full User Manual.

SERVICE

Please call 1800 6 IQTEL (1800 647 835) from anywhere in Australia
to arrange service or repair of your telephone.

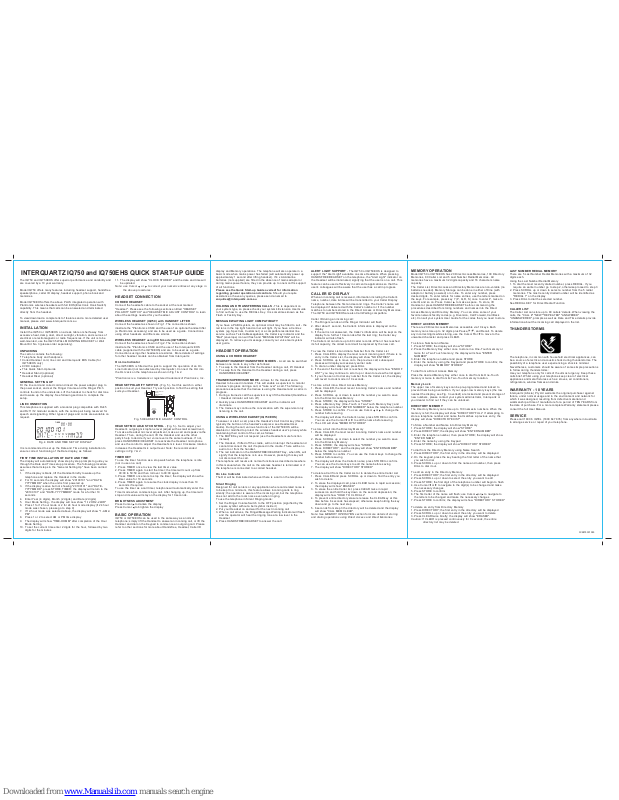

INTERQUARTZ IQ750 and IQ750EHS QUICK START-UP GUIDE

NEW
REPEAT
CALL#

TIMER

AM
PM

Reversed headset
polarity

Normal headset
polarity

3C9875001S03

750EHS

CALLER

DIRECTORY

DIAL

STORE

CLEAR

T

I

M

E

R

HANDSFREE/

HEADSET

PAUSE REDIALMUTE RECALL

NP P

Reset-

MODEL IQ750 & IQ750EHS QUICK REFERENCE GUIDE

STORE Key

Press STORE to store a number and name in either the Direct
Access Memory or Directory Memory. Any memory can store
32 digits for number and 16 characters for name. Storable
digits: 0-9, , , Pause, Recall and Handsfree commands.

RINGER

PITCH

Figure 3

Should you require further assistance, please email

[e-mail]

Ringer/Message Waiting Indicator

Flashes when the telephone rings with an incoming call. Built in
Message Waiting suits both High Voltage (80 VDC), and
Ericsson BP250 Message Waiting (other system types are
optional extras).

Cursor Keys ( and )

When storing a number and name into the Direct Access
Memory or the Directory Memory, press Cursor or key to
move forward or backward for editing. To enter a space, press
Cursor (see overleaf for explanation on Date and Time set up
and brightness adjustment).

CLEAR Key

Press twice to delete the record during record viewing in the
Directory, Caller or Redial Memories.

TIMER Key

When a call is in progress, the word TIMER appears on the
display, and the time will count from 00:00. The call duration will
be displayed for 10 seconds after the call is terminated. See
overleaf for more functions.

RESET Key

Press to reset the telephone to normal if the telephone appears
to be malfunctioning. The memories will not be affected when
this key is pressed.

DIRECTORY Key

Store up to 100 telephone numbers and names in the Directory
Memory. Press to access the Directory Memories.

CALLER Key with New Call Indicator and
Message Waiting Indicator

Press to review up to 80 incoming calls stored in the Caller
Memory. The information stored includes Telephone number,
Name, Date, Time and whether the call was answered or not.
The red indicator will flash when a new call is received and will
also flash to indicate Message Waiting for some types of
services.

Scroll Key ( and )

To review the Redial, Directory and the Caller memories, press
the Scroll Key to scroll up or down the list.

DIAL Key

Press to dial any number selected in the Direct Access Memory,
Caller Memory, Redial Memories or Directory Memory.

RECALL Key

For use with the host telephone system to invoke special
network facilities such as Call Hold or Call Transfer which may
be available in your PABX or network.
See your telephone system user guide to learn how to use it. It
may be called Flash or Facility Key. Recall timing is preset to
100mS and is user adjustable.

REDIAL Key

Press the key to redial the last number (max 32 digits), or direct
redial of an unsuccessful number dialed without going off line.
See overleaf for more functions.

Display

Displays date, clock, timer, number dialed or received and message
waiting indication available from some services (See overleaf for more
details).

MEMORY Keys

A total of 20 names and numbers can be stored via 10 Direct
Access One-Touch and Two-Touch Memory Keys. Network
facility codes may be programmed for ease of use. Upper row of
5 memory keys can be protected to prevent over-writing. To
store, lift Handset, press STORE, press Memory Key, enter
number, press STORE to confirm number, enter the name to
store in the memory. See overleaf for more details.

OLI & EHS Jacks

OLI EHS

PAUSE Key

Pause may be required if your phone is connected to any
network where a momentary pause is needed during dialing. Lift
Handset, dial any digits required before the pause, press
PAUSE, and dial remaining digits. Pause is also storable in a
memory.

MUTE Key and Indicator

Press to cut off transmission from the Handset, Headset and
Handsfree microphones to allow user privacy. The red light
indicates when the mute condition is activated. Press MUTE
again to release the mute condition.

HANDSFREE / HEADSET Key and Indicator

Press HANDSFREE/HEADSET to activate the Handsfree
mode or Headset mode. Headset mode will override Handsfree
mode if a Headset has been connected to the Headset port. A
red indicator will glow in either mode when the IQ750 is online.
Press the key again to turn it off.

Ringer Volume Switch (Hi/Low/Off)

Selection of OFF (no sound), LOW volume, and HIGH volume
of the telephone's ringing sound, which is located on the
underside. When the switch is set to OFF, the ringing sound
can still be heard via the Headset if the Headset is connected
to the Headset port (headset optional extra).

Ringer Pitch Control

Rotate the control to adjust the Ringer Pitch. Located on
the telephone's base.

Volume Slider

Adjusts the hearing level of the Handset Earpiece, Handsfree
Speaker and Headset Earpiece. Set to midway for normal
listening level. Located on the side of the telephone.

Figure 2 - CS60 and OLI Connection Diagram for IQ750EHS

CS60, CS70N and

VOYAGER 510S

Plantronics

Telephone Cord

IQ750EHS

Set Speaking Volume Major Adjust

to "B"

Interquartz EHS Cable

Interquartz
Line Cord

Telephone

Network

Outlet

Interquartz

IQ750 9V Adaptor

Mains
Power
Outlet

Plantronics

Base Power Supply

OLI

Interquartz Cable

Plantronics Cable

Figure 1 - CS60 and Lifter Connection Diagram for IQ750

CS60

Plantronics

Telephone Cord

Plantronics

Lifter Power Cord

IQ750

Interquartz
Line Cord

Interquartz

Handset Cord

Telephone

Network

Outlet

Interquartz

IQ750 9V Adaptor

Mains
Power
Outlet

Plantronics

Base Power Supply

Interquartz Cable

Plantronics Cable

Set Headset Polarity Switch to "P"

Reversed headset
polarity

Normal headset
polarity

Step 1

Set Volume Slider to

Recommended Setting Position

as shown

- VOLUME +

Step 3

Step 4

Set Headset Polarity Switch to "P"

Reversed headset
polarity

Normal headset
polarity

Step 1

Set Volume Slider to

Recommended Setting Position

as shown

- VOLUME +

Step 3

HEADSET
MIC ADJUST

Step 2

HEADSET

MIC ADJUST

Step 2

Set Headset Mic Adjust Control

fully clockwise to Recommended

Setting Position as shown

Set Headset Mic Adjust Control

fully clockwise to Recommended

Setting Position as shown

Speaking Volume Minor Adjust

Press the lower button 7 times and then

the upper button 4 times

1
2
3
4

1
2
3
4

Step 5

Set Listening Volume Major Adjust

Control to "3"

Step 6

Speaking Volume Minor Adjust

Press the lower button 7 times and then

the upper button 4 times

1
2
3
4

1
2
3
4

Step 5

Set Listening Volume Major Adjust

Control to "3"

Step 6

OLI

HL

10

L

if

ter

Set Speaking Volume Major Adjust

to "B"

Step 4
