OPERATING INSTRUCTIONS
Gemini Speakerphone
1
This Interquartz telephone has been manufactured to very high standards and
is very easy to use. Please read this manual carefully to find out how to use
the features.
Contents
1. Importa nt Note s...............................................................................2
Intended use .......................................................................................................... 2
T ele phone facilities ................................................................................................. 2
REN number...........................................................................................................3
Emergency calls .................................................................................................... 3
2. Installation.......................................................................................4
Connection............................................................................................................. 4
Wall mounting........................................................................................................ 4
3. Telephone Features ........................................................................6
Store Button...........................................................................................................6
Hands free/Headset Button......................................................................................6
Ringer Indicator ...................................................................................................... 7
Ringer Volume Switch ............................................................................................ 7
Recall Button .........................................................................................................7
Memory Stores ......................................................................................................7
V olume Control....................................................................................................... 7
Mute Button ........................................................................................................... 7
Redial / Pause Button ............................................................................................ 8
4. Operation.........................................................................................9
5. PABX & Syste m Usage.................................................................12
6. Mainten ance and Problem Solving..............................................14
7. W arra nty and Service....................................................................15
Figure 1 Wall Mounting ..........................................................................................4
Figure 2 Ha ndset Retainer for W all Mount ..............................................................5

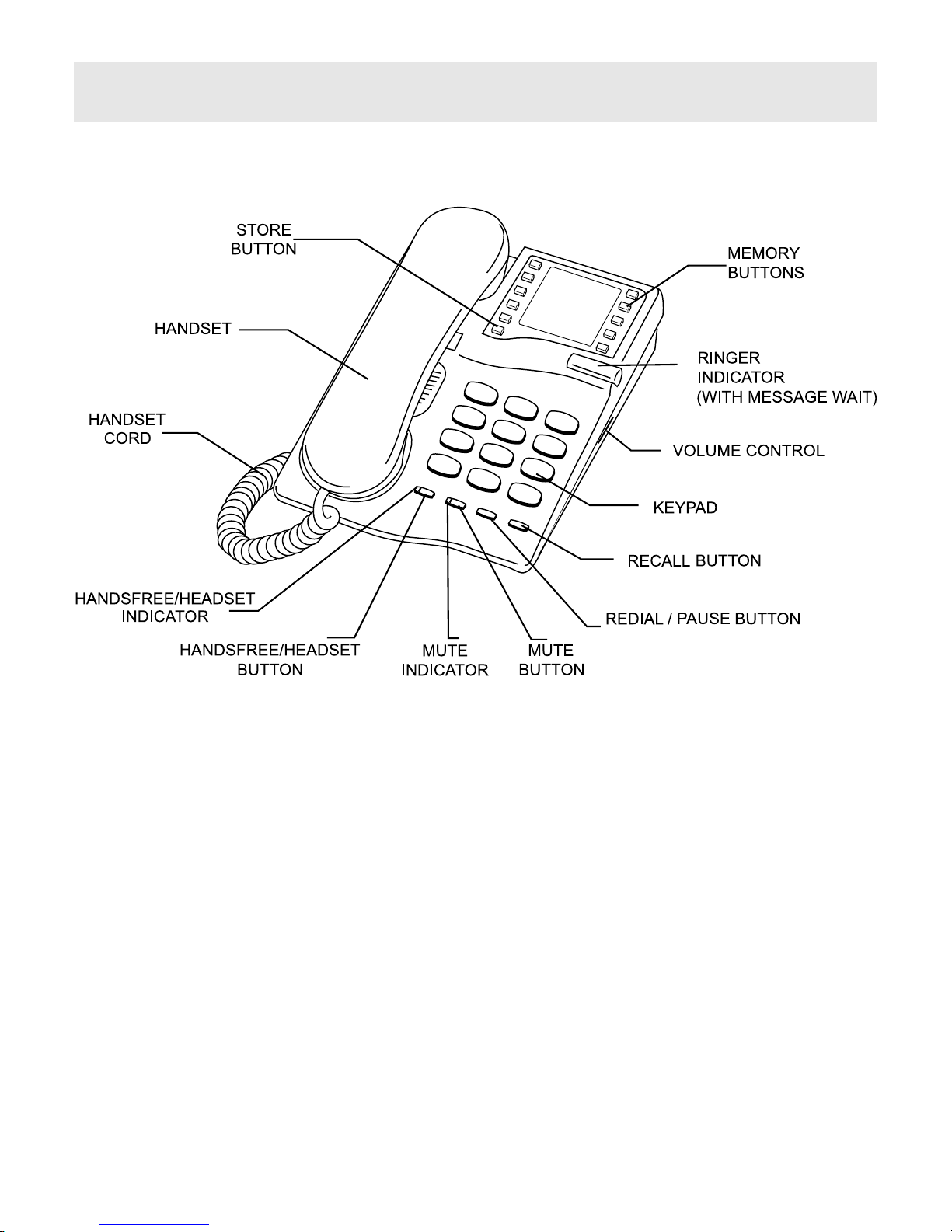

Figure 3 General Appearance.................................................................................. 6

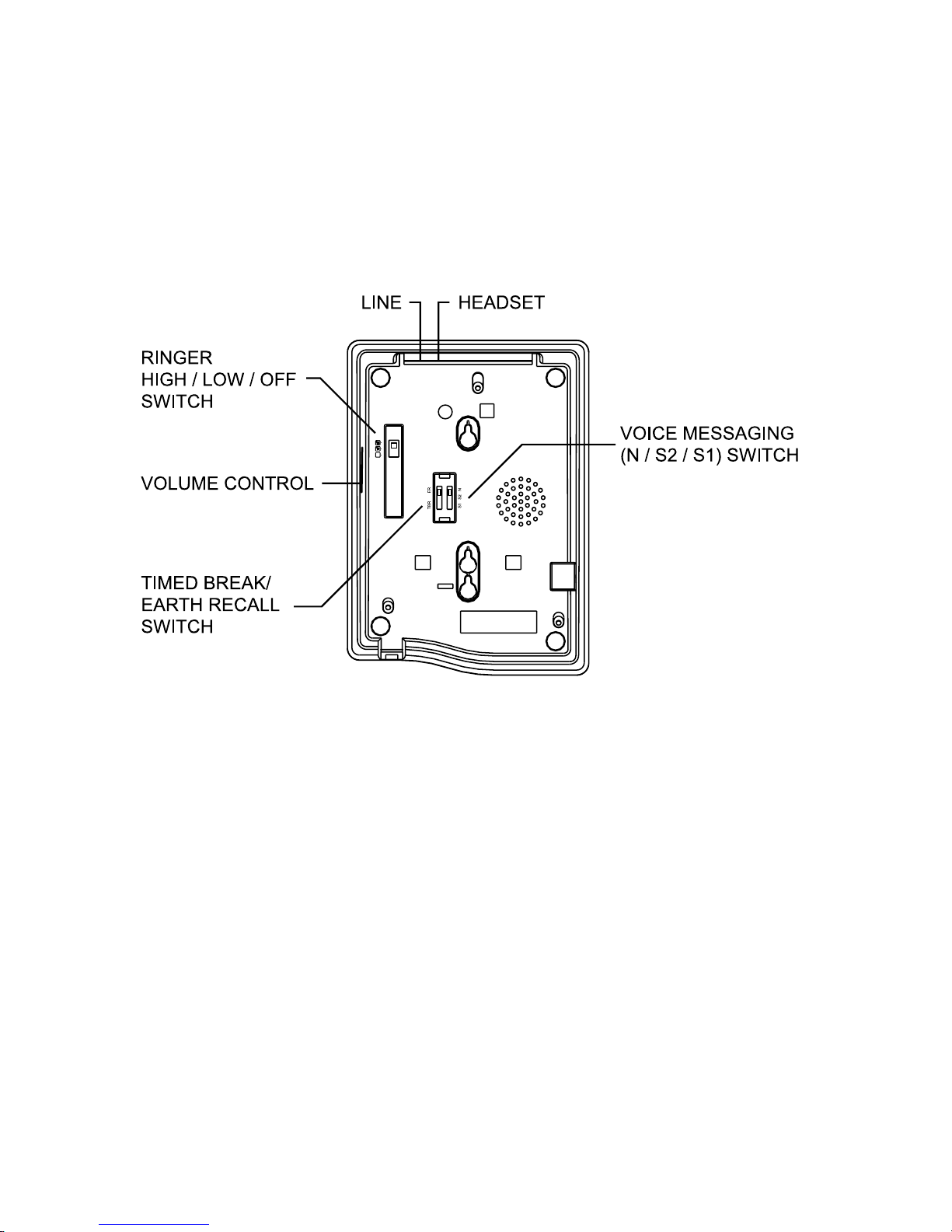

Figure 4 Bottom View.............................................................................................8

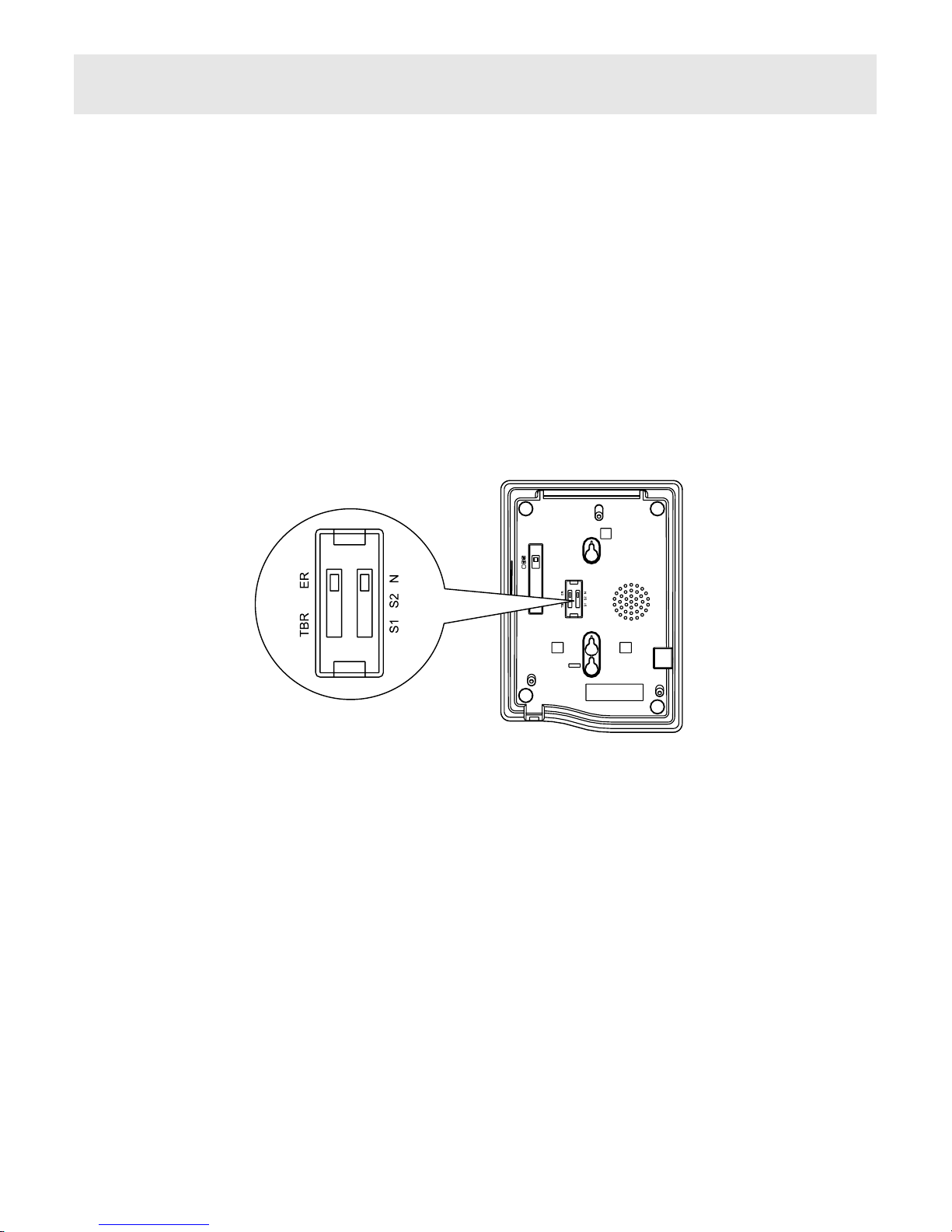

Figure 5 Recall Switch ......................................................................................... 11
2
1. IMPORT ANT NOTES
Intended use
This apparatus is intended for use on 2 wire analogue PSTN and PABX
circuits within Europe.
Declaration of Conformity
Interquartz (UK) Limited declares under its sole responsibility that this
product
Model : GEMINI Speakerphone
Is in conformity with the f ollowing relevant harmonized standards
Health & Safety EN60950 : 1992
Electromagnetic Compatibility EN55022 : 1998 & EN55024 : 1998
Telecoms EN301437:1999 & TBR38: 1998
Following the provisions of Council Directive on radio equipment and
telecommunications terminal equipment.
May 2005
T ele phone f a cilitie s
This telephone has been designed for the use of the following facilities :
• manual dialling
• recall (earth or timed break selectable)
• MF signalling
• ringer volume control
• ringing indicator
3
• last number re-dial
• pause function
• mute function
• headset function
• speakerphone function
• line powered
• 10 memory buttons
• inductive loop hearing aid compatible
REN number
The REN number of this telephone is 1.
If you wish to connect any other equipment to the line, simply add the REN
numbers of each device together and ensure that the total does not exceed 4.
If too many phones are connected to the line, the circuit may be overloaded
and your telephone may not ring.
Not all telephones have the same REN.
If a British Telecom phone is supplied unmarked, you can assume that it has
a REN of 1.
Emergency calls
Calls can be made on this telephone to contact the emergency services. The
European code for emergency services is 112, however, you can still use 999
in the UK. An access code may also be required, if the phone is connected to
a PABX.
4
Figure 1 Wall Mounting
2. INSTALLATION
This telephone is designed to plug straight into a modular style socket. If you
do not have one of these sockets, they can be obtained from your Network
Supplier.
Connection
Insert the line cord into the socket. Set the ringer volume control, as desired.
Wall mounting
Using the template supplied, position the telephone where you want to wall
mount. Drill two holes and fix roundheaded screws, leaving them slightly
proud of the surface. Position the telephone over the screws and slide
downwards into place.
5
To enable the handset to be supported in the cradle when the phone is
mounted on the wall, follow the procedure shown in Figure 2 to reserve the
HANDSET RETAINER.
1 . Use your thumb to press the
HANDSET RETAINER
2. Push the HANDSET RETAINER
out of the slot
4. Insert the HANDSET RETAINER
back into it's slot
3. Turn the HANDSET
RETAINER 180°
Figure 2 Handset Retainer for Wall Mounting
