Interquartz Gemini Basic Operating Instructions Manual

OPERATING INSTRUCTIONS

Gemini Basic

Telephone

All manuals and user guides at all-guides.com

all-guides.com

1

This Interquartz telephone has been manufactured to very high standards
and is very easy to use. Please read this manual carefully to find out how to
use the features.

Contents

1. Important Notes .............................................................................. 2

Intended use ....................................................................................... 2

Telephone facilities .............................................................................. 2

REN number ........................................................................................ 3

Emergency calls................................................................................... 3

2. Installation ...................................................................................... 4

Connection ......................................................................................... 4

Wall mounting ..................................................................................... 4

3. Telephone Features ....................................................................... 6

4. Operation ........................................................................................ 7

5. PABX & System Usage .................................................................. 8

6. Maintenance and Problem Solving ............................................... 9

7. Warranty and Service .................................................................. 10

Figure 1 General Appearance ............................................................... 3

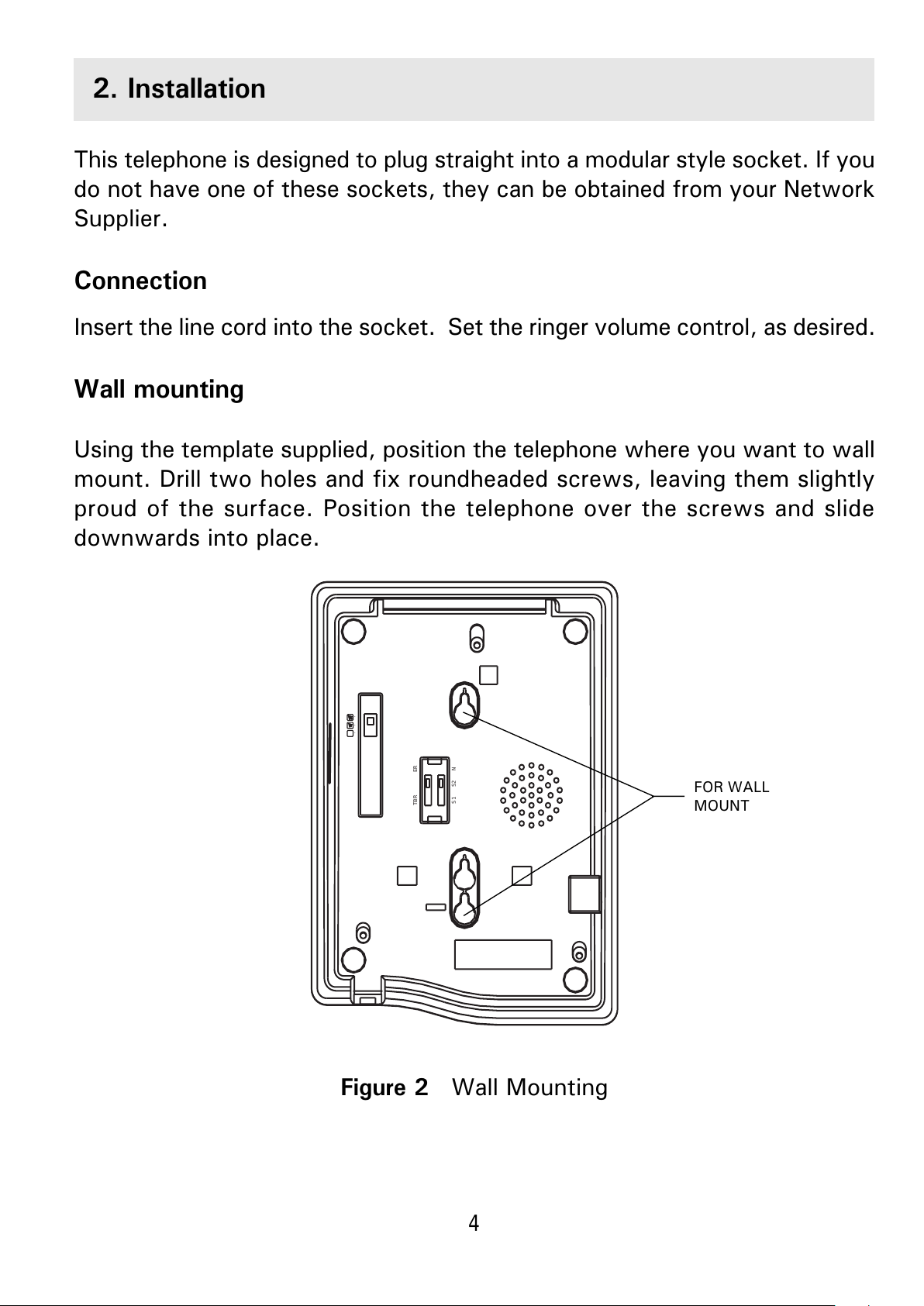

Figure 2 Wall Mounting....................................................................... 4

Figure 3 Handset Retainer for Wall Mount ............................................. 5

Figure 4 Bottom View......................................................................... 6

Figure 5 Recall Switch ........................................................................ 8

All manuals and user guides at all-guides.com

2

1. Important Notes

Intended use

This apparatus is intended for use on 2 wire analogue PSTN and PABX
circuits within Europe.

Declaration of Conformity

Interquartz (UK) Limited declares under its sole responsibility that
this product

Model : GEMINI BASIC

Is in conformity with the following relevant harmonized standards

Health & Safety EN60950 : 1992
Electromagnetic CompatibilityEN55022 : 1998 & EN55024 : 1998
Telecom TBR21 : 1998 & TBR38 : 1998

Following the provisions of Council Directive on radio equipment and
telecommunications terminal equipment.

January 2001

Telephone facilities

This telephone has been designed for the use of the following facilities :

 manual dialling
 recall (earth or timed break selectable)
 MF signalling
 ringer volume control
 ringing indicator
 last number re-dial
 pause function
 mute function
 line powered
 inductive loop hearing aid compatible

All manuals and user guides at all-guides.com

3

REN number

The REN number of this telephone is 1.

If you wish to connect any other equipment to the line, simply add the
REN numbers of each piece together and ensure that the total does
not exceed 4. If too many phones are connected to the line, the
circuit may be overloaded and your telephone may not ring.

Not all telephones have the same REN.
If a British Telecom phone is supplied unmarked, you can assume that

it has a REN of 1

Emergency calls

Calls can be made on this telephone to contact the emergency services. The
European code for emergency services is 112, however, you can still use 999
in the UK. An access code may also be required, if the phone is connected
to a PABX.

Figure 1 General Appearance

RINGER
INDICATOR

KEYPAD

HANDSET
CORD

HANDSET

MUTE

INDICATOR

MUTE

KEY

PAUSE

KEY

REDIAL

KEY

RECALL

KEY
