Interquartz Basic Phone 98380 XWA Operating Instructions Manual

BASIC PHONE

Model 98380

OPERATING INSTRUCTIONS

All manuals and user guides at all-guides.com

all-guides.com

1

This Interquartz telephone has been manufactured to very high standards and
is very easy to use. Please read this manual carefully to find out how to use the
features.

Contents

1. Important Notes ..................................................................................... 2

Intended use ........................................................................................ 2

Telephone facilities ................................................................................ 2

REN number ........................................................................................ 3

Emergency calls ................................................................................... 3

2. Installation ............................................................................................... 4

Connection ........................................................................................... 4

Wall mounting ........................................................................................ 4

3. Telephone Features .............................................................................. 5

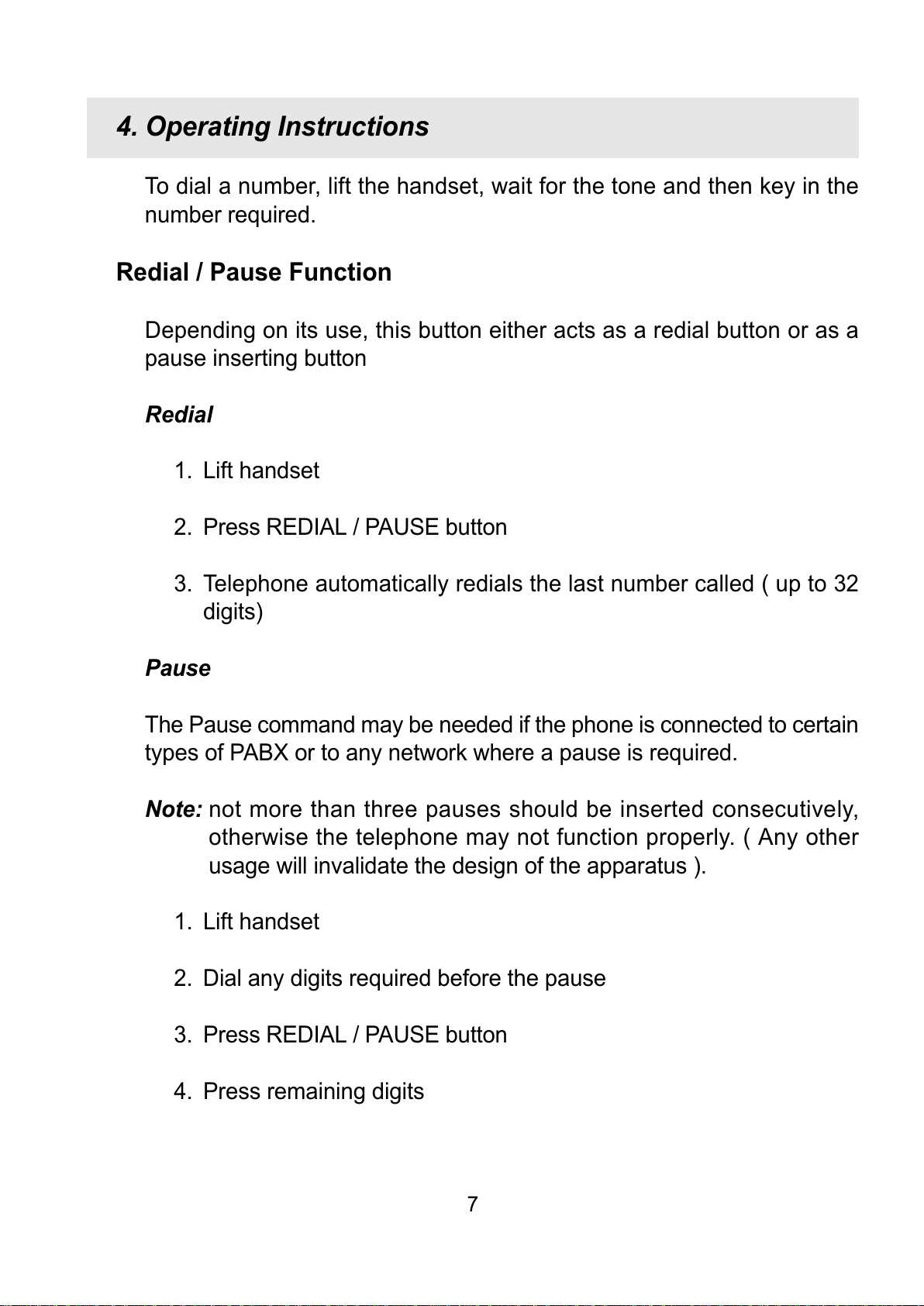

4. Operating Instructions ....................................................................... 7

5. PABX and System Usage .................................................................... 8

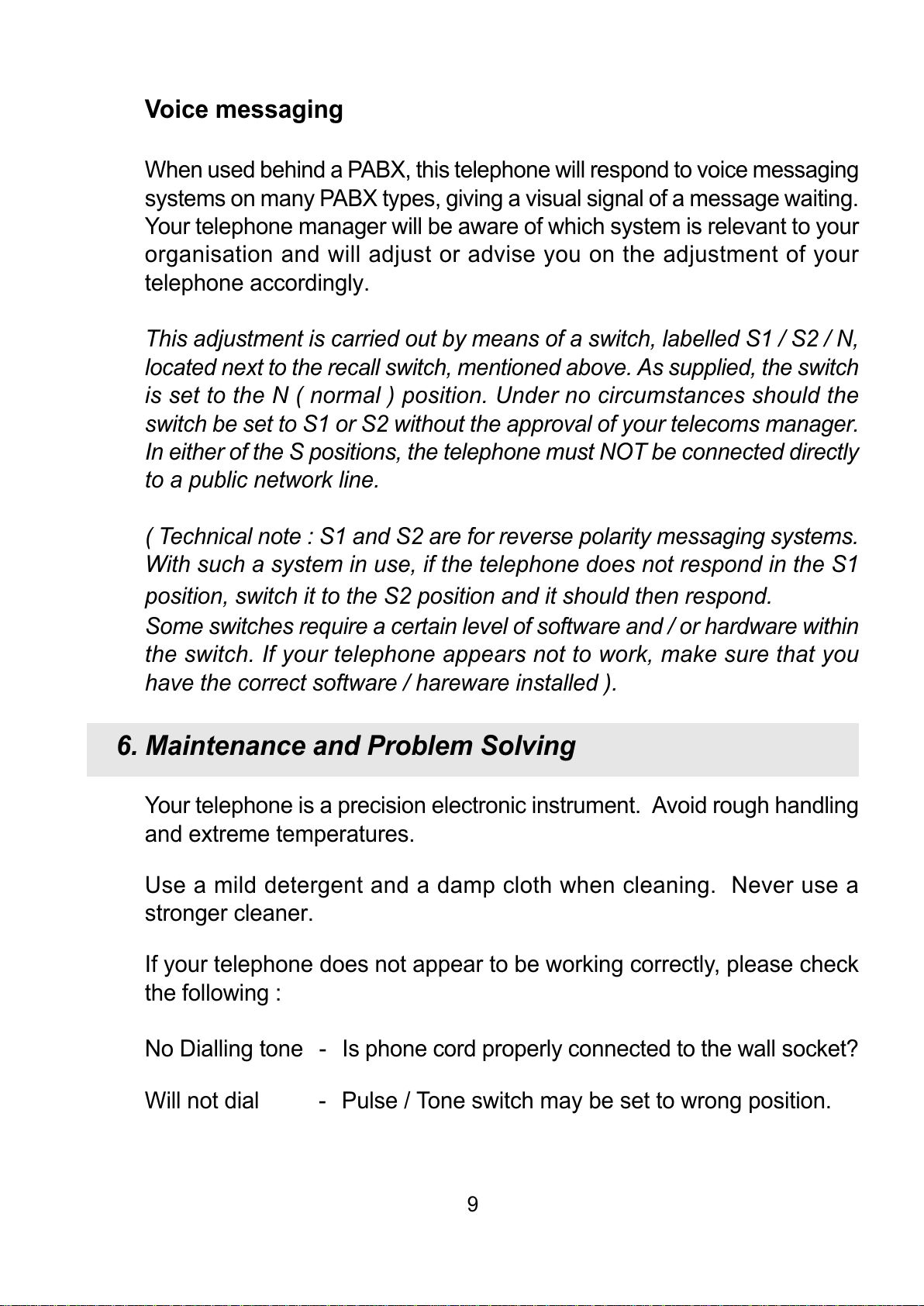

6. Maintenance and Problem Solving .................................................. 9

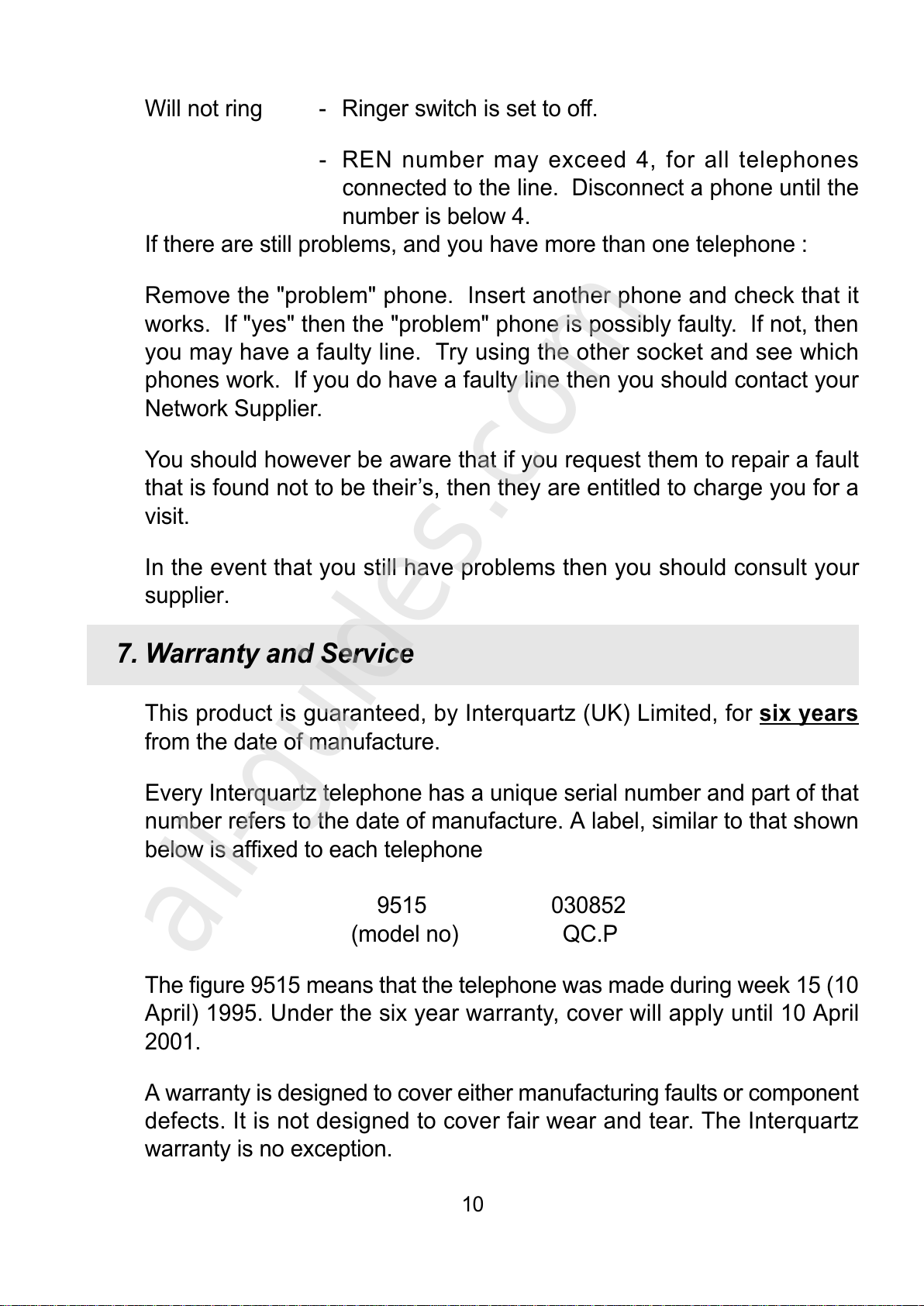

7. Warranty and Service ....................................................................... 10

Figure 1 General Appearance ............................................................. 3

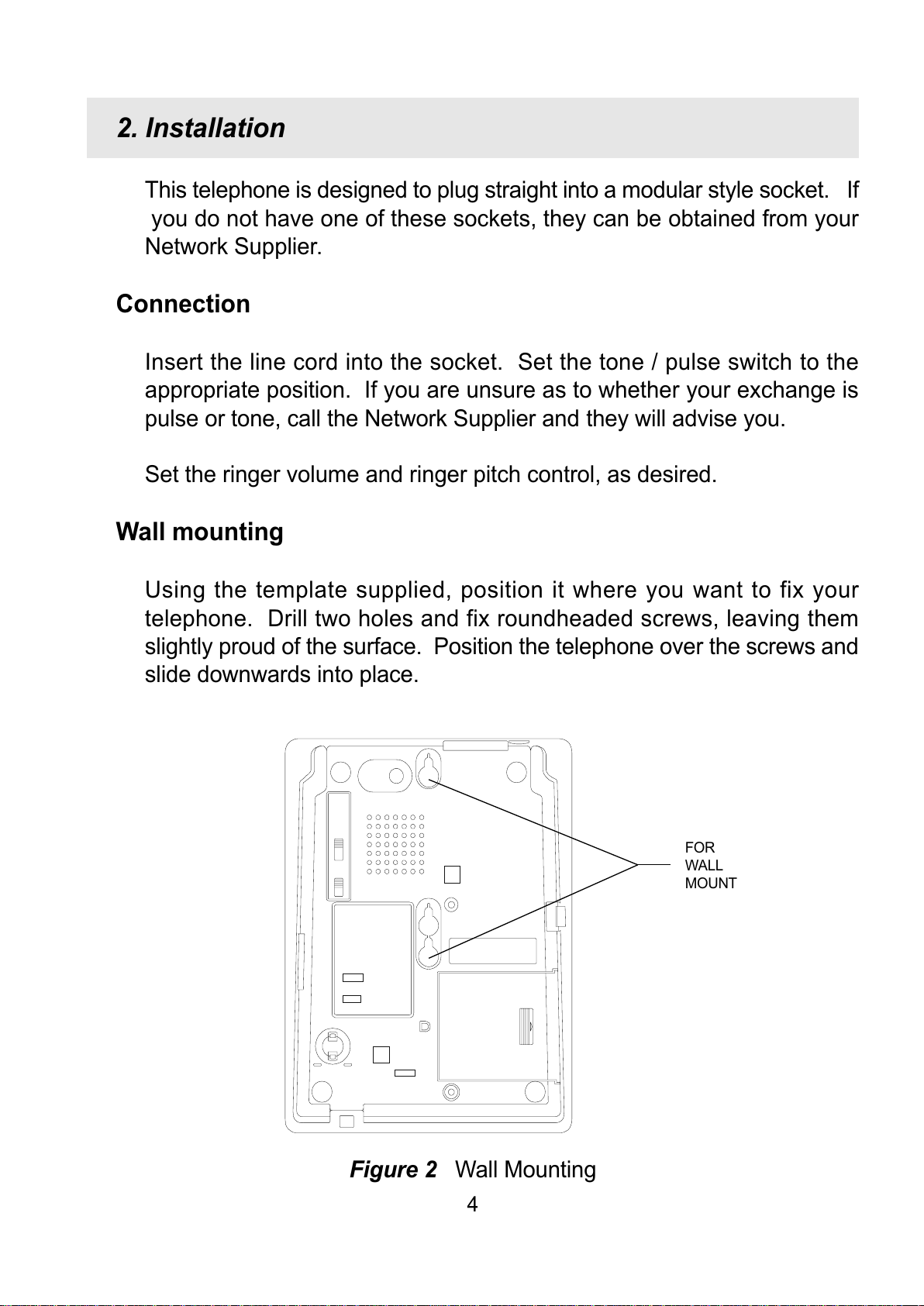

Figure 2 Wall Mounting ....................................................................... 4

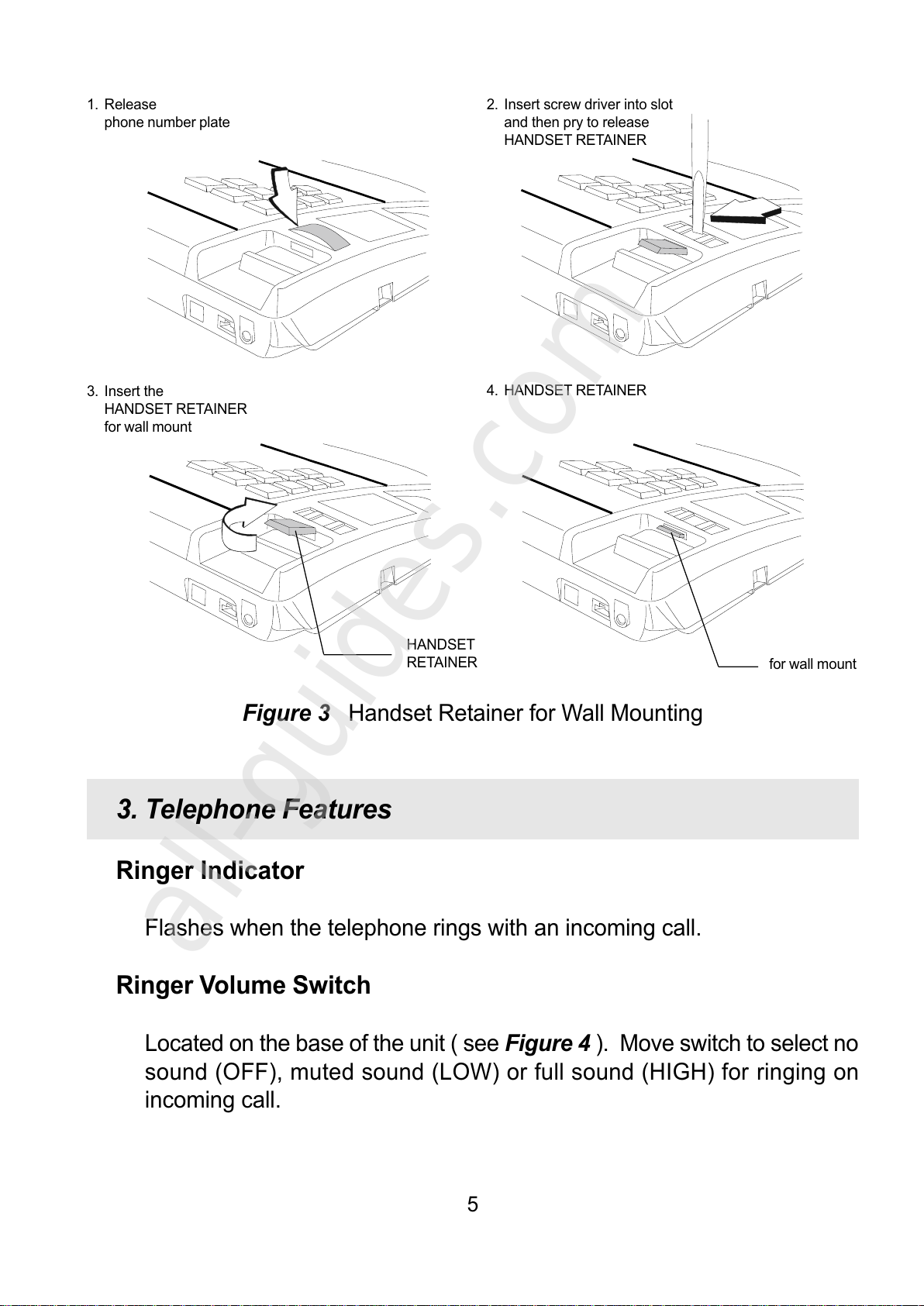

Figure 3 Handset Retainer for Wall Mount .......................................... 5

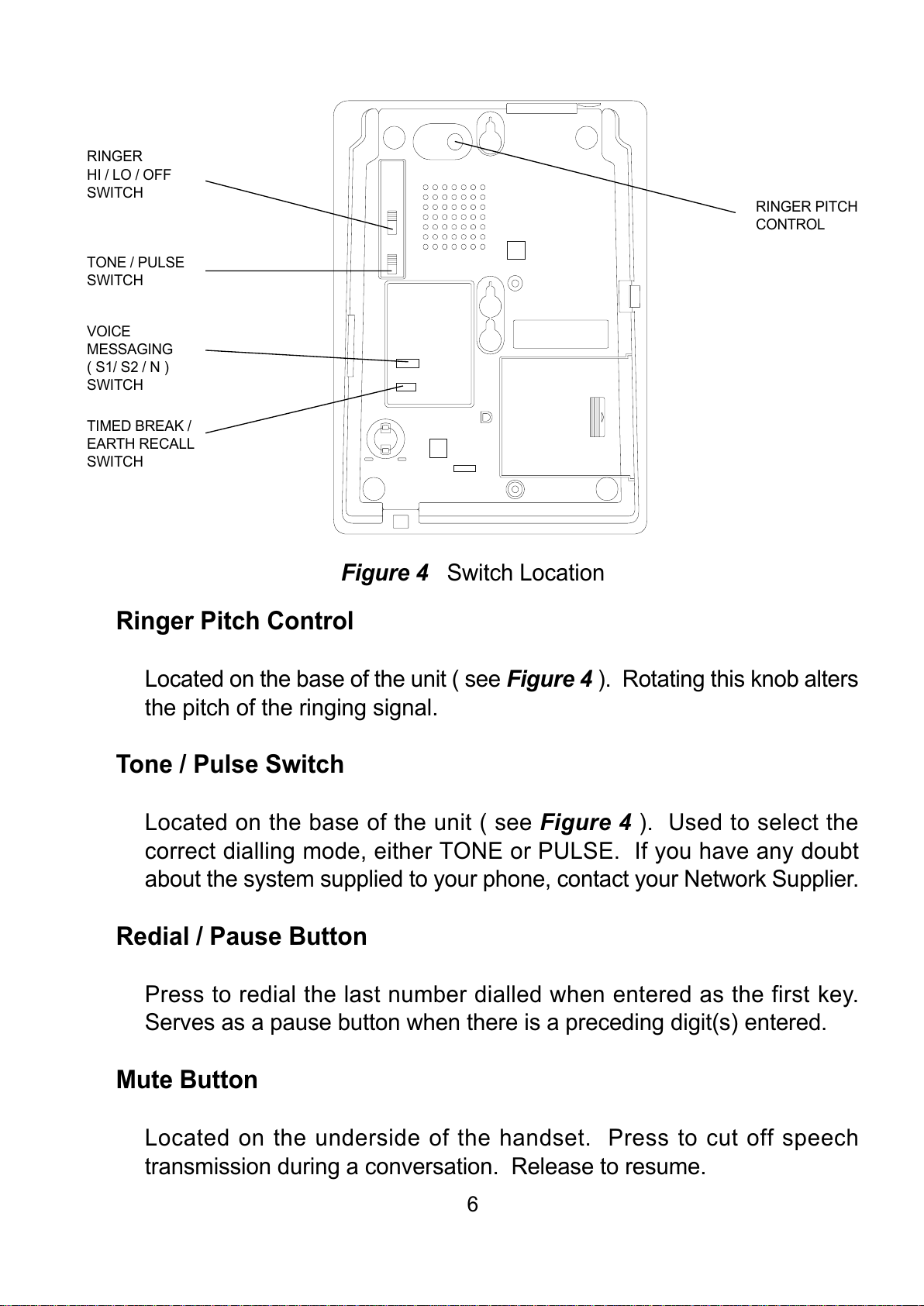

Figure 4 Switch Location ..................................................................... 6

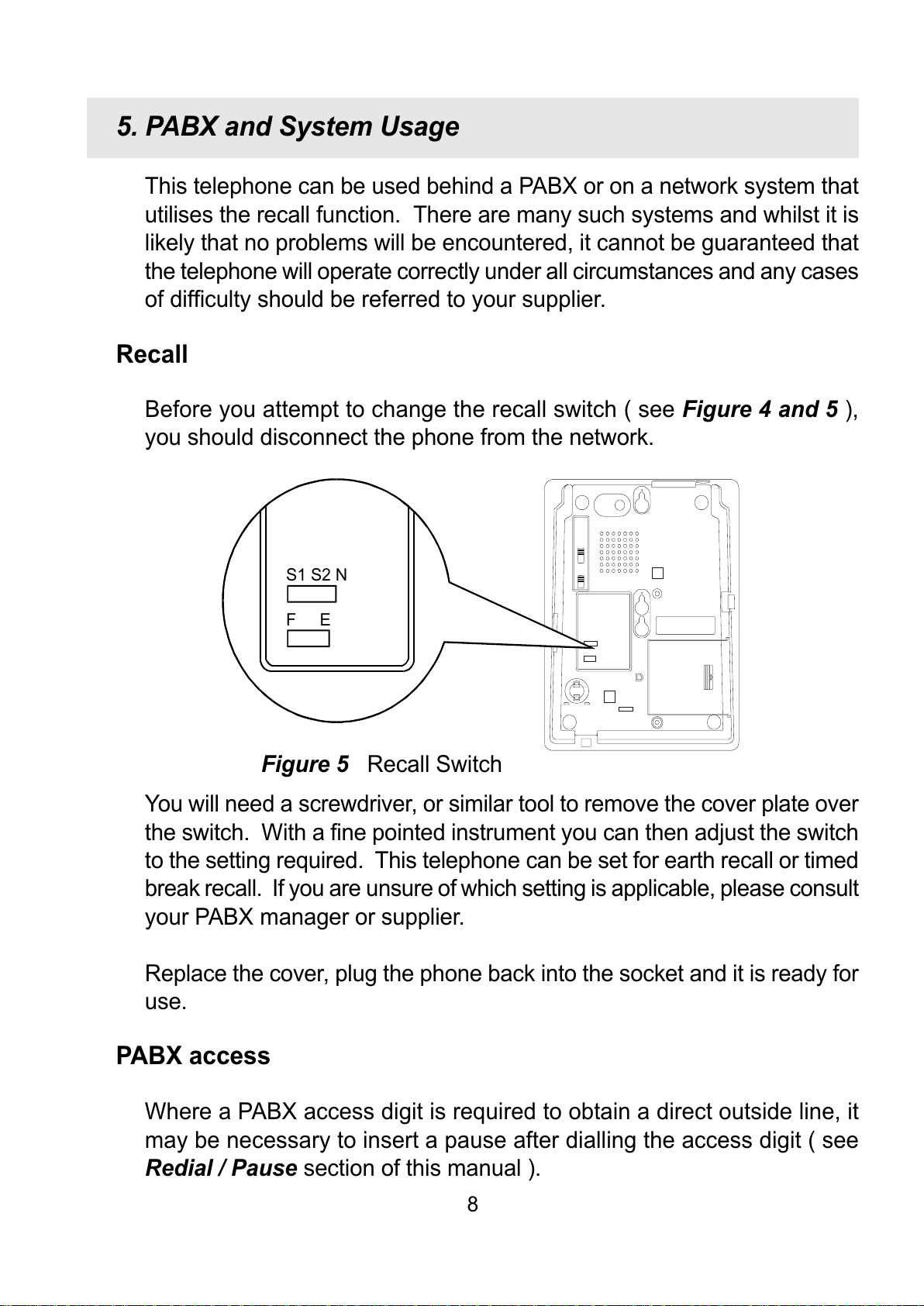

Figure 5 Recall Switch ........................................................................ 8

All manuals and user guides at all-guides.com

2

1. Important Notes

Intended use

This apparatus is intended for use on 2 wire analogue PSTN and PABX circuits
within the United Kingdom.

Declaration of Conformity

I

nterquartz (UK) Limited declares under its sole responsibility that this product

Model: BASIC PHONE

98380 XWA

Is in conformity with the following relevant harmonised standards

Health & Safety 73/23/EEC
Electromagnetic Compatibility 89/336/EEC

Following the provisions of Council Directive 1999/5/EC on radio equipment and
telecommunications terminal equipment.

A J Roberts April 2000
Director

Telephone facilities

This telephone has been designed for the use of the following facilities:

- operation in the absence of proceed indication

- recall ( earth or timed break selectable )

- selectable pulse or tone signalling

- access pause insertion

- ringer volume control

- ringer pitch control

- ringing indicator

All manuals and user guides at all-guides.com

3

REN number

The Ren number of this telephone is 1.

If you wish to connect any other equipment to the line, simply add the
REN numbers of each piece together and ensure that the total does not
exceed 4. If too many phones are connected to the line, the circuit may
be overloaded any your telephone may not ring.
Not all telephones have the same REN.
If a British Telecom phone is supplied unmarked, you can assume that it
has a REN of 1

Emergency calls

"999" calls can be made on this telephone, for the purpose of making
calls to the emergency service. An access code may also be required, if
the phone is connected to a PABX.

Figure 1 General Appearance

RINGER
INDICATOR

KEYPAD

MUTE BUTTON

HANDSET

HANDSET
CORD

REDIAL
BUTTON

RECALL
BUTTON

IN THE FRONT

OF THE HANDSET
