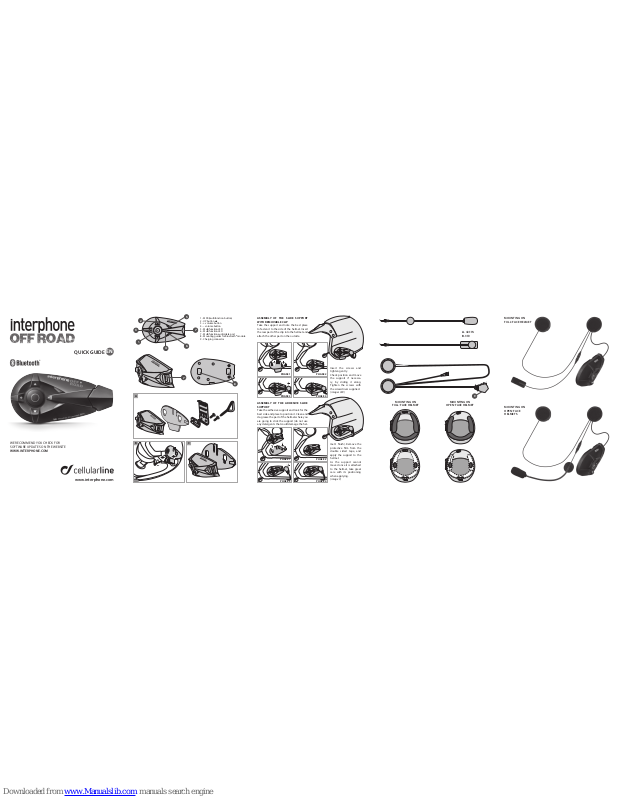

Interphone OFFROAD Quick Manual
8
1
6
4
5
7
3
7
A
B C
2
9
www.interphone.com
QUICK GUIDE
EN
A - GREEN
B - RED
1 - MFB (multifunction button)
2 - UP button ▲
3 - + volume button
4 - – volume button
5 - Multifunction LED
6 - Multifunction LED
7 - Multifunction audio/data port
8 - Mounting guides for Bluetooth® module
9 - Charging connector
ASSEMBLY OF THE SLIDE SUPPORT
WITH REMOVABLE CLIP
Take the support and note the best place
to fasten it to the side of the helmet. Insert
the rear part of the clip into the helmet and
attach the other part on the outside.
ASSEMBLY OF THE ADHESIVE SLIDE
SUPPORT
Take the adhesive support and look for the
best side and place to position it. Clean and
de-grease the part of the helmet where you
are going to stick the support (do not use
any detergents that could damage the hel-
Insert the screws and
tighten gently.
Check position and move
the support if necessary, by sliding it along.
Tighten the screws with
the screwdriver supplied.
(images A/B)
met’s finish). Remove the
protective film from the
double sided tape, and
apply the support to the
helmet.
As the support cannot
moved once it is attached
to the helmet, take great
care with its positioning
when applying.
(image C)
MOUNTING ON
FULL-FACE HELMET
MOUNTING ON
OPEN-FACE HELMET
MOUNTING ON
FULL-FACE HELMET
MOUNTING ON
OPEN-FACE
HELMETs
PHASE 1
PHASE 1
PHASE 3
PHASE 2
PHASE 4
PHASE 3 PHASE 4
PHASE 2
WE RECOMMEND YOU CHECK FOR
SOFTWARE UPDATES ON THE WEBSITE
WWW.INTERPHONE.COM
*
*
*
*
GUIDARAPOFFROAD
www.interphone.com
Export Dept. international.interphone@cellularline.com
Thank you for choosing our products.
Before using this product, we recommend you carefully perform the operations
outlined in this Quick Guide.
Chapter 1 - Charging
Insert the recharging cable in the audio connector kit as shown in the figure.
Insert the other end of the cable in a standard USB port.
The LED lights up yellow/orange during charging.
The LED turns green when charging is complete.
When charging is complete, disconnect the units from the charger by pulling out
the jack plug, and also unplug the charger from the outlet.
Chapter 2 - Pairing method
At first “ON” the OFF ROAD indicator alternately flashes red/blue, you can directly
search it with your phone or another Interphone.
If the indicator is not red/blue, from “OFF”, press and hold MFB button until the
indicator will alternately flash red/blue.
To switch off the module, hold down the MFB button (1) until the red LED (6) turns
on for a few seconds.
Chapter 3 - Connecting to a phone
From the Bluetooth menu on your mobile phone (such as the sample iPhone menu
shown below), search for a new device.
When the device is found, select Interphone OFF ROAD. Connection will take place
automatically after a few seconds.
If a password is required, enter 0000.
Chapter 4 - Connection between two Interphones
Repeat step 2 for the second Interphone.
The LEDs on the two Interphones will both flash red and blue.
Press the UP
▲ button (2) on one of the two Interphones to activate the search
procedure.
The LED will flash more quickly, indicating that the device search is in progress. After
around 10 seconds, the Interphones will find each other and pair automatically.
Now, the LEDs will light up a steady blue, which shows that intercom communication
is established.
Press the centre button on one of the two units one time to switch off intercom
communication.
Chapter 5 - Pairing of 3 or 4 Interphone devices
Pairing 3 Interphone devices:
A
B
C
Pair A with B using the procedure described in Chapter 4.
Then pair B with C using the procedure described in Chapter 4.
To start a conversation press the central button of user B.
Pairing 4 Interphone devices:
A
B
C
D
After having paired the three devices as described above, pair C with D using
the procedure described in Chapter 4.
Start a conversation between three devices (ABC) then press the central button of user D to start add the forth user to the conversation.
Chapter 6 - Auto-reconnection
- When your OFF ROAD unit is over the communication range, connection hangs.
OFF ROAD will try to recover the connection for 10 minutes. Within this time interval, if OFF ROAD unit will come again into communication range, connection
will be automatically resumed.
- During reconnection attempts, a double-beep will be generated, as a reminder
that unit is attempting to reconnect.
- After 10 minutes, if reconnection fails, OFF ROAD will go in Standby mode, stopping reconnection attempt.
- If you need to stop reconnection attempt, press MFB (1) button on your OFF
ROAD unit.
Chapter 7 - Voice dial
Interphone OFF ROAD is equipped with voice dial.
With Interphone OFF ROAD in stand-by, press the UP
▲ button (2) until you hear
the second beep to activate voice dial, then follow your mobile phone instructions.
Depending on the phone model it could be necessary to have an active internet connection to use the “Voice dial” feature.
The “Voice dial” feature could not be supported by your phone. Check the phone user
manual for more details.
*
not included
AC 220/110 - USB ADAPTOR
EMERGENCY BATTERY
USB PORT
EQUIPMENT DISPOSAL INSTRUCTIONS FOR DOMESTIC USERS
(Applicable within the European Union and those countries with separate collection systems)
The marking shown on the product or its literature indicates that at the end of its life the
product should not be disposed together with other household waste. To prevent possible
harm to the environment or human health from uncontrolled waste disposal, please separate
this from other types of wastes and recycle it responsibly to promote the sustainable reuse
of material resources.
Domestic users are invited to contact the sales point where the product was purchased or the
local office with information regarding recycling of this type of product. Business users should
contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial waste for disposal purposes.
This product has an embedded, non-replaceable battery, do not attempt to open the product
or remove the battery as this may cause injury and damage the product. When disposing of
the product, please contact your local waste disposal service in order to remove the battery.
The battery contained within the device and been designed to be used throughout the life
cycle of the product.
This product is CE marked in accordance with the provisions of the R&TTE Directive (1999/5/
EC) and the RoHS Directive (2011/65/EU). With this CE mark Cellular Italy S.p.A. declares that
this product complies with the essential requirements and other relevant provisions of the
1999/5/EC and 2011/65/EU Directives. The user is forbidden to make changes or modifications of any kind to this device. Changes or modifications not expressly approved by Cellular
Italy S.p.A. will void the user's authorisation to operate the device. Bluetooth® is a trademark
owned by Bluetooth SIG, Inc.
For more information please visit the website: www.interphone.com
Technical Specifications
Bluetooth® compliance: Bluetooth® V.3.0 - Class II
Supported Bluetooth® profiles: HFP
Dimensions mm: 60x80x30
Weight: 44g
Range Up to 10 metres
Talk time: 12h
Stand-by time 700h
Charging time: 3h
Battery type: Rechargeable Li-ion
Interphone OFF ROAD
Interphone OFF ROAD
Interphone OFF ROAD
