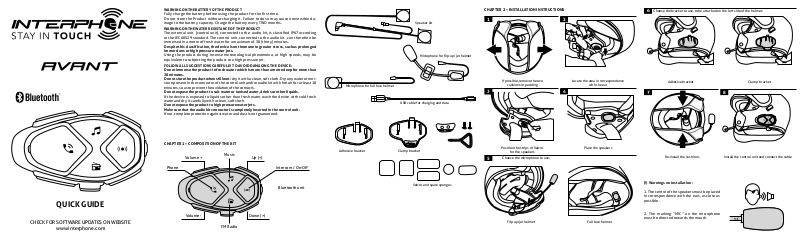

Interphone Avant User Manual

WARNING ON T HE BATTERY OF T HE PRODUCT

Fully charge the battery before using the product for the first time.
Do not store the Product without charging it. Failure to do so may cause irreversible da­mage to the bat tery capacity. Charge the batter y every TWO months.

WARNING ON T HE WATER RESISTANCE O F THE PRODUC T

The external unit (control unit), connected to the audio kit , is classified IP67 according
to the IEC60529 standard. The control unit, connected to the audio kit , can therefore be
immersed in a metre of fresh water for a maximum of 30 (thirt y) minutes.

Despi te this cla ssifica tion, the d evice is no t immune to g reater st ress, such a s prolong ed
immersions or high pressure water jets.

Using the product during intense meteorological phenomena, at high speeds, may be
equivalent to subjecting the product to a high pressure jet .

FOLLOW ALL SU GGESTIO NS CAREF ULLY TO AVOID DAMAG ING THE DEVICE :
Do not im merse the product in fresh water w hich is more th an a metre deep f or more than
30 minutes.
Do not st ore the prod uct when st ill wet: dry it wit h a clean, sof t cloth. Dr y any water or moi -

sture present in the connec tor of the control unit and/or audio kit with hot air for at least 10
minutes, so as to preven t the oxidation of the contacts.

Do not ex pose the pro duct to salt w ater or ionis ed water, drink s or other liq uids.

If the device is exposed to liquids other than fresh water, wash the device with cold fresh
water and dry it carefully w ith a clean, soft cloth.

Do not ex pose the pro duct to high p ressure wat er jets.
Make su re that the au dio kit conne ctor is comp letely inser ted in the con trol unit .

If not, complete protection against water and dust is not guaranteed.

Microphone for full face helmet

Speaker kit

Microphone for ip-up/jet helmet

USB cable for charging and data

CHAPTER 2 – INSTALLATION INSTRUCTIONS

1

If possible, remove the two

cushions or padding

3

2

Locate the area in correspondence

with the ear

4

Choose the bracket to use, to be attached on the le side of the helmet:

6

Adhesive bracket

7

8

Clamp bracket

QUICK GUIDE

CHECK FOR SOFTWARE UPDATES ON WEBSITE

www.interphone.com

CHAPTER 1 – COMPOSITION OF THE KIT

Volume +

Music

Up (<)

Phone Intercom / On-O

Bluetooth unit

Volume -

Down (>)

FM Radio

Clamp bracketAdhesive bracket

Velcro and spare sponges

Position the strips of Velcro

for the speakers

Choose the microphone to use:

5

Filp-up/jet helmet Full face helmet

Place the speakers

Re-install the cushions

(!) Warnings on installation:

1. The centre of the speakers must be placed
in correspondence with the ears, as close as
possible.

2. The marking “MIC” on the microphone
must be directed towards the mouth.

Install the control unit and connect the cable

MIC

Via Lam brakis 1/A, 421 22 Reggio Em ilia, Italy

www.cellu larline.com

CHAPTER 3 - BATTERY CHARGE

Inser t the micro USB charging cable in the special intercom connector, as shown in the
picture. Connect the cable to a standard USB charger.

LED indications:

- red LED: charging .

- green L ED: fully charged .

CHAPTER 4 - BASIC CONFIGURATION

Turn the device on

until the blue LED comes on.

Press

Turn the device off

until the red L ED lights up and the device turns off.

Press

Chang e the voice guid e language

1. With the unit on, press and hold

2. Press + to select the desired language.

3. Press and hold
blue.

CHAPTER 5 - TELEPHONE / GPS

Pairing

1. With the unit off, press and hold

2. Star t searching f or new device s on the mobile ph one / GPS

3. Select the intercom on the phone / GPS (“Interphone AVANT”).

4. Once the pairing has been confirmed, the LED will f lash BLUE twice, every three
seconds.

Answering a call

Short press

Voice dial

Short press

Redial last number

until it beeps (1.5sec)

Press

S0519 GUIDARA PIDAF9EN

>

UP until the third beep to save the selection. The LED will flash

>

UP until the third beep. The L ED will be purple.

until the LED flashes red/blue alternately.

CHAPTER 6 – MUSIC

Enable/disable playback from the phone

Short press

Next track/Previous track

Short press > /

Share t he music with another in tercom

Press for 3 seconds

CHAPTER 7 – INTERCOM

Automatic pairing

1. Arrange the unit s (off and maximum 8) nex t to one another as shown in the picture.

2. On the first unit, press
will end automatically, by pairing all the unit s.

>

>

or

>

+ > (UP) , unt il the L ED fl ashes red/green. The procedure

Manual pairing

1. With the intercom off, on each unit , press and hold
red/green.

2. Then press

Conference between 2 users

Press on unit 1 or on unit 2.

only on one of the t wo units.

+ > (UP) , unt il the L ED fl ashes

1 2

Conference between 3 users

1. For the first time only, pair unit 1 to 2 and then unit 2 to 3.

2. Press

on unit 2 to star t the conference between units 1, 2, 3.

1 2 3

Conference mu ltiuser (up to 8 users)

1. For the first time only, pair unit 1 to 2 , t hen unit 2 to 3 , following this scheme until
the last unit of the group..

2. Press

3. Press

4. Press
group w ill be connected.

>

(UP) unt il second beep, on unit 1, to connect 1 + 2.

>

(UP) unt il second beep, on unit 2, to connect 1 + 2 + 3.

>

(UP) again until second beep, one after the other, until each member of the

1 2 3 4

Beep...beep Beep...beep Beep...beep Beep...beep Beep...beep

CHAPTER 8 – FM RADIO

Enable/disable the FM radio

Short press

Scan frequency

Short press > /

Save frequency

Choose with

Temporary storage of the 8 strongest stations

Press

FM radio shar ing with ano ther interphone

Press > or >] until second beep (3 sec).
Go to www.interphone.com for the complete user manuals.

>

>

/ > the memory slot and confirm with

until the second beep (3 sec)

TECHNICAL CHARACTERISTICS

Bluetooth® compliance: Bluetooth® v. 5 - Class II
Supported Bluetooth profiles: HFP A2DP AVRCP
Frequency: 2.402 – 2.480GHz
Power: 20dBm EIRP / 10dBm EI RP
Operating temperature: 0 - 45°C
Charging temperature: 5 - 45°C
Dimensions mm: 55x85x25
Weight: 66 g
Capacity: Up to 10 meters
Talk time: 20 h
Stand-by time: 500h with voice command of f
Charging time: 1,5 h
Batt ery type: Lithium-ion rechargeable

SAR is meas ured with th e device at 0 mm to t he body, while t ransmitt ing at the hig hest cert ified outp ut power level i n all frequen cy bands of th e device.
The max imum SAR value i s 1.75 W/kg (head/bo dy) averaged ove r 10 gram of tissue .

WARNING: To prevent poss ible hearin g damage, do not l isten at high vol ume levels for l ong periods .
