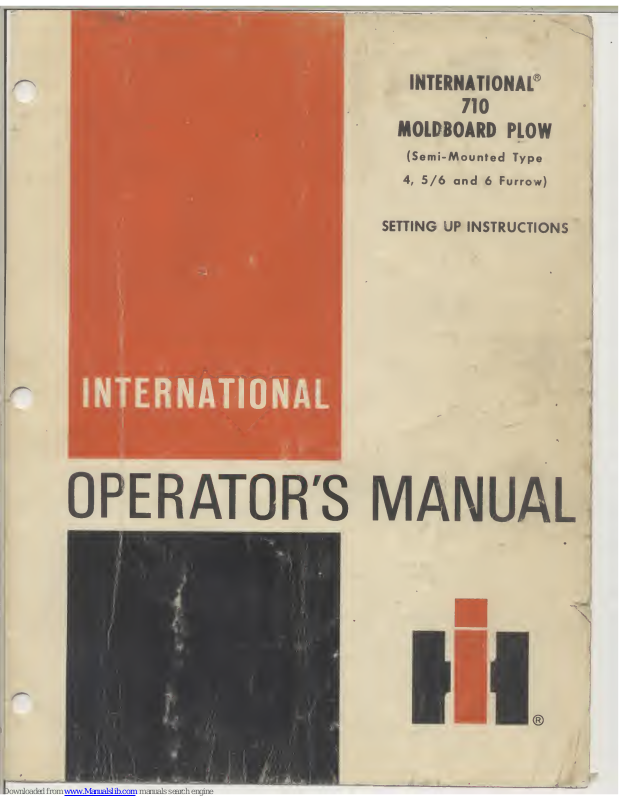

International 710 Operator's Manual

INTERNATIONAL®

710

MOLDBOARD

PLOW

(Semi-Mounted

Type

4,

5/6

and

6

Furrow)

SETTING

UP

INSTRUCTIONS

OPERATOR'S

MANUAL

_

To

The

Owner

Your new

International

Harvester

plow

is

designed

to

meet

today's

exacting

operat-

ing

requirements.

The

ease

of

operation,

and

ability

to

adjust

to

field

conditions

lighten

your

work and

shorten

your

hours

on

the

job.

You

are

urged

to

consult

your

International

Harvester

dealer

concerning

unusual

conditions

or

special

applications.

Let the

experience of

your

dealer

and the

organization

associated

with

him serve

you.

Be

sure

to read

the

instructions

for

Ad-

justing

and

Operating

in this

manual.

Check

each

item

referred

to and

acquaint

yourself

with

the

adjustments

required

to

obtain effi-

cient

operation

and

maximum

trouble-free

service.

Remember,

a

plow

which

is

prop-

erly

lubricated

and

adjusted

saves

time,

labor,

and

fuel.

After

the

operating

season,

thoroughly

clean

your plow

and

inspect

it.

Preventive

maintenance

pays

dividends.

Your dealer

has

original-equipment

parts

which

assure

proper fit

and

best

performance. He

is able

to

recondition

your

equipment

to a

like new

condition.

Your

plow

will

be

used

intermittently

during the

year. Rust

and

corrosion

must be

prevented

the

year

around. A

small

amount

of

time

and

effort

spent

protecting

it from

destructive

moisture

will

repay

you many

times

in

long

years

of

service, easy

opera-

tion,

and

high resale

value.

Of equal

impor-

tance

at the end

of the

operating

period

are

the

care

of

unprotected

surfaces and

pro-

vision

for

suitable

waterproof

shelter.

Additional

copies

of this

manual

may be

ordered

from

your

International

Harvester

dealer

at a

nominal

price.

CONTENTS

INTRODUCTION

ADJUSTING AND

OPERATING

TRACTOR

PREPARATION

PLOW

PREPARATION

TRACTOR

OPERATION

PLOW

OPERATION

SETTING

UP

OPTIONAL

EQUIPMENT

LUBRICATION

SPECIFICATIONS

2

3 to

23

3

6

7

10

24

to

35

36,37

38

to 42

43

WORK

SAFELY-FOLLOW

THESE RULES

A

CAREFUL OPERATOR IS

THE

BEST

INSURANCE

AGAINST

AN ACCIDENT.

A

This

symbol is

used

to

call

your

attention

to

instructions

concerning your

personal

safety.

Be sure to

observe

and

follow these

instructions.

BEFORE OPERATING

Do not

wear

loose-fitting

clothing

which

may catch

in

moving

parts.

Use extreme

care

when

making

adjust-

ments.

When working

under

or around the

plow,

always

support

the

plow frame.

After

servicing, be sure

all tools,

parts,

or

servicing

equipment are removed

from

the

machine.

Make sure

that there is no one

near

the

machine before

operating.

and

lines are in good condition

before apply-

ing

pressure to

the

system. Relieve

all pres-

sure before disconnecting

the

lines or per-

forming other work on

the

hydraulic system.

To find a leak under pressure use a

small

piece

of

cardboard

or wood:

Never

use

hands.

Do

not attempt

to remove

any

obstruc-

tions

while

the plow is in

motion.

Keep

hands,

feet, clothing

and objects

away from moving

parts.

Do

not ride on

the plow

during

operation.

Use extreme

care

when operating

close

to ditches,

fences,

or on

hillsides.

DURING

OPERATION

No

one other

than the

operator

should

ride

on

the tractor.

Hydraulic

fluid

escaping under pressure

can

have

enough

force to penetrate the

skin.

Hydraulic

fluid may also infect a

minor cut

or opening in the

skin. If injured by escap-

ing

fluid,

see a

doctor

at

once.

Serious in-

fection or reaction can

result if medical

treatment is not

given immediately.

Make

sure all connections

are

tight

and that hoses

ON-HIGHWAY

OPERATION

Always

place

the

machine

in

the

trans-

port

position.

Comply

with

your

state

and local

laws

governing

highway

safety,

and

with

regula-

tions

when

moving

machinery

on

a

highway.

Drive

at a

reasonable

speed

to

maintain

complete

control

of

the

machine

at

all times.

INTRODUCTION

M433I54

lllust.

2

710

Moldboard

Plow (six-furrow)

shown.

A

CAUTION: WHEN

TRANSPORTING

OR

IN THE

FIELD, SLOW DOWN

BEFORE

TURNING. Do not use individual

tractor wheel braking to

make

short

turns. This

plow has limit stops which do

not permit pivot turns.

ruwSaJe

INSIST

ON

IH

PARTS

WHEN

you bought

your

International

Harvester tractor

or machine,

you made a good choice

—

you have

a machine

that

deserves good care

and good

service. When

wear

and tear make new

parts necessary,

remember

why

you

bought

an International

Harvester

Quality Product.

You

bought quality to

be sure of

performance. Don't

handicap

your equipment

by careless selection

of replacement parts.

PLAY

SAFE!

Go to the International

Harvester

dealer

for IH

parts. The IH

trademark

is your

guarantee

of quality,

your best

assurance that your

International Harvester

equipment

will continue to

give

you top-grade

performance, no matter what

you

ask of it.

ADJUSTING AND

OPERATING

TRACTOR

PREPARATION

TRACTOR

STABILITY

THREE-POINT HITCH

ADJUSTMENT

Refer to

the Operator's

manual furnished

with

the tractor and

add weight

as shown

therein and in

the

amounts specified

be-

low:

Farmall

and

International

Tractors:

Add 1000 to

1200 pounds of

front end

weight,

depending

on

the capacity of

the

tractor

front end

weight

mounting

bracket being

used.

Tractors

Of

Other

Manufacture:

Add

sufficient front

end

weight to assure sta-

bility.

TRACTOR

WHEEL

WEIGHT

It

is

recommended

that

the tractor rear

wheels

carry

added

weight for

increased

traction.

Adding

weight saves

wear on

the

tires

and also

serves

to stabilize

the

trac-

tor for plowing

on

rough or

hillside

fields.

For this

purpose,

liquid

such as

calcium

chloride

solution can be

placed

in

the rear

tires,

or one

or two

weight

(available

from

your

International

Harvester

dealer) may

be

bolted on

each

rear wheel.

In

loose soil

it may be

necessary

to use

both

the liquid

and the

weights to

prevent

excessive

tire

slippage

.

A

84610

lllust.

3

Turn the eyebolts "A" with

the offset

toward the tractor.

Locate the lock-out pins

"B"

in

the holes

in

the

lateral

limiter links

as shown.

Note:

For

easy

attaching

and detaching

temporarily remove

the

pins

"B".

Locate the lift link lock-out collars

"C"

in the upper position as shown. Turn

the

set

screw into the upper spot

hole in the link.

Use either or both leveling cranks

"D"

to

level the hitch

with

the ground. The hitch

bail

is

level with the tractor axle

when the

grooved lines show just

above the screw

housings at "E".

Be sure to

move

the

swinging drawbar

forward to

the

storage position as shown

at

"G".

/

_

ADJUSTING

AND

OPERATING

TRACTOR

PREPARATION

-

Continued

TWO-POINT

HITCH

ADJUSTMENT

A-747B8

lust.

4

Locate

the lock-out

pins "A" in the holes

as shown

to keep

the

sockets rigid

with

the

hitch

bail.

Use either or

both

leveling

cranks

"D"

to level

the plow with

the ground.

The

hitch

bail is

level with

the tractor

axle

when the

grooved

lines

"E"

shown just

above

the

screw

housings.

Level

the

hitch

bail

with

the tractor

axle

for

opening up.

QUICK-ATTACHABLE

COUPLER

(See

tractor manual)

Operate with upper

link

as short

as

possible.

TIRE

INFLATION

The use of

the proper

air

pressure

is

the most

important

factor

in

satisfactory

performance

and

maintenance

of

tractor

implement

tires.

Underinflation

will

dam-

age

the cord body

of

the

tire and

cause

a

series

of diagonal

breaks

in

the fabric in

the sidewall

area. If

the tire

buckles or

wrinkles,

the air

pressure

should

be in-

creased

to the point

where

the

sidewalls

remain

smooth

while

operating.

Set the lateral

limiter

blocks

"B"

as

shown

to control

the

side-to- side

motion

of

the hitch

bail.

Check

the

air

pressure every

two or

three

weeks

and do

not

allow the

pressure

to drop

below

the

recommended

pressures:

Locate

the lift

link lock-out collars

"C"

in

the upper

position

as

shown. Turn

the

set

screw into

the

upper

spot hole in

the link.

Tractor tires

. See your

Tractor

Operator's

Manual

ADJUSTING

AND OPERATING

TRACTOR

PREPARATION

-

Continued

TRACTOR REAR WHEEL

SETTINGS

Single Wheels

In-The-Furrow

Operation

Measure from

the

center of the power

take-off shaft

to

the inside edge of the right

rear tire

and set

it at 30-inches or 32-inches

as

desired. The left wheel should be set

the same. However, when it is desired

to

give the

tractor

greater

stability,

such as

hillside plowing, the left wheel

may

be

set

slightly

wider.

Single

Wheels'

On-The-Land Operation

Measure from

the center

of

the

power

take-off shaft to the

inside

edge

of the right

rear tire and set it at

30-inches or 32-inches

as

desired. The left

wheel should be set

the same.

However,

when it

is

desired to

give

the tractor greater stability,

such

as

hillside

plowing,

the left wheel may

be set

slightly

wider.

Dual

Wheels

On-The-Land

Operation

The

recommended overall tractor

rear

tire width to

be used with plows

equipped to

operate

"on-the-land"

is

123

inches,

and

better

performance can generally be ob-

tained

with

narrower settings. Illust. 5

shows

the recommended

wheel

settings.

These

settings

can be obtained when the

outside

(dual) wheel has

an offset of not

more than 5-1/2

inches. When

plowing with

dual

wheels and the tractor

is equipped

with

a cab,

it may be

necessary

to

move the

right,

inside tire closer to the

cab than the

recommended 4-1/2

inches as outlined

in

the Tractor

Operator's Manual. The

left

wheels

may be

set

out to

allow clearance

between the

inside tire

and

the door of the

cab.

61.5 inches

maximum

Irom

center of tractor

-

2-5/8

inches

2-3/4

inches

Hub

clamps

lb clamps

=iP

Hub

clamps

A-S4604

Illust.

5

Mounting

diagram

for

removable

disc-type

dual wheels.

The

maximum overall

tractor

rear tire

width

to be used with plows equipped to

operate "on-the-land" is 133-inches,

and

better

performance can generally be

ob-

tained with narrower

settings. See tractor

operator's manual.

When operating in extremely dif-

ficult

soil

conditions, it

is

advantageous to

have

as

narrow

a

rear

wheel

setting

as

is

safely possible.

ADJUSTING AND

OPERATING

PLOW

PREPARATION

TRANSPORTING

ON THE

HIGHWAY

GENERAL

Tighten

bolts

and screws:

When Starting

to

plow

with

a new plow or

one

which

has been

stored,

check

to

see that

all bolts

and

set

screws

are

tight

and

that

all cotters

are

spread

to

keep them

from

falling

out. It is

especially

important

that the

bolts

holding

the plow

bottoms

be

drawn up

very tight.

REMOVING

PROTECTIVE

COATING

FROM BOTTOMS

The bracket

and socket for

a slow

moving

vehicle

(S.M.

V. )

emblem

must

be attached

as near

to the rear

and center

of

the vehicle

as practicable.

The slow

moving

vehicle

emblem

must

be in

a

plane

perpendicular

to

the direction

of travel

(plus

or minus 10

degrees)

and

be placed

centrally

at the rear

of

the

vehicle,

unobscured

and two

to six

feet above

the ground

measured

from

the

lower

edge of

the emblem.

See

lllust.

6.

Plow bottoms

are highly

polished

and

coated

to prevent

rusting

before

leaving

the

factory.

Good

work

cannot

be accomplished

until

this

coating

is

removed.

The S.M.

V.

emblem

should

be used at

all times while

on

a public

road.

The black,

protective coating

on

the

bottoms

will

quickly

wear away

in most

soils;

however, for

soils which

scour

with

difficulty,

it is

advisable to

remove

the

coating

before attempting

to

plow.

For this

purpose,

use

gasoline, kerosene

or

diesel

fuel.

A

Caution! Do

not permit

smoking,

sparks

or an

open

flame where

combustible

fuels are

being

used

to remove

the

protective

coating.

Keep

the

work area well

ventilated.

If the

plow is not used

immediately

scrape

off

the dirt,

clean

and protect

the

polished

surface of

the

bottoms

with

a liberal coat-

ing

of

heavy

grease.

TIRE INFLATION

Gauge

Wheel tire

30

pounds

Rear

furrow

wheel tire

40

pounds

PARKING

STAND

Before

lowering

the

plow for

detaching,

swing

the

stand down and

secure it with

handle.

See

lllusts.

24A

and

29.

For operation,

swing

the

stand up

along

the

pull beam

and secure

with

handle.

Comply

with all

state

and local

laws

gov

erning

highway

safety

and with

any regu-

lations

which

cover

moving

machinery

on

the

highway.

Drive

at

a

reasonable

speed

to

maintain

complete control

of the machine

at all

times.

s.

m. v.

emblem

socket

Reflective

tape

(amber)

(facing

forward)

Reflective

tape

(red)

(Facing

rearward)

A-S6676C

lust.

6

Slow

moving vehicle (SMV)

emblem,

socket and

bracket.

ADJUSTING AND OPERATING

TRACTOR

OPERATION

TRACTOR

HITCH

CONTROL

LEVERS

Two-Point

and

Three-Point

Hitches

Farmall

and

International

Tractors

The

Two-Point

and

Three-Point

Hitches

are

controlled

by

the levers

located

at the

right

of

the operator's

seat.

See

II

lust.

7.

1.

Inside

Control

Lever

(Position Control)

This lever

is used to raise

and lower

the

hitch

and

to level

the plow.

(When beginning

to operate in

the field,

place the outside

draft

control

lever in

the extreme

forward

position).

See

lllust. 7.

In-The-Furrow

Operation

The location of

the inside lever in

the

quadrant indicates

the relative plowing

depth

obtained. When

the lever is

placed

just before

the offset

near the front

end of

the

quadrant, maximum

depth is obtained.

As

the

lever is

moved

toward the

"RAISE"

position,

shallower

depths will be obtained.

Use

this lever

to establish

the desired work-

ing

depth

in

the field.

See

lllust. 7.

The adjusting

stop may be set to

help

locate the lever

setting.

It can then

also be

by -passed when needed

(as

for quick

entry

into the ground).

lust.

7

2. Draft

Control

(Not

recommended

for

on

the land

operation)

Draft

control is

that function

of

the trac-

tor

hitch

which responds

to variations

in

draft and does it

quick

enough to maintain

a

nearly constant

load

on

the

tractor.

When

the load on

the hitch

increases, the

hitch

responds

by shallowing

the front

end of the

plow,

which transfers

increased

weight to

the

tractor,

thus increasing

traction. A

choice of

two methods of

employing

"Draft

Control"

is available

as follows.

ADJUSTING

AND

OPERATING

TRACTOR

OPERATION

-

Continued

HITCH CONTROL LEVERS

draft

control advantages, plus

sets a

depth

limit

(so

that the plow will

not

go

too deep

where lighter soils

are

encountered).

2A.

Draft Control-Modified

(Recommended for In-The-Furrow Operation)

When

the

plow is properly

leveled with

the

hitch

and with

the gauge

wheel

(as ex-

plained under

"Inside

Control

Lever"

sec-

tion) it

may be

desirable to

operate using

"Draft

Control-Modified".

This is

particularly useful in fields

with

extreme

soil

variations, providing all

the

In these

cases

a

bottom (or depth) limit

is

established

by

setting

the inside lever

while

plowing

in the lighter

soil in the field,

(as

instructed under

Inside Control Lever).

Next set the

outside draft control

lever

to establish the

desired load for

operating

in

the heavier soil

in the field.

The operator can

determine

in

a

short time the best settings.

See

lllust.

8.

A-B4199B

lllust. 8

Draft

Control-Modified.

lllust.

8A

Draft Control.

lllust.

8B

Draft Control.

-

ADJUSTING AND OPERATING

TRACTOR

OPERATION

-

Continued

HITCH

CONTROL

LEVERS

-

Continued

Draft Control

(Optional

for

In-The-Furrow

Operation)

When

strictly draft

control

is

desired,

the

inside

control

lever should

be

placed

near the front

of

the

quadrant.

See

1 1 lust.

8A.

The

plowing depth

of the front

of the

plow

is

then

established

by moving

the outside

draft

control

lever from

"LIGHT"

to

"HEAVY"

until

the

desired depth

is attained.

On-The-Land-Operation

Use

the

inside control

lever to

help level

the

plow while operating

in the field.

As a

starting point

run the

lower link hitch

pins

about

17"

above the

ground.

(Draft

control

is

not

recommended.

Place outside

lever

in

an

extreme

forward

position).

The adjusting

stop may

be

set to

help

locate the

lever setting. It can then also

be

by-passed when

needed (as for quick entry

into

the

ground).

A

Caution!

Move

the Draft Control

lever forward

as

far as

possible when

the plow is discon-

nected.

The

speed

of hitch response to

changing

draft

loads can be varied

by moving the

in-

side control lever

past

the

offset,

into the

portion

of

the quadrant marked "RUN".

When the

lever is in the

extreme forward

position

load

sensing

is slow. When

the

lever is

located

just beyond the

offset

in

the

quadrant,

load sensing is fast.

See

lllust. 8B.

Any

lever

setting between

the two

extremes

may

be used depending

on field

conditions.

When lowering the

plow to start

plowing,

the

inside lever

should

not

be moved directly

to

the extreme forward

position as this

will

cause

slow entry

of

the

front

of

the plow

and

also

cause

the

rear cylinder to lower the

rear

of

the

plow too

slow.

A

CAUTION! Move the outside draft

control

lever forward

as far as possible

when

the

plow is

disconnected.

Note:

Refer

to

your

tractor

operator's

manual

for more detailed data.

'

v.

/

Maximum

ADJUSTING

AND OPERATING

PLOW

OPERATION

ATTACHING

TO

TRACTOR

Slip

the

lower link

ball

joints over

the

plow hitch pins

and

lock in

place

with Klik

provided.

Note:

Use

shields (located in

tractor

tool

box)

ahead of

Klik Pins

to prevent the

Klik

Pins from being

dislodged

from plow hitch

pins.

The

upper link of the tractor is not used.

Secure in the storage position and be sure

it

will not interfere

with the

operation of

the

lower links.

When

transporting,

or in the field, slow

down

before

turning. Do not use individual

tractor

wheel braking to make short turns.

This plow

has limit stops which do

not per-

mit pivot

turns.

SCOURING

If the

plow

bottoms

do

not scour im-

mediately, it

is

because

the

soil is rather

sticky and

you will

have

to wait until the

bottoms

have

taken

a land

polish. This may

require

a few

rounds or,

in

very

sticky

soil,

a

few days. To obtain this land polish, it is

recommended

that you

run

the plow

rather

shallow

and fast. It

is

also advisable

to

set

the

colters far to

the

outside of

the

landside

and

not too

deep.

Sometimes it

is necessary

to

remove

the

colters entirely

so as

to

ob-

tain

the

maximum pressure on

the plow

bottom

which aids in

scouring.

REAR FURROW

WHEEL

The purpose of the rear furrow

wheel

is to take part of

the

thrust

of the

landside

against

the

furrow

wall and to carry the

rear end of the plow when transporting.

The

adjustments

provided are especially

important when plowing hard

or

difficult

soils. Make certain

the tire is inflated to

the

recommended 40

pounds of air pres-

sure before

making adjustments.

The

bolt

"K"

in

II

lust.

10 serves

to

locate

the

axle

in one of five

possible positions

in the axle sleeve. Use the center position

for

average

conditions.

Note:

With

the use

of larger tires this adjustment is limited

by

tire

clearance

and

care should be taken

not to allow the

tire

to rub on the linkage.

Adjusting

the wheel

closer

to the

furrow

wall

can aid

in taking

side

thrust and

help

reduce

landside

wear.

Be sure

to completely collapse the

h/draulic

cylinder each

time the plow is lowered to operate.

lust. 10

10

PLOW OPERATION

-

Continued

REAR

FURROW WHEEL

-

Continued

ADJUSTING AND

OPERATING

Lead adjustment:

Turn

the threaded eyebolt

"L",

(lllust.

10)

in or out of the rear steering

pipe

until the proper measurement is ob-

tained for the plow. Measure

from the end

of the pipe to

the

center of

the

pivot bolt 6

inches

for

16

inch plows or 8

inches

for

18

inch

plows. Secure

the

setting with

the

jam

nut. Note

that these

are starting lengths

which

are subject to later adjustment such

as

may

be indicated by field performance.

The wheel should lead or angle slightly

towards

the

plowed ground.

VERTICAL ADJUSTMENT

Plow without

Gauge

Wheel:

Turn

the

cap

screw

TT

J"

(lllust.

10)out to place more

of

the

weight of the rear end of

the

plow on the

rear

wheel.

The

adjustment is correct when

the heel of the landside runs about

5/8

-inch

above the bottom

of the furrow. While op-

erating, check

to see that the rear wheel

link is bearing against the cap screw

head.

This indicates that the weight of the plow

is on the rear wheel.

After making

the

adjustment, lock

the

cap screw

"J"

with

the jam nut to secure the setting.

Plow With Gauge

WheeLTurn the cap screw

"J"(lllust.

10)

all the way

in to

the head and

lock it with

the

jam

nut.

This will allow

maximum

upward float of the rear furrow

wheel

to allow quicker penetration of

the

rear

bottom.

It

may

be

desirable

to adjust

the

cap

screw out as

instructed in

"Plow Without

Gauge Wheel" section.

A.

)

Where additional soil floatation is

needed.

B. )

To

help take side thrust if rear of

the plow is overcutting.

If-

2

-

Z

Q

MA

51854

lllust.

11

ADJUSTING

AND

OPERATING

PLOW OPERATION

-

Continued

GAUGE WHEEL

To set the gauge

wheel for

plowing depth

move the gauge

wheel standard

up or down

as

required and

secure it

with the

retaining

J pin

and

Q.

A.

cotter pin as

shown

at

"Q",

in

lllust. 11.

A full adjustment (approximately

1-1/4-

inches)

can be made by moving

the standard

either up or down

one hole within the

bracket.

See

lllust.

11,

inset at

"Q".

A

half

adjustment

(approximately

5/8-

inches)

can

be

made

by

moving the

J

pin and

placing

it

below the

bracket

as

shown

in

lllust. 11,

inset

at

S.

Note: Always

install

the standard

retain-

ing pin

at

"Q"

downward

as

shown

in

inset

lllust. 11.

A gauge

wheel

adjusting tool (optional)

is

available

for easy

gauge wheel adjust-

ment. Use the tool

to move

the

gauge wheel

up or down as shown

at

"R",

lllust.

11.

When

making a change

in

plowing depth

it is necessary

to

consider the depth control

setting along with the gauge wheel.

FRONT

FURROW WHEEL

(For On

The Land

Operation)

The

front furrow wheel

should be

adjusted

to run

in

the

furrow

approximately level

with the front

bottom.

See lllust.

12.

The

depth

of

the

front of the

plow is

controlled

by

this wheel

through

the

front

hydraulic

cylinder. After

the

proper

setting is

deter-

mined in

the

field this

setting can be

main-

tained by

using

the

hydraulic

cylinder

stop.

See lllust.

12.

A

thumb screw, lllust.

29

is

supplied with the

plow to ease

adjusting the

cylinder stop.

lllust.

12

PLOW

OPERATION

-

Continued

IN-THE-FURROW

OPERATION

ADJUSTING

AND

OPERATING

Horizontal

Hitch

Adjustment

Three-Point Hitch

HEU

MA-1527

C

1

-

Hitch

pins, Lower

Position

(tighten

to

360

foot-pounds)

2

-

Reversible

cross

bar

3

-

Width

of cut

setting.

See

table

of cross

bar

settings

7

-

Crossbar

bolts

(Re-tlghten

to 250

foot-

pounds)

lllust.

13

Parts Set

for

Average

Plowing.

Crossbar

Settings

(See

3

in

lllust.

13)

Plow

size

ADJUSTING

AND

OPERATING

PLOW OPERATION

-

Continued

IN-THE-FURROW

OPERATION

-

Continued

Horizontal

Hitch

Adjustment

-

Continued

Width of

Cut

Set the

crossbar to appropriate

dimen-

sion. See crossbar

setting charts

on

page

13.

Note:

The

dimensions

given

in

charts

on

page 10 are

for

average

conditions

but

note

that

change

may

be

required

because

of

variable

factors

such

as

soil

conditions,

plowing

depth

or

tractor

wheel

tread.

In

any

case,

see

that

the

front

bottom

cuts the

proper

width.

Overcutting by

Front

Bottom:

Move

the

cross-

bar

toward

the

left

(away

from

the

furrow)

the

same

amount

as

the

front

bottom

is

overcutting.

Undercutting

by

Front Bottom:

Move

the

cross-

bar

toward

the

right

(toward

the

furrow)

the

same

amount as

the

front

bottom is

under-

cutting.

Front

Spreader

Plate

Location

MA

1531

£

lust. 14

-

Four

Furrow Plow.

MA

-3322

A

M

lust. 14A

-

Five

Furrow

Plow.

Front of

Tractor

Pull

Toward

Furrow

Remove the

two

(2)

bolts

from the mount-

ing clip.

Move

the pull

beam

to the

left ap-

proximately

1.4

inches.

Bolt

the

mounting

clip to the

spreader

plate

using holes

"A".

See

lllust.

14A

for

the

5-furrow

plows

and

lllust.

14B

for

the

6-furrow

plows.

Move

the

crossbar

approximately

2

inches

to the

right.

Be

sure

the

tie

rod

is

kept

taut

and

is

re

-tightened

after

making

adjustment.

1

-

Spreader plate

2

-

Spacer

ADJUSTING

AND

OPERATING

PLOW

OPERATION

-

Continued

IN-THE-FURROW

OPERATION

-

Continued

Horizontal

Hitch Adjustment

-

Continued

Plow Overcuts

(tails to the left)

First

check the following:

1. Plow

is level

and front bottom is not

running

too deep.

2. Front bottom is not

overcutting.

3.

Plow is equipped with

proper land-

sides and are not worn too badly (wide

landside on rear).

4.

Rear furrow wheel

has the proper

lead adjustment

(slight lead

toward plowed

ground)

.

5.

Rear furrow

wheel

is

adjusted to run

closer to the furrow wall to

help take some

side

thrust.

(Utilize

screw

"J"

(lllust.

10)

to

get

down

pressure on

wheel).

6.

Hitch is set

properly

as

instructed.

If

all

the above

is checked and over-

cutting is still a

problem,

do

as

follows:

Move

the pull

beam to the right (one

position). Note:

This

will require an adjust-

ment of

crossbar

or a change in

tractor

wheel tread.

Vertical Hitch

Adjustment

Crossbar

hitch pins should be installed in

the lower holes

for normal operation.

Front of

Plow Runs

Shallow

Locate the

hitch pins in the crossbar

in

the

upper

holes. This will

have the tendency

to raise the rear of the plow

and lower the

front of

the

plow

into the ground.

This change also tends to put more

weight

on the

rear

of

the tractor.

Rear

of

Plow

Runs Shallow

When the

rear

of the plow

runs shallow it

may be

necessary to

lower the hitch pins in

order to get depth at the

rear

of

the

plow. To

accomplish this

the

plow is

equipped with

a

reversible crossbar. The

crossbar is

re-

versed by removing it from the pivot post

plates and reinstalling it (top side down).

For an

extreme lower setting,

reinstall pins

in the

lower holes.

Note:

When making

a

change in plowing

depth it is necessary to

consider

the

rear

wheel setting

along

with

the

hitch depth

set-

ting. The rear wheel should carry appreci-

able weight; however, if it makes

a

deep

track

in

the ground and

the plowing depth

is

satisfactory, then the hitch

setting should

be raised slightly. The hitch setting

will

determine

the plowing depth while the rear

wheel serves

to

stabilize the

selected

depth

and

keep the

plow

frame

level

with the

ground.

15

*

ADJUSTING AND

OPERATING

PLOW OPERATION

-

Continued

ON-THE-LAND OPERATION

Vertical

Hitch

Adjustment

Crossbar

hitch pins should

be installed

in the

lower holes

for normal operation.

Front of

Plow Runs

Shallow

Locate the

hitch pins

in the

crossbar

in

the upper

holes. (This will

have the

tend-

ency to

raise the

rear of the plow

and lower

the front of the plow

into

the ground)

.

This

change also tends

to put

more

weight on

the rear of

the tractor.

Horizontal Hitch Adjustment

Front of

Tractor Pulls Toward Furrow

Make one of

two

corrections:

1.

Move

crossbar to the

right (one set-

ting).

Note:

If the

crossbar

is set

in the

(A)

setting

it can

be

moved to the

right by in-

verting it.

Remove

crossbar

and

install it

top side

down.

(Do

not forget to

reverse

the

hitch pins

to

the proper

vertical

setting),

2. Move the

pull

beam to the

left (one

position)

and

move

the

crossbar to

the right

(one

setting)

by

following

instructions above.

(This

correction

will

be preferred

if you

choose

to

maintain

the

rear tractor

tire

to

frurrow

wall

distance).

Plow Overcuts

(tails

to

the left)

First

check the

following:

1. Plow

is

level and

front

bottom is not

running too

deep.

2.

Front bottom is not

over

cutting

(a

matter

of tractor

driving)

.

3. Plow is

equipped

with proper

land-

sides

and are not

worn too badly

(wide

landside on

rear).

4.

Rear furrow

wheel has the

proper

lead

adjustment

(slight

lead

toward plowed

ground.

5.

Rear

furrow wheel is

adjusted

to run

closer to

the furrow wall

to

help take some

side

thrust. (Utilize

screw "J"

(lllust. 10) to

get

down

pressure on

wheel).

6.

Hitch is

set

properly

as

instructed.

If all

the

above is

checked and over-

cutting

is

still

a

problem, do

as

follows:

Move

the pull beam to

the

right (one

position).

Note:

This will

result in having

to run

the

tractor

a

little closer to

the

furrow wall.

16

PLOW

OPERATION

-

Continued

ON-THE-LAND

OPERATION

-

Continued

Horizontal Hitch

Adjustment

-

Continued

Hitch

Positions

ADJUSTING

AND OPERATING

Settings

lllust.

17

Position (1)

with

setting

at

"B"

shown.

Determine

the

overall

rear

tire

width

of

the

tractor.

Refer to

the

chart, page

18,

and

set and

secure

the

position

and

setting

before

operating

the

plow.

Locate

the

washers

on the

inside

or

outside

of

the

axle

bearing

as

required.

lllust.

17A

Position

(2)

with

setting

at

"B"

shown.

Note: The

tie rod

must be

kept

taut at all

times

to be

effective.

17

ADJUSTING

AND

OPERATING

PLOW

OPERATION

-

Continued

ON-THE-LAND OPERATION

-

Continued

Horizontal Hitch Adjustment

-

Continued

Hitch Positions

lllust.

18

-

Position

(3)

with

setting

at

"B"

shown.

Illust.

18A

-

Position

(4)

with

setting at

"B"

shown.

(See lllusts.

17,

17A, 18

and

18A)

Plow

Size

ADJUSTING

AND OPERATING

PLOW

OPERATION

-

Continued

AUTOMATIC

RECOVERY BEAM

MA-7162

A

lust.

19

The

Automatic

Recovery Beam is

de-

signed

to

relieve

itself by

moving directly

back

and

up when

the bottom

encounters

an

obstruction

in

the ground.

The

bottom then

re-enters the

ground

at the

proper plowing

angle

without

a

reduction

in

forward

speed.

A

vertical

relief feature

is incorporated

which

allows the

share

point to

glide up and

over

sloping

obstructions.

The

ability

of the

plow bottoms

to

main-

tain

the

proper

plowing

depth

is

dependent

upon

the

suction

of the

bottom.

In

fields

where

penetration

is

a

problem

the

suction

of the

bottom

must

be

increased

by replacing

worn

shares

or

by using

shares with

better

penetrating

qualities

such as

deep

suck or

upset

shares.

Under

some

soil

conditions

it

is

advantageous

to

use the

adjustable

pitch

feature

on

the

plow

bottom.

(See

1

1 lust.

21

C).

The reversible

adjusting

block

(See

lllust.

19) is assembled at

the

factory

with the

thin

side engaged. For

areas

having

extreme

surface

rock, reverse

the

block

so

the thick

side

is engaged

reducing tripping

load and

providing

maximum

protection for the plow.

NEVER OPERATE

THE

PLOW UNDER ANY CON-

DITION WITH

THE ADJUSTING BLOCK

REMOVED.

Note:

Use

caution

when

plowing in

fields

with

large

rocks

which

protrude

6

inches or

more above the

surface.

A A

Caution!

Automatic

Recovery

Beams operate

very rapidly and

are

potentially

dangerous to

be near at all times

while

plowing.

Caution! The

spring tubes arc

and

whip at a

fast rate

forward,

making

it dangerous to

ride

anywhere

on

the plow frame.

A

Caution! Should

dirt or trash

cause a unit to

"hang up",

stay

clear of the

area

near the

unit.

To remove

the obstruction,

use a long

pole

or

hook.

SPRING

TRIP

BEAM

The beam trips are set

at the factory to

break

at a load of

3,

100 pounds.

Slacking

off the

lock nuts

"AB" will decrease

the

trip-

ping load.

By tightening the lock

nuts two

revolutions

the

tripping

action is increased

to maximum.

See lllust. 20.

Increasing the tripping load

will reduce

the

frequency

of tripping in hard

ground,

alfalfa, etc.

,

but will

at the same time in-

crease

the possibility

of

bottom

damage.

An extra

spacer

block

(part number)

524

594

Rl)

may

be

obtained

from

your

International

Harvester

Company

dealer

and assembled

in

place

as shown in

lllust.

20.

Use this extra

spacer block

only

where

plowing

is

extremely

hard

and

difficult

and

excessive

tripping

occurs.

To obtain

the

maximum

protection

for

the

plow frame

and

bottoms

in

fields

where

stumps

and

stones

are

found,

use only

the

spacer

block pro-

vided

with

the beam

units.

Note:

Hard

surface

shares

are not recom-

mended

for rocky

conditions.

19

ADJUSTING

AND OPERATING

PLOW

OPERATION

-

Continued

SPRING

TRIP

BEAM

-

Continued

Extra

spacer

block

A-846UA

AB

-

Adjusting nut

AC

-

Helper

spring

AD

-

Main spring

AE

-

Access

hole

AF

-

Pivot

bolt

lllust. 20

Beam Trip

Pivot Bolt

Note:

The 1-inch slotted nut which secures

the pivot

bolt "AF"

(lllust.

20) must

be kept

tight at all times. If this

is

not done, the

bottom will be loose and tend to

overcut

and

wear unevenly. Tighten the slotted nut

enough to eliminate all shake

but at the

same

time

see

that the bottom can be

rotated

by

hand on the beam pivot bolt.

This precaution

serves

to

prevent unnecessary

tripping in

hard ground due to a "walking

action"

of

the

trip mechanism. After plowing the first one

or two acres,

it

will be necessary to tighten

the pivot bolt nut

due to the "wear in" of the

mating parts.

Opening

The

Beam

Trip

It is not

necessary

to

disturb

the adjust-

ment of

the

helper springs

when

the trip

unit

is

opened for

examination

or

cleaning.

The

recommended

method is to insert

a

bar

through

the access

hole in the

plate at

"AE"

(lllust.

20),

and pry

up on the spring.

This

will free the

beam in

a manner which

will not

disturb the

setting of the

helper

springs.

Operating

Precautions

It

is

recommended that each trip be

opened as described above

before placing

the

plow

in operation. Remove any accumu-

lation

of

dried paint but

do

not lubricate the

spring, notch, or roller. Do this

again

at

the beginning of each plowing season and re-

move any

dirt or

rust which may interfere

with operation. Open and

close the

unit

several times to check

the trip action.

Note:

Hard

surface

shares

are not rec-

ommended for

rocky

conditions.

PLOW BOTTOM

A-62245

A

-

Soft-center

steel moldboard

B

-

Solid steel,

throw-away

share

C

-

Replaceable shin

D

-

Rugged

welded-steel frog

lllust.

20A

Super Chief®

Bottom

The replaceable

shin,

landside, and

share

provide a

quick and

economical

means

for renewing

the points

subject to maximum

wear.

The shares

are the

throw-away type

designed

for replacement

instead

of sharp-

ening or

renewal. Shares

are

available

in

regular, upset,

and

deep- suck

styles.

20

ADJUSTING

AND

OPERATING

PLOW

OPERATION

-

Continued

PLOW

BOTTOM

-

Continued

1

Must.

21

-

Regular

share

shown.

The

regular share,

(lllust.

21)

gives the

lowest cost

plowing in most soil

conditions.

The

regular share is

recommended

for nor-

mal plowing

conditions.

Shares, shins, and landsides are held

to

the frog by plow

bolts. When

replacing these

parts,

be

sure the bolts are tightened

se-

curely. After plowing a round, raise the

bottoms

and draw

up

any bolts that have be-

come

loosened.

Note:

The share

bolts have left

hand

threads.

Never permit the share, shin, or land-

side to wear until the frog

is exposed. When

plowing in abrasive

soil,

check

the condition

of

these

parts frequently.

Plowing

with

worn, bent, or broken shares

is poor econ-

omy, and it can result in hard

running plow

and increased

fuel

costs.

A-69808

lllust.

21A

-

Heavy-duty upset share

-

3/8-inch.

The heavy-duty upset share

(lllust. 21

A)

has

thickness throughout the whole front portion

for added strength when

used

in

rocky con-

ditions and for more wear in extremely

abrasive

soil.

To

use

in

normal

\^k>)

position point

arrow

down

To increase

£sA

penetration

point arrow

op

A

-

Landside

B-Wear pad (reversible)

C

-

Eccentric

block

lllust.

21

B

-

Deep

suck

share

-

3/8-inch.

The deep

suck share

(lllust.

21B)has

a

point designed

for more

aggressive

action,

giving quicker entry and

more stable

plow-

ing depths in hard ground.

Deep suck and

upset

shares

are

available with factory

applied

hard surfacing.

All shares

are interchangeable.

The

bot-

toms may

be changed from

regular cut

to

undercut

or overcut,

depending

on the size

of shares

used.

lllust.

21C

The

landside wear

pad

can be reversed

by

removing its two

attaching bolts and

reinstalling

the

pad top side down.

The

eccentric block

is recommended

for rocky ground. Be sure the

block bears

tightly on the

landside.

The Adjustable

Pitch

Feature

is provided

on

all Super Chief

plow bottoms

to

aid pene-

tration

with worn

shares,

and thus prolong

share life. This

feature

also

provides more

suck

for

additional

penetration

when re-

quired.

Caution

must be taken to

see that this

feature

is utilized correctly.

When

new

shares are being

used the bottom

should be

set in the normal

position.

See

lllust.

21C.

21

^^ffTTT^J

,W-

'*

T

ADJUSTING

AND

OPERATING

PLOW

OPERATION

-

Continued

ROLLING

COLTER

lllust.

22

Do not

run the

colters

too deep

in

hard

ground

as this

will

ride the

plow

out of

the

ground.

Slightly

loosen the

colter

shank

clamp

and turn

the

shank

with a

wrench

to

swing the

colter

so the

blade

will

run ap-

proximately

3/4"

from

the left

side

of

the

landside,for

average

soil

conditions.

See

that

the colter

blade

is

parallel

with

the

landside

when

the

measurement

is

made.

In

soft,

crumbly

ground

a

wider

setting is

necessary

in

order to

obtain

a

clean

furrrow

wall;

in sod or

firmer

soil

the

colters

can

sometimes

be

set

narrower.

A

set

collar

at

"1",

lllusts.

23

and 23A,

is

provided

in the

colter

yoke

to*

prevent the

colter

from

swinging

completely

around.

lust. 22A

This

set

collar should be set on the

colter

shank

so

it will allow the colter

to swing

approximately the same distance

on each

side

of the point of the

share. The colter

can then pivot when the plow is turned

to

the right or left.

All

colters

should be set

the same

to

prevent a

ridged field.

Adjustment is provided

to locate the

roll-

ing

colters

in fore and aft relation

to the

share point. The clamps

at "A"

(lllust.

22A)

holding the

colter shanks to the

frame rails

may be used

in two

positions.

Twenty inch colters must be

assembled

in the

front setting as shown

in

lllust.

22A.

22

ADJUSTING

AND

OPERATING

PLOW

OPERATION

-

Continued

ROLLING COLTER

-

Continued

Side Arm

Colter

Cushion

Spring

Colter

I

lllust.

23

Side

Arm Colters

are

recommended for

regular trip beam

plows. Shear bolts

are

used

to protect the

colter

units against dam-

age

when plowing

in rocky

ground.

See

lllust.

23. For replacement

use

7/16

x

1-3/4-inch

hex. head

cap

screws (type

5).

lllust.

23A

Cushion

Spring Colters

are especially

recommended

for

use

with

Automatic Trip

Beams and stony soil.

Adjustment with

rela-

tion to the

bottoms is the same

as for the

other

colter types,

however, they should be

set lower to

provide for spring deflection.

If greater

amount of down

pressure is de-

sired,

tighten lock nut "A"

in lllust.

23A.

23

SETTING

UP

IN-THE-FURROW OPERATION

Remove all

wires

and

arrange the parts

conveniently.

Lubricate all

bearings

and moving

parts

as

you

proceed,

and

see

that they

work

freely.

Bolts

must be used

in the

holes in

which

they are

found,

or in the

parts to

which they

are attached,

unless

otherwise

shown.

Whenever

the

terms "left"

and

"right"

are used,

it should be

understood to

mean

from a

position behind

and facing the

machine.

When

beginning

to assemble it is

recom-

mended

that the

plow frame be

laid

over

supports

about 30

inches high

until the hitch

and

wheels are

installed.

When the plow

can

be

hitched

to the tractor

and the

hydraulics

connnected;

raise

the plow

and put on the

bottoms and

colters.

m*

uxa

lllust. 24

— Spring

trip

beams.

Attach hitch as

detailed

in

Musts. 25

or

25

A

Attach front steering links,

See

Musts.

27A

or 27B

for

4-furrow

location.

6-furrow

5-furrow

Attach gauge

wheel, rear furrow

wheel and

rear steering

links,

§

See pages 26 and

27.

Parking

stand

Attach tie

rod.

See

Note

lllust.

24A

-—

Spring

trip

beams.

Note:

Tighten

only

until the

main

frame

and

extension

are

aligned.

In

the

case

of

plows

without

frame

extension,

tighten

until

the

rod

is

tight.

Secure

with

jam nut.

DO

NOT

OVERTIGHTEN!

When a

frame

extension

is

used,

be

sure

the

pull

beam is

assembled

in the

correct

location.

See

spreader

plate

location,

page

14.

24

SETTING

UP

IN-THE-FURROW

OPERATION

TWO-POINT HITCH

THREE-POINT

HITCH

HBH

MA-1527

C

MA-1524

C

1

-

Hitch pins.

Lower

position.

Tighten to 360 foot-pounds

torque

2

-

Reversible cross

bar

3

-

Attaching prongs.

Secured

to hitch

pins

with headed pins and cotters

4

-

Spring loaded spreader

rod

5

-

Hold-up

spring

6

-

Width

of cut

setting.

See

table of

cross bar

settings on

page

13

7

-

Crossbar bolts (retighten to 250

foot-pounds)

1 1

lust.

25

Parts

set for

average plowing.

1

-

Hitch pins.

Lower position.

Tighten

to 360

foot-pounds

torque

2

-

Reversible

cross

bar

3

-

Width

of cut setting.

See

table of

cross

bar settings

on page

13

4

-

Crossbar

bolts

(retighten to 250

foot-pounds)

lllust.

25A

Parts

set for

average plowing.

FRONT

HOSE

SUPPORT

BRACKETS

MA33274

lllust.

25B

Install

front hose supports as

shown

at

"A".

25

SETTING

UP

IN-THE-FURROW

OPERATION

-

Continued

REAR

FURROW WHEEL

S.M.V.

safety

bracket

\

Reflective

tapes

amber

facing

forward

red

facing

rearward.

lust. 26

1.

Bolt the

rear

axle

assembly

and

the

cylinder

anchor

to the

end

of the

main

frame

diagonal

member.

Be

sure

the

reinforcing

plates are

below

the

wheel

mounting

bracket

as

shown

at

"A",

lllust.

26A.

Use

a

torque

wrench

and

tighten

these

bolts

to

a

setting

of

190

foot-pounds.

Include

the

hose

clamp

on the

bolt as

shown

at

"B".

Attach

the

tie

rod

anchor

"D"

as

shown

in

lllust.

26A.

MA33HA

Note: The

two

rear

bolts

must be

installed

through

the

frame

with nuts

on the

bottom

of

the

reinforcing

plate.

2.

Bolt

the

wheel

with

tire to

the hub

on

the

furrow

axle.

3.

Attach

the

hydraulic

cylinder.

4.

Connect

the

hose

to

the

cylinder

and

secure

them

in

the

clamp

at "C",

lllust.

26A.

5.

Bolt the

steering

link pivot

bracket to

the

main

frame.

Locate the

bracket

between

the

second

and third

beams

from the

rear of

the plow.

See

lllusts.

26, 27,

27A,

and

27B

as

applicable.

6.

Connect

the

rear

steering

link to

the

axle

arm.

7.

Connect

the

front

and

rear

steering

links

to

the

holes

in

the

pivot

arm,

using

two

bolts

as

shown

in

lllusts.

27,

27A

or

27B.

Be

sure to

read

"REAR

FURROW

WHEEL"

in

the

Adjusting

and

Operating

instructions.

lllust.

26A

26

SETTING

UP

IN-THE-FURROW

OPERATION

-

Continued

REAR

FURROW WHEEL

GAUGE

WHEEL

16'

Siio shown

ma 3326B

J8"

size

shown

1. Bolt the gauge

wheel bracket to the

main frame.

Note that the tie

rod anchor

at

"D",

lllust.

27C

will

be

secured by the bolt

through

the

main frame.

2. Slide the

standard

up

through

the

slot

in

the bracket and secure it with the retain-

ing pin.

3. Bolt the gauge

wheel to the

hubs.

Be

sure to read "Gauge

Wheel" in the

Adjusting

and Operating

instructions.

5

and

6

Furrow

plows

lllust.

27

Secure

with

headed

pin and

cotter

4-furrow

16-inch

Plow

lllust. 27A

Secure with headed

and cotter

/

X3

Front

steering pipe

Rear

steering

pipe

Steering

pivot bracket

4-furrow

18-inch

Plow lllust.

27C

lllust.

27B

27

SETTING

UP

ON-THE-LAND OPERATION

Remove

all wires and

arrange

the

parts

conveniently.

Lubricate

all

bearings

and moving

parts

as

you

proceed, and

see that

they

work

freely.

Bolts

must be

used in the holes

in

which

they

are found,

or in the

parts to

which they

are

attached,

unless

otherwise

shown.

Whenever

the

terms

"left"

and "right"

are

used,

it

should

be

understood

to mean

from

a position

behind

and

facing

the

machine.

When

beginning

to

assemble

it

is recom-

mended

that

the

plow

frame

be laid

over

sup-

ports

about

30 inches

high

until

the hitch

and

wheels

are

installed.

When

the

plow can

be

hitched

to

the

tractor

and

the

hydraulic

con-

nected;

raise the

plow

and

put on

the

bottoms

and

colters.

Tie

Rod (Front

End)

lust.

28

MA

3329B

lllust.

28A

-

Locate

and

secure tie rod for

16-inch and

18-inch plows as shown.

28

ON-THE-LAND

OPERATION

-

Continued

Cylinder

thumb

screw

SETTING

UP

Six-furrow

location

furrow,

16-inch

5-furrow,

18-inch

6-furrow,

18-inch

6-furrow,

16-inch

Five-furrow

location

MA

333f

A

lllust.

29

Note:

Assembly is

apt

to

be

easier if all

bolts

are

assembled

loosely

in place,

after

which

all

bolts are

tightened.

1.

Bolt

the

pull

beam

connecting plates

to

the

main

frame

diagonal

member.

Install

hose

clamp as

shown.

2.

Bolt

the

pull

beam

and

connecting

plates

together.

3.

Bolt

the

parking

stand to

pull frame.

Use 3/4

x

7-inch

carriage

bolt

and secure

with

handle.

4.

Locate

and

bolt

the

spreader

mounting

and

clip.

5.

Bolt

the

spreader

to the

front

of the

main

frame

and

the

mounting clip.

Install

mounting

spacer

at

the rear

side

of the

spreader.

Note: See

lllusts. 17,

17A, 18

and

18A

for

proper

location.

6.

Feed

the

axle

through

the slot

in the

spreader

until it

is

in

its

approximate

position.

7.

Bolt the

axle

bearing

to

the

pull

beam.

Note: See

lllusts. 17,

17A,

18

and

18A

for

proper

location

of bolts,

and washers

used on each

side

of

the axle

bearing.

See

lllust. 28A

for

proper tie

rod

anchor

and

the hose

clamp

location.

Note:

Install

the

rear

bolt

down

through

the axle

bearing

plate

to prevent

cylinder

interference.

See

lllust.

28A.

8.

Automatic Trip:

Bolt

the

first

colter rail

to the

left

side of

the

recovery

beam

pivot

bracket.

Be

sure

to

install

the

1/4-inch

beam spacer

between

the

recovery

beam

pivot

bracket

and

colter

rail to

insure

proper

alignment

of the wheel

support

bracket.

Spring

Trip:

One

1/4-inch

spacer

should be

installed

on

each

side

of

the

first

colter

rail

to insure

proper

alignment

of the wheel

support

bracket.

9.

Bolt

the

wheel

support

bracket to

the

spreader

and

the

colter

stub rail.

Install

bearing

"C".

(lllust. 30A).

Note:

If

rolling

colters

are

used,

install

colter

shank

and cap.

10.

Install

the

front

furrow

wheel

axle

housing and

the upper

arm

to the

cross

axle

29

SETTING

UP

ON-THE-LAND

OPERATION

-

Continued

Caution:

Do

not

use

this

hole

for

on-the-land

applications

lllust.

30

Five-furrow, 18-inch

plow

shown.

wheel support

bracket. See lllust.

30A

for

axle

spacer

location.

(18-inch shown).

Move

spacer

to

outside of

housing

for

16-

inch

plows.

Note: Use

washer

"A" as

required

to

align

upper

arm.

See

lllust.

30A.

11. Bolt

the

furrow

wheel

(with

tire)

to

the hub.

Importont! Swing

the

wheel

about

45

degrees

to

one side

to

compress

the

pivot

shaft

spring

"B" (lllust.

30A).

Turn the

adjust-

ing nut to

compress

this

spring

almost

"coil

to

coil".

Secure

this

setting

with the

jam

nut

"D".

Important!

discard.

Remove

pin from hole

"E" and

«M-33tf A

lllust.

30A

18-inch shown.

12.

Bolt

the center

steering

arm

and

mounting

between

the second

and third

beams

from

the

rear of

the

plow.

13.

Connect

the inside

front

steering

pipe

to

the

outside

front

steering pipe

and

secure

as

shown

in

lllust.

29.

14.

Connect

the front

steering

link

and

rear

steering

link to the

end

hole

using

one

bolt as

shown

in

lllust.

30.

30

SETTING

UP

ON-THE-LAND

OPERATION

- Continued

REAR

FURROW

WHEEL

1.

Bolt

the

rear

axle

assembly

and

the

cylinder

anchor

to

the

end

of

the

main

frame.

Be

sure

the

reinforcing

plate is

below

the

wheel

mounting

bracket

as

shown

at

"A",

lllust.

31.

Use

a

torque

wrench

and

tighten

these

bolts

to a

setting

of

190

foot-pounds.

Note:

The

two

rear

bolts

must

be

installed

down

through

the

frame

with

nuts

on

the

bottom

of

the

reinforcing

plate.

2.

Bolt

the

wheel

with

tire

to

the

hub

on

the

furrow

axle.

3.

Attach

the

hydraulic

cylinder.

4.

Connect

the

hoses

to

the

cylinder

and

secure

them

in

the

clamp

at "B",

lllust.

31.

5.

Install

tie

rod

anchor

as

shown

in

lllust.

31.

6.

Connect

the

rear

steering

link to

the

axle

arm.

7.

Connect

the

tie

rod

as

shown

in

lllusts.

28A

and

31

for

5 furrow

plows.

For

6

furrow

plows

install

the

two

tie

rod

extension

straps

between

the

rear

of

the

tie

rod

and

the

tie

rod

anchor,

number

5,

shown

in

lllust.

31.

Tighten

only

until

the

main

frame

and

ex-

tension

are

aligned.

In

the

case

of

plows

without

a

frame

extension,

tighten

until

the

rod

is

tight.

Secure

with

jam

nut.

DO

NOT

OVERTIGHTEN!

GAUGE

WHEEL

1.

Bolt

the

gauge

wheel

bracket

to

the

main

frame.

Note

that

the

tie

rod

anchor

at."D",

lllust.

31 A will

be

secured

by

the

bolt

through

the

main

frame.

2.

Slide

the

standard

up

through

the

slot

in

the

bracket

and

secure

it

with

the

re-

taining

pin.

31

8"

tor

18"

plows

6"

for

16"

plows

MA

4J<XM

lust. 31

3.

Bolt the

gauge

wheel

to

the

hubs.

Be

sure

to

read

"GAUGE

WHEEL"

in

the

Adjust-

ing

and

Operating

Instructions.

»

lllust.

31A

SETTING

UP

AUTOMATIC RECOVERY

BEAMS

lllust. 32

1.

Push

the

lower

link into

the pivot

bracket on

the plow

frame. Secure

the

link

with

a

snap

ring

as

shown in the

insert.

2.

Connect

the

upper link to

the pivot

bracket with

the pin and

snap

ring.

5.

Insert

the

springs

into

the

tubes.

Be

sure

the

hooks

at

the

bottoms

of

the

springs

are

open

toward

the

rear as

shown

and

that

the

spring

link

sets

in

the

notch

in

the

front

of

the

lower

link

at "A".

6.

Insert

and

tighten

the

spring

bolts.

Use

a

torque

wrench

and

tighten

these

bolts

to a

setting

of

90

foot-pounds.

Now,

check

the

spring

hook

at

the

bottom

end of

the

spring

to

be

sure

the

hook

is

seated

in

the

bearing

groove.

Be

sure

to

lubricate

all

parts

prior

to

field

operation.

See

"LUBRICATION".

BOTTOMS AND

COLTERS

lllust.

32A

3.

Remove the

springs

from the tube as-

sembly by

loosening

the spring

bolts.

»

4.

Connect

the

tube

assembly to

the upper

link as

shown.

It will

be

necessary to

spread

the

tubes

apart

until

the studs can

be

assem-

bled into

the upper

link.

1.

Bolt

the landsides to

the bottoms

using

the

hardware found in the

landsides.

Torque

to 70

foot-pounds. Install the

special

rear

style landside,

which is

furnished, on

the

rear bottom.

See

"A".

32

SETTING

UP

BOTTOMS

AND

COLTERS

-

Continued

Reversible

replaceable

wear pad

lllust.

33

On

plows

equipped

with

eccentric

block,

be

sure

the

block

bears

tightly

against

the

top

of

the

landside.

See

"B".

Bolt

the

bottoms

to

the

beams,

to

200

foot-pounds.

Torque

The

upper

beam

bolt

should

be

installed

with

the

arrow

pointing

down.

Refer

to

"C"

2.

Automatic

Trip: Bolt

the

colter

rail

to

the

left

side

of

the

recover

beam

pivot

bracket.

Spring

Trip:

Bolt

the

colter

rail

between

the

trip

beam

side

plates

with

the

spacer

on

the

right

side.

The

spacer

should

be

in-

stalled

on

both

sides

of

the

front

bottom

for

"On-

The

-Land"

plows.

3.

Install

the

colter

clamp

and

cap.

Mul-

tiple

holes

in

the

colter

rails

provide

fore

and

aft

positions.

Use

the

front

position

for

20-inch

colters

as

shown.

For

17-inch

colters

use

the

rearward.

(The

auxiliary

colter

clamp

shown

is

optional

equipment).

Assemble

the

colter

shank

with

the

offset

extending

forward.

4.

Slide

the

colter

yoke

up

over

the

shank

with'the

set

collar

in

place

and

replace

the

cotter

in

the

end

of

the

shank.

5.

Tighten

the

set

screw

in

the

set

collar

so

the

colter

will

run

straight

and

at

the

same

time

be

free

to

swing

from

side

to

side

as

limited

by

the

set

collar.

Be

sure

to

read

"Spring

Trip

Beam

Op-

erating

Precautions"

and

"Rolling

Colter"

in

the

instructions

for

Adjusting

and

Oper-

ating.

33

SETTING UP

HYDRAULIC

CONNECTIONS

When

desired,

hydraulic

connections

from

the

tractor

to

the

rear furrow

wheel

cylinder

can be

made

utilizing

tubing

(or

equivalent). I

Musts.

34

and

35

show

the length

of

tubing

required

for the

various size

plows.

Be

sure

the tubing

is

clean!

The

part

numbers

and

lengths

of

hoses

required

at the

front

and

rear

of the

plow

are

listed.

Note:

When

a single

acting

cylinder

is

used,

be sure

to

remove

the

double

acting

check

block

from

the

tractor.

IN-THE-FURROW

OPERATION

Install

the

tubing

inside

of the

hollow,

diagonal

main

frame.

Do

not run

the

pipes

above

the

main

frame.

This

is

especially

important

on

plows

with

automatic

trip

beams

to

provide

clearance.

<^

Coupling

16—inch

bottoms

9-1/2 feet

12

feet

14 feet

Adapter*

Hose,

rear.

Cylinder

connection.

18—inch

bottoms

10-1/2 feet

13 feet

15-3/4 feet

4—

furrow

5—

furrow

6—

furrow

Adapter*

Hose, front.

Tractor connection.

Self-

Sealing

male

lllust.

34

In

furrow

shown.

*

-

An

adapter

(part

number

461 183

R91)

is

required

when

a

hose

with

"straight

threads"

is

connected

tc

1/2-inch

standard

pipe

threads.

SETTING

UP

HYDRAULIC

CONNECTIONS

-

Continued

ON-THE-LAND

OPERATION

m >

3

O.

—

O

35

OPTIONAL

EQUIPMENT

FRAME EXTENSION

ATTACHMENT

A-859<S8fl

lllust.

36

Note:

When

using the frame extension

attachment

to convert

a

5

-furrow to

6-

furrow plow,

be sure the pull beam and

crossbar are assembled

in the correct

po-

sition. See

pages

13 and

14

or

17 and

18

as appli-

cable.

Be sure to read "Bottoms

and

Colters", "Rear Furrow

Wheel" and "Gauge

Wheel" for detailed setting

up instructions.

1.

Bolt

the

bottom

to the extension trip

beam.

2. Remove

the

furrow wheel

assembly

with cylinder support from

the end of the

main diagonal member.

Bolt these parts to

the end of the

extension.

3. Bolt the splice plates with extension

to

the end of the

main

diagonal member.

Note

that these plates are "upper" and

"lower" and they must be assembled ex-

actly

as shown

in

lllust.

36.

4. Bolt the colter rail to the trip.

5. Install the gauge

wheel.

6. Bolt the steering pipe pivot arm

to

the

main diagonal

member

locating it

be-

tween the fourth and fifth

beams.

7. Connect the rear steering

pipe.

8. Install and adjust the colter shank

and

colter.

9.

Attach the hydraulic

cylinder.

36

TRASH

PLATES

Super

Chief

and

T F

Bottom

OPTIONAL

EQUIPMENT

Point

behind

mold

board

3/8

x 1

-1/2"

plow

bolts

o

Lug and

point

behind

moldboard

7/16x1-3/4" plow

boh'

lllust. 37

A-6931SA

Frog

A-69316*

lust.

37A

GAUGE

WHEEL

ADJUSTMENT

BAR

lllust.

37B

37

LUBRICATION

Always

lubricate

the plow

thoroughly

be-

fore

taking it

to the

field.

Use a

pressure

lubricating

gun.

Use

IH

251H

EP

grease

or

equivalent #2

multi-purpose

lithium

grease

for

lubrication

fittings

on

which

the

pressure

lubricating

gun

is used.

Always

force the

lubricant

through

the full

length

of each

bearing until

it

emerges

at the

end,

carrying

with it

the worn

lubricant

and

any

dirt that

may

have

entered

the

bearing.

Miscellaneous

working

parts

not

provided

with

lubrication

fittings

should

be

oiled daily

with a

good

grade of

lubricating oil.

Be

sure

all

fittings

are

free

from dirt

and

paint

so

the

lubricant is

certain to

enter

the

bearing.

Lubricant

is

cheap. Use

plenty

of it.

Worn

parts

can be

expensive to

replace.

^k Twice

Daily or

After Every

5

Hours

of

Operation

^^^

Daily

or After Every

10 Hours of Operation

Periodic or

Once per

Season

YOKE

COLTER SIDE

ARM

COLTER

(Cushion

Spring)

lust. 38

MA

54(K>A

lllust.

38A

38

LUBRICATION

IN-THE-FURROW

OPERATION

Paragraph

numbers

refer

to

corresponding

numbers

in

the

il-

lustrations

The

symbols

around

the

reference

numbers

indicate

the

intervals

of

lubrication.

Mlust.39

ln-the-furrow

operation

shown.

1.

Rolling

colter

bearings

(yoke

type)

(two

fittings

per

colter).

1. Hitch

pivot

(2 fittings).

2.

Rear

furrow

wheel

(6

fittings).

3. Steering

pipe

pivot

arm

(1

fitting).

4.

Automatic

Trip

Beam

(6

fittings

per

beam).

4A. Cushion

Spring

Sidearm

(1

fitting

per

colter).

5. Automatic

Trip

Beam

(5

places

per

beam).

6. Steering

link

pivot

points

(4

places).

Twice

Daily

or

After

Every

5

Hours

of

Operation

Use

a

pressure

lubricating

gun

and

apply

IH

25

1H

EP

grease

(or

equivalent

#2

multi-

purpose

lithium

grease)

sufficient

to

flush

out

the

old

grease

and

dirt.

Daily

or

After

Every

10

Hours

of

Operat

ion

Use

a

pressure

lubricating

gun

and

apply

IH

251H

EP

grease

(or

equivalent

#2

multi-

purpose

lithium

grease)

sufficient

to

flush

out

the

old

grease

and

dirt.

Use

oil

can.

13. Rear

furrow

wheel

bearing.

15.

Gauge

wheel

bearing.

16.

Rolling

colter

hub

bearing.

Periodic

or

Once

Per

Season

Remove,

clean

and

repack

this

bearing

by

hand

using

IH

25

IH

EP

grease

or

equivalent

#2

multi-purpose

lithium

grease.

39

LUBRICATION

ON-THE-LAND

OPERATION

Paragraph

numbers

refer to

corresponding

numbers in

the

il-

lustrations. The

symbols

around

the

reference

numbers indicate

the

intervals of

lubrication.

Twice Daily

or

After Every 5 Hours

of Operation

1.

Rolling

colter

bearings

(yoke type)

(two fittings

per

colter).

Use a

pressure lubricating

gun and apply

IH

251H

EP

grease

(or

equivalent

#2 multi-

purpose

lithium

grease) sufficient

to flush

out the old

grease and

dirt.

2.

Rear

furrow wheel

(6

fittings).

3.

Steering pipe

pivot

arm

(1

fitting).

4.

Automatic

Trip Beam

(6

fittings

per

beam).

4A.

Cushion

Spring

Side

Arm

(1

fitting

per colter).

5.

Automatic

Trip

Beam

(5

places

per beam).

6.

Steering pipe

pivot points

(4

places).

7.

Front

furrow axle

(2

fittings).

8.

Front

furrow axle

bracket

(1

fitting).

9.

Front furrow

wheel

housing

(4

fittings).

10. Hitch

pivot

(1

fitting).

11.

Hitch

pivot area

and bolt.

Daily

or

After

Every 10

Hours of

Operation

\

Use a

pressure

lubricating gun

and

apply

IH

251H EP grease

(or equivalent

#2 multi-

purpose lithium

grease) sufficient to

flush

out

the old grease

and dirt.

Use

oil can.

Use a

pressure

lubricating gun and apply

IH 251H EP

grease (or equivalent #2

multi-

purpose lithium grease) sufficient to

flush

out

the

old grease

and dirt.

Grease

or oil by

hand.

|

Periodic or

Once

per

Season

-

200

Hours of Operation

12.

Front

furrow axle cam.

13.

Rear

furrow

wheel

bearing.

14.

Front

furrow

wheel

bearing.

15.

Gauge

wheel.

16.

Rolling

colter

hub

bearing.

Grease or

oil by hand.

Remove, clean

and repack these bearings

by hand

using IH

251H EP

grease or equiv-

alent

#2 multi-purpose lithium grease.

40

LUBRICATION

AU

J40.'4

lllust.

41

lllust. 41A

41

"-

LUBRICATION

Note:

Special

attention is

to

be

given to

lubricating

the

plow

beam

lower

pivot

bearing

twice

daily

during

initial

break in

period.

m3^:

MA7I82A

lust. 42

42

SPECIFICATIONS

Tractor applications

Farmall

and International

or

any tractor

having

adequate

horsepower

and hydraulic

equipment.

Tractor hitch required

Three-Point

International 710 Operator's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
