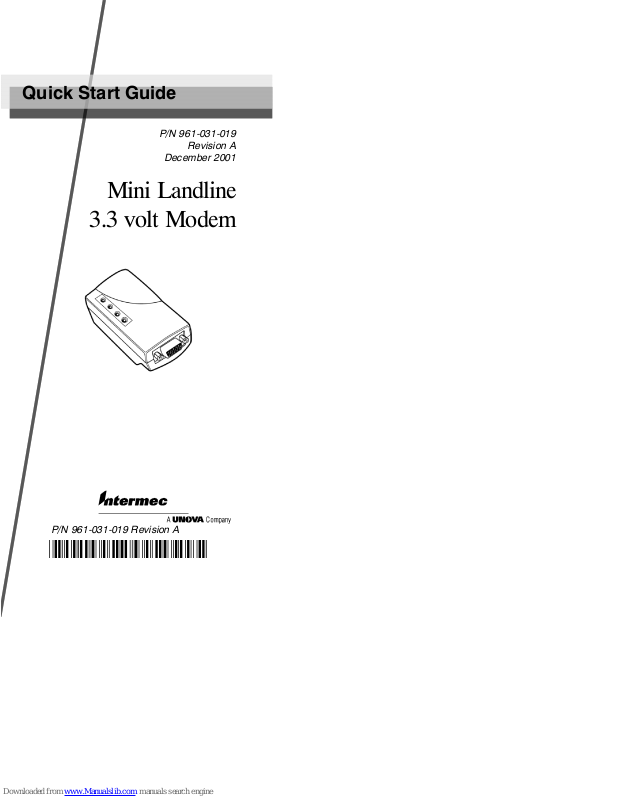

Quick Start Guide
P/N 961-031-019
December 2001
Mini Landline
3.3 volt Modem
Revision A
P/N 961-031-019 Revision A
*961031019*
Page 2
Mini Landline Modem Quick Start Guide
Packing List
Check to ensure that you receive these
items:
Mini Landline Modem
Data Communication Cable
AC Power Supply
(U.S. wallcharger shown)
2
Page 3
Mini Landline Modem Quick Start Guide
General Information
This kit allows you to connect your
Intermec Mobile Computer to any phone
line for conducting dial--up
communication sessions.
Using this mini landline modem requires
you to follow the connection instructions
and install and enable the modem
software in your mobile computer.
Here are some helpful guidelines:
Once you connect the modem and
"
data communication cable, leave
it connected.
Static electricity can damage
"
electronic devices. If you are
working in a high-static
environment, discharge your
body by touching a prominent
metal object prior to handling
the modem or other components.
Most Intermec DOS applications
"
can select the Mini Landline
Modem DOS string through
onboard software utilities. For
other applications, use the
following DOS string for TTY
communications.
AT&FEOV1QOX4WO&S1&C1&D2/QSO=O
The 3.3 volt modem (p/n:
"
854-037-004) does not require
the use of an external power
supply because it draws its
power from the 700 mobile
computer.
3
Page 4
Mini Landline Modem Quick Start Guide
If your 700 mobile computer is
"
low on power, or if you are
working with a 600 mobile
computer, you need to use the
external power s upply.
For connecting i nstructions refer
"
to the Power Supply to Modem
Connections section in this guide.
Connections
Modem to Mobile Computer
Tighten screws,
leave connected.
4
Page 5
Mini Landline Modem Quick Start Guide
Connections
Power Supply to Modem
The external power supply is for using
your modem with a 600 mobile computer
or if your 700 mobile computer is low on
battery power.
Shown below is the U.S. wallcharger type
power supply. Exported units (not shown)
have a power supply that requires a
plug-in AC cord specific to the country
where the modem is sold. Connect the
power supply as shown in this figure and
also connect the telephone cable.
"
NOTE:
Use only
the correct power
supply. Use of other supplies can damage your modem.
AC Wallcharger
Power Supply
Connect Wire to
Telephone Jack
Here
Connect
Here
5
Page 6
Mini Landline Modem Quick Start Guide
Country Identification
Country Identification Code 34 is the
default standard which works for most
countries. To change the country code, use
the following modem command string:
AT%T19,O,XX
(XX= country identification code, shown
below)
For the countries listed change the AT
command set to reflect the ID Code. Once
changed, the country code change
remains set to that specific country code
until you reset the command set.
Country ID Code
Hong Kong 30
Hungary 30
Indonesia 30
Japan 10
New Zealand 09
Poland 30
Singapore 30
Vietnam 30
6
