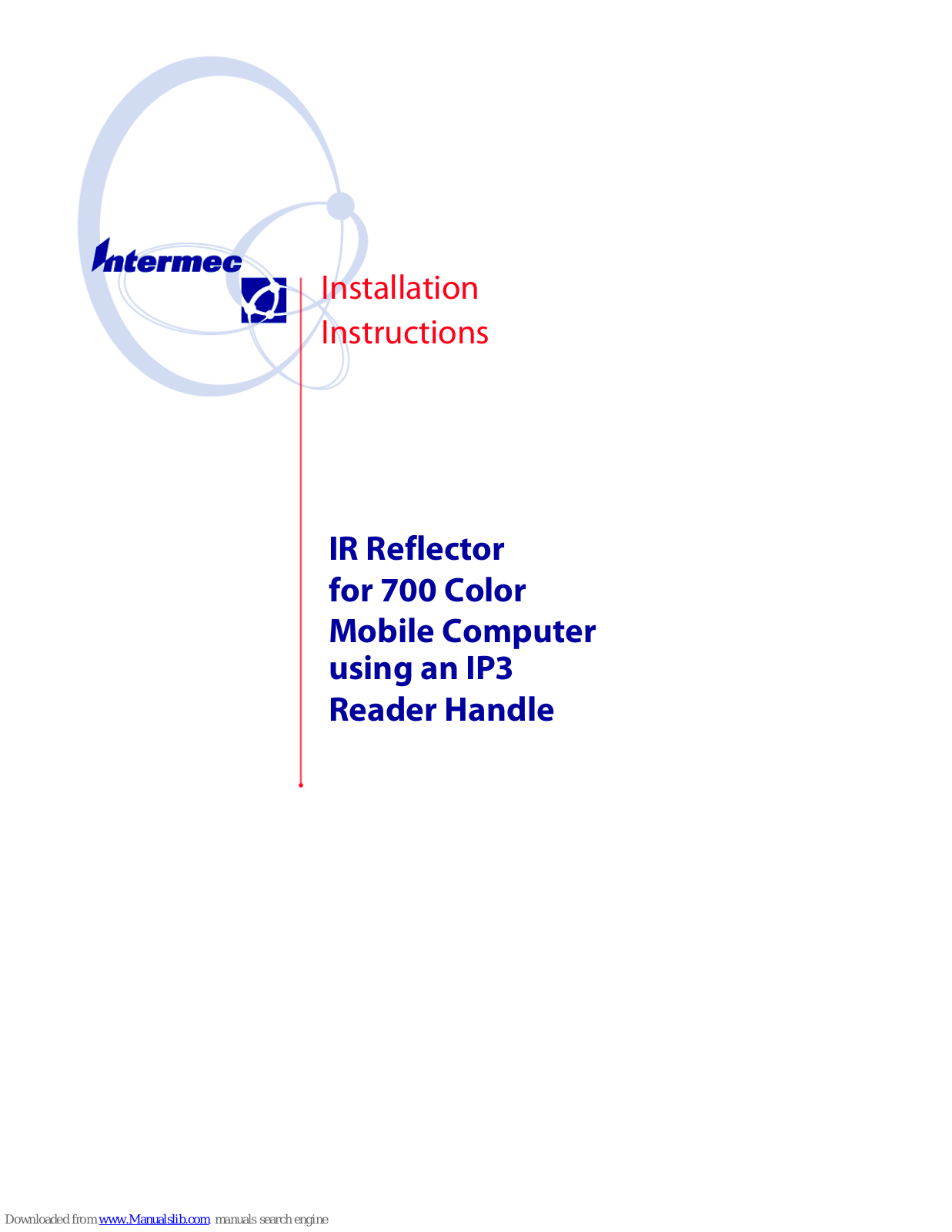

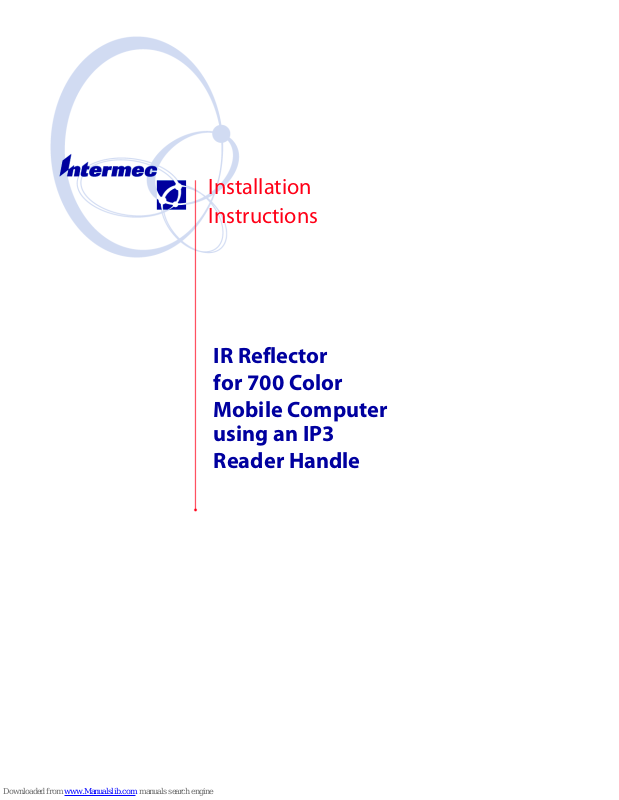

Installation
Instructions
IR Reflector
for 700 Color
Mobile Computer
using an IP3
Reader Handle
Page 2

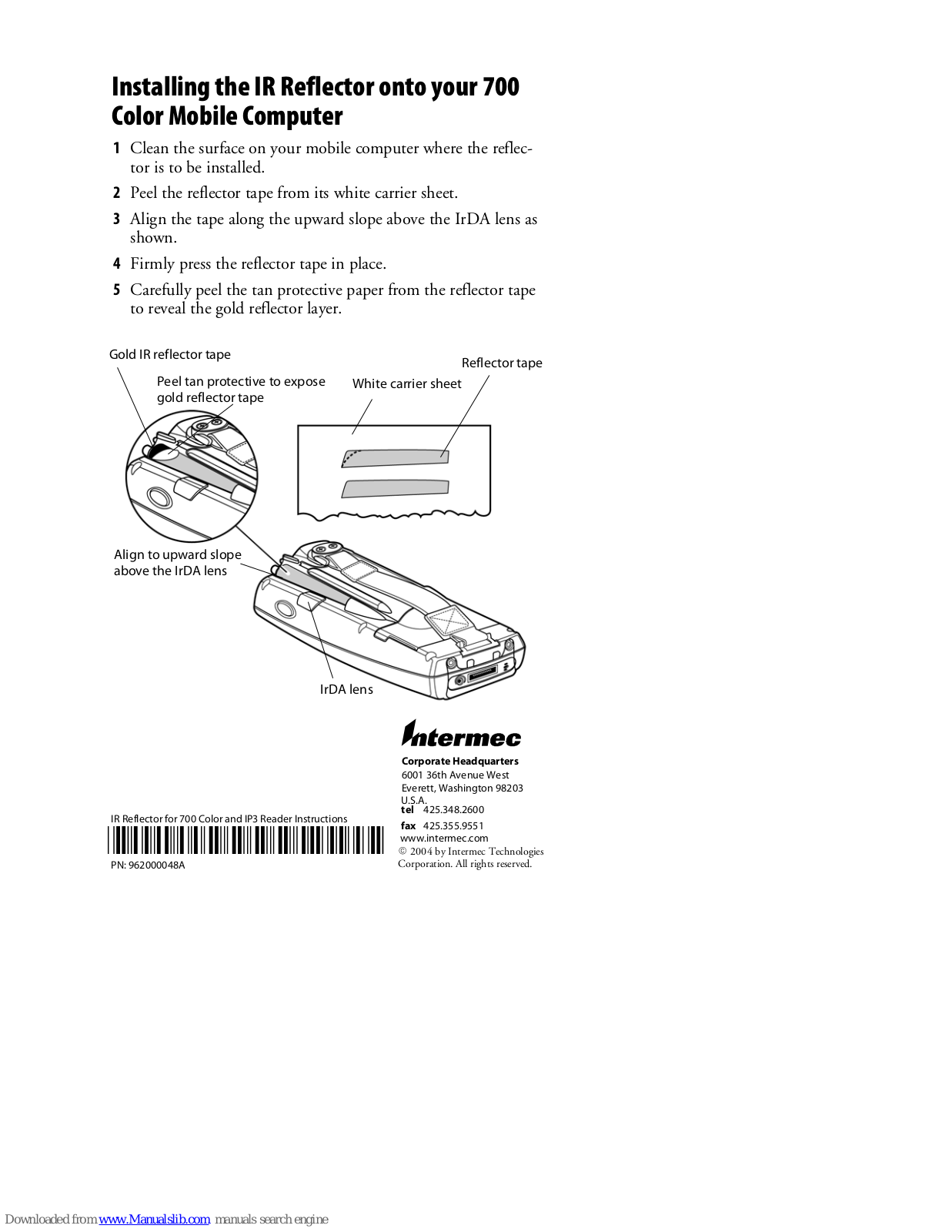

Installing the IR Reflector onto your 700
Color Mobile Computer
1 Clean the surface on your mobile computer where the reflec-
tor is to be installed.
2 Peel the reflector tape from its white carrier sheet.
3 Align the tape along the upward slope above the IrDA lens as
shown.
4 Firmly press the reflector tape in place.
5 Carefully peel the tan protective paper from the reflector tape
to reveal the gold reflector layer.
Gold IR reflector tape
Peel tan protective to expose
gold reflector tape
Align to upward slope
above the IrDA lens
IRReflectorfor700ColorandIP3 ReaderInstructions
White carrier sheet
IrDA lens
*962000048A*
PN: 962000048A
Reflector tape
Corporate Headquarters
6001 36th Avenue West
Everett, Washington98203
U.S.A.
tel 425.348.2600
fax 425.355.9551
www.intermec.com
E 2004 by Intermec Technologies
Corporation. All rights reserved.
